22 Terms

1
New cards

Lat skull for sinuses views which sinuses?

what should be parallel to Bucky?

Centering

Ethmoid, sphenoid, frontal (paranasal) sinuses

IOML

.5 to 1” posterior to canthus - corner of “I”

<p>Ethmoid, sphenoid, frontal (paranasal) sinuses</p><p></p><p>IOML</p><p></p><p>.5 to 1” posterior to canthus - corner of “I”</p>
2
New cards

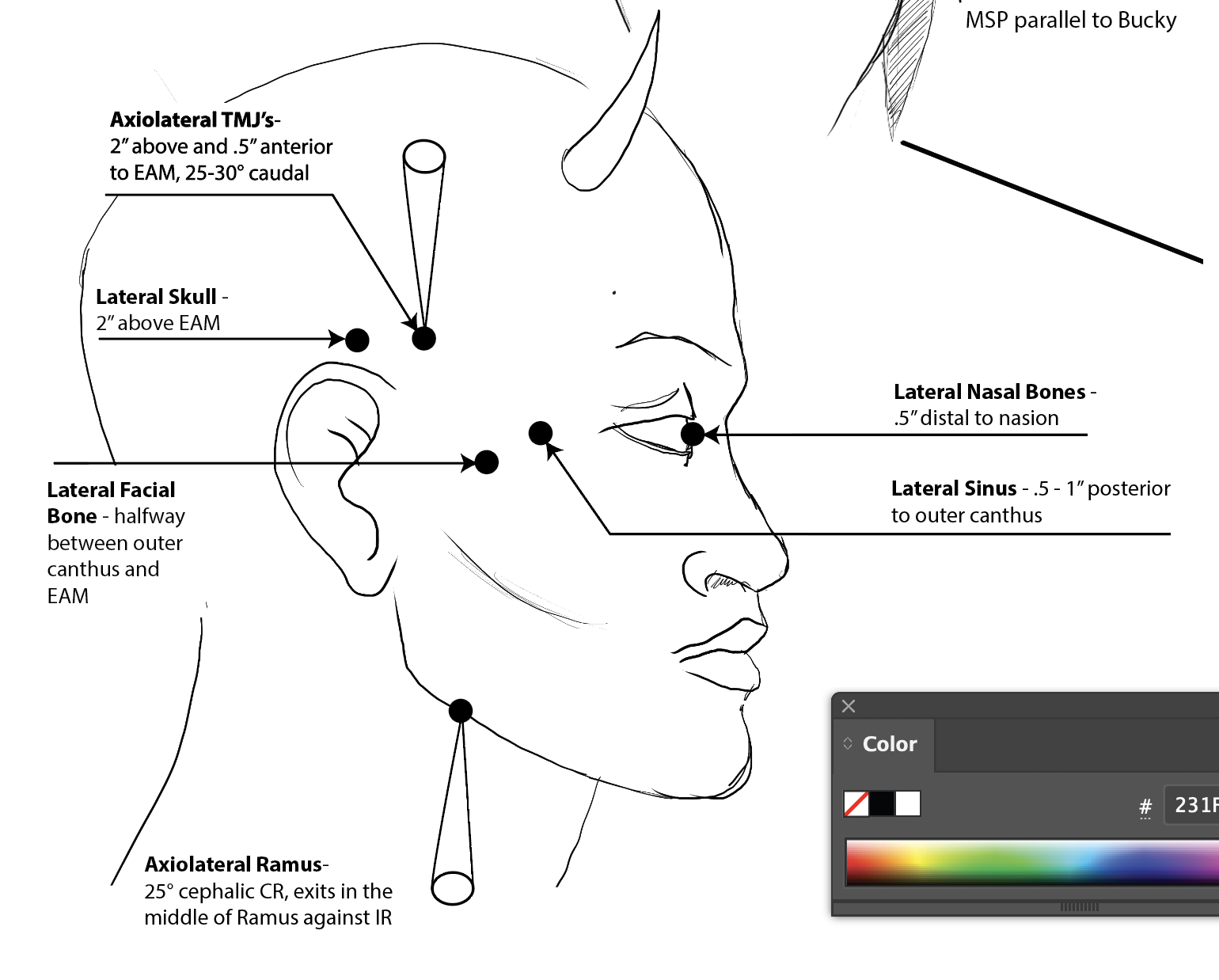

Lat skull projection

where is CR centered?

2” above external auditory meatus

<p></p><p>2” above external auditory meatus</p>
3
New cards

Lat nasal bone

Cr centered to

.5” distal to nasion

<p></p><p></p><p>.5” distal to nasion</p>
4
New cards

What should be seen in any lat skull projection (3)

ant and pos clinoid processes

supraorbital margins and wings of sphenoid superimped

superimped cranial and facial structures

<p>ant and pos clinoid processes</p><p>supraorbital margins and wings of sphenoid superimped</p><p>superimped cranial and facial structures</p>
5
New cards

Lat face bones

CR?

halfway between outer canthus and EAM

<p>halfway between outer canthus and EAM</p>
6
New cards

AxioLATeral Ramus

CR

25° cephalic, enters ramus at Area of interest (ROI)

<p>25° cephalic, enters ramus at Area of interest (ROI)</p>
7
New cards

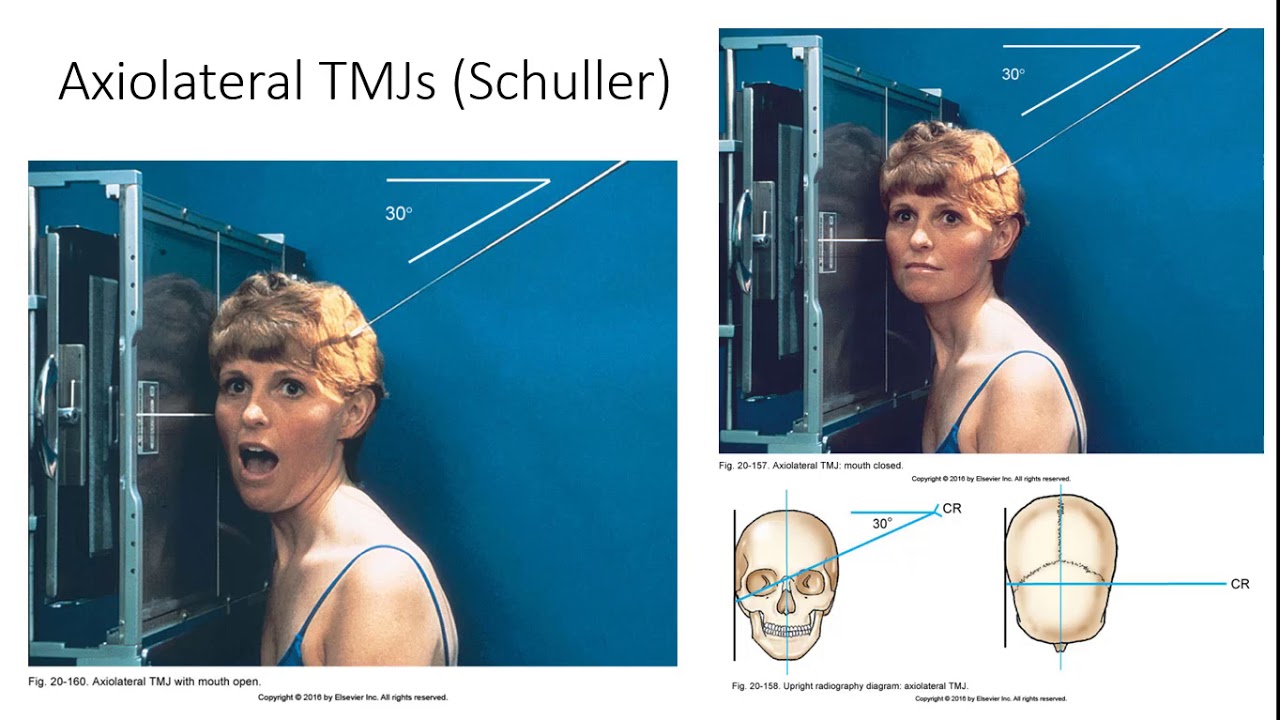

Axiolateral TMJ’s

CR

25-30° caudal thru 2” above and ‘5” anterior to EAM

<p>25-30° caudal thru 2” above and ‘5” anterior to EAM</p><p></p>
8
New cards

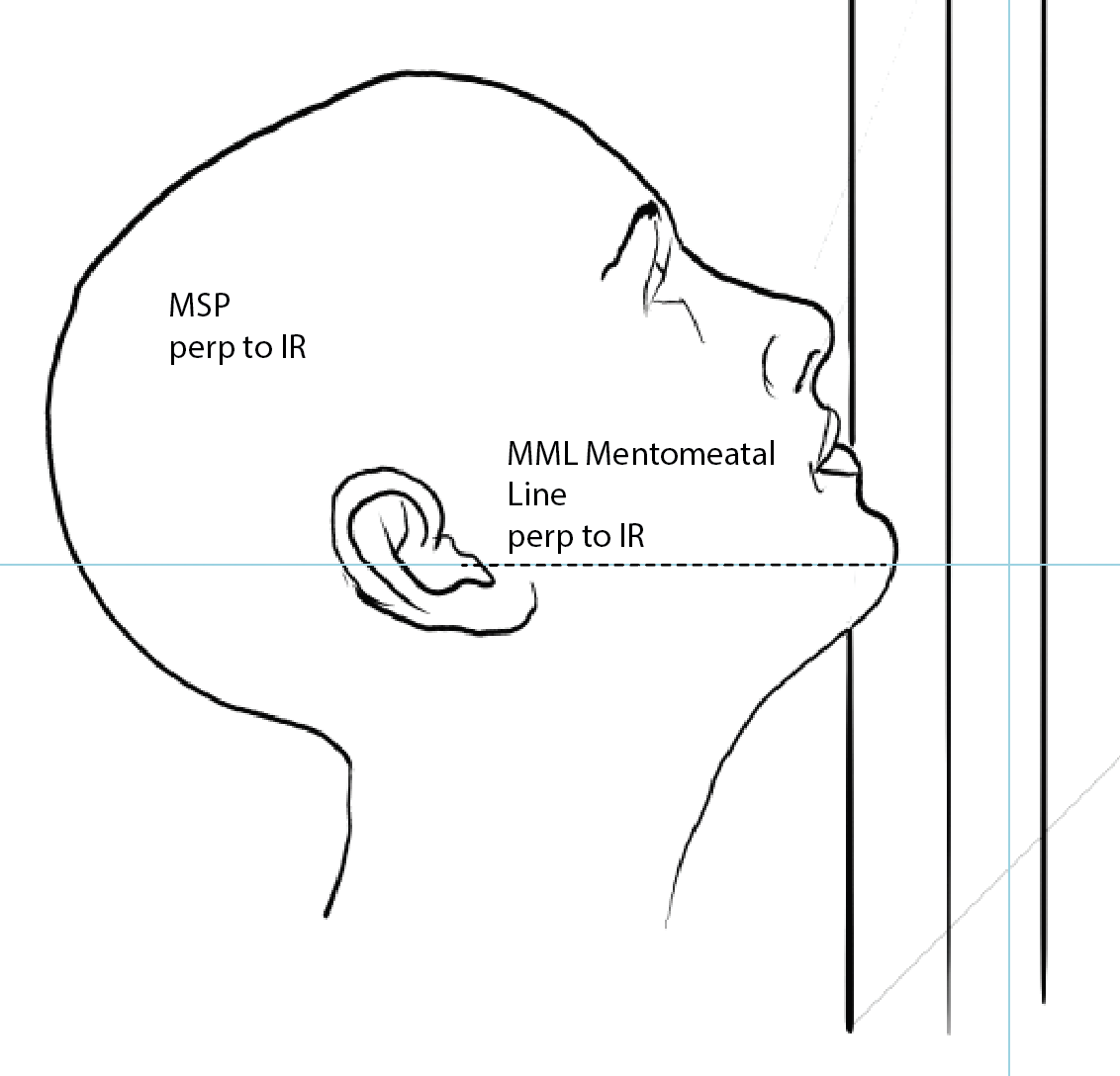

Waters Position

what is perp to IR?

where is pt’s face?

Mento Meatal line (eam to chin)

facing bucky

<p>Mento Meatal line (eam to chin)</p><p></p><p>facing bucky</p>
9
New cards

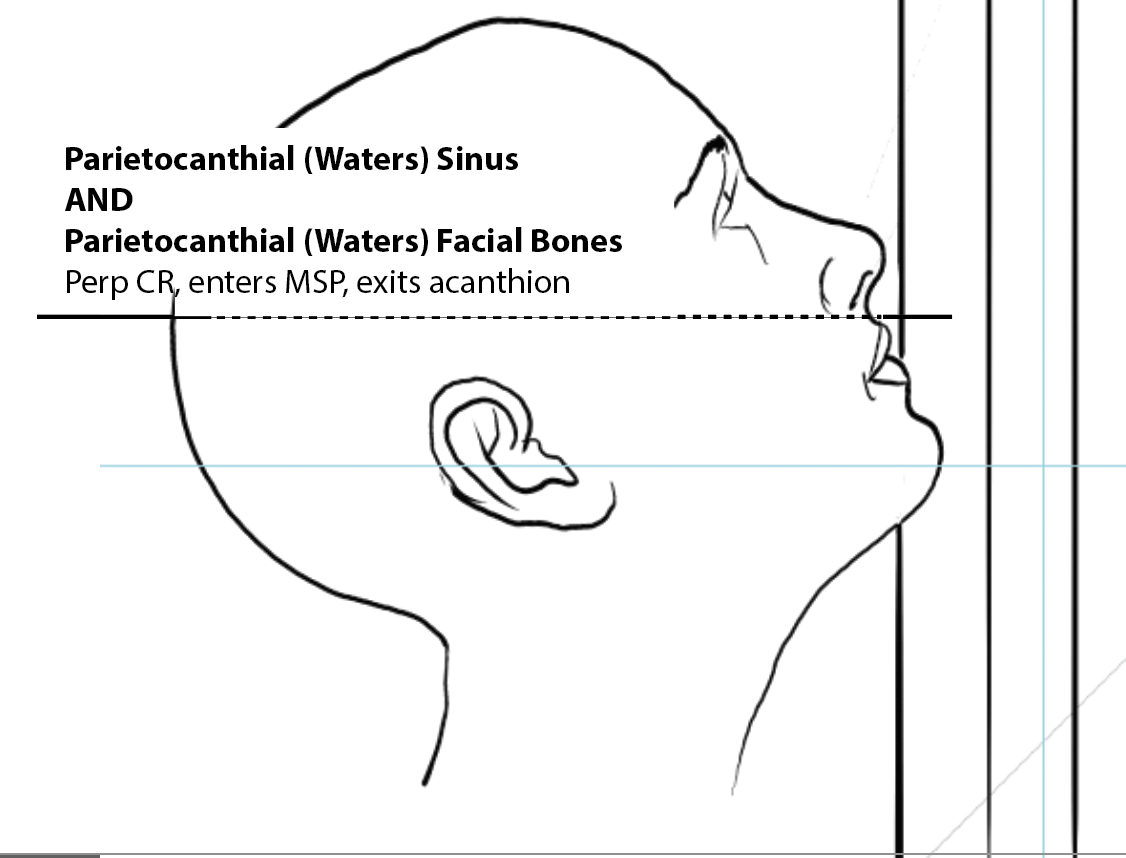

Parietocanthial Waters Sinus and Face bones

CR enters/exits

exits acanthion

<p>exits acanthion</p>
10
New cards

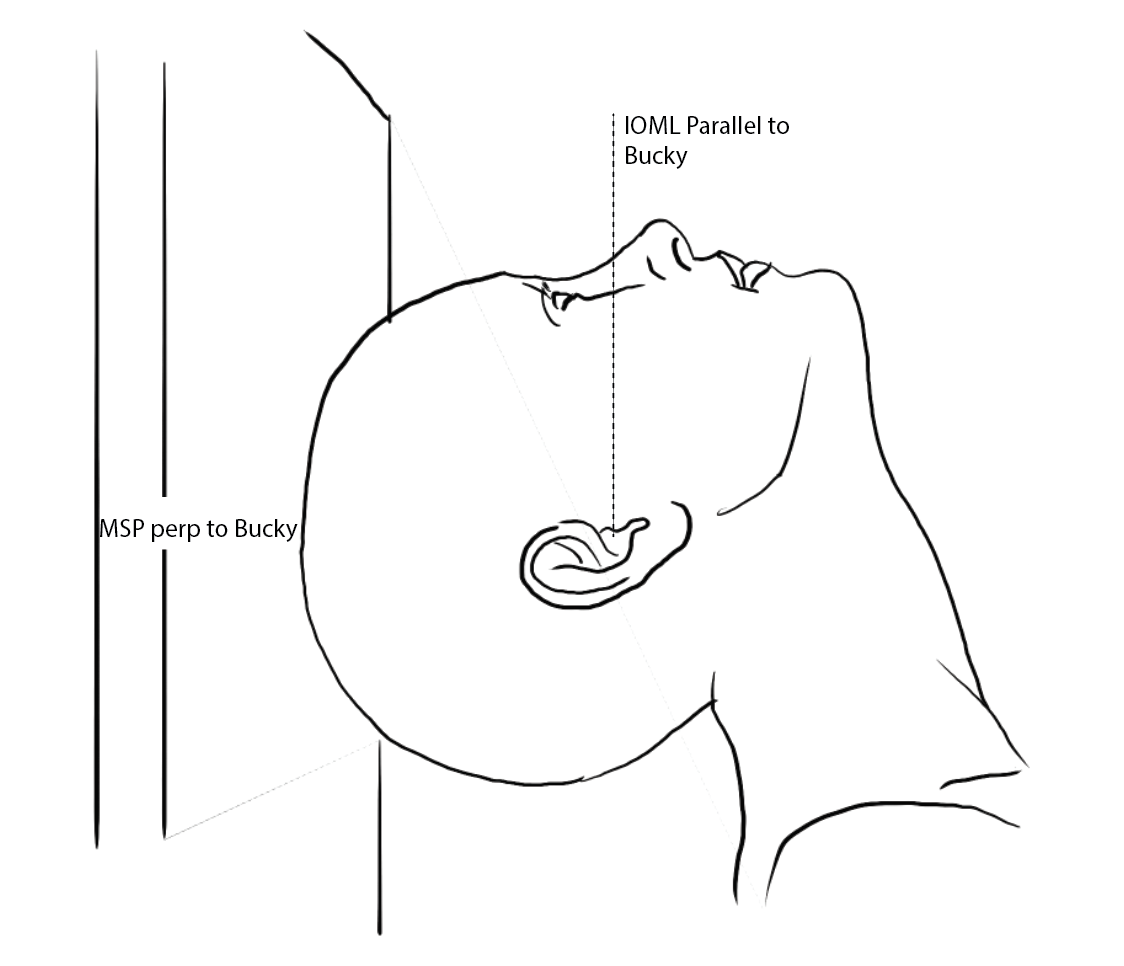

Submentovertical Schuller Method

what is perp/parallel to bucky?

MSP, IOML parallel to bucky, pt is looking straight up

<p>MSP, IOML parallel to bucky, pt is looking straight up</p>
11
New cards

where does CR enter for all SMV projections

between angles of mandibles

12
New cards

Towne’s position

What is perp to bucky? Where is pt’s face

OML, facing away from bucky

<p>OML, facing away from bucky</p>
13
New cards

AP axial skull, Towne’s

what is angle and entrance of CR

AP ax TMJ’s

what is angle and entrance of CR

30° caudal entering 2-2.5” above glabella

35° caudal going thru TMJ’s

<p>30° caudal entering 2-2.5” above glabella</p><p></p><p>35° caudal going thru TMJ’s</p><p></p>
14
New cards

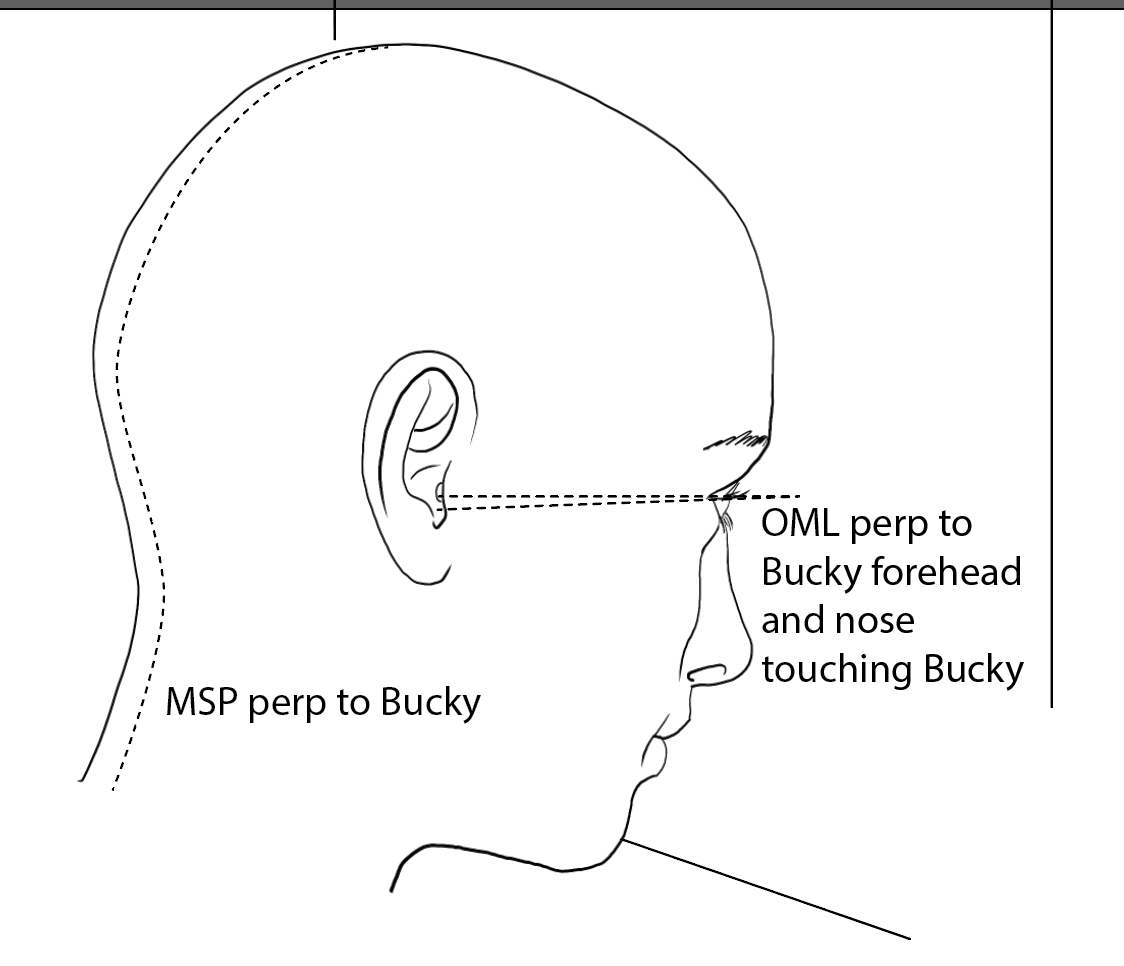

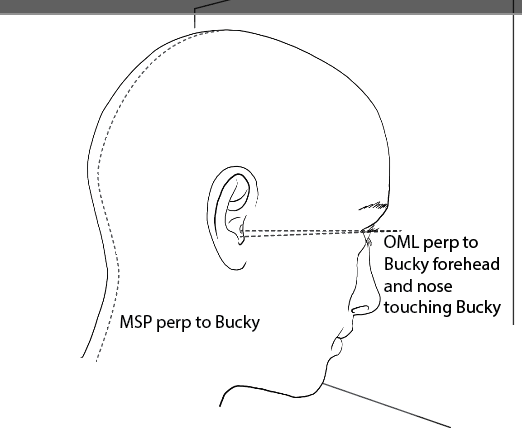

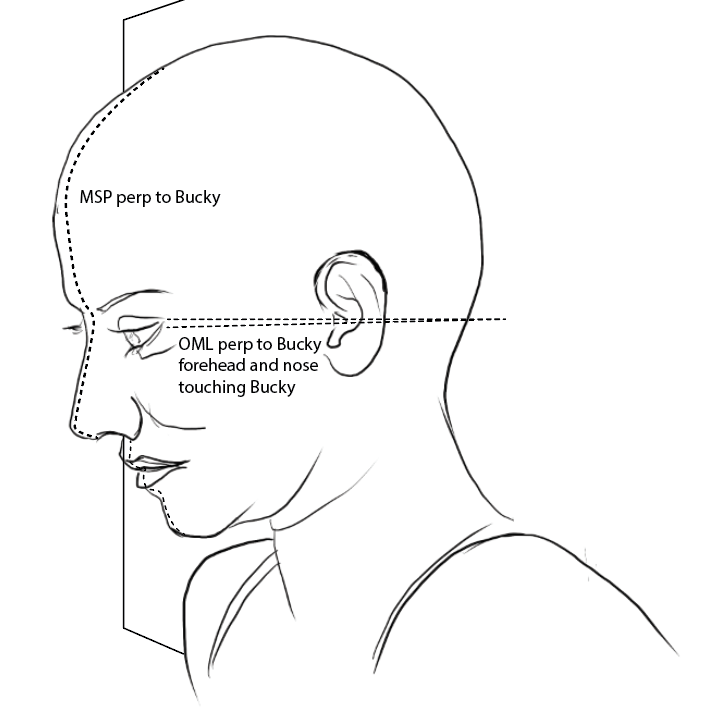

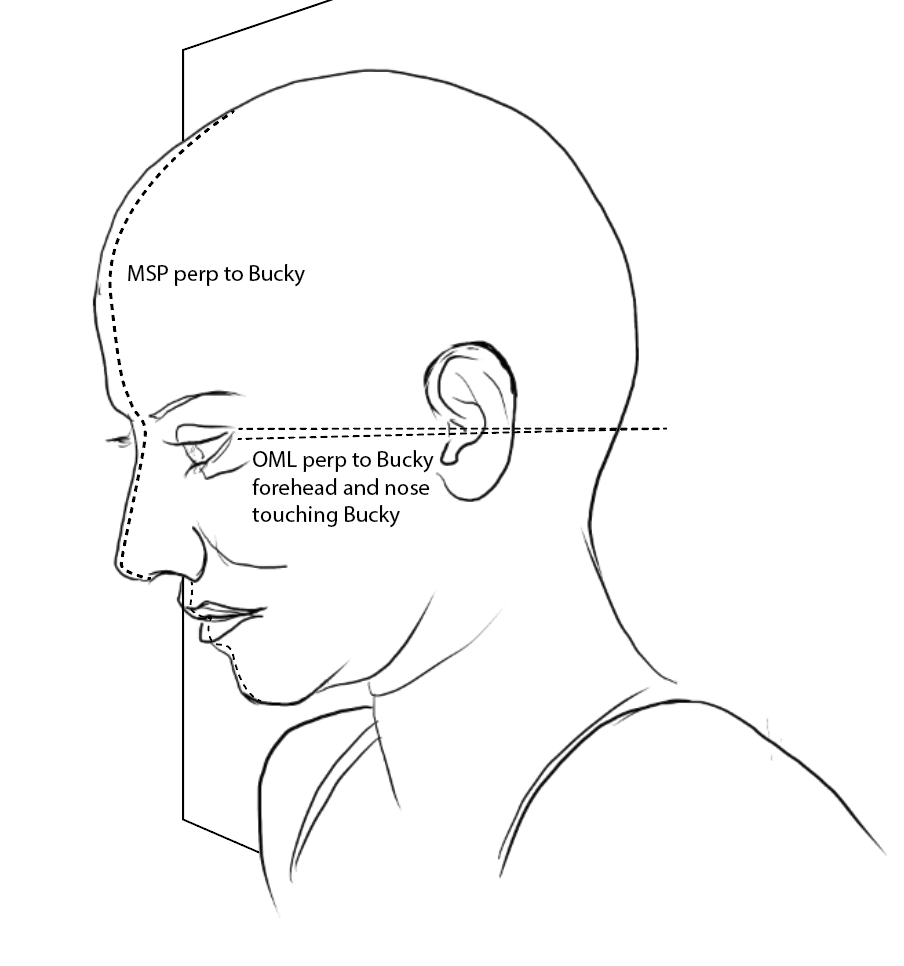

caldwell position

positoning and CR

facing bucky

OML perp to Bucky, nose and forehead touching

<p>facing bucky</p><p></p><p>OML perp to Bucky, nose and forehead touching</p>
15
New cards

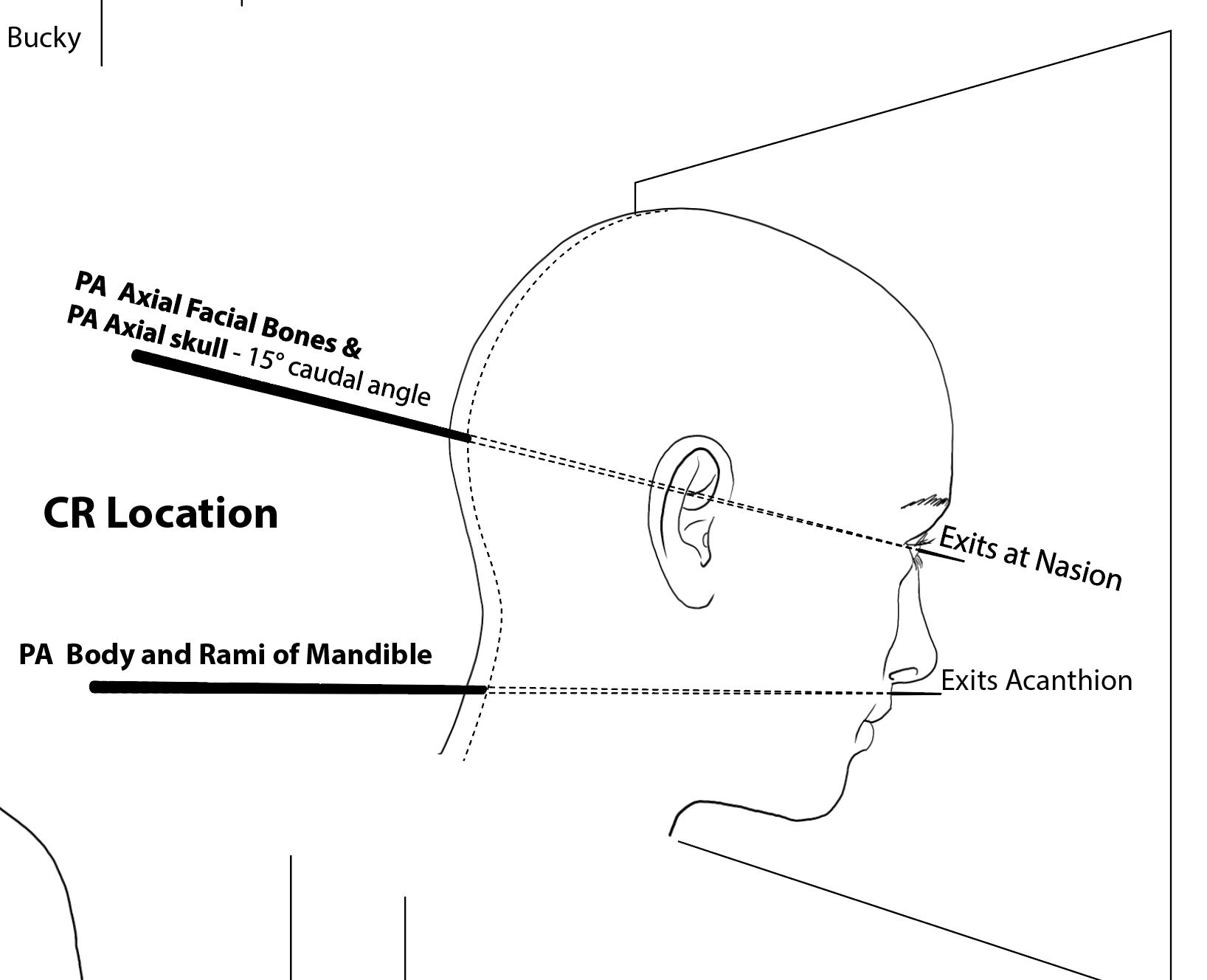

Pa axial Caldwell skull and facial bones CR angle and entrance

Pa sinuses Caldwell mod CR angle and entrance

15° caudal exits nasion

OML 15° cephalic , exits nasion

<p>15°&nbsp;caudal exits nasion</p><p>OML 15° cephalic , exits nasion</p>
16
New cards

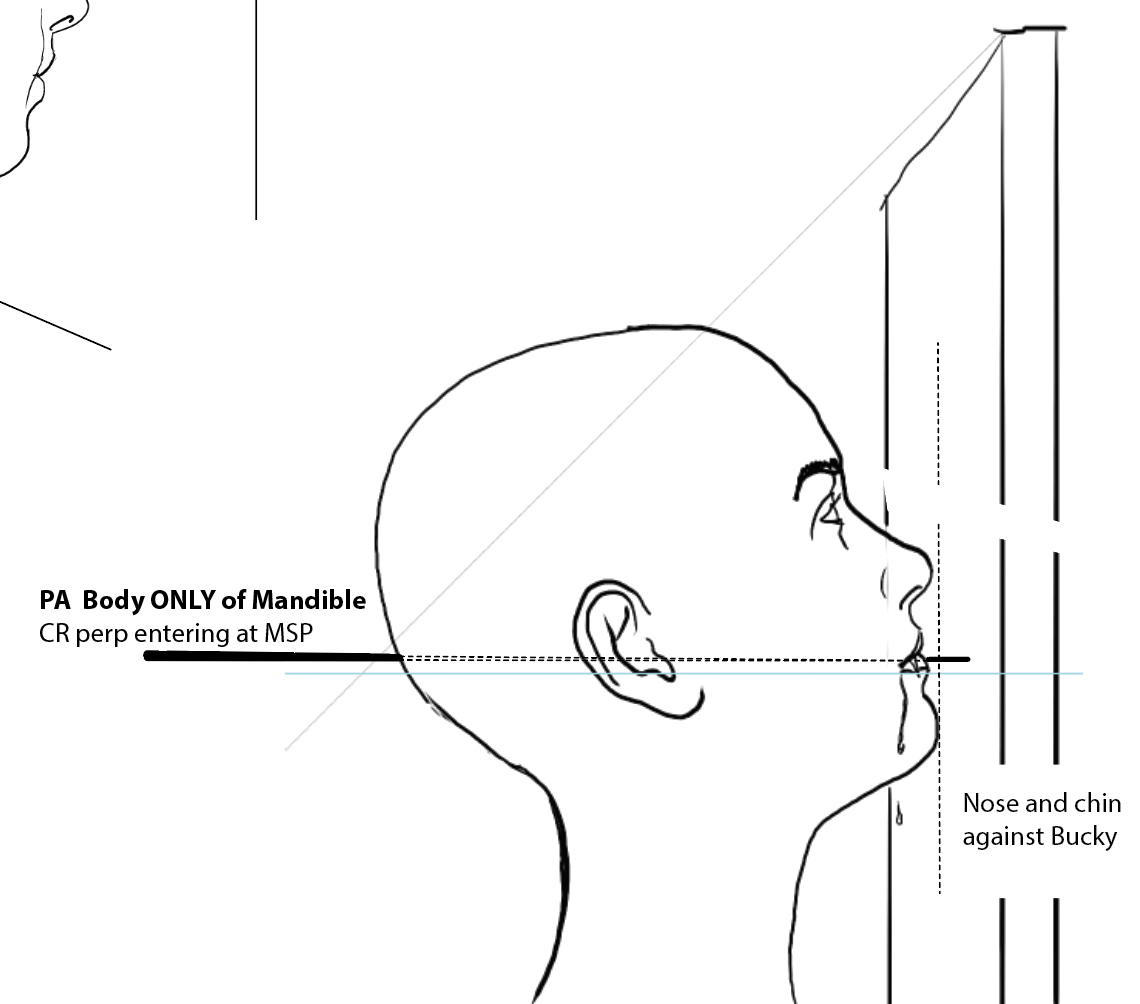

what does modded caldwell for body of mandibles positioning look like?

nose and chin on bucky, perp CR exits lips

<p>nose and chin on bucky, perp CR exits lips</p>
17
New cards
<p>what position is this?</p>

what position is this?

waters

18
New cards
<p>what position is this?</p>

what position is this?

townes

19
New cards
<p>what position is this?</p>

what position is this?

caldwell

20
New cards
<p>what position is this?</p>

what position is this?

smv schuller

21
New cards

air fluid in sinus means basal_____ ______

skull fracture

22
New cards

multiple myeloma should use higher or lower kVp to avoid overpenetrating _______lesions

lower, lytic
