10 Terms

1
New cards

Relation

Subset that defines relations between elements between A and B

R is a subset of A x B

2
New cards

Thm #1

If R is a non=empty relation, R cannot be both reflexive and irreflexive

3
New cards

If R is a subset of A², Then R is Asymmetric if and only if R is antisymmetric and irreflexive

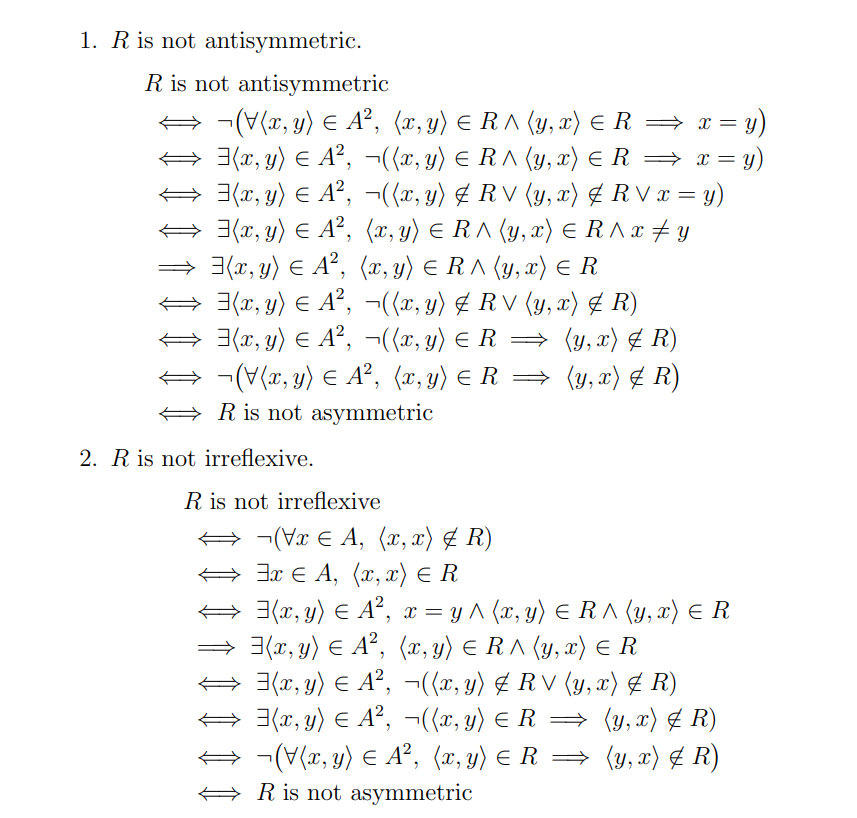

Proof with Antisymmetric First

<p>Proof with Antisymmetric First</p>
4
New cards

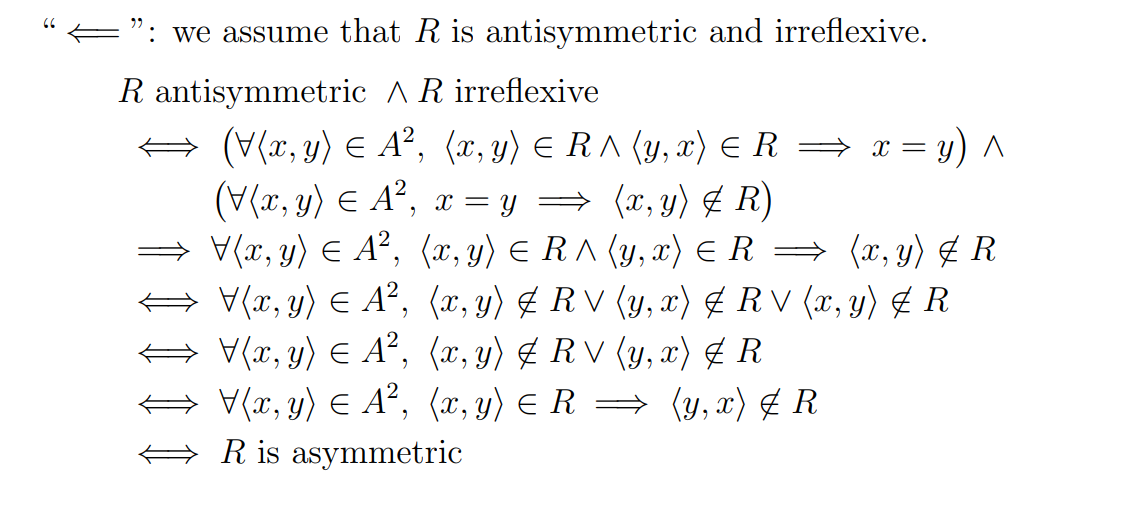

Proof going the other direction

knowt flashcard image
5
New cards

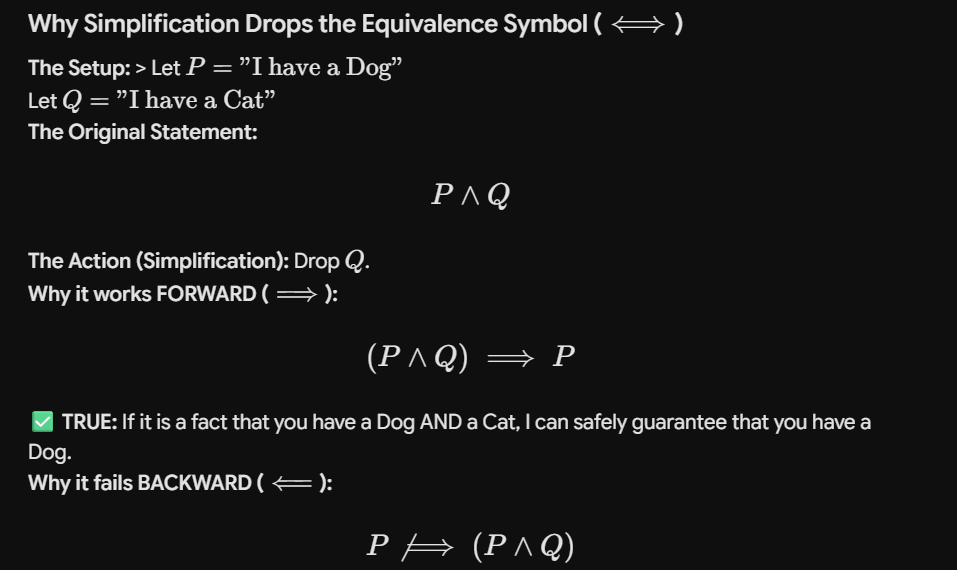

Simplification

When you destroy information, you drop the associativity symbol

<p>When you destroy information, you drop the associativity symbol</p>
6
New cards

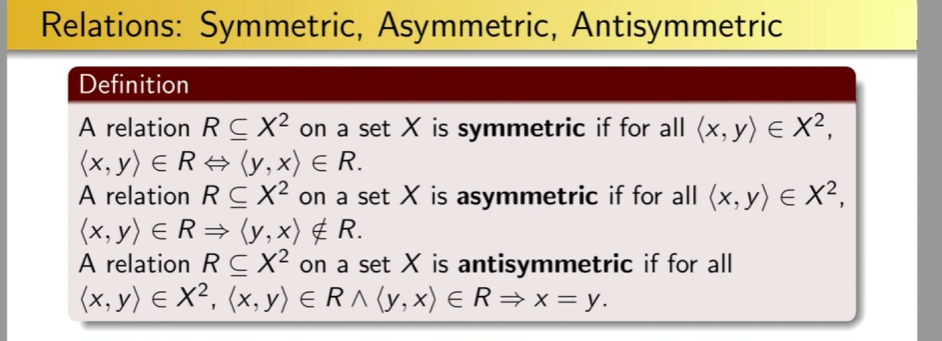

Rules #1

knowt flashcard image
7
New cards

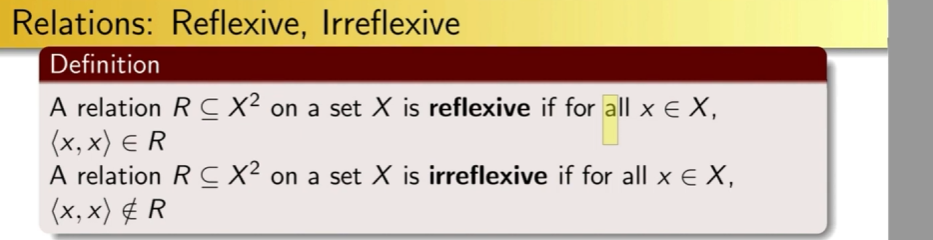

Rules #2

knowt flashcard image
8
New cards

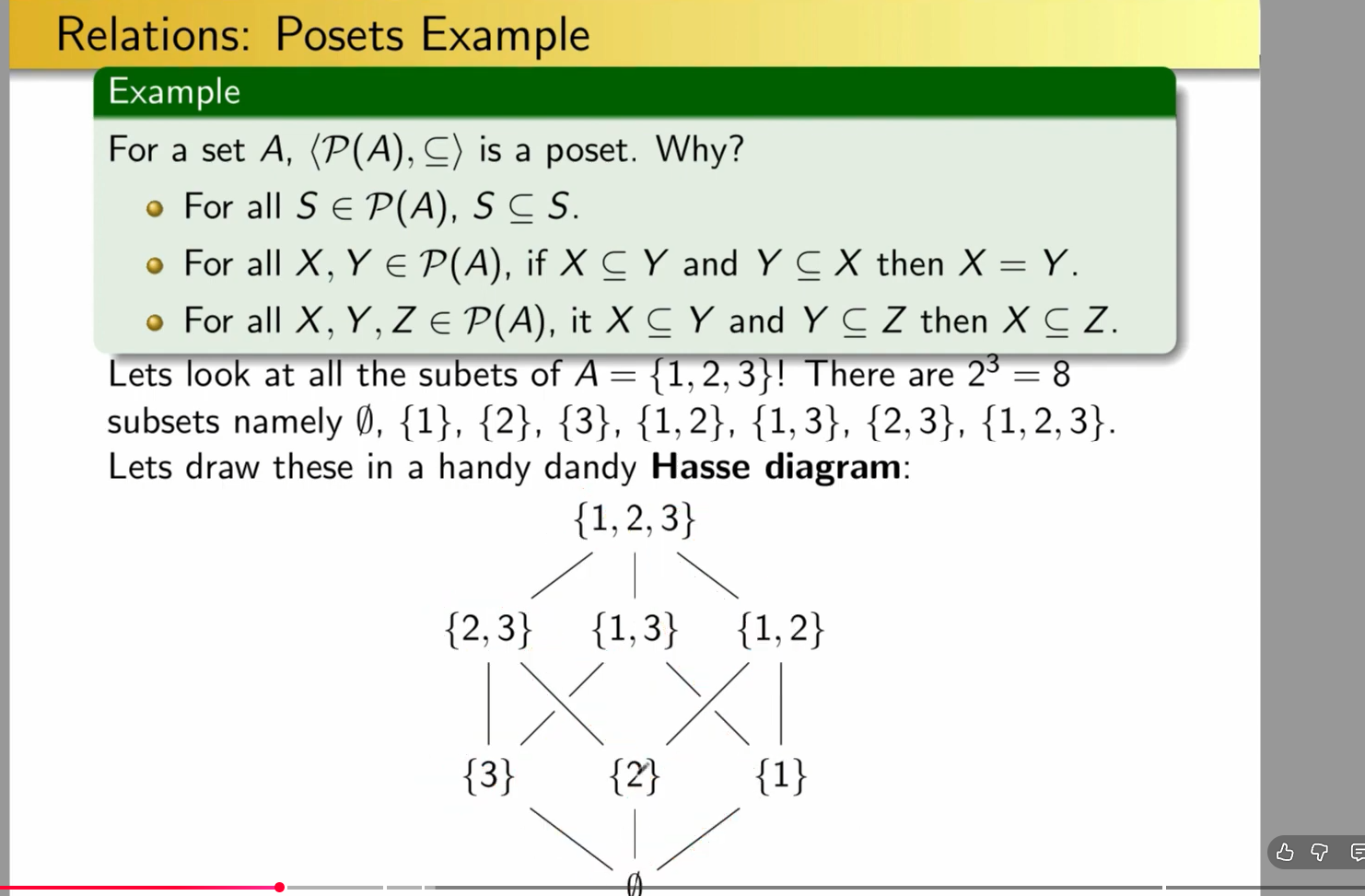

Example of Transitivity

knowt flashcard image
9
New cards

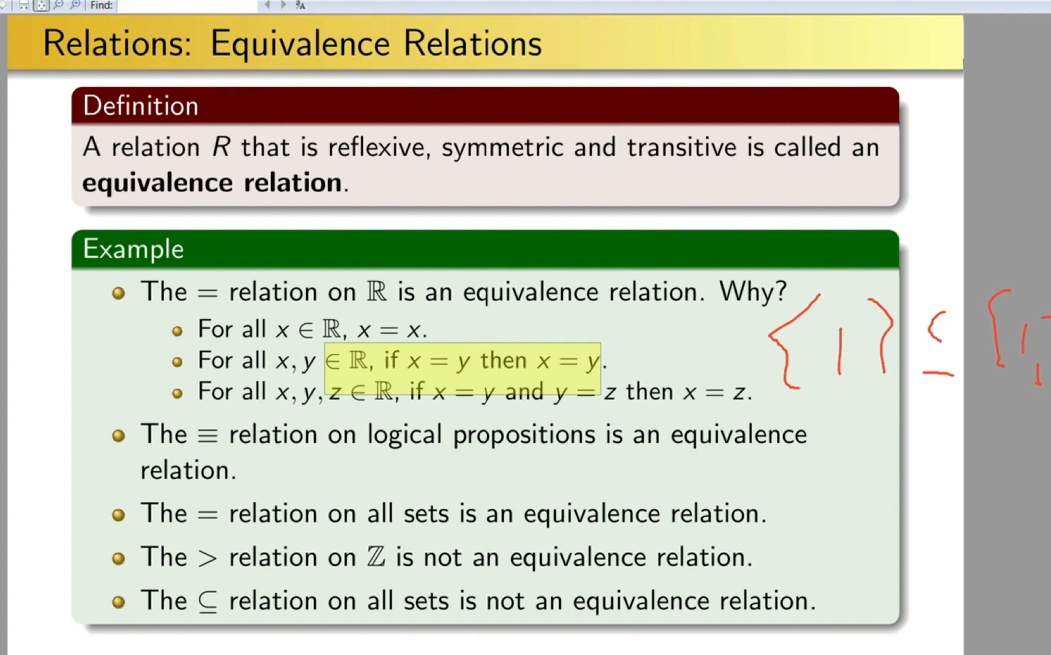

Equivalence Relation

knowt flashcard image
10
New cards

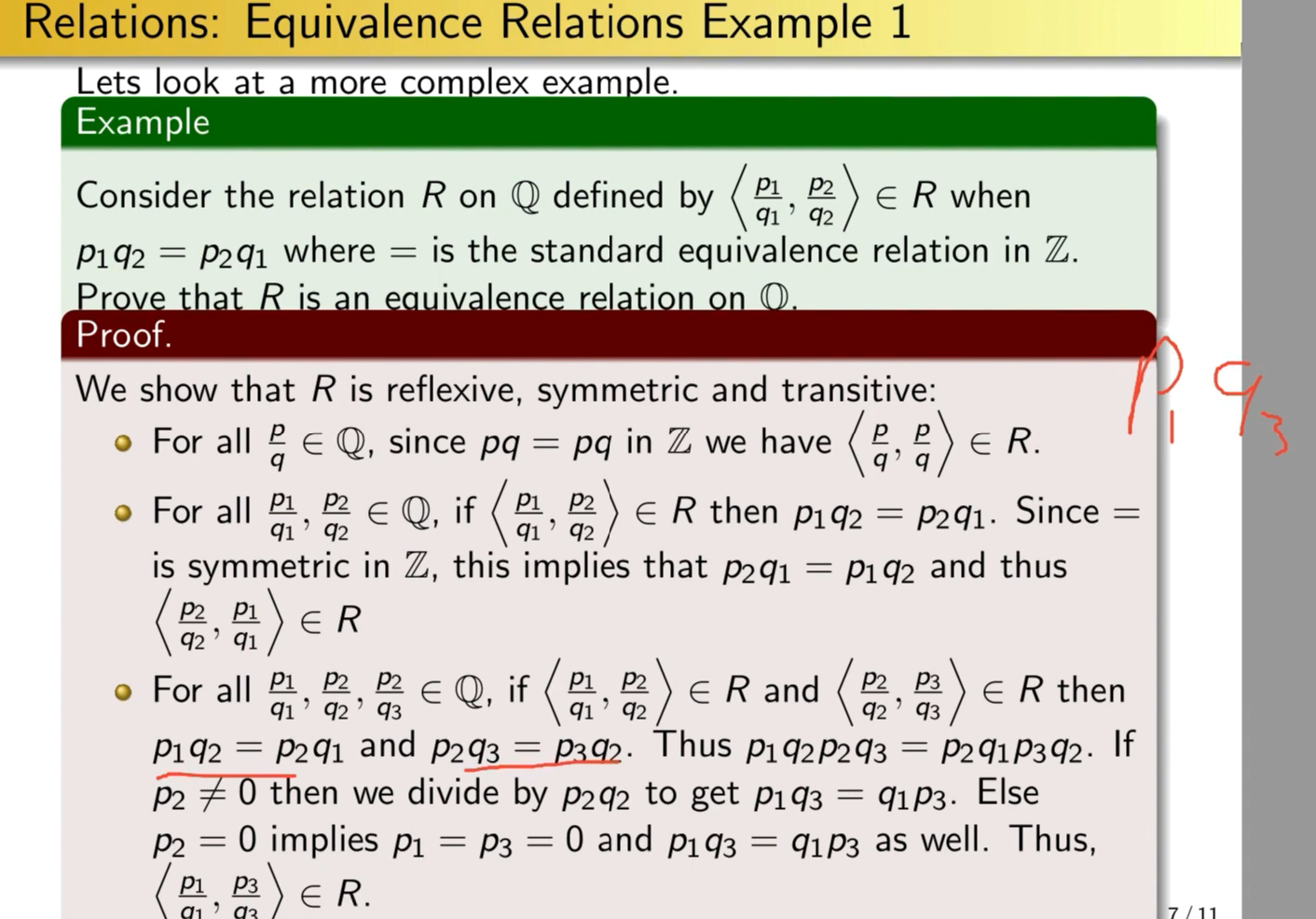

When doing these proofs, assume the first part (the IF statement part is true) then prove the second part (After the “THEN” statement)

<p>When doing these proofs, assume the first part (the IF statement part is true) then prove the second part (After the “THEN” statement)</p>
