12 Terms

1
New cards

Substance that makes markings more clear

Engineer’s Blue

2
New cards

Datum edges

Two right angled edges to be used for measurements

3
New cards

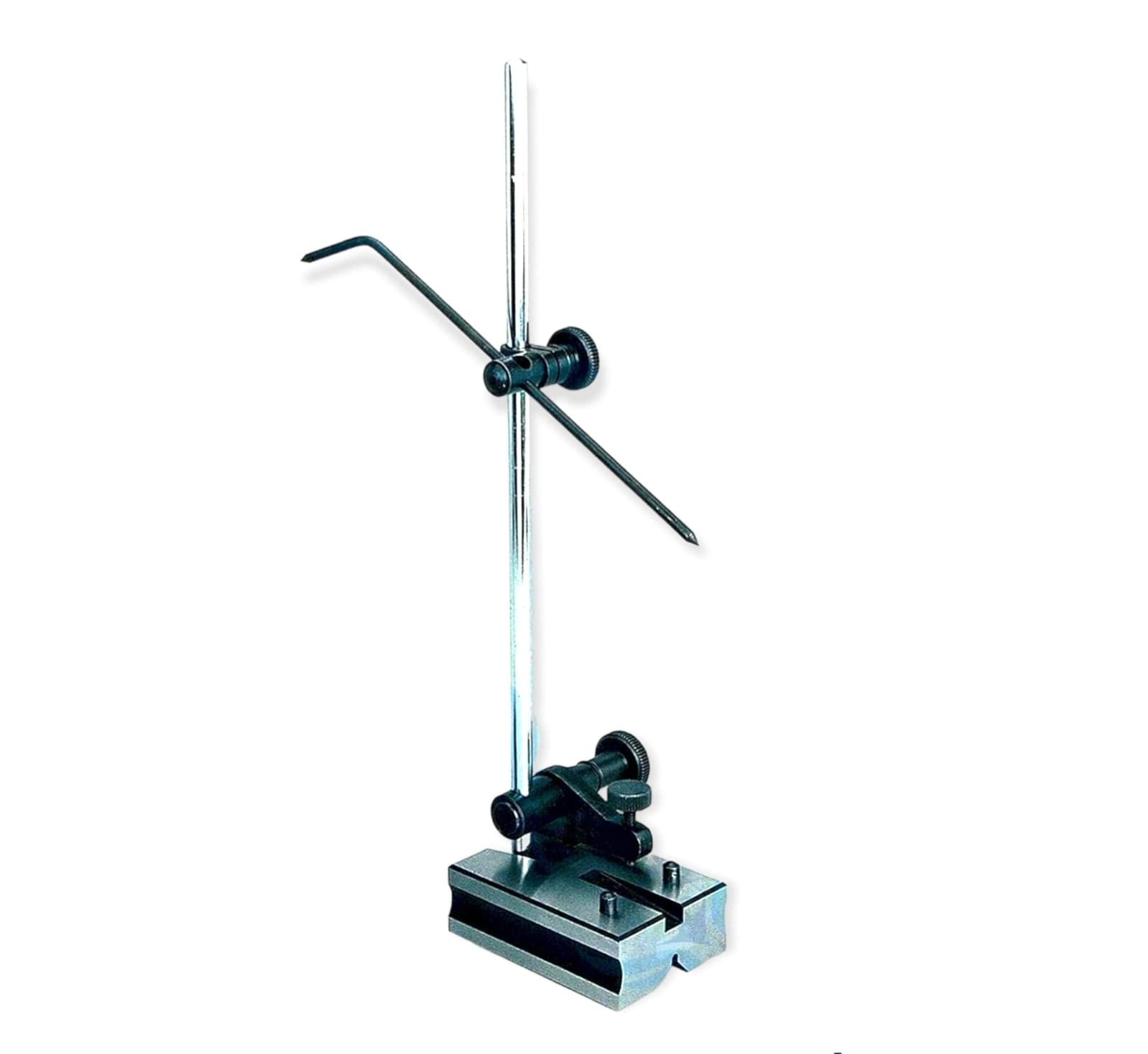

<p>Image_</p>

Image_

Scribing block

4
New cards

Scribing block uses

Holds a scriber for scratching lines parallel to a surface

5
New cards

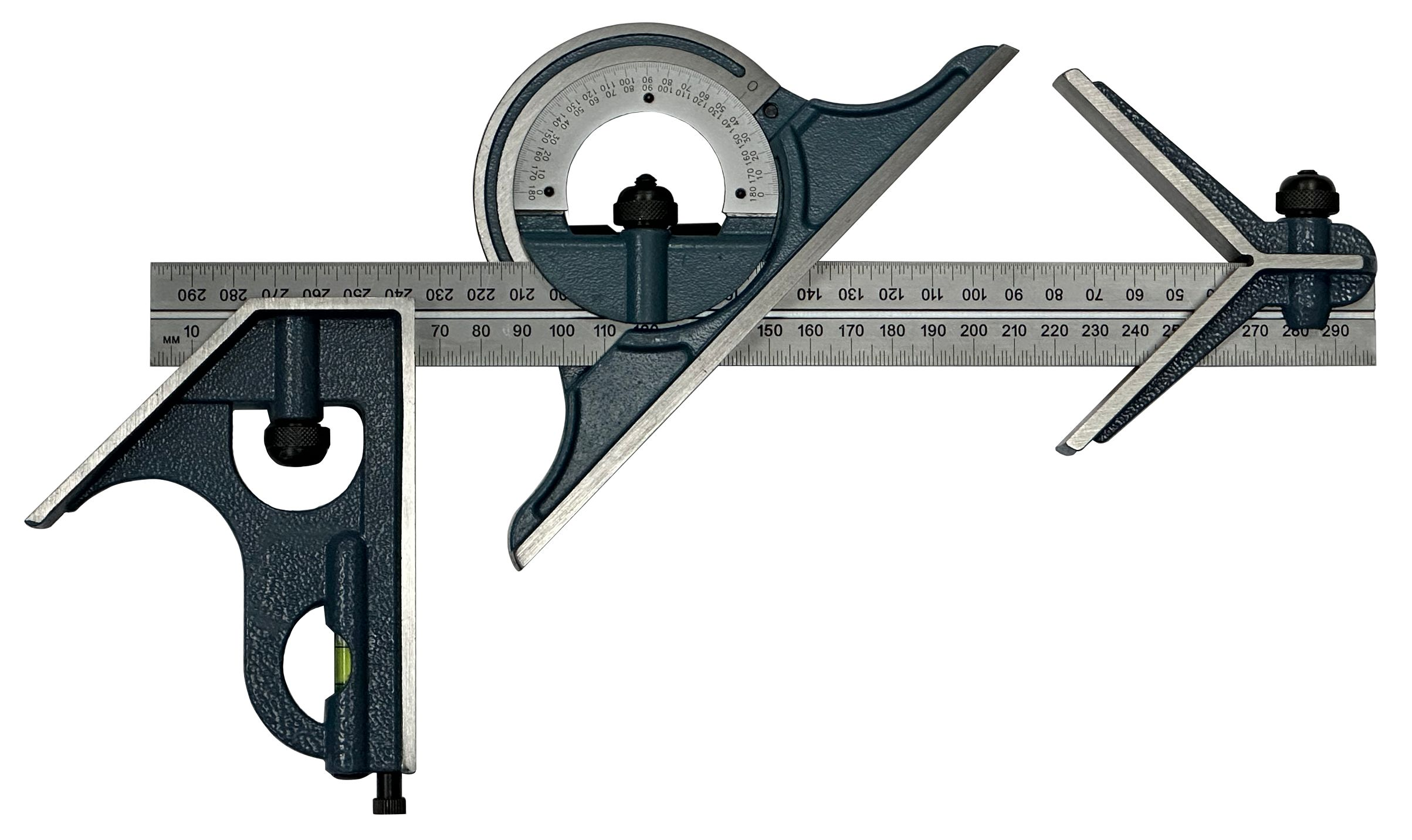

<p>Image_</p>

Image_

Combination square

6
New cards

Combination square function

Centre square to find the centre if a disc

Angle head to draw a line at an angle

7
New cards

Hacksaw Coarse blade

14 or 18 TPI for thick metal

8
New cards

Hacksaw medium blade

24 TPI for general work

9
New cards

Hacksaw fine blade

32 TPI for thin metal

10
New cards

When to use different blades

When the tooth blade is larger than the metal

11
New cards

When to us tension file

when cutting curves

12
New cards

When the triangular file

To create a groove in the metal to keep the blade from sliding
