measurements in PLAX-LV veiw in end diastole

normal value for RVd

Male: 2.0-3.0 female: 2.0-3.0

Where to measure RVd

Inner edge to inner edge

Formal value for IVSd

male: .6-1.0cm female: .6-.9

Where to measure IVSd

Tissue interface past MV

normal value for LVID

Male: 4.2-5.8cm female: 3.8-5.2cm

Where to measure LVID

Tissue interface below MV

normal value of PW of LV

Male: .6-1 cm female:.6-.9cm

Where to measure PW of LV

Tissue interface

Normal value for aortic root by SoV

Male: 3.4 + .3 female: 3.0 + .3

Where to measure aortic root by SoV

Outer edge to inner edge

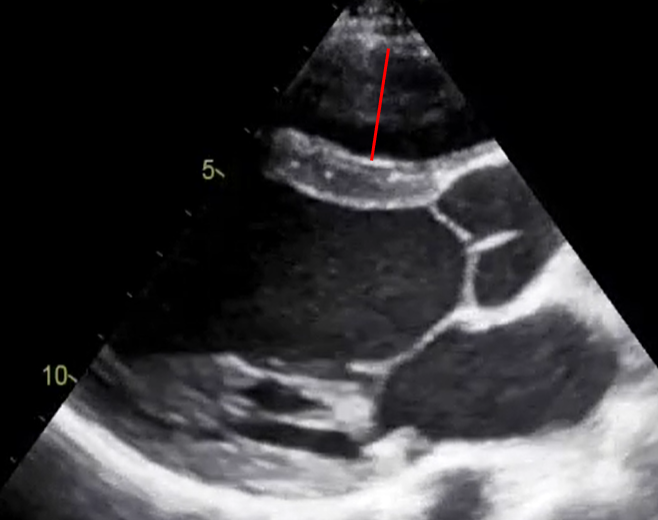

What measurement is this and what is the normal value?

right ventricular diameter in end diastole. Male: 2.0-3.0cm Female: 2.0-3.0cm

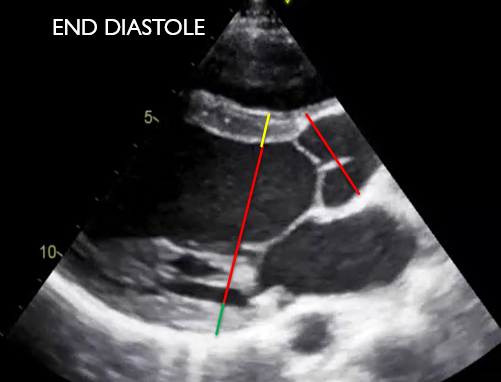

What measurement does the yellow line represent and what is the normal value

IVSd Interventricular septum in diastole. Male: 0.6-1.0cm female: 0.6-0.9cm

What measurement does the long red line represent and what are the normal values

LVIDd - left ventricular internal diameter in diastole. Male: 4.2-5.8cm female: 3.8-5.2 cm

What measurement does the green line represent and what are the normal values

LVPWd - left ventricular posterior wall in diastole. Male: 0.6-1cm Female: 0.6-0.9cm

What does the little red line measure and what are the normal values?

Aortic root by SoV.

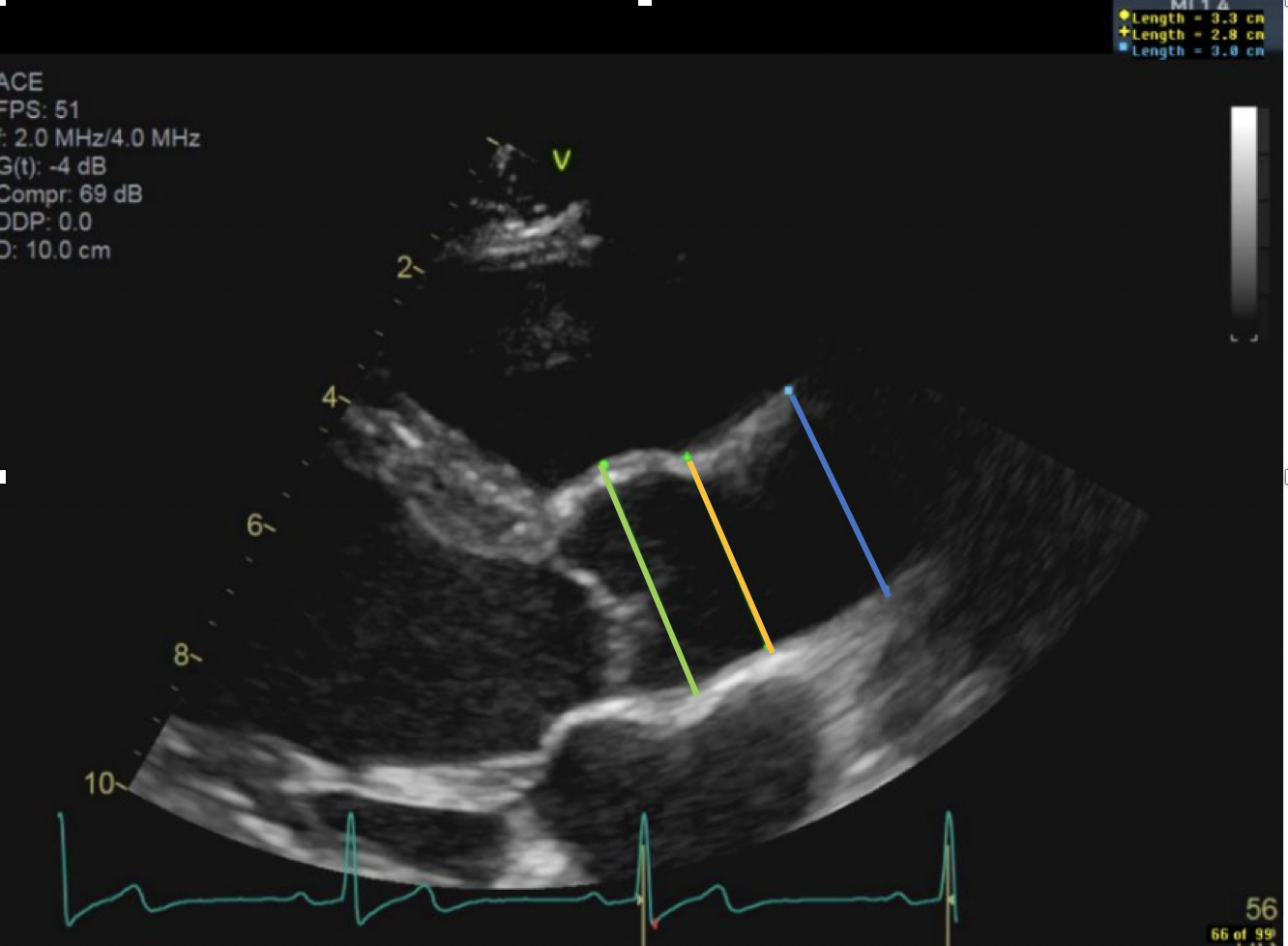

What measurement does the blue line represent and what is the normal value?

Ascending aorta male: 3.0+-4cm female: 2.7+-.4

What measurement does the green line represent and what is the normal value?

Sinus of valsalva male: 3.4+-.3cm female: 3.0+-.3cm

What does the yellow line represent and what is the normal vale

Sino tubular junction male: 2.9+-.3 female: 2.6+-.3
