Netter's Back and Spinal Cord Skeletal System

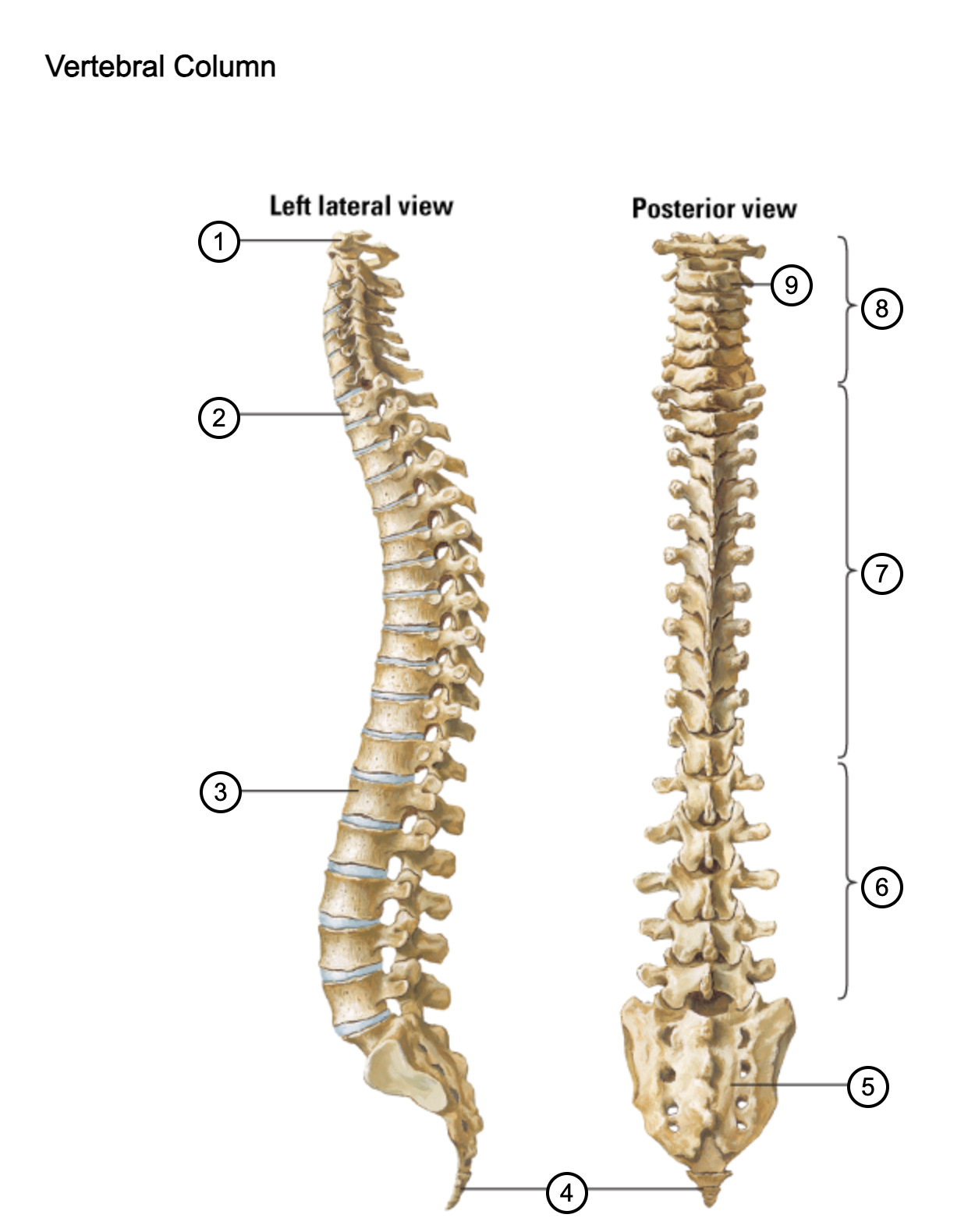

1

atlas (C1)

2

T1

3

L1

4

coccyx

5

sacrum (S1-5)

6

lumbar vertebrae

7

thoracic vertebrae

8

cervical vertebrae

9

axis (C2)

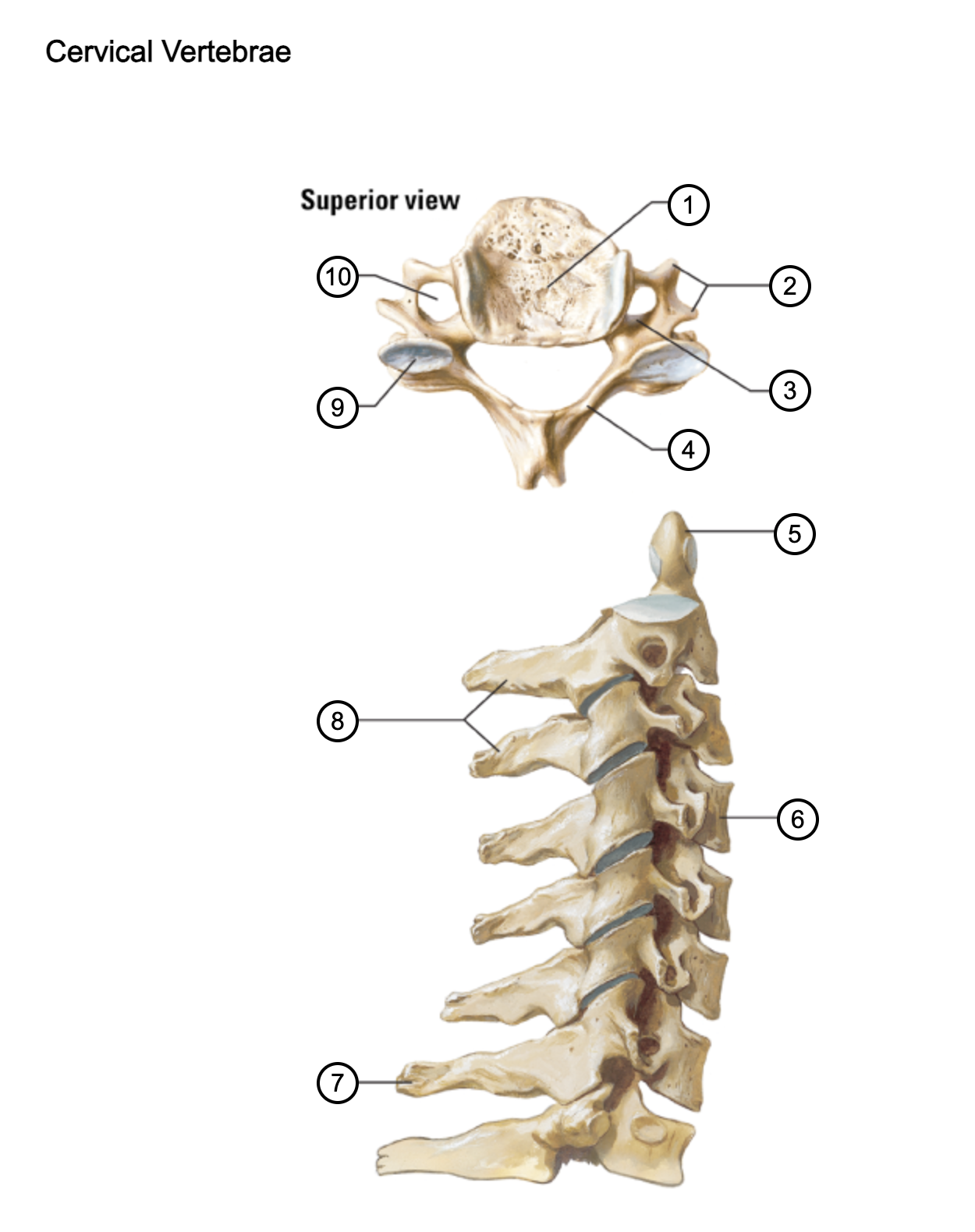

1

vertebral body

2

transverse process

3

pedicle

4

lamina

5

dens axis

6

vertebral body of C4

7

spinous process C7 (vertebra prominens)

8

spinous processes (C2 and C3)

9

superior articular process of C4

10

transverse foramen

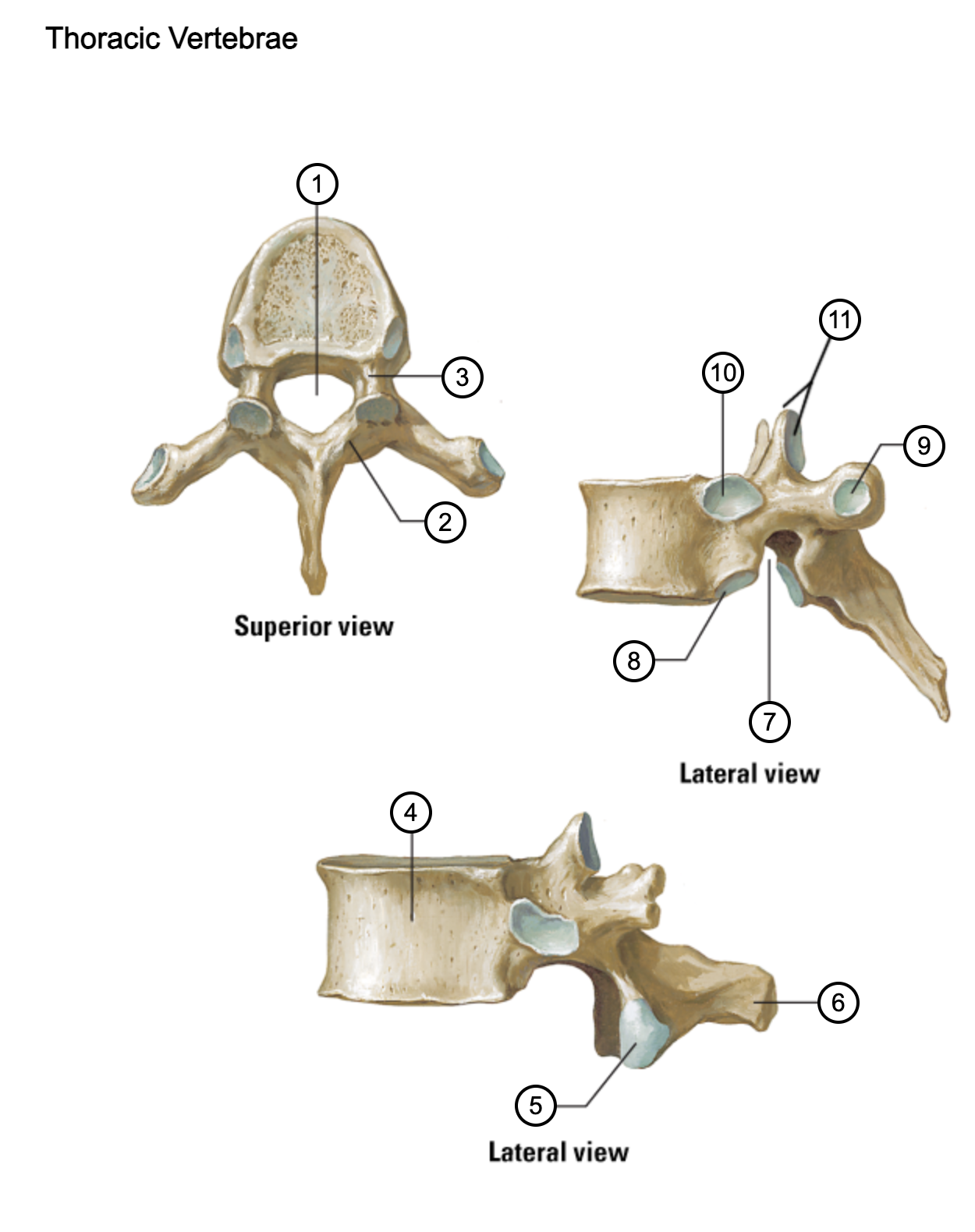

1

vertebral foramen

2

lamina

3

pedicle

4

body

5

inferior articular process and facet

6

spinous process

7

inferior vertebral notch

8

inferior costal facet (for rib articulation)

9

transverse costal facet (for rib articulation)

10

superior costal facet

11

superior articular process and facet

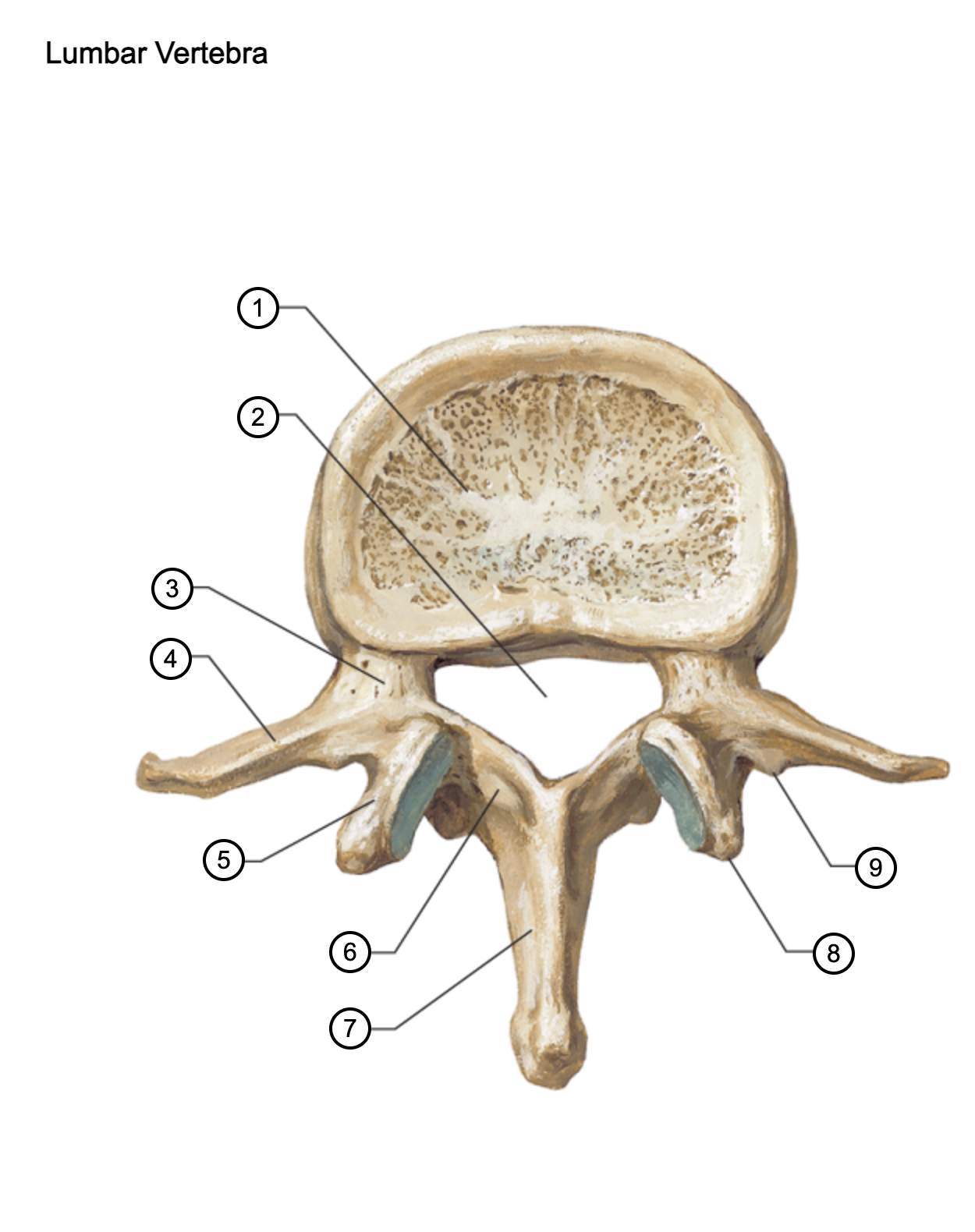

1

vertebral body

2

vertebral foramen

3

pedicle

4

transverse process

5

superior articular process

6

lamina

7

spinous process

8

mammillary process

9

accessory process

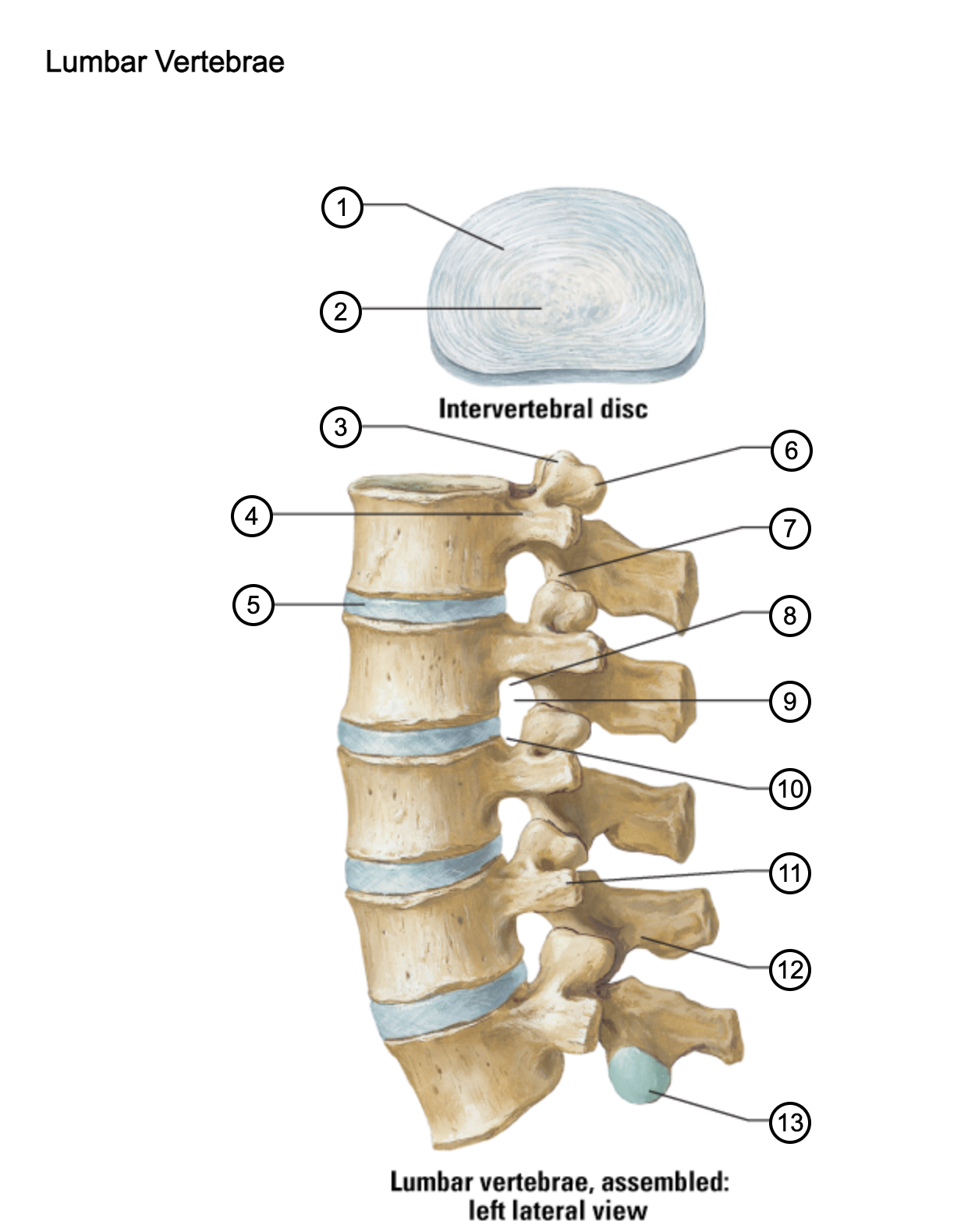

1

anulus fibrosus

2

nucleus pulposus

3

superior articular process

4

pedicle

5

intervertebral disc

6

mammillary process

7

inferior articular process

8

inferior vertebral notch

9

intervertebral notch

10

superior vertebral notch

11

transverse process

12

lamina

13

inferior articular facet

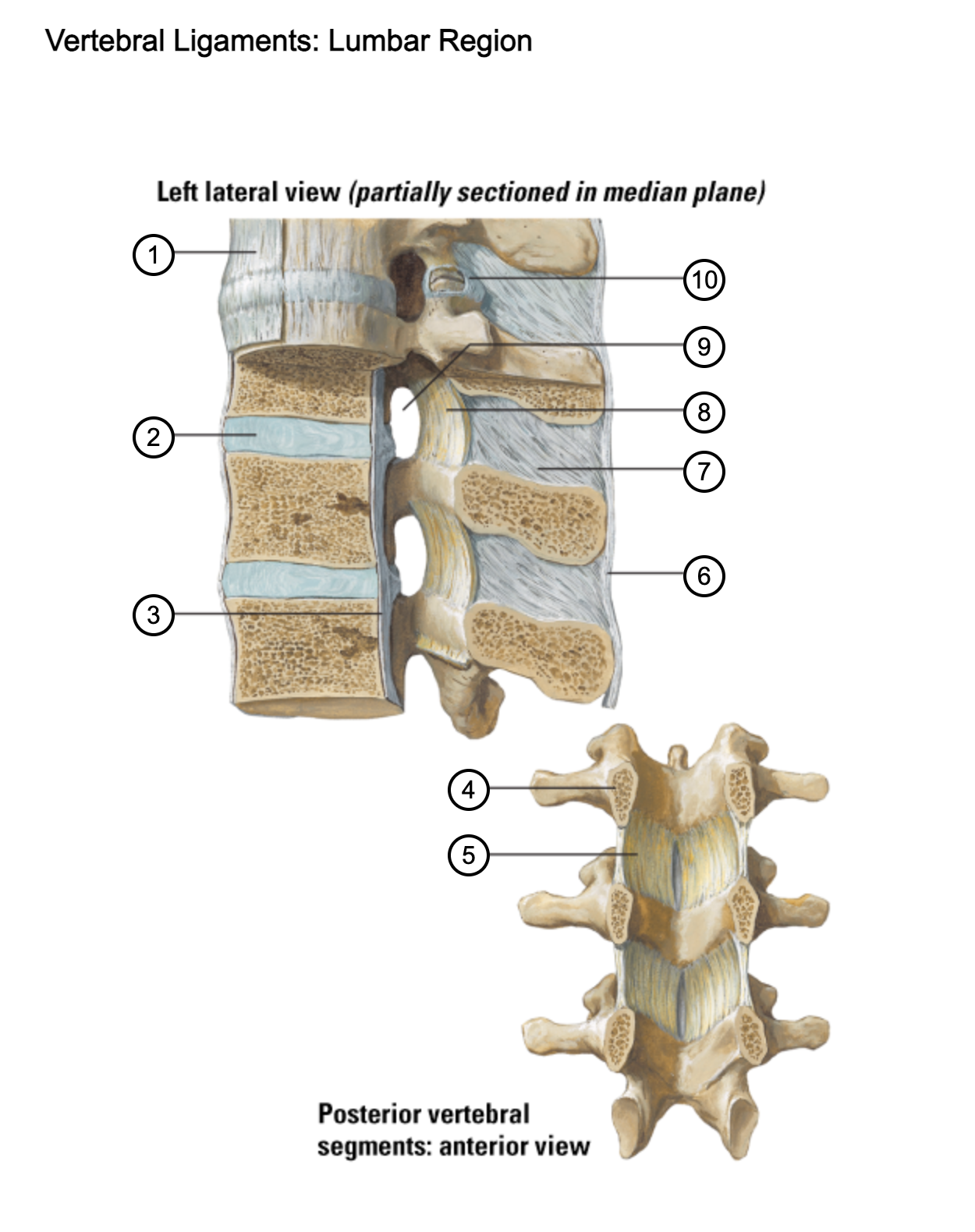

1

anterior longitudinal ligament

2

intervertebral disc

3

posterior longitudinal ligament

4

pedicle (cut surface)

5

ligamentum flavum

6

supraspinous ligament

7

interspinous ligament

8

ligamentum flavum

9

intervertebral foramen

10

capsule of zygapophysial join (partially opened)

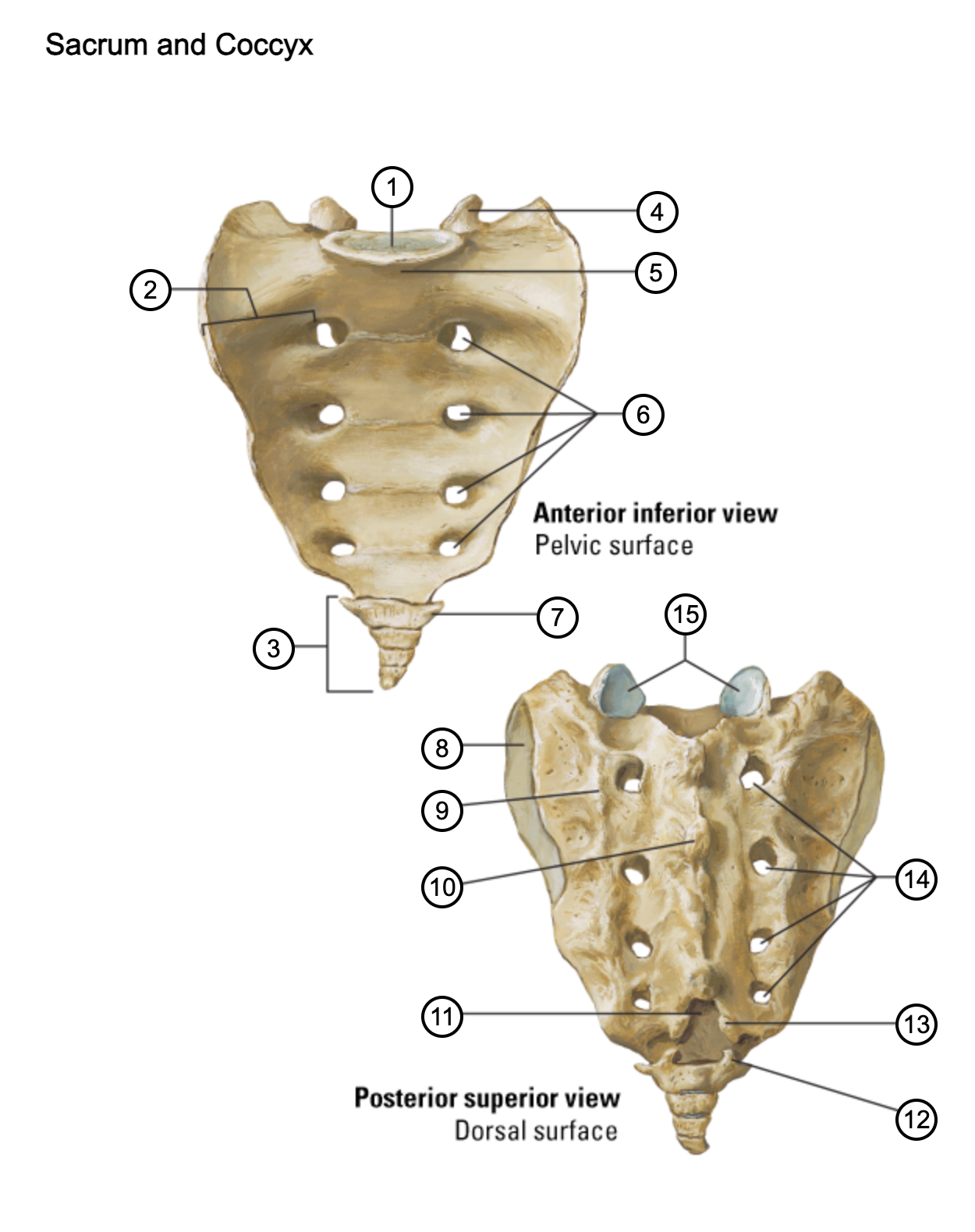

1

lumbosacral articular surface

2

ala of sacrum

3

coccyx

4

superior articular process

5

promontory

6

anterior sacral foramina

7

transverse process of coccyx

8

auricular surface

9

lateral sacral crest

10

median sacral crest

11

sacral hiatus

12

coccygeal horn

13

sacral horn

14

posterior sacral foramina

15

facets of superior articular processes
