197: CHAPTER 1 TYPES AND STAGES OF DESIGN PROJECT

1. TRADITIONAL (DESIGN-BID-BUILD)

2. DESIGN AND BUILD

TYPES OF DESIGN PROJECTS

TRADITIONAL (DESIGN-BID-BUILD)

• Owner hires a designer to design the facility and prepare drawings and specification for bidding

• Contractors reviews the drawings / specifications, ask any clarifying questions and bid for the project based on the drawings / specifications

• Designers may be asked to attend meetings to address any design issues during the bidding / construction stage

• Consultant/Peer Reviewer to review the output of designer

DESIGN AND BUILD

• Owner prefers to transact with a sole entity

• Accelerates the construction timeline since the contractor has direct communication with designer

Contractor has autonomy in the design.

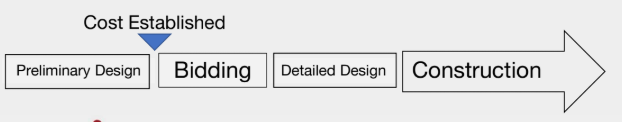

Traditional Design Project Timeline

what is the type of this deign

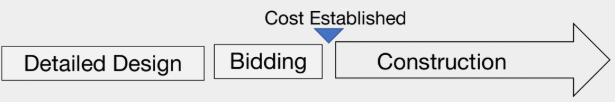

Design Build Project Timeline

what is the type of this deign

• Owner prefers to have direct input on the architectural

OTHER CASES OF DESIGN AND BUILD

A. Preliminary Engineering

1. Development of Preliminary Architectural and Site Development Plans

2. Conceptual Design

3. Pre-Engineering Activities

   1. Desktop Study

   2. Site Visit

   3. Geodetic Site Survey

   4. Geotechnical Investigation

   5. Environmental Impact Assessment

B. Detailed Engineering

C. Bidding Documents

D. Construction Documents

STAGES OF A DESIGN PROJECT

• Establish Building Footprint

• Establish Building Height

• Establish No of Storey and basement

• Establish Columnation

owner and mainly architect

Development of Preliminary Architectural Plans

• Geological Maps -establish general rock / soil formation in the area

• Past and recent Geotechnical Reports-idea of soil type and SBC within the area

• Google Earth- overview of site configuration

• Preliminary Hazard Identification

a. Seismic Hazard

b. Volcanic Hazard

c. Flood Hazard

SAMPLES OF Desktop Study

Geodetic Surveying

• Establishment of contour elevations

• Verification of Lot Plan

• Mapping of Obstructions

Geotechnical Investigation

• Establish soil bearing capacity / pile capacity

• Provide recommendation for foundation type and depth of embedment

• Liquefaction Analysis

Environmental Impact Assessment

• assessment and evaluation of the environmental impact of a project during its whole construction / operational life

• includes preventive / mitigation measures to the identified impacts to protect the environment and the community
