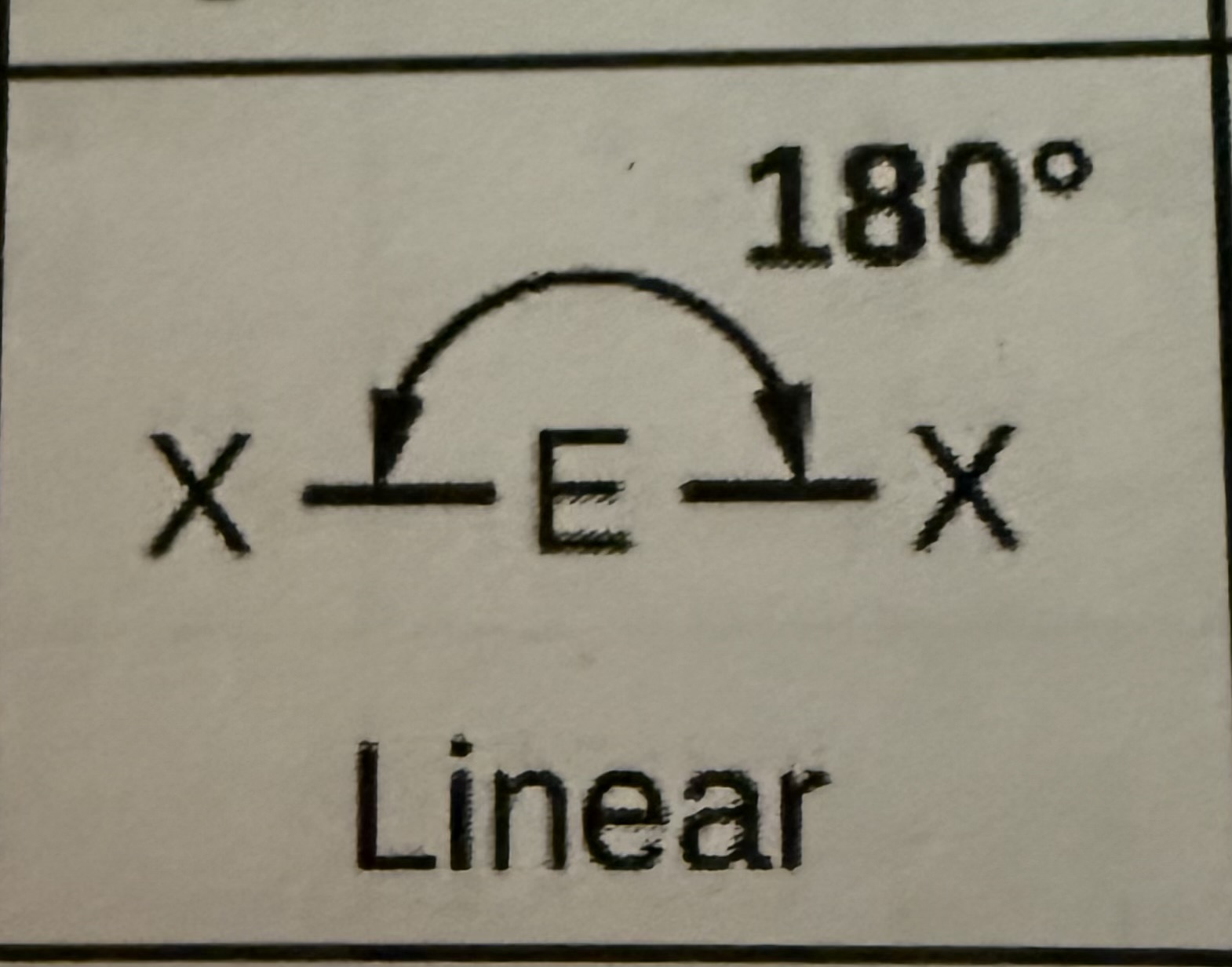

2 Electron Groups 0 lone pairs—what is molecular geometry, and angle?

Liner, 180 degree angle

<p>Liner, 180 degree angle</p>
2
New cards

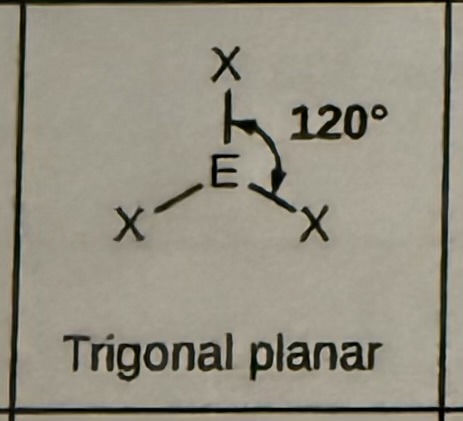

3 Electron Groups 0 lone pairs—what is molecular geometry, and angle?

Trigonal planar, 120 degrees

<p>Trigonal planar, 120 degrees</p>
3
New cards

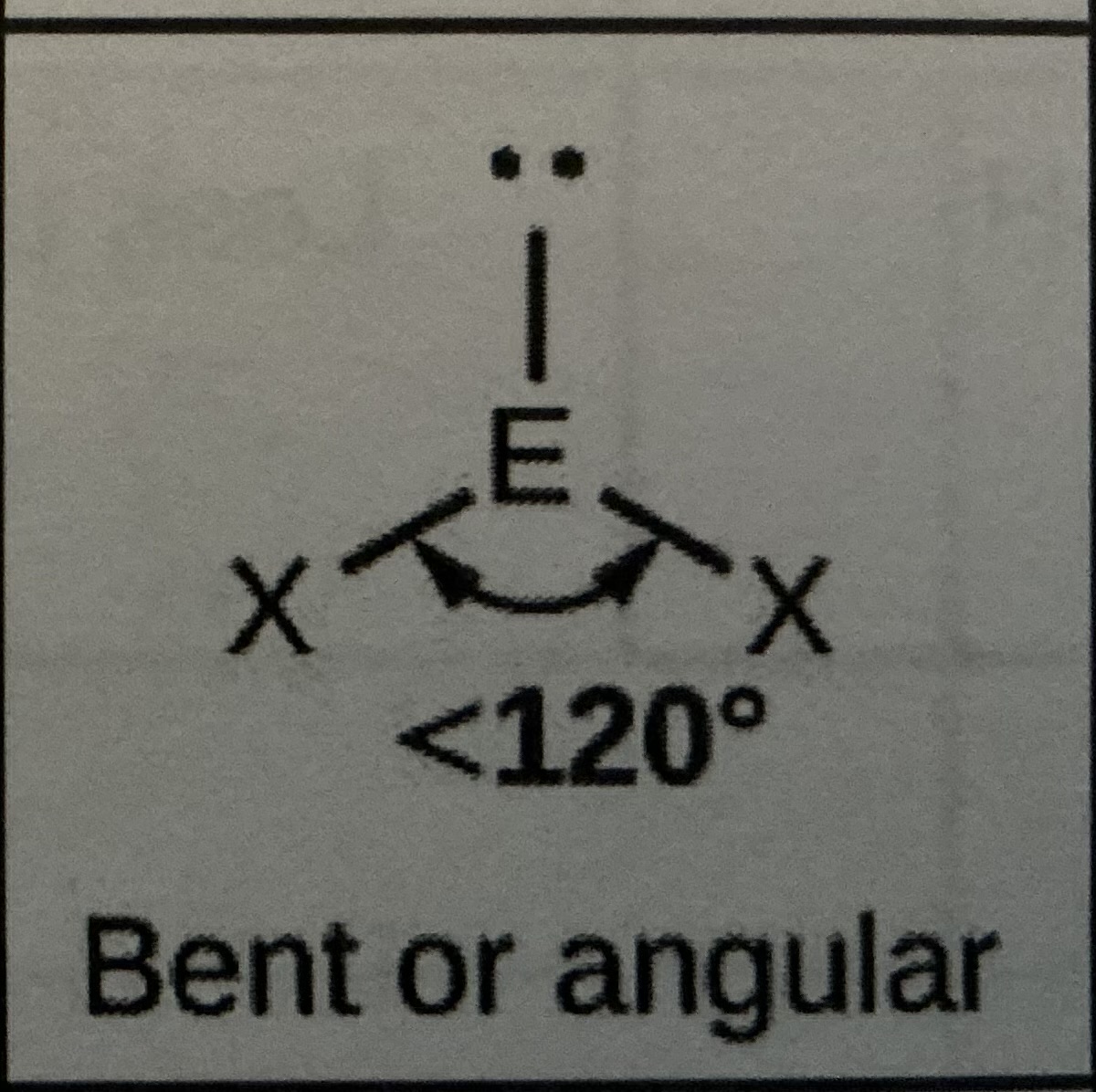

3 Electron Groups 1 lone pairs — what is molecular geometry, and angle?

Bent or angular, 120 degrees

<p>Bent or angular, 120 degrees</p>
4
New cards

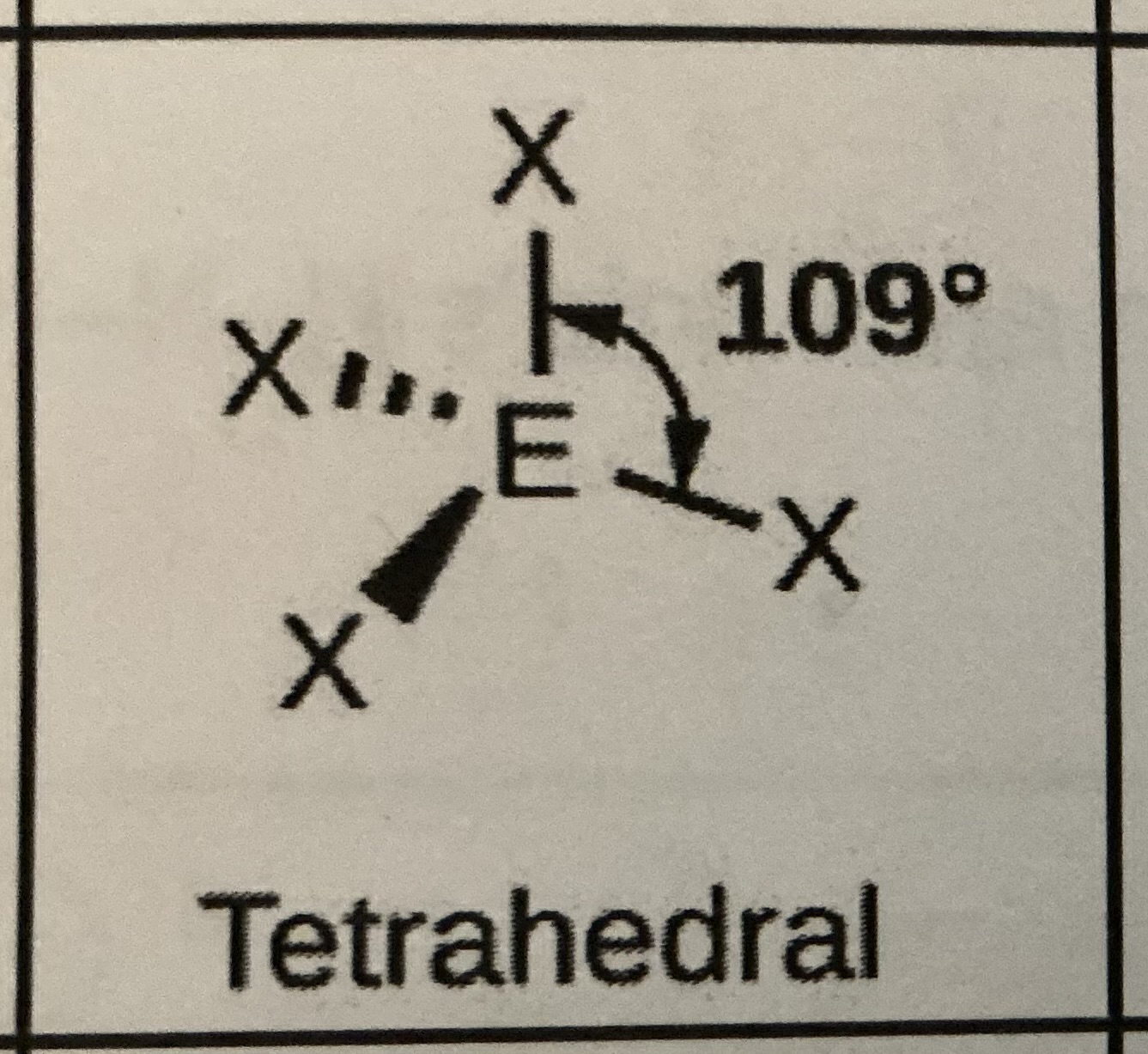

4 Electron Groups 0 lone pairs—what is molecular geometry, and angle?

Tetrahedral, 109 degrees

<p>Tetrahedral, 109 degrees</p>
5
New cards

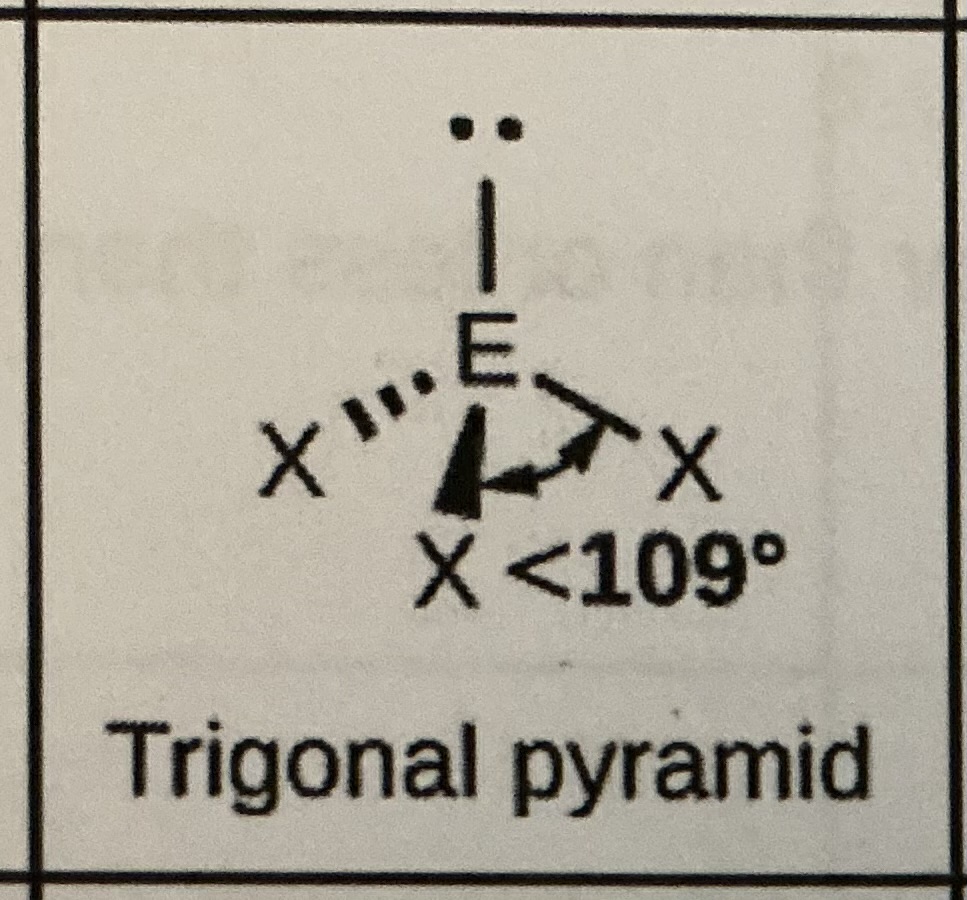

4 Electron Groups 1 lone pairs—what is molecular geometry, and angle?

Trigonal pyramid, 109 degrees

<p>Trigonal pyramid, 109 degrees</p>
6
New cards

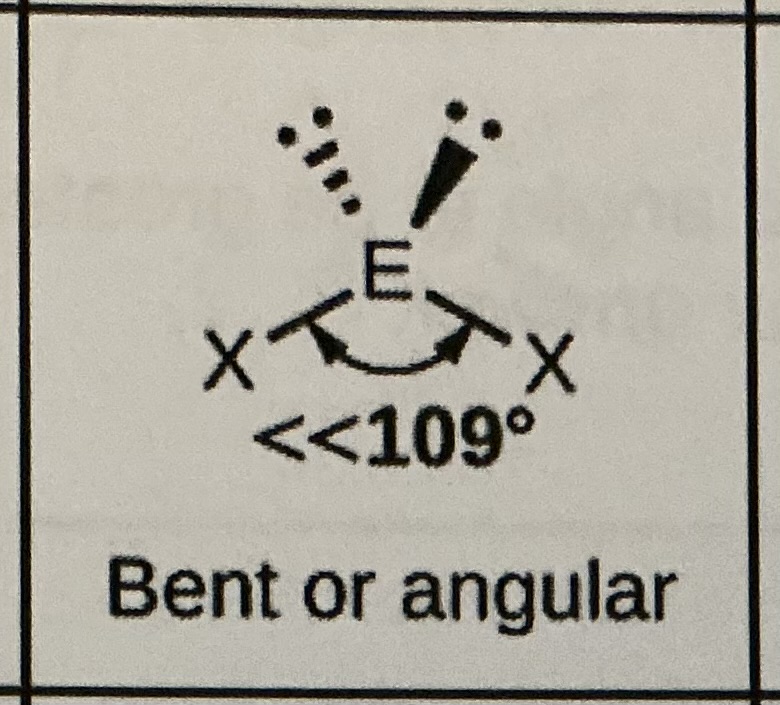

4 Electron Groups 2 lone pairs—what is molecular geometry, and angle?

Bent or angular, 109 degrees

<p>Bent or angular, 109 degrees </p>
7
New cards

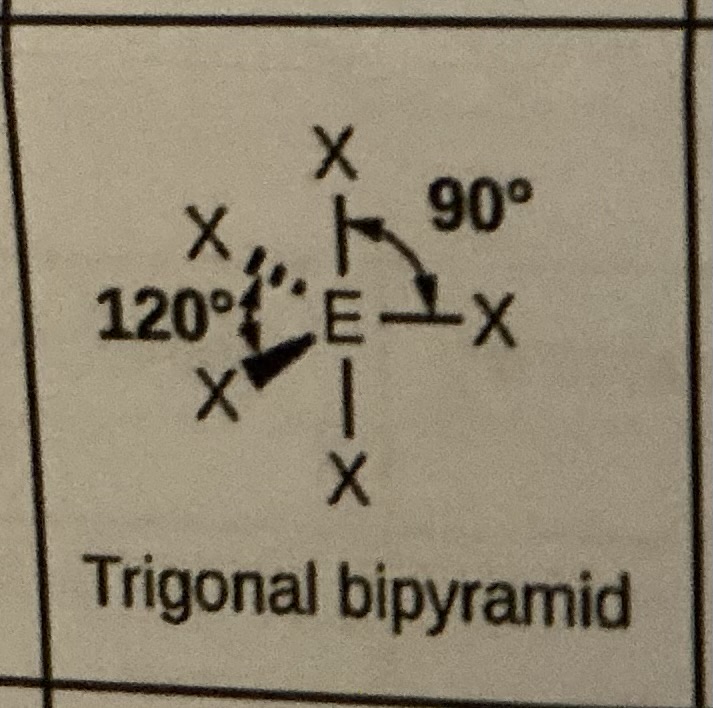

5 Electron Groups 0 lone pairs—what is molecular geometry, and angle?

Trigonal bipyramid, 90 and 120 degrees

<p>Trigonal bipyramid, 90 and 120 degrees</p>
8
New cards

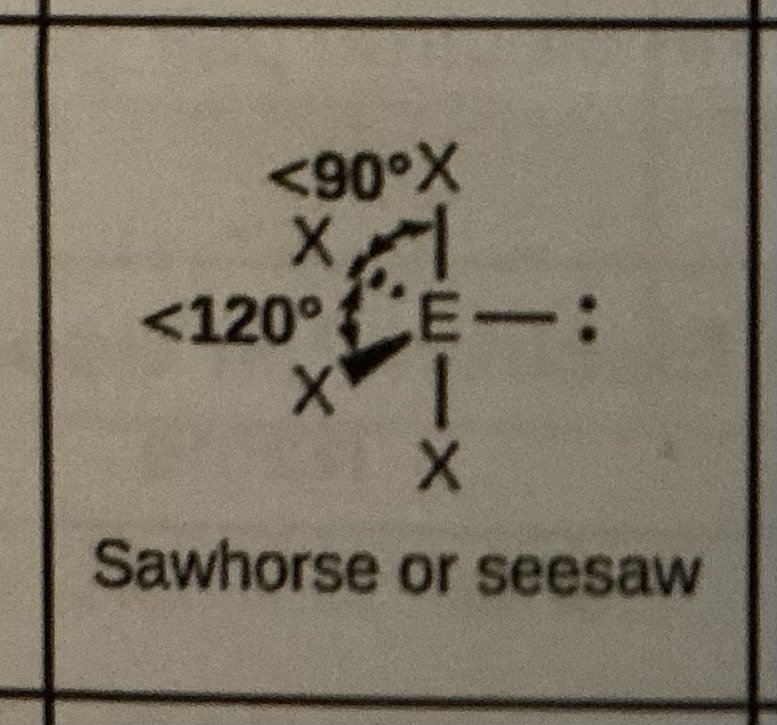

5 Electron Groups 1 lone pairs—what is molecular geometry, and angle?

Sawhorse or seesaw, 90 and 120 degrees

<p>Sawhorse or seesaw, 90 and 120 degrees</p>
9
New cards

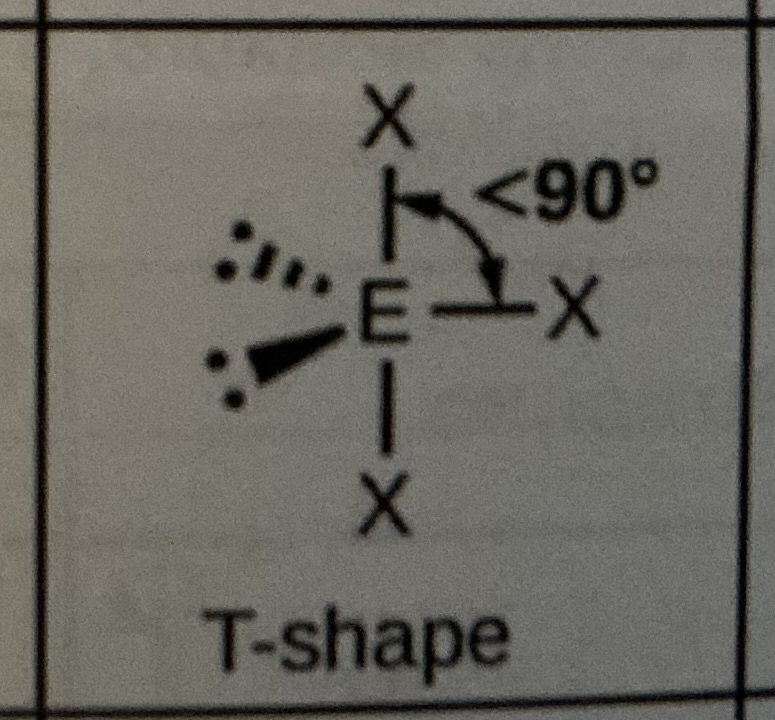

5 Electron Groups 2 lone pairs—what is molecular geometry, and angle?

T-shape, 90 degrees

<p>T-shape, 90 degrees </p>
10
New cards

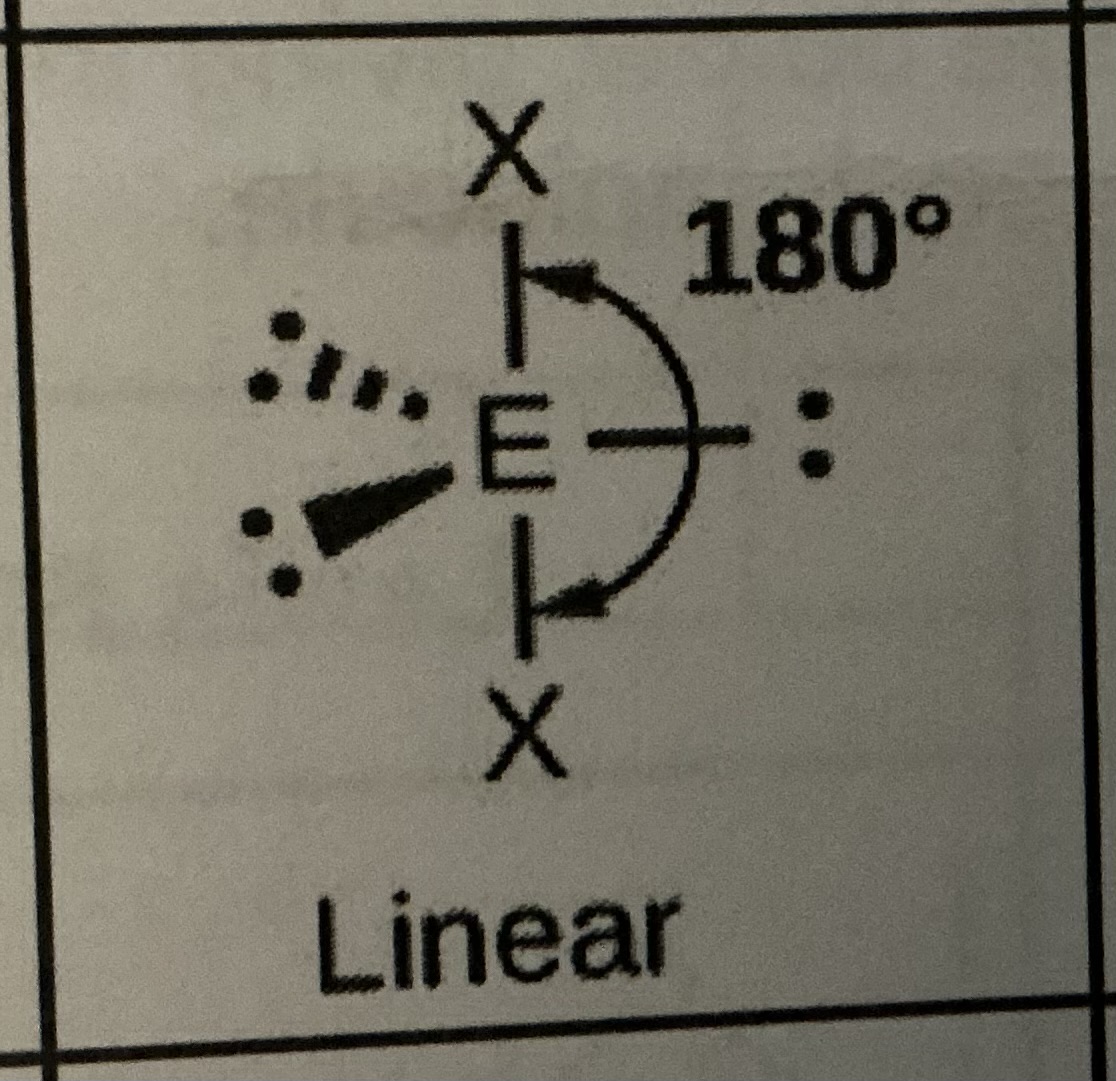

5 Electron Groups 3 lone pairs—what is molecular geometry, and angle?

Linear, 180 degrees

<p>Linear, 180 degrees </p>
11
New cards

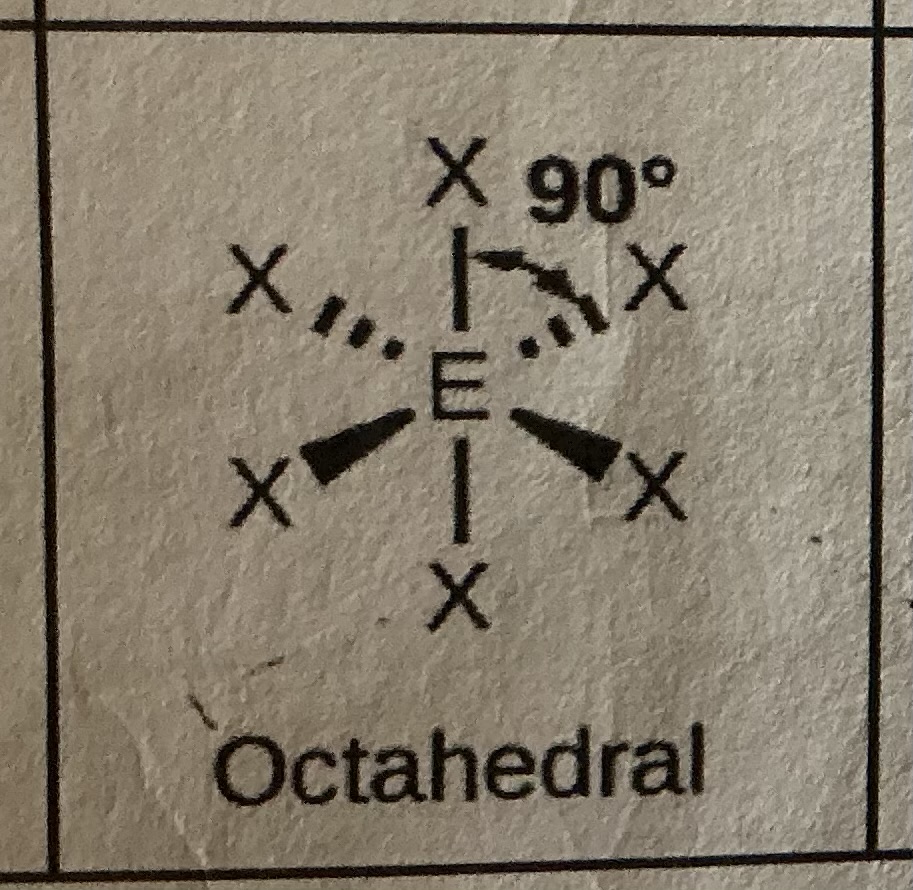

6 Electron Groups 0 lone pairs—what is molecular geometry, and angle?

Octahedral, 90 degrees

<p>Octahedral, 90 degrees</p>
12
New cards

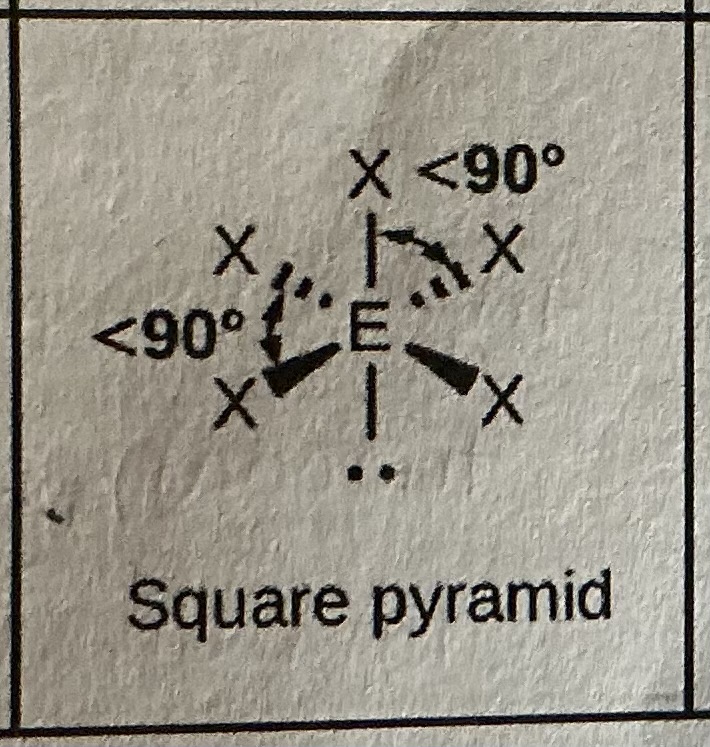

6 Electron Groups 1 lone pairs—what is molecular geometry, and angle?

Square pyramid, 90 degrees

<p>Square pyramid, 90 degrees</p>
13
New cards

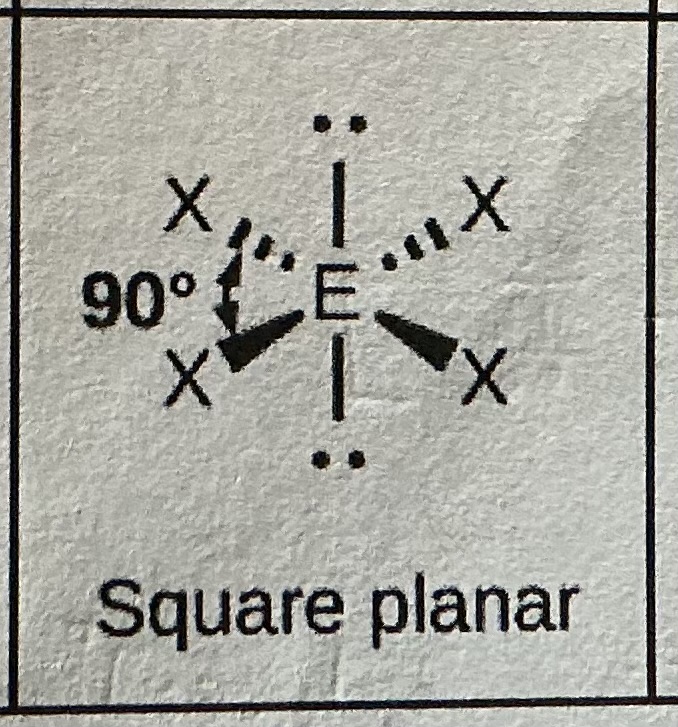

6 Electron Groups 2 lone pairs—what is molecular geometry, and angle?

Square planar, 90 degrees

<p>Square planar, 90 degrees</p>
14
New cards

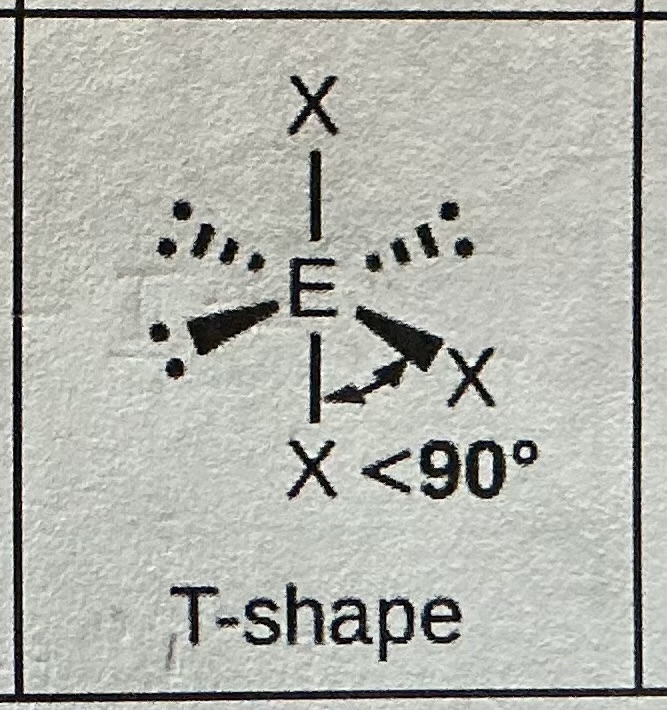

6 Electron Groups 3 lone pairs—what is molecular geometry, and angle?

T-shape, 90 degrees

<p>T-shape, 90 degrees</p>
15
New cards

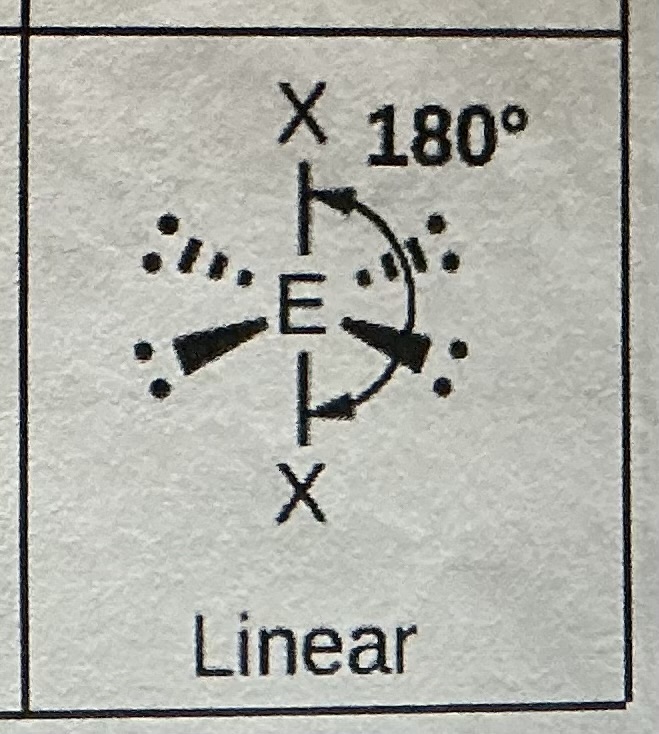

6 Electron Groups 4 lone pairs—what is molecular geometry, and angle?

Linear, 180 degrees

<p>Linear, 180 degrees</p>
