Measurement of the speed of sound in air

0.0(0)
studied byStudied by 0 people
0.0(0)
full-widthCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/5

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

6 Terms

1
New cards

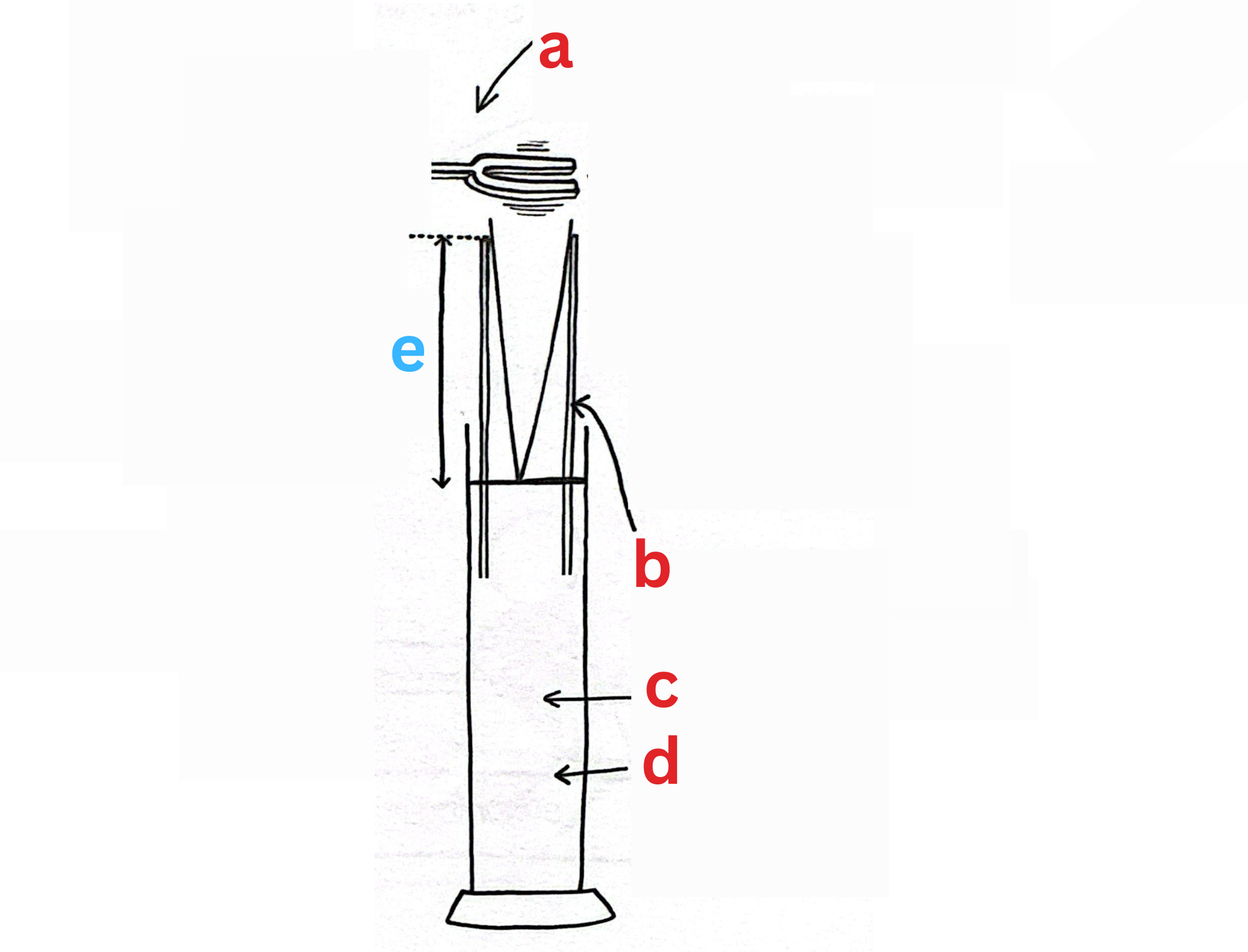

<p>Label This Diagram</p>

Label This Diagram

a - tuning fork

b - resonance tube

c - water

d - graduated cylinder

e - length

2
New cards

Demonstrate the method of this experiment • 1

  • Band tuning fork to vibrate it

  • Hold tuning fork over a resonance tube which is held in water

3
New cards

Demonstrate the method of this experiment • 2

  • Raise tube and fork until a loud frequency can be heard

  • Record l and frequency of fork

4
New cards

Demonstrate the method of this experiment • 3

  • Repeat previous steps with different tuning fork frequencies

  • Measure diameter of tube using callipers

5
New cards

Define a precaution that is associated with this experiment

Raise tube to find resonance instead of lowering it

6
New cards

Write out the formula associated with this experiment

c = f x 4(l + 1/3d)
