Anatomy Quiz 3 - Cranial bones and Compact bone

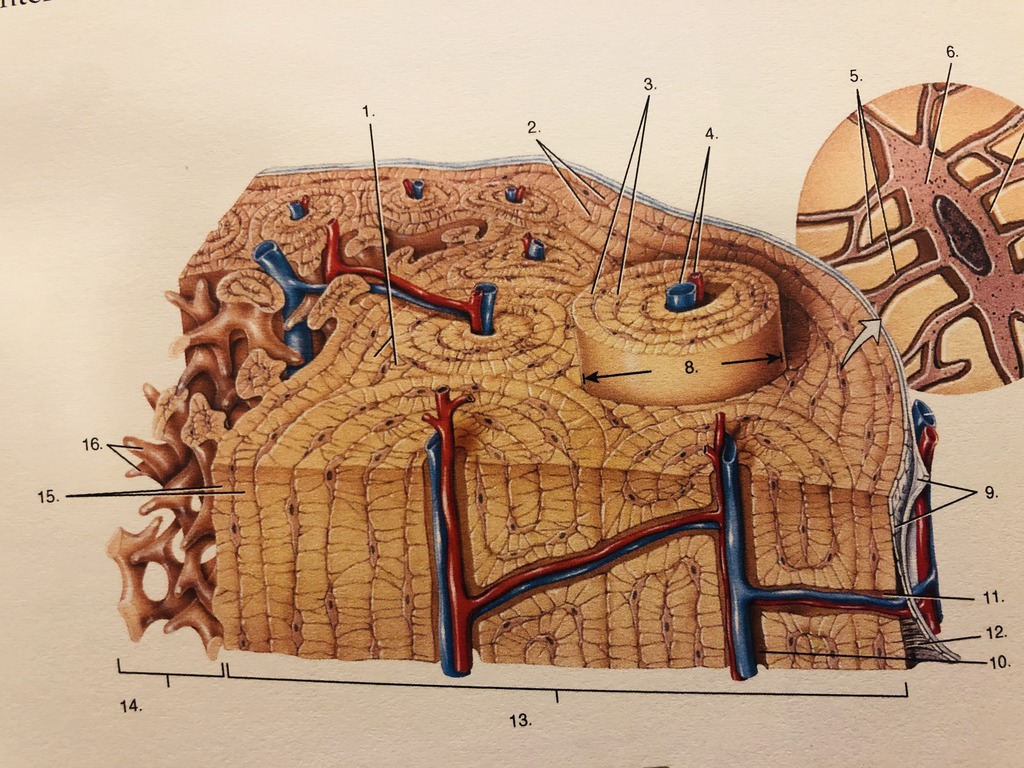

Structure of compact bone

Osteon/Haversion system

Functional unit of compact bone

Osteonic canal/Haversian canal/Central canal

4

Provides blood supply to osteon

Perforating canals/Volkmann’s canals

11

Provides blood supply between osteons

Lamellae concentric

3

Lamellae interstitial

1

Outer lamellae circumferential

2

Inner lamellae circumferential

15

Osteocyte

d

Bone cell

Lacunae

c

House osteocytes

Canaliculi

a

Connect osteocytes together and to osteonic canal

CRANIAL BONES:

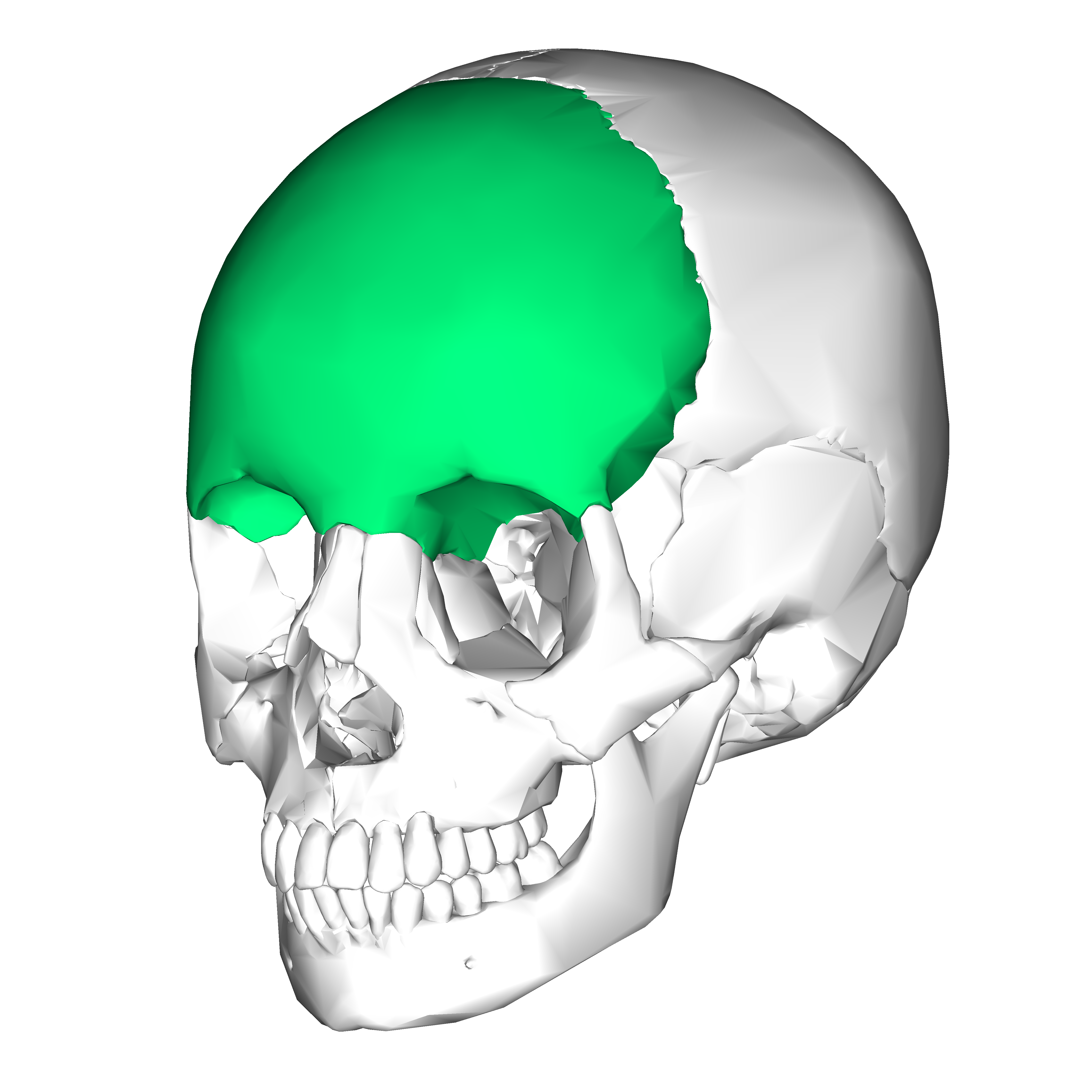

Frontal bone

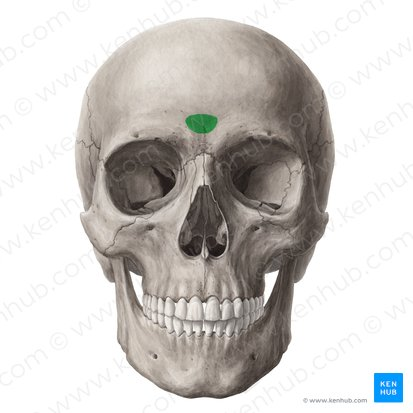

Glabella

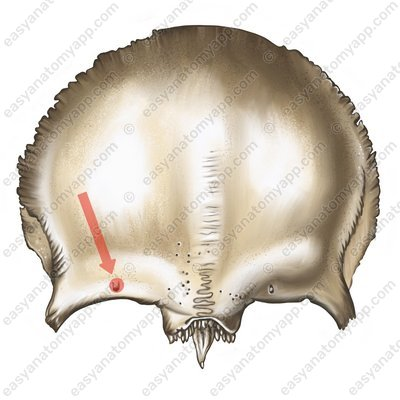

Supraorbital foramen/Supraorbital notch

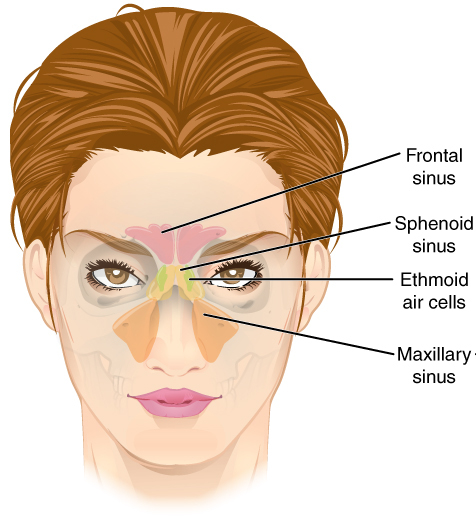

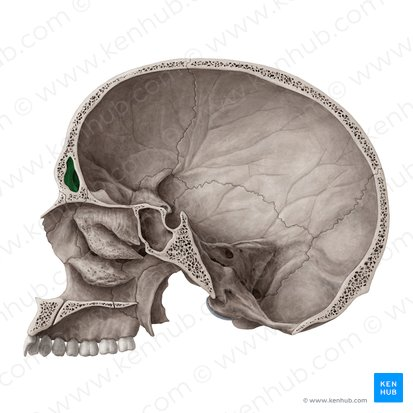

Frontal sinuses

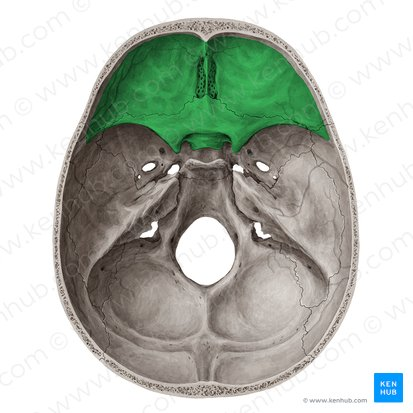

Anterior cranial fossa

Zygomatic process

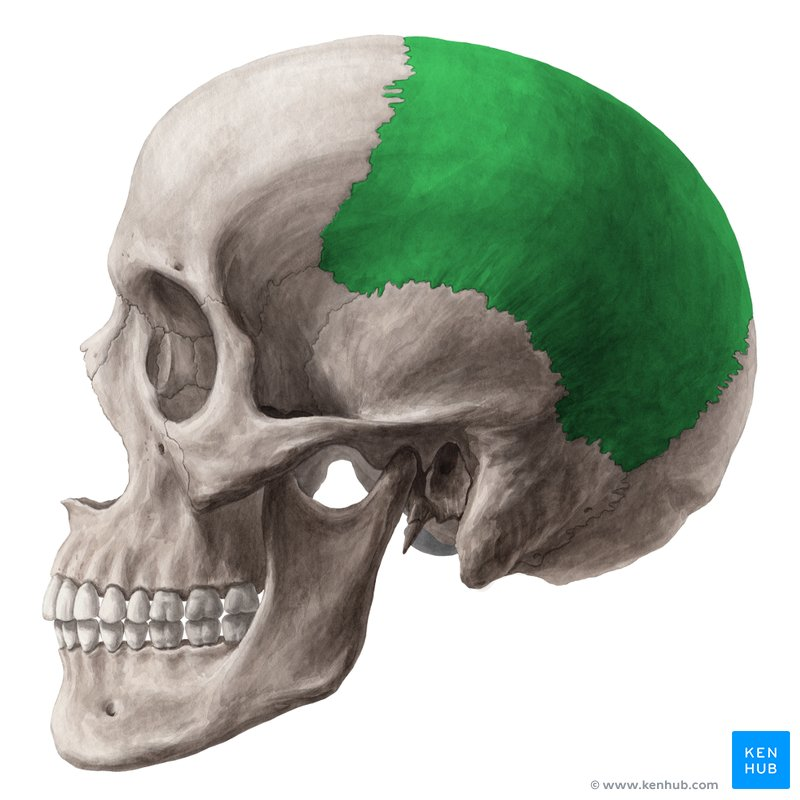

Parietal bones

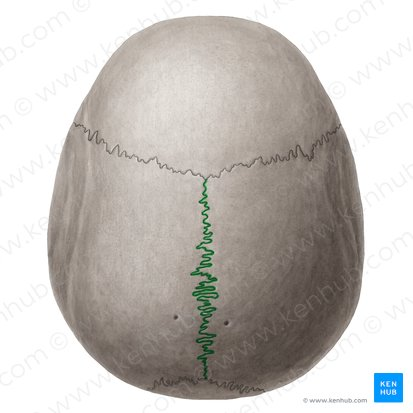

Sagittal suture

Coronal suture

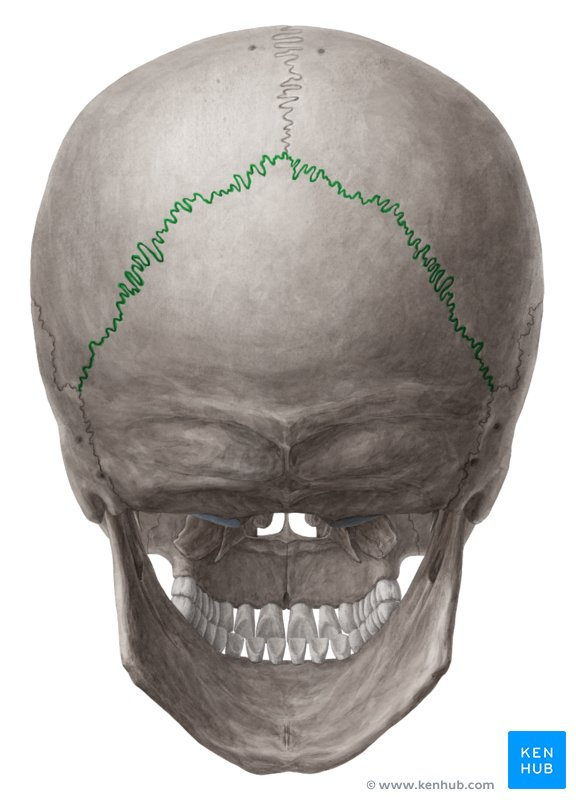

Lambdoid suture

Squamous suture

Sutural bones/Wormian bones

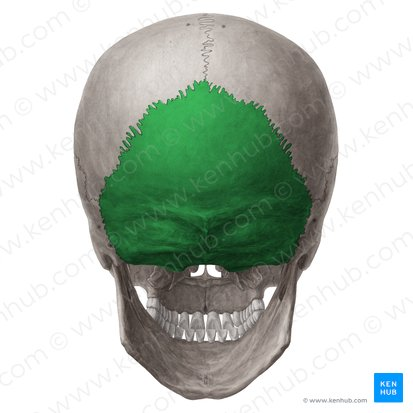

Occipital bone

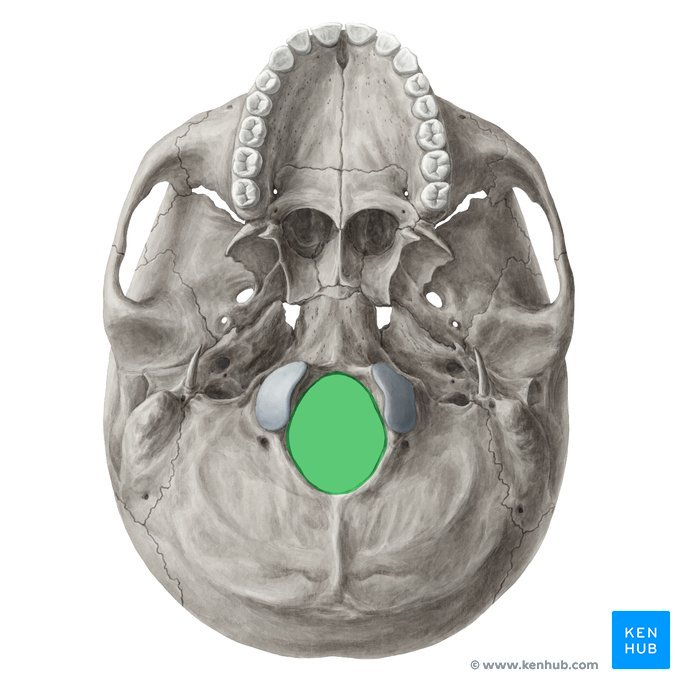

Foramen magnum

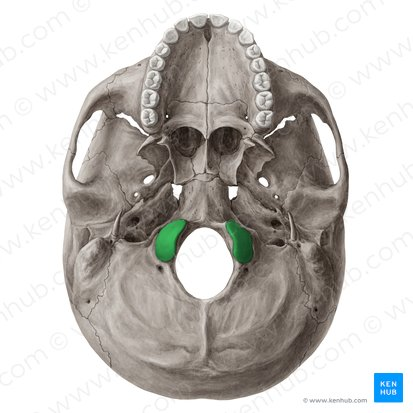

Occipital condyle

Nod head

External occipital protuberance

Superior nuchal line

Inferior nuchal line

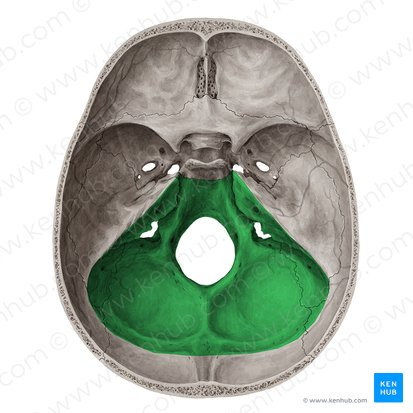

Posterior cranial fossa

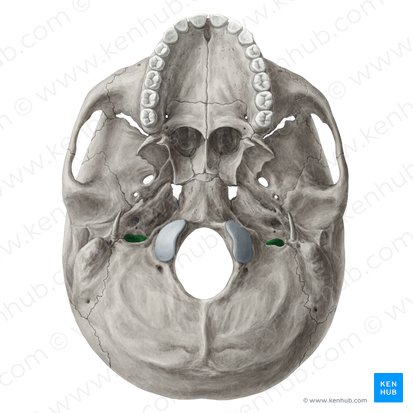

Condylar fossa/Condyloid fossa

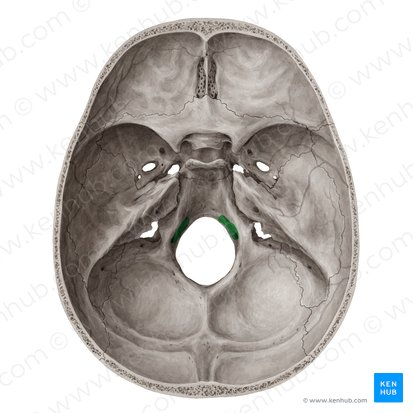

Hypoglossal canals

Runs hypoglossal nerve CN XII

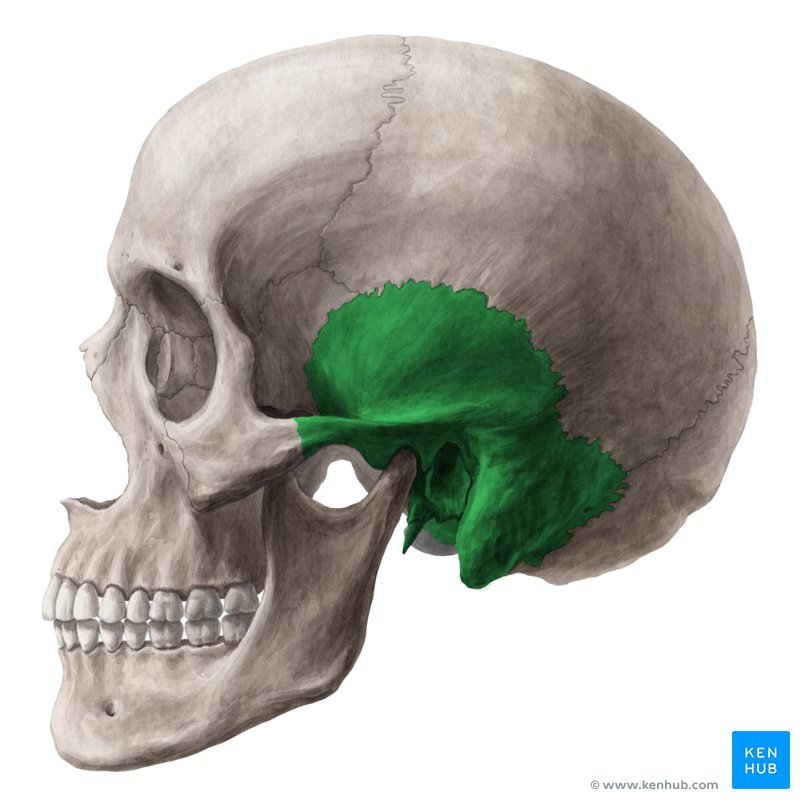

Temporal bones

Squamous region

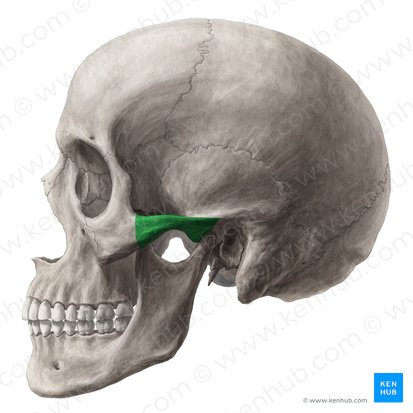

Zygomatic arch

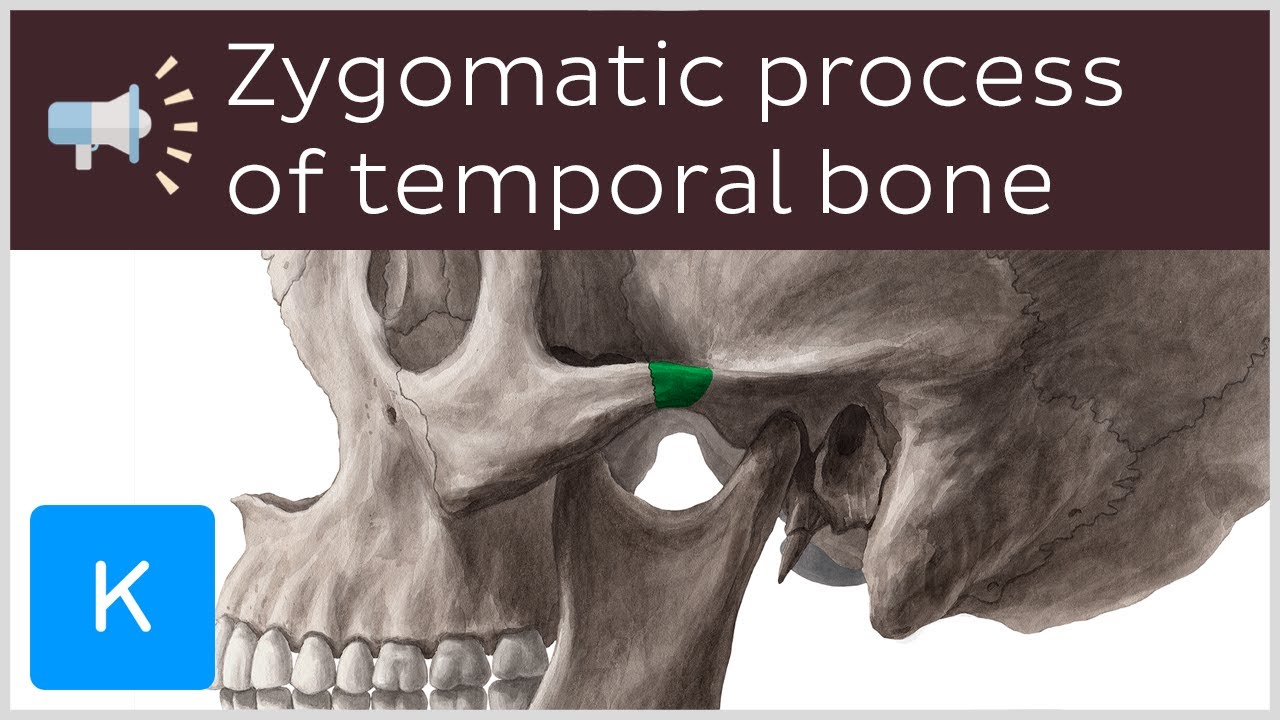

Zygomatic process

Mandibular fossa

Tympanic region

External auditory meatus/canal and Styloid process

External auditory meatus/canal

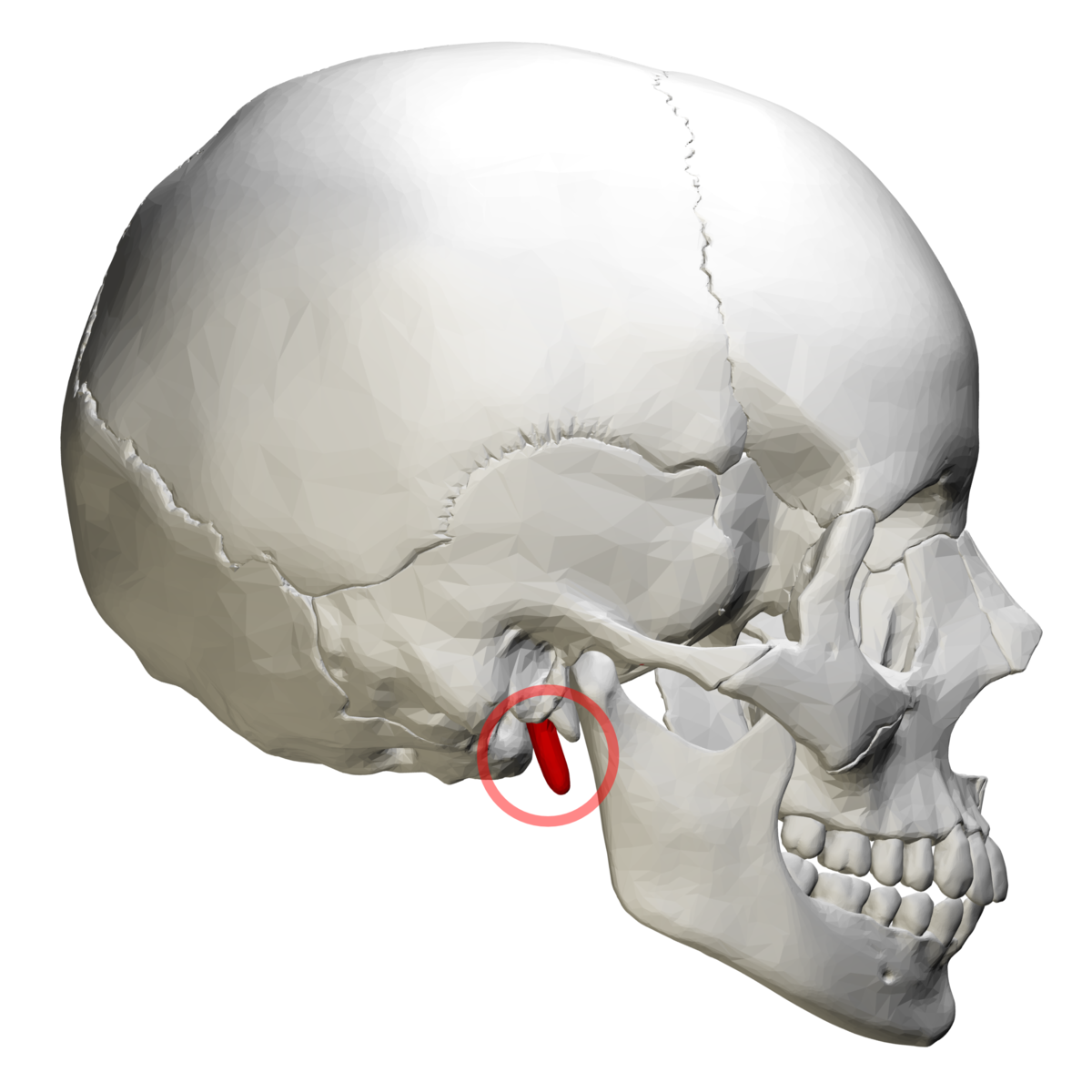

Styloid process

Mastoid region

All structures have mastoid in name

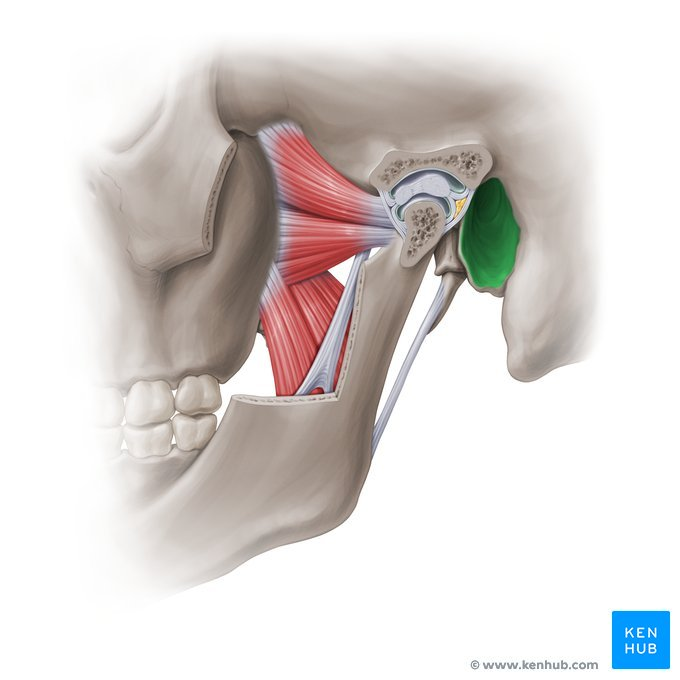

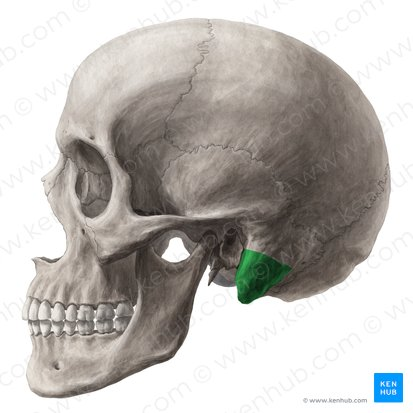

Mastoid process

Stylomastoid foramen

Facial nerve CN VII

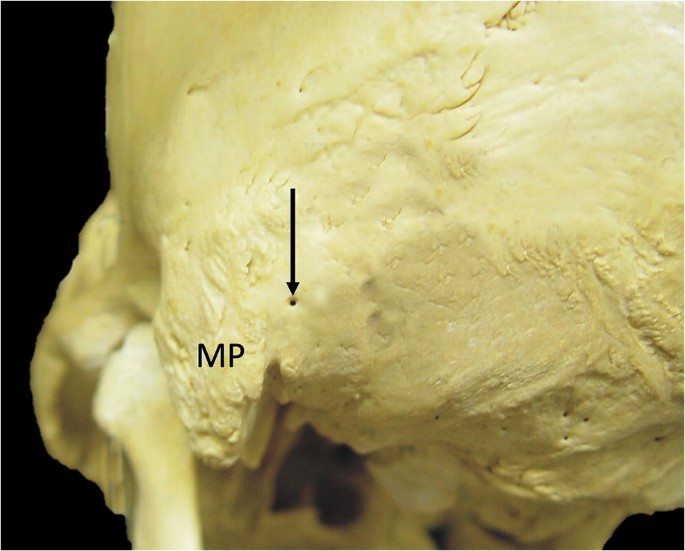

Mastoid foramen

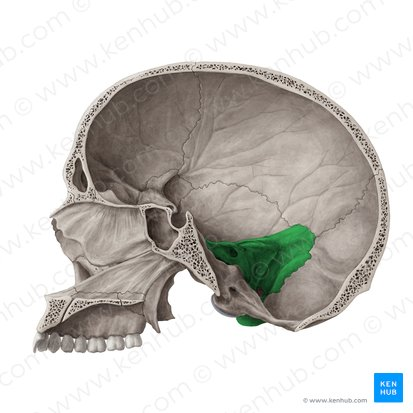

Petrous region

Carotid canal

Main brain artery passes through

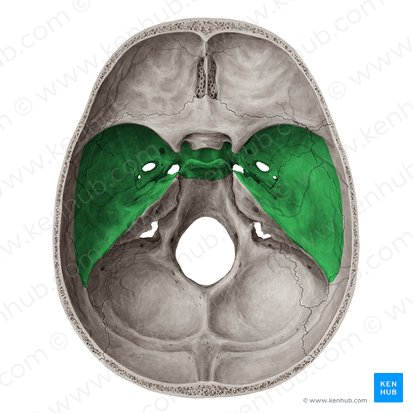

Middle cranial fossa

Internal acoustic canal/Auditory canal

Transmits facial nerve CN VII and vestibulocochlear nerve CN VIII

Jugular foramen

Largest vein in head (internal jugular vein), glossopharyngeal nerve CN IX, vagus nerve CN X, and accessory nerve CN XI

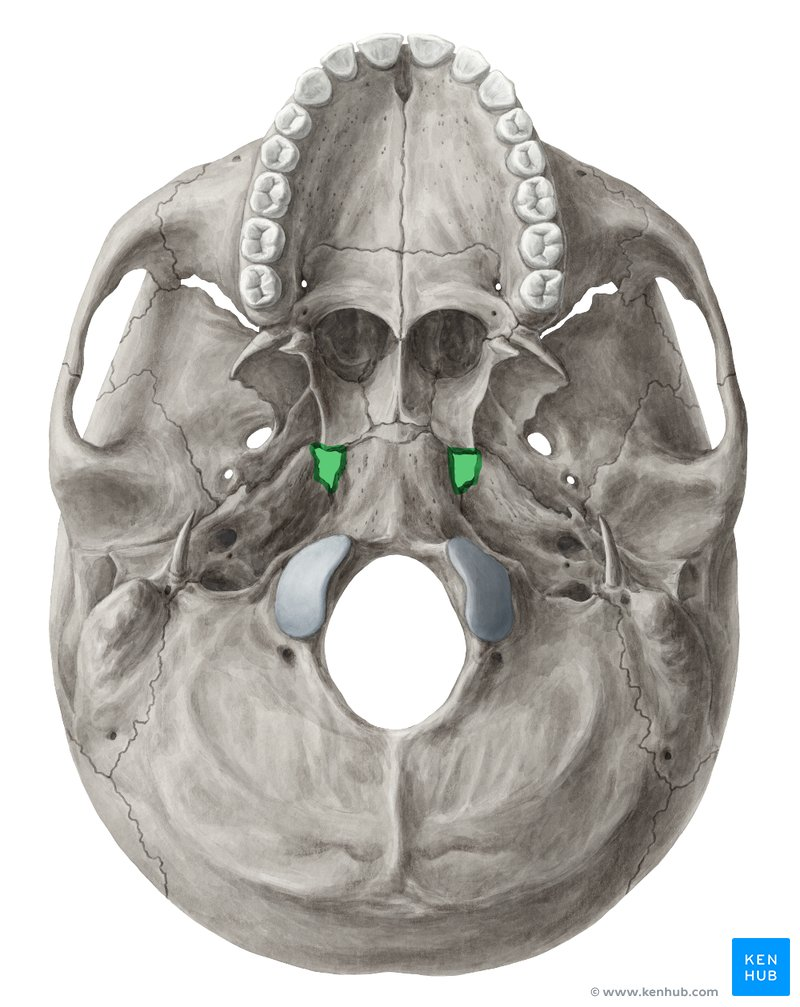

Foramen lacerum

Almost completely closed by cartilage in living human

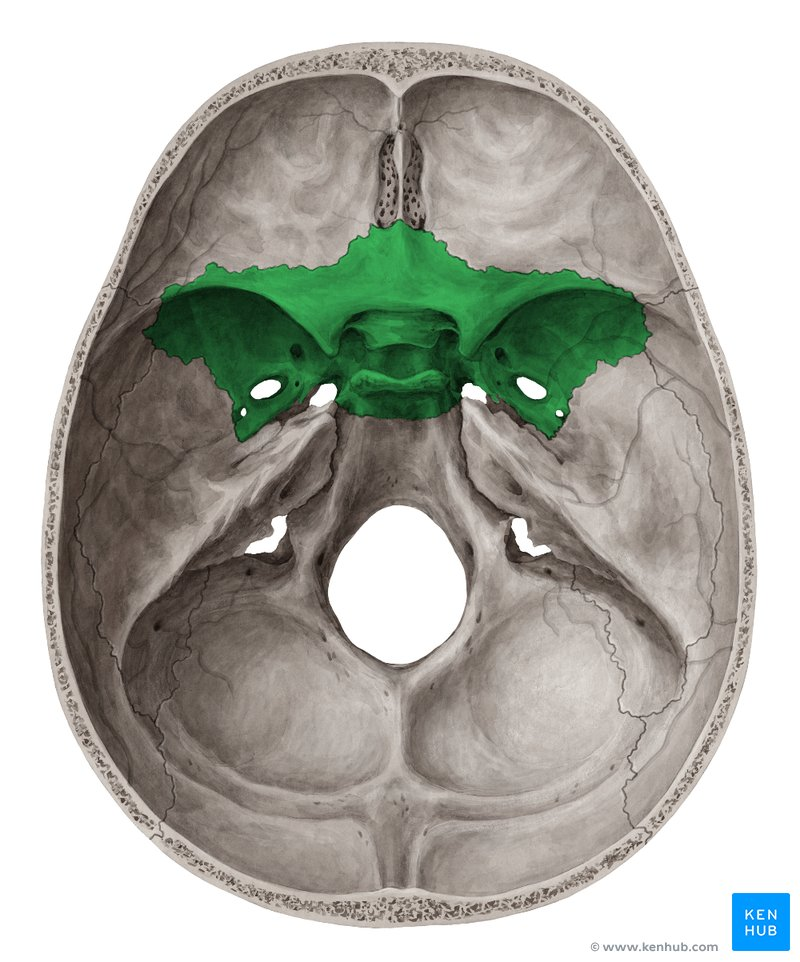

Sphenoid bone

Greater wings

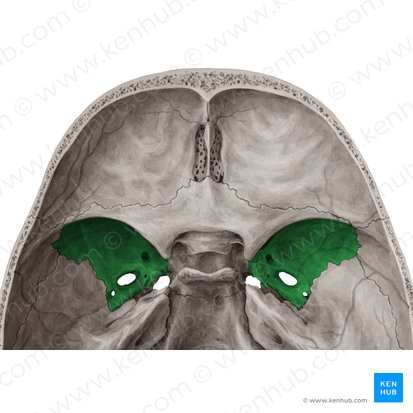

Lesser wings

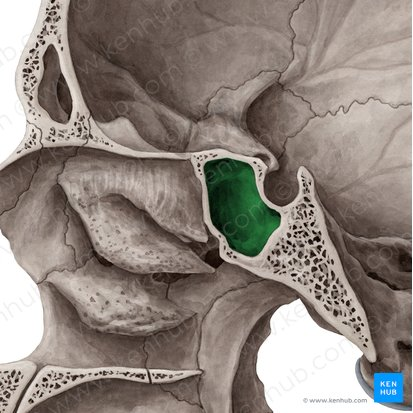

Sphenoidal sinuses

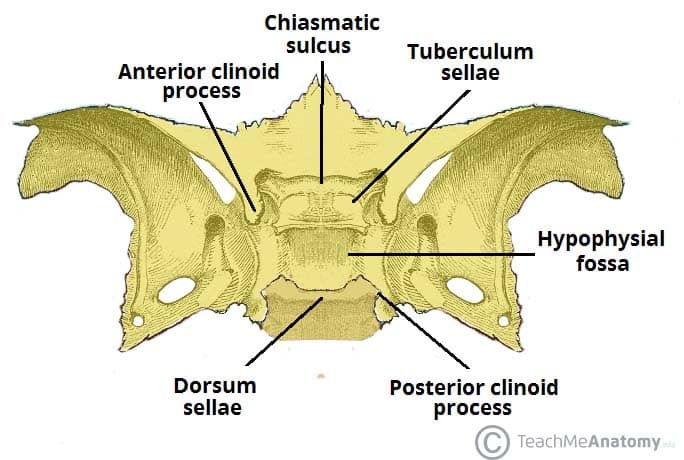

Sella turcica

Whole thing

Dorsum sellae

Posterior part

Hypophyseal fossa

Middle part

Tuberculum sellae

Anterior part

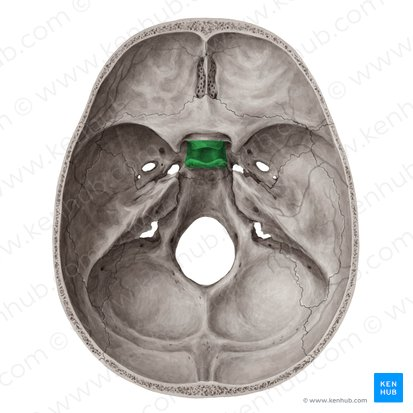

Jugum sphenoidale

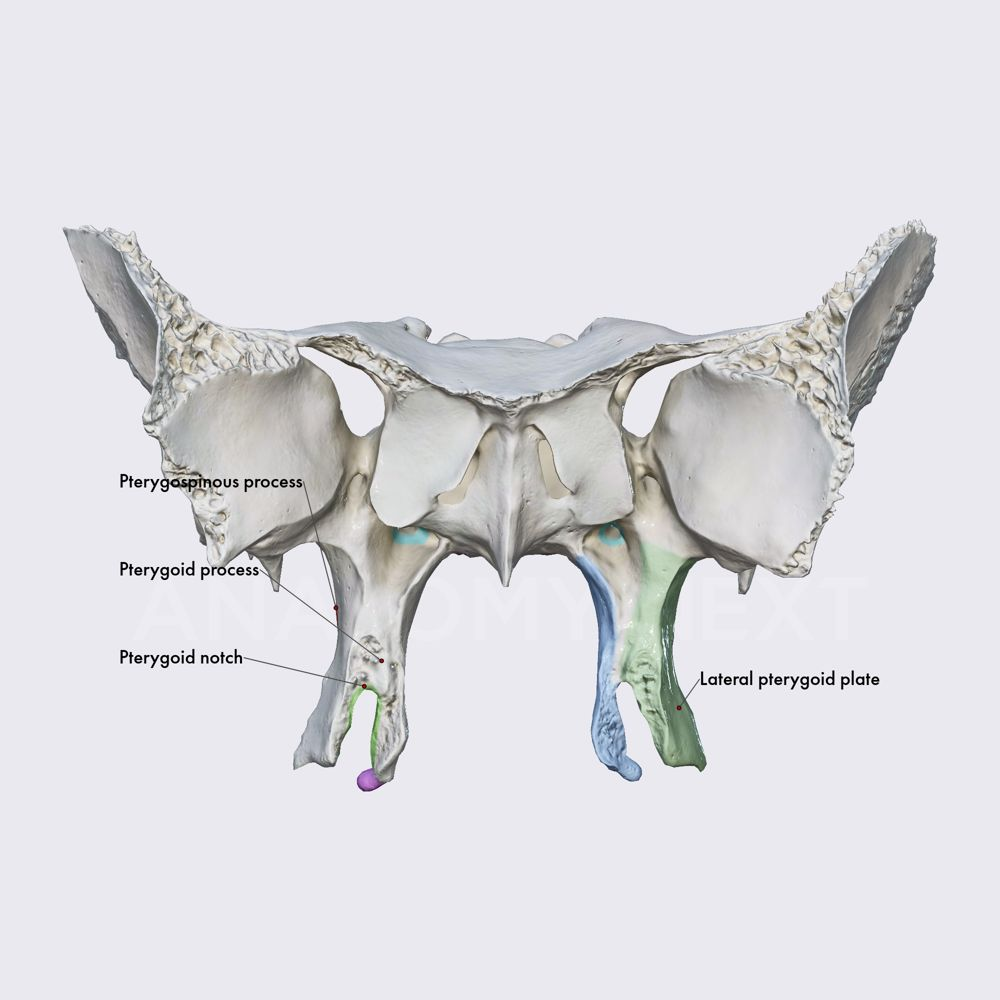

Medial pterygoid process

Inner process

Lateral pterygoid process

Outer process

Anterior clinoid process

Paired

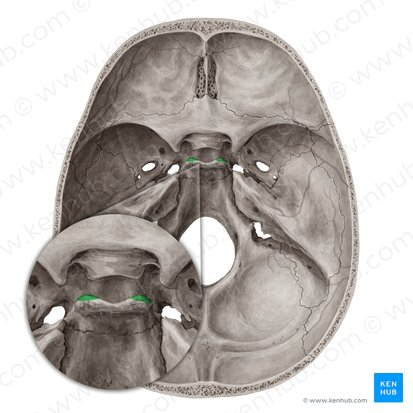

Posterior clinoid process

Paired

Optic canal

Superior orbital fissure

Foramen rotundum

Foramen ovale

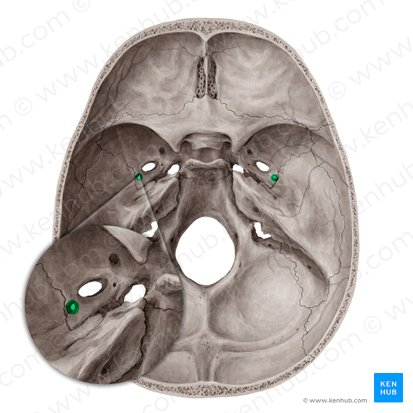

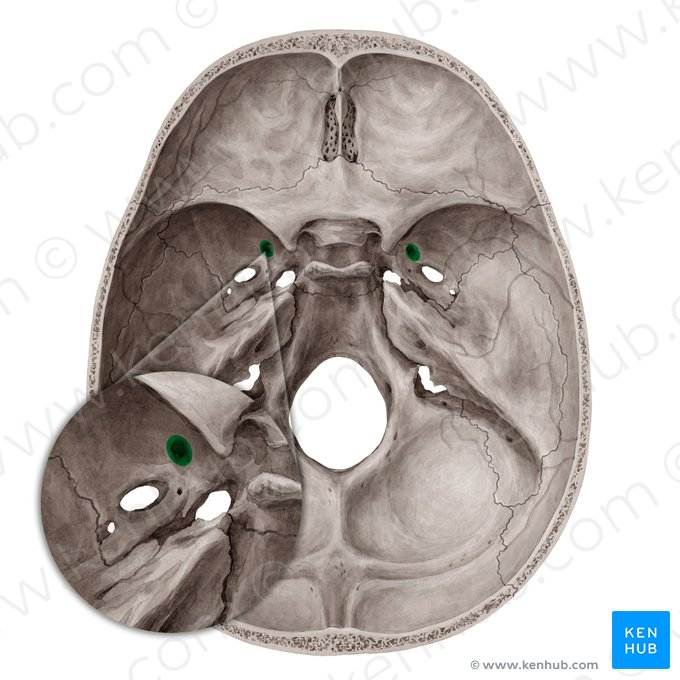

Foramen spinosum

Ethmoid bone

Cribriform plate (w/ olfactory foramen)

Olfactory nerve CN I

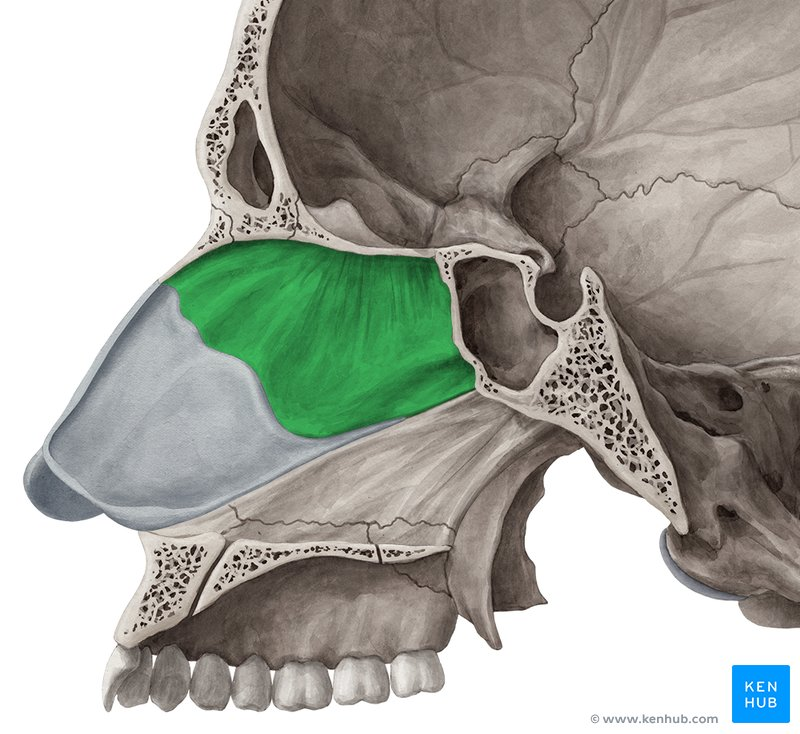

Perpendicular plate

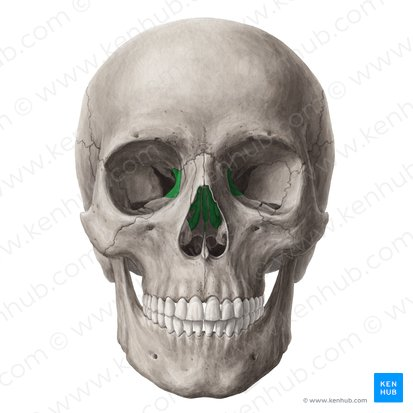

Superior nasal conchae

Middle nasal conchae

Ethmoidal sinuses/ethmoid air cells

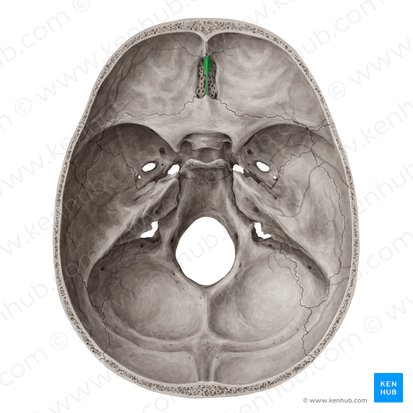

Crista galli
