1
New cards

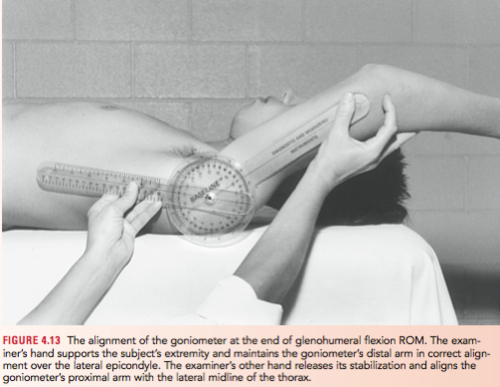

<p>What is the Strucutrla Learning Grid For Shoulder Flexion?</p>

What is the Strucutrla Learning Grid For Shoulder Flexion?

  • Testing Position= Supine

  • Plane= Sagittal

  • End Feel= Firm

  • Normal Range= 0-180

  • Fulcrum Axis= Lateral Acromion

  • SA= Midline of Trunk

  • Movable arm= Lateral Humerus


2
New cards
<p>What is the Strucutrla Learning Grid For Shoulder Abduction?</p>

What is the Strucutrla Learning Grid For Shoulder Abduction?

  • Testing Position= Supine

  • Plane= Frontal

  • End Feel= Firm

  • Norma Range= 0-180

  • Fulcrum/Axis= Anterior Acromion

  • SA= Parallel to sternum of the bod

  • MA= Anterior Midline of Humerus


3
New cards

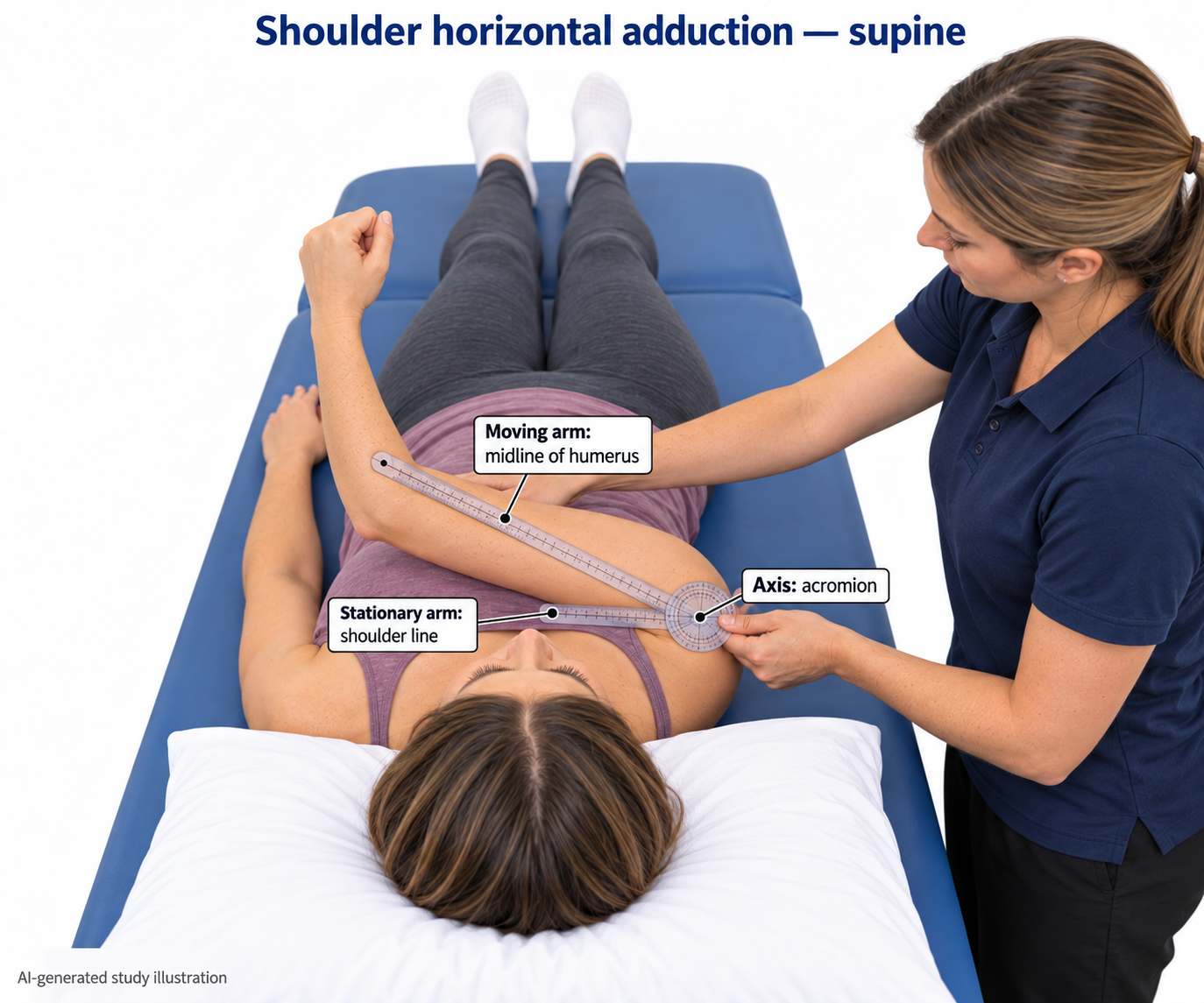

<p>What is the Strucutrla Learning Grid For Shoulder Horizontal Adduction ? (NEED PIC)</p>

What is the Strucutrla Learning Grid For Shoulder Horizontal Adduction ? (NEED PIC)

  • Testing Position= Supine

  • Plane=???

  • End Feel= Firm

  • Normal Range= 0-120/135

  • Fulcrum/ Axis= Lateral Acromion Ipsilateral

  • SA= line between acromion

  • MA= midline of humerus


4
New cards
<p>What is the Strucutrla Learning Grid For Shoulder Internal Rotation?</p>

What is the Strucutrla Learning Grid For Shoulder Internal Rotation?

  • Testing Position=Transverse

  • Plane= Sagittal

  • End Feel= Firm

  • Normal Ranger= 0-70

  • Fulcrum/Axis= Olecranon Process

  • SA= Parallel to the arm/ Floor

  • MA= Ulna Styloid


5
New cards
<p>What is the Strucutrla Learning Grid For Shoulder External Rotation?</p>

What is the Strucutrla Learning Grid For Shoulder External Rotation?

  • Testing Position=Transverse

  • Plane= Sagittal

  • End Feel= Firm

  • Normal Ranger= 0-90

  • Fulcrum/Axis= Olecranon Process

  • SA= Parallel to the arm/ Floor

  • MA= Ulna Styloid


6
New cards
<p>What is the Strucutrla Learning Grid For Shoulder Hyperextension?</p>

What is the Strucutrla Learning Grid For Shoulder Hyperextension?

  • Plane=Sagittal

  • Testing Position= Side lying

  • End Feel= Firm

  • Normal Range= 0-80

  • Fulcrum/ Axis= Lateral acromion

  • SA= Midline of trunk

  • MA= Greater trochanon / midline of humerus


7
New cards

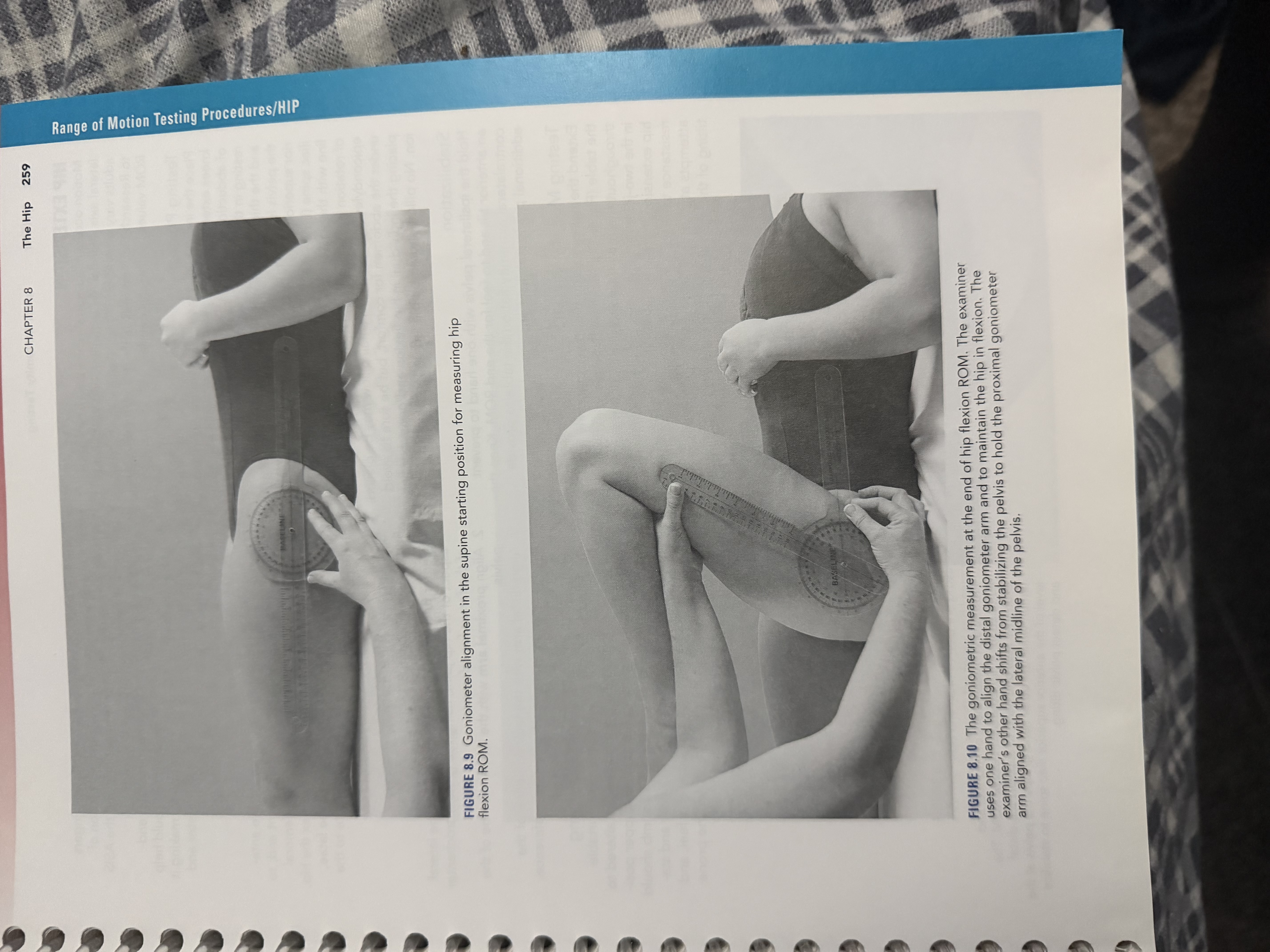

<p>What is the Strucutrla Learning Grid For Shoulder Hip Flexion?</p>

What is the Strucutrla Learning Grid For Shoulder Hip Flexion?

  • Plane= Sagittal

  • Testing Position= Supine

  • End Feel= Soft

  • Normal Range= 0-120

  • Fulcrum/Axis= Greatert rochanter of femur

  • SA= lateral midline of pelvis

  • MA= Lateral midline of femur/ lateral epicondyle


8
New cards
<p>What is the Strucutrla Learning Grid For Hip Abduction?</p>

What is the Strucutrla Learning Grid For Hip Abduction?

  • Plane= Frontal

  • Testing Position= Supine

  • End Feel= Firm

  • Normal Range= 0-45

  • Fulcrum/ Axis= Ipsilateral ASIS

  • SA= between two ASIS/

  • MA= Anterior Midline Femur


9
New cards
<p>What is the Strucutrla Learning Grid For Hip Internal Rotation?</p>

What is the Strucutrla Learning Grid For Hip Internal Rotation?

  • Normal Range= 0-45

  • End Feel= firm

  • Testing Position= sitting

  • Plane= Transverse/ Horizontal

  • Fulcrum/ Axis= Patella

  • SA= perpendicular to the floor

  • MA= tibial crest


10
New cards

What is the Structural Learning Grid For Hip External Rotation?

  • Normal Range= 0-45

  • End Feel= firm

  • Testing Position= sitting

  • Plane= Transverse/ Horizontal

  • Fulcrum/ Axis= Patella

  • SA= perpendicular to the floor

  • MA= tibial crest


11
New cards

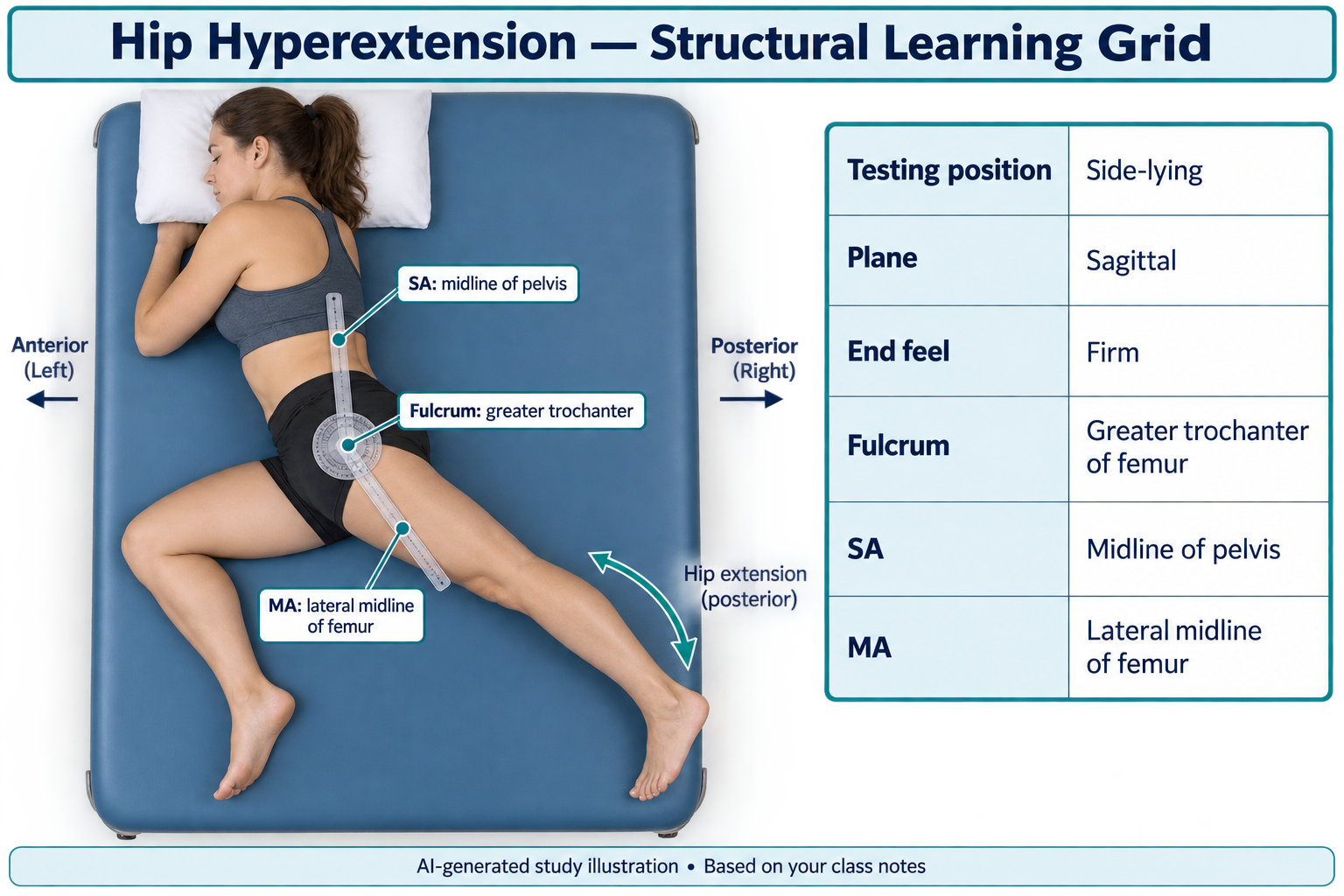

<p>What is the Structural Learning Grid For Hip Hyperextension?</p>

What is the Structural Learning Grid For Hip Hyperextension?

  • Testing Position= Sidelying

  • Plane= Sagittal

  • Endfeel= firm

  • Fulcrum= greater trochanter of femur

  • SA= midline of pelvis

  • MA= Lateral midline of the femur
