PVCC BIO 201 LAB PRACTICAL 2

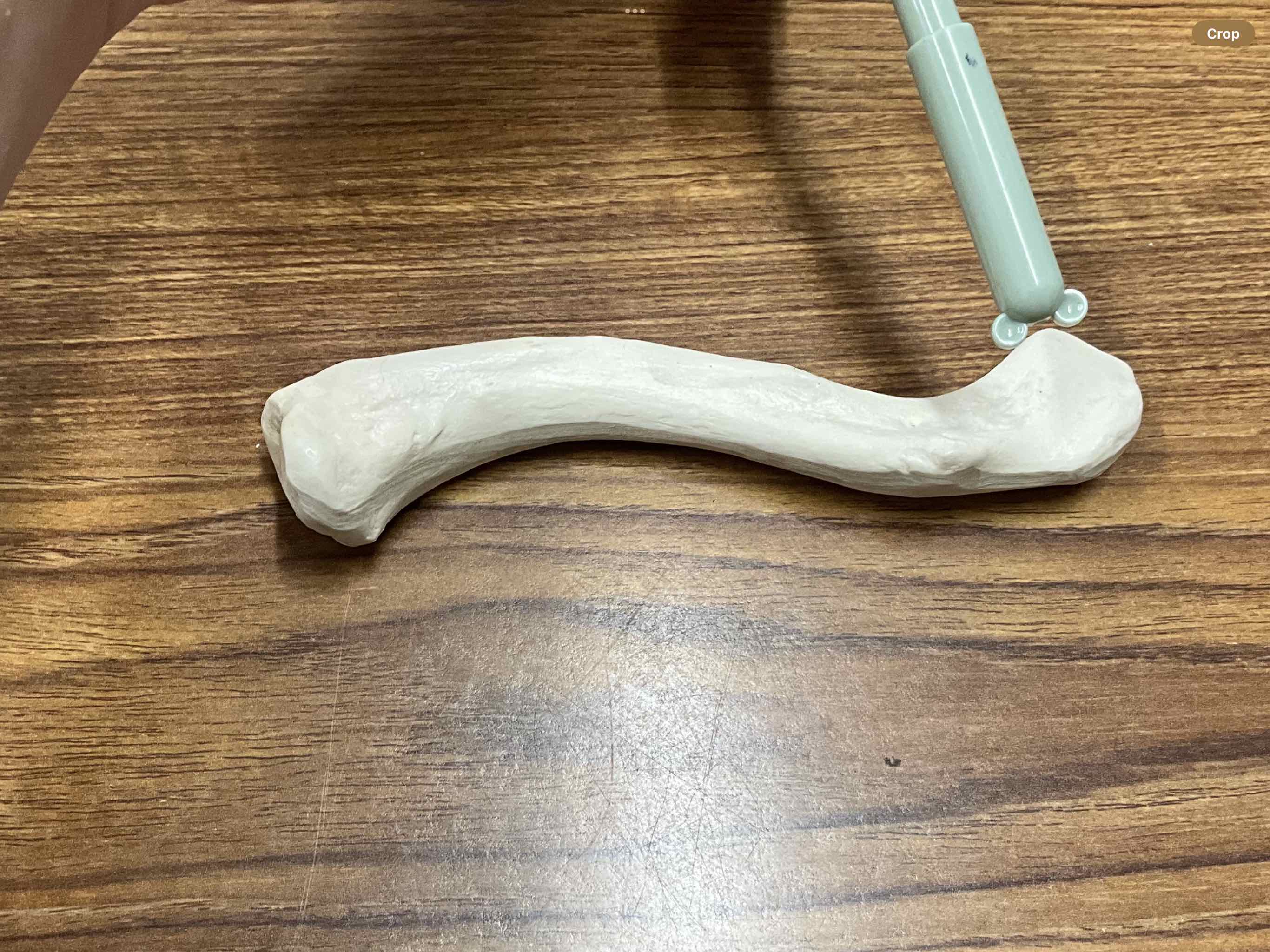

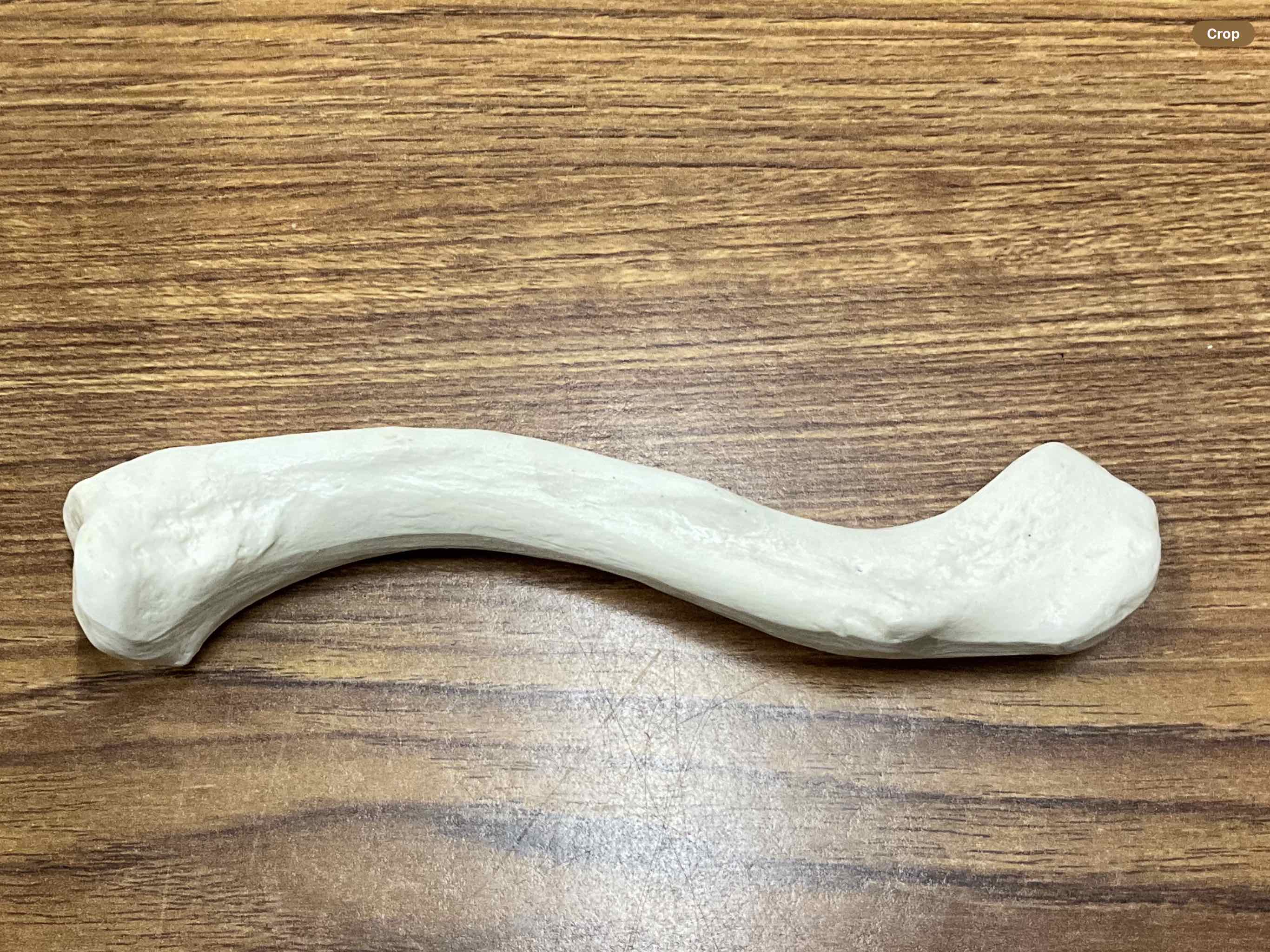

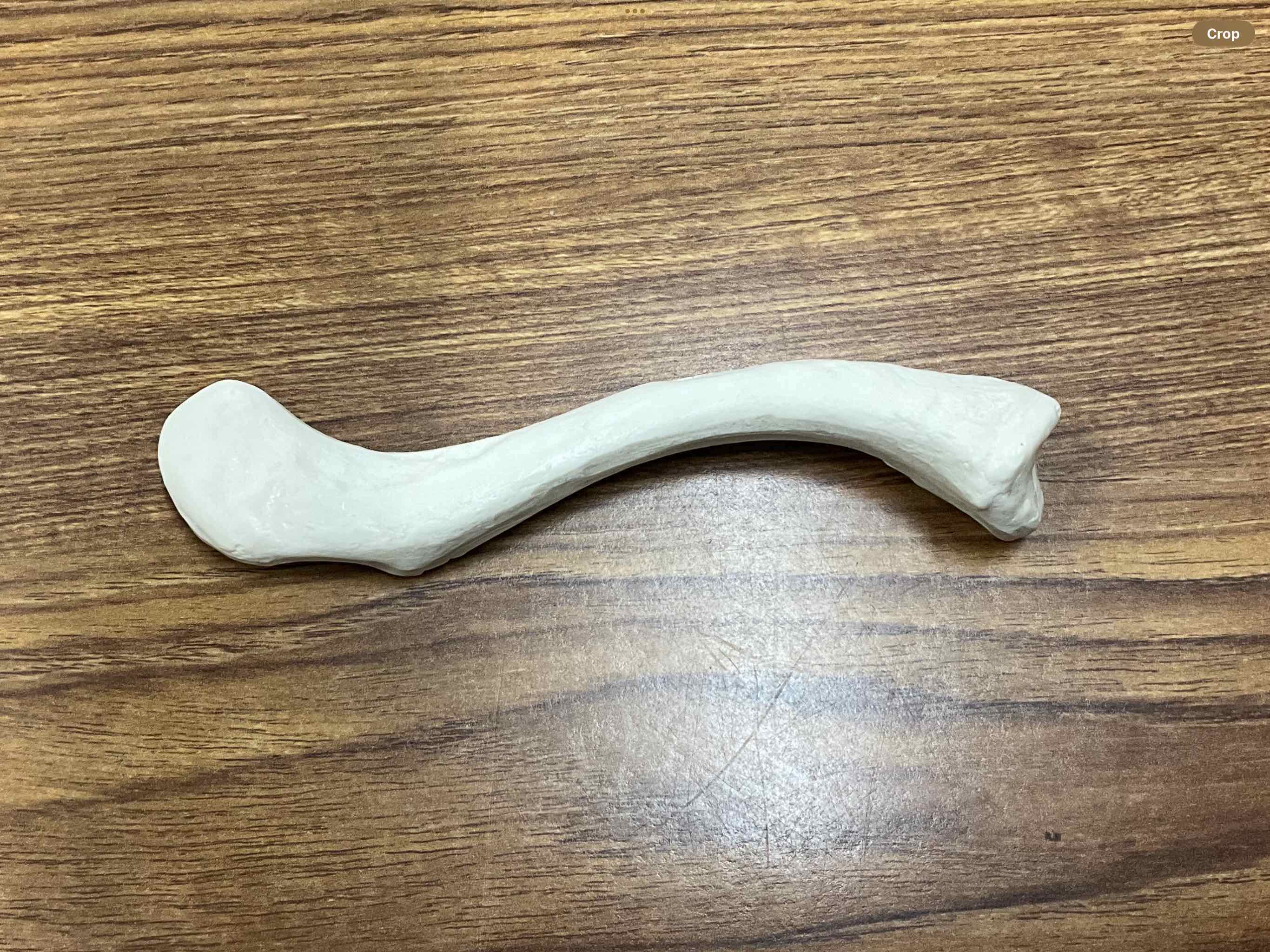

Left clavicle, superior (superior=smooth)

Left clavicle, inferior view

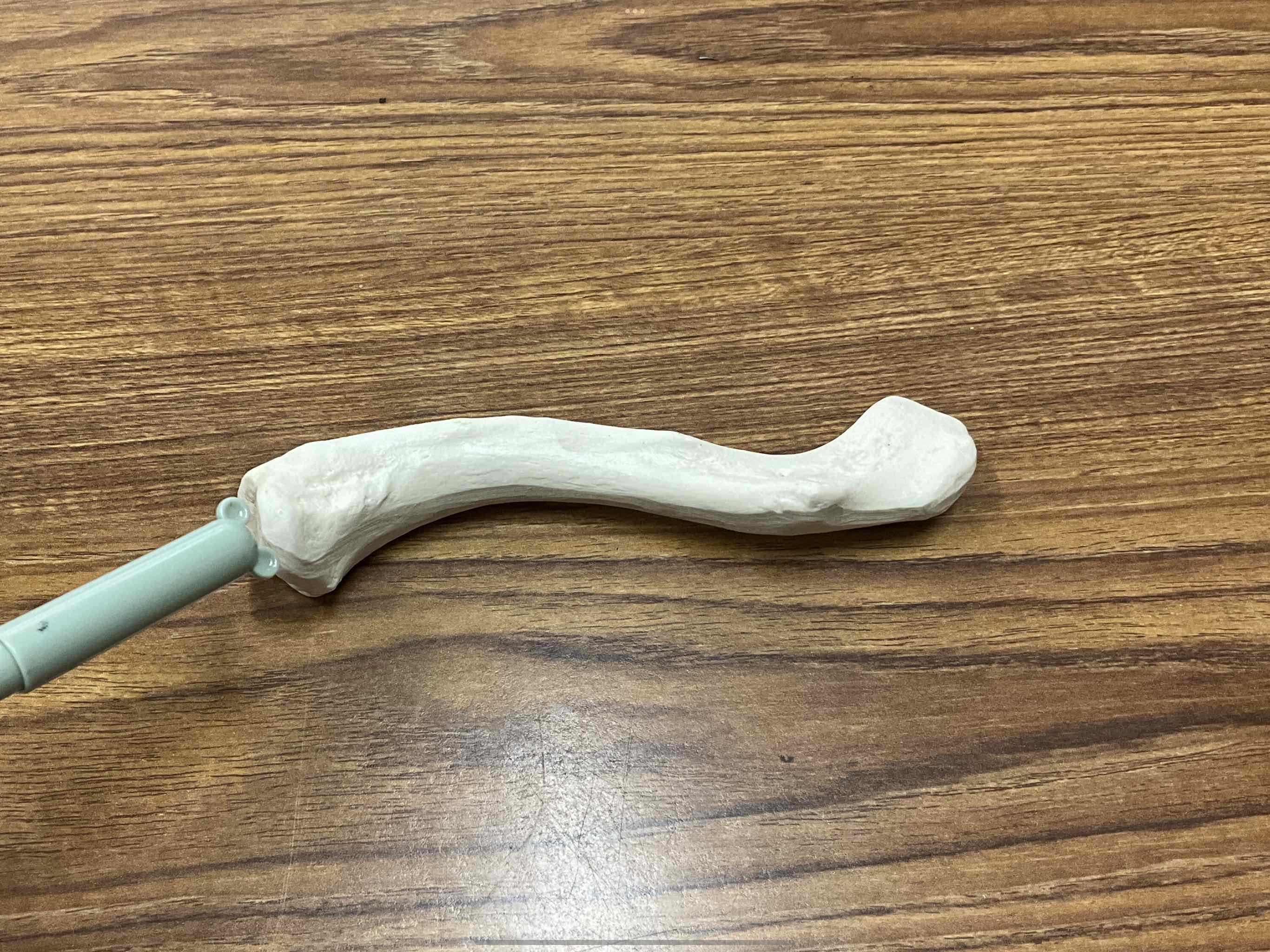

Sternal end of clavicle

Acromial end of clavicle

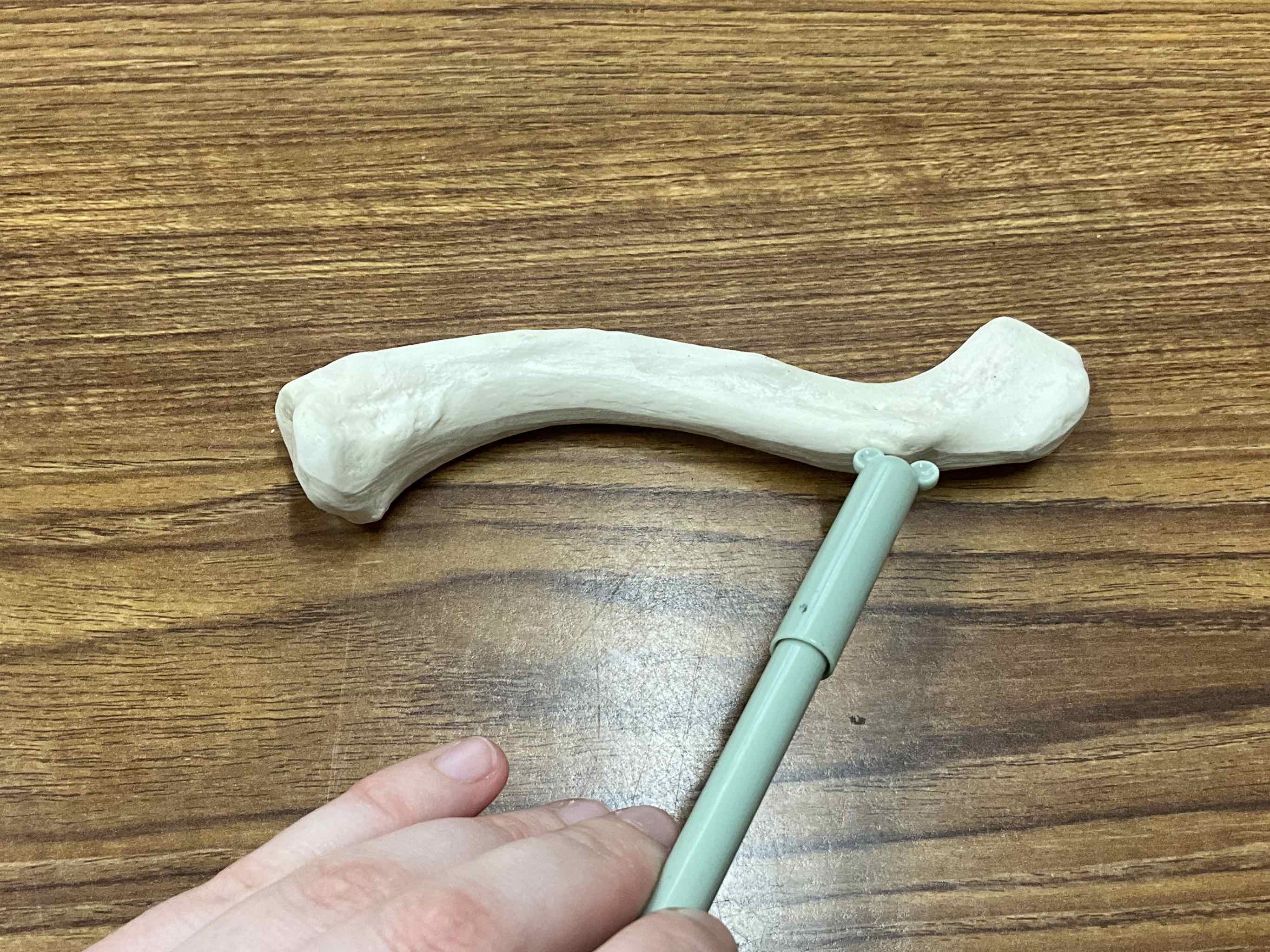

Conoid tubercle

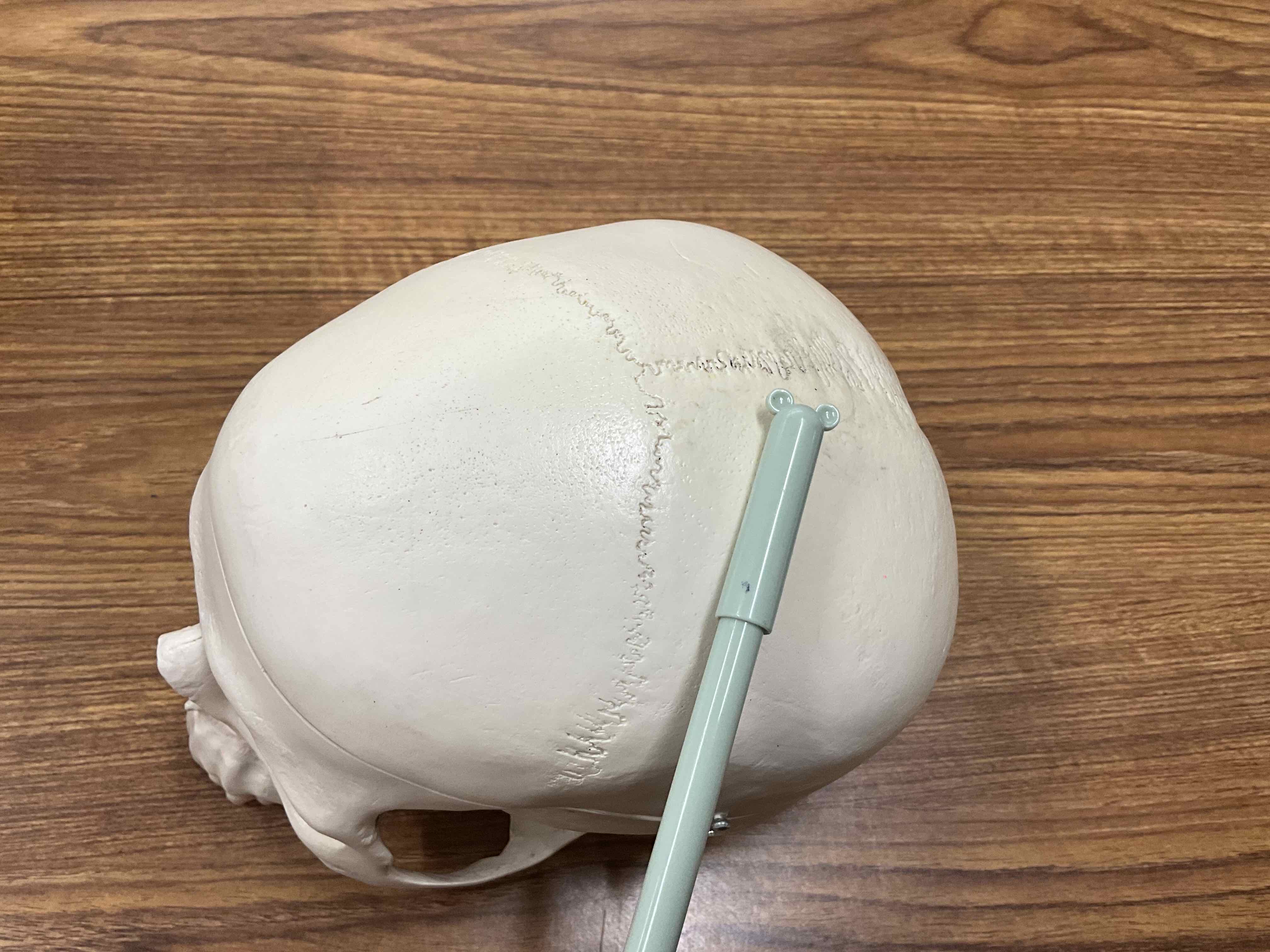

Suture

Coronal suture

Suture

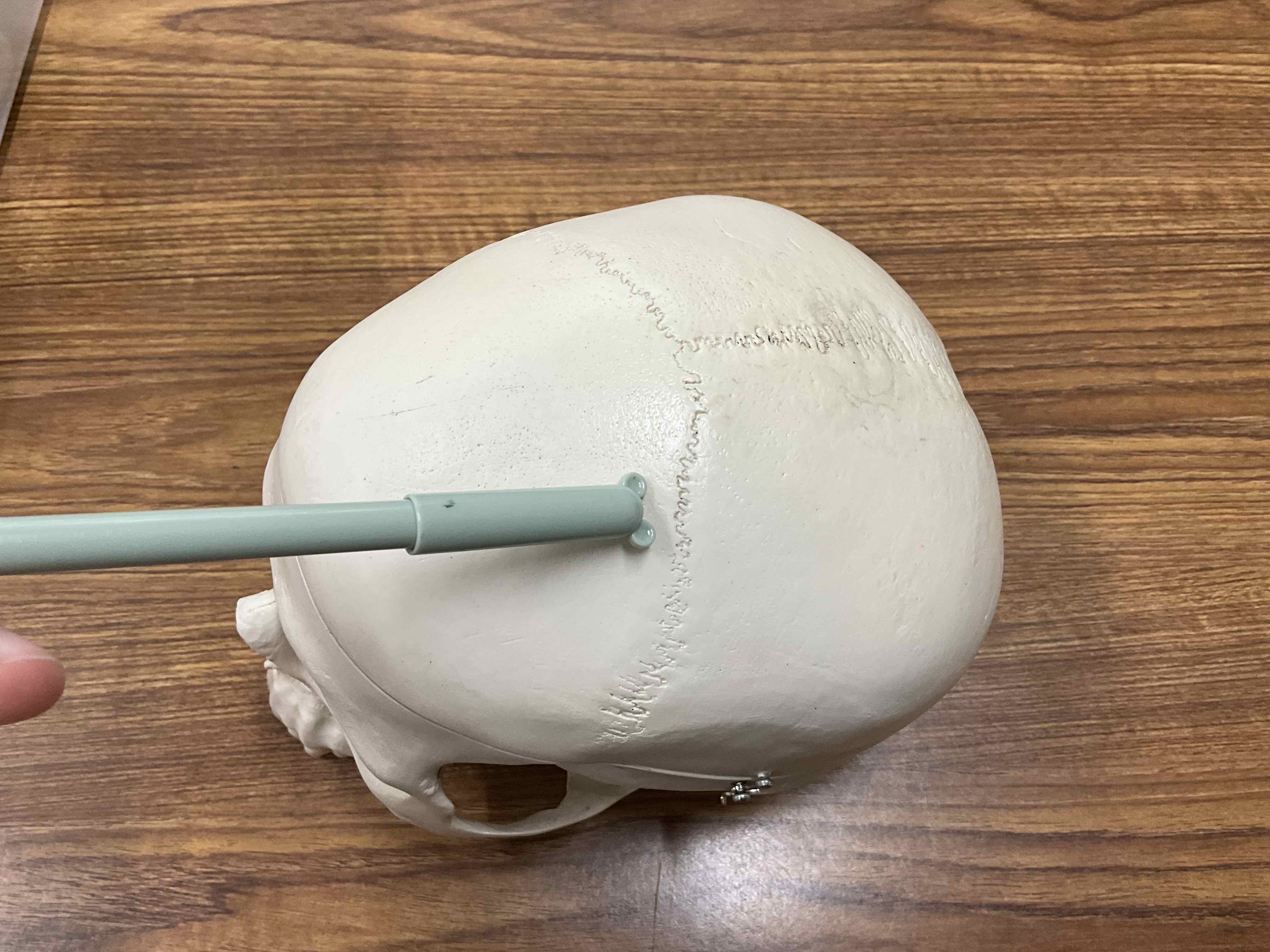

Sagittal suture

Suture (hard to see on model)

Squamosal suture

Suture

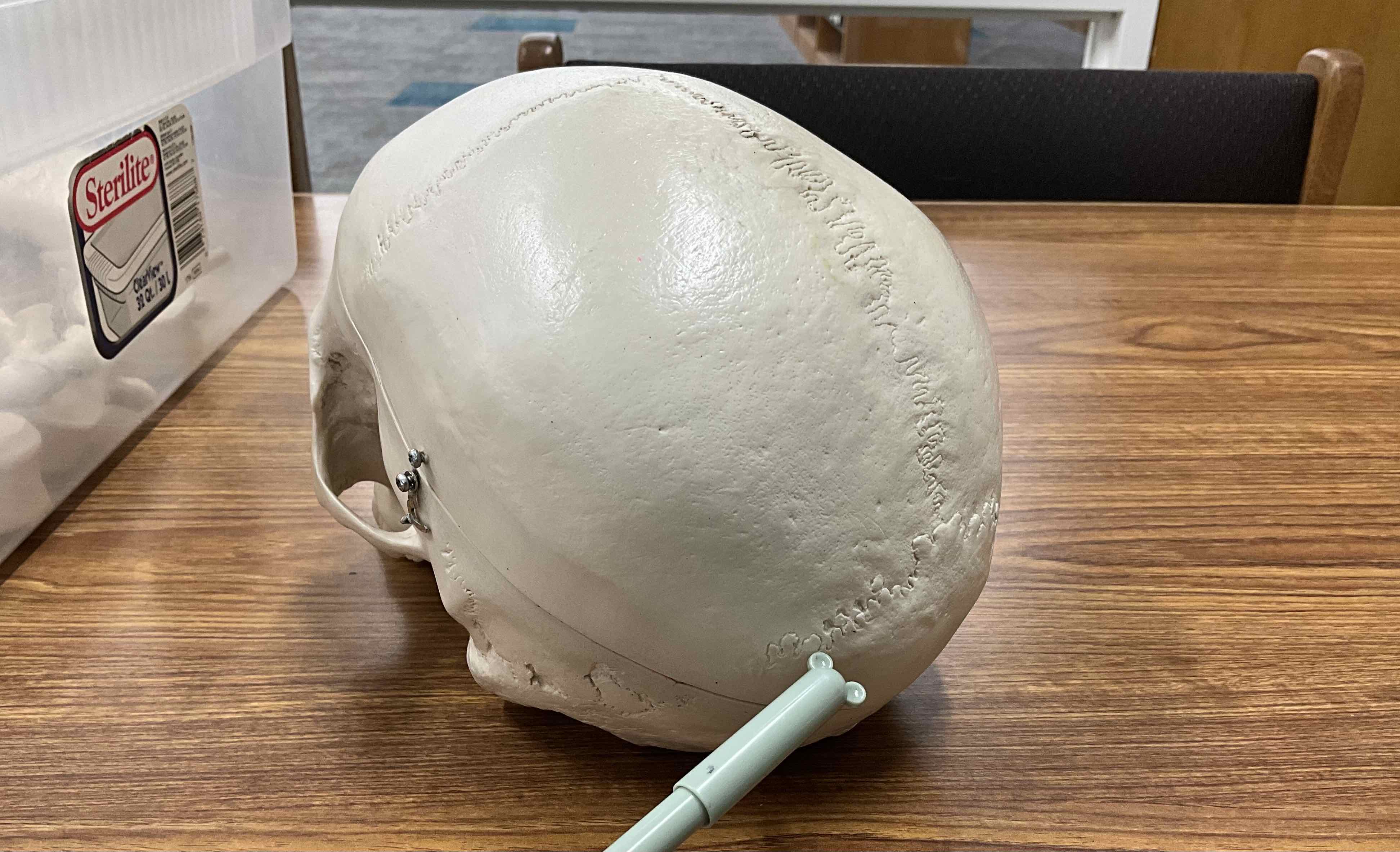

Lambdoidal

Name the bone

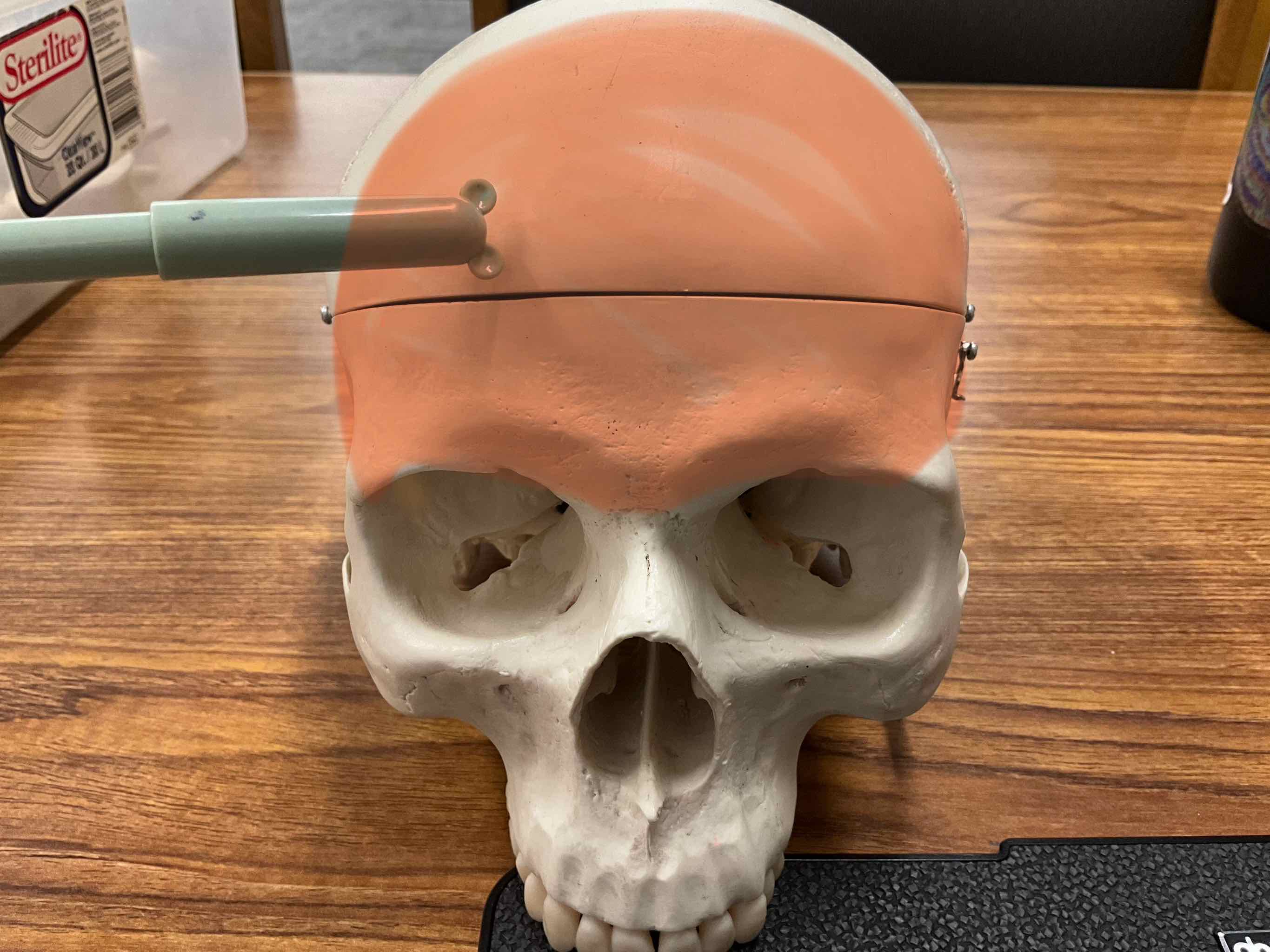

Frontal bone

Name the part

Supraorbital notch

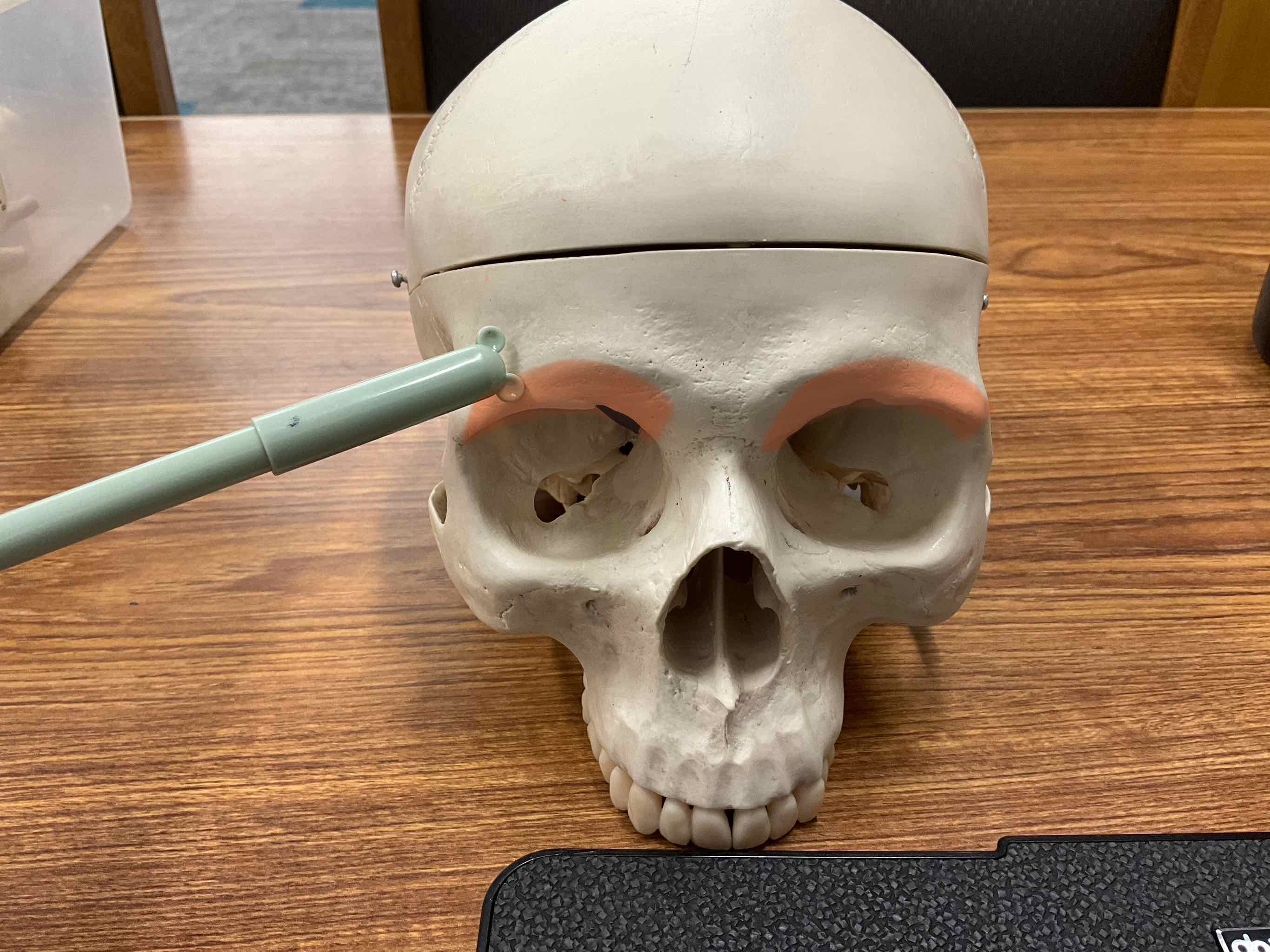

Supraorbital margin(s)

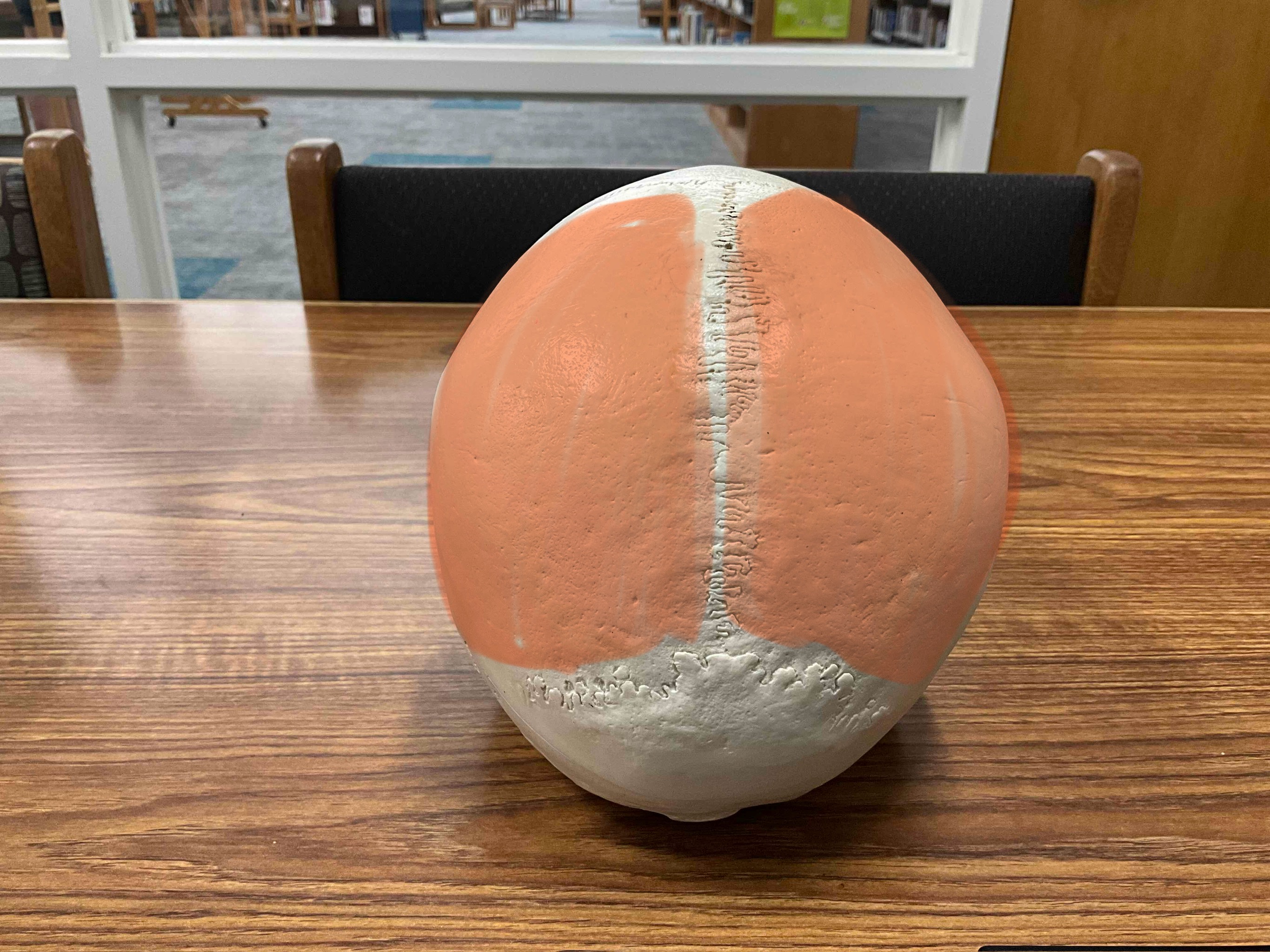

Name the bone(s)

Parietal bone(s)

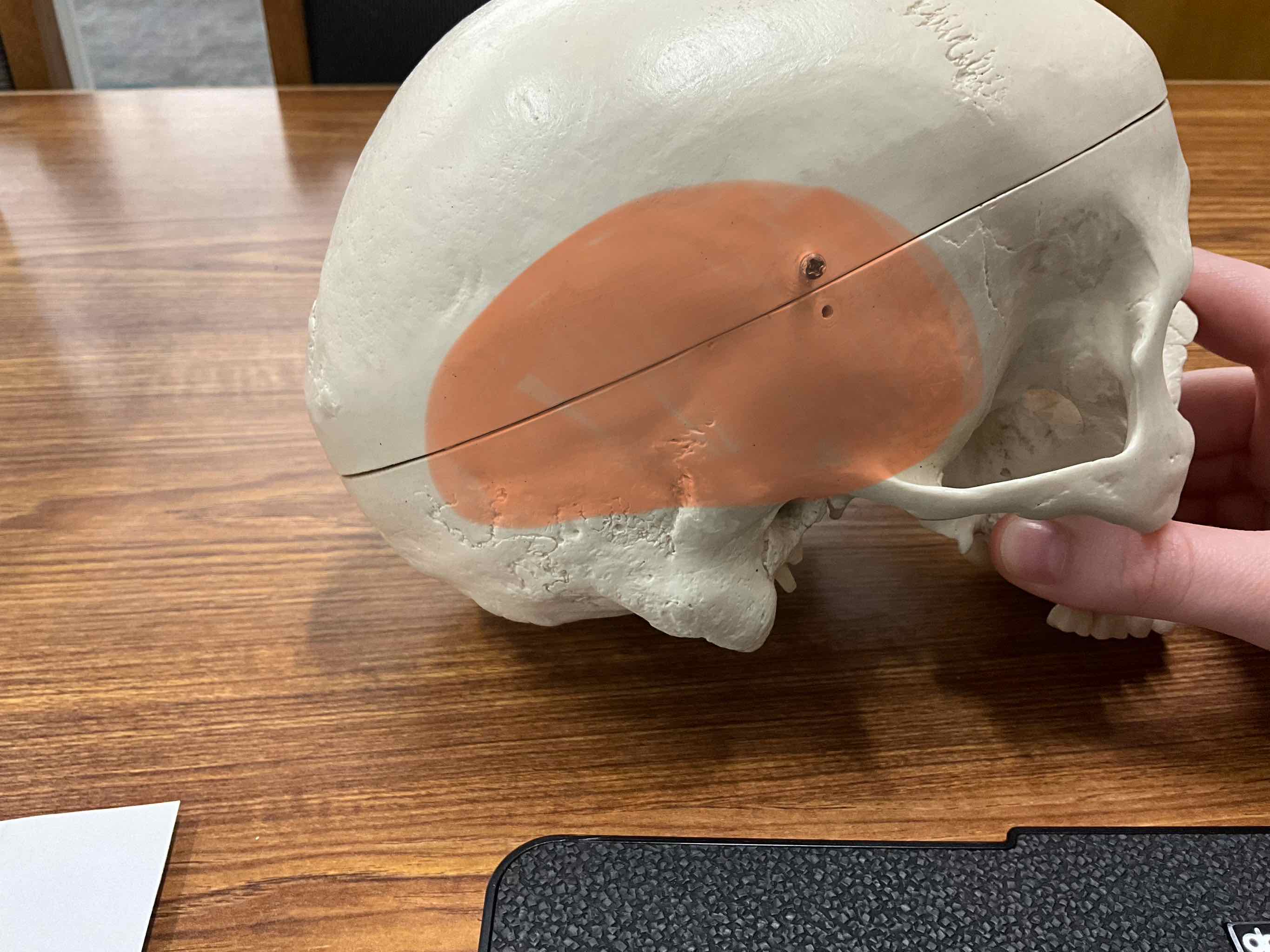

Name the bone

Temporal bone

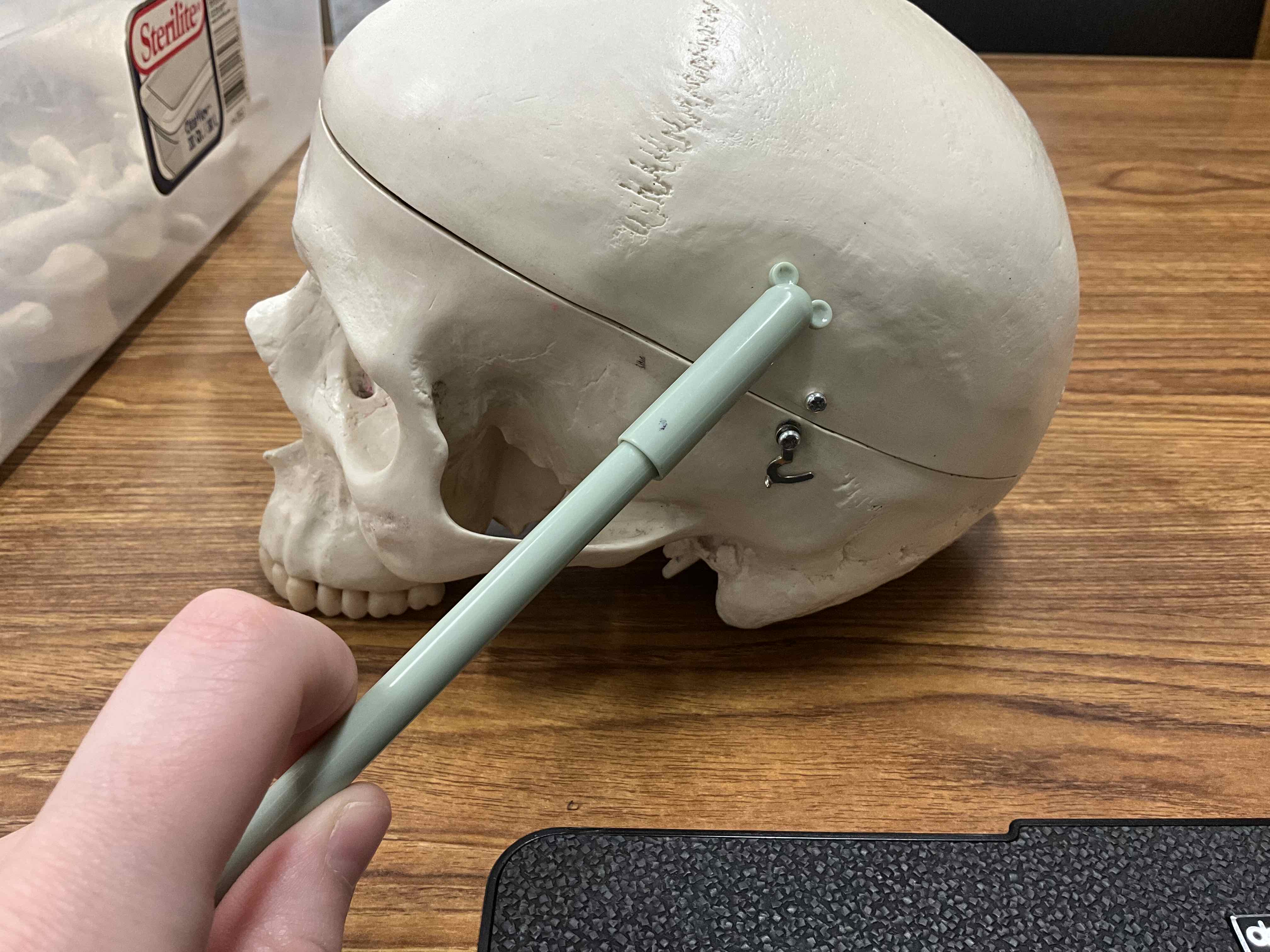

External acoustic meatus

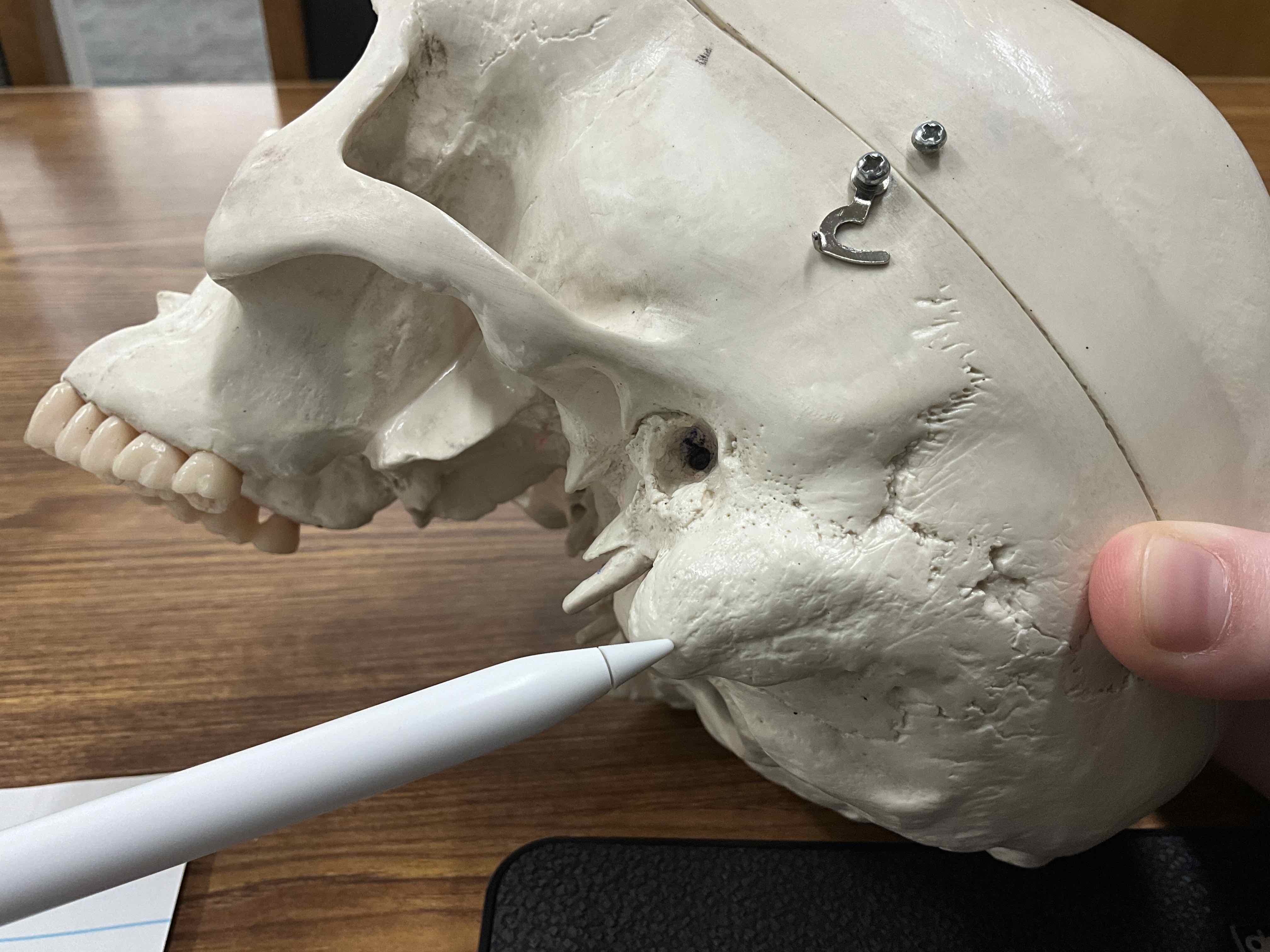

Mastoid process

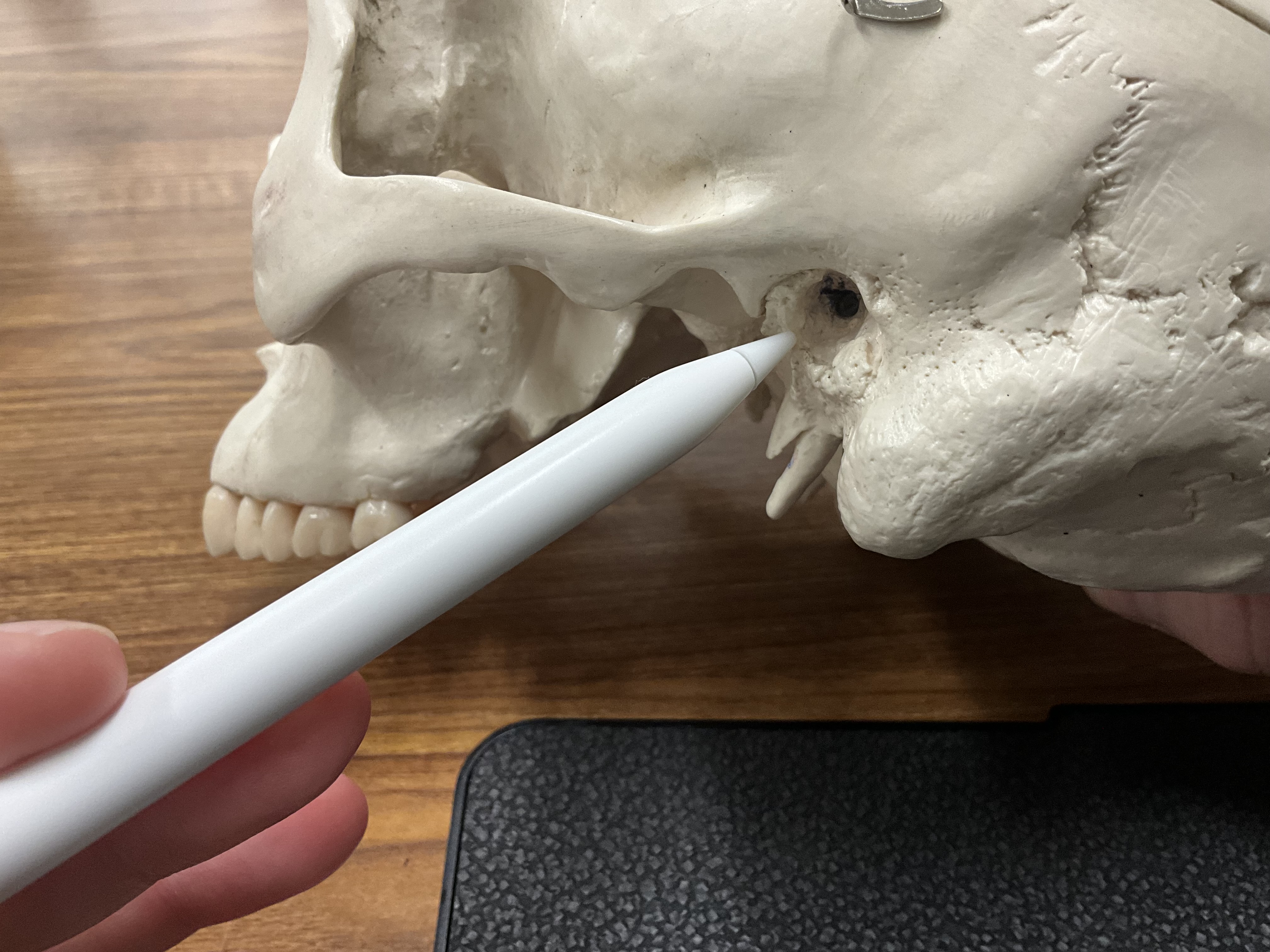

Mandibular fossa

Zygomatic process

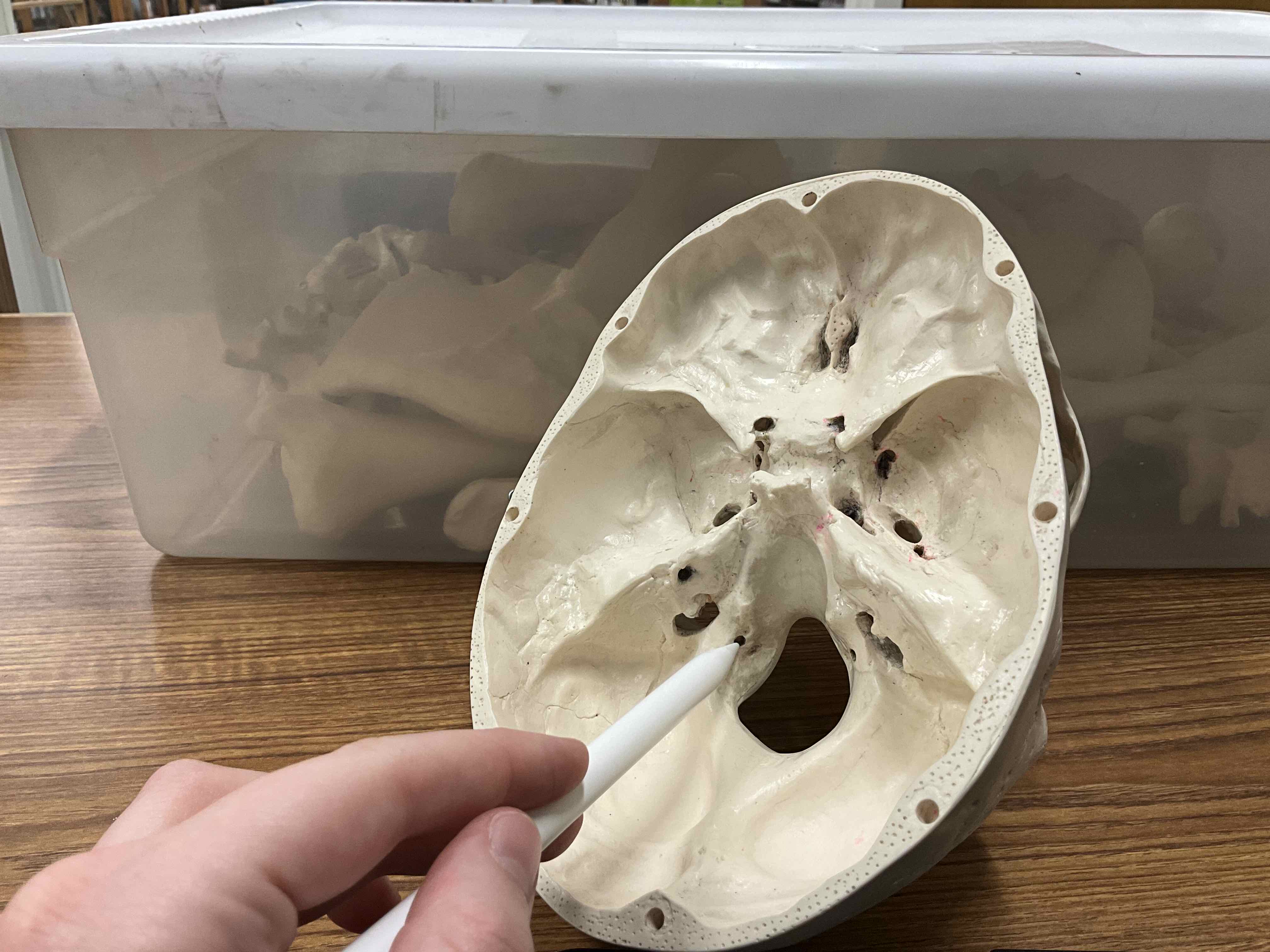

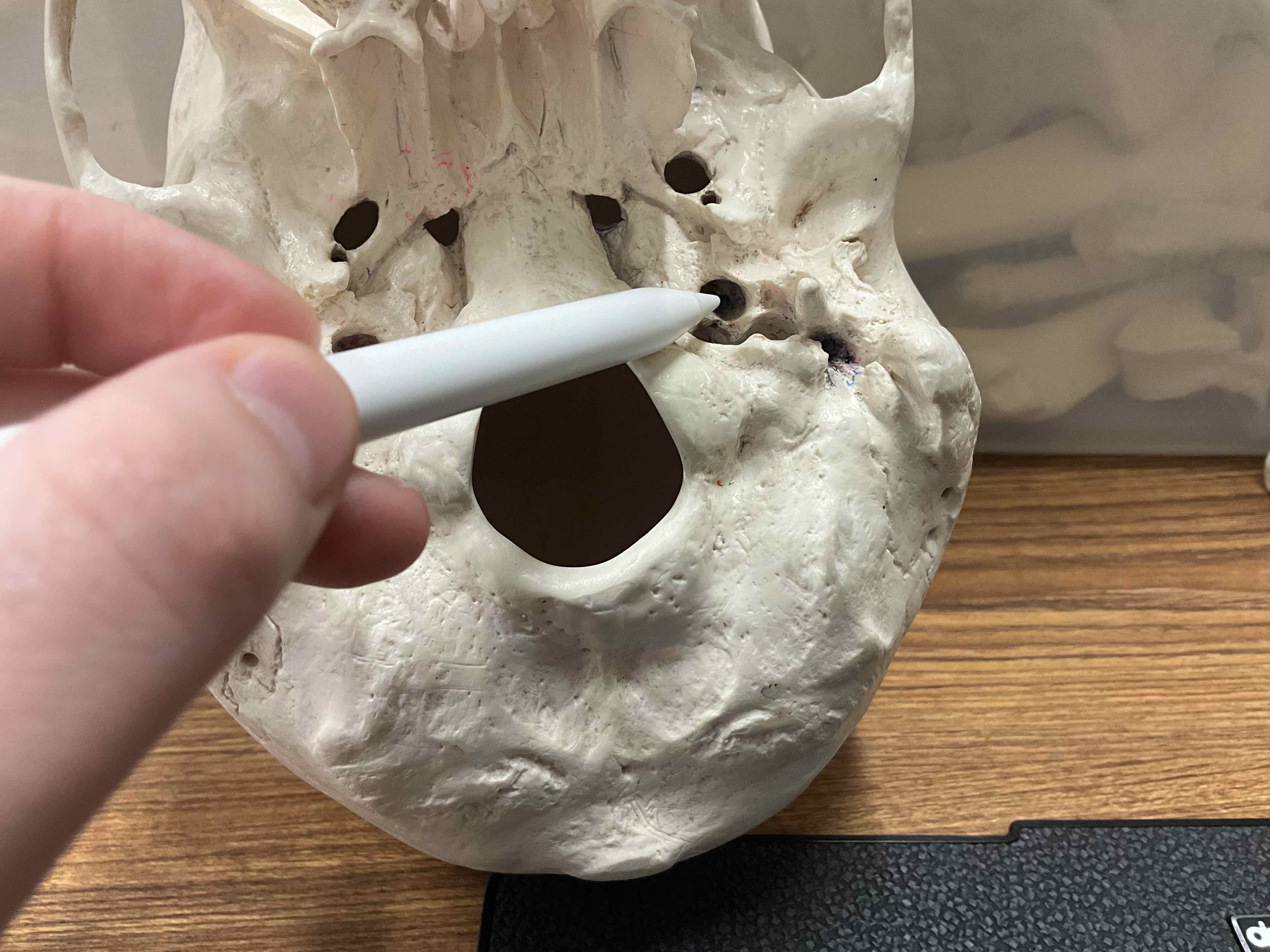

Carotid canal- for carotid artery

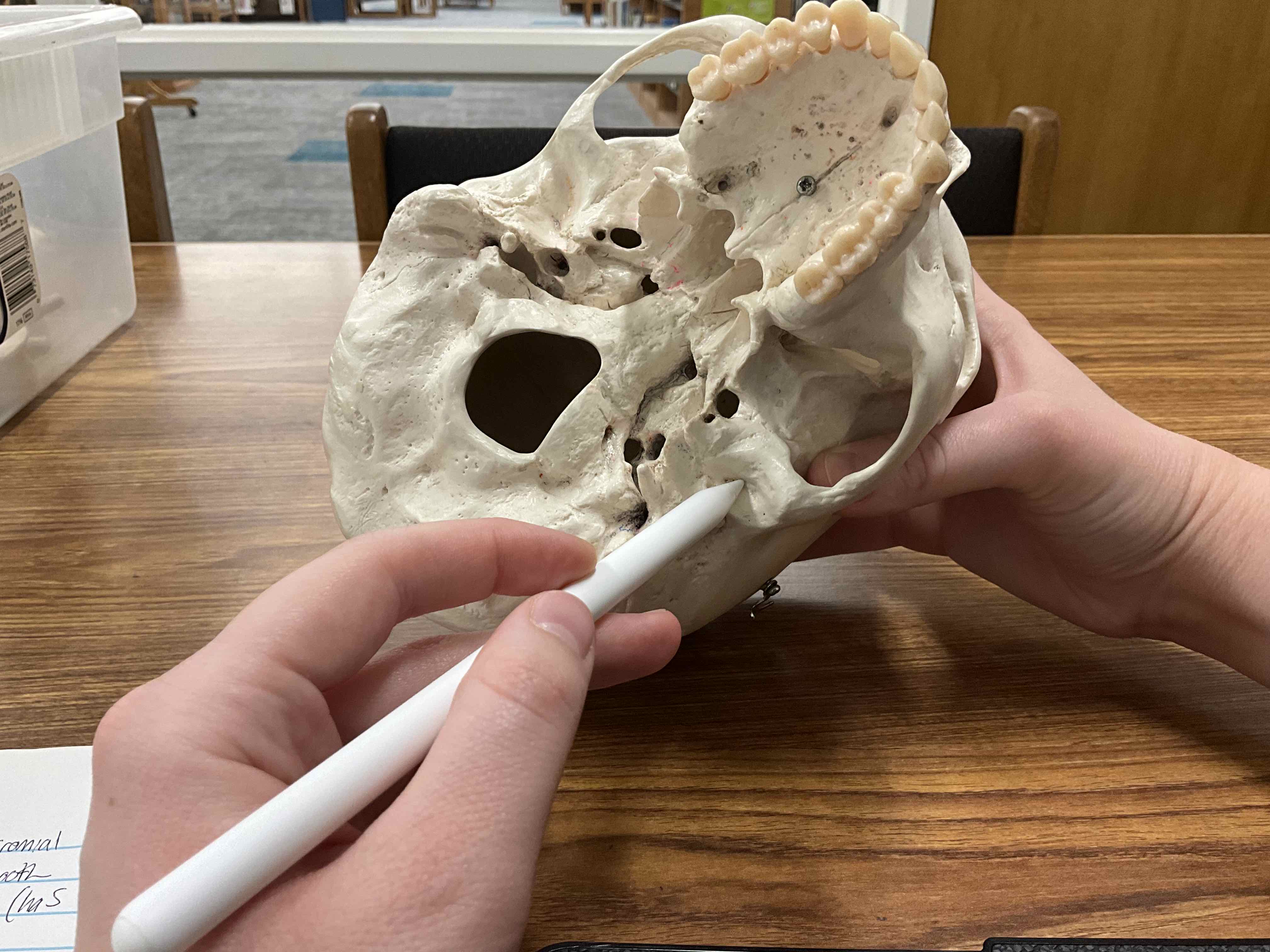

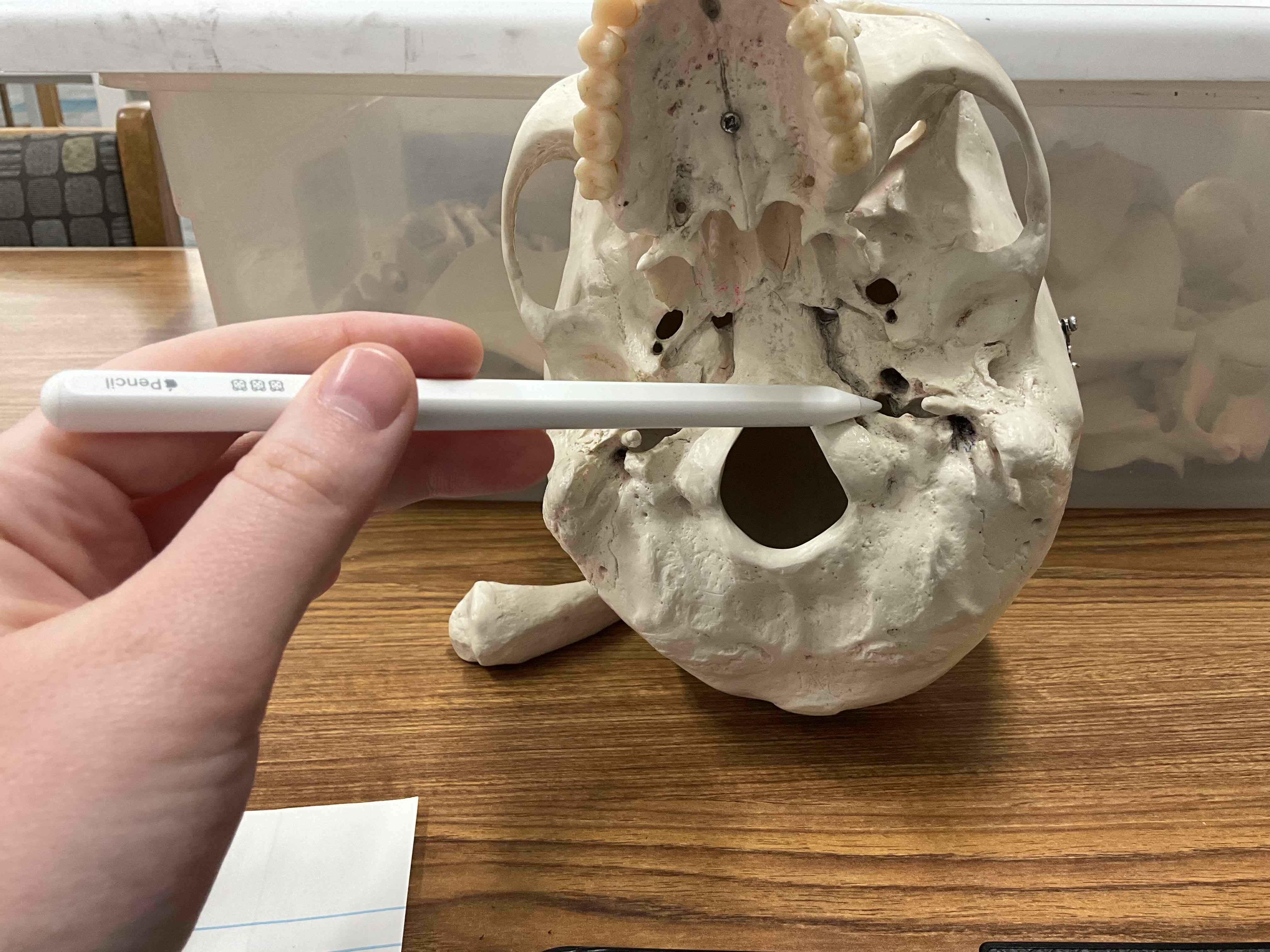

Jugular foramen- for veins and nerves

Styloid process

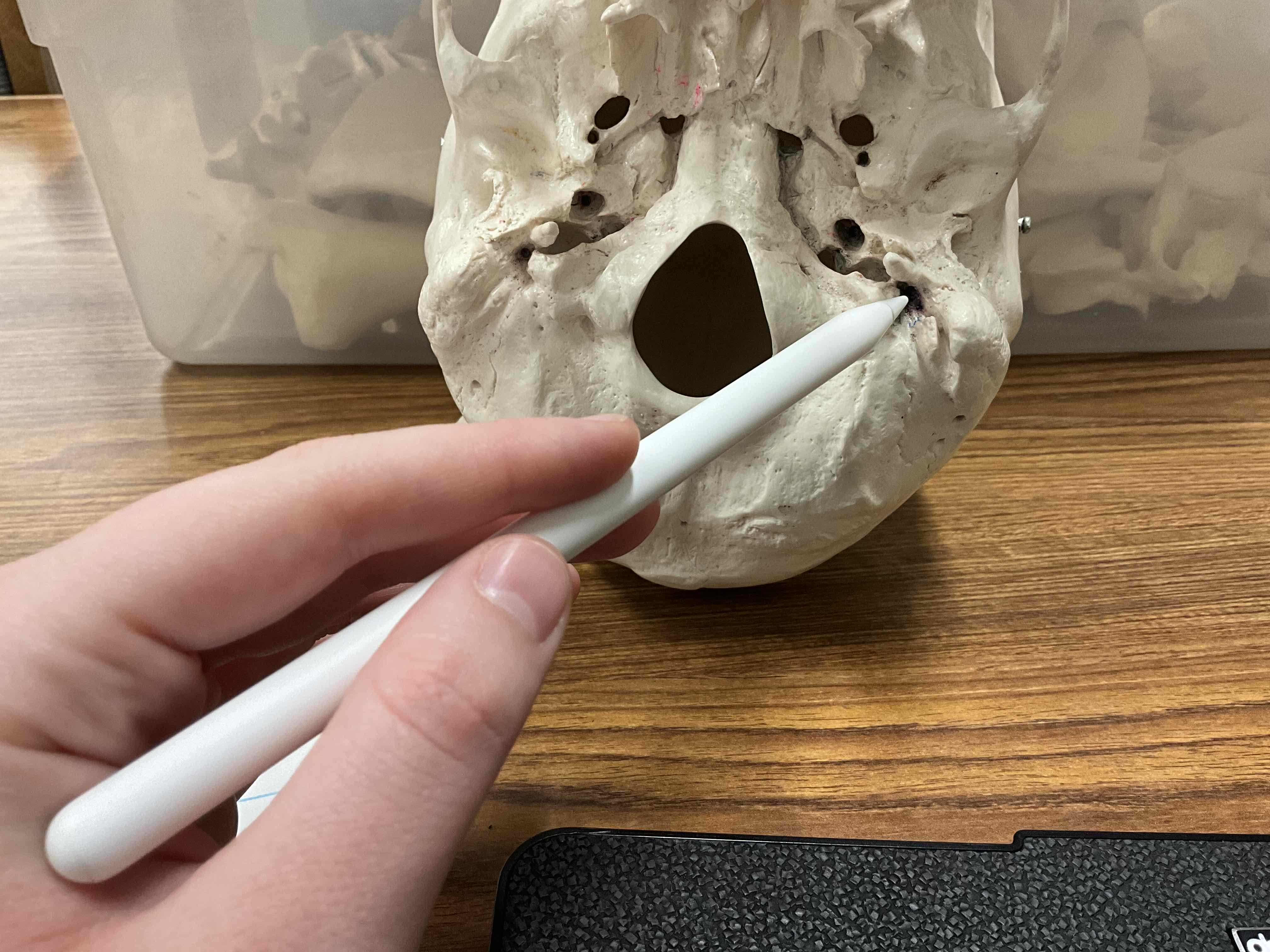

Stylomastoid foramen- for facial nerve

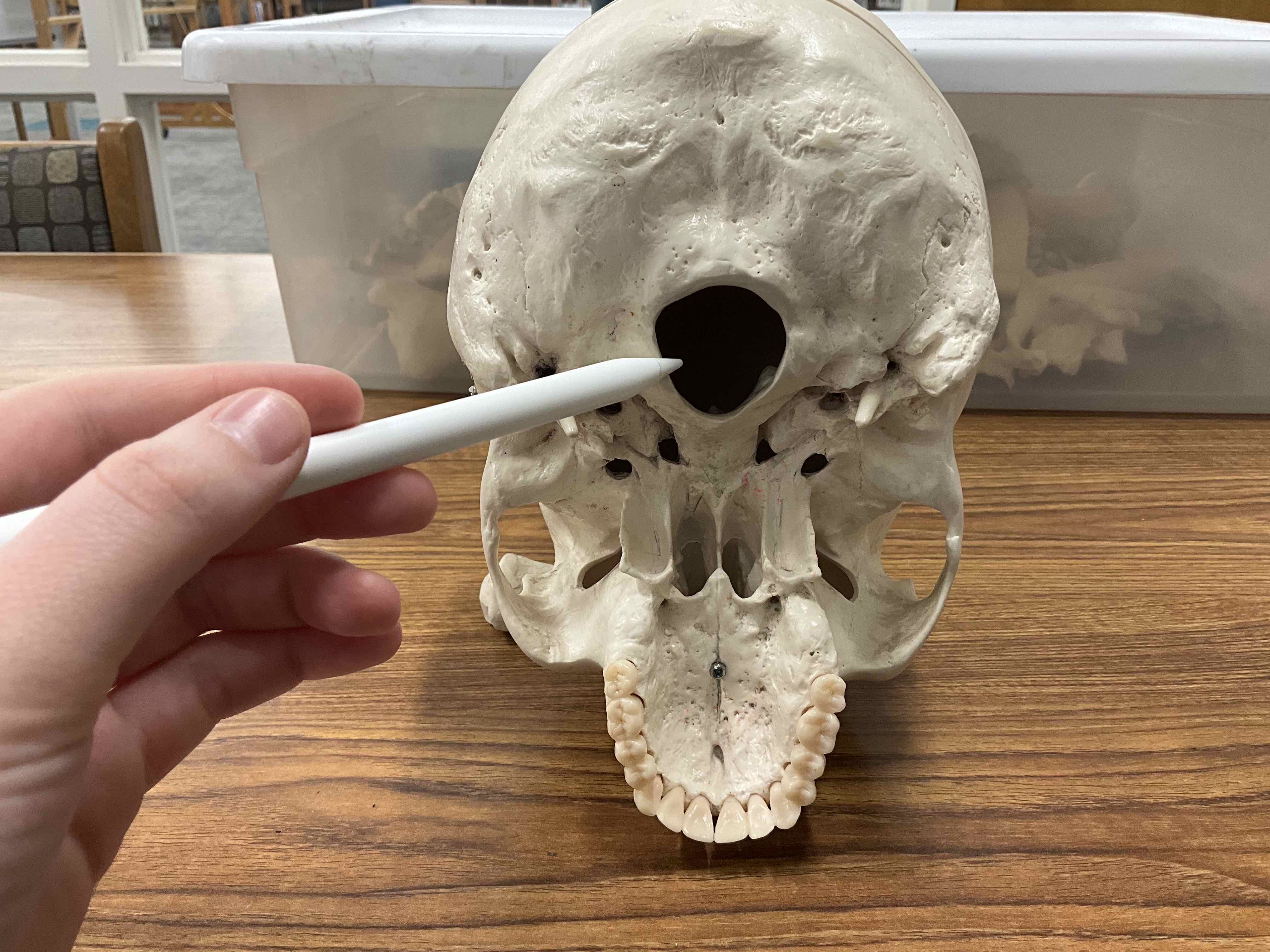

Name the bone

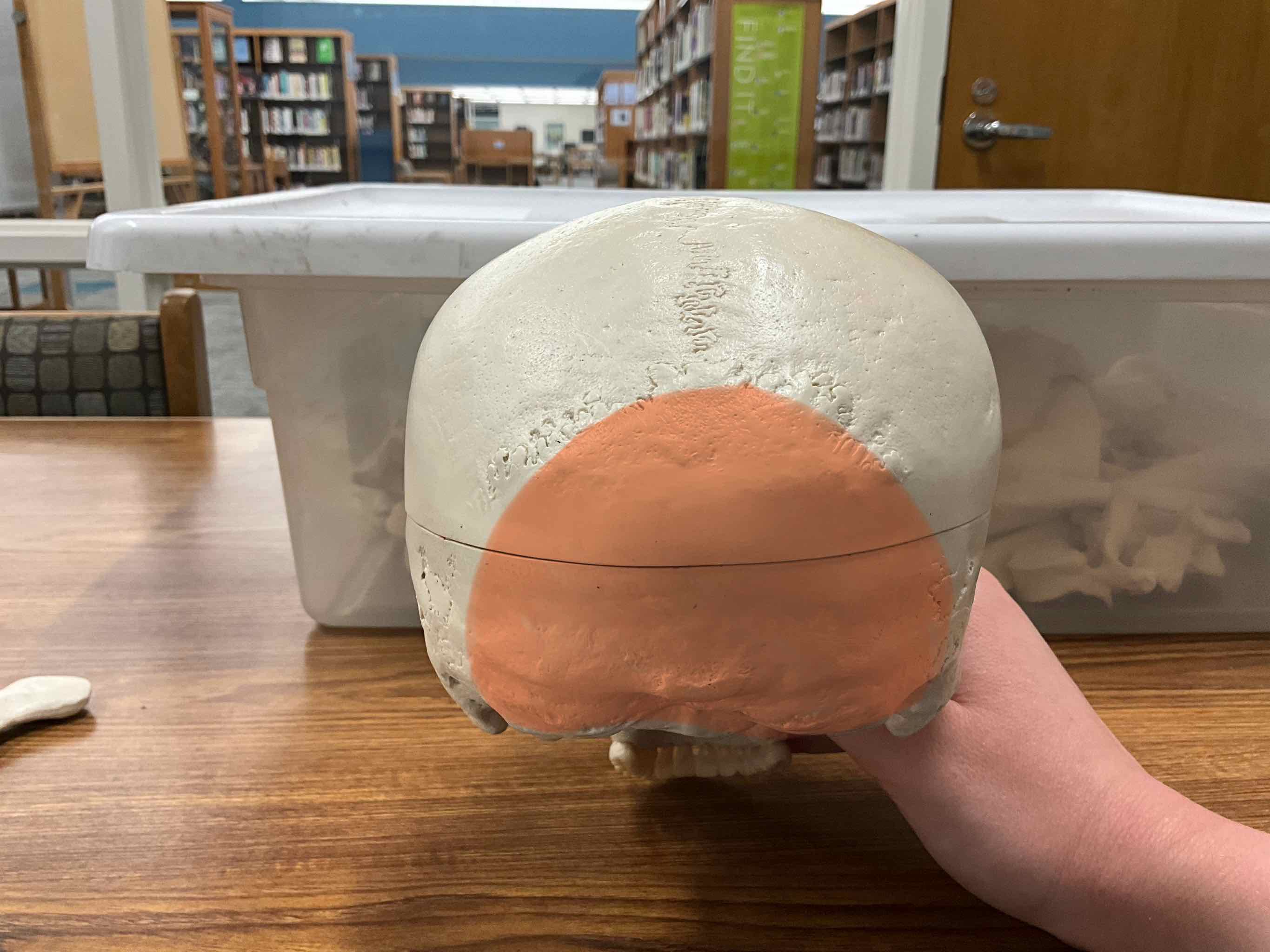

Occipital bone

Foramen Magnum

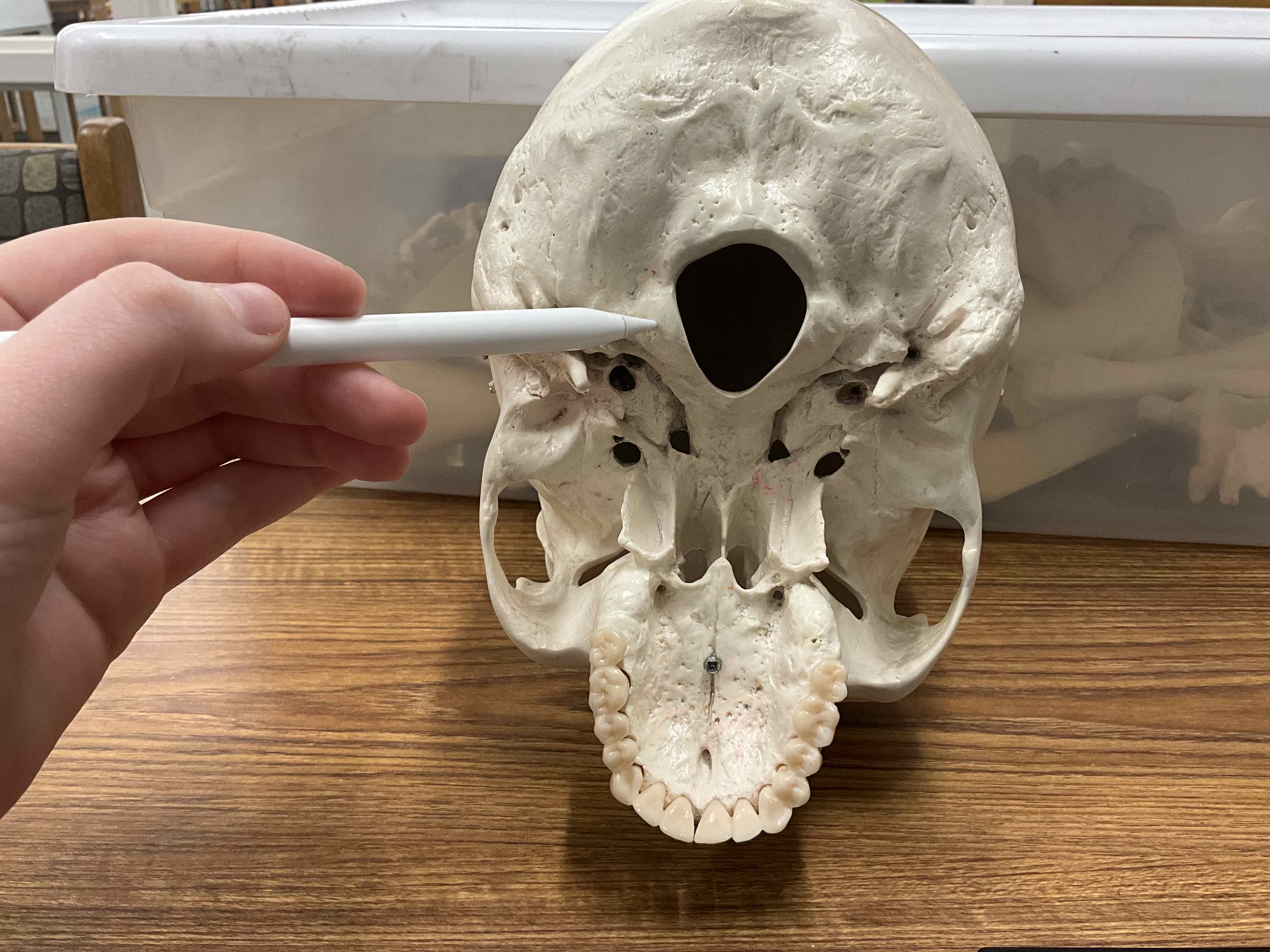

Occipital condyle(s)

Hypoglossal canal- for hypoglossal nerve

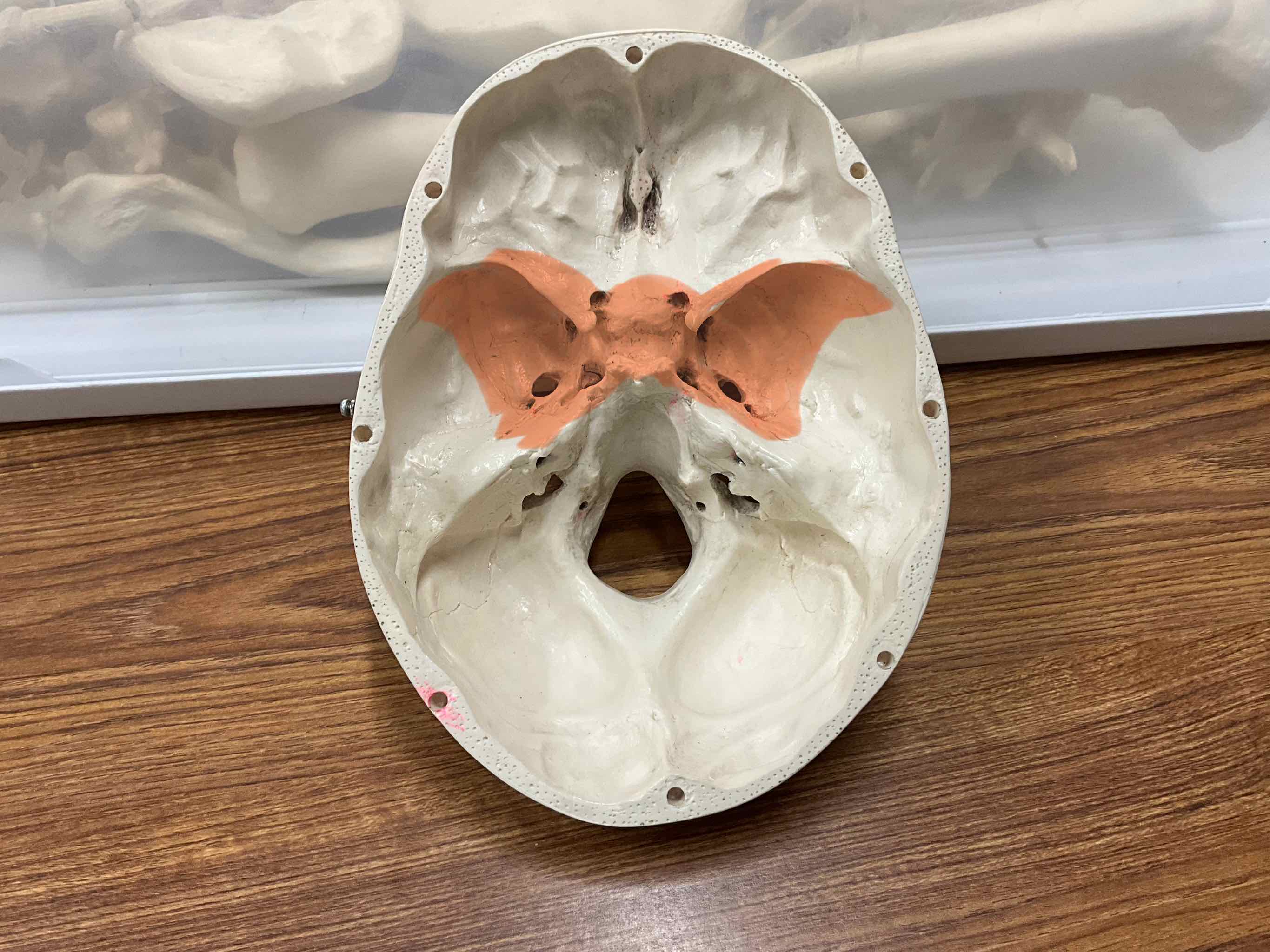

Name the bone

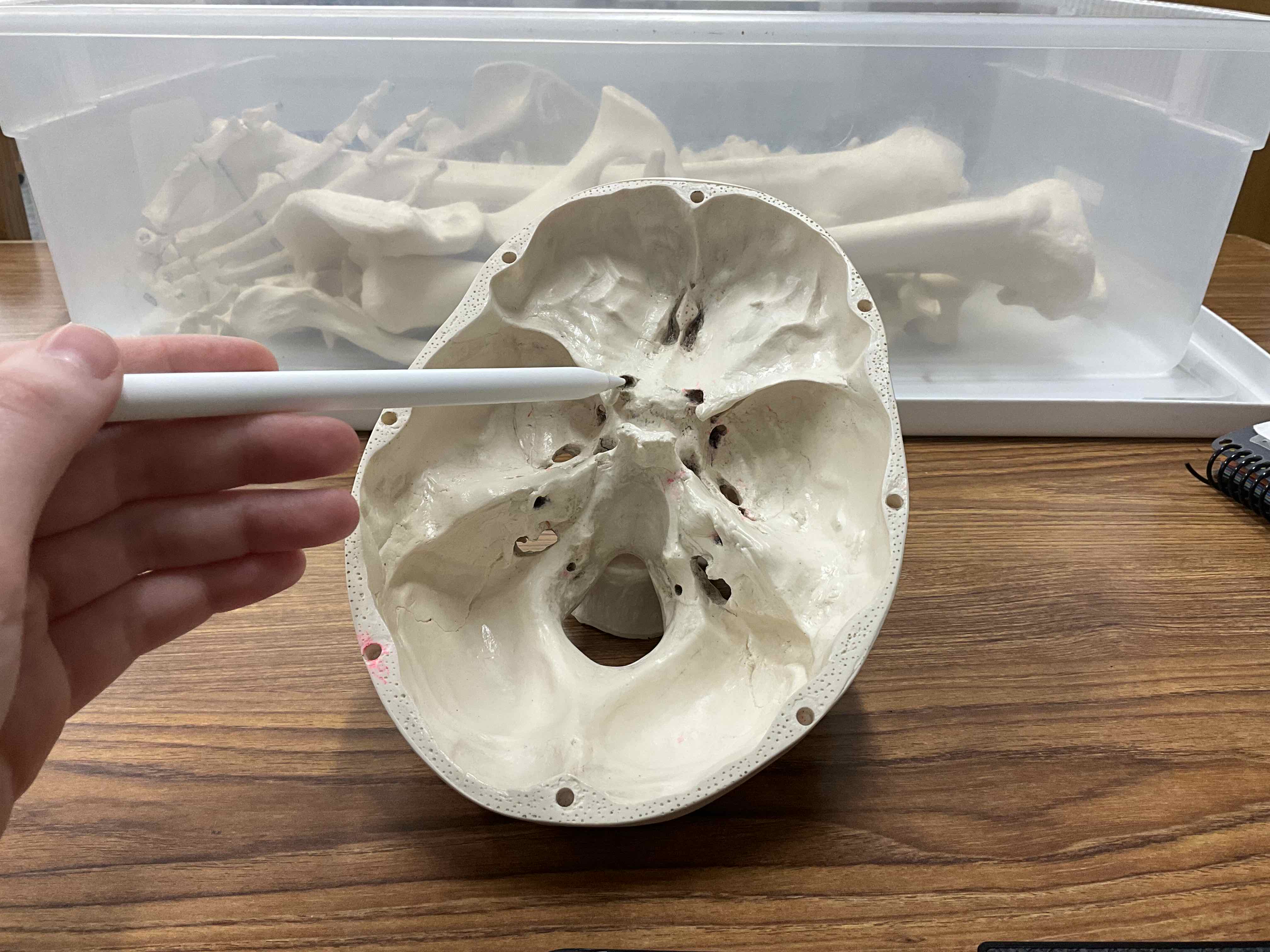

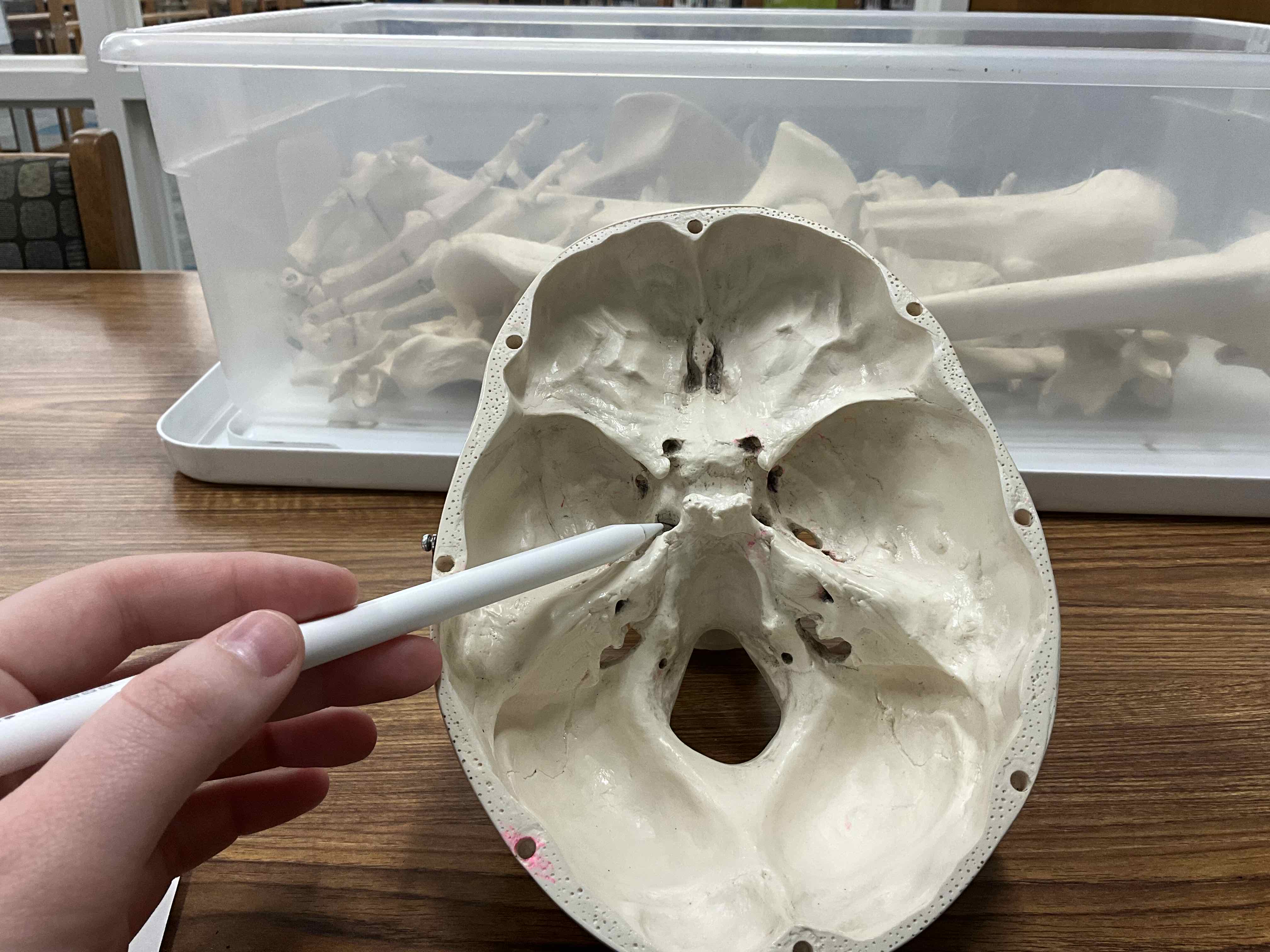

Sphenoid bone

Greater wing

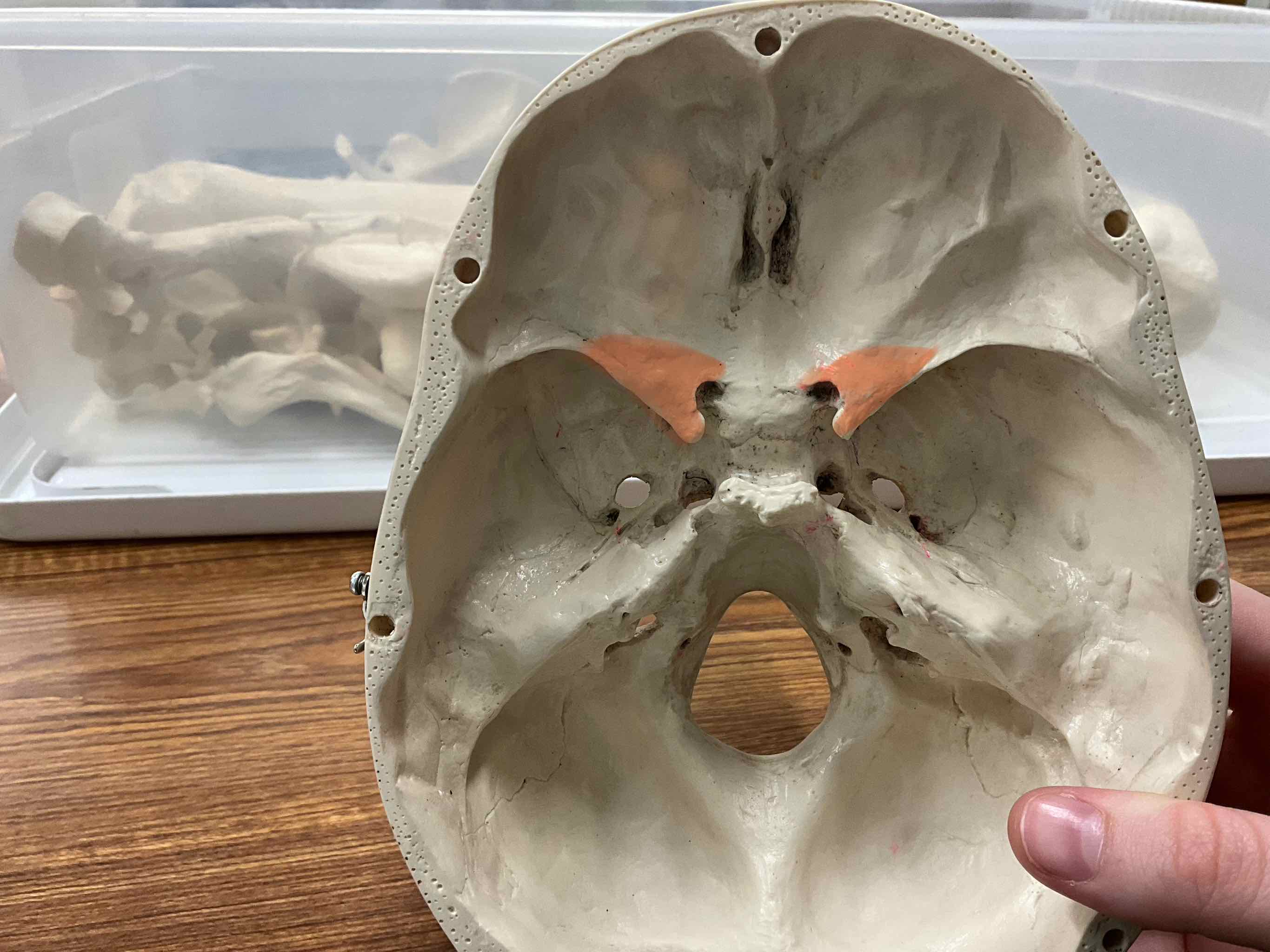

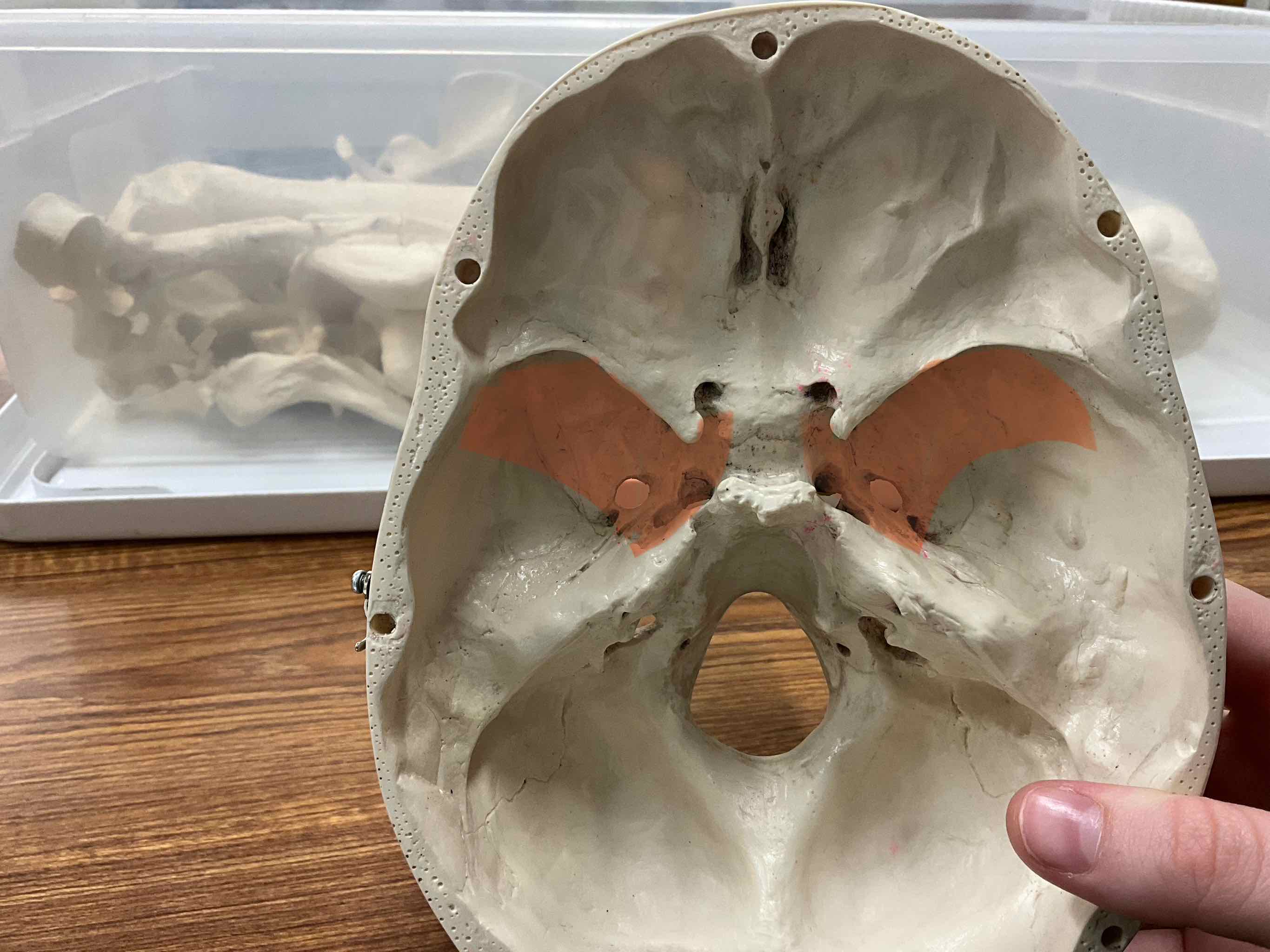

Lesser wing

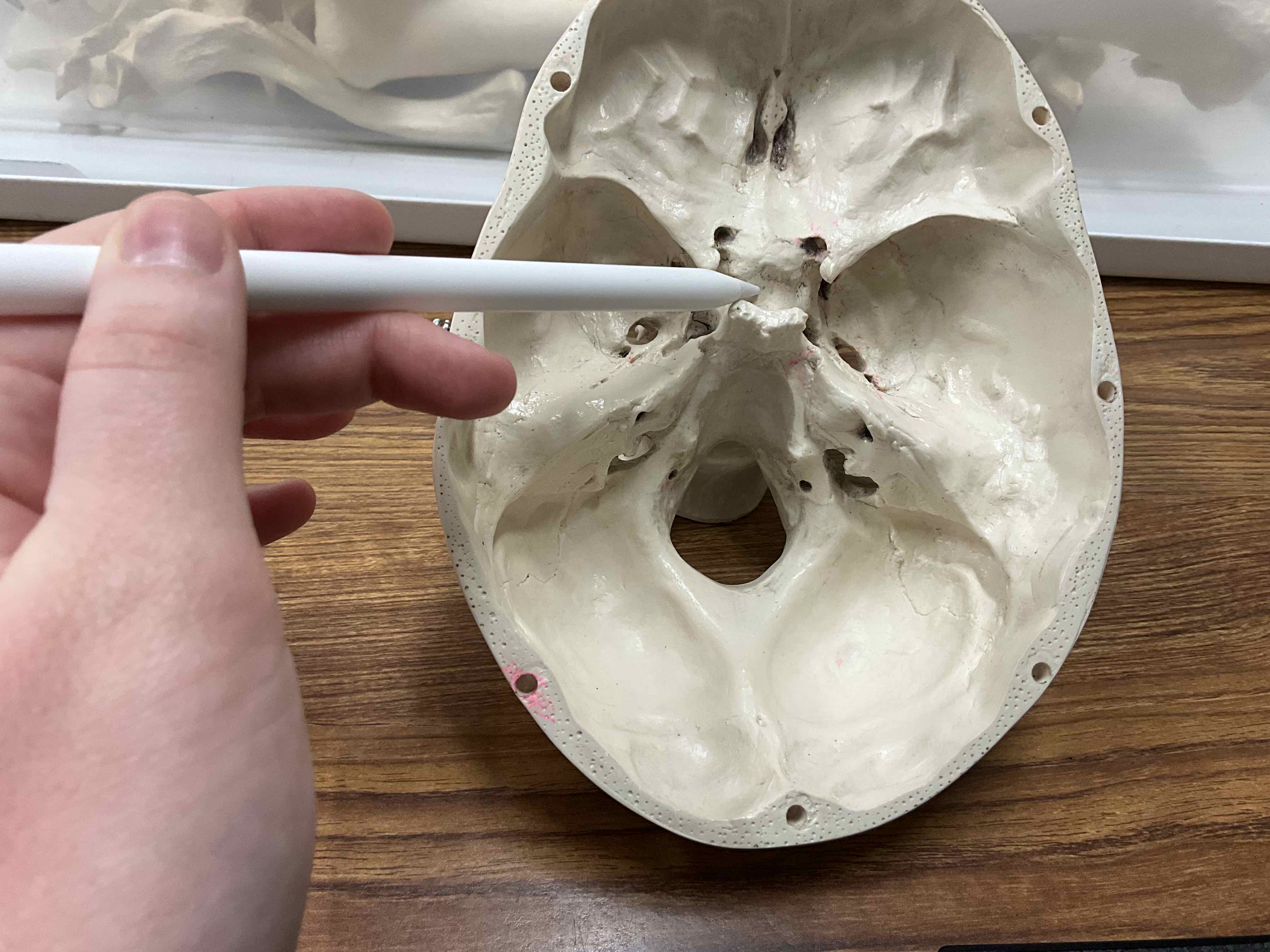

Sella turcica

Optic foramen- for optic nerve

Foramen lacerum

Foramen ovale- for trigeminal nerve

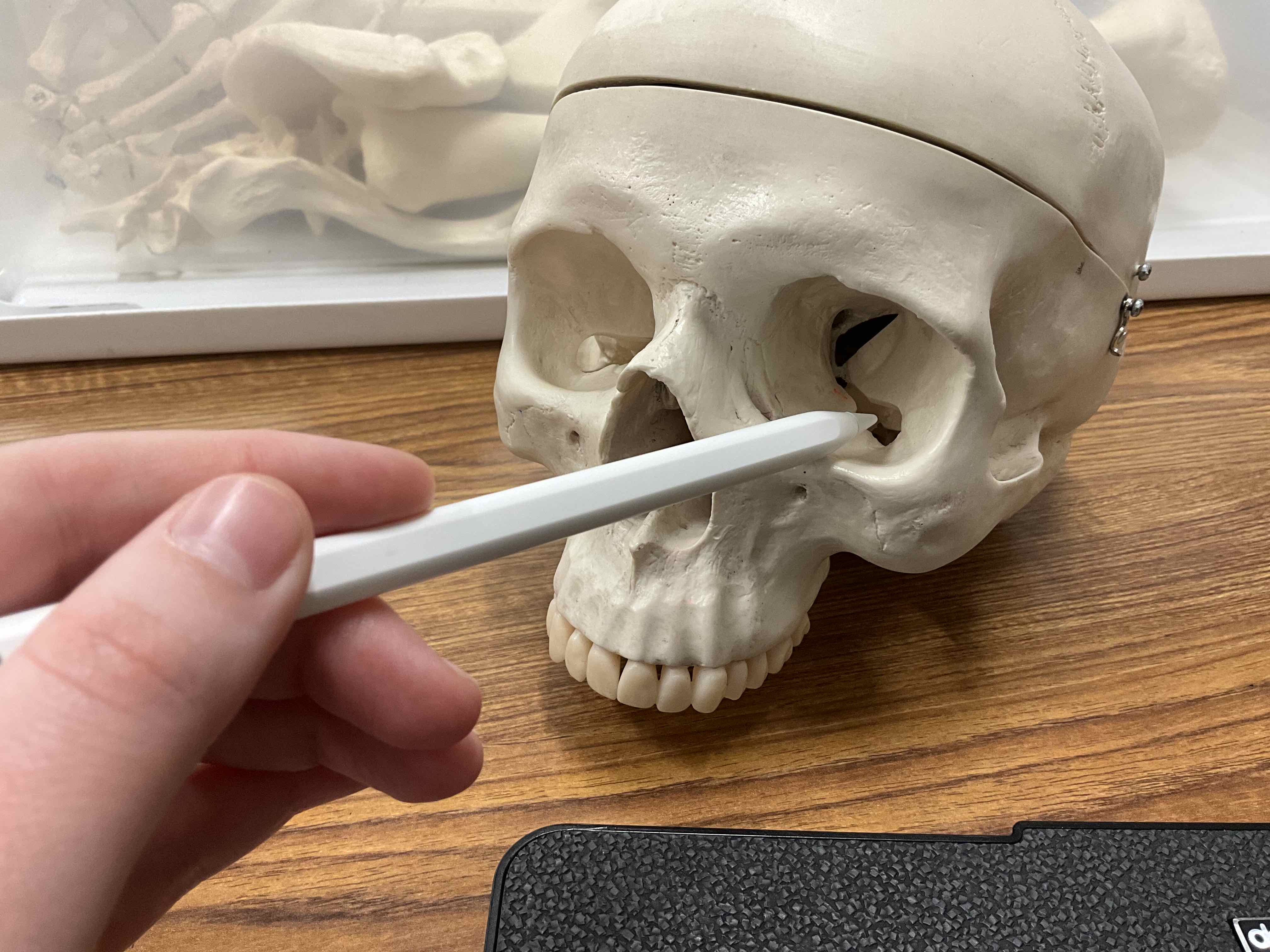

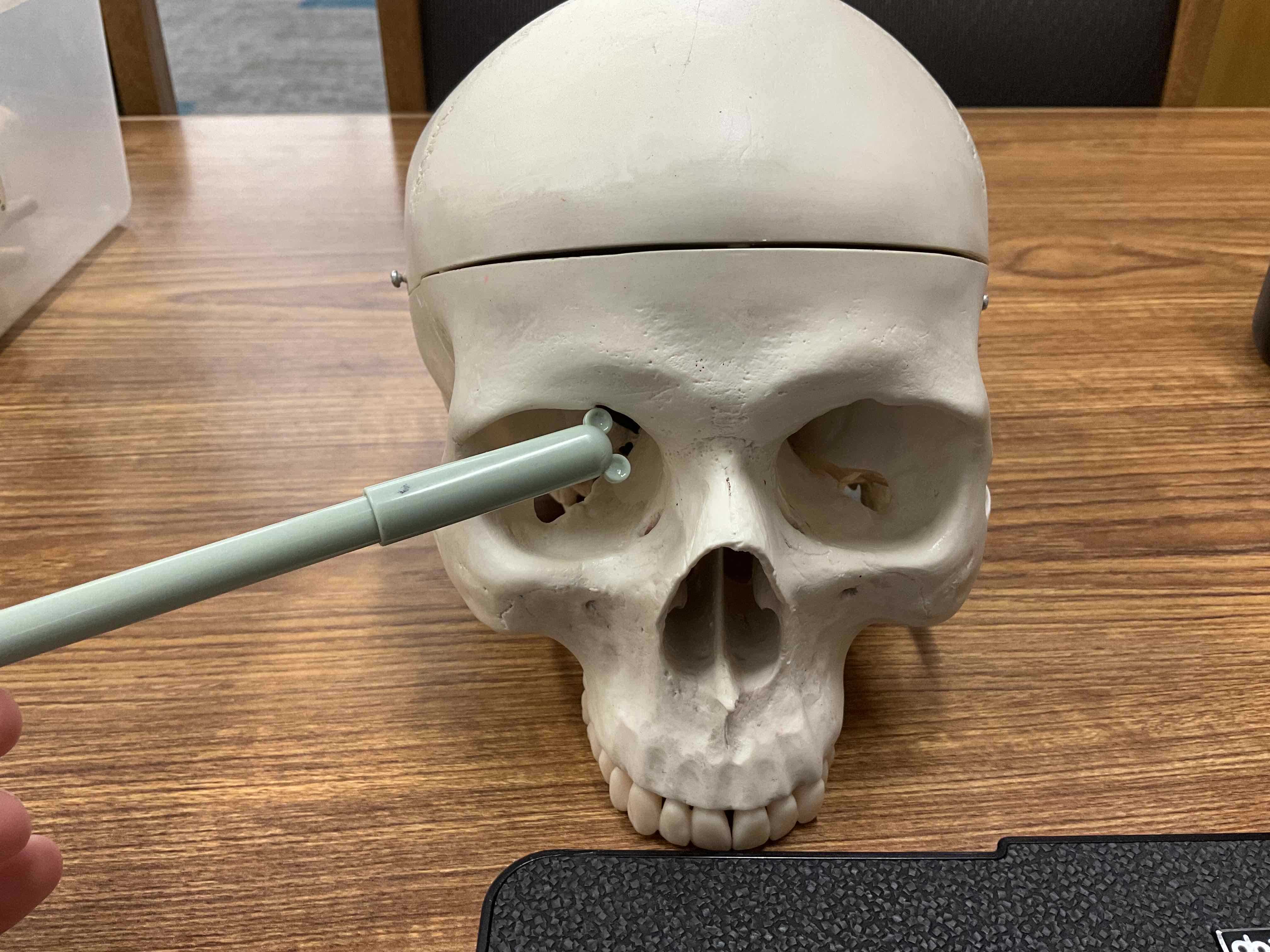

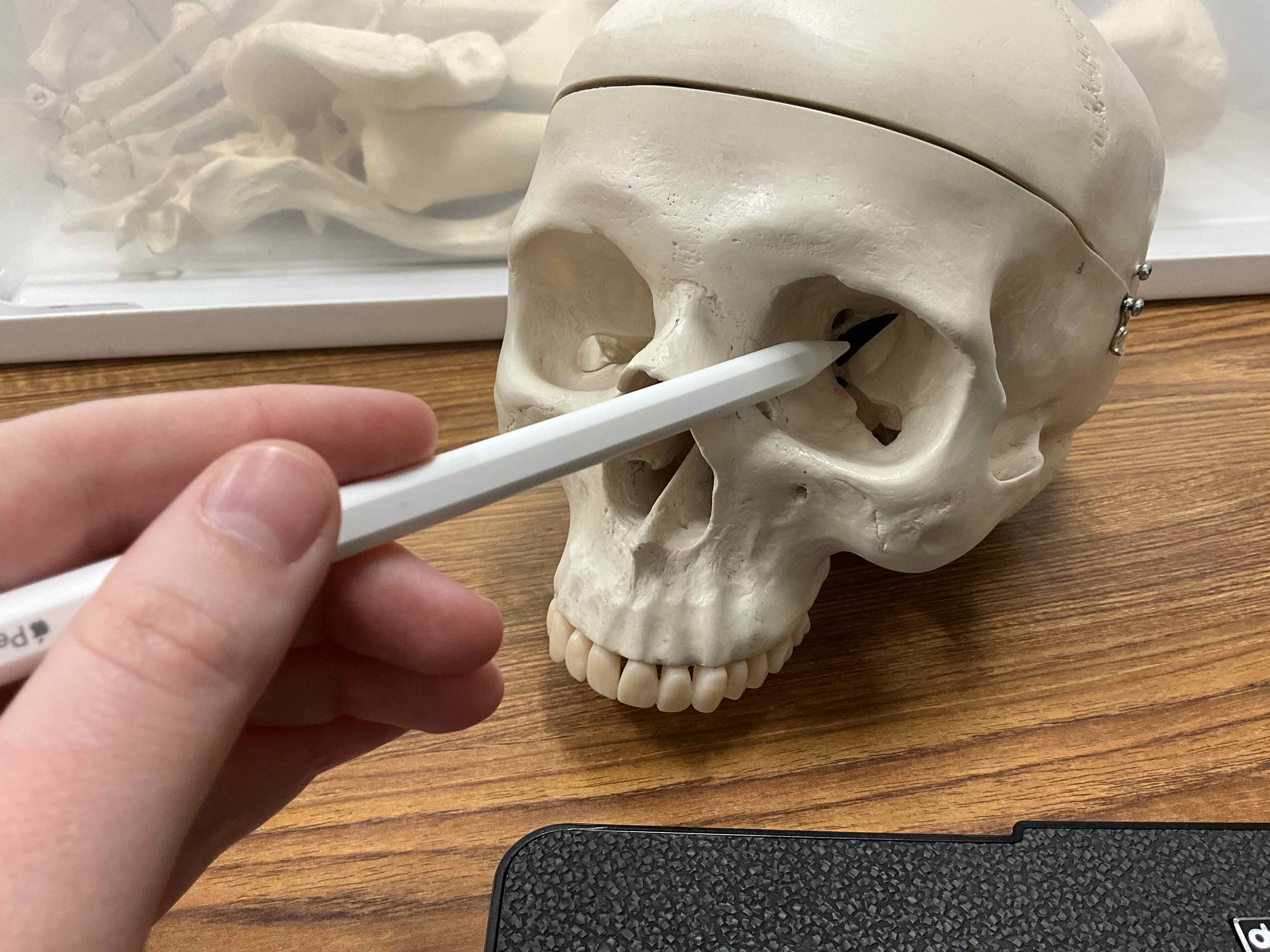

Superior orbital fissure- for various nerves

Inferior orbital fissure- for various nerves

Foramen rotundum- for trigenimal nerve

Foramen spinosum

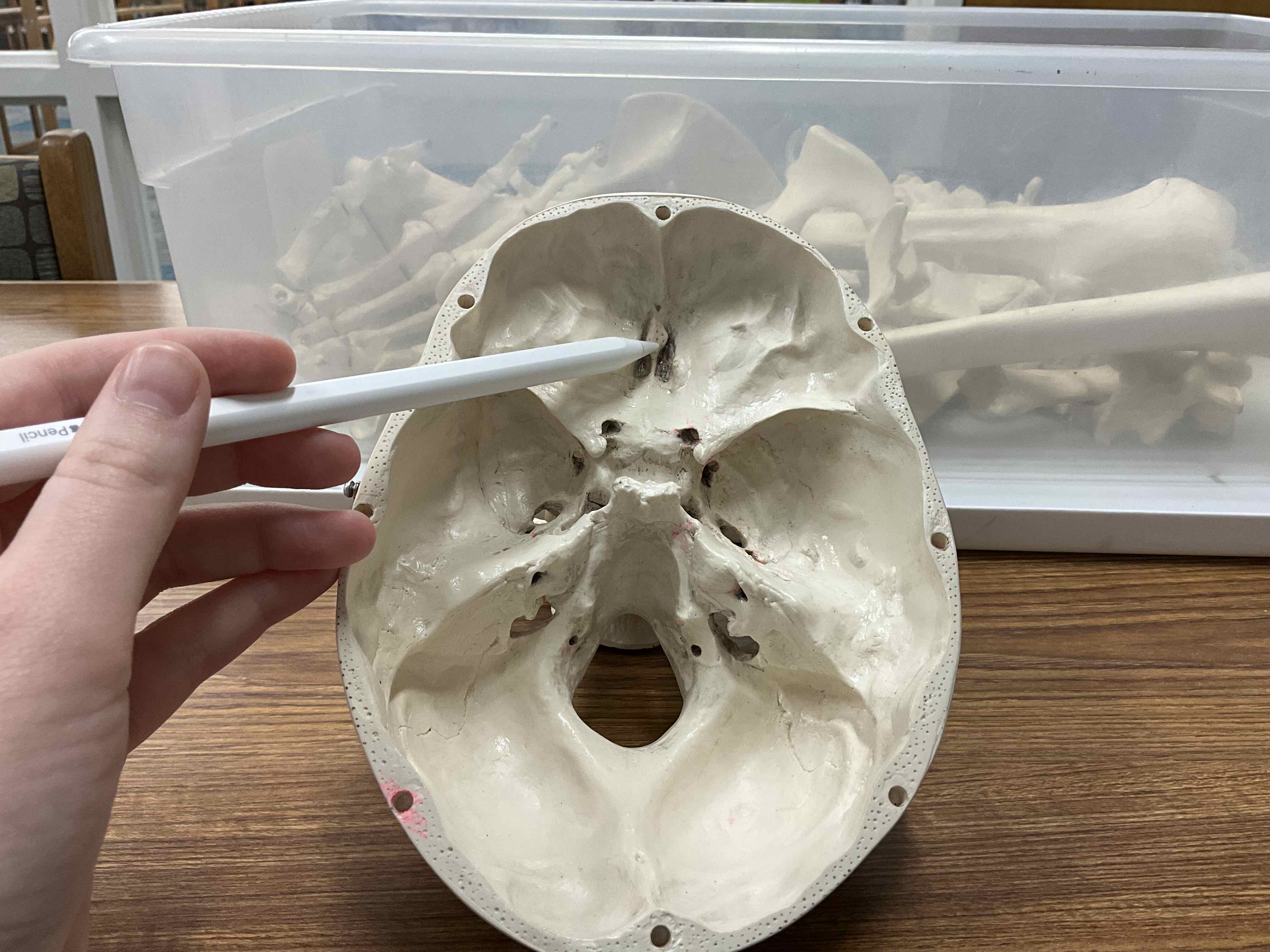

Name the bone

Ethmoid bone

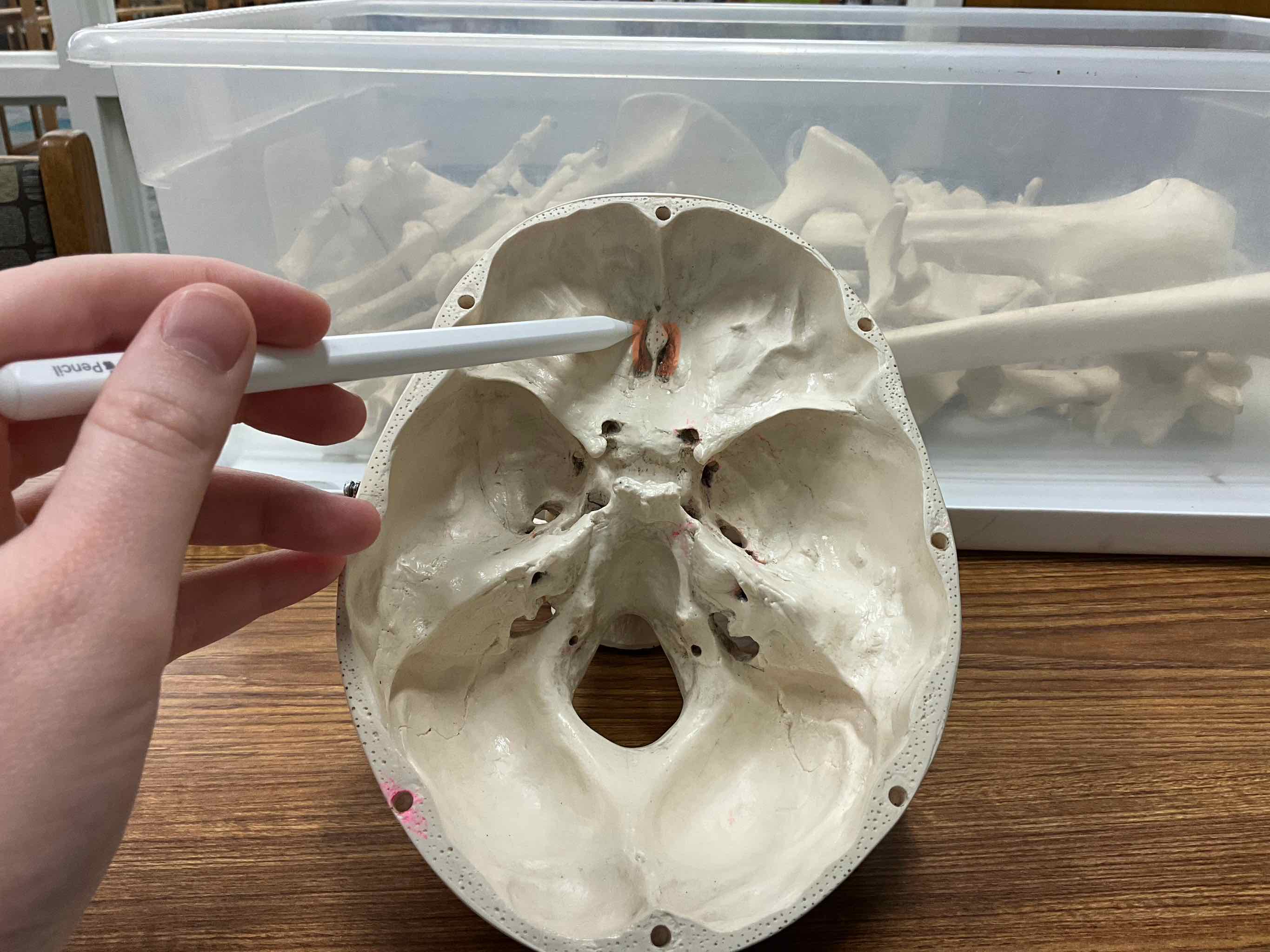

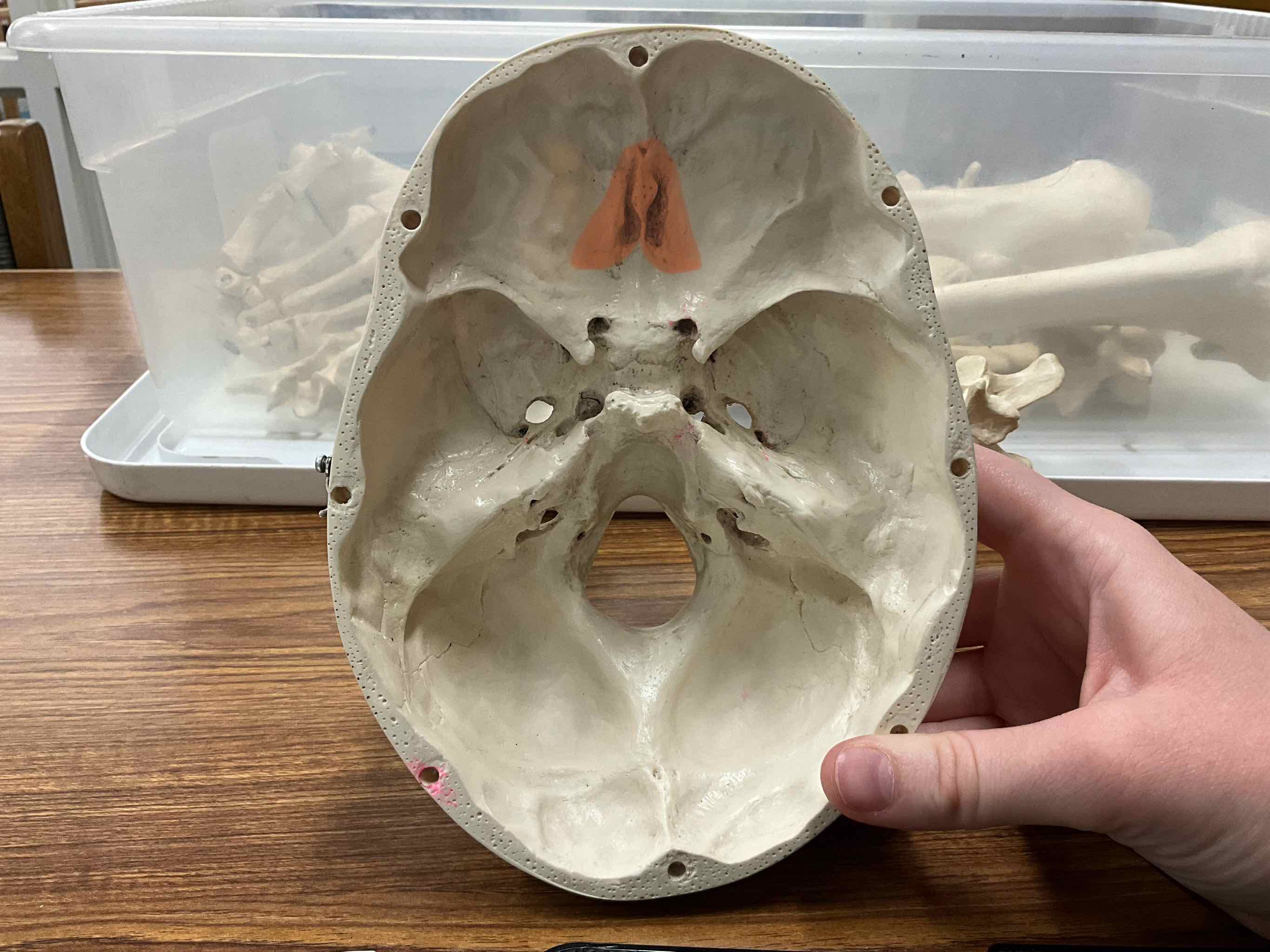

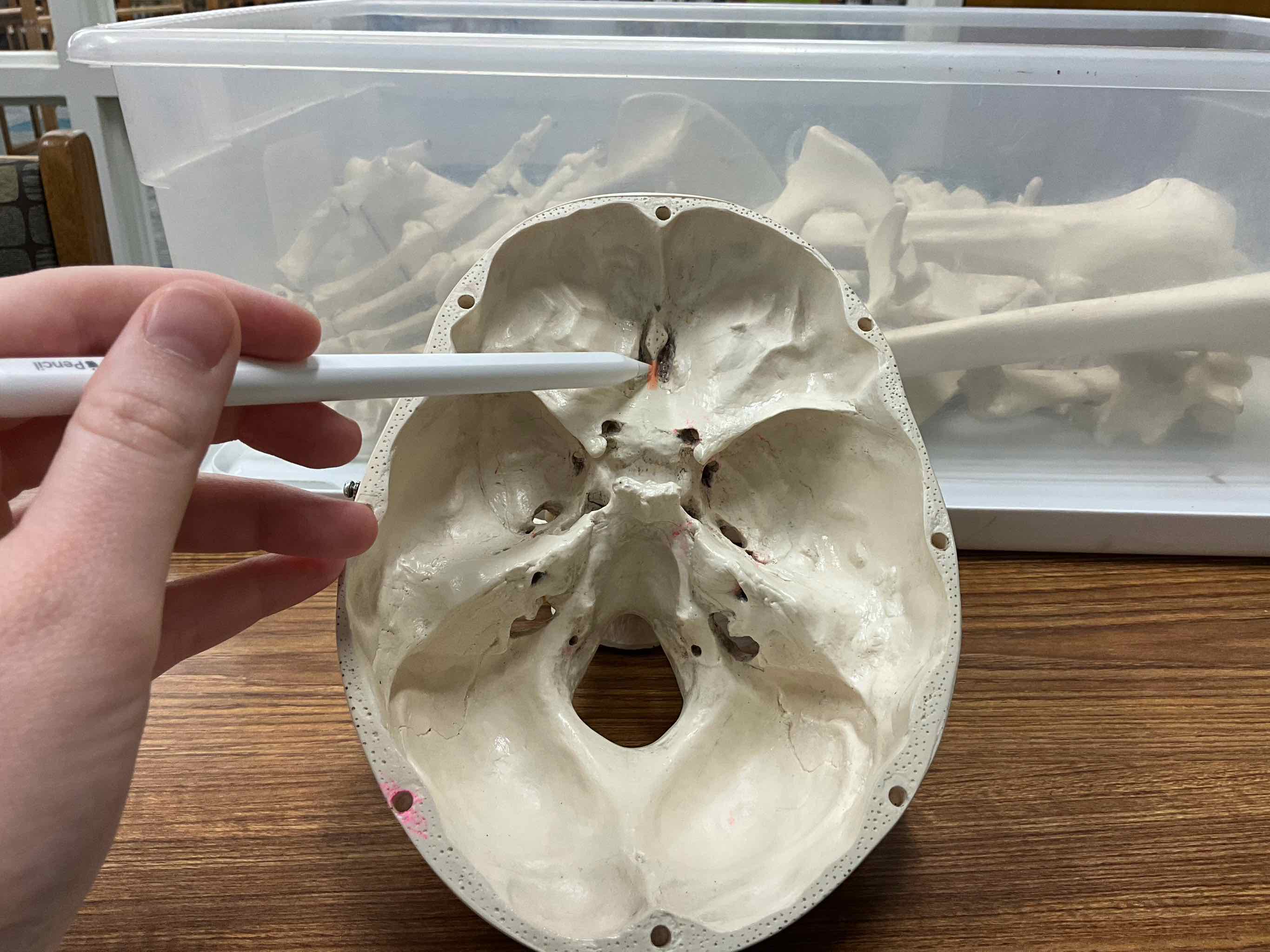

Crista galli

Cribriform plate- for olfactory nerves

Perpendicular plate

Name the bone

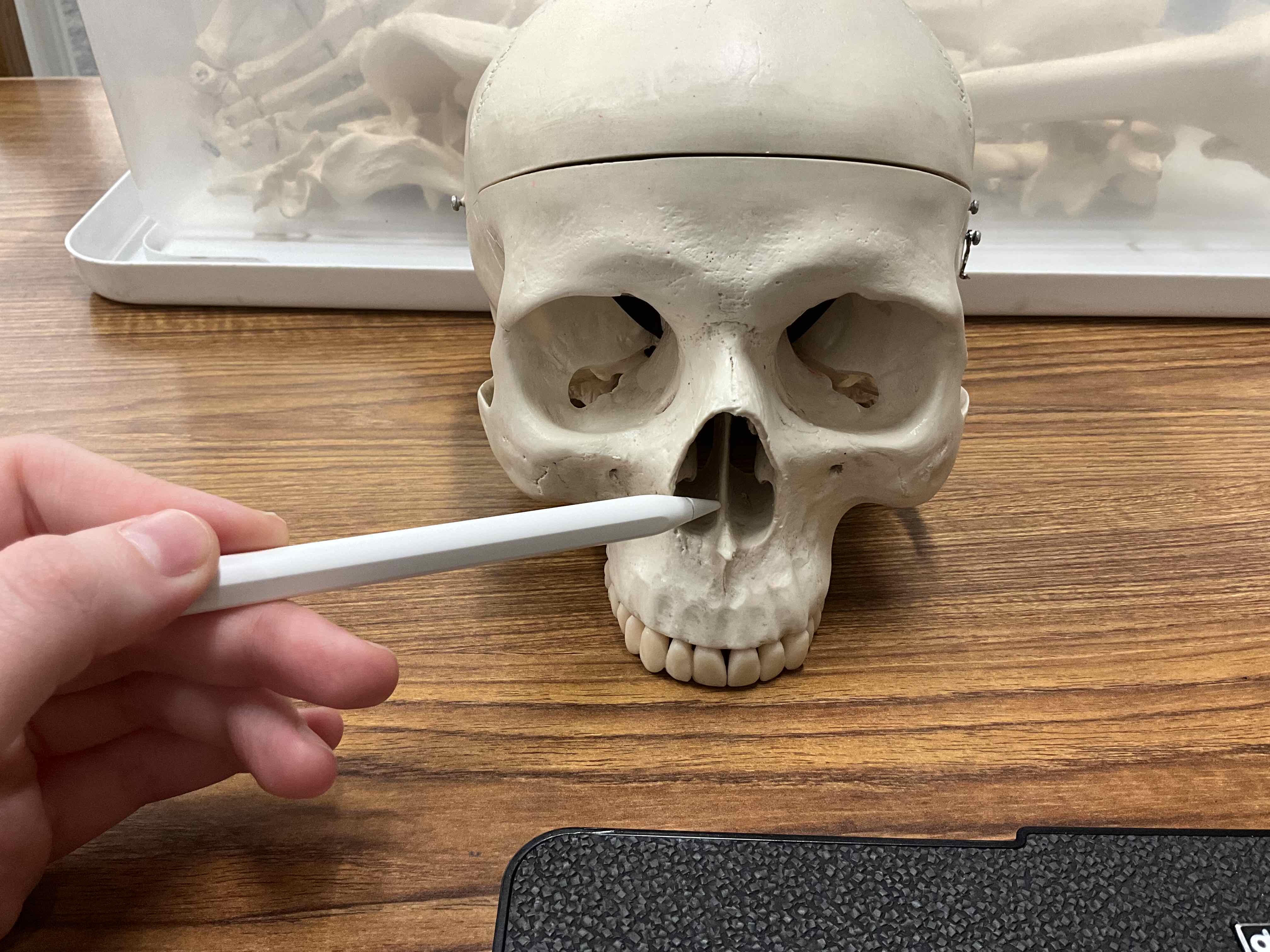

Vomer

Name the bone(s)

Nasal bones

Name the bone

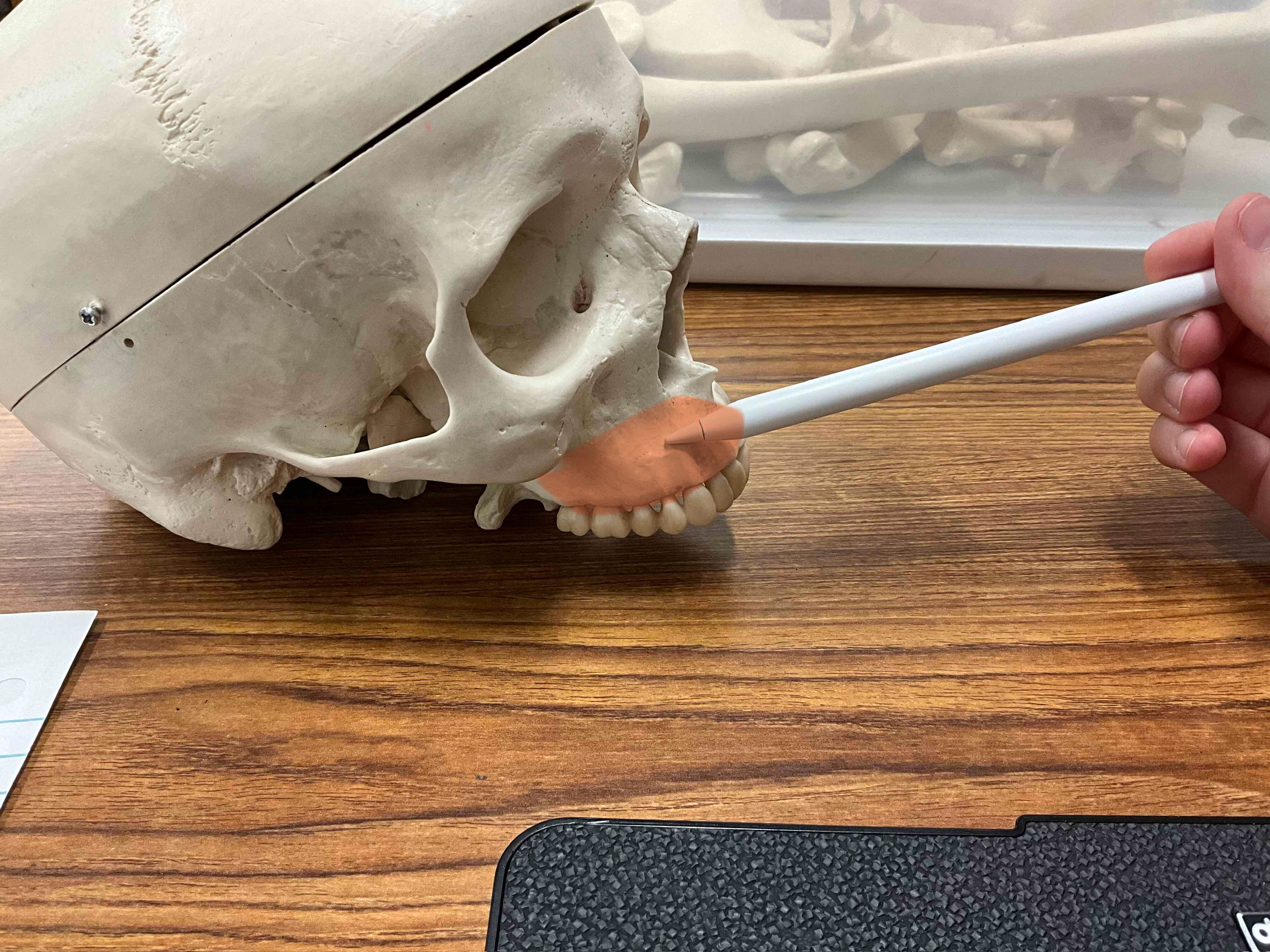

Maxilla

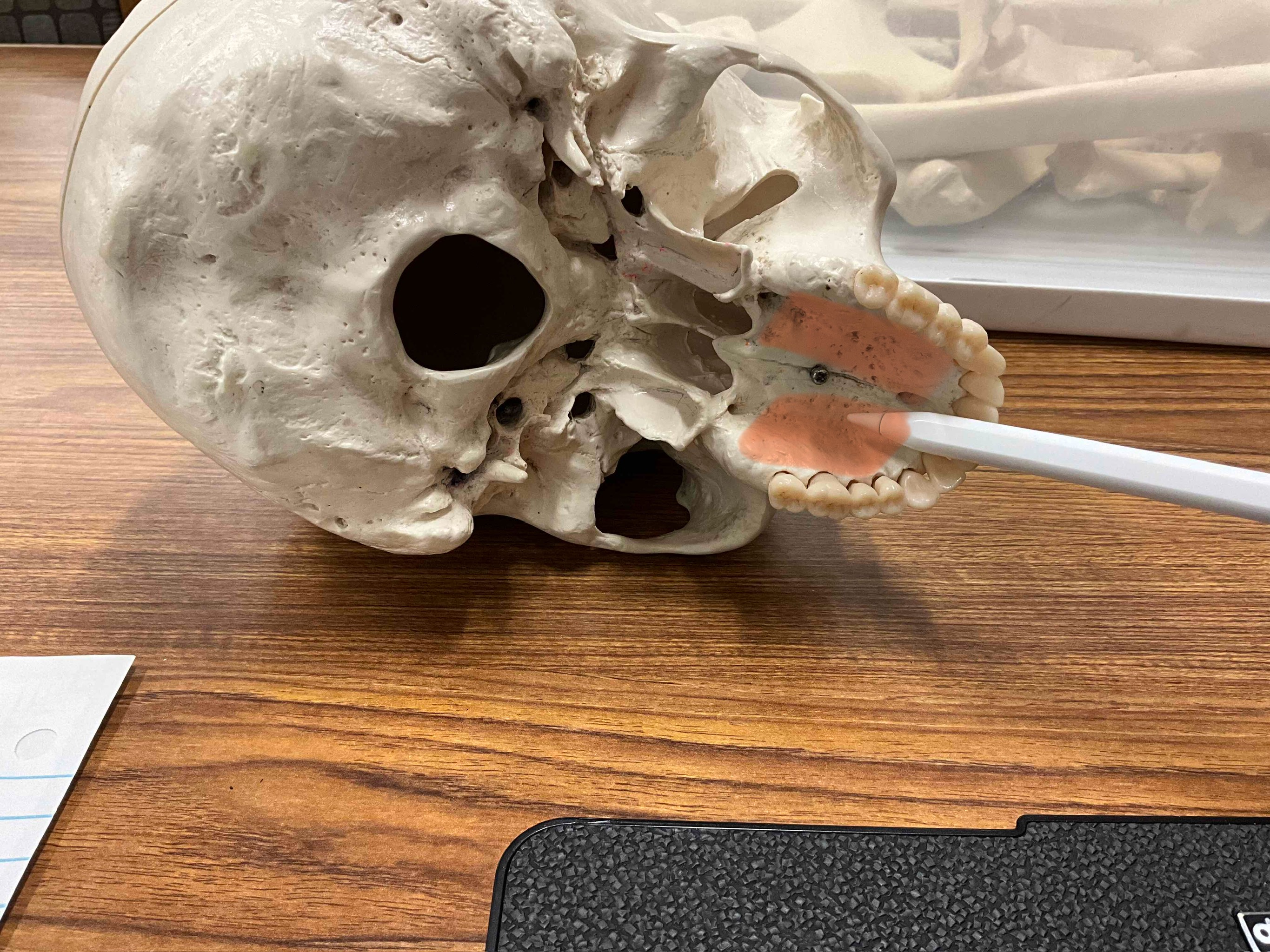

Palantine process

Alveolar margin

Name the bone

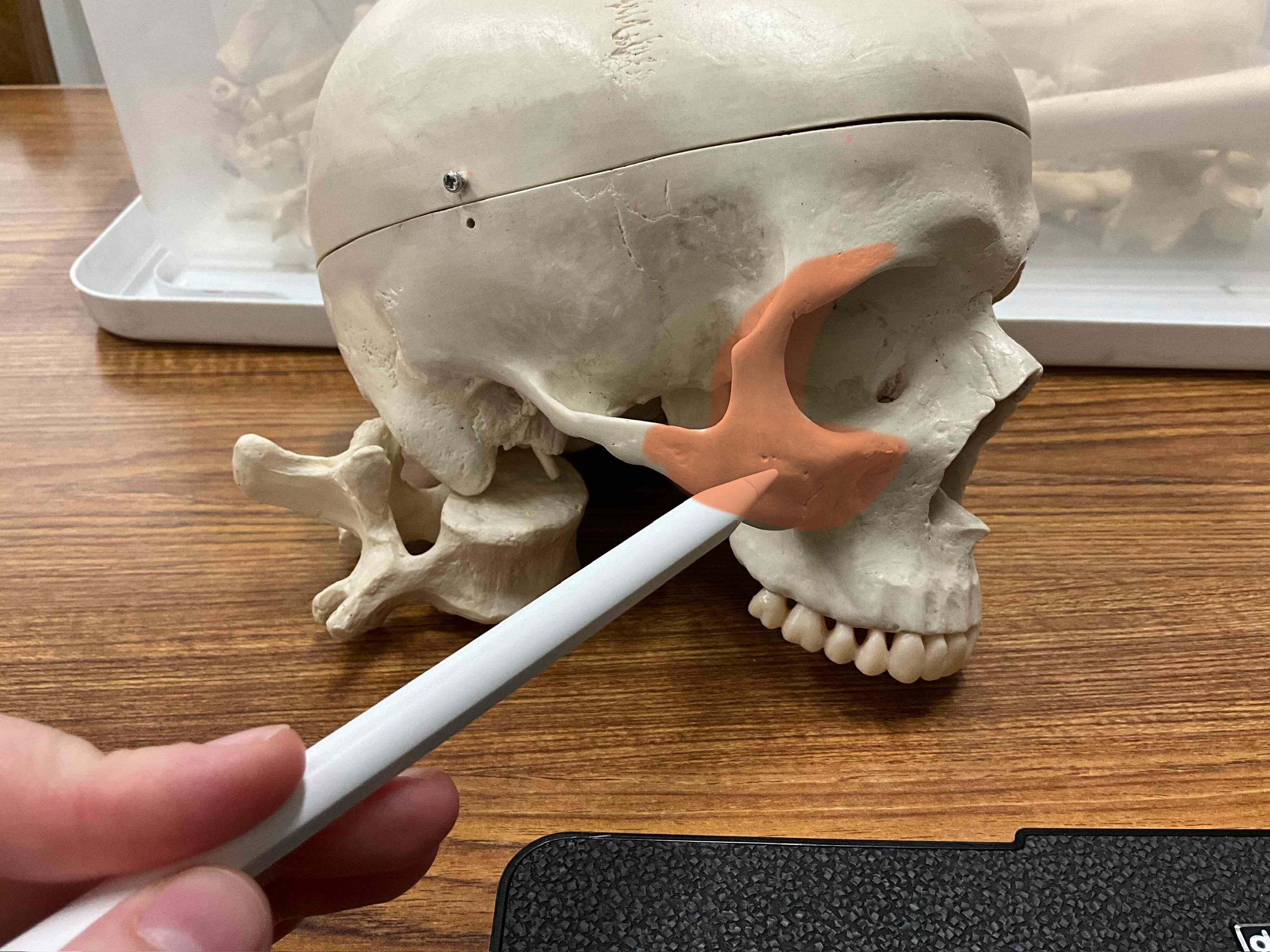

Zygomatic bone

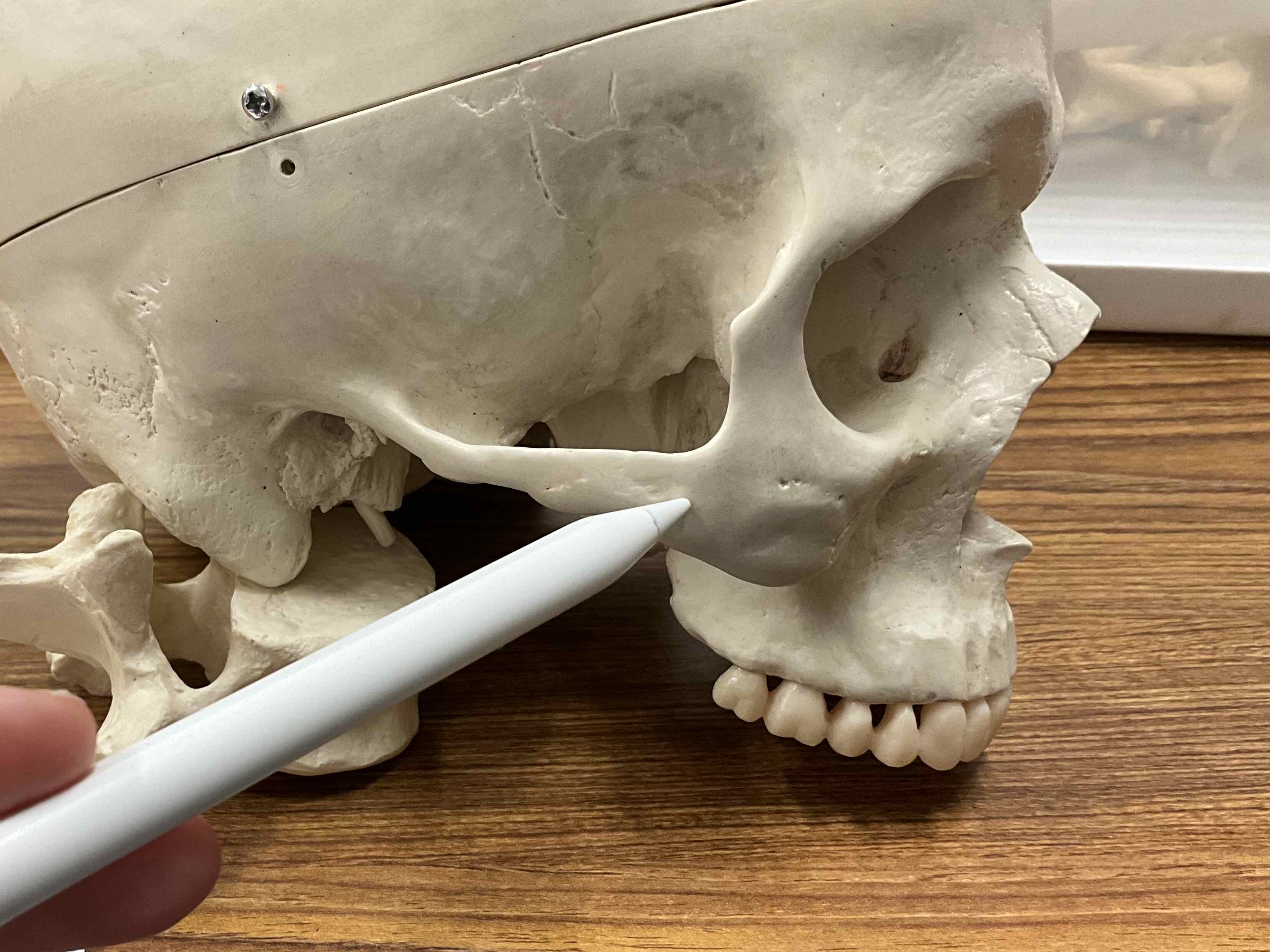

Temporal process of zygomatic bone

Name the bone

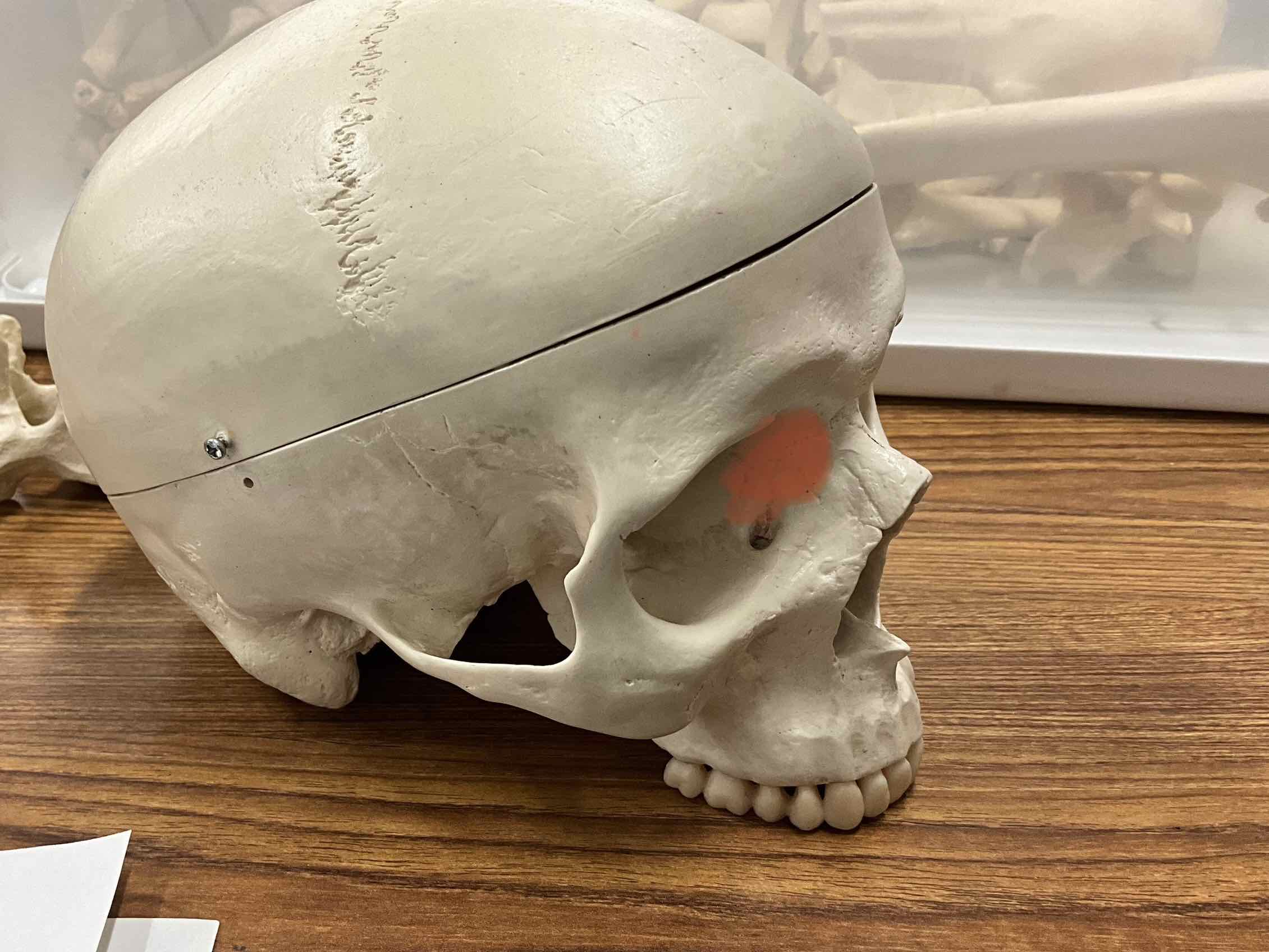

Lacrimal bone

Name the bone

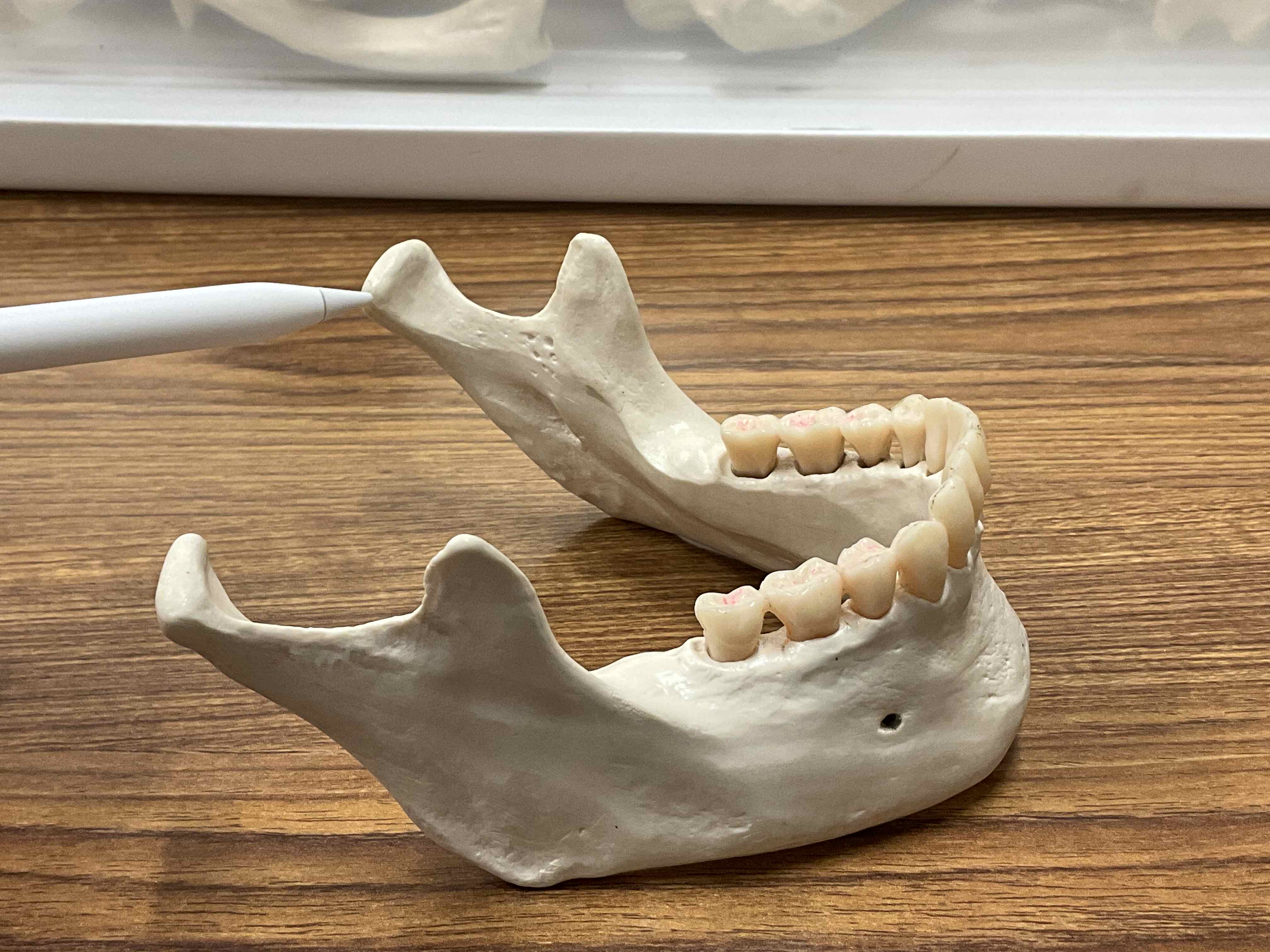

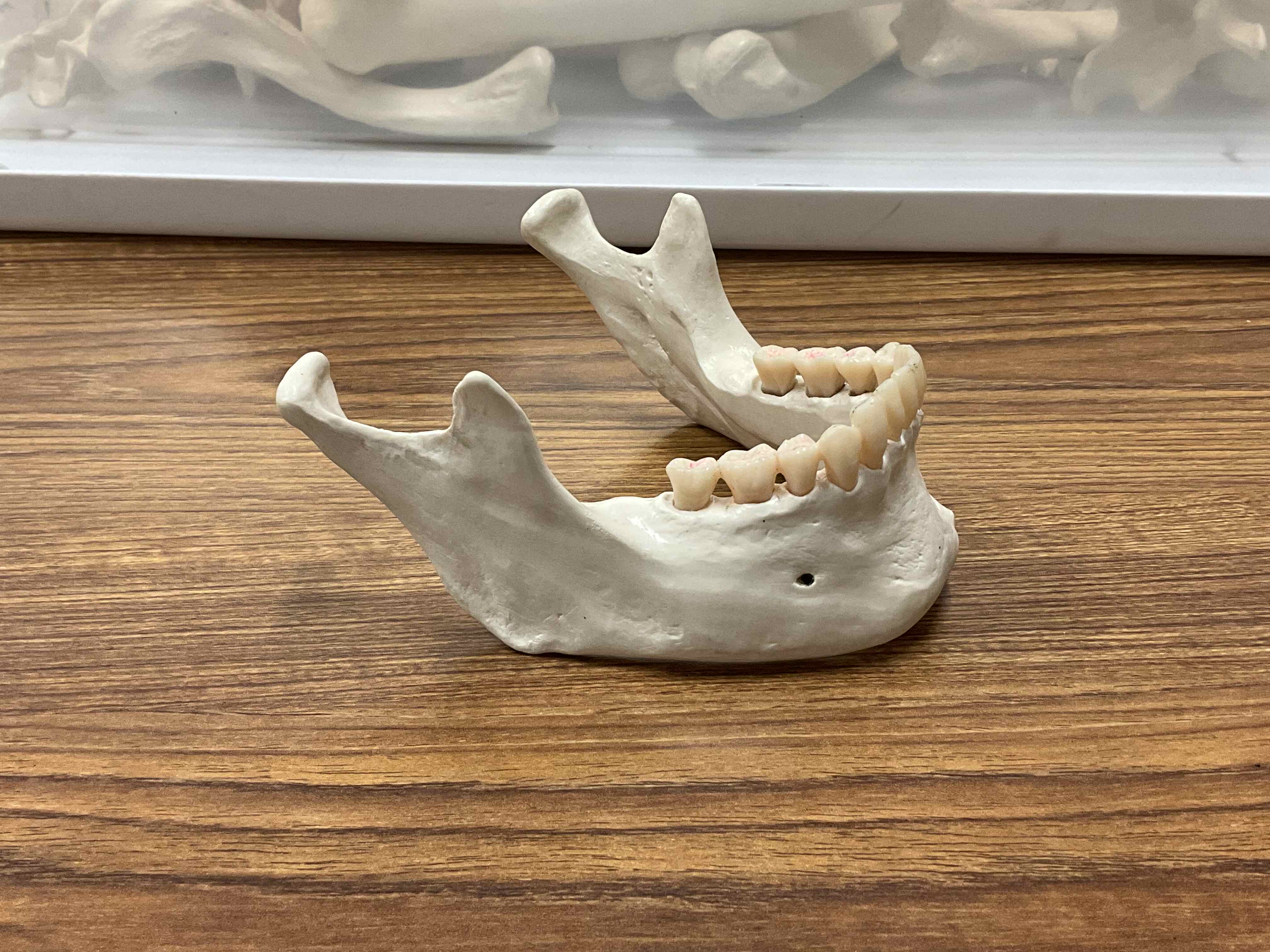

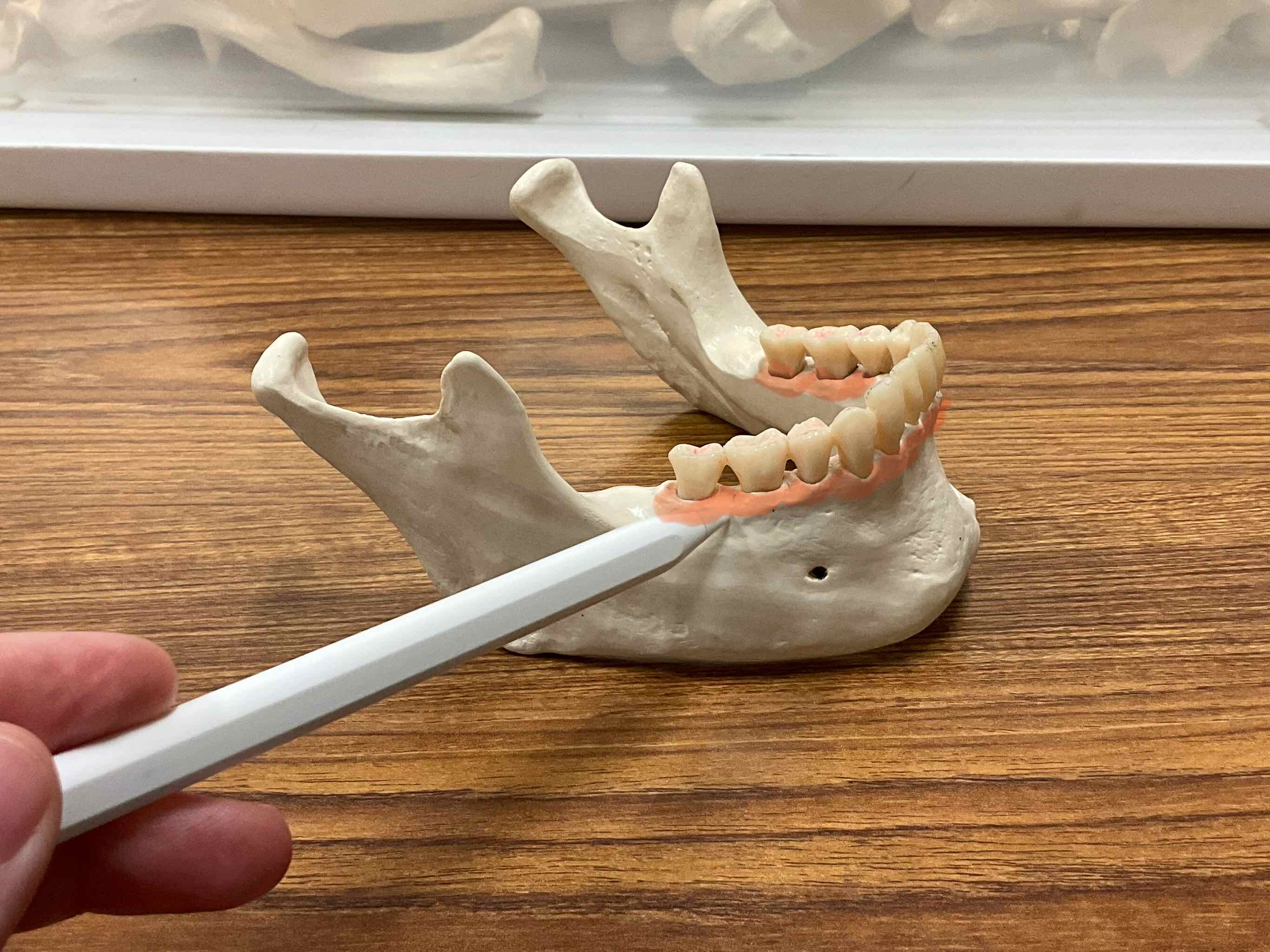

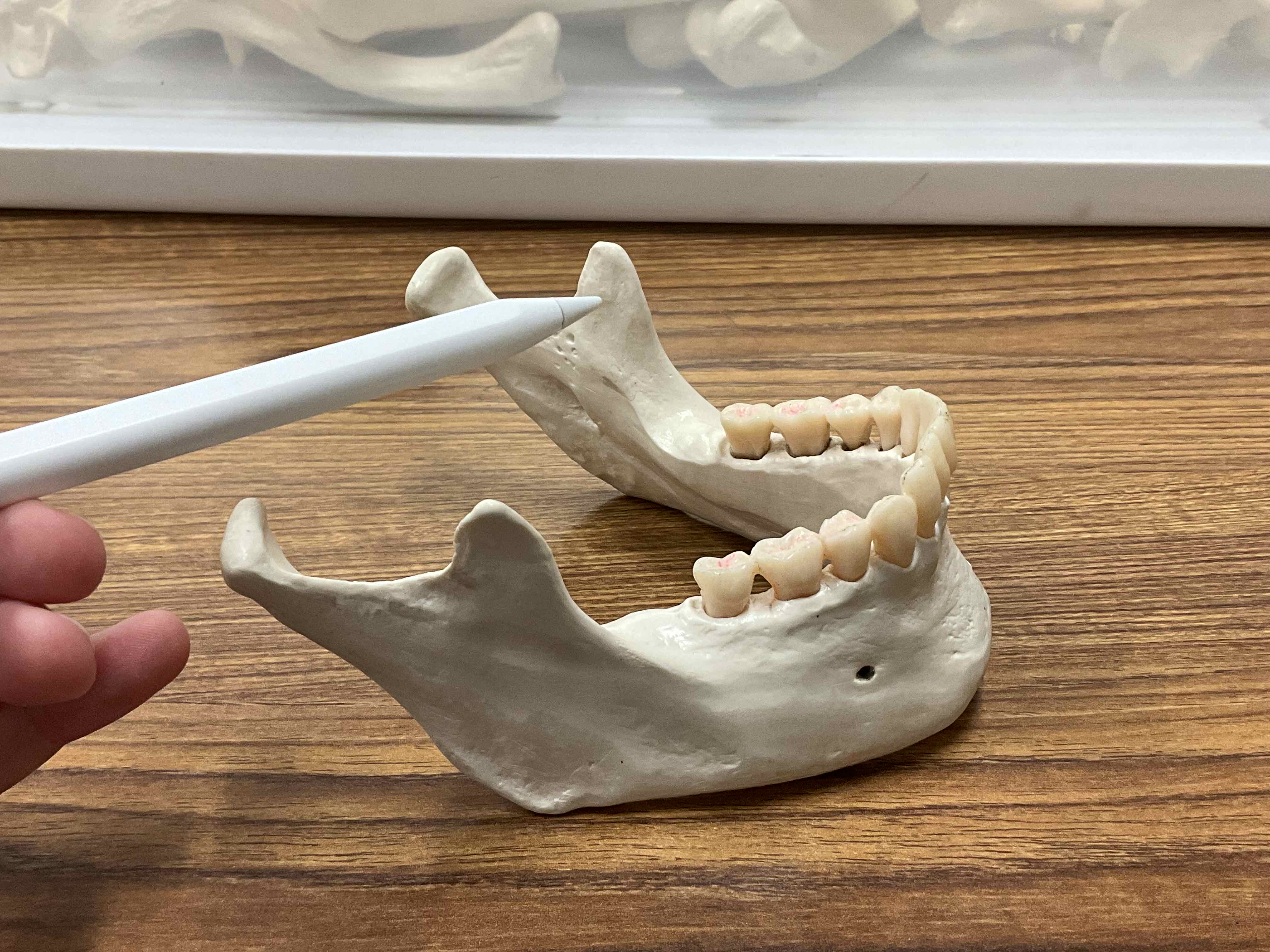

Mandible

Alveolar process

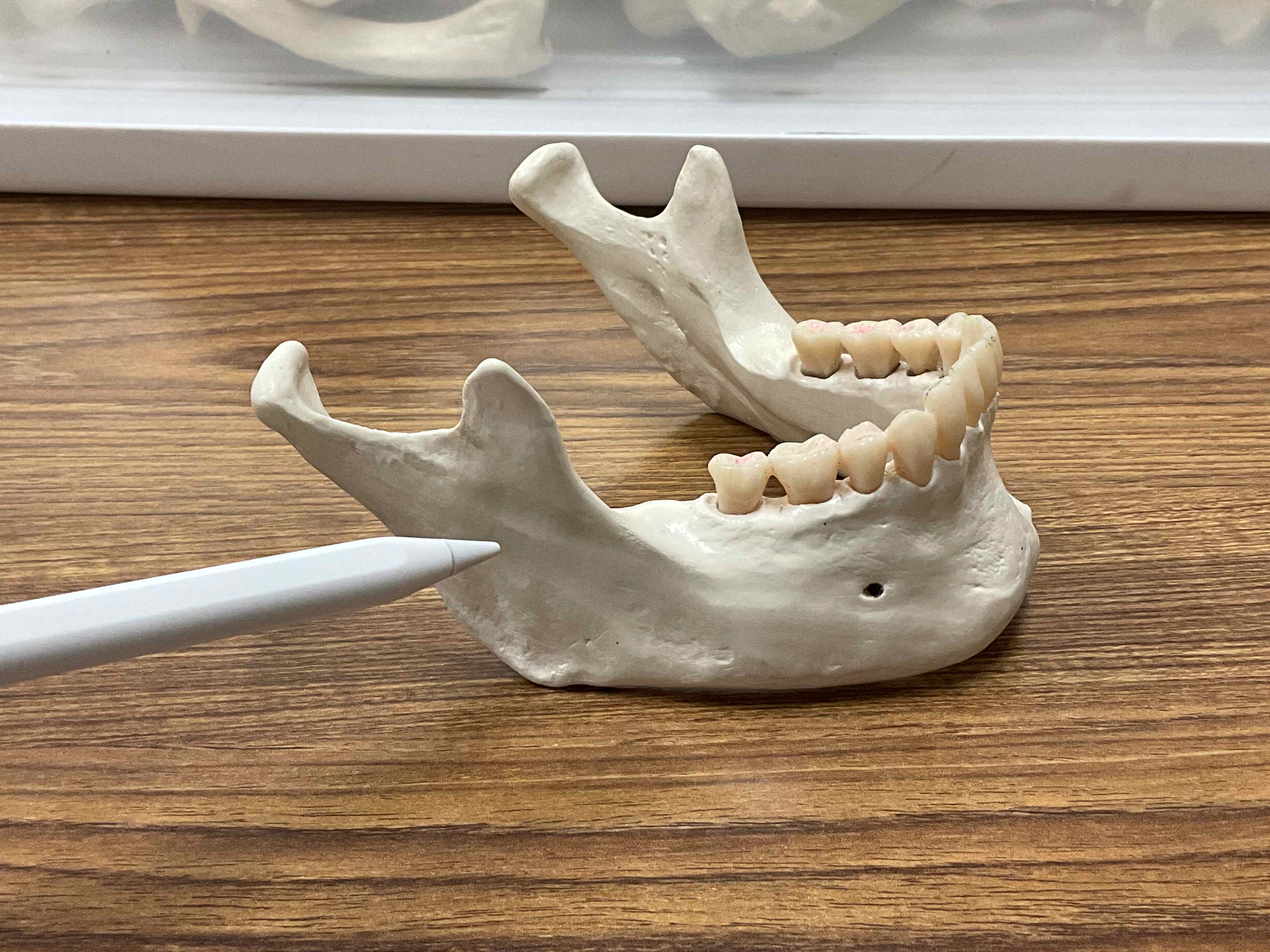

Body of mandible

Ramus

Mandibular condyle

Coronoid process

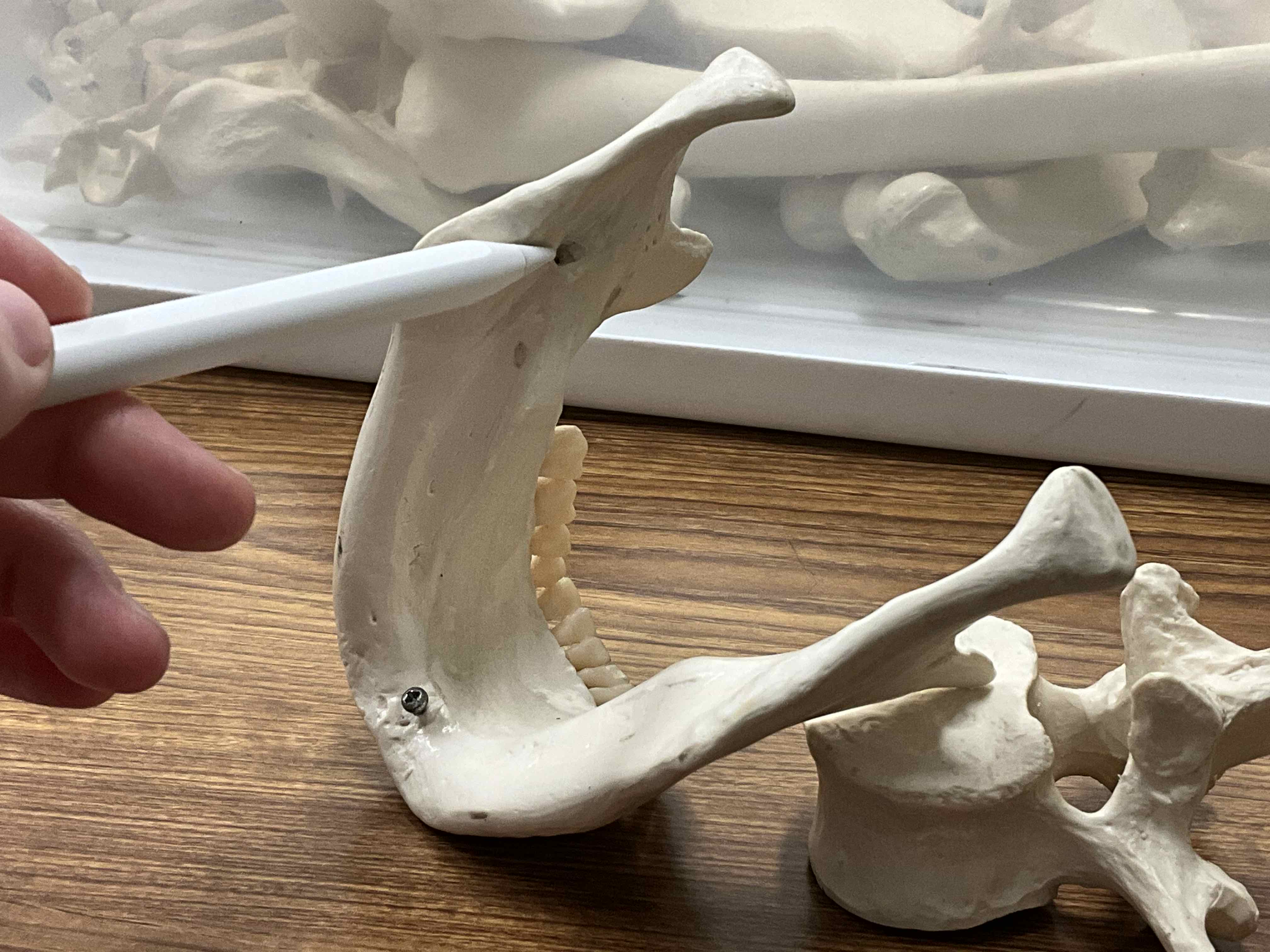

Mandibular foramen

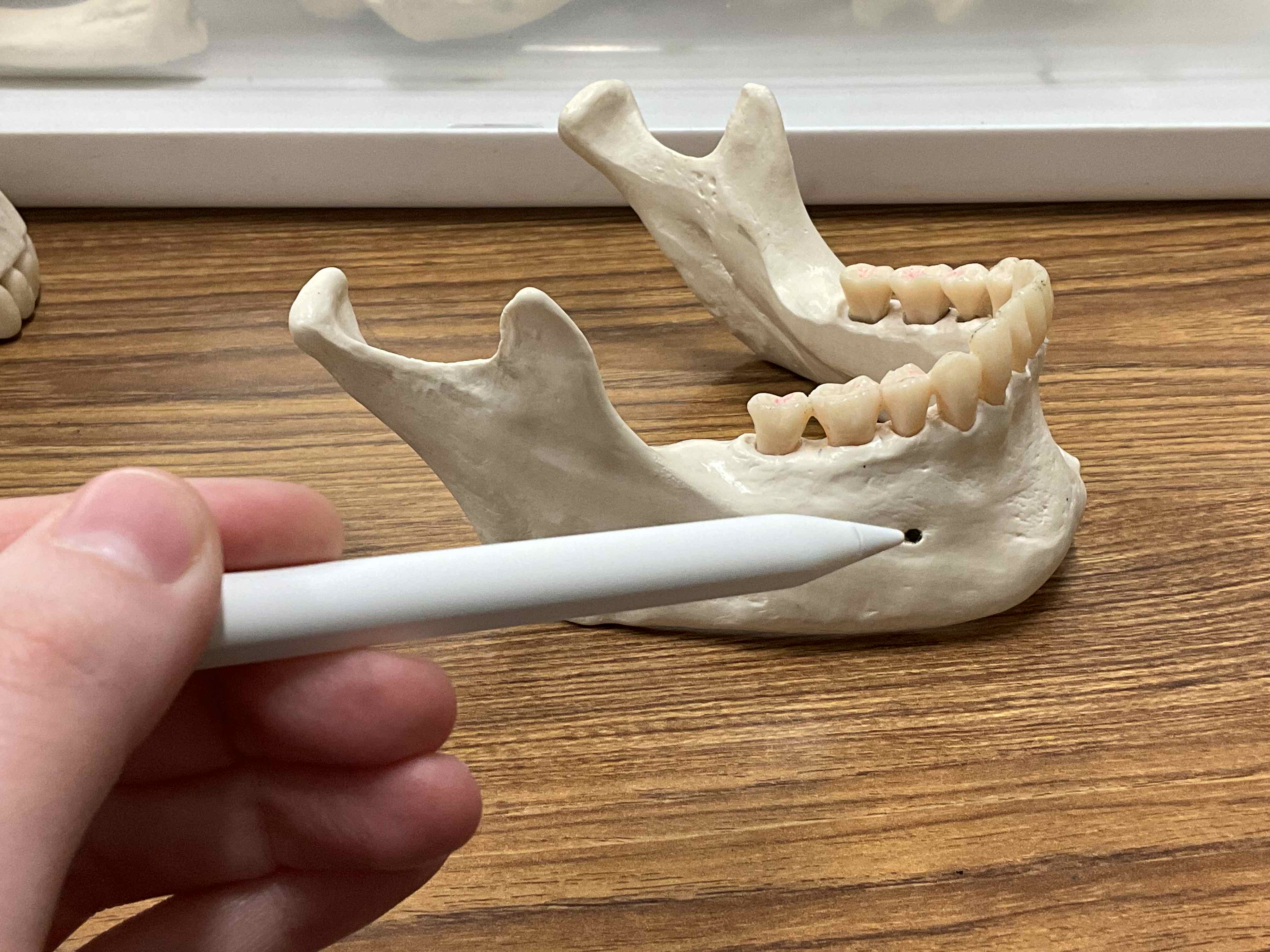

Mental foramen

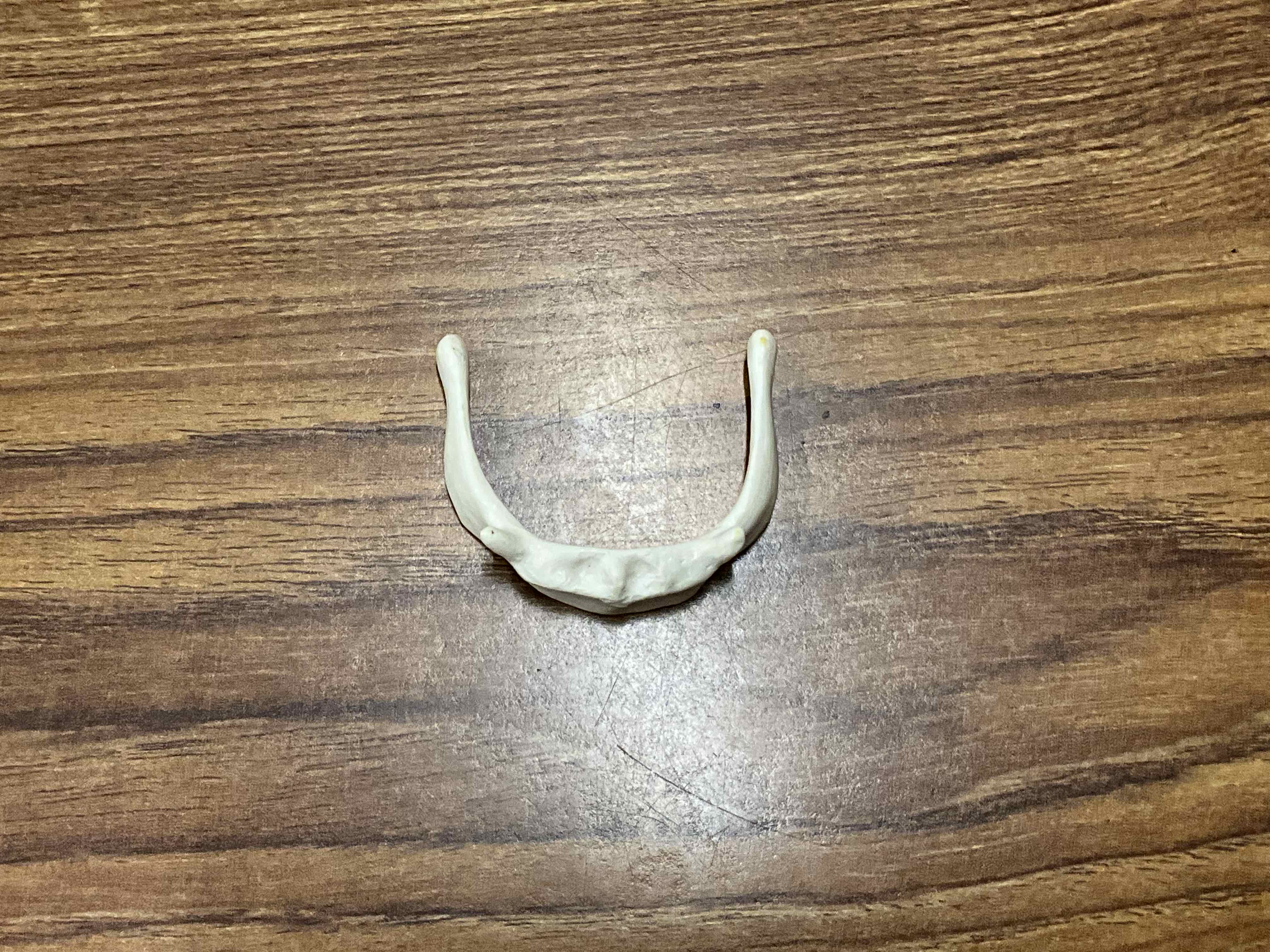

Name the bone

Hyoid bone- near neck

Name this bone

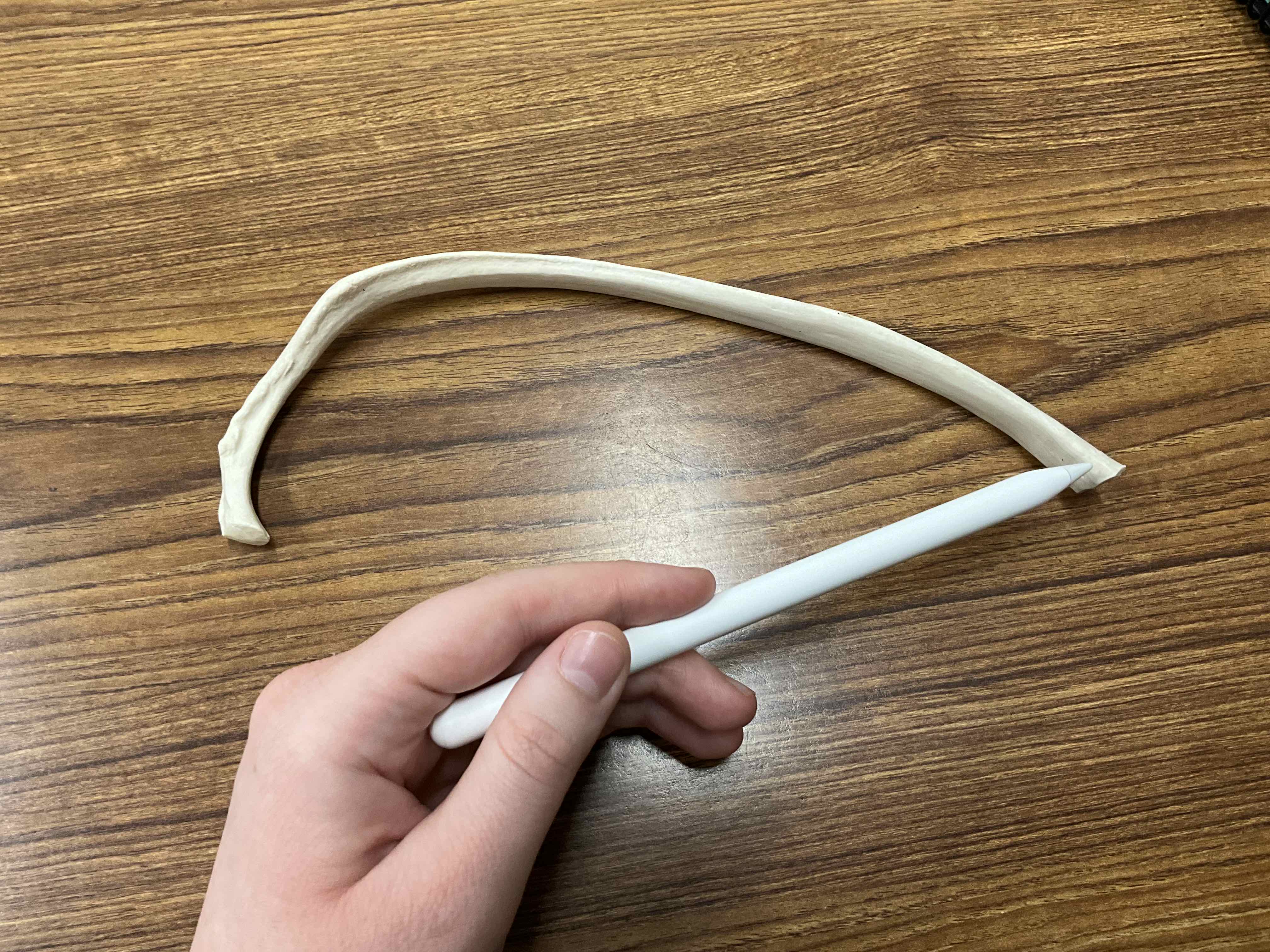

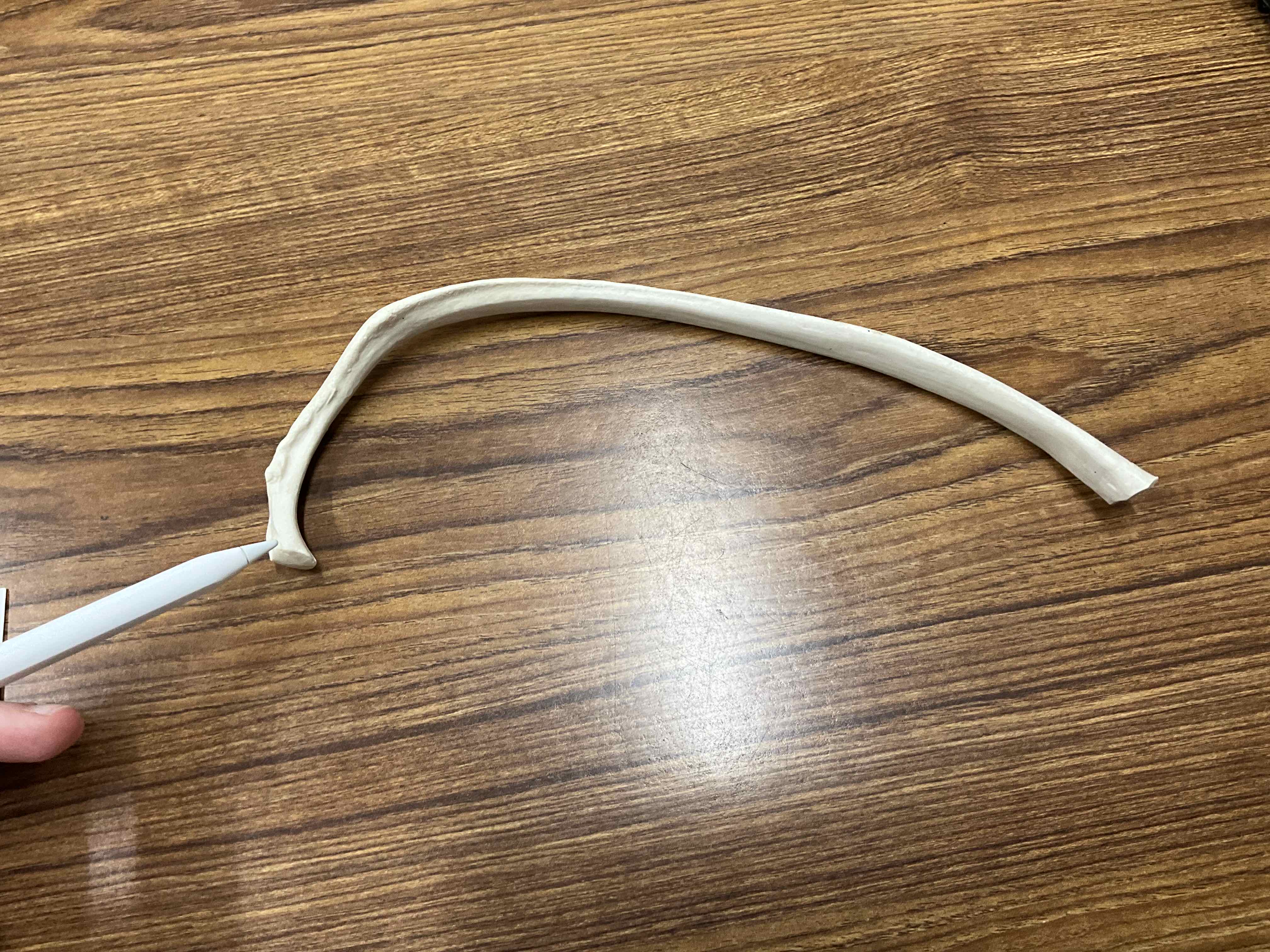

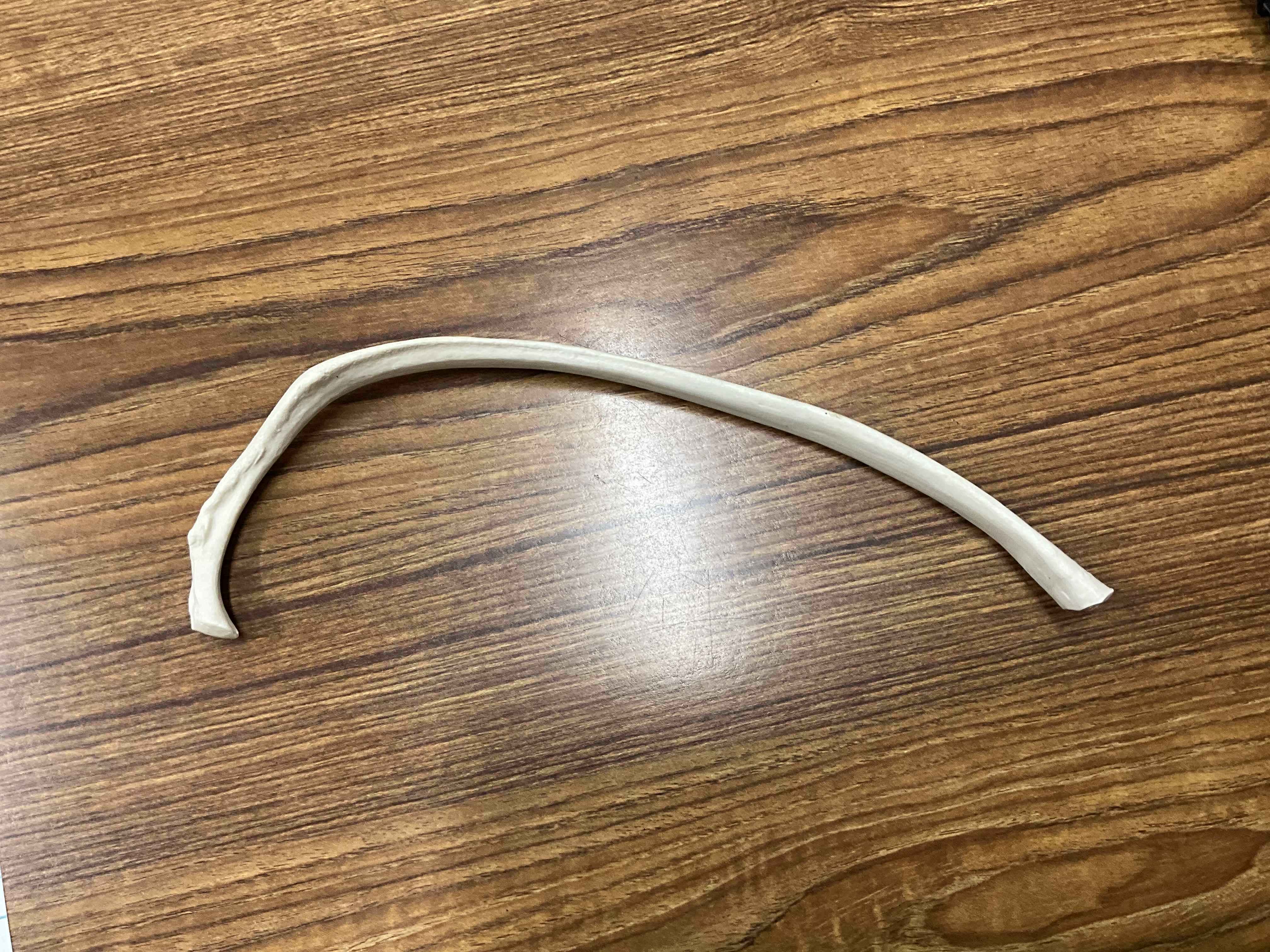

Costal bone (rib)

Head

Sternal end

Left or right?

Left. For ribs, orient head side towards you. If head flat on table, left side. If head is above table, right side. Head attaches to spine, picture inner curve of ribcage. Rough side up, smooth side down

Which ribs are true ribs?

Ribs 1-7

Which ribs are false ribs?

Ribs 8-10

Which ribs are floating ribs?

11 and 12

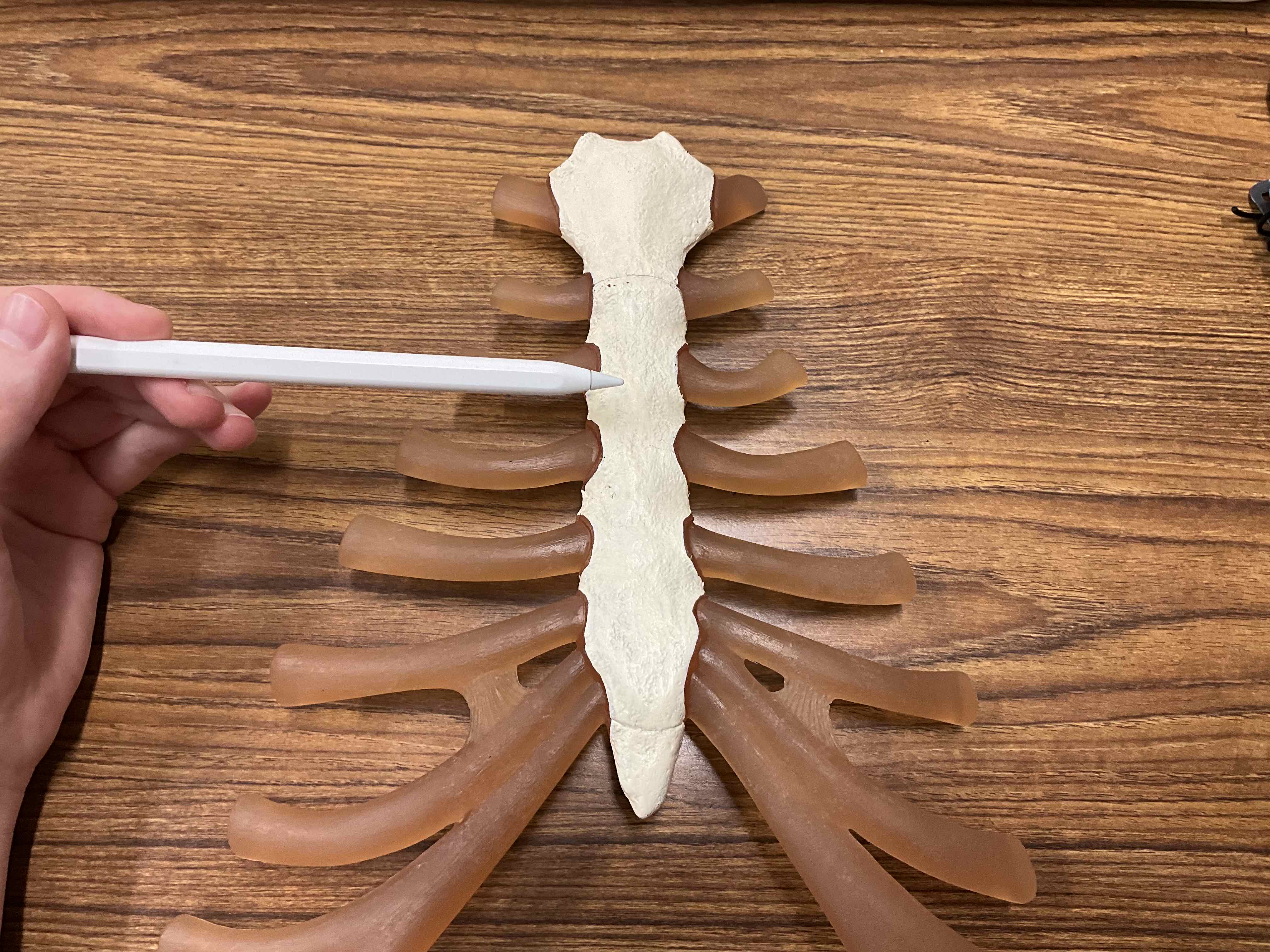

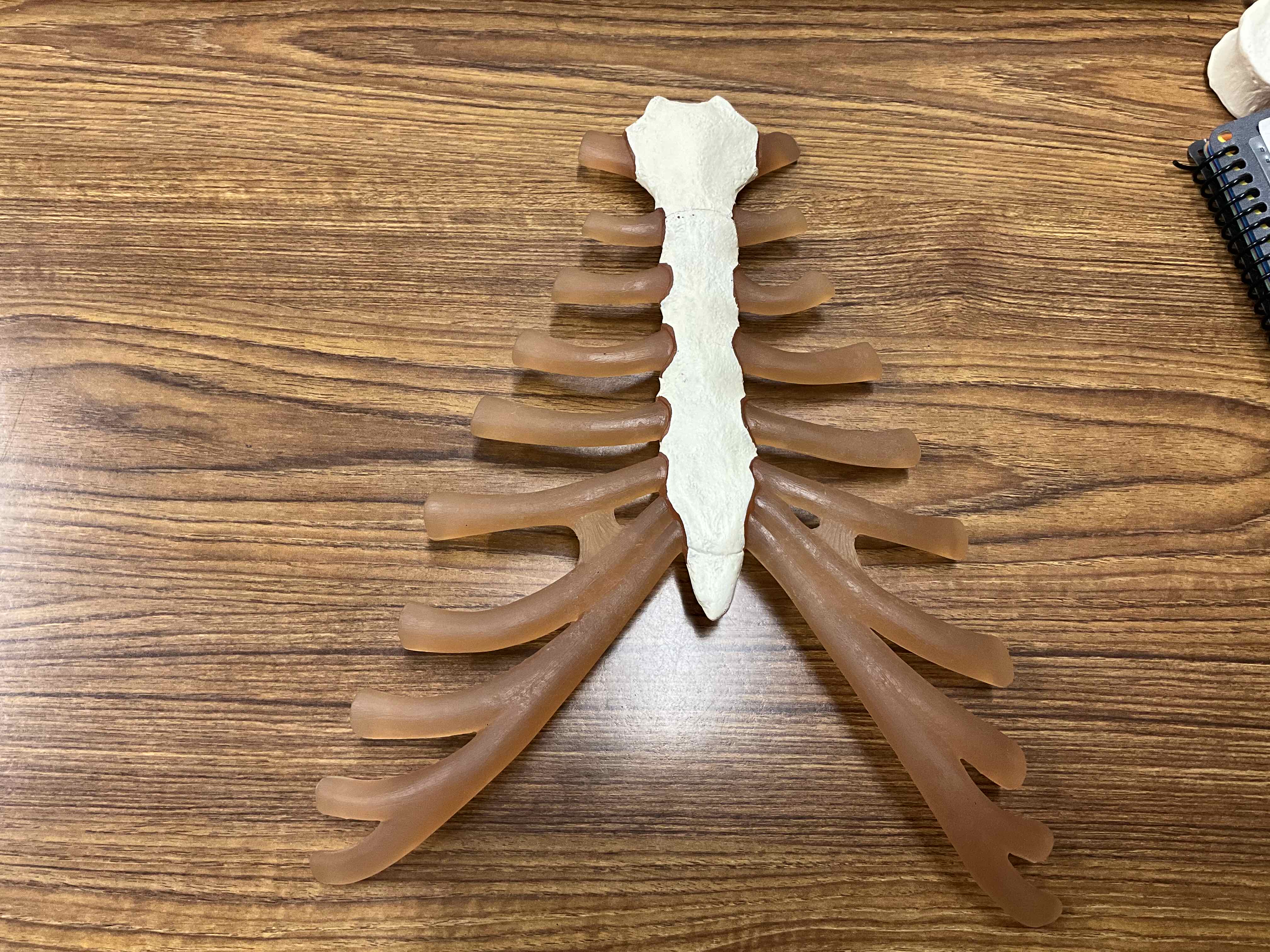

Name this bone

Sternum

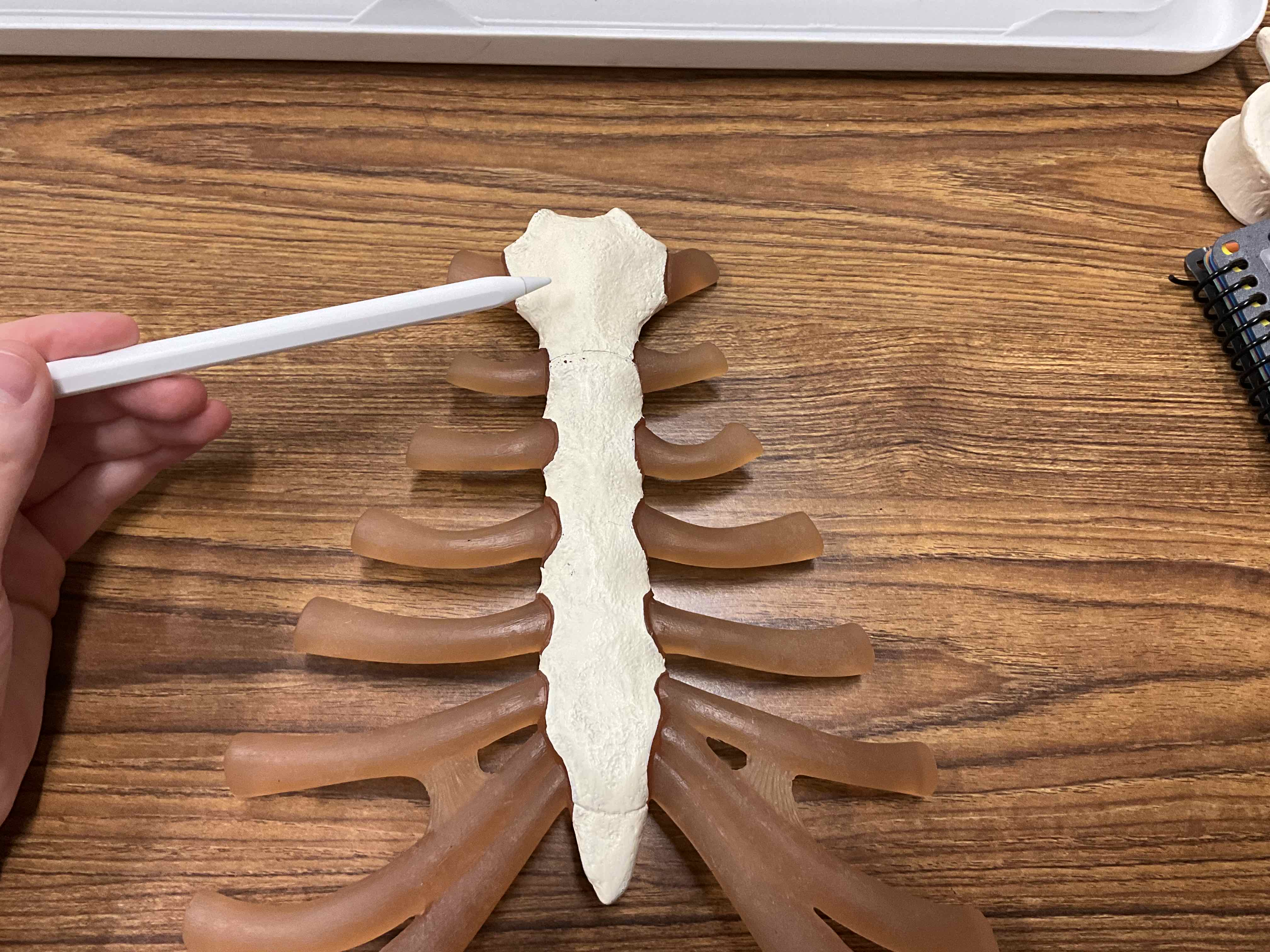

Manubrium

Body of sternum

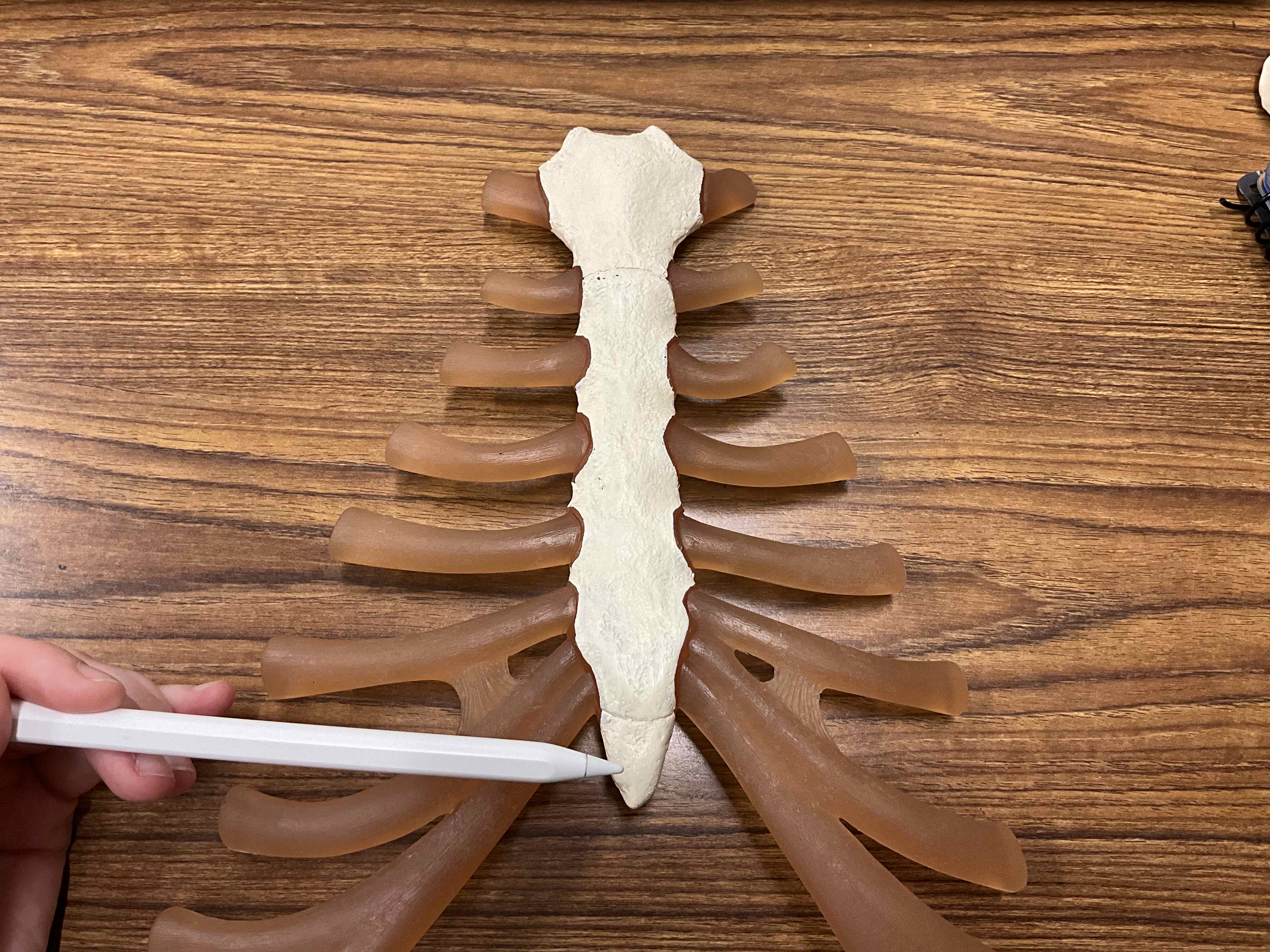

Xiphoid process

Name the bone

Vertebra

Body of vertebra

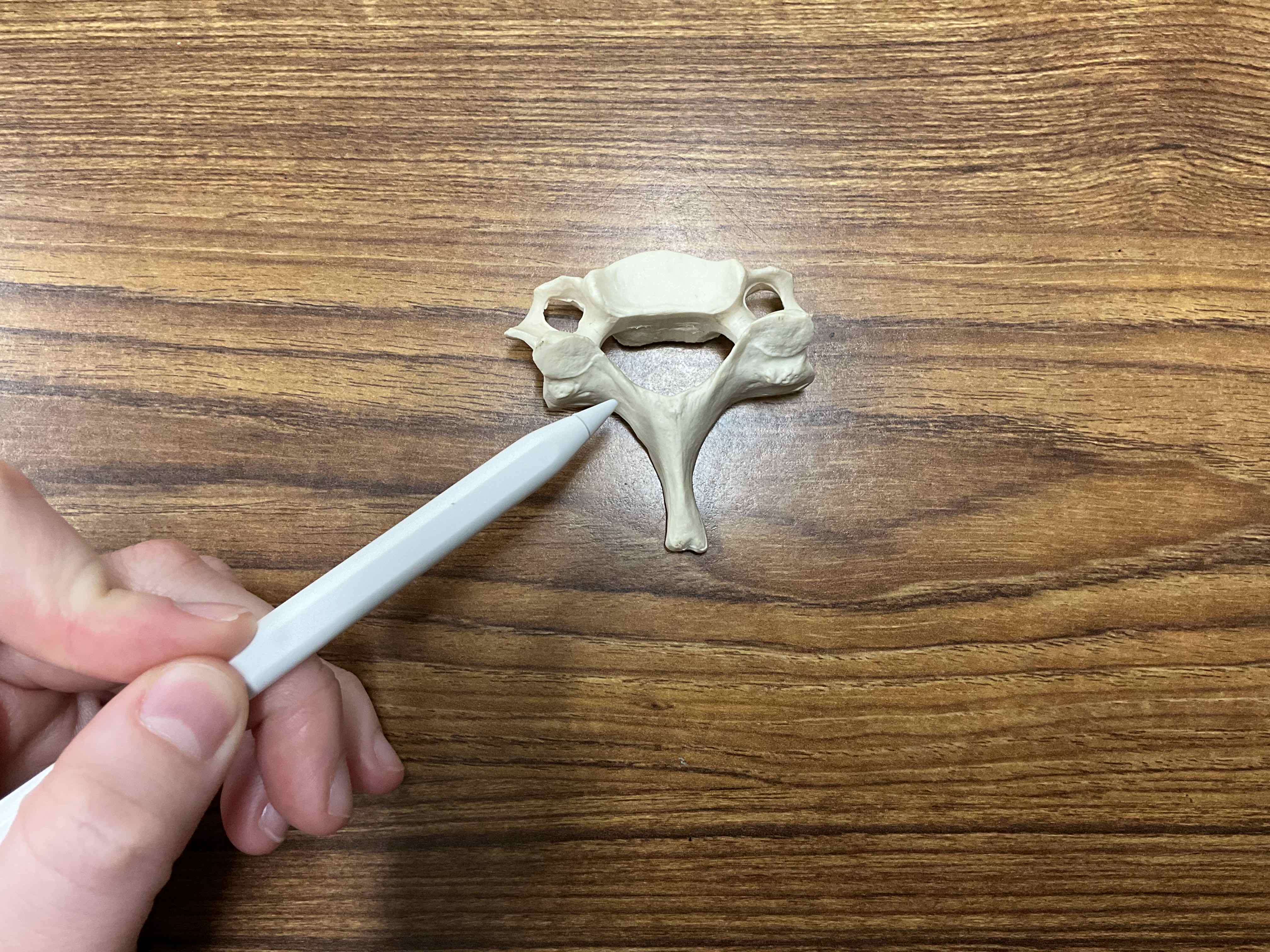

Transverse process

Pedicle

Lamina

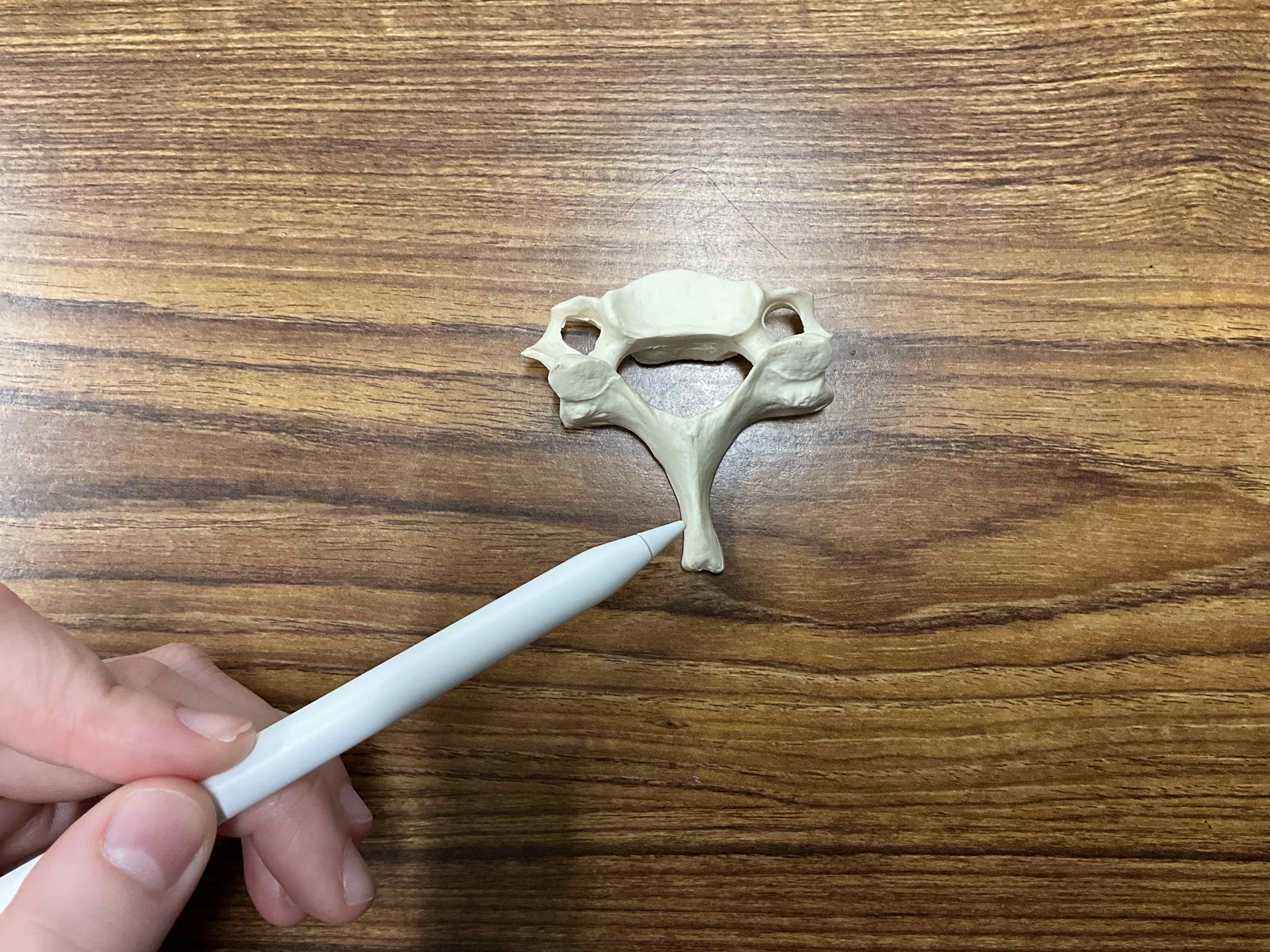

Spinous process

Name the surface

Superior articular surface

Name the surface

Inferior articular surface

Vertebral foramen

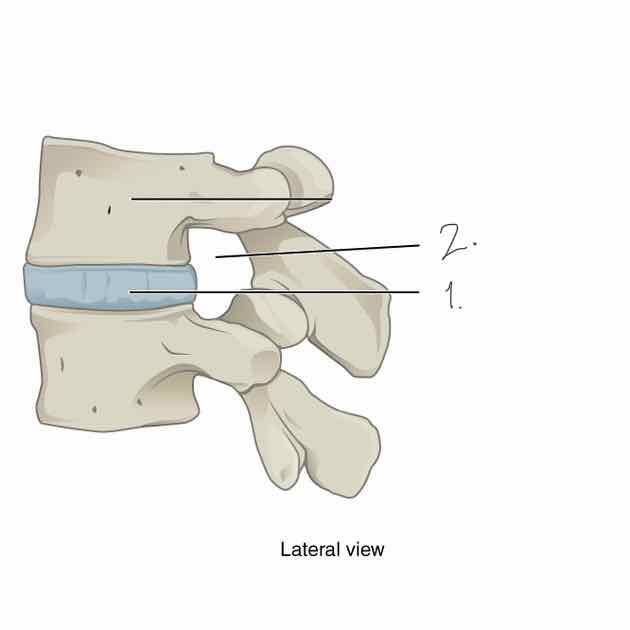

Name 1.

Intervertebral disk

Name 2.

Intervertebral foramen

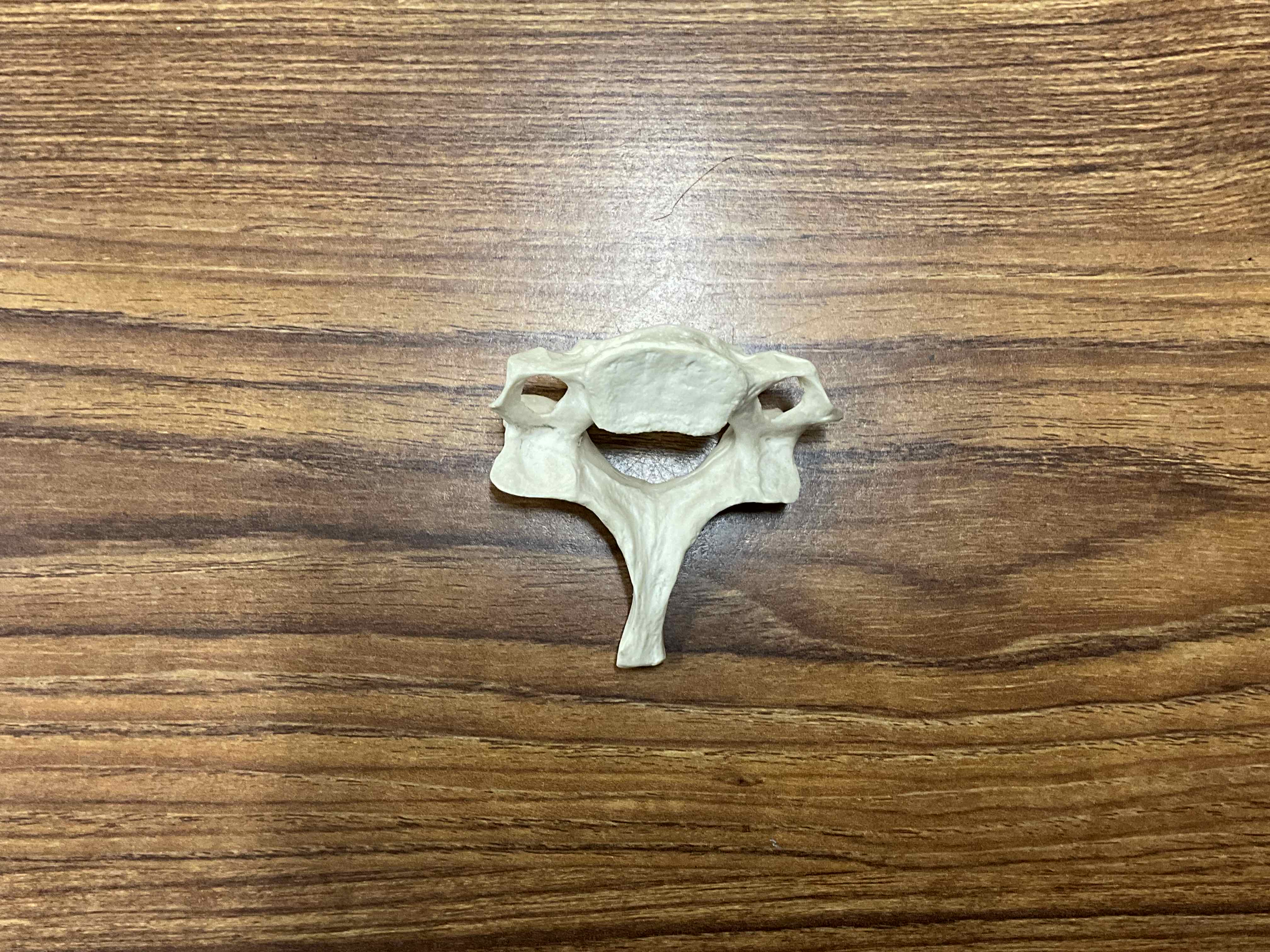

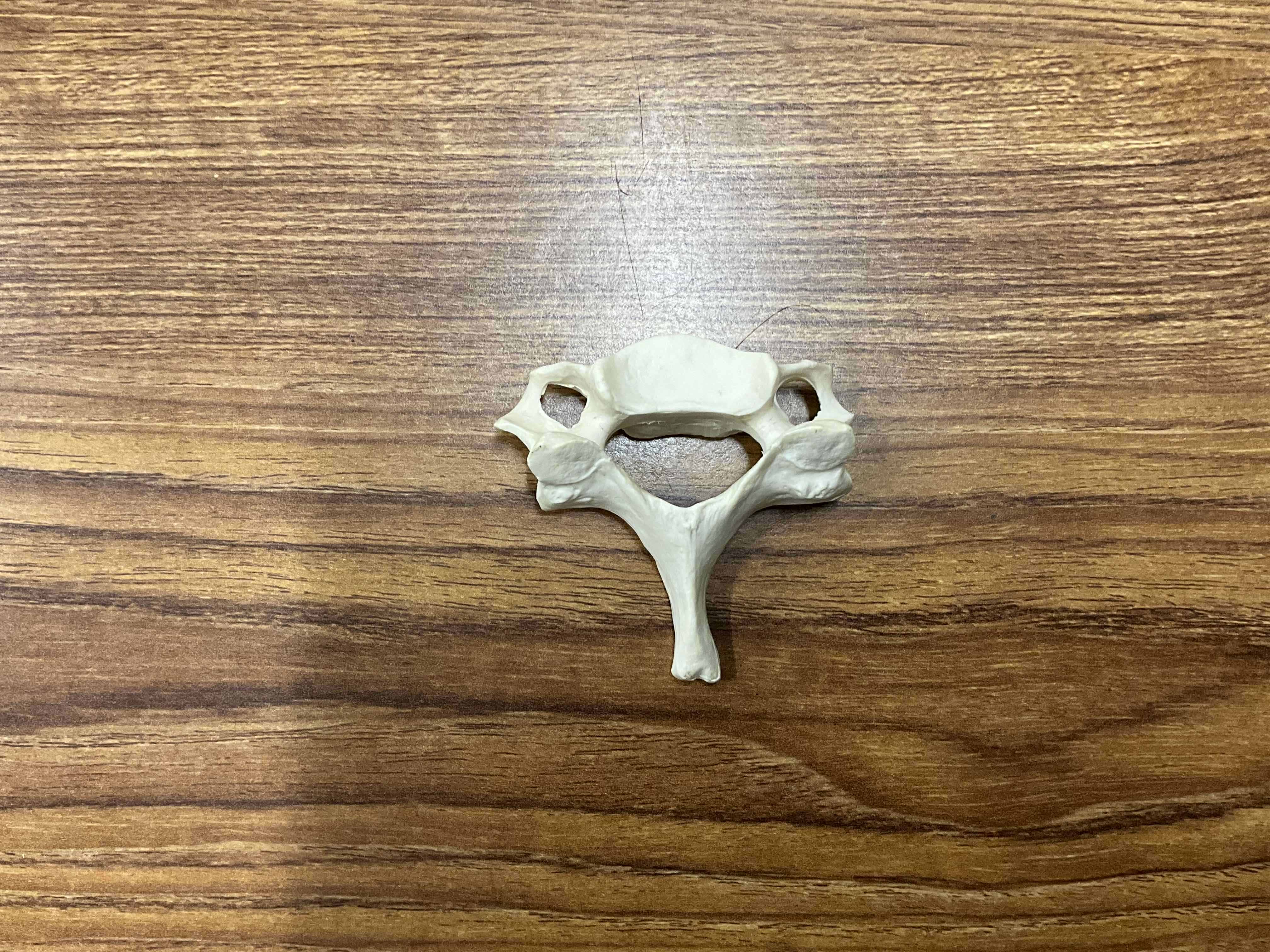

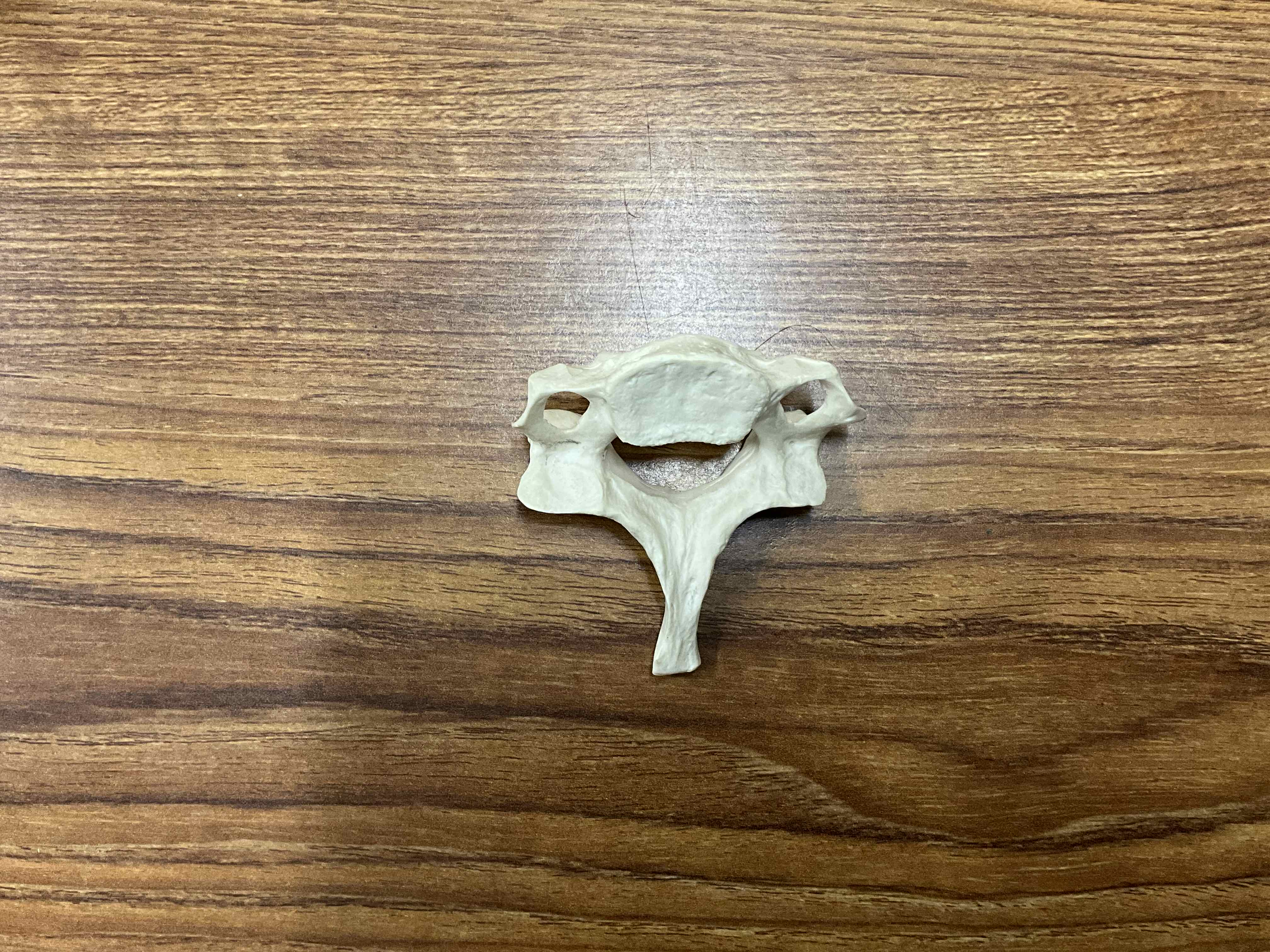

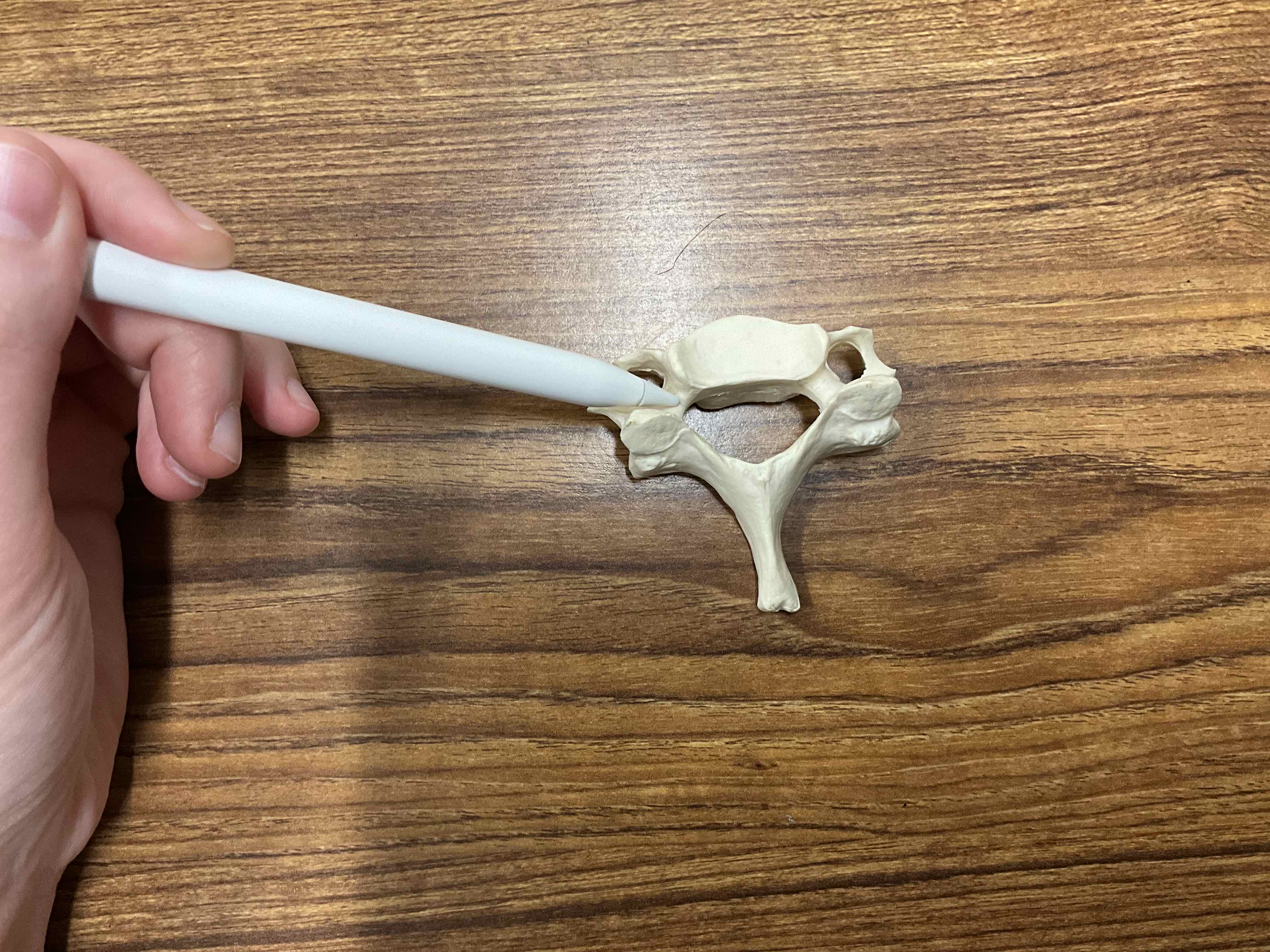

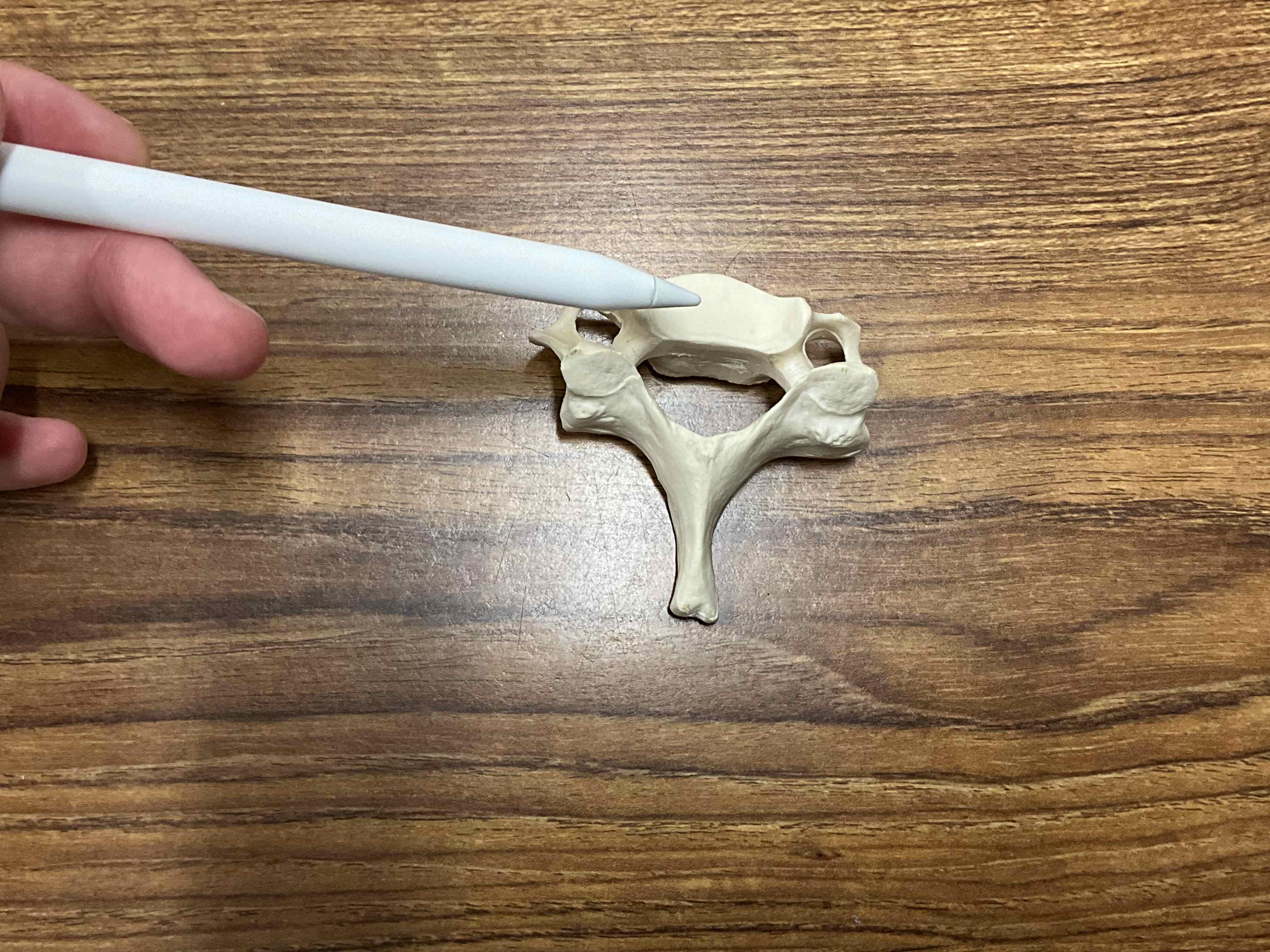

Name this bone (not specific)

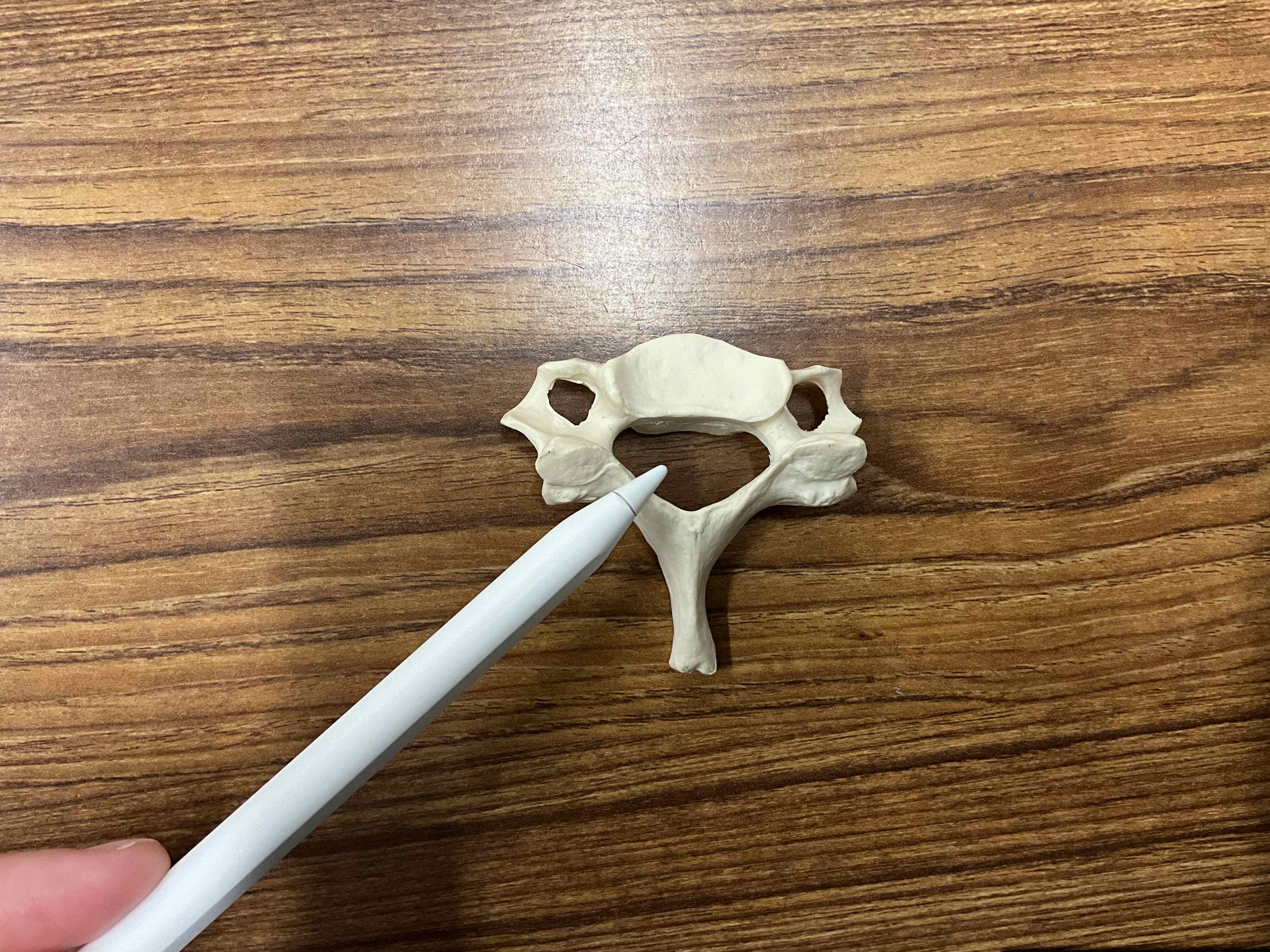

Cervical vertebra

Name this bone (specific)

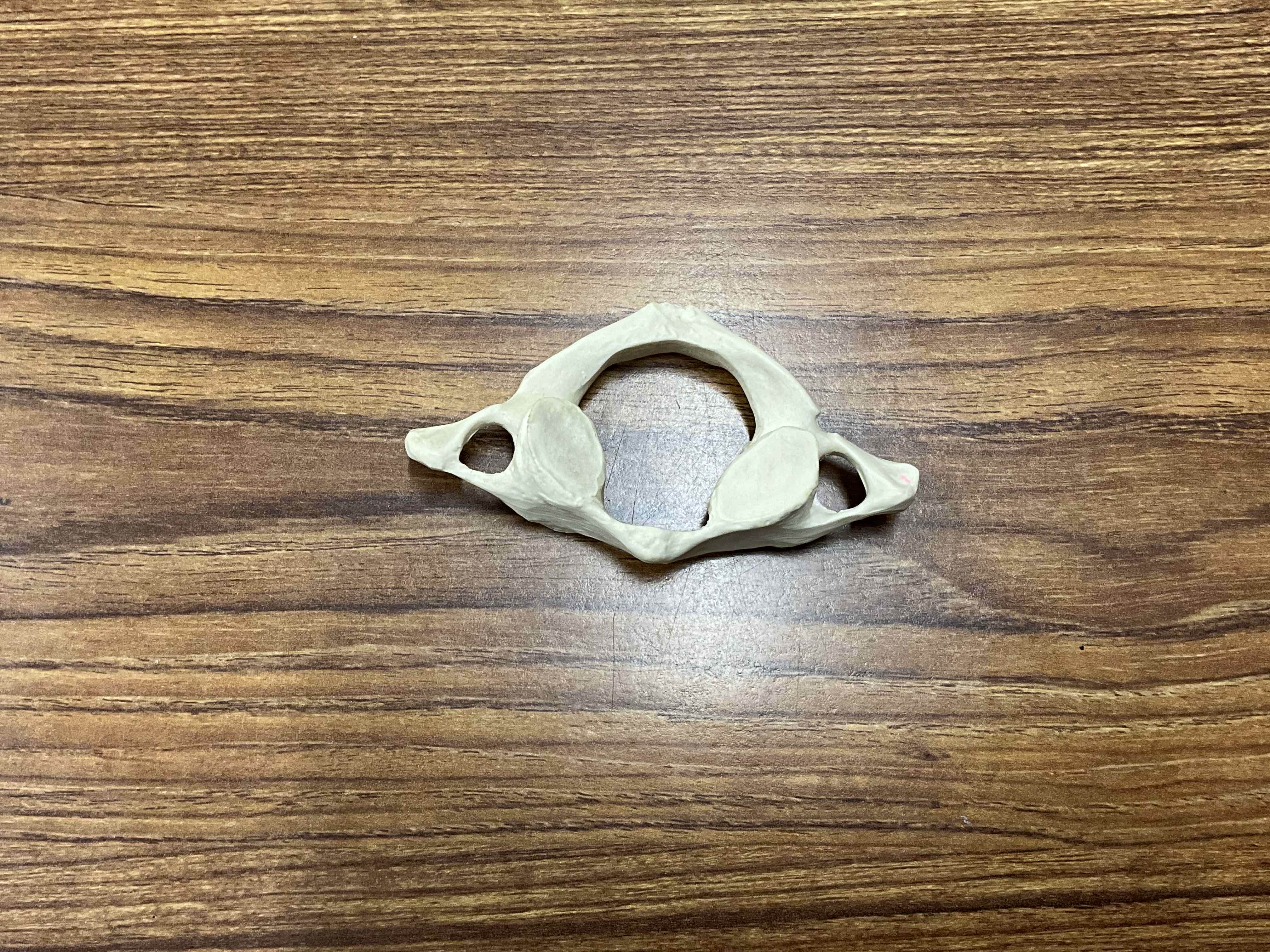

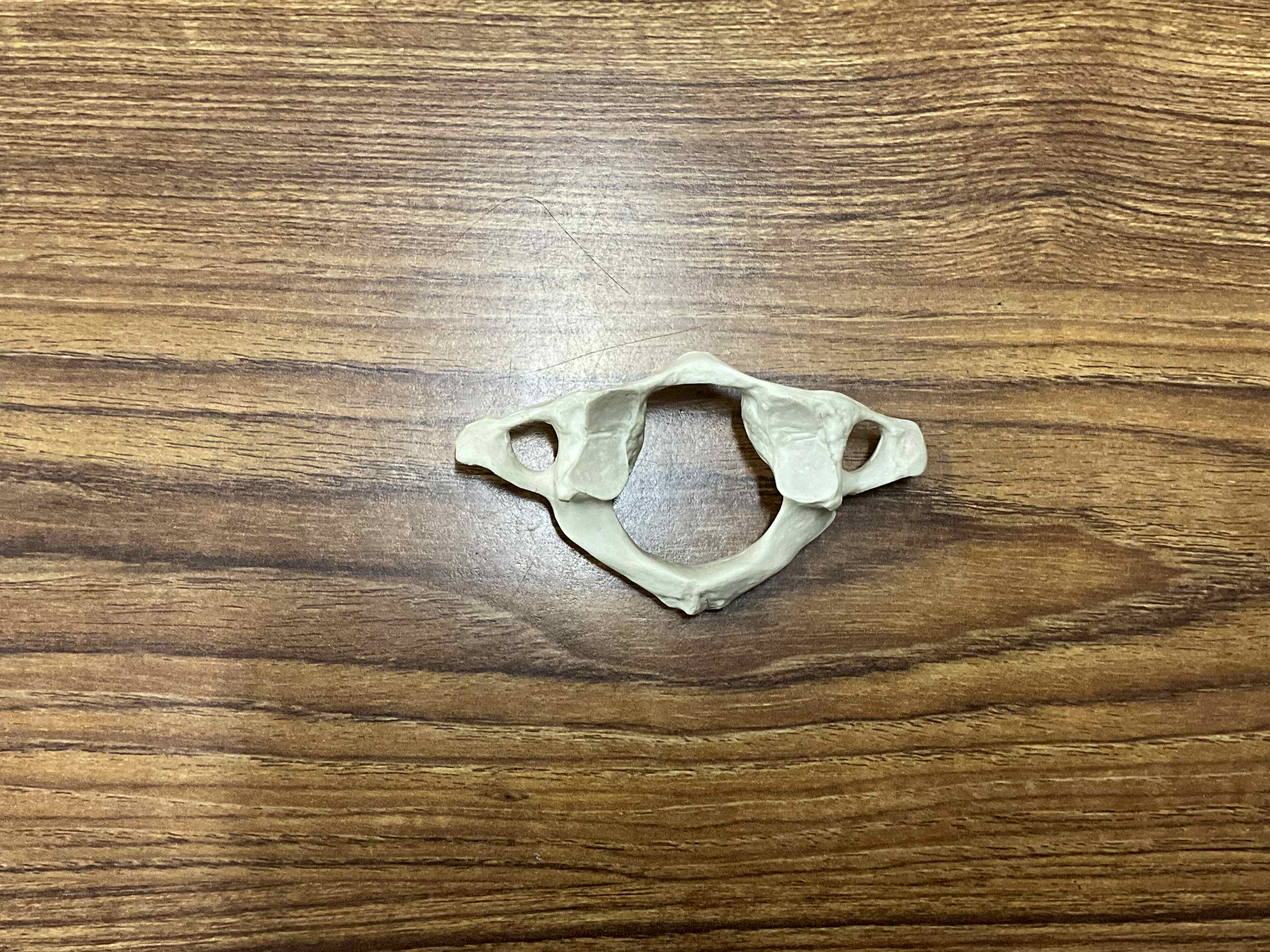

Atlas (up and down motion)

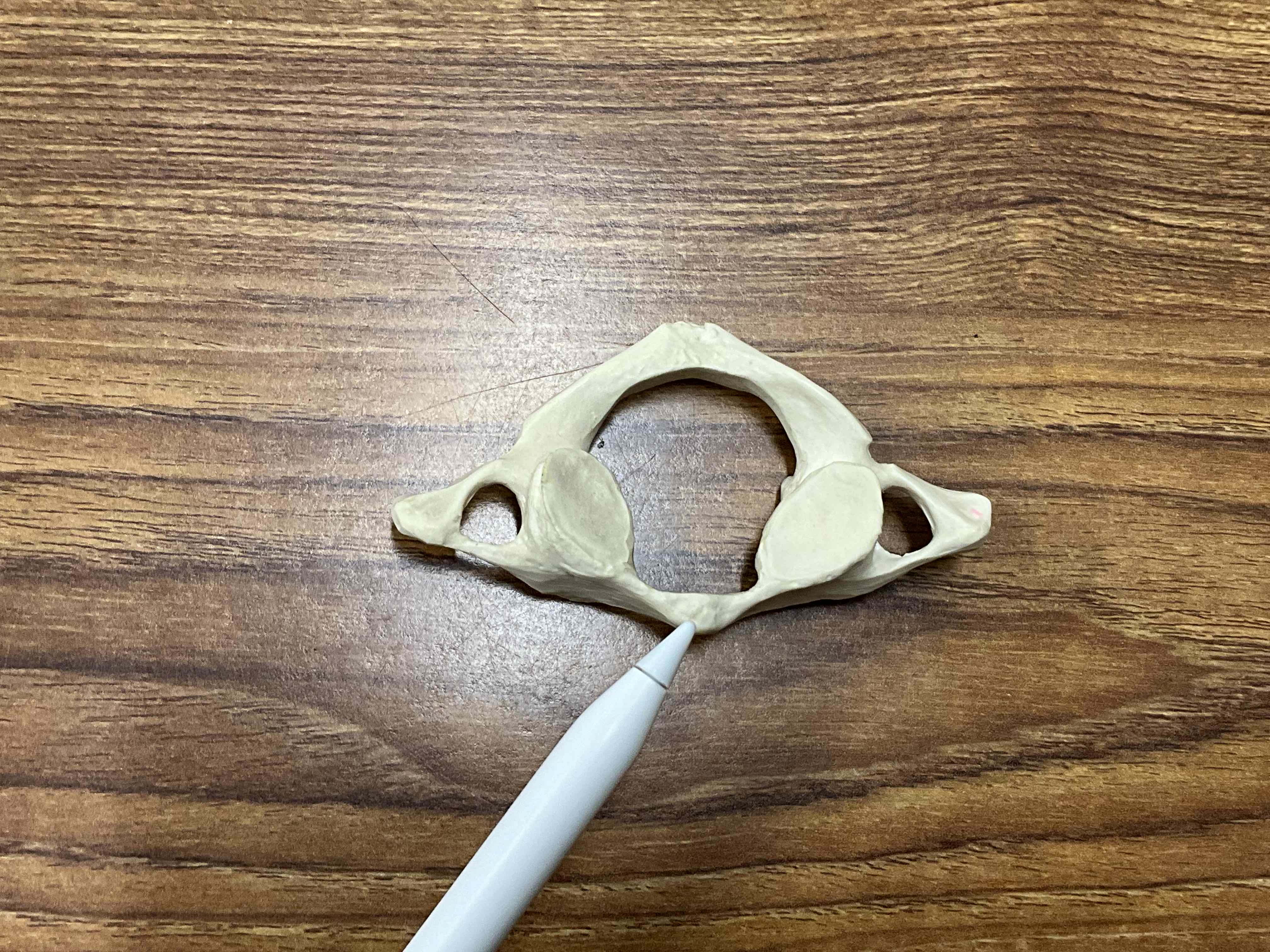

Posterior arch

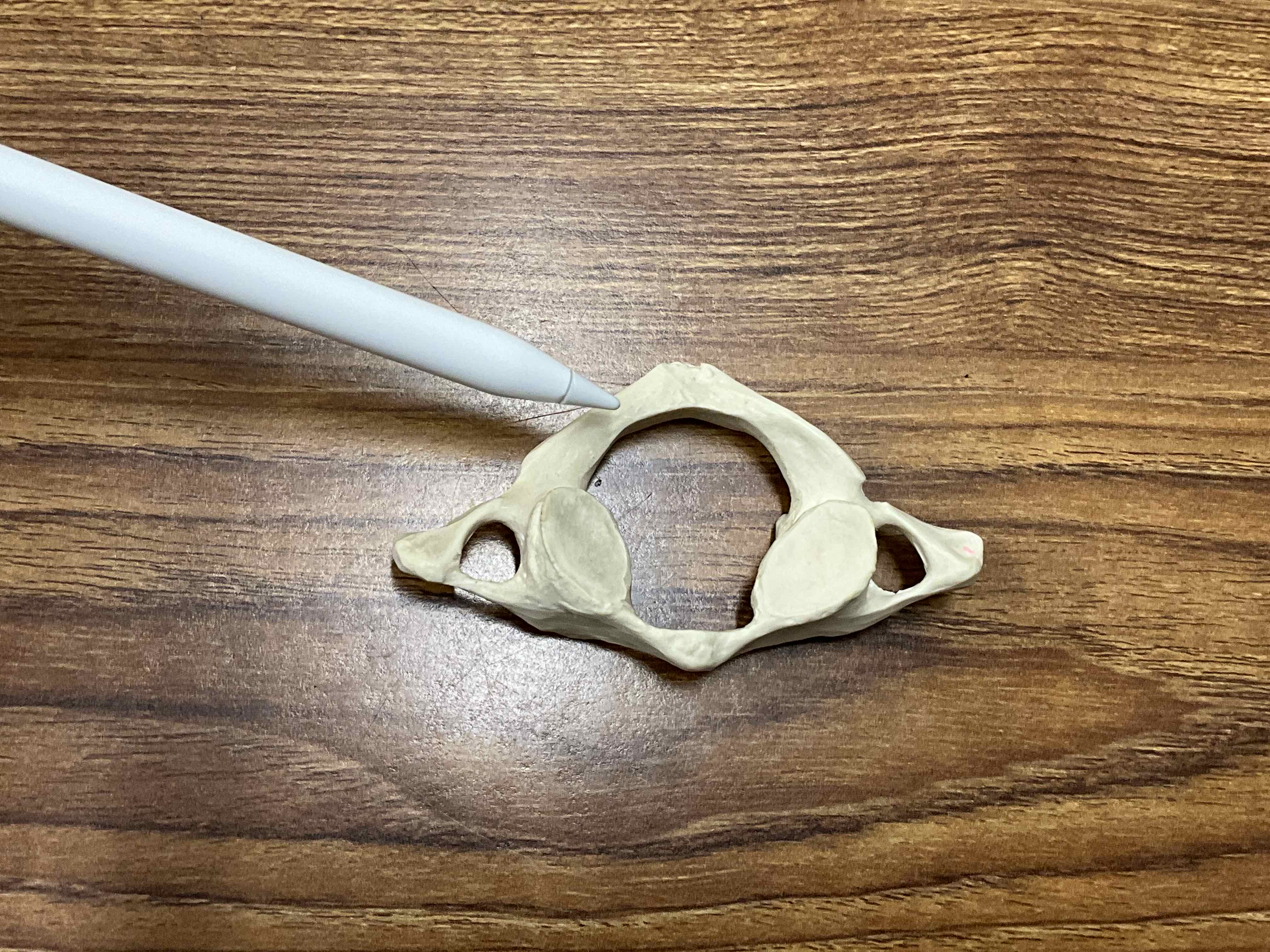

Anterior arch

name this bone (specifc)

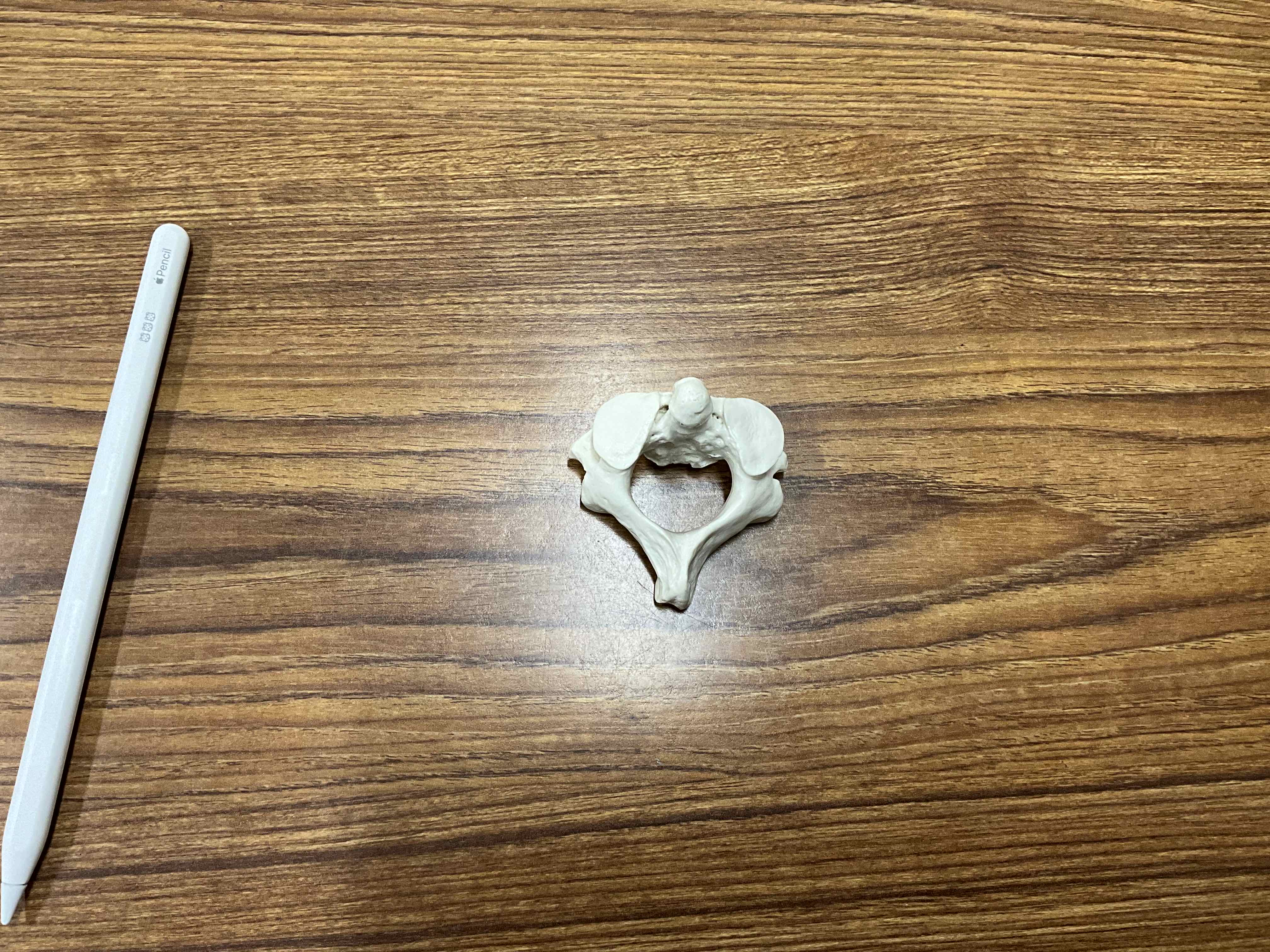

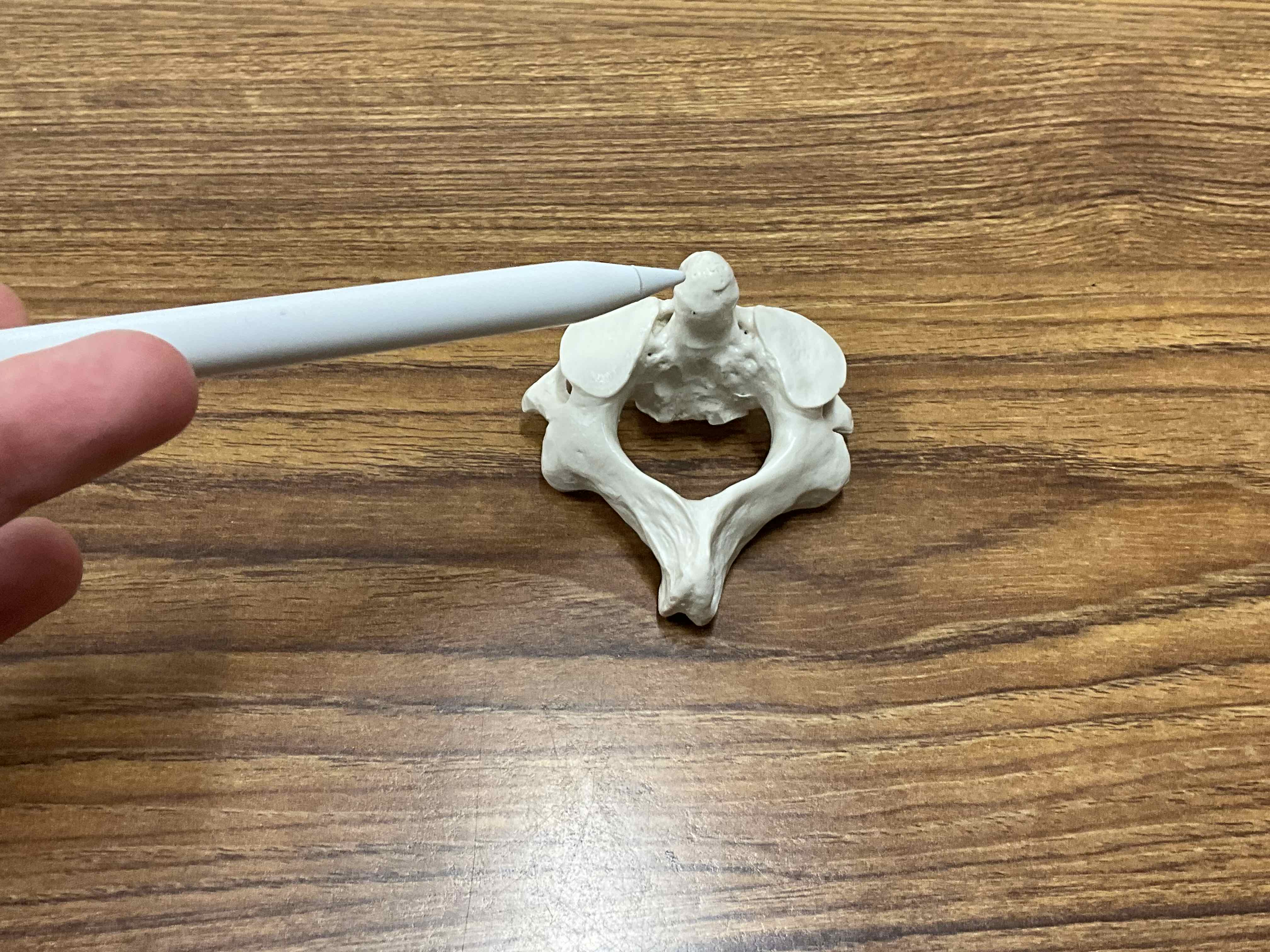

Axis (side to side motion)

Dens process

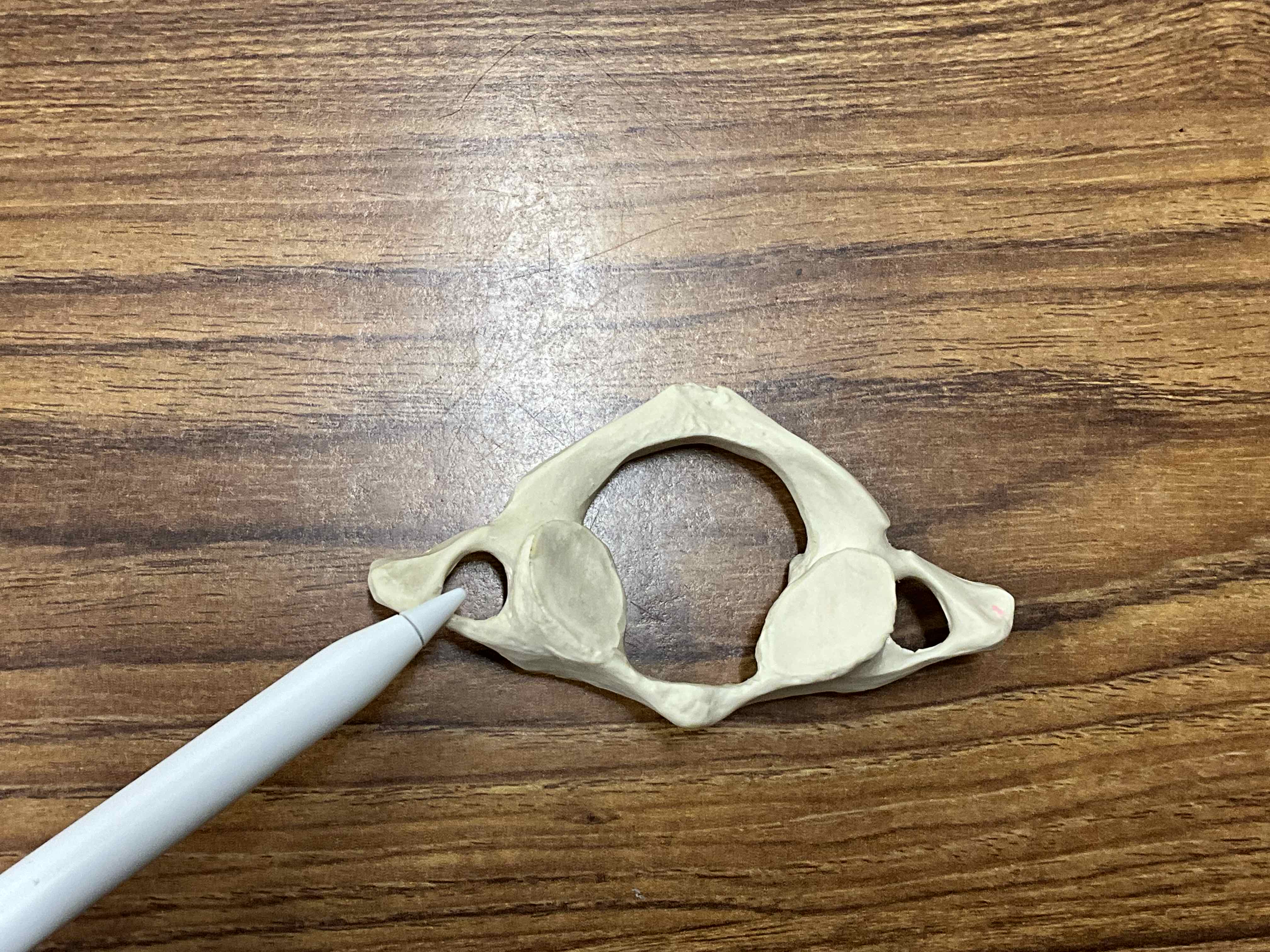

Transverse foramen (only on cervical vertebrae)

Number of cervical vertebrae?

7

Number of thoracic vertebrae?

12

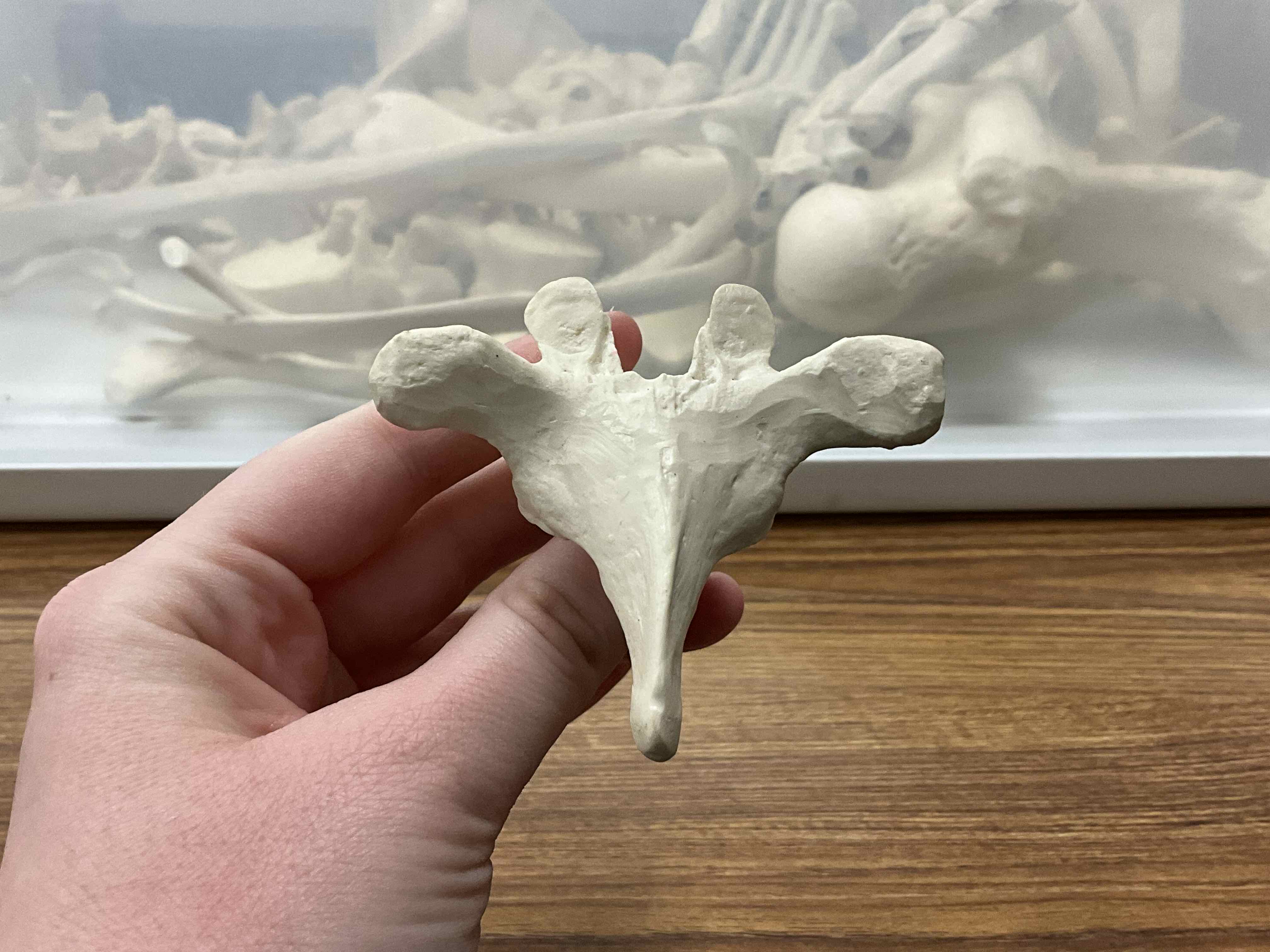

Name this type of vertebrae

Thoracic, “giraffe”

Number of lumbar vertebrae?

5

Type of vertebrae

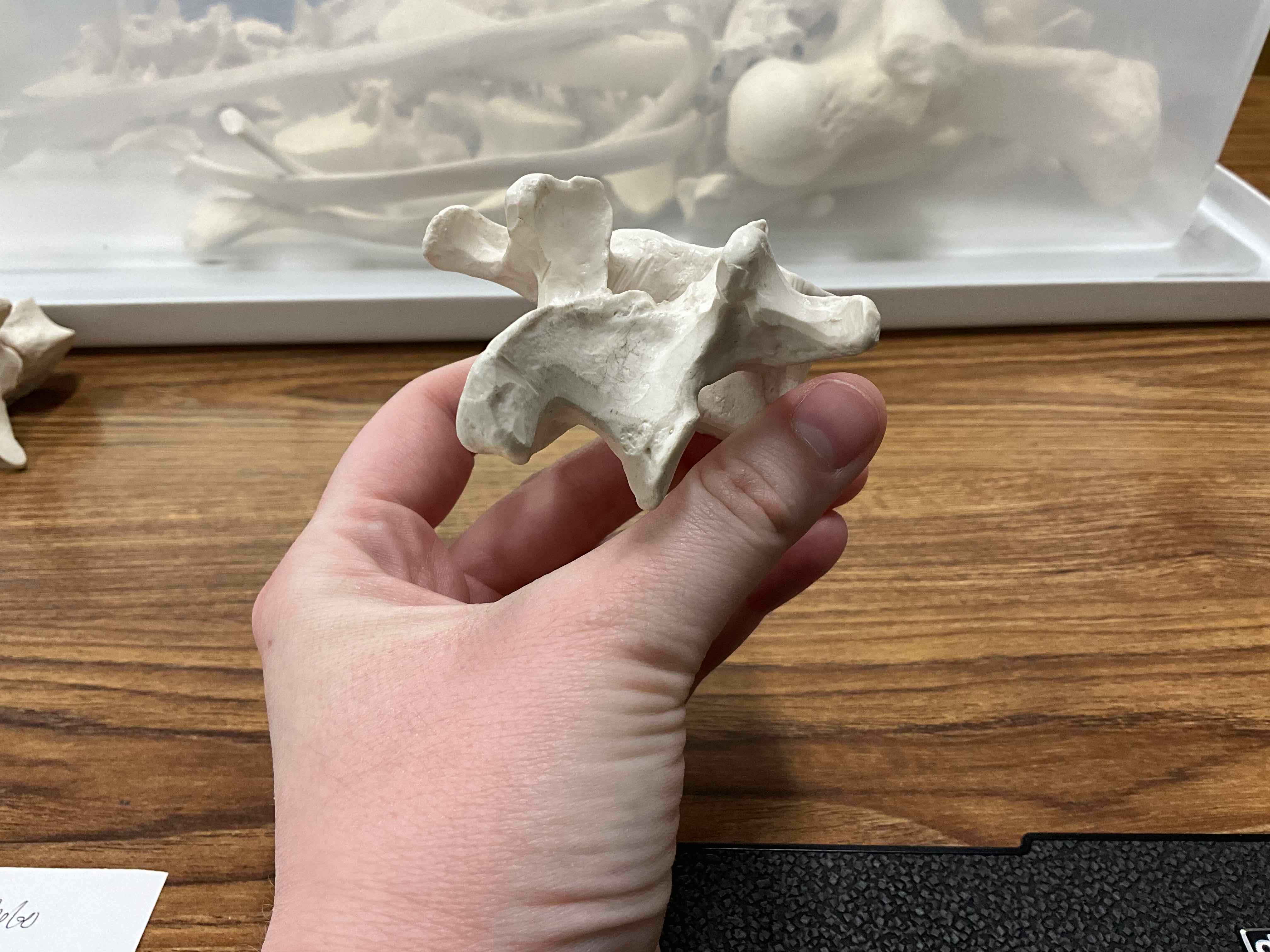

Lumbar, “moose”, very large and dense

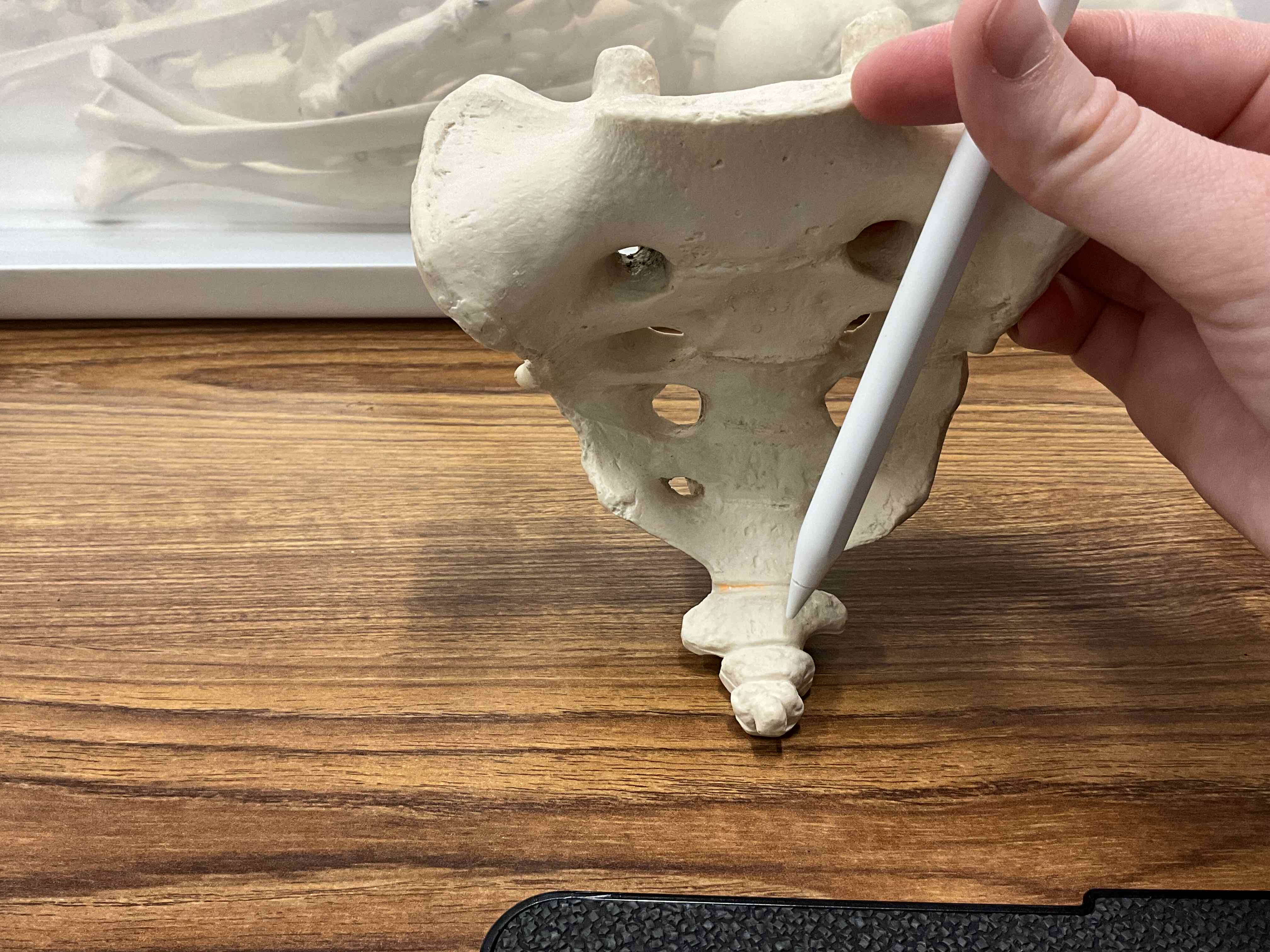

Name this bone

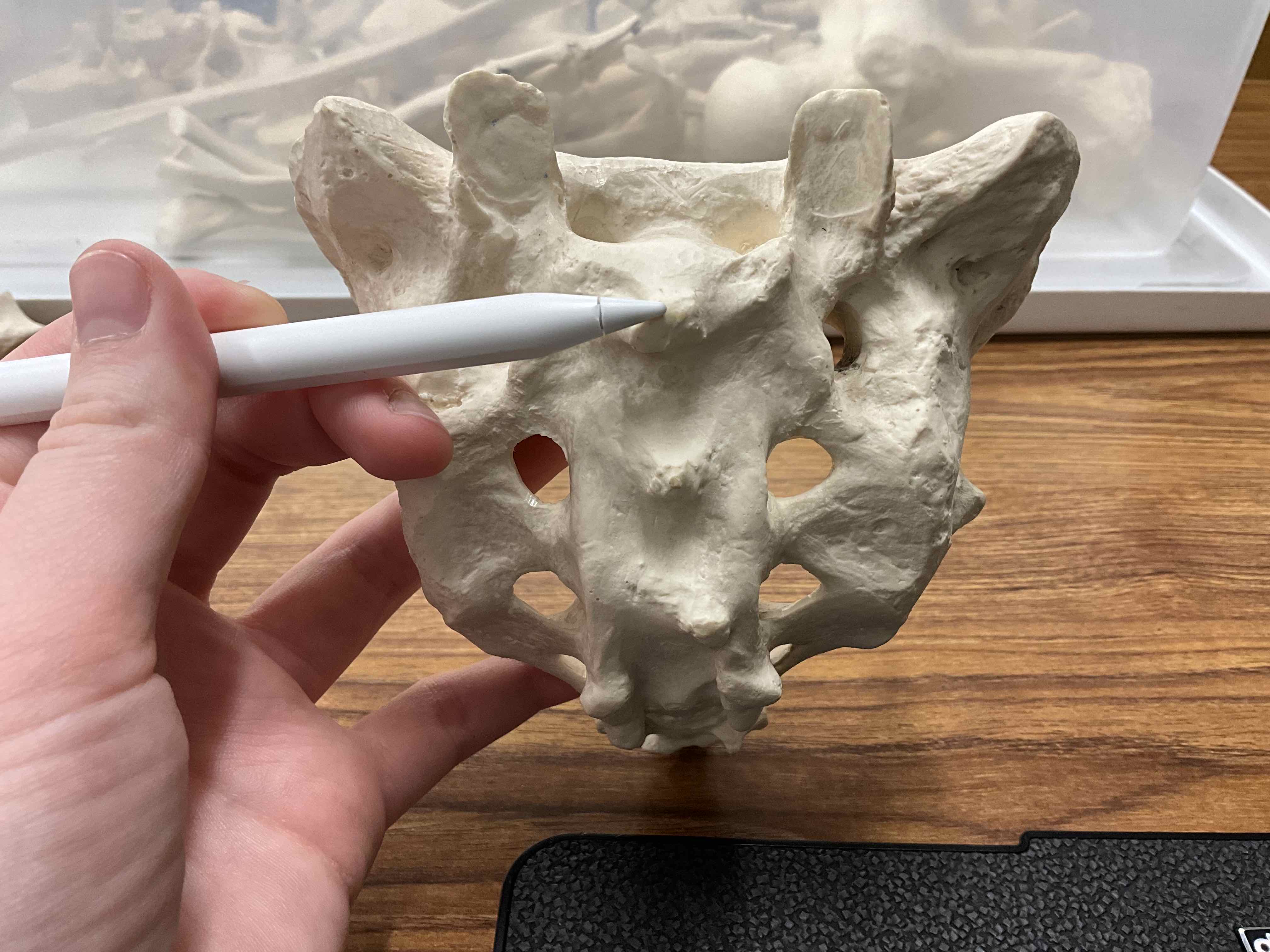

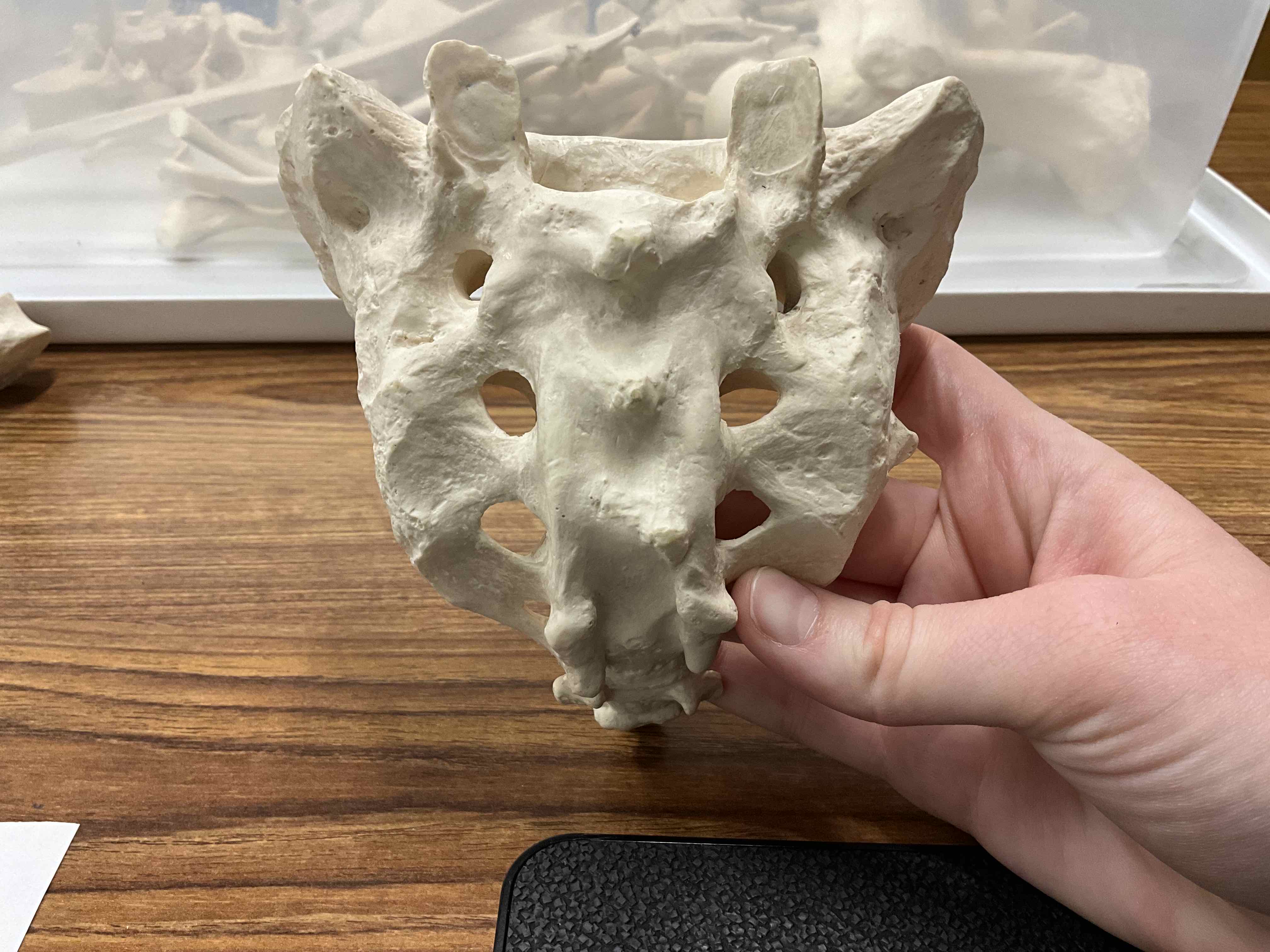

Sacrum

Sacral promontory

Coccyx

Name this section

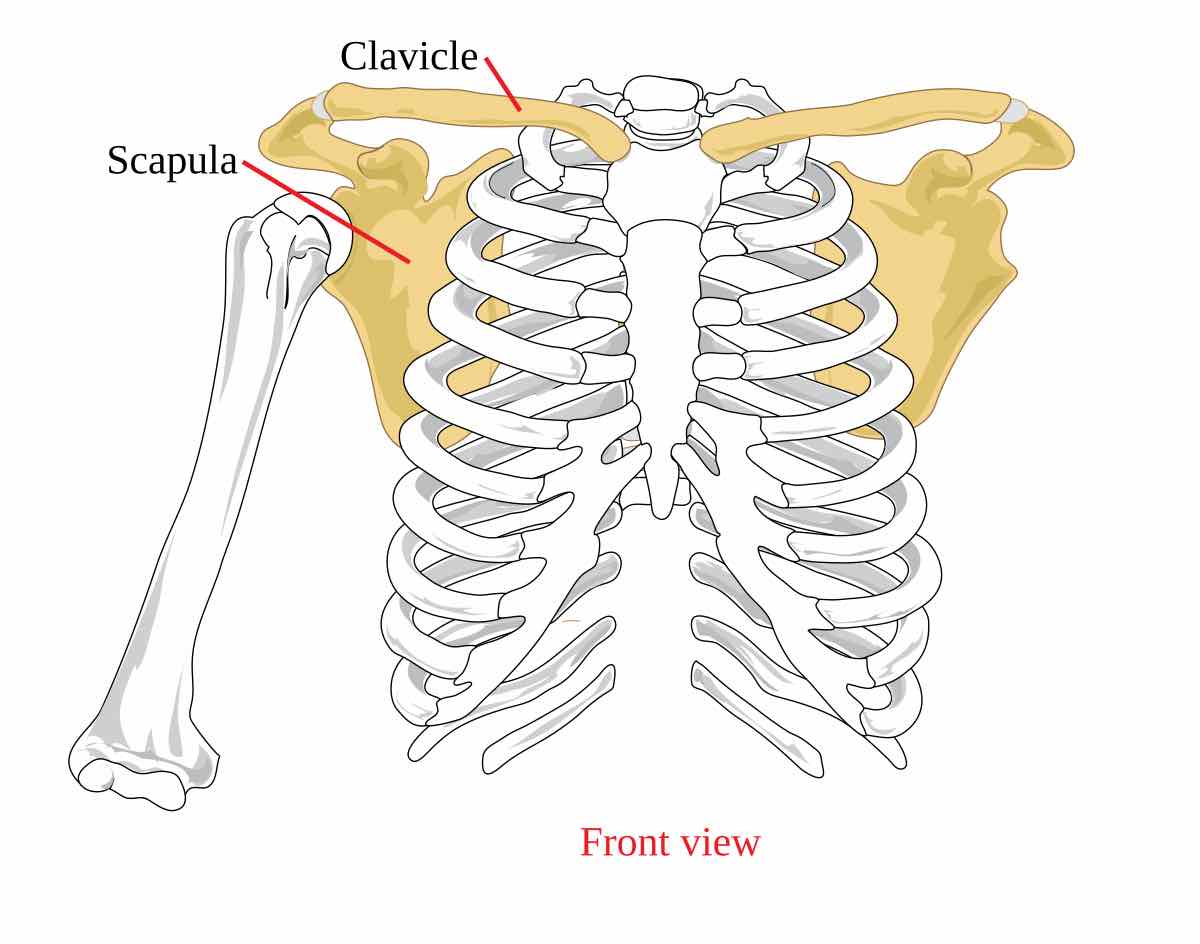

Pectoral girdle

Name this bone

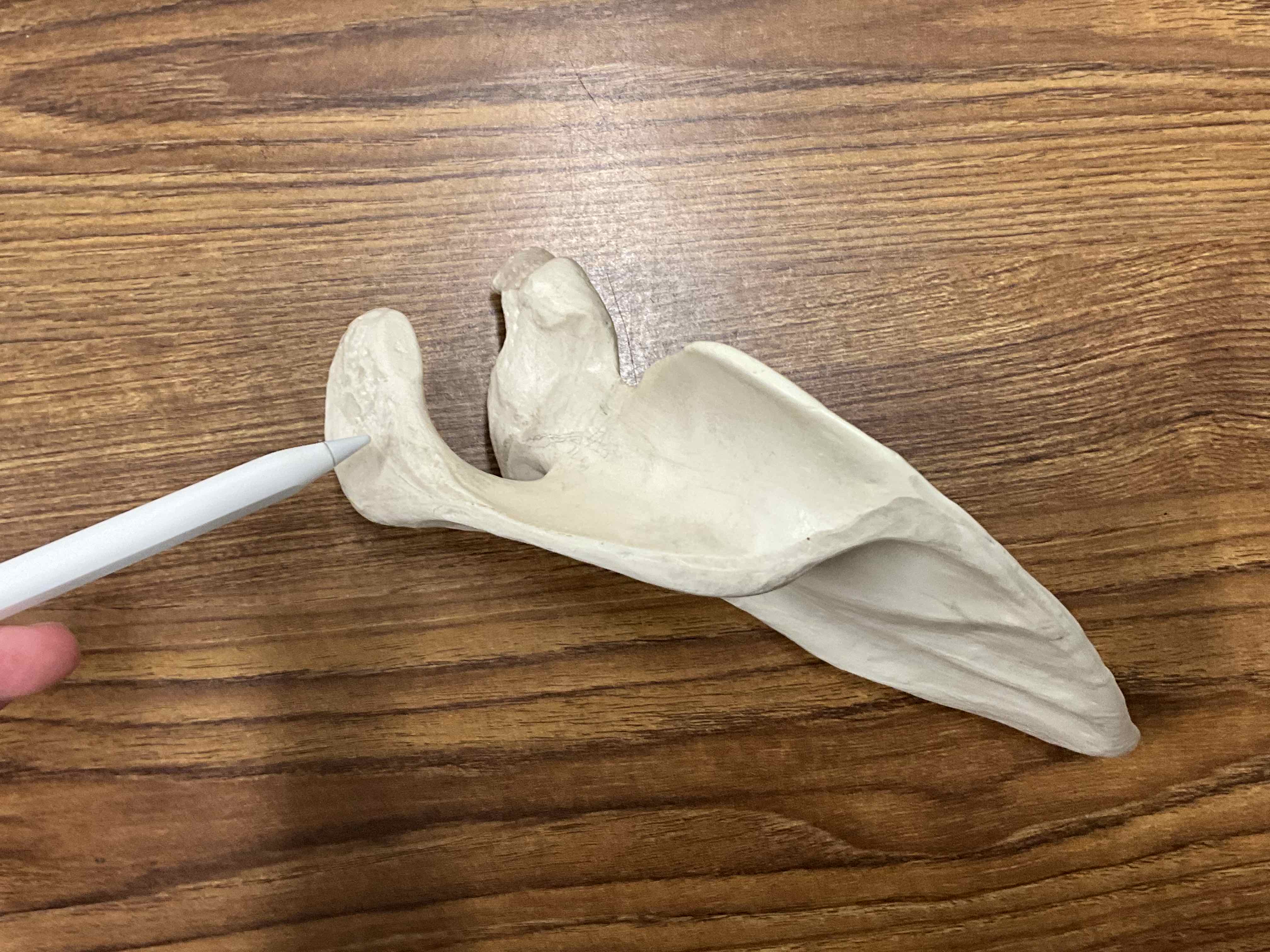

Scapula

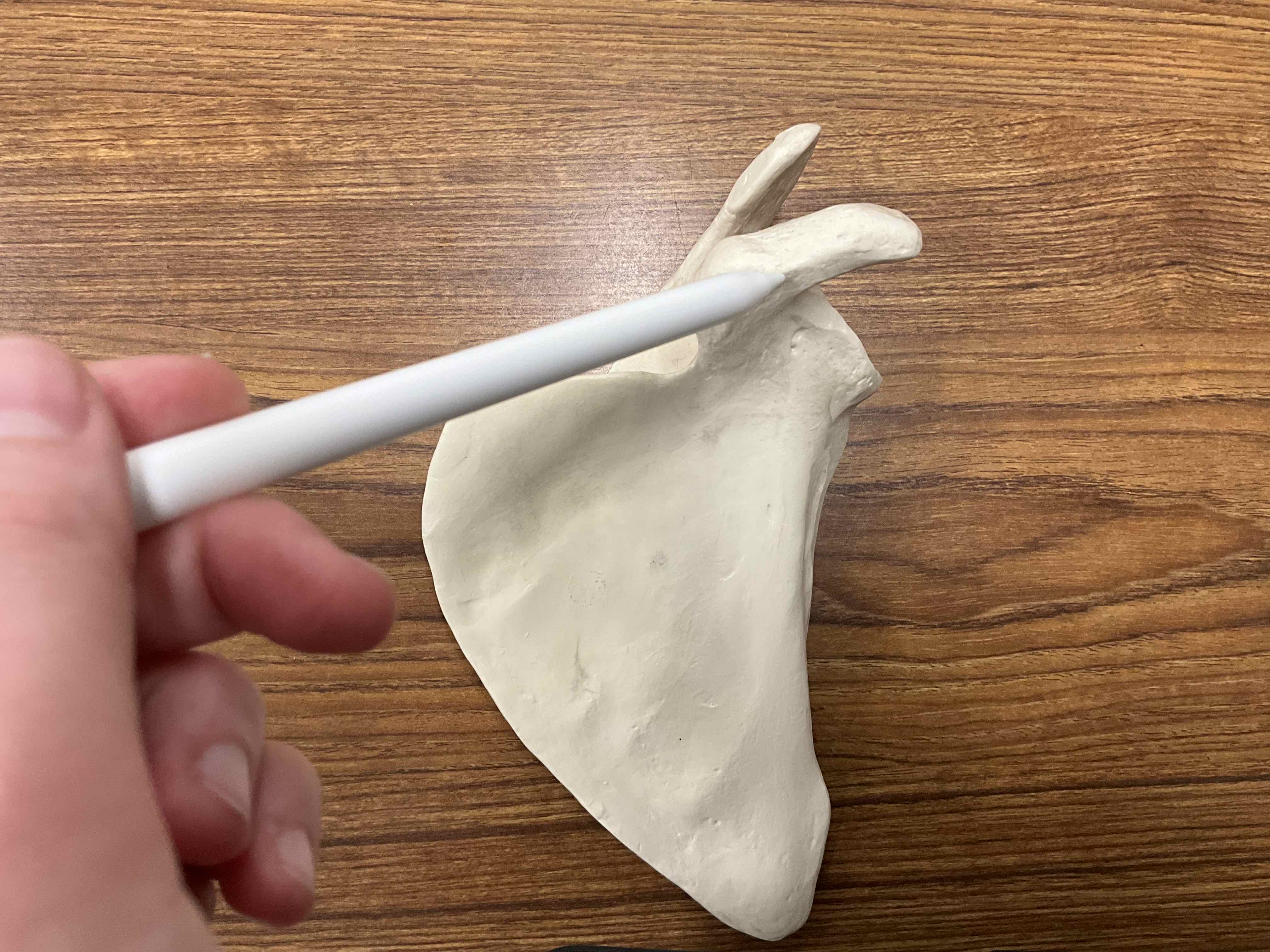

Acromion

Corocoid process
