22 Terms

1
New cards

What are peripheral cables?

Used to attach peripheral devices to a computing device, aka keyboards, monitors.

2
New cards

USB 1.1

Low speed, 1.5 Mb/s up to 3m

Full speed, 12 Mb/s up to 5m

3
New cards

USB 2.0

Half-duplex so data is only transmitted one way at a time, max speed 480Mb up to 5m, called Hi-Speed USB

4
New cards

USB 3.0

Full-duplex so data can be sent and received simultaneously. Max speed 5 Gb/s up to 3m, called SuperSpeed

5
New cards

USB 3.1 and 3.2

Max speeds of 10 Gb/s and 20 Gb/s

6
New cards

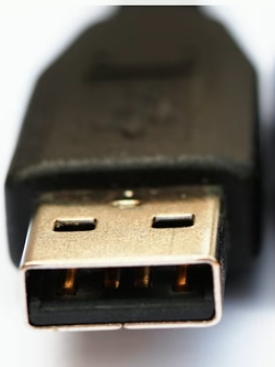

<p>Which connector is this?</p>

Which connector is this?

USB 1.1/2.0 Type-A Plug

7
New cards

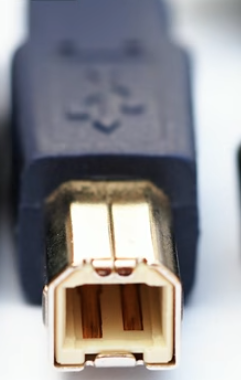

<p>Which connector is this?</p>

Which connector is this?

USB 1.1/2.0 Type-B Plug

8
New cards

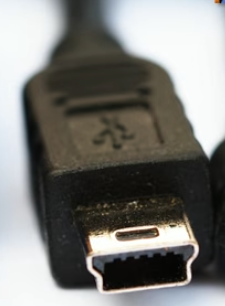

<p>Which connector is this?</p>

Which connector is this?

USB 1.1/2.0 Mini-B Plug

9
New cards
<p>Which connector is this?</p>

Which connector is this?

USB 1.1/2.0 Micro-B Plug

10
New cards

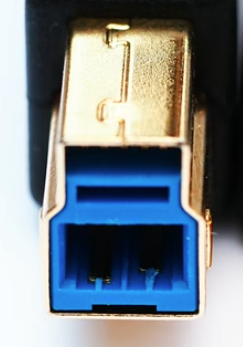

<p>Which connector is this?</p>

Which connector is this?

USB 3.0 Standard-B PlugW

11
New cards

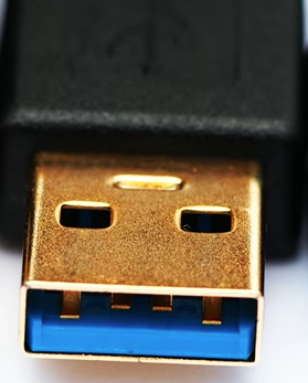

<p>Which connector is this?</p>

Which connector is this?

USB 3.0 Type-A Plug

12
New cards

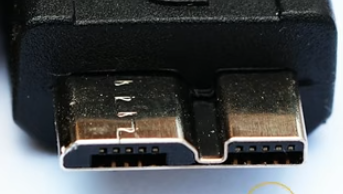

<p>Which connector is this?</p>

Which connector is this?

USB 3.0 Micro-B Plug

13
New cards
<p>Which connector is this?</p>

Which connector is this?

USB 1.1/2.0 Mini-A Plug

14
New cards
<p>What connector is this?</p>

What connector is this?

USB 1.1/2.0 Micro-A Plug

15
New cards

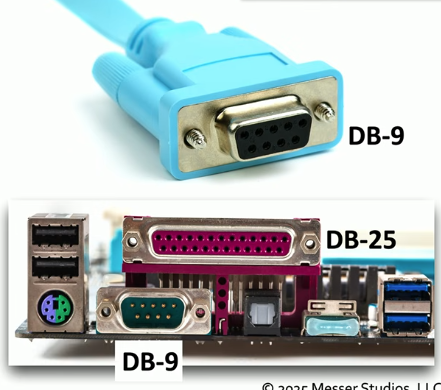

Serial Cable

Single full-duplex cable for serial communication, commonly used for sending RS-232 used for modems, printers, mice, networking, and configuration ports. Connector size referred to as D-sub, DB9 or DB25 are common number of pins,.

<p>Single full-duplex cable for serial communication, commonly used for sending RS-232 used for modems, printers, mice, networking, and configuration ports. Connector size referred to as D-sub, DB9 or DB25 are common number of pins,.</p>
16
New cards

What is serial cables for configuration ports?

Can use serial cable to directly connect to device when no display and access a text-based serial interface console.

17
New cards

Thunderbolt

A high speed serial connector providing data and power on the same cable, a combination of PCIe and Mini DisplayPort technology.

18
New cards

Connector termination of the four Thunderbolt standards

Thunderbolt 1 and 2 terminate in Mini DisplayPort

Thunderbolt 3 and 4 terminate in USB-C

19
New cards

Thunderbolt 1

Two channels, 10 Gb/s per channel, 20 Gb/s total throughput, Mini DisplayPort connector

20
New cards

Thunderbolt 2

20 Gb/s aggregated channels, Mini DisplayPort connector

21
New cards

Thunderbolt 3

40 Gb/s aggregated throughput, USB-C connector, max length 3 m for copper and 60 m for optical, Daisy chain up to 6 devices

22
New cards

Thunderbolt 4

40 Gb/s aggregated throughput, added support for dual 4K displays, increased PCIe bandwidth
