Ground Faults, Overcurrent Devices, and Circuit Protection in Electrical Systems

What is a ground fault?

A type of fault where electrical current flows unintentionally to the ground, posing a shock hazard.

What are the main dangers of ground faults?

The likelihood of electric shock, especially when a person is in contact with the ground or in a damp location.

What defines a short circuit?

A condition where electricity strays outside the established pathway, often due to bare wires touching.

What are common causes of short circuits?

Loose wire connections, damaged insulation, or frayed extension cords.

What is an overcurrent protective device?

A device that protects against excessive current beyond the acceptable rating of equipment or circuits.

What are the primary functions of overcurrent protection devices?

To protect branch circuits and load devices against excessive current supply.

What is an overload in electrical terms?

A situation where the current drawn by the load exceeds what the source can supply.

What is the impact of overcurrent on electrical devices?

It can heat or damage the device, potentially leading to failure.

What does the term 'clearing' refer to in overcurrent protection?

The action of the overcurrent protection device opening the circuit to prevent damage.

What is a fuse?

An overcurrent protective device that opens the circuit when excessive current flows, typically a one-time use device.

What are the two types of fuses?

Cartridge Type (enclosed in an insulating tube) and Plug Fuse Type (enclosed in a porcelain cap).

What is the working principle of a fuse?

It operates on the heating consequence of the current, melting the wire to open the circuit.

What is the current rating of a fuse?

The maximum amount of current the fuse can conduct without melting, measured in amperes.

What is the voltage rating of a fuse?

The maximum voltage the fuse can handle without failure, which is connected in series with the circuit.

What happens to a fuse when there is an excessive current flow?

The fuse melts, creating an open circuit to prevent further current flow.

What is the difference between AC and DC fuses?

AC fuses are smaller and designed for alternating current, while DC fuses are larger and handle direct current.

What can cause a short circuit?

Bare wires touching, loose connections, or damaged insulation.

What is the primary danger of a short circuit?

Arcing or sparking that can lead to fire hazards.

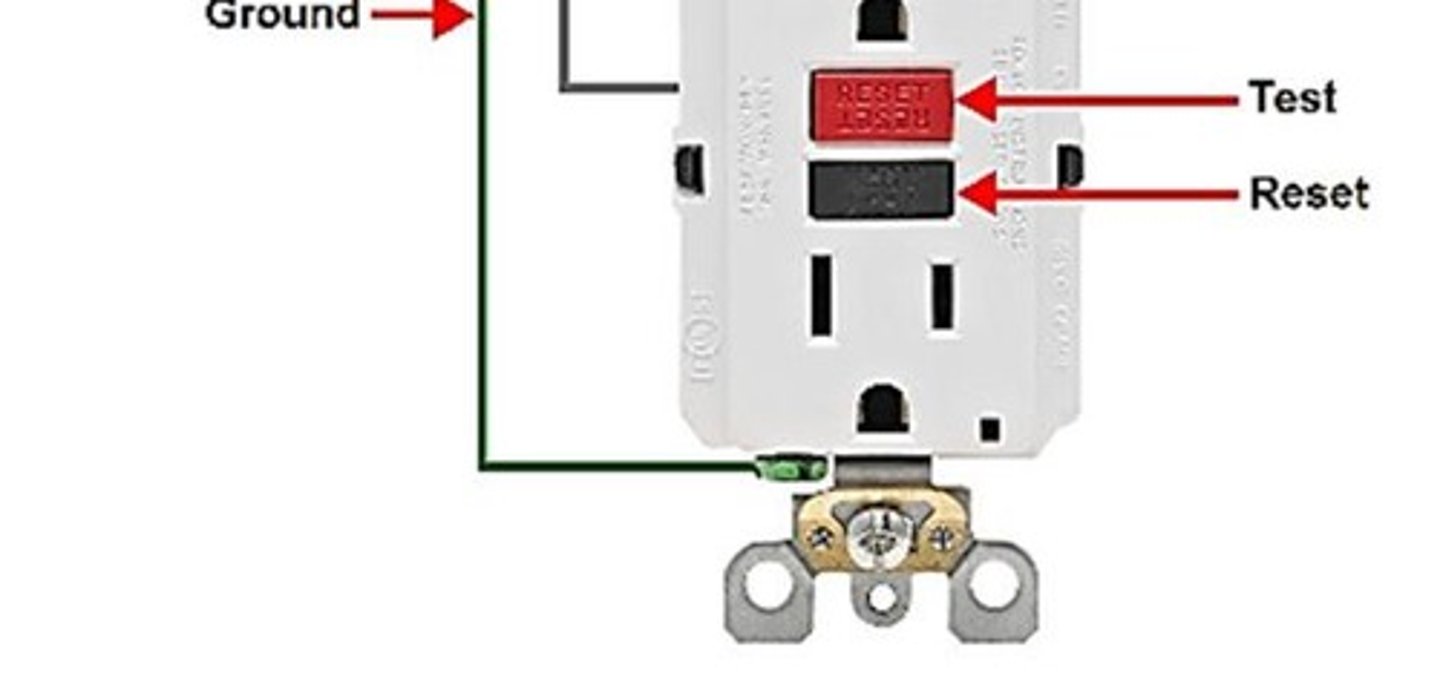

What is the role of GFCI outlets?

They can detect ground faults and cut off power to prevent shock.

What is the term for the situation where current exceeds the rated capacity of a device?

Overcurrent.

What can cause overload current?

When the load drains more current than the source can supply.

What is the immediate impact of a short circuit?

A large amount of current suddenly begins to flow, which can cause damage.

What is the purpose of overcurrent protective devices?

To protect wiring, transformers, lighting fixtures, and appliances from excessive current.

What is the significance of the ampacity rating in electrical systems?

It indicates the maximum amount of current a conductor can carry safely without overheating.

What happens to the voltage drop when a fuse melts?

The voltage drop becomes minimal as the circuit opens.

What is the main difference between AC and DC fuses?

AC fuses are smaller and oscillate 50 to 60 times per second, while DC fuses are larger and have a constant voltage, making them more complicated to deactivate.

What voltage range do High Voltage (HV) fuses typically protect?

HV fuses protect voltages over 1500V to 138000V.

What materials are commonly used in the fabrication of HV fuses?

HV fuses are typically made from copper, silver, or tin.

What is the function of the low-resistance wires in a Cartridge Type HRC fuse?

They carry the usual current and help reduce short-circuit current during fault conditions.

What type of applications are Low Voltage (LV) fuses used for?

LV fuses are used in small applications such as residential and small-scale industries.

What are the two essential parts of a Rewireable Type LV fuse?

The fuse base with two terminals and a fuse carrier that grips the fuse element.

What is a D-Type Cartridge fuse composed of?

It consists of a cartridge, fuse base, adapter ring, and cap.

What is the purpose of the carbon tetrachloride in a Liquid Type HRC fuse?

It acts as an arc extinguishing medium when the fuse element blows out.

What voltage level does an Expulsion HV Type fuse protect?

It is designed for 11kV applications.

What is the function of a Molded Case Circuit Breaker (MCCB)?

It provides protection against overload and short circuits for current ratings up to 1600A.

What is the maximum current rating for a Miniature Circuit Breaker (MCB)?

MCBs can be used for circuits with current ratings up to 125A.

What is the primary function of a Circuit Breaker?

To protect the circuit from overload and ground faults, and to act as a switch.

How does an Air Circuit Breaker (ACB) extinguish arcs?

It uses air as the medium for arc quenching.

What specific protection does a Motor Protection Circuit Breaker (MPCB) provide?

It protects against overload, short circuit, and single phasing specifically for motor applications.

What does a Residual Current Circuit Breaker (RCCB) protect against?

It protects against earth leakage.

What is the role of the automatic tripping device in a Circuit Breaker?

It automatically trips to protect the branch circuit from overload and ground faults.

What type of fuse is known as high rupturing capacity (HRC) or BS type?

Link Type Cartridge fuse.

What is the purpose of the striker type fuse?

It is used for tripping and closing the electrical circuit.

What is the characteristic of a Dropout Type fuse?

It drops down below gravity when the fuse element melts.

What is the significance of using bimetal and solenoid in MCCBs?

They provide protection against overload and short circuits.

What type of current applications are ACBs used for?

High current applications, offering protection up to 6300A.

What is the design feature of the Expulsion HV Type fuse?

It includes an unfilled open-finished cylinder.

What are the two types of resistance in a Cartridge Type HRC fuse?

Low resistance and high resistance, located in parallel.

What is the function of the fuse cap in a D-Type Cartridge fuse?

It holds the fuse ingredient packed by the cartridge using an adapter ring.

What does the term 'arc extinguishing' refer to in fuses?

The process of stopping an electric arc from forming between molten wires.

What is a key feature of Microprocessor based MCCBs?

They provide quick functioning for overload and short circuit protection.

What is the function of a Ground Fault Circuit Interrupter (GFCI)?

It offers protection against lethal electrical shock or electrocution by stopping electrical power within milliseconds.

Where are GFCIs typically installed?

Where there is potential contact between a person and an electrical appliance in or near moisture, water, or water pipes.

How does a GFCI detect a ground fault?

By measuring the current leaving the hot side and comparing it to the current returning to the neutral side.

What happens when a GFCI detects an imbalance in current flow?

It quickly cuts off electricity to reduce the risk of electrical shock.

What is a GFCI Outlet?

It is a standard electrical outlet that protects any appliance plugged into it and can also protect other outlets connected to it.

What is a GFCI Circuit Breaker?

It controls and protects an entire circuit and is installed as a replacement for a standard circuit breaker.

What is a Portable GFCI?

A device used for mobile applications that can work as well as installed GFCIs, often used in worksites.

What is the voltage range categorized as Medium Voltage?

Voltage levels from 1KV to 69KV.

What is the voltage range categorized as High Voltage?

Voltage levels from 69KV to 230KV.

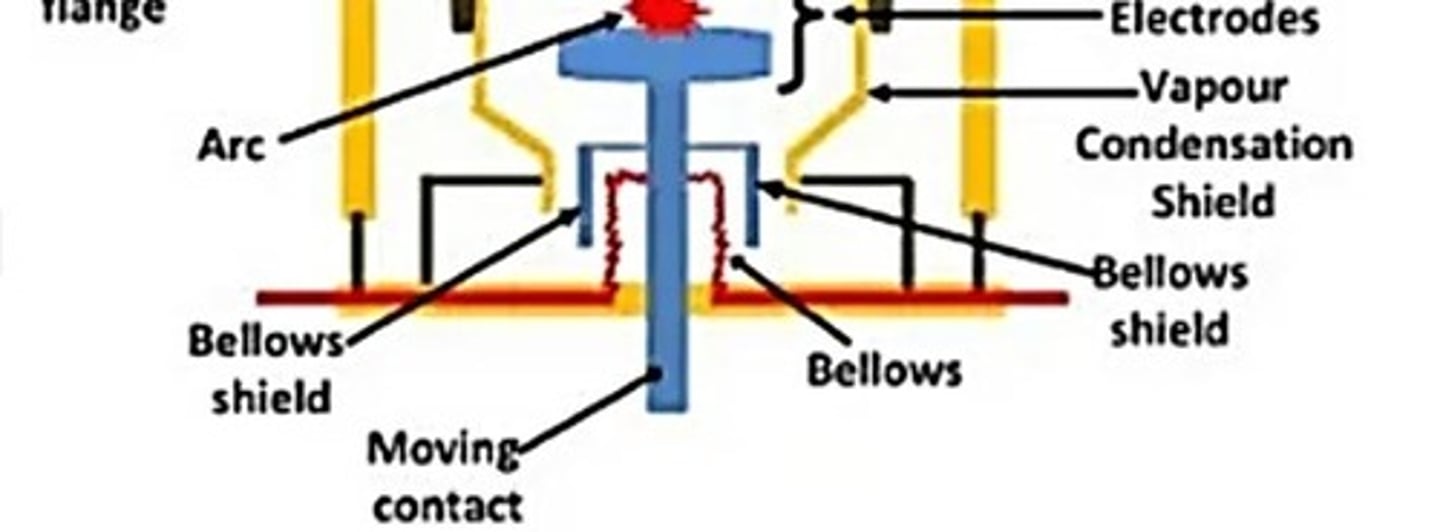

What is a Vacuum Circuit Breaker (VCB)?

A circuit breaker where contacts operate and arc quenching occurs inside a vacuum.

What are the advantages of a Vacuum Circuit Breaker?

It has excellent interruption capabilities and can interrupt high frequency currents.

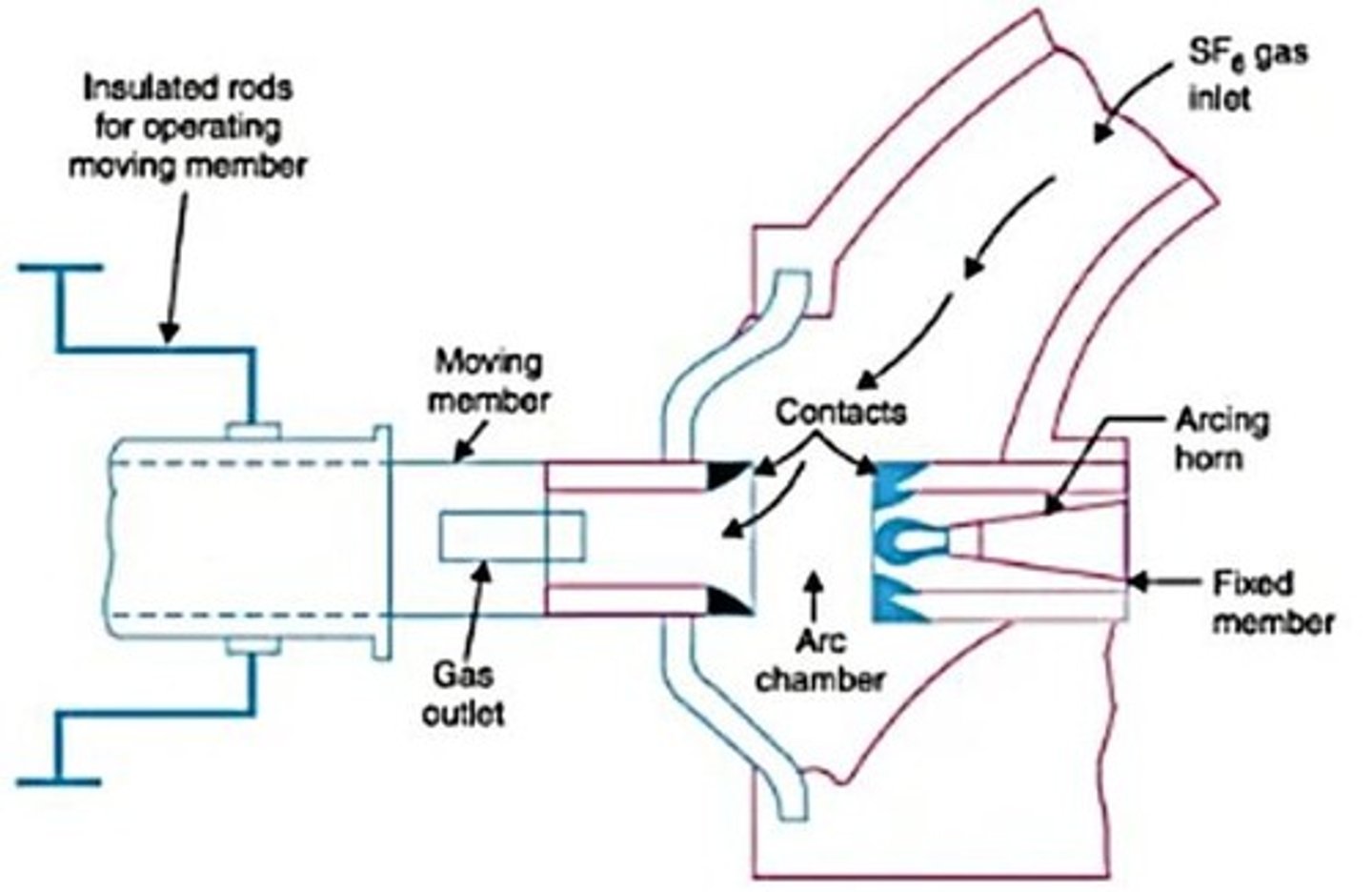

What is an SF6 Circuit Breaker?

A circuit breaker that uses SF6 gas for arc quenching due to its excellent insulating properties.

What is a disadvantage of SF6 Circuit Breakers?

SF6 is a poisonous gas and poses environmental hazards.

What is an Oil Circuit Breaker (OCB)?

A circuit breaker where contacts are immersed in insulating oil, which helps in arc quenching.

How does an Oil Circuit Breaker prevent re-striking of the arc?

By creating a hydrogen bubble around the arc when the oil vaporizes.

What is a Bulk Oil Circuit Breaker (BOCB)?

A type of OCB that uses oil as both arc quenching and insulating media.

What is a Minimum Oil Circuit Breaker (MOCB)?

A type of OCB that utilizes oil only in the interrupting chamber to reduce oil requirements.

What is the main purpose of a circuit breaker?

To automatically disconnect the circuit when a fault occurs or when current exceeds rated sensitivity.

What does a current sensing device do in case of current leakage?

It senses the leakage and trips to save humans and circuits from shock and adverse effects.

What is the role of insulating oil in an Oil Circuit Breaker?

It serves as an arc quenching medium and provides insulation between current carrying contacts and earthed parts.

What is the function of a vacuum interrupter in a VCB?

It facilitates the opening and closing of current carrying contacts and associated arc interruption in a vacuum.

What is the significance of SF6 gas in circuit breakers?

It has high electronegativity and excellent insulating properties, making it effective for arc quenching.

What happens to the oil in an Oil Circuit Breaker during an arc?

The oil vaporizes and decomposes, creating a hydrogen bubble that prevents arc re-striking.

What is the main advantage of using a GFCI?

It provides rapid disconnection of electricity to prevent electrical shock.

How does a GFCI reset after a fault?

It can be reset to restore power once the problem is corrected.

What is the main application for SF6 Circuit Breakers?

They are mainly used for medium voltage applications.
