Wrist and Forearm ID
Studied by 0 people
Knowt Play
Learn
Practice Test
Spaced Repetition
Match
Flashcards1/40
There's no tags or description
Looks like no tags are added yet.
Name | Mastery | Learn | Test | Matching | Spaced |
|---|
No study sessions yet.
41 Terms

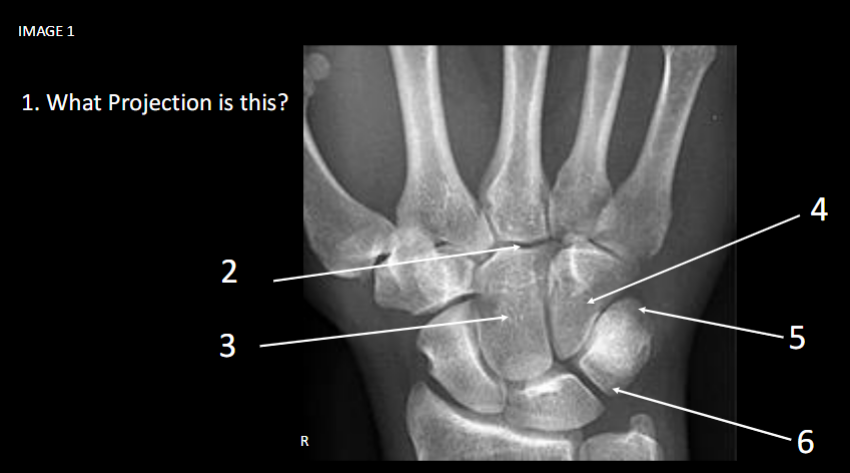

What projection is this
PA Wrist
What is number 2
Carpometacarpal Joint (CMC)
What is number 3
Capitate (OS Magnum)
What is number 4
Hamate or Unciform
What is number 5
Pisiform
What is number 6
Triquetrum, Triangular, Triquetral, Cuneiform

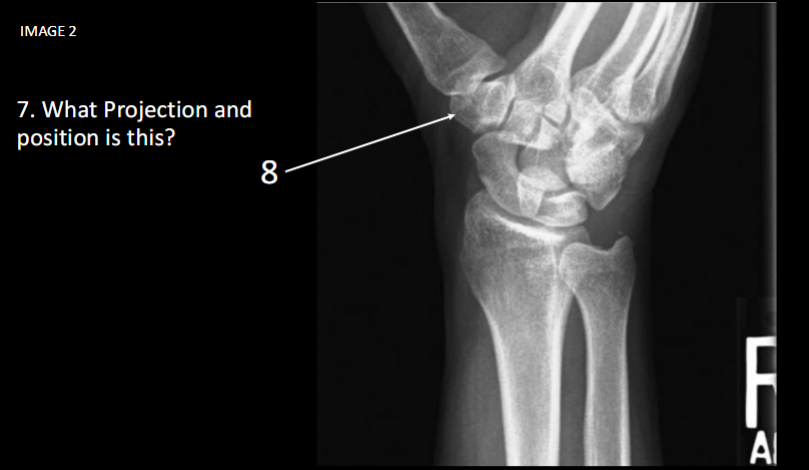

What projection and position is this
PA Oblique Lateral Rotation wrist
What is number 8
Trapezium or Greater Multangular

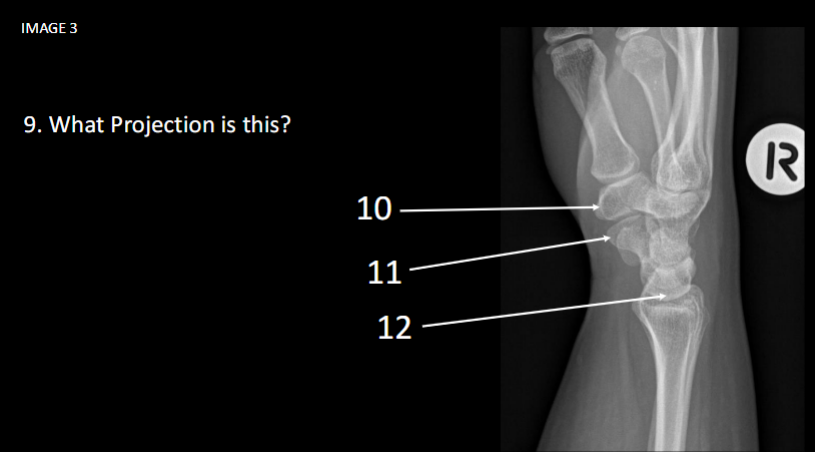

What projection is this
Lateral projection of the wrist
What is number 10
Trapezium or Greater Multangular
What is number 11
Scaphoid or navicular
What is number 12
Lunate or semilunar

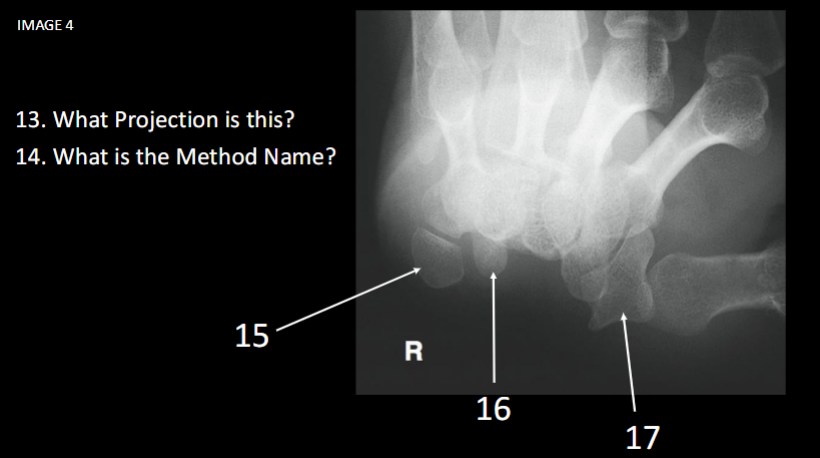

What projection is this
Inferior Superior tangential projection
What is the method name
Gaynor Hart Method
What is number 15
Pisiform
What is number 16
Hook of hamate
What is number 17
Trapezium or Greater multangular

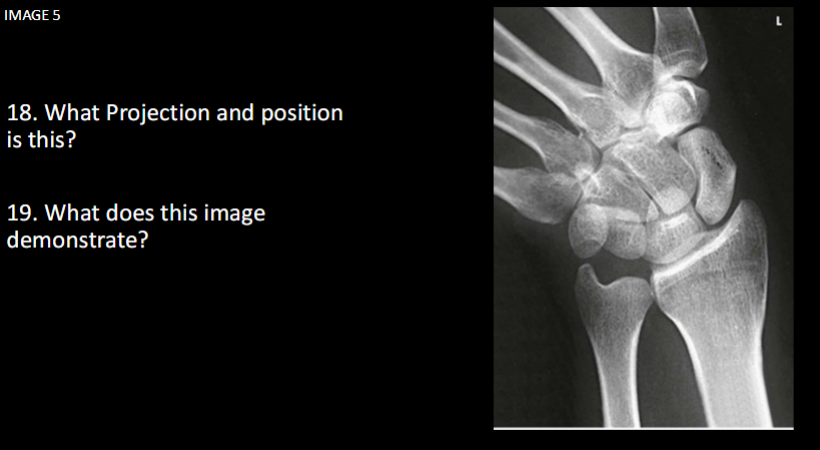

What projection and position is this
PA Ulnar Deviation of the wrist
What does this image demonstrate
Scaphoid w/o foreshortening/superimposition
What projection is this
PA Axial of the Wrist
What is the name of this method
Stetcher Method
What does it demonstrate
Scaphoid w/o foreshortening/superimposition
What error was made in this lateral projection of the wrist
Posteriorly Rotated

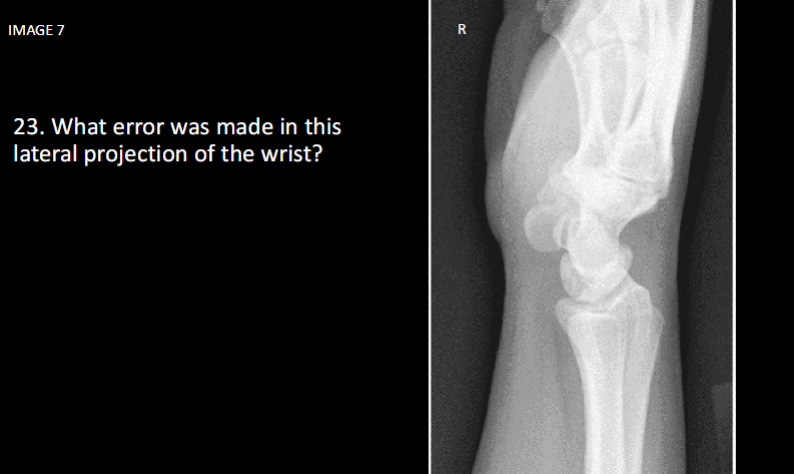

What error was made in this lateral projection of the wrist
Anteriorly rotated

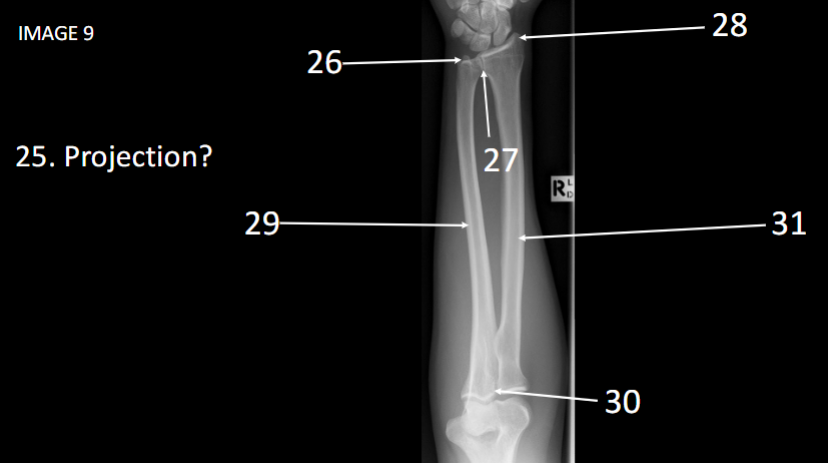

What Projection is this
AP Forearm
What is number 26
Ulnar Styloid Process
What is number 27
Distal Radioulnar joint
What is number 28
Radial styloid process
What is number 29
Body of the ulna
What is number 30
Proximal radioulnar joint
What is number 31
Body of the Radius

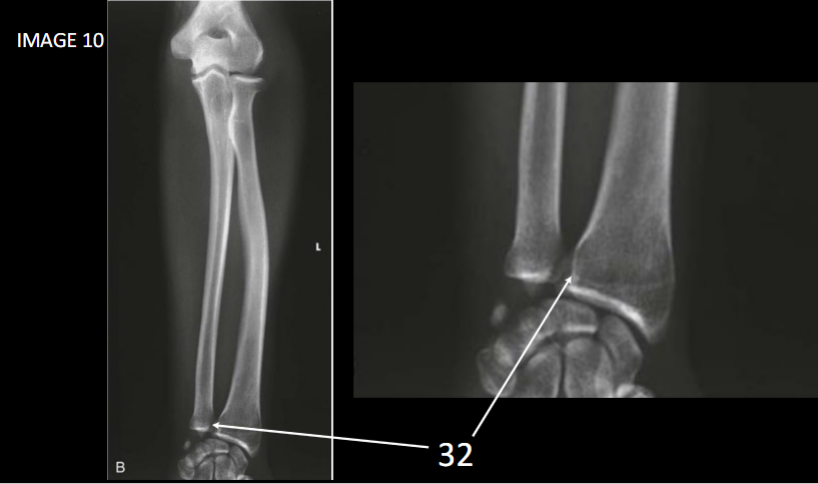

What is number 32
Ulnar notch on the radius

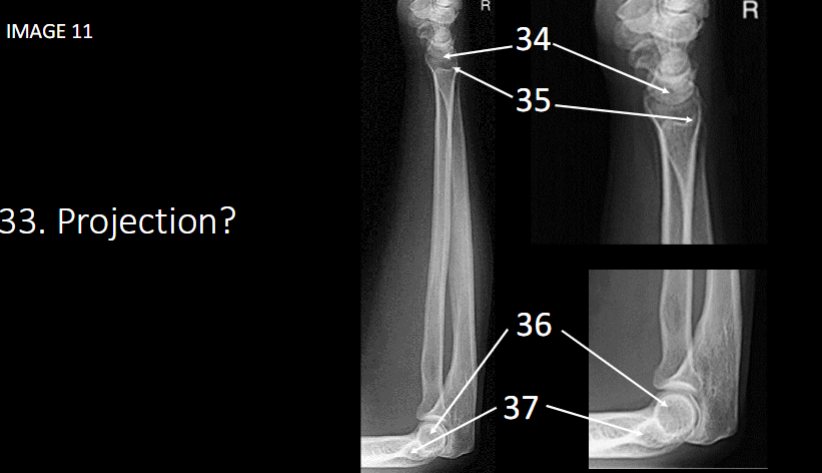

What is the projection
Lateral of the forearm
What is number 34
Lunate or semilunar
What is number 35
Ulnar styloid process
What is number 36
Superimposed Capitulum and Trochlea
What is the number 37
Superimposed humeral epicondyles

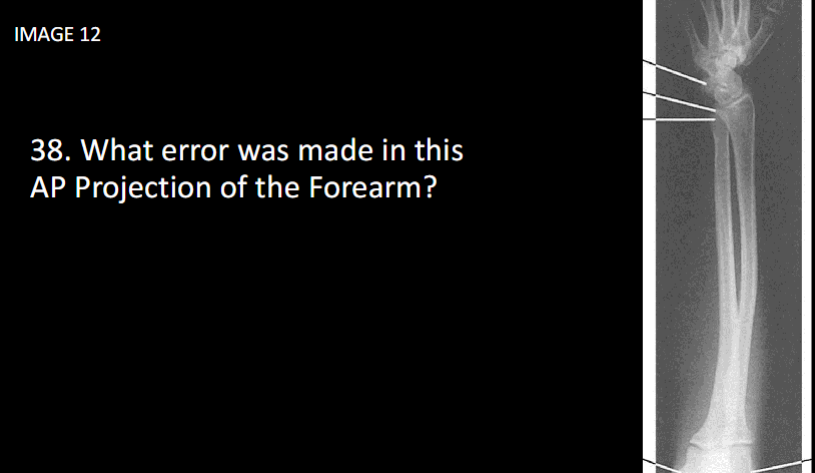

What error was made in this AP Projection of the Forearm?
Hand not completely supinated(upward rotation), wrist not AP

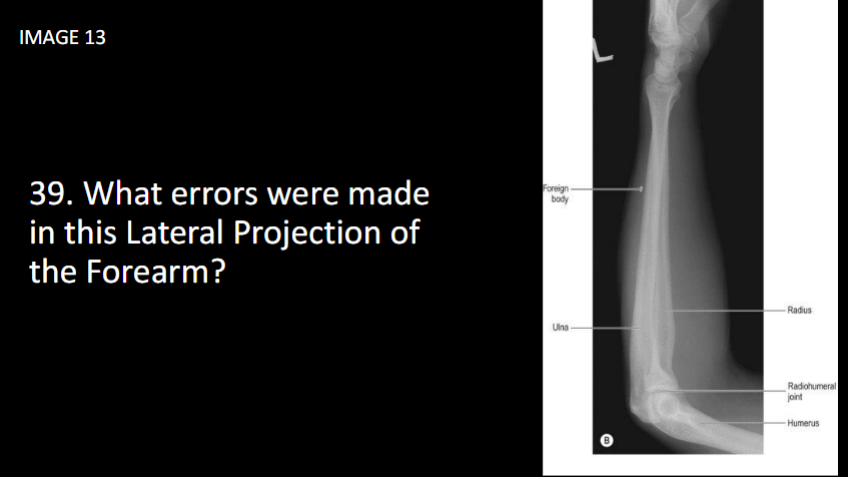

What errors were made in this Lateral Projection of the Forearm?
Elbow is not flex to 90 degrees, humerus not parallel to IR

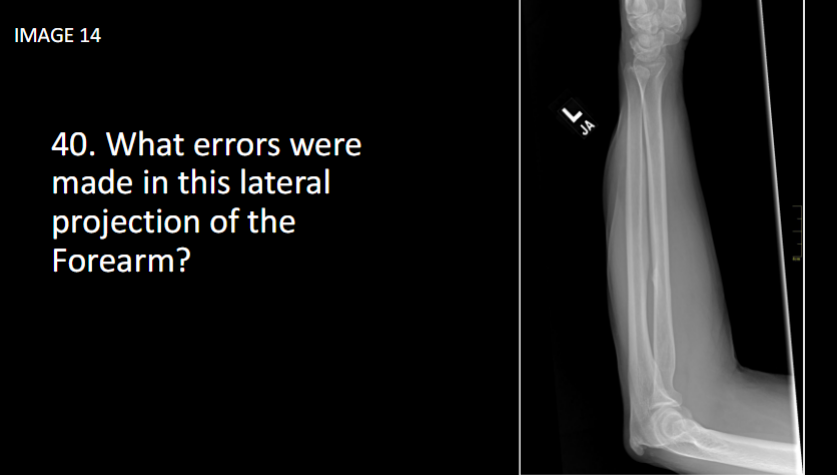

What errors were made in this lateral projection of the Forearm?
Elbow is not flex to 90 degrees, humerus not parallel to IR

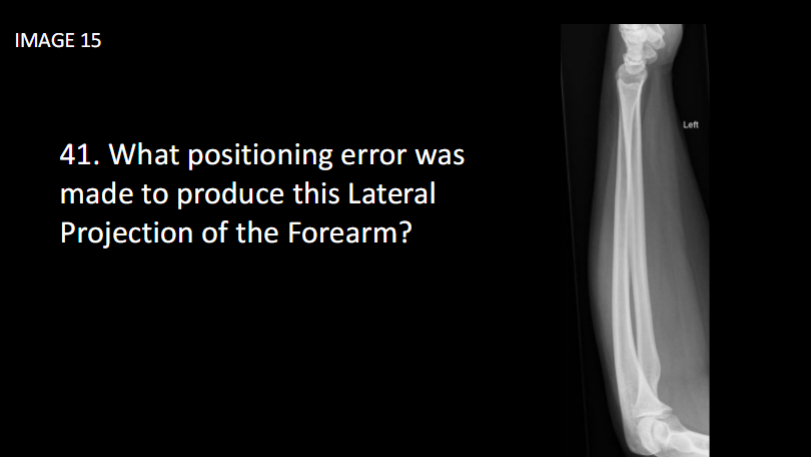

What positioning error was made to produce this Lateral Projection of the Forearm?
Humerus not parallel to IR
