module 5 - physical chemistry & transition elements

What must occur for a reaction to take place?

a collision in the correct orientation of molecules with a minimum amount of E_K (the E_A)

What is a Maxwell-Boltzmann distribution/curve?

A graph which shows the amount of energy each particle present in a chemical system could have. It is only for gas particles but the conculsions that we can draw from it can be applied to liquids as well.

What is the general shape of a Maxwell-Boltzmann distribution?

What is the area under a Maxwell-Boltzmann distribution equal to?

total number of molecules

Why does the curve of a Maxwell-Boltzmann distribution start at 0?

no molecules have 0 energy

What does the peak of a Maxwell-Boltzmann distribution curve represent?

most likely energy of any single molecule

Where is the mean energy of all the molecules on a Maxwell-Boltzmann distribution curve?

a point slightly right to the peak/most likely energy

Where is the E_A on a Maxwell-Boltzmann distribution curve?

(towards bottom of curve on RHS)

How will the shape of the Maxwell-Boltzmann distribution change if the temperature is increased? why?

• curve shifts to right and peak lowers (area stays the same as total no. of molecules doesn’t change

• because a greater proportion of molecules have at least the E_A and are able to react

How will the shape of the Maxwell-Boltzmann distribution change if the temperature is decreased & why?

• curve shifts left and peak gets higher (area stays the same as total no. of molecules is changed)

• because a fewer proportion of molecules have at least the E_A and are able to react

How will the shape of the Maxwell-Boltzmann distribution change if the concentration is increased? why?

• peak gets higher - area increases

• more molecules available to collide in a given volume and more molecules w/ energies > E_A

How will the shape of the Maxwell-Boltzmann distribution change if the concentration is decreased? why?

• peak gets lower - area decreases

• fewer molecules available to collide in a given volume and fewer molecules w/ energies > E_A

How will the Maxwell-Boltzmann distribution change w/ the addition of a catalyst and why?

• no change in shape

• but E_A lowered so moves slightly left of curve

• as more molecules have energies at or higher than E_A



What are some techniques for measuring rate of reaction?

• mass loss

• gas production

• colorimetry

What are the typical units of rate of reaction?

mol dm^-3 s^-1

What is the basic equation for a rate of reaction?

change in concentration/ change in time

What is a colorimeter or spectrometer?

measures the light intensity of light passing through a sample, intensity of light is measured every few seconds and data is plotted, light intensity is related to the concentration

How can you measure the rate of reaction using changes in mass?

when gas is produced in a reaction it escapes from the reaction vessel so the mass of the vessel decreases, can be measured using balance, the cotton wool in the neck of the flask allows gas to escape

What is a limitation of measuring loss in mass to measure the rate of reaction?

gas must be sufficiently dense or the change in mass is too small to measure on a 2 or 3 decimal balance

How can you measure rate of reaction using changes in volume of gas?

gas collection can involve collecting gas through water by displacement using a burette or inverted measuring cylinder, this method can only work if gas has a low water solubility

What does collision theory state?

for a reaction to occur:

• particles must collide with enough kinetic energy

• rate of chemical reaction depends on how often successful collisions happen

What is collision theory affected by?

• how often particles collide

• the energy each particle has when they collide

• the minimum energy needed for reaction to occur: activation energy

• collision geometry - orientation or angle when particles collide

What can collision frequency (how often particles collide) be altered by?

• change in total pressure

• change in concentration of reactants

• change in temperature

• change in surface area

How does pressure affect rate of reaction?

• the same number of particles occupy a smaller volume, resulting in increased collision frequency

How do catalysts impact rate of reaction?

they lower activation energy so more particles will have sufficient energy to react

energy profile of exothermic reaction

energy of reactants are higher than products, change in products - reactants is less than 0

energy profile of endothermic reaction

products have higher energy than reactants and change in products - reactants is greater than 0, (positive 🔺H)

How does a catalyst impact the rate of reaction?

it provides an alternative pathway for a reaction to occur, lowering the activation energy

How does raising the volume of a reactant impact the rate of reaction?

it lowers the rate of reaction because the same amount of particles being in a larger space increases the distance between them, leading to lower frequency of successful collisions

What is order of reaction?

The index to which the concentration of a reactant is raised in the rate equation

What does it mean when the concentration doubles and the rate doubles?

order 1

What does it mean when the concentration doubles and the rate stays the same?

order 0

What does it mean when the concentration doubles and the rate quadruples?

order 2

What is the rate constant?

Proportionality constant that converts between rate and concentrations and orders

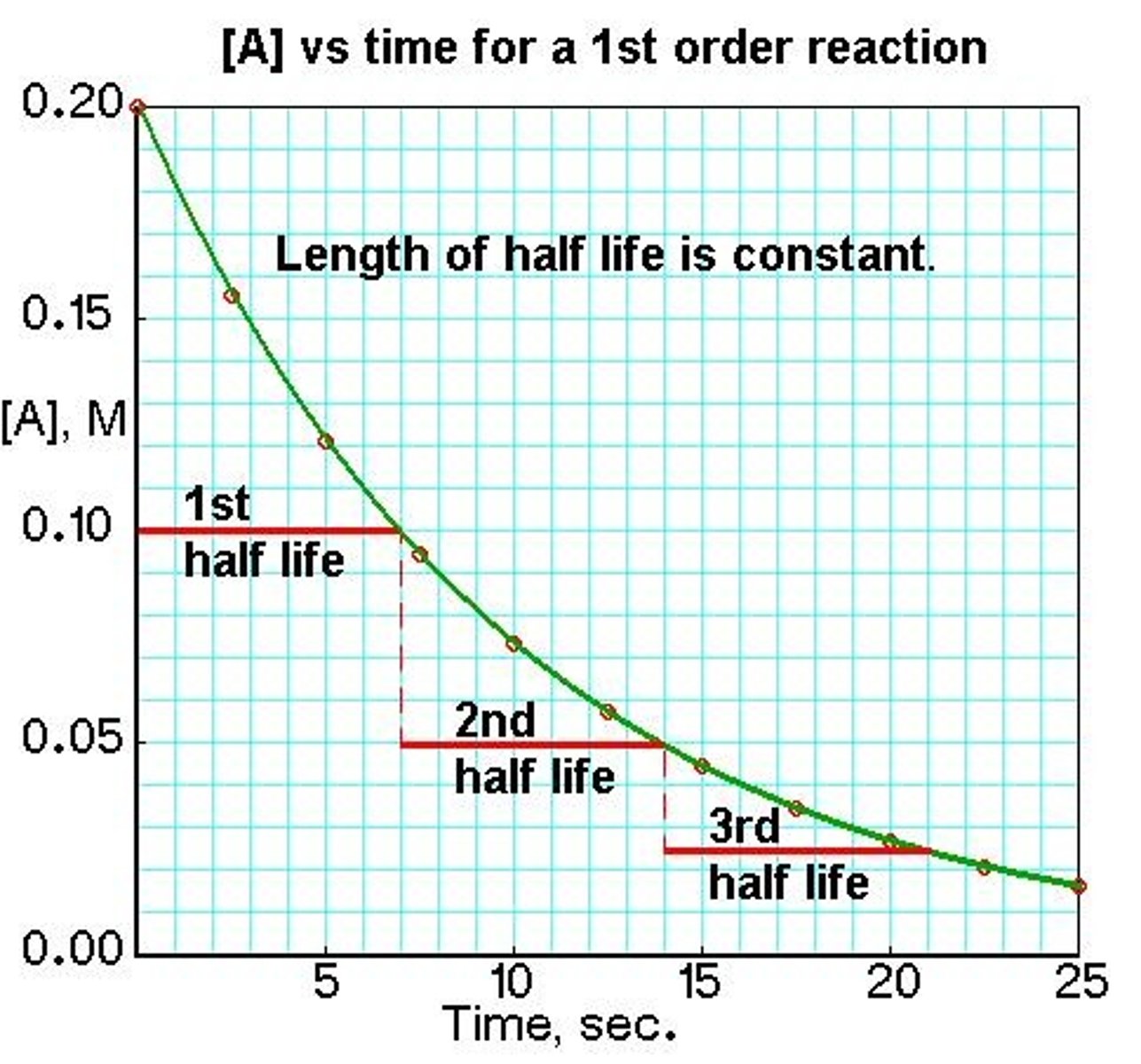

What is a half-life?

Time taken for the concentration of a reactant to fall to half of its original value

What is the rate determing step?

The slowest reaction in a multi-step reaction

What’s the relationship between the rate and concentration of reactant in a zero order reaction?

the rate is independent of the concentration of the reactant → same amount of concentration decomposes over time

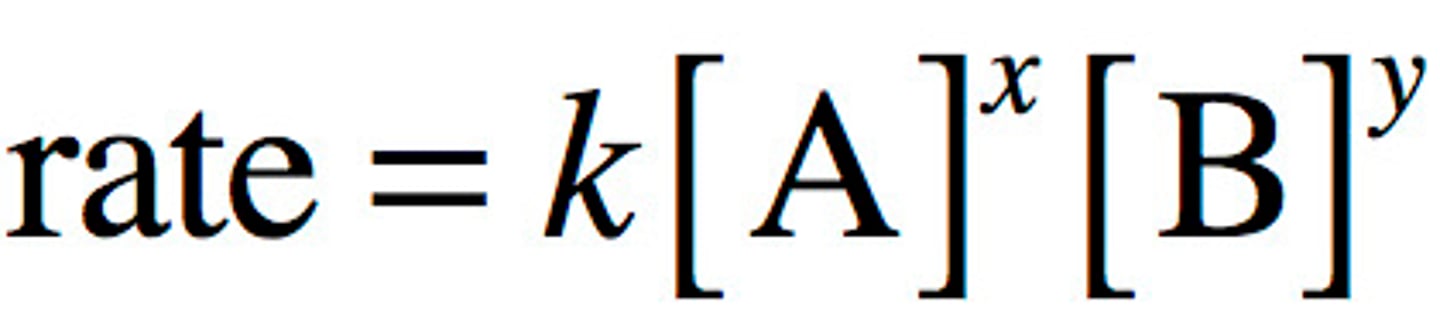

What is the general form of the rate equation?

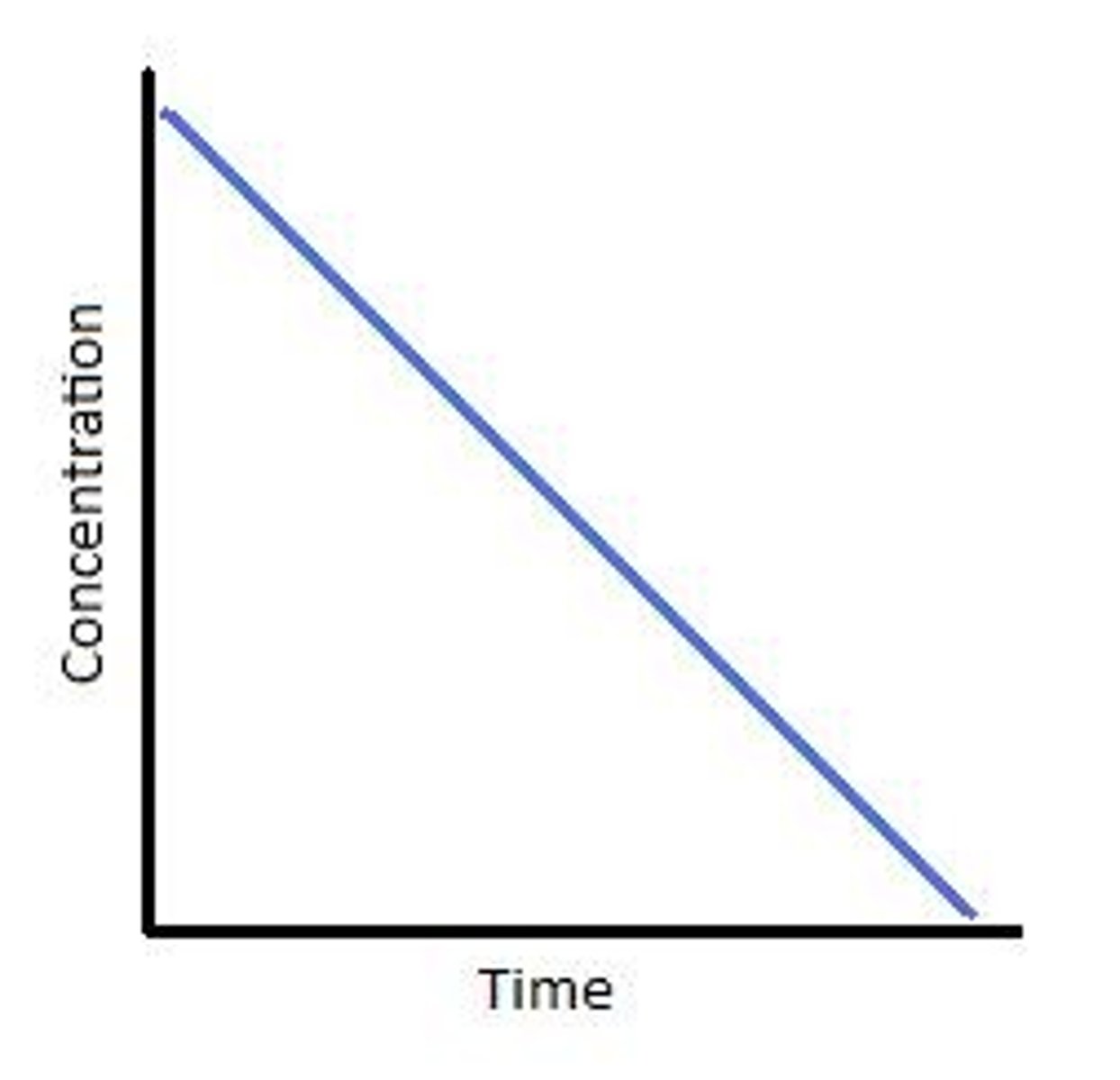

What is the shape of a 0 order reaction on a concentration-time graph?

With gradient = k(rate constant).

What is the shape of a first order reaction on a concentration time graph?

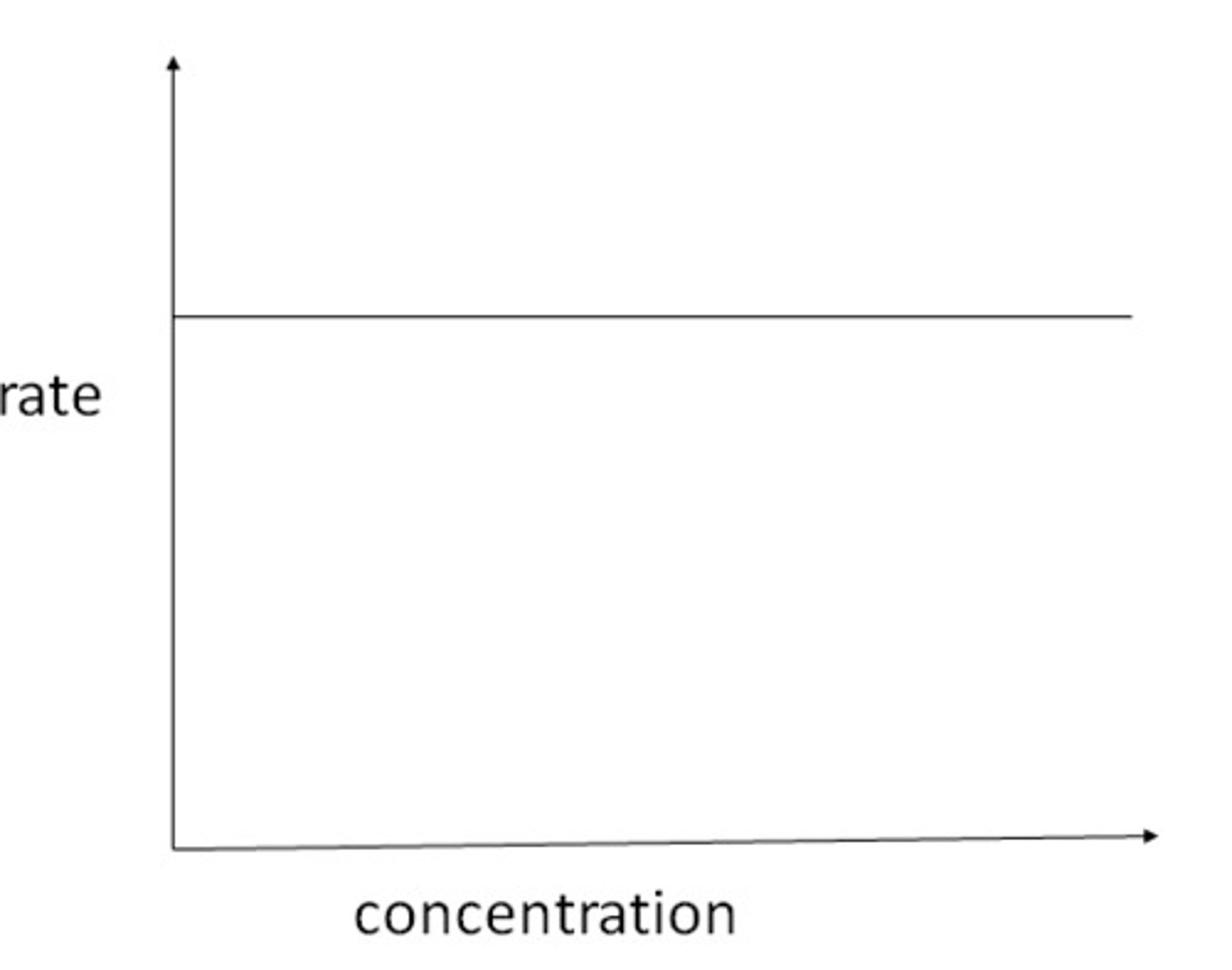

What is the shape of a 0 order reaction on a rate-concentration graph?

where the y intercept is k(rate constant)

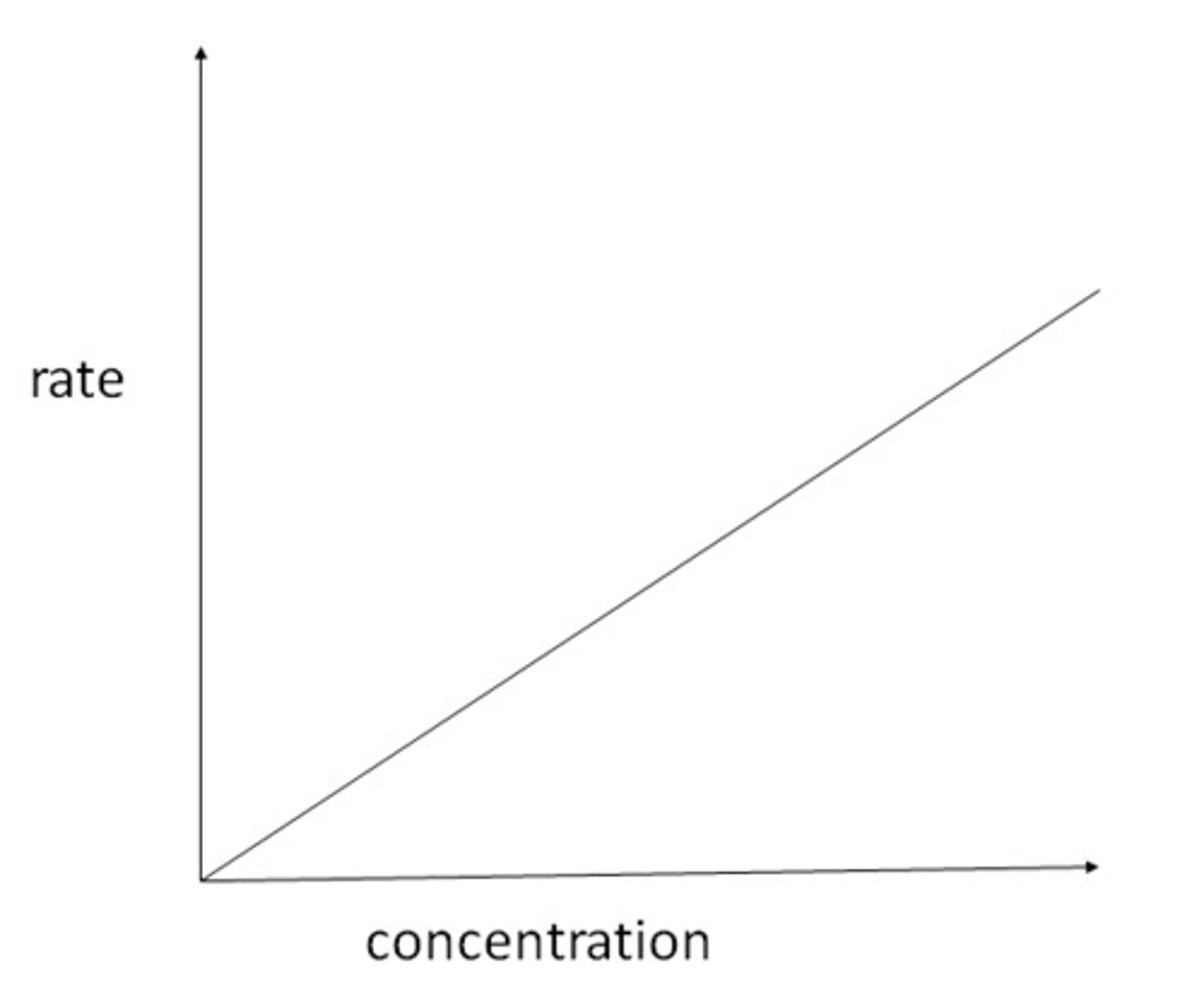

What is the shape of a first order reaction on a rate-concentration graph?

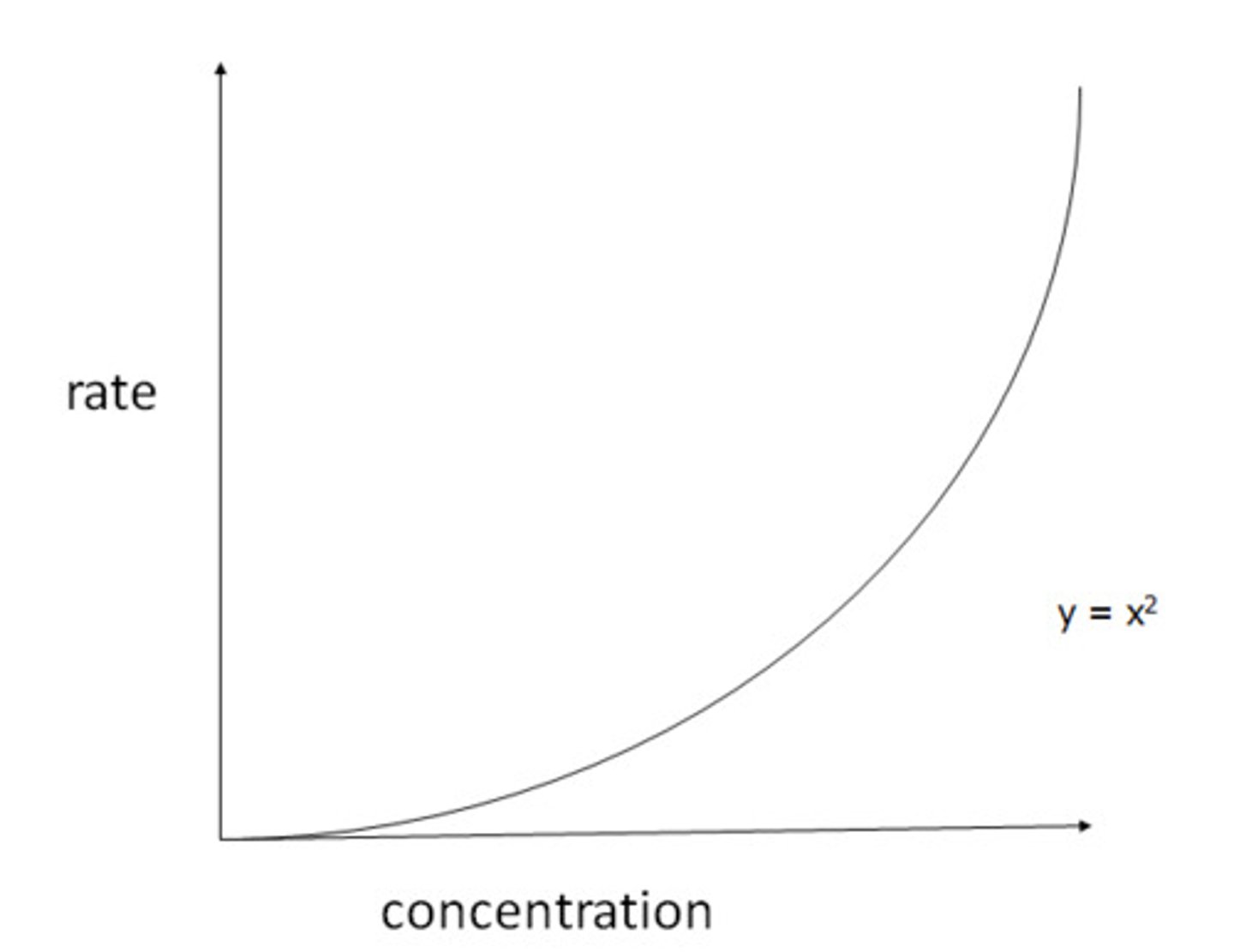

What is the shape of a second order reaction on a rate-concentration graph?

How can something which is zero order increase in conc but have no effect on rate?

For reaction : rate = k [C]1 [S]0 = k [C]1 x 1 = k [C]1

[S]omething can increase in concentration but have no effect on rate because the reaction between [C]1 & [S]0 has multiple steps like in organic mechanisms e.g. electrophilic subsitution etc.

This would mean there is an intermediate formed between Step 1 & Step 2 etc etc that is the one colliding etc and it is the rate of formation of this intermediate that effects the rate and not [S].

Why might there be multiple steps in a reaction where one substance is zero order?

It could be that the non-0 order chemical (C) undergoes a chemical change that has nothing to do with the 0 order one (S). It may even happen when C is in the beaker on its own! This can happen by the collision of a particle of C with a solvent molecule in which it is dissolved. This is a known process.

How could you explain & represent a reaction mechanism of rate = k [C]¹ [S]⁰ = k [C]¹ x 1 = k [C]¹?

Now let’s say that C is being slowly converted into something new called π. Let's write an equation for this equilibrium process. Because this is an equilibrium process there will only be a limited amount of π at any time, especially if the equilibrium lies to the left:

STEP 1: C ⇌ π slow reaction

As soon as is π produced, it reacts with S in a very fast reaction to produce the product D. The equation is:

STEP 2: S + π ➔ D fast reaction

Overall, we add the equations together cancelling anything we can. We do this all the time in chemistry.

C ➔ π STEP 1(slow)

π + S ➔ D STEP 2 (fast)

C + S ➔ D Overall

If you wanted to include a solvent molecule, sol, in the process, you could write it as follows

C + sol ➔ π STEP 1(slow)

π + S ➔ D + sol STEP 2 (fast)

C + S ➔ D Overall (the solvent molecule was regenerated in step 2)

Why in multiple step reaction mechanisms can we not observe the reactive intermediate π?

This is because it doesn’t hang around. As soon as it is made, it is consumed very quickly by S.

If we looked hard enough, we might be able to capture some  .

What more detailed, analgous explanation as to why something which is zero order increase in conc but have no effect on rate?

If the “reaction” is rate of dirty dishes produced by a bakery then our “reactants” will be the number of bakers and the number of customers.

If the number of customers increases, the rate of dirty dishes produced won’t increase.

This is because the “hidden intermediate” is number of pasteries baked since if the bakers can only make 2 pasteries only 2 dirty dishes will be produced even for a crowd of 1000.

This means only when number of bakers and so number of pasteries increases does rate of dirty dishes.

What can you assume for reaction mechanisms?

If any overall reaction has a chemical involved which is found to be zero order, you should assume that it must be a multi-step reaction, i.e. 2 or more steps.

At A Level, you should also assume that the first step in a multi-step reaction is the rate determining step.

How can you write a reaction mechanism from a rate equations/ orders of reactants e.g. NO_2(g) + CO_(g) ➔ NO_(g) + CO2_(g) with rate = k [NO₂]²?

We have to make assumptions about the reaction and if at the end of the mechanism we get the reaction equation we have done it right

What are some “rules”/common assumptions to make when writing a reaction mechanism from orders of reactants etc?

1. If there is a chemical in the overall equation that is not in the rate equation, then it can’t be in the rate determining step. You should therefore assume that the reaction takes place in at least 2 steps.

2. If there is only molecule of a particular reactant in the overall reaction but it is second order w.r.t. to that reactant, then you know that you must use up 2 molecules in rate determining step but you must regenerate one molecule of the ‘reactant’ in a later step.

3. If there are 2 molecules of a particular reactant in the overall reaction but it is first order w.r.t. to that reactant, then you know that you must use up 1 molecule in rate determining step, but another reactant molecule must be consumed in a later step.

4. You can generally assume at A level that all orders are whole numbers. (Many reactions have non-integer orders but don’t worry about that at A level. I’m just being honest!)

5. You can generally assume that the rate determining step is the first step

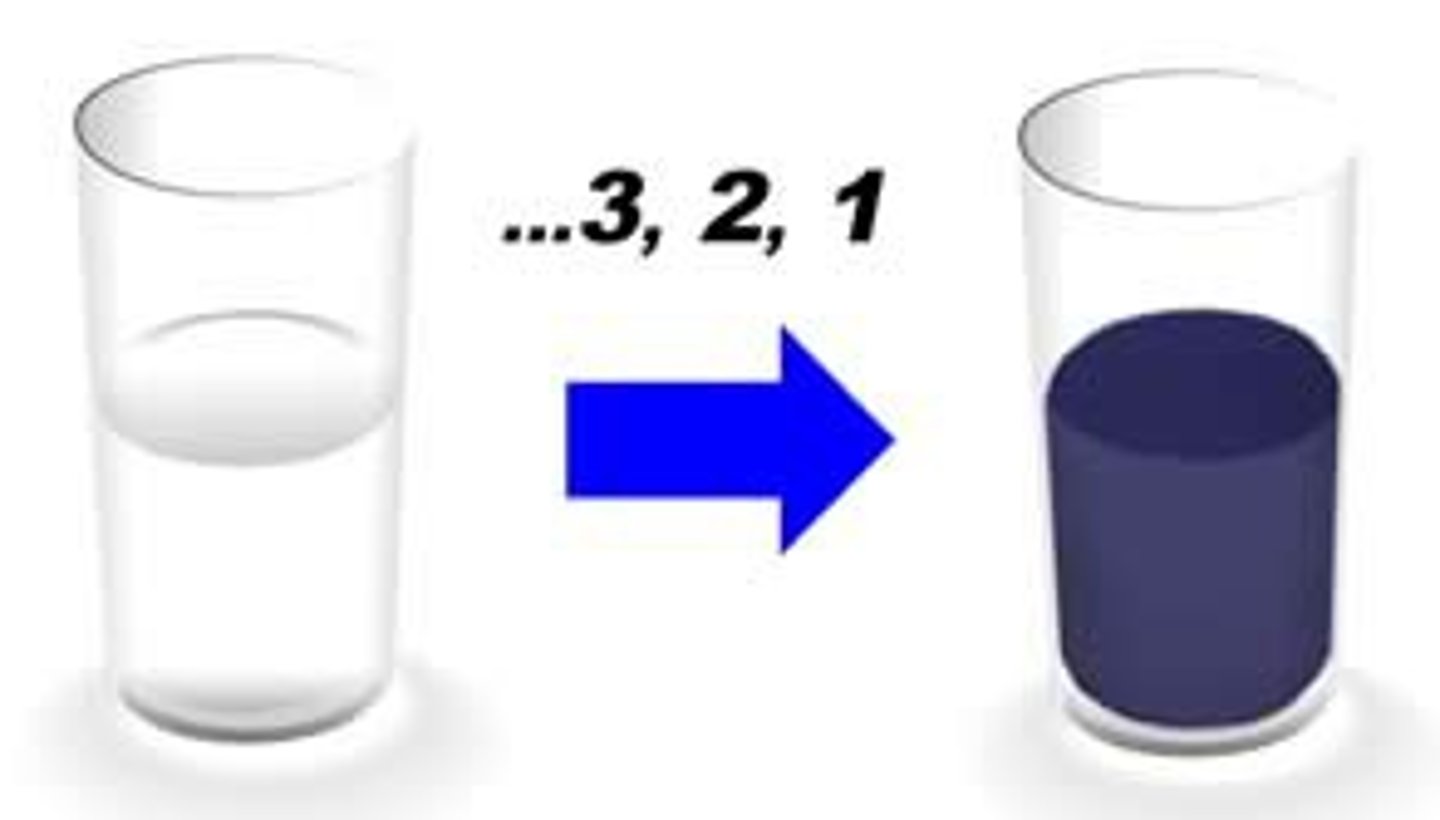

What is a clock reaction?

Measuring the time from the start of the reaction to a visual change occurring

What is the continuous monitoring method?

Taking constant measurements throughout the duration of the reaction

What is the assumption made in clock reactions & the inital rate method?

Taking constant measurements throughout the duration of the reaction
