BSC2086L Lesson 9 Unlabeled Figures

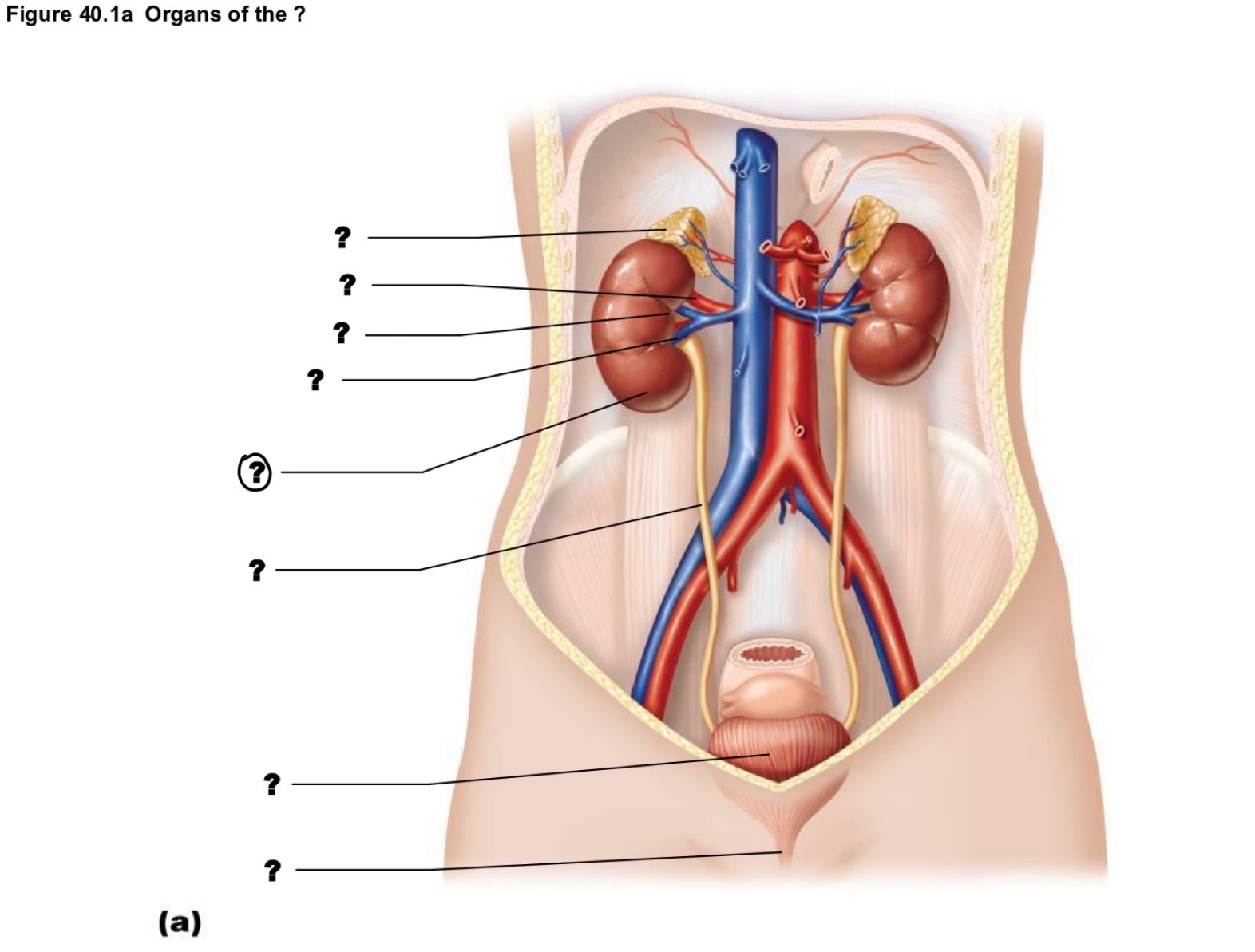

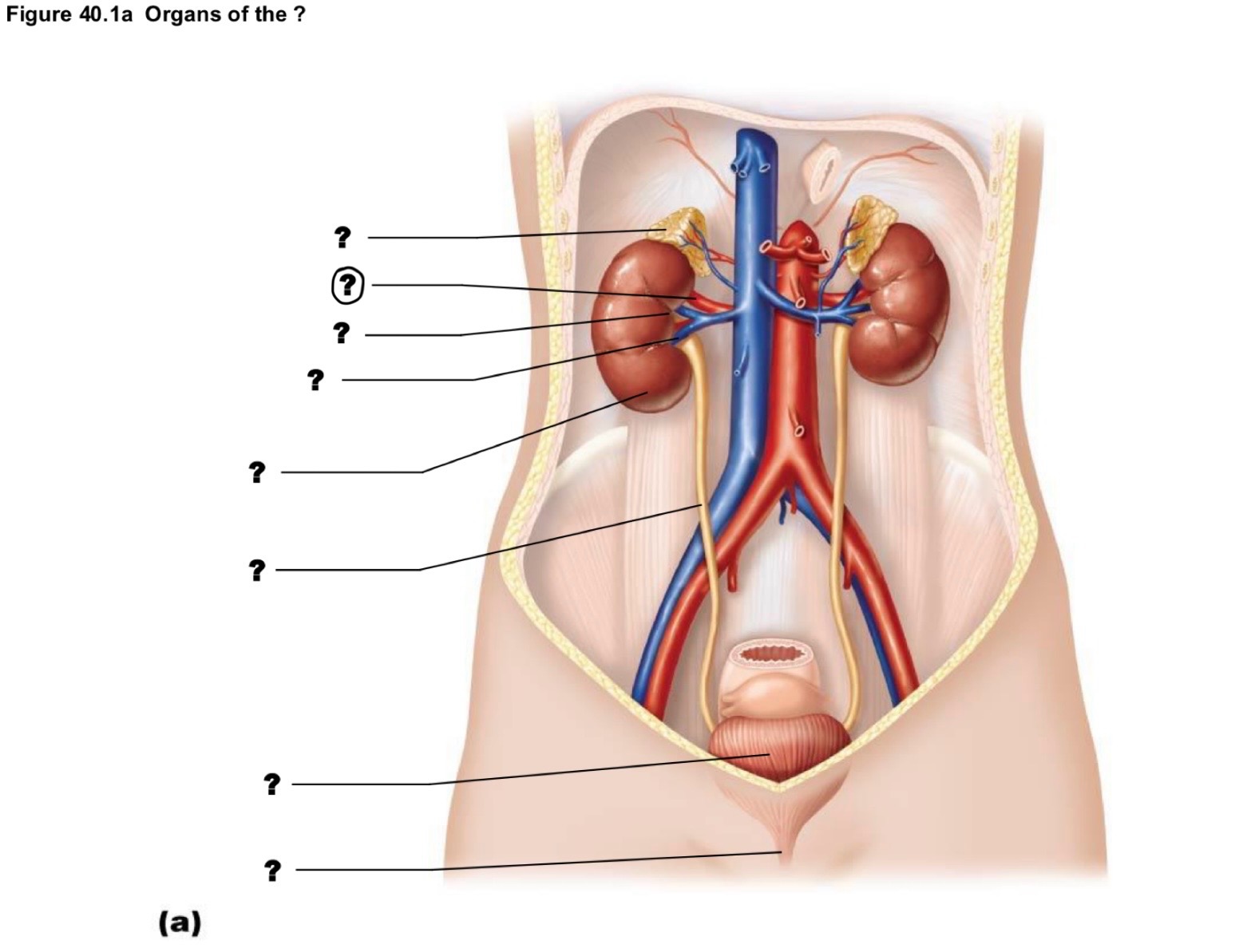

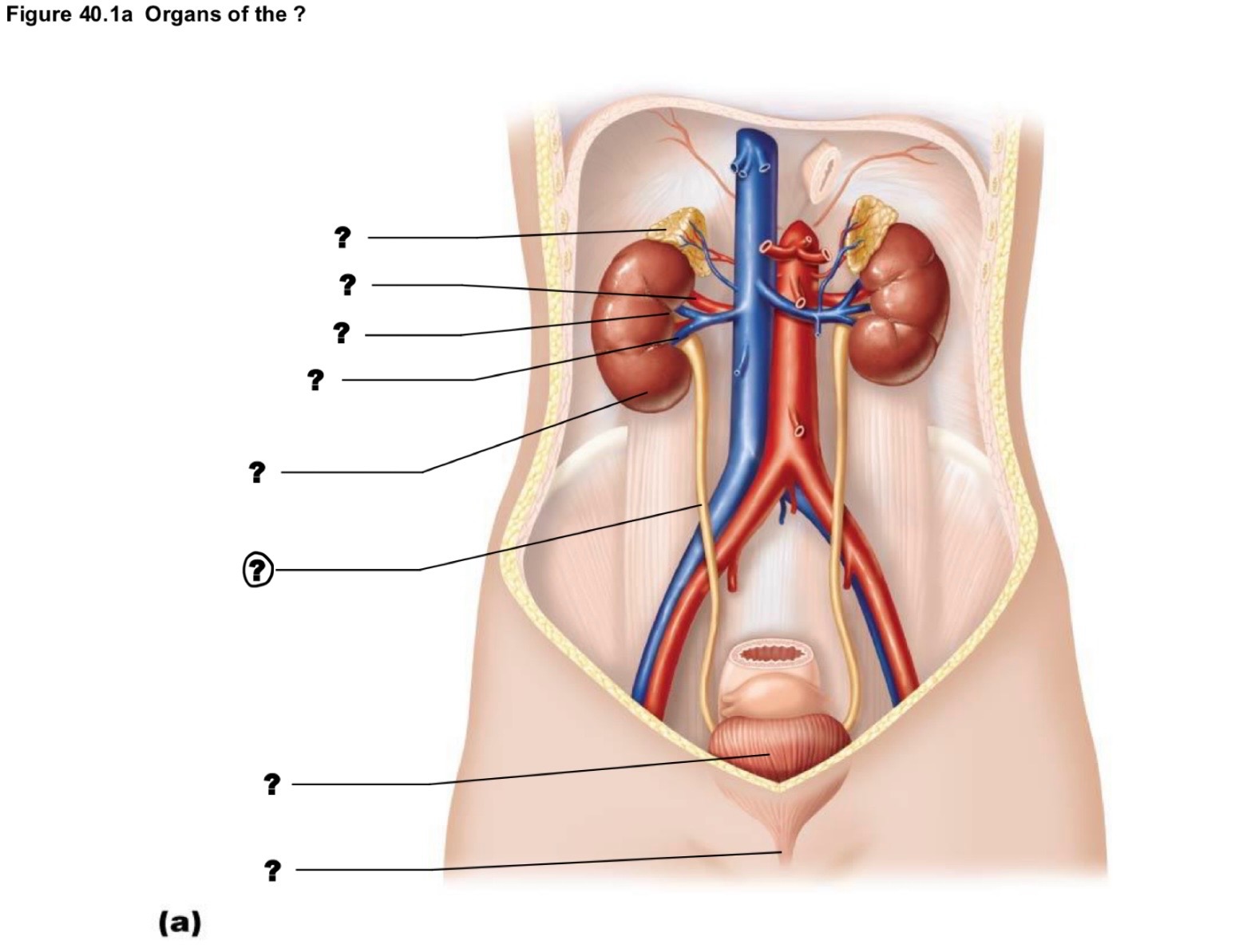

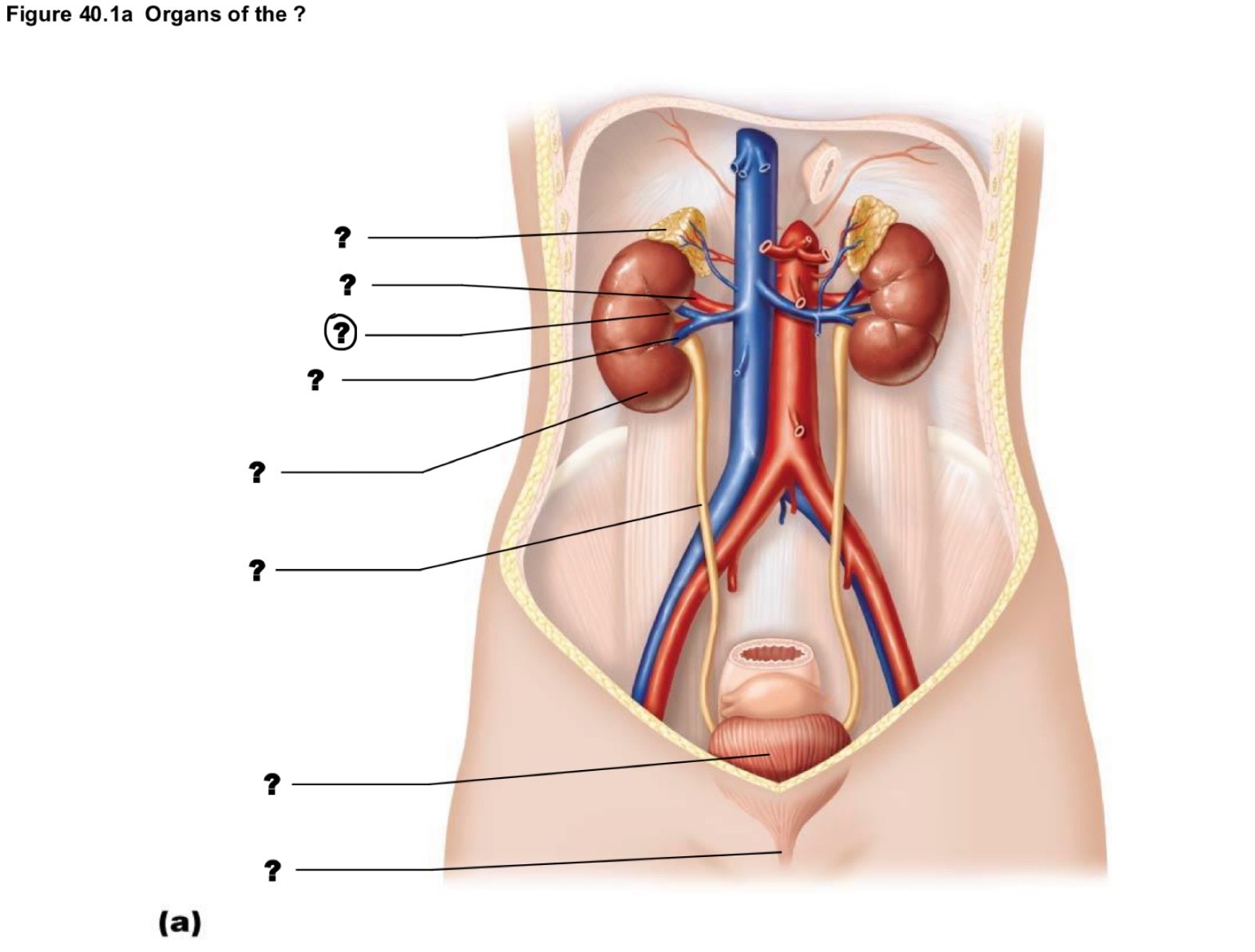

Adrenal gland

Kidney

Renal vein

Renal artery

Ureter

Urinary bladder

Renal hilum

Urethra

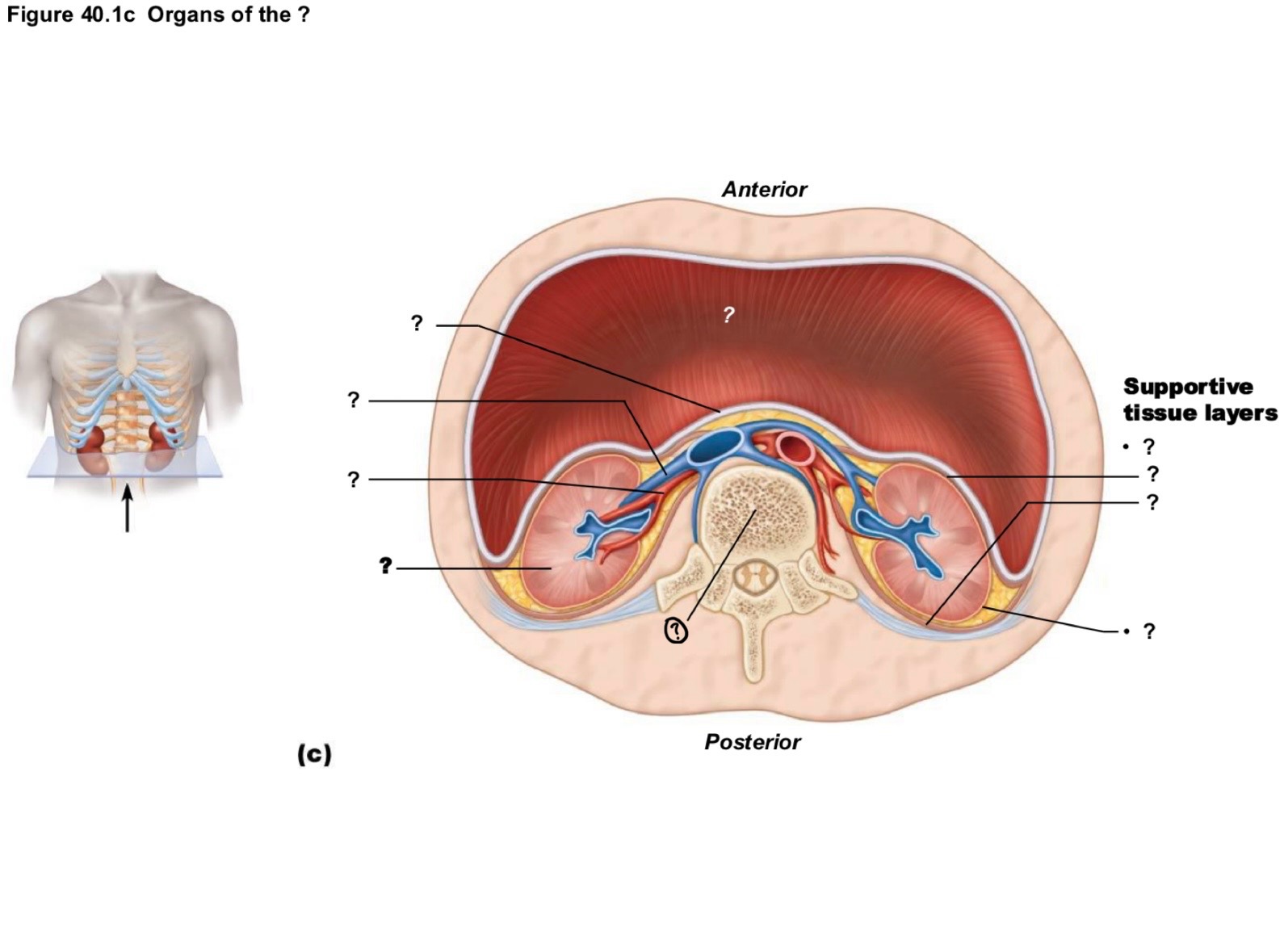

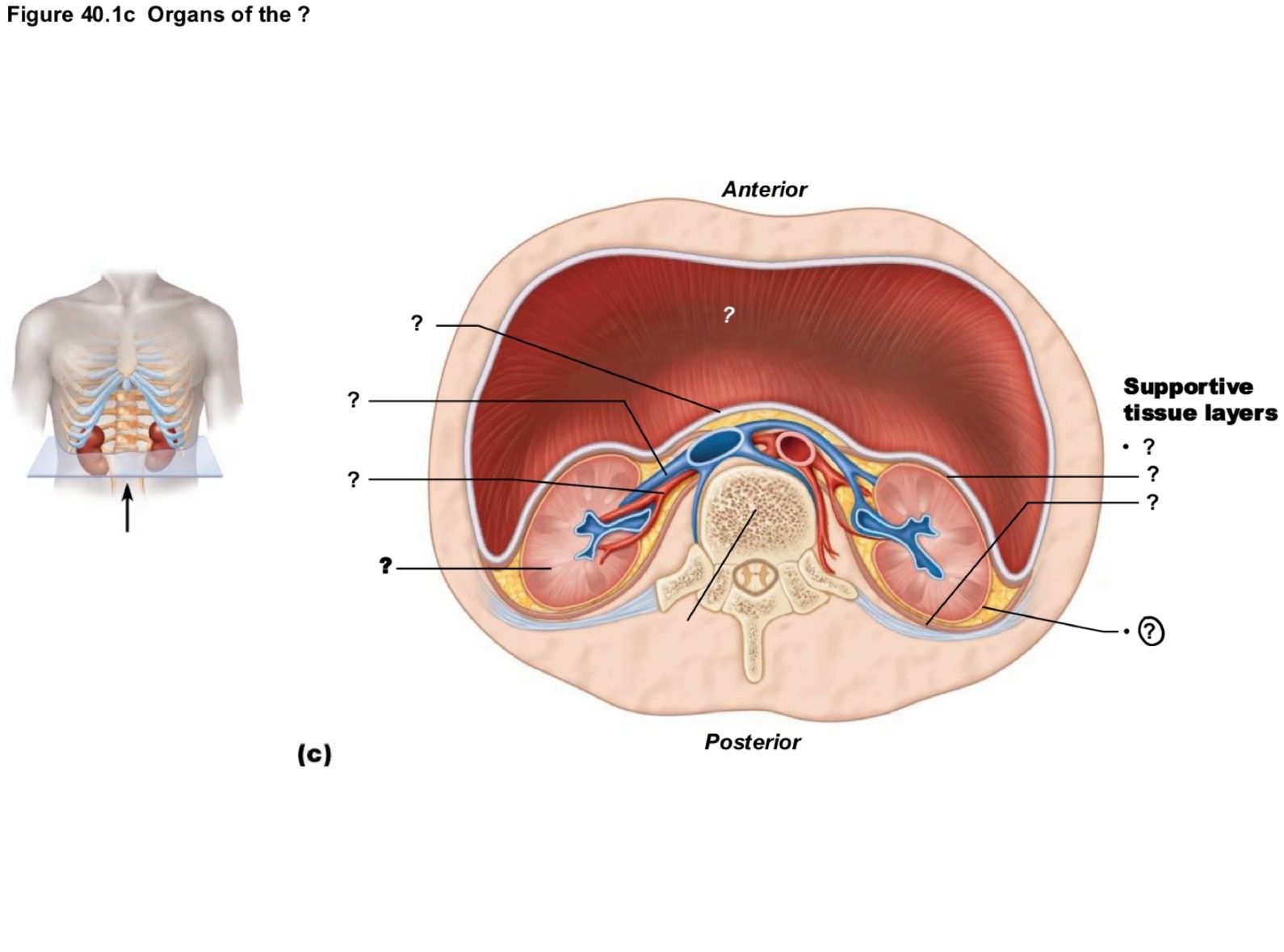

Peritoneum

Renal fascia

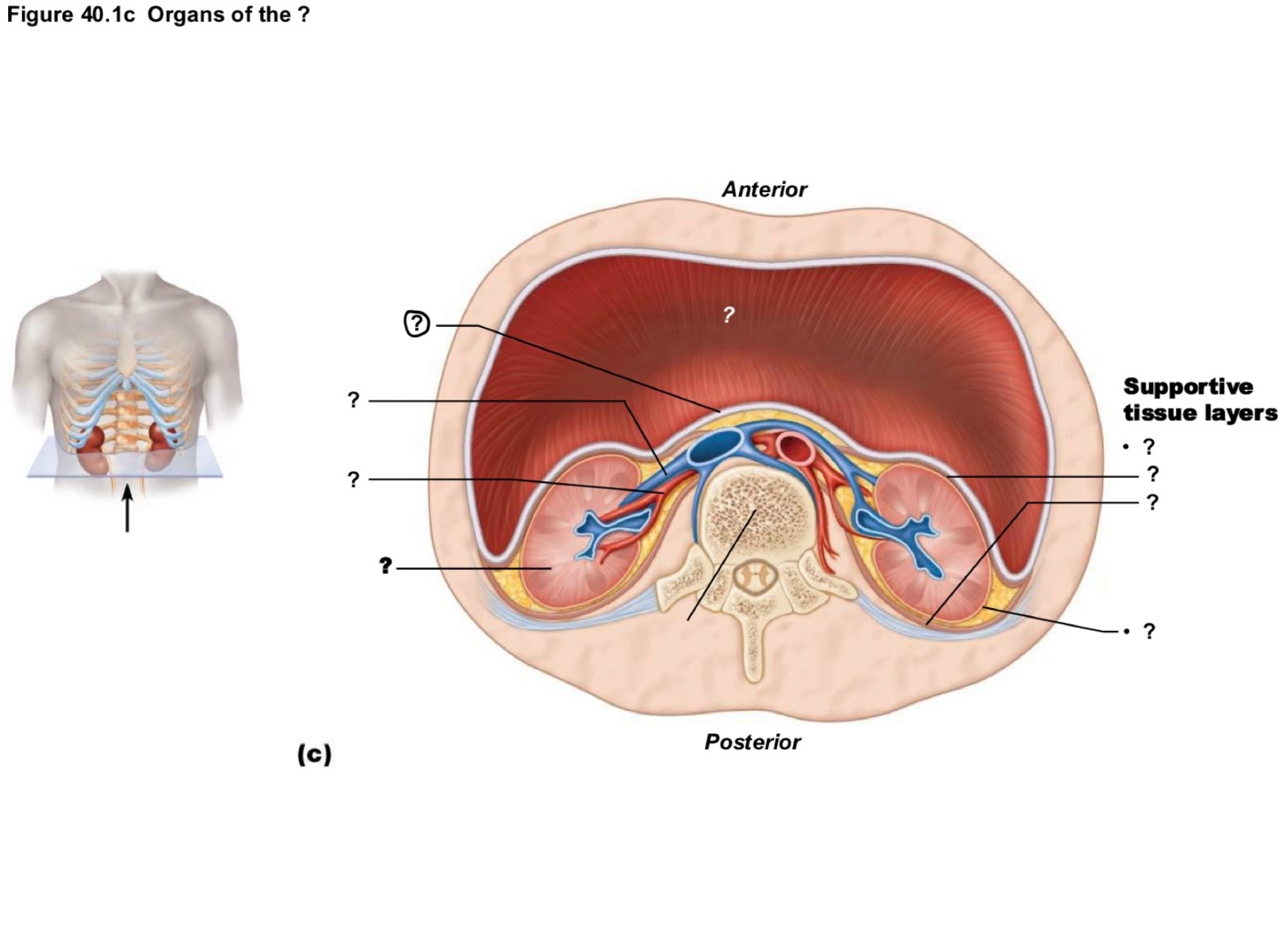

Peritoneal cavity (organs removed)

Renal vein

Kidney

Posterior of renal fascia

Anterior of renal fascia

Renal artery

Fibrous capsule

Body of vertebra L2

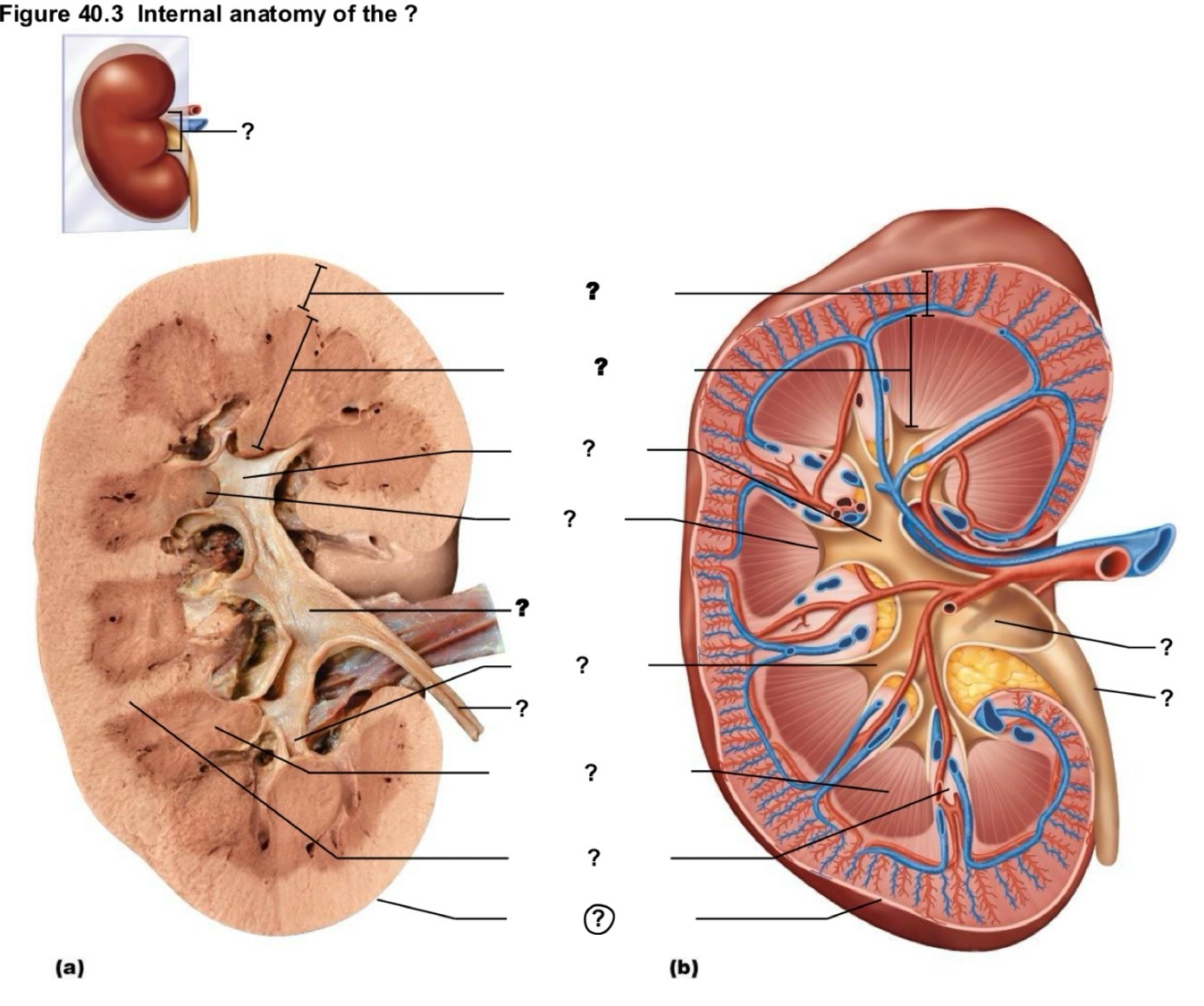

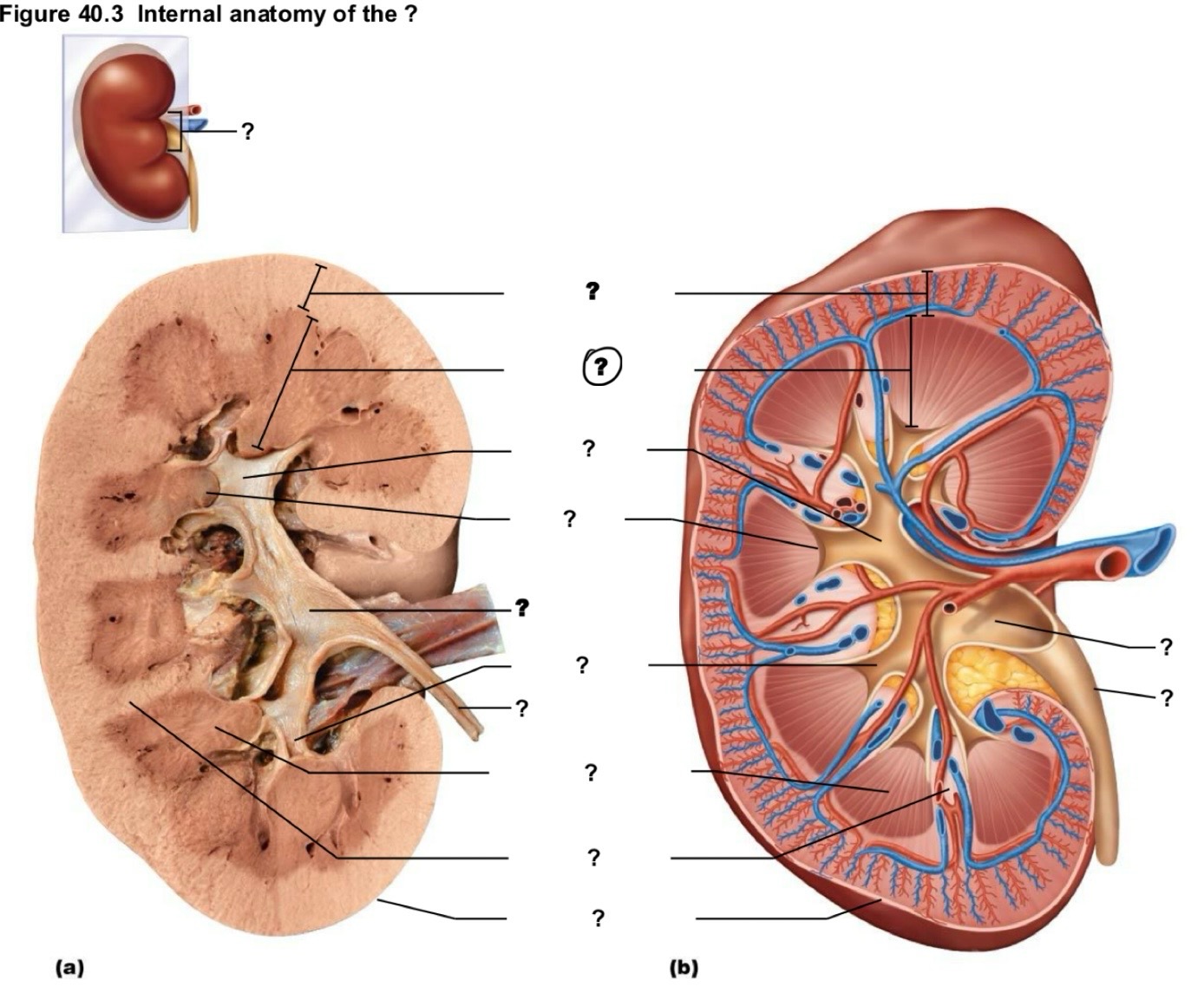

Renal cortex

Renal medulla

Papilla of pyramid

Major calyx

Renal pelvis

Ureter

Renal pelvis

Renal pyramid in renal medulla

Fibrous capsule

Ureter

Minor calyx

Renal column

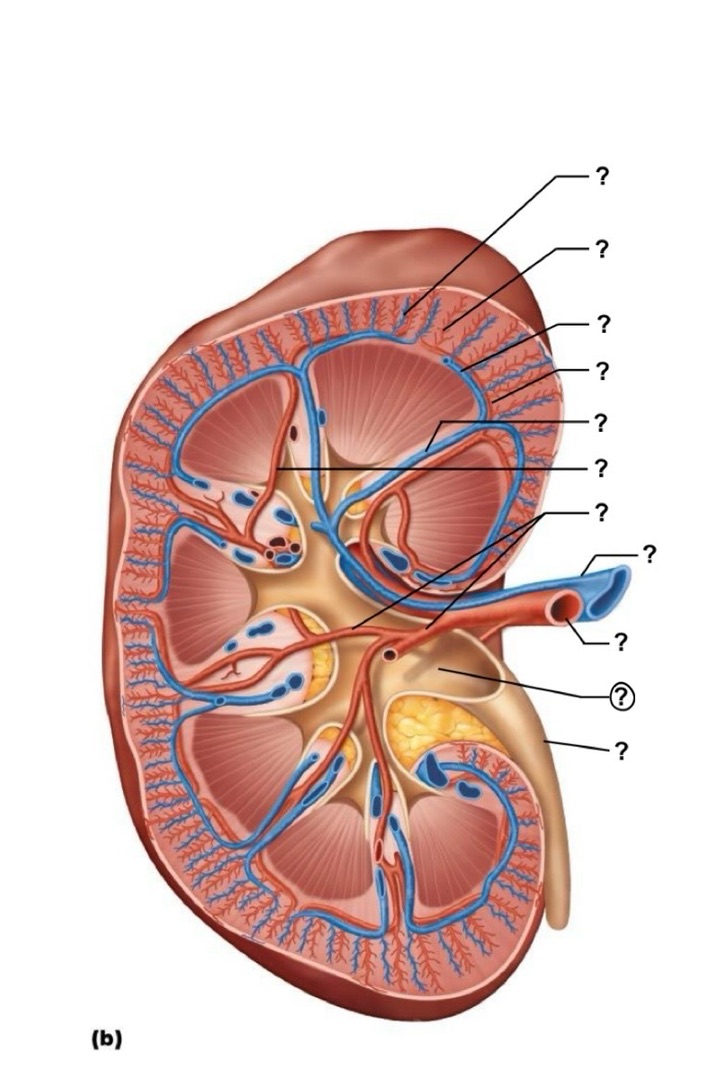

Cortical radiate vein

cortical radiate artery

Arcuate vein

Interlobar artery

Ureter

Interlobar vein

Arcuate artery

Renal vein

Renal artery

Renal pelvis

Segmental arteries

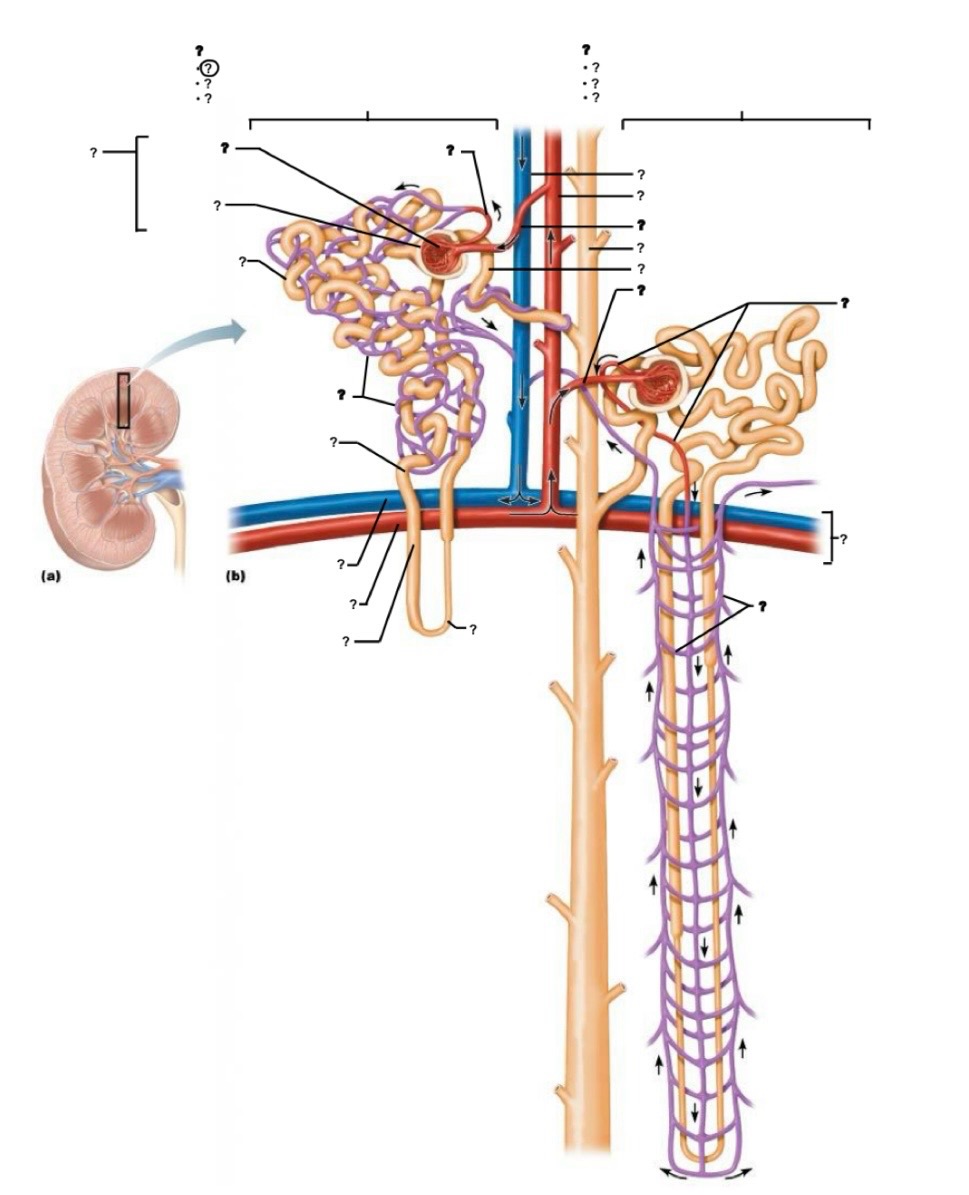

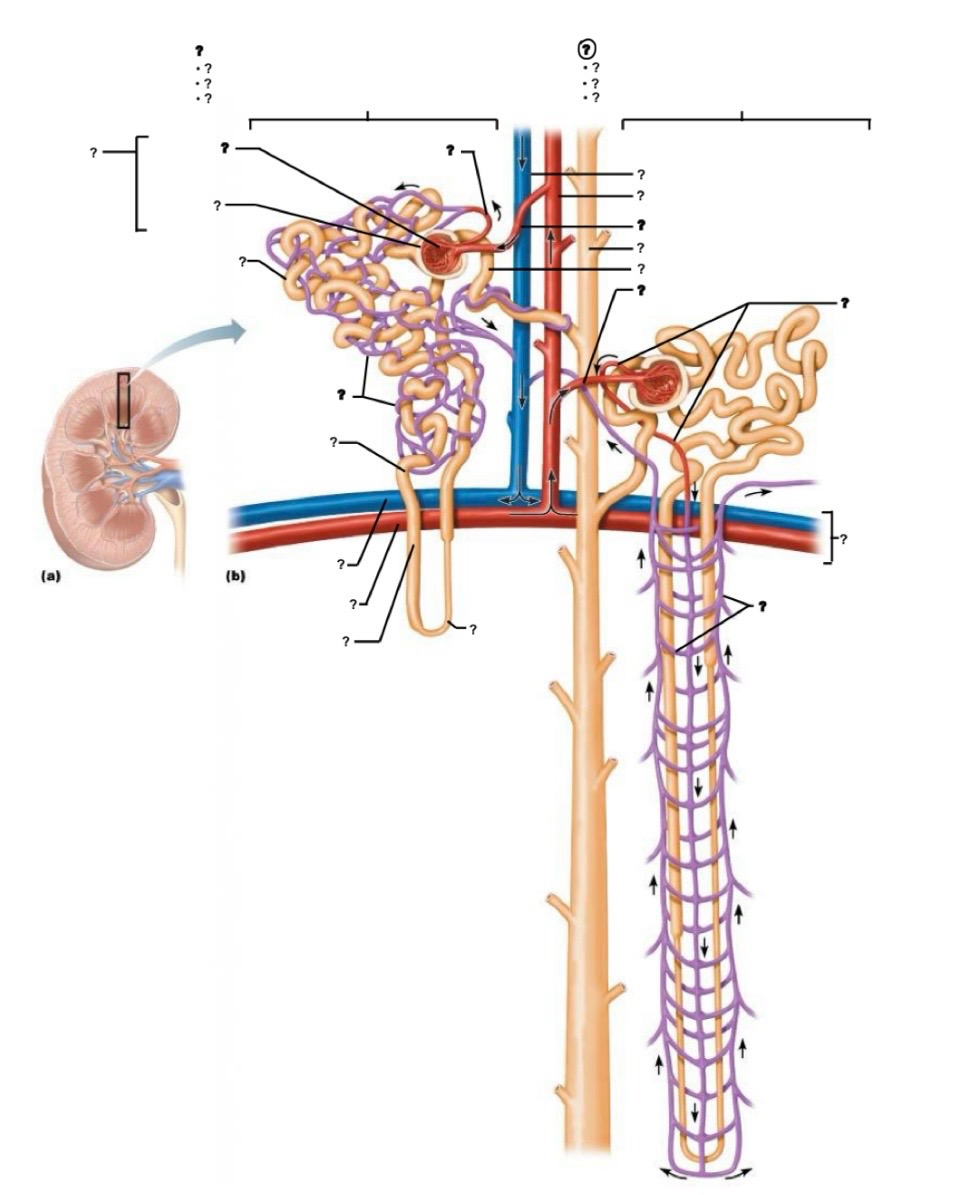

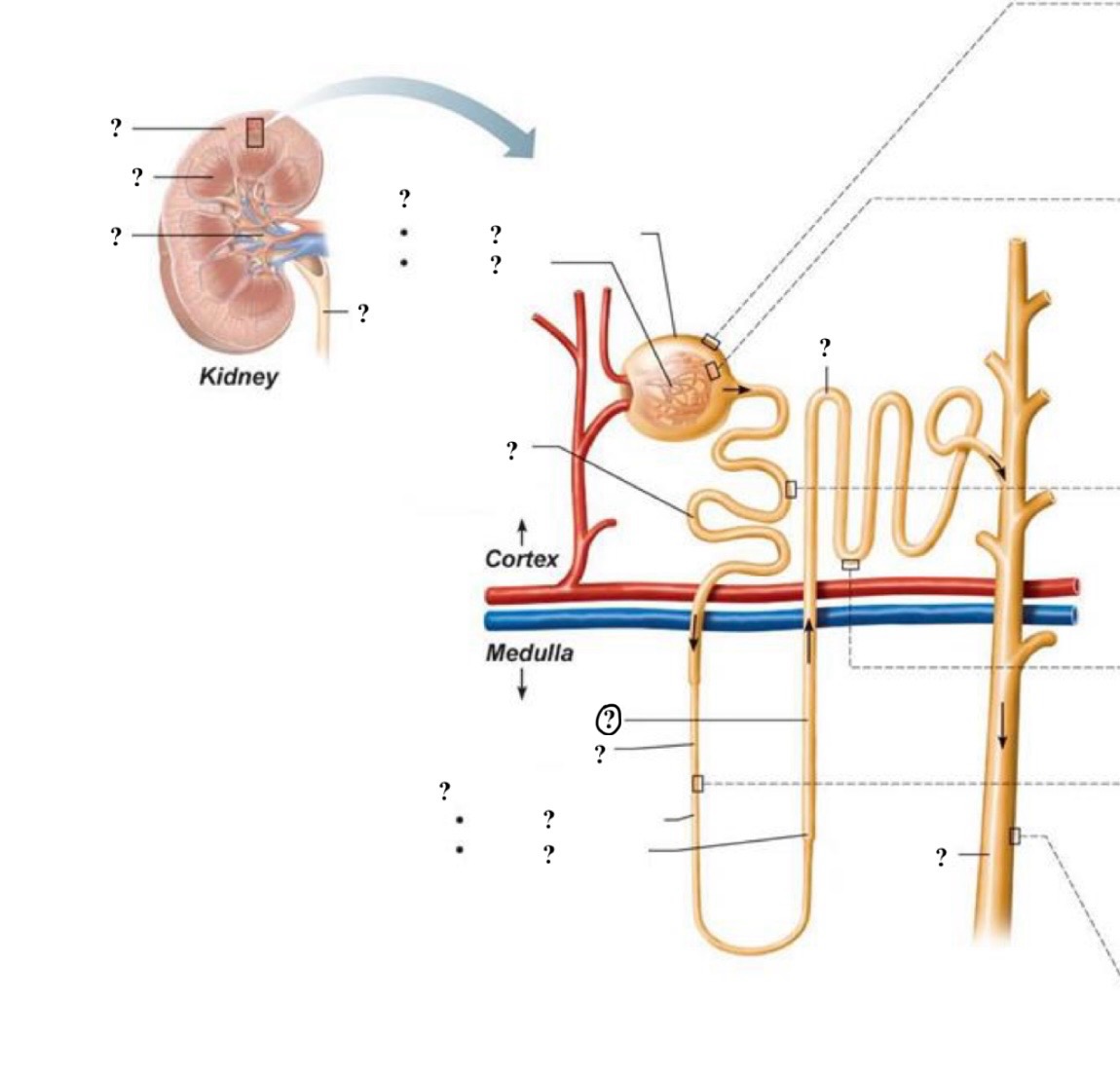

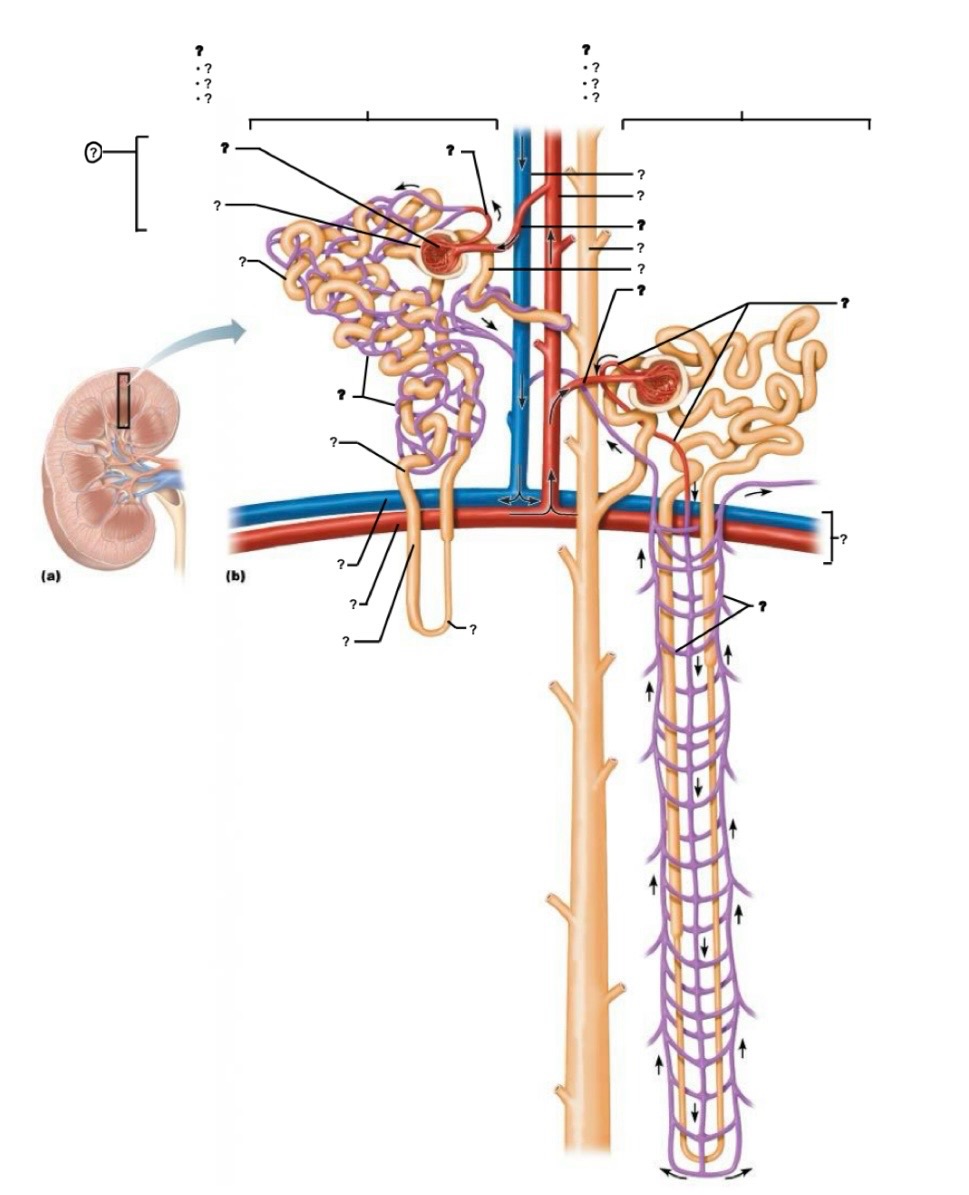

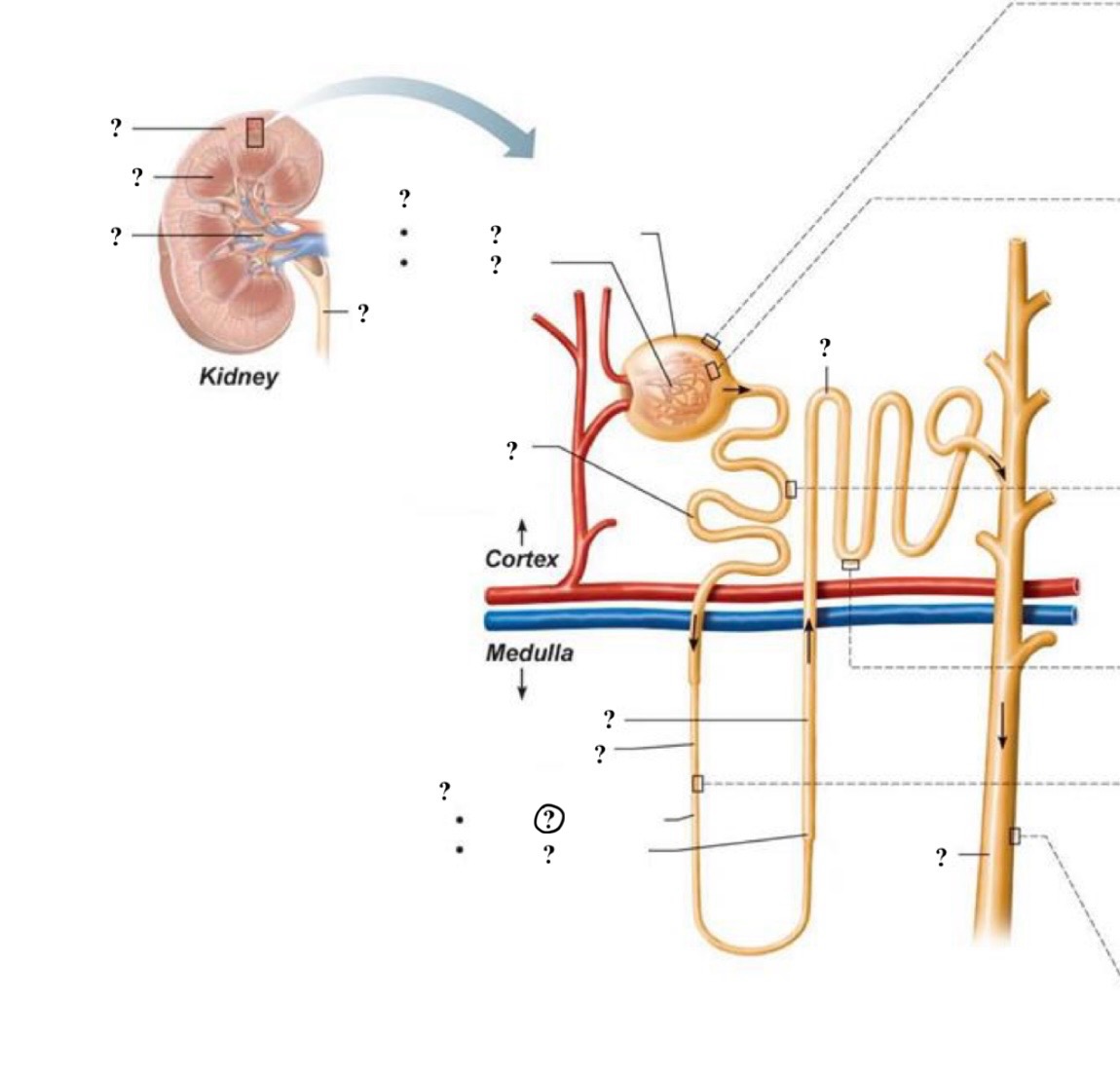

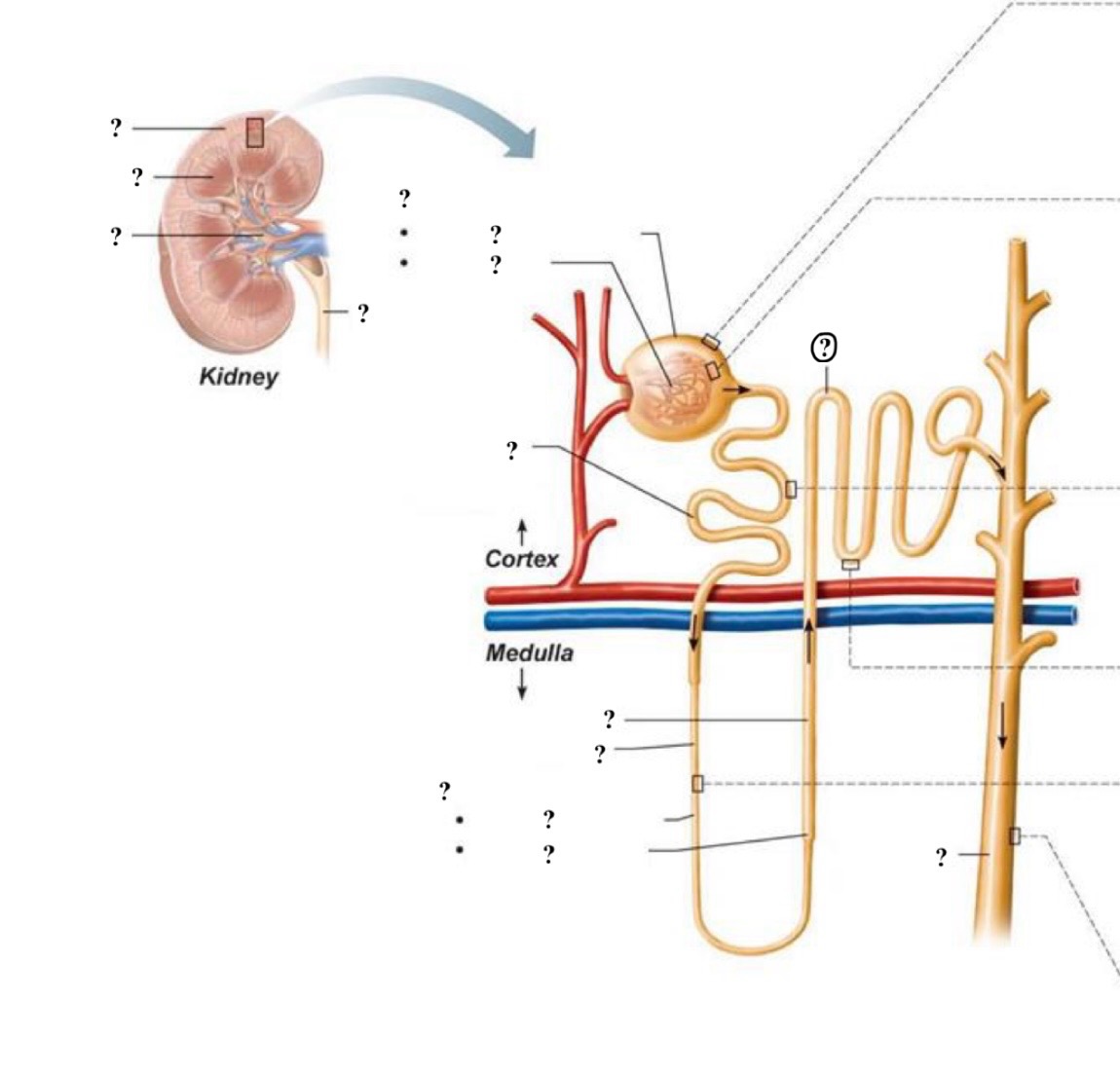

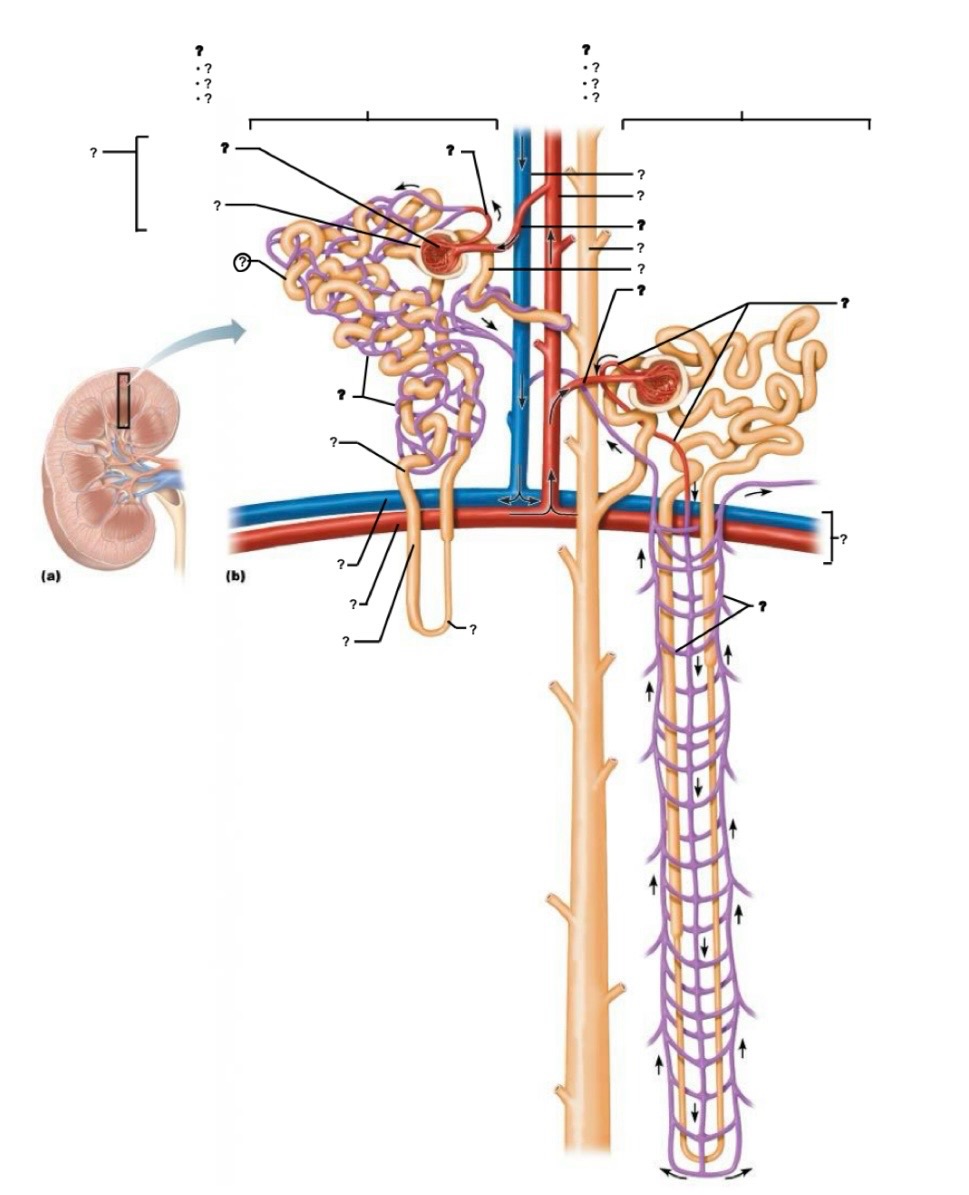

Cortical nephron

Short nephron loop

Descending limb of nephron loop

Glomerulus (capillaries)

Cortical radiate vein

Peritubular capillaries

Juxtamedullary nephron

Glomerulus closer to the cortex-medulla junction

Cortical radiate artery

Proximal convoluted tubule

Arcuate artery

Arcuate vein

Afferent arteriole

Cortex-medulla junction

Distal convoluted tubule

Ascending limb of nephron loop

Efferent arteriole

Efferent arteriole supplies peritubular capillaries

Glomerular capsule

Collecting duct

Nephron loop

Long nephron loop

Efferent arteriole

Glomerulus further from the cortex-medulla junction

Afferent arteriole

Efferent arteriole supplies vasa recta

Renal corpuscle

Vasa recta

Renal cortex

Thin segment

Loop of Henle

Renal corpuscle

Proximal convoluted tubule

Thick segment

Ascending limb

Renal medulla

Ureter

Glomerulus

Distal convoluted tubule

Descending limb

Collecting duct

Renal pelvis

Glomerular capsule

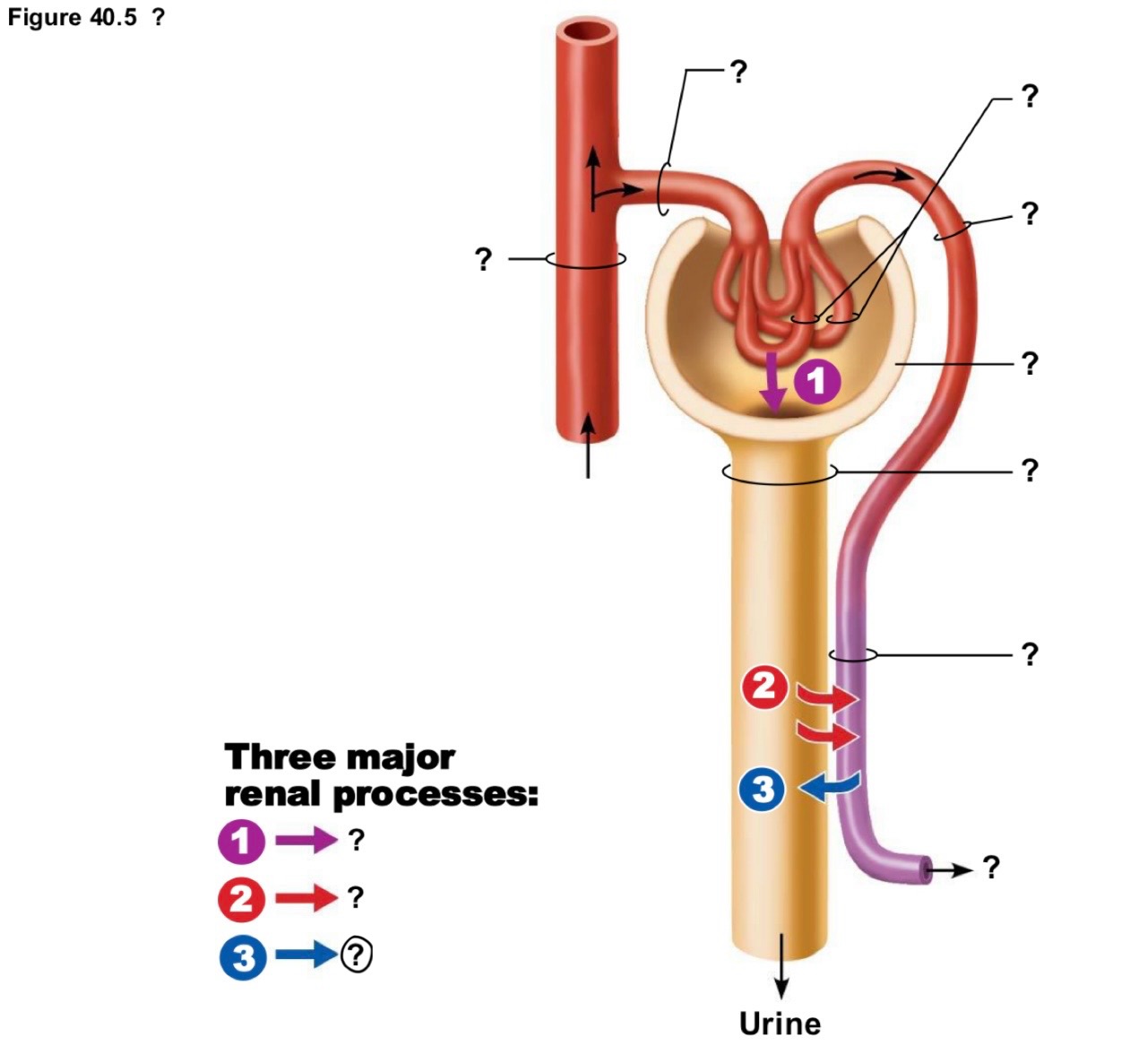

Glomerular filtration

Afferent arteriole

Renal tubule containing filtrate

Tubular secretion

Tubular reabsorption

Efferent arteriole

To cortical radiate vein

Glomerular capillaries

Glomerular capsule

Cortical radiate artery

Peritubular capillary

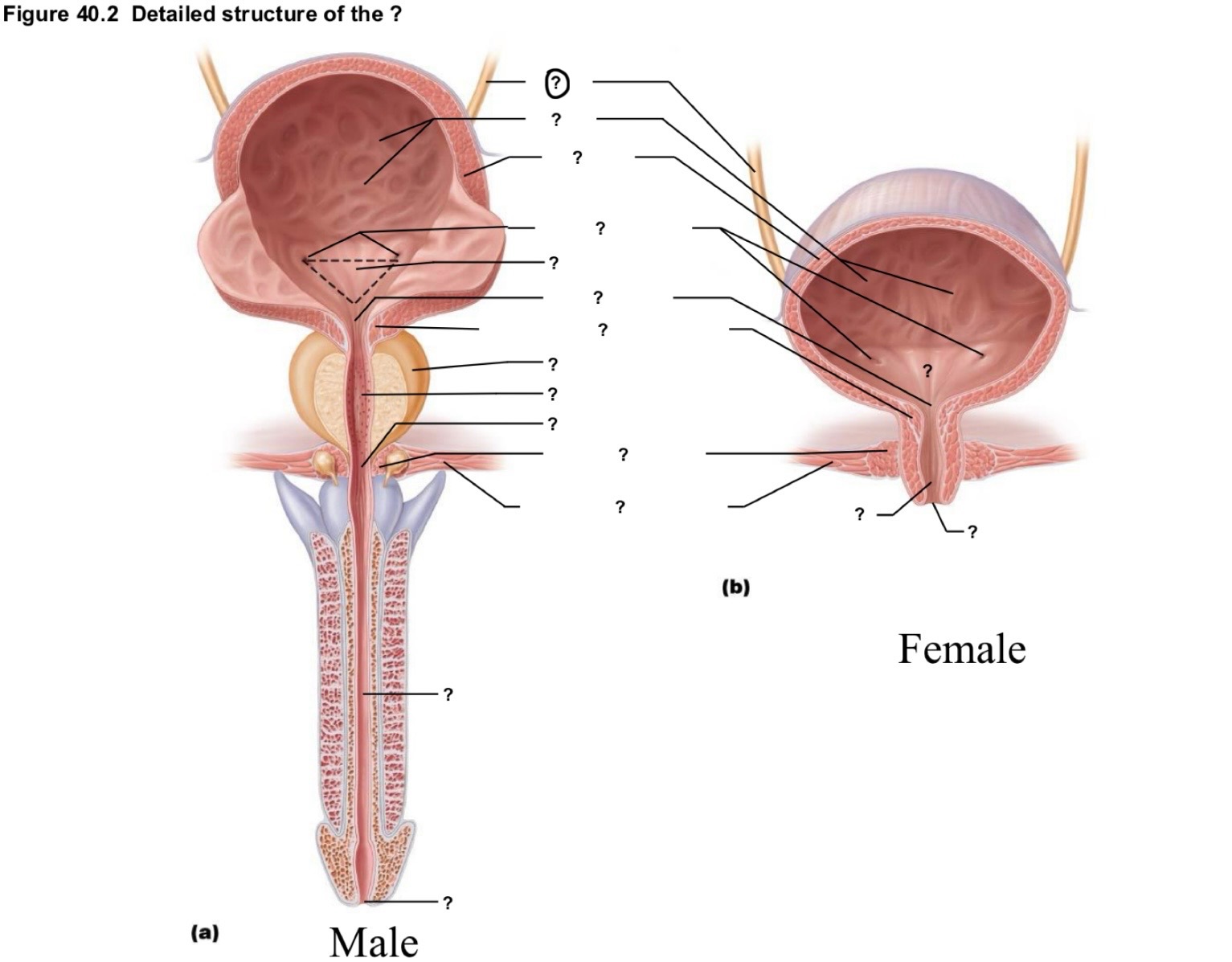

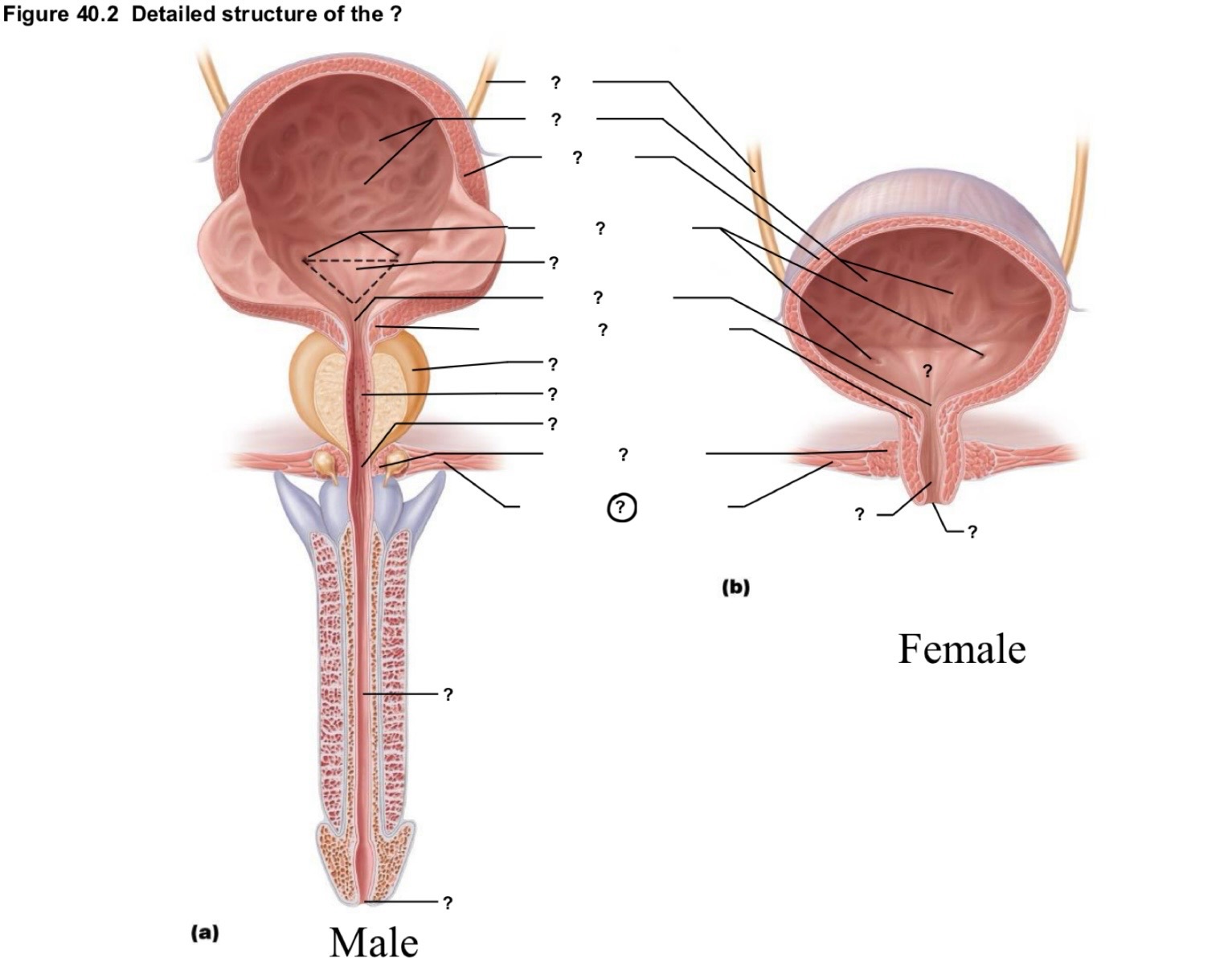

Ureter

Intermediate part of the urethra

Trigone of bladder

Rugae

Urogenital diaphragm
