L15 Dynamic electrochemistry 2

0.0(0)
Studied by 0 people
call kaiCall Kai
Locked
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/11

encourage image

There's no tags or description

Looks like no tags are added yet.

Last updated 12:41 PM on 7/6/26
Name
Mastery
Learn
Test
Matching
Spaced
Call with Kai
Chat

No analytics yet

Send a link to your students to track their progress

12 Terms

1
New cards

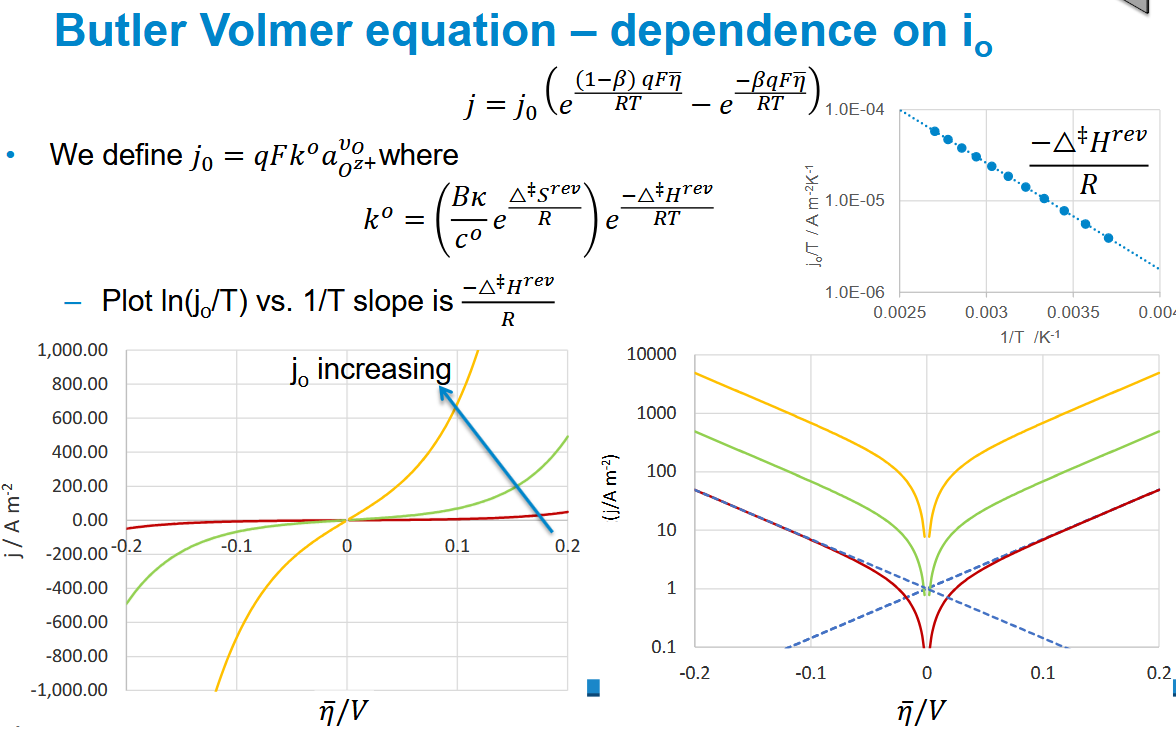

Butler-Volmer equation dependence on io

knowt flashcard image
2
New cards

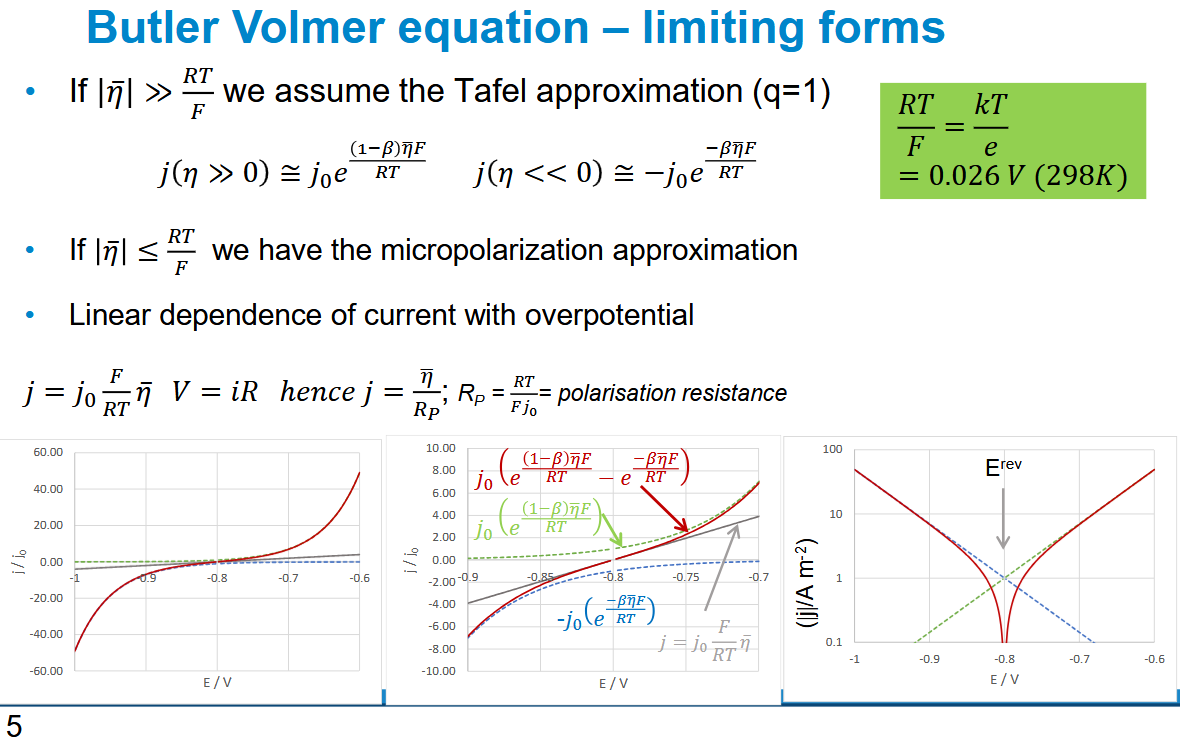

Butler Volmer equation – limiting forms

knowt flashcard image
3
New cards

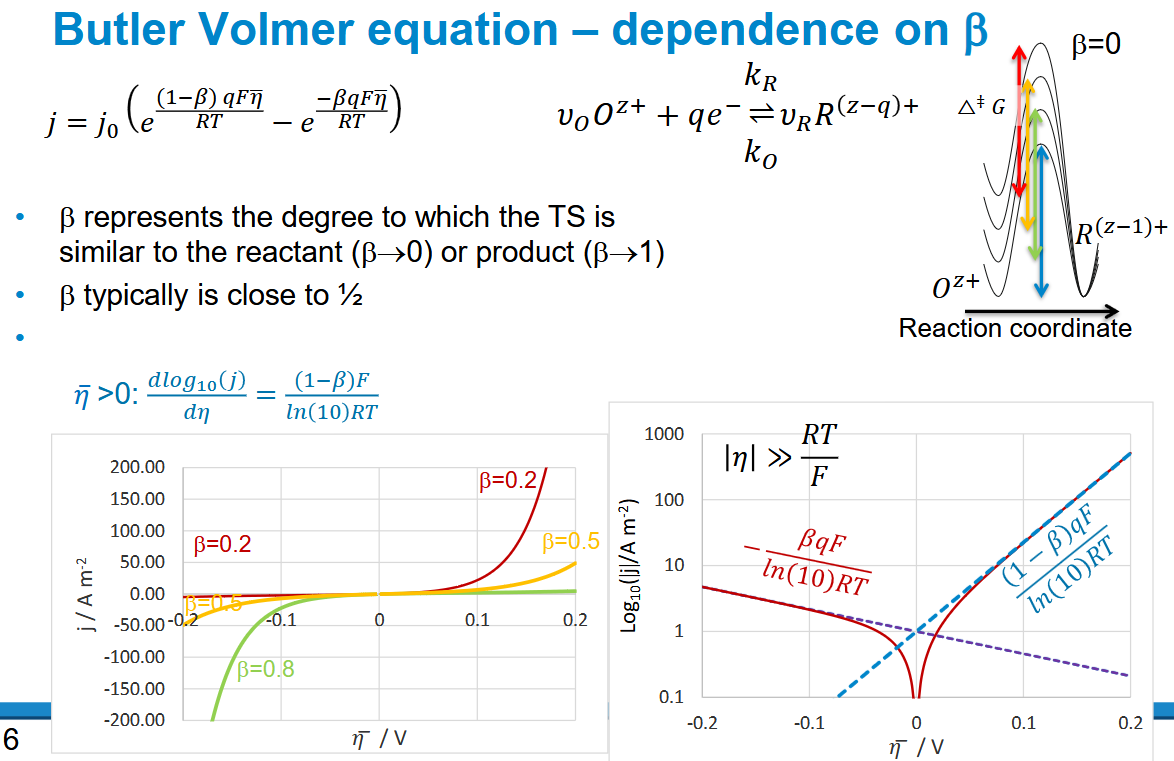

Butler Volmer equation – dependence on β

knowt flashcard image
4
New cards

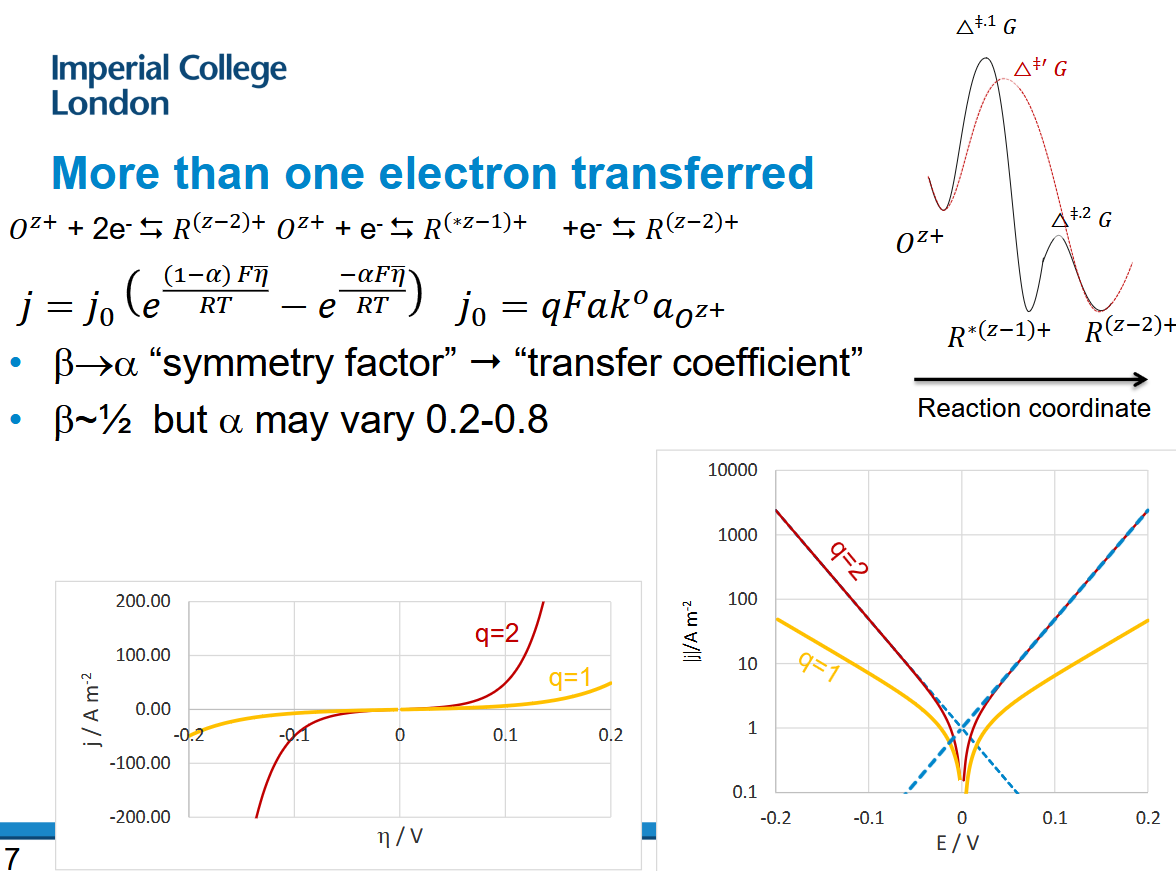

Case where more than one electron is transferred

knowt flashcard image
5
New cards

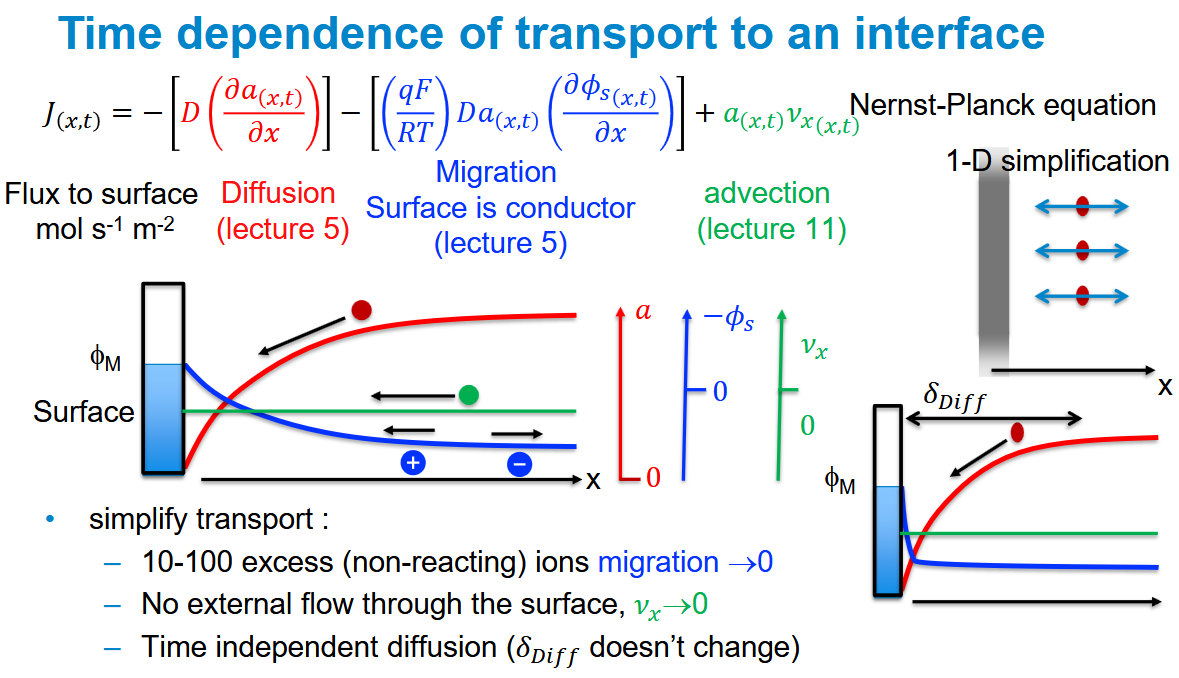

Time dependence of transport to an interface - simplifying the equation

knowt flashcard image
6
New cards

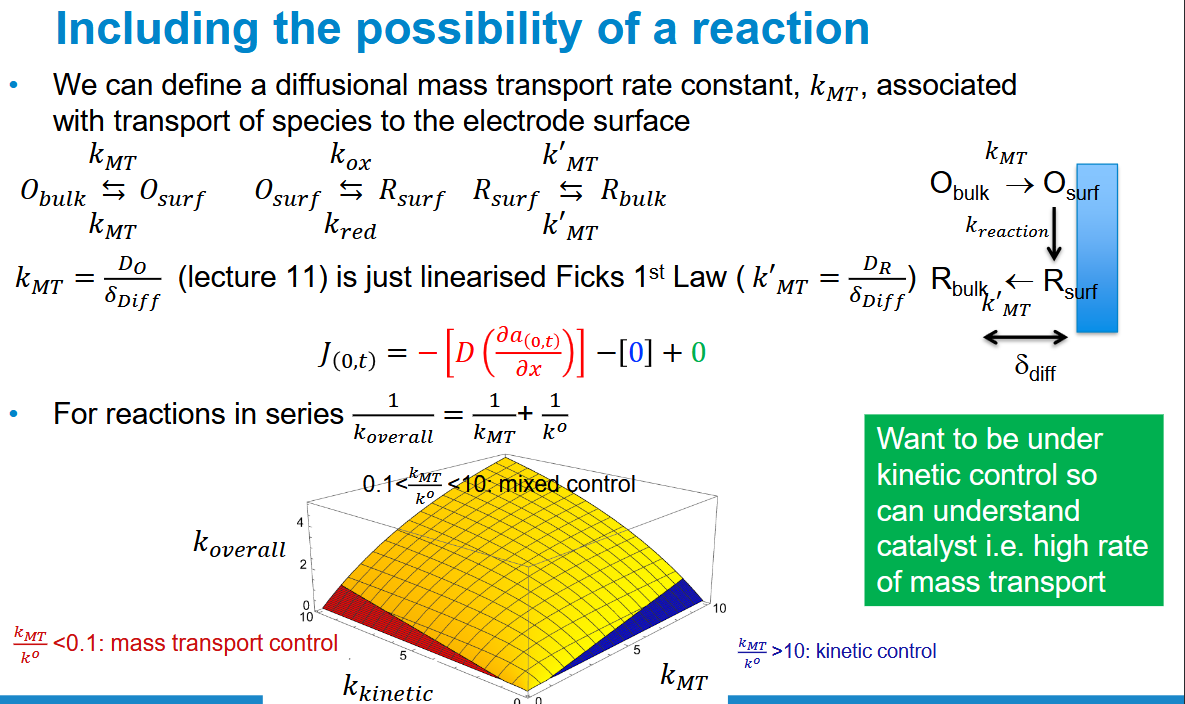

Kinetic control vs mass transport control

Depends on their relative rates

<p>Depends on their relative rates</p>
7
New cards

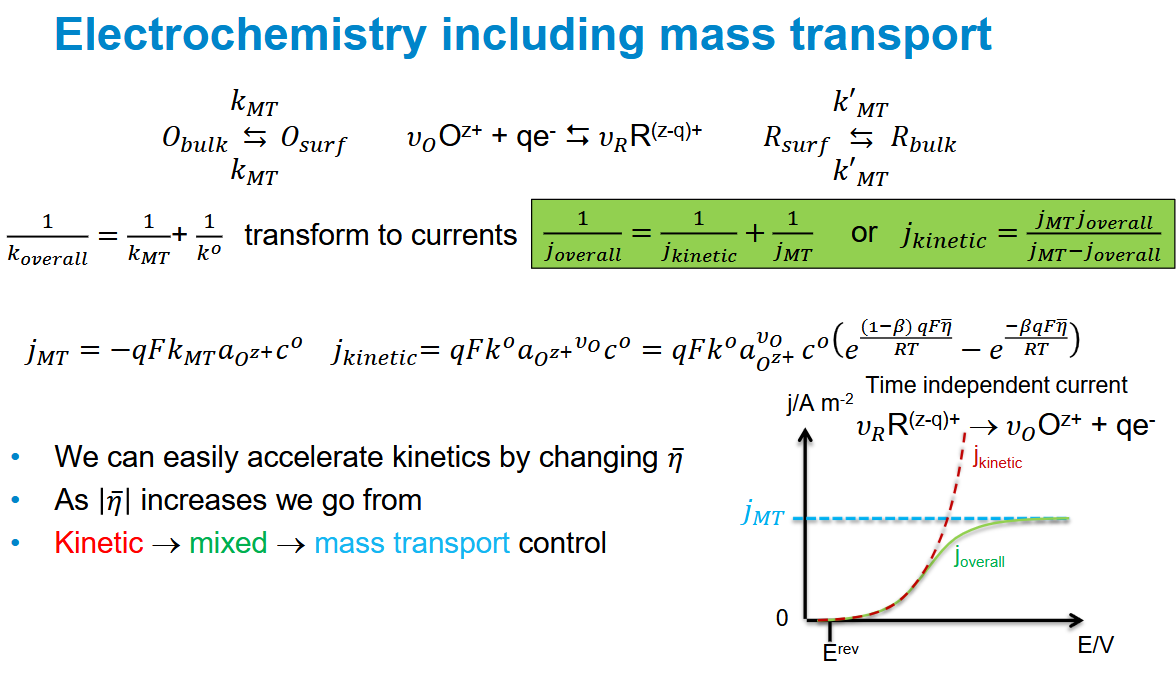

Electrochemistry including mass transport

knowt flashcard image
8
New cards

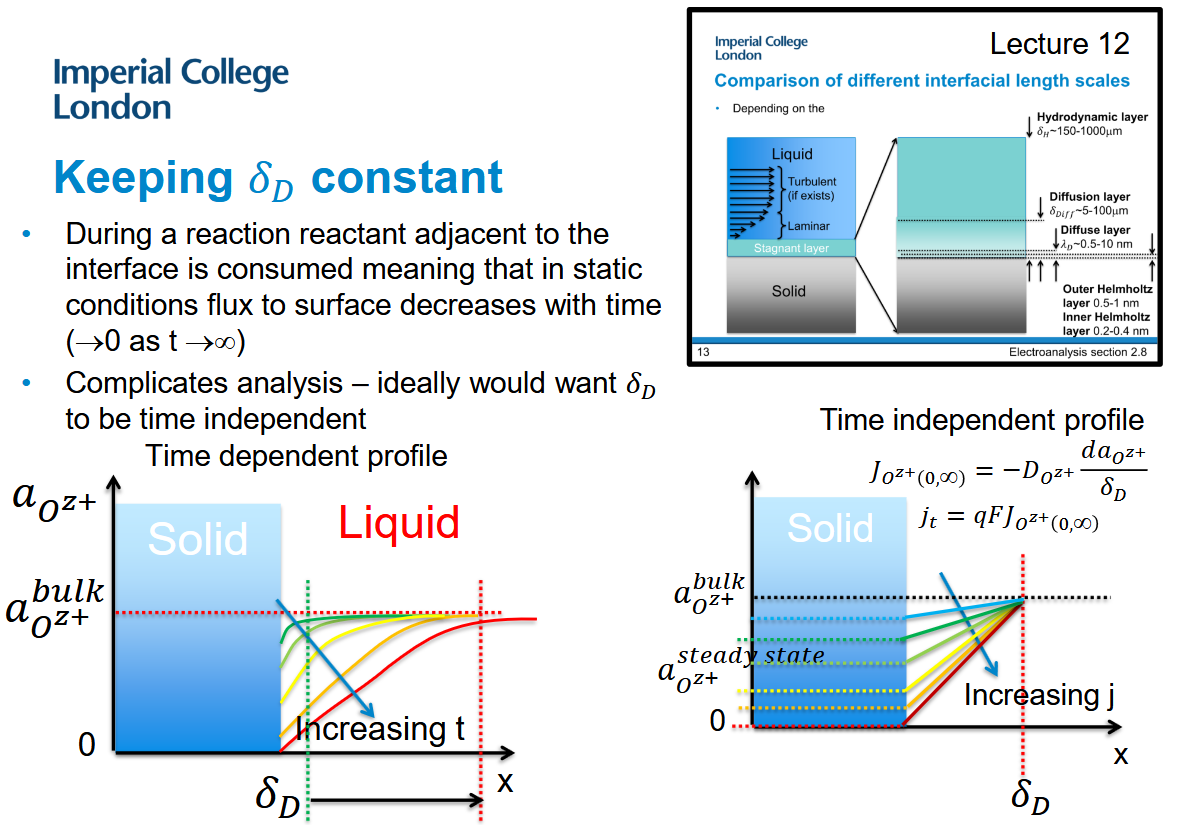

Why does the diffusion coefficient change with time

reactant close to the surface gets depleted.

<p>reactant close to the surface gets depleted.</p>
9
New cards

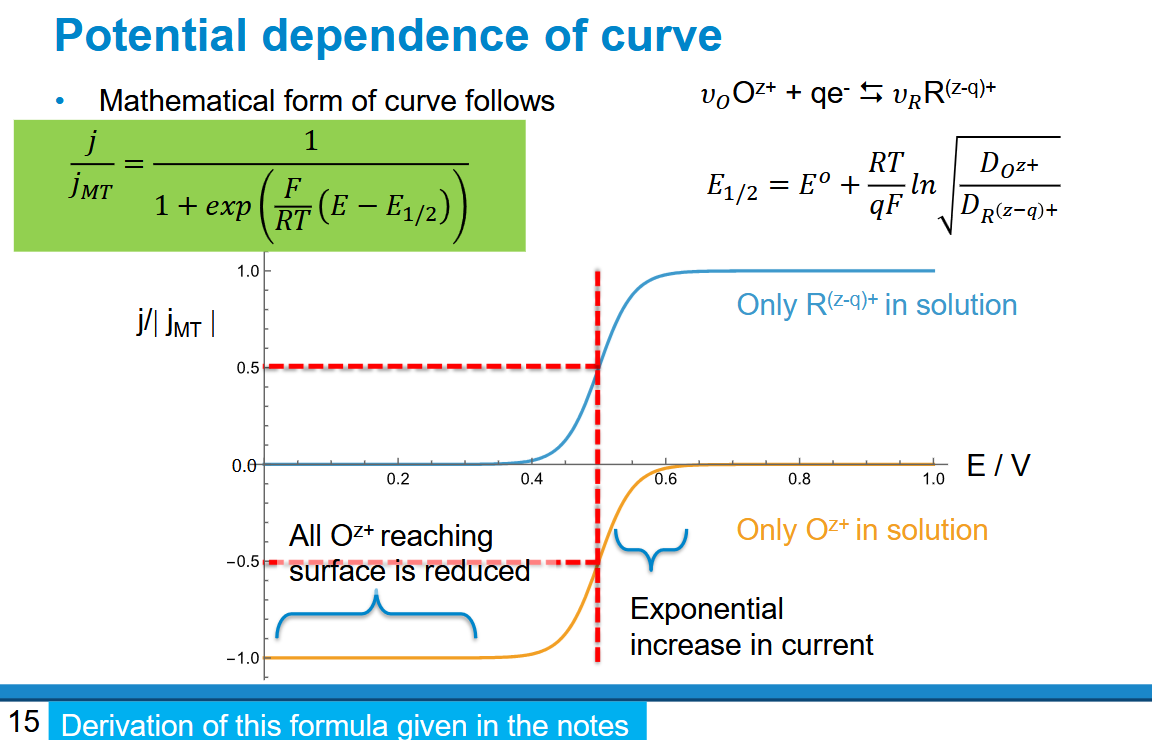

Potential dependence of curve

knowt flashcard image
10
New cards

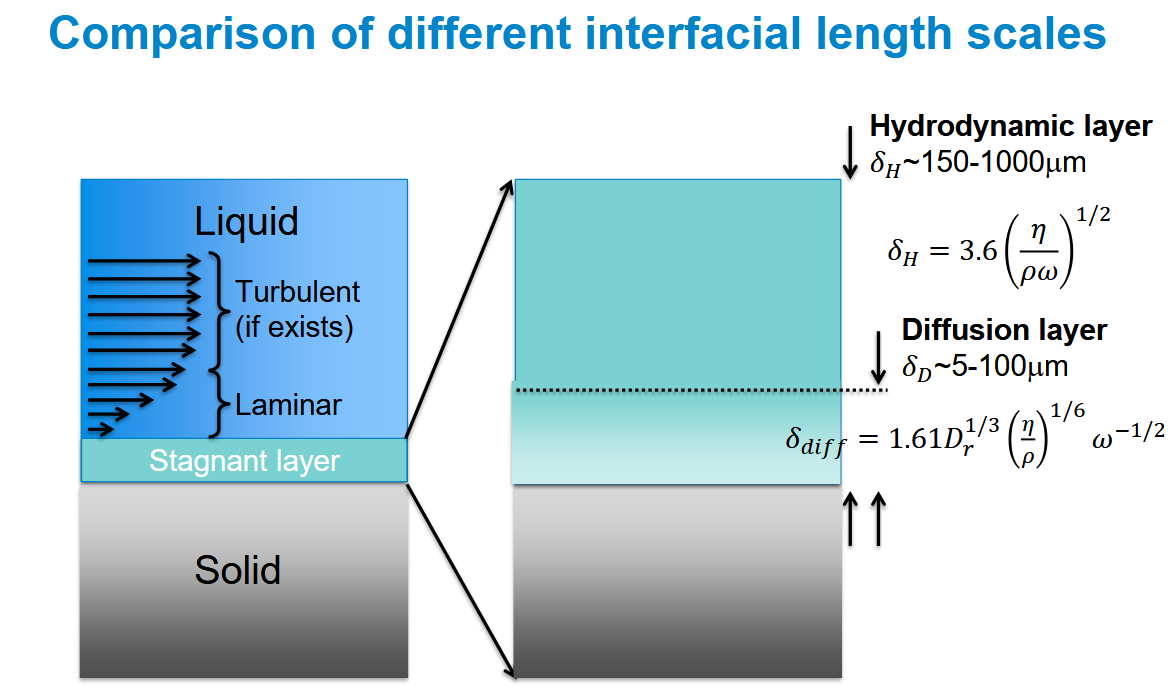

Comparison of different interfacial length scales (+equations)

knowt flashcard image
11
New cards

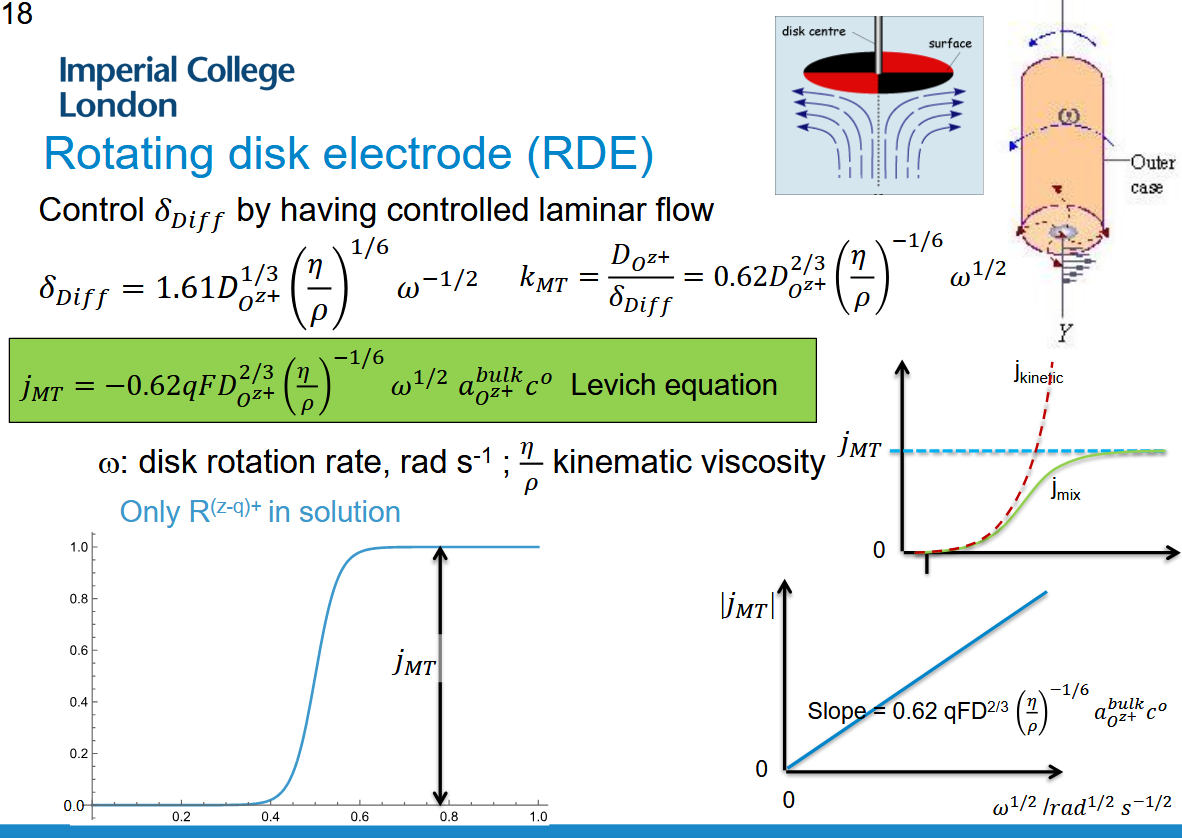

Rotating disk electrode

knowt flashcard image
12
New cards

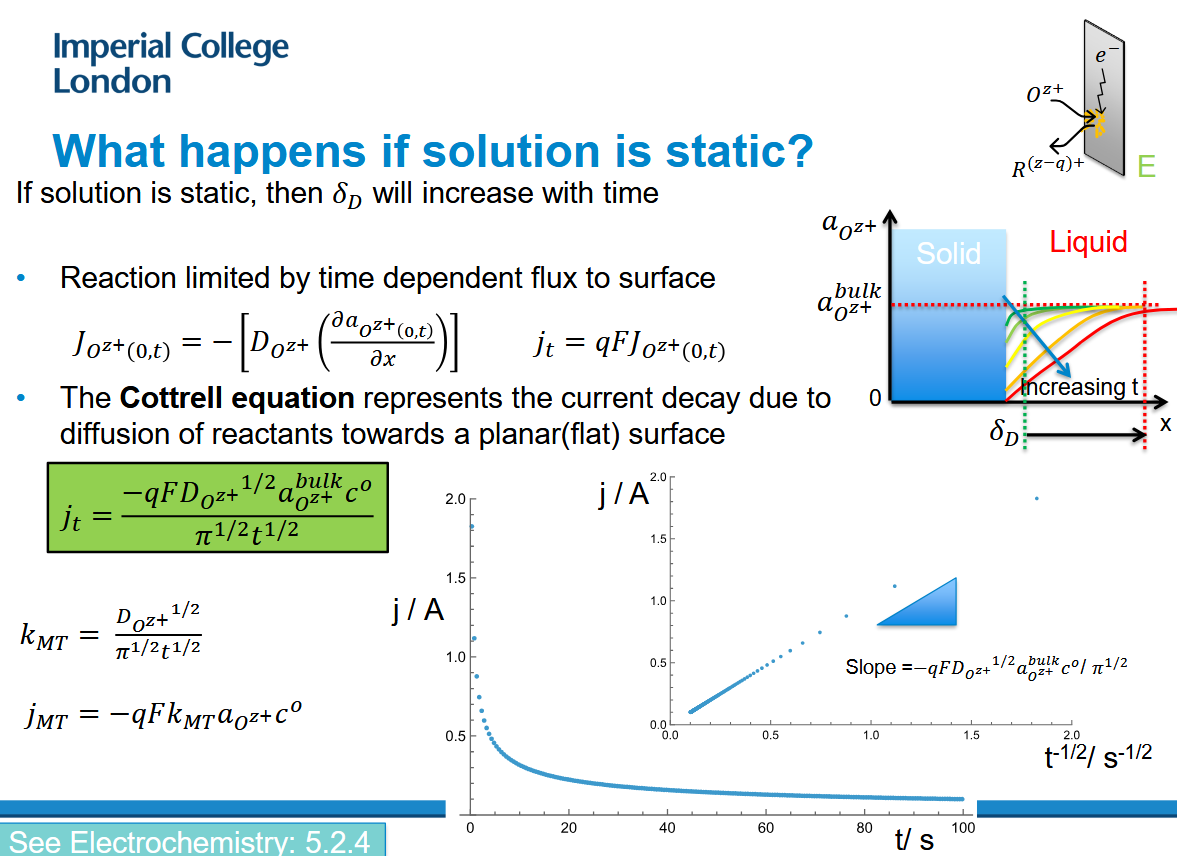

What happens if solution is static?

knowt flashcard image
