20 Terms

1
New cards

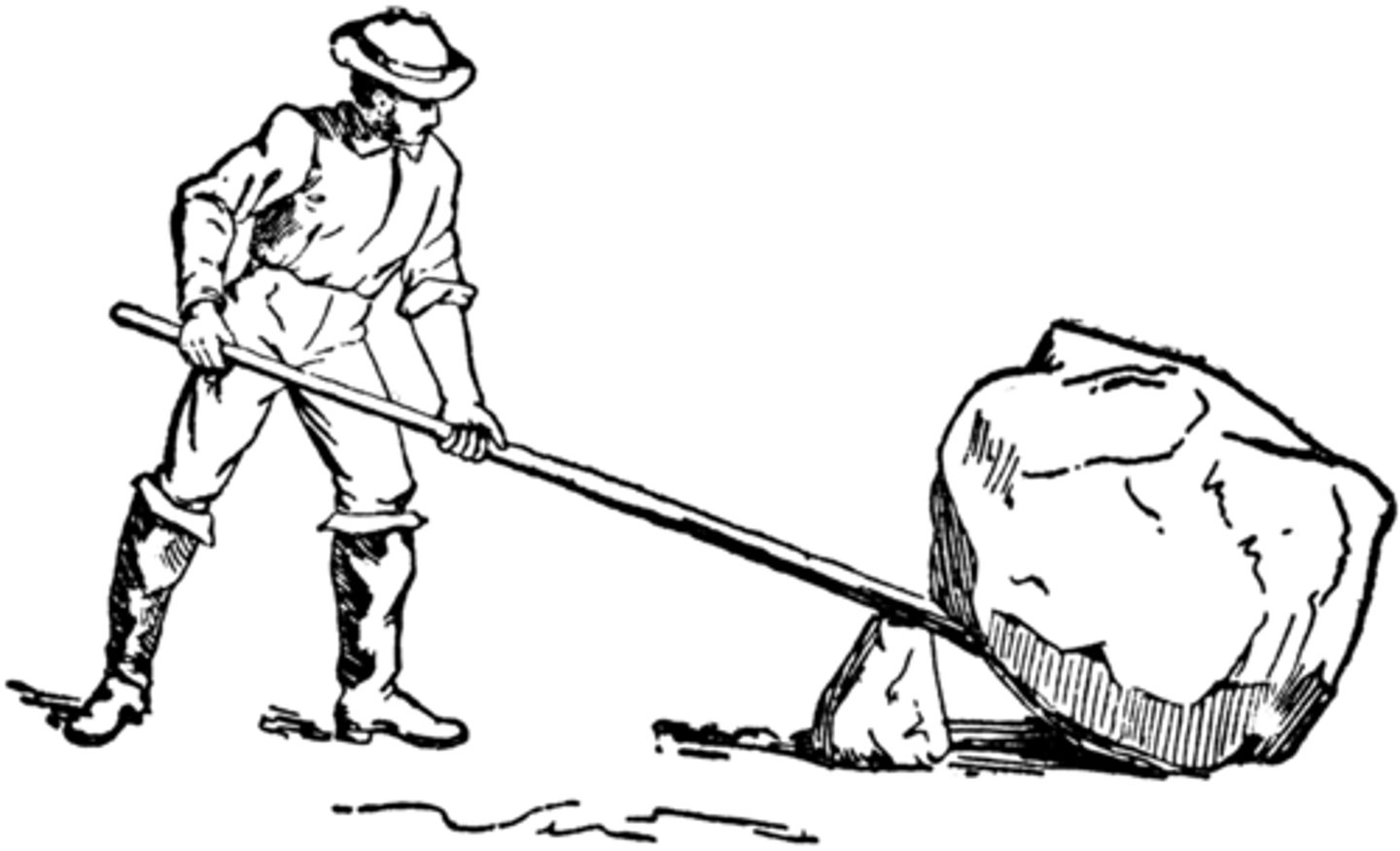

Lever

A rigid bar that is free to move around a fixed point

<p>A rigid bar that is free to move around a fixed point</p>
2
New cards

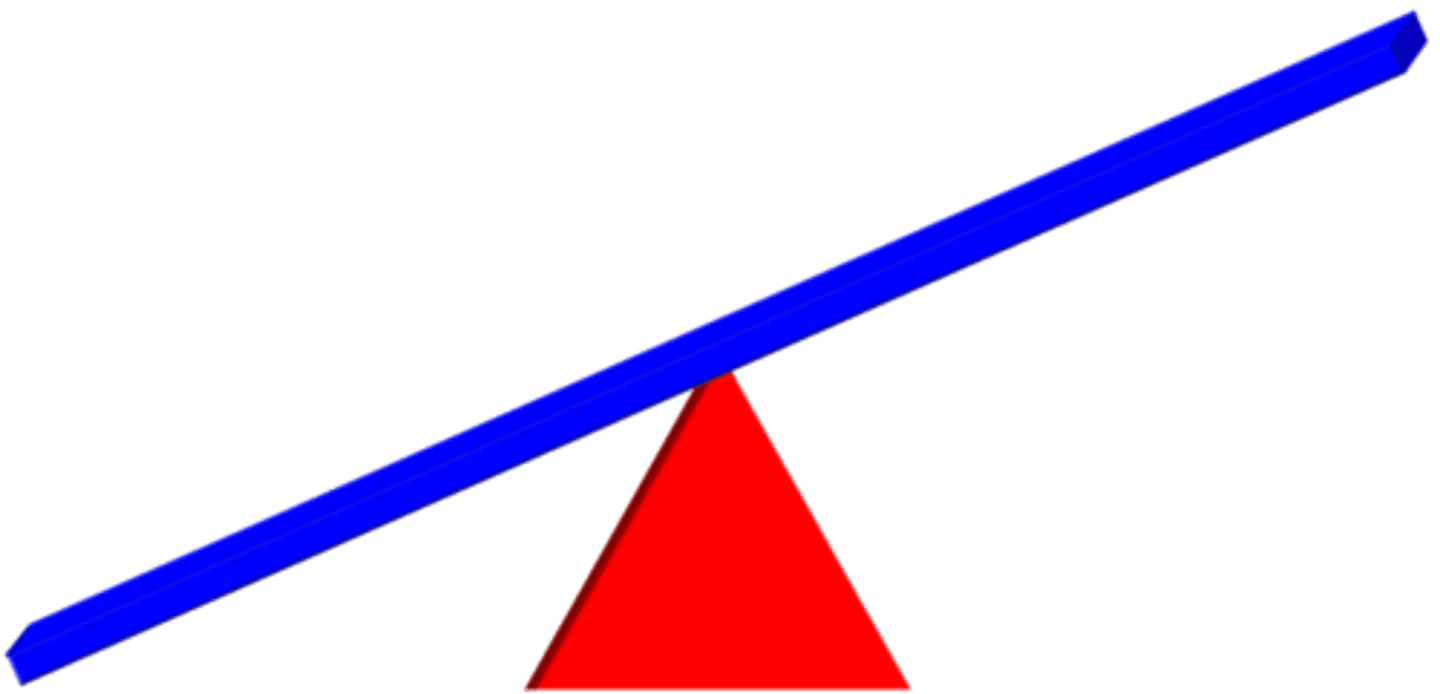

Fulcrum

The fixed point around which a lever pivots

<p>The fixed point around which a lever pivots</p>
3
New cards

Inclined Plane

A slanted surface along which a force moves an object to a different elevation

<p>A slanted surface along which a force moves an object to a different elevation</p>
4
New cards

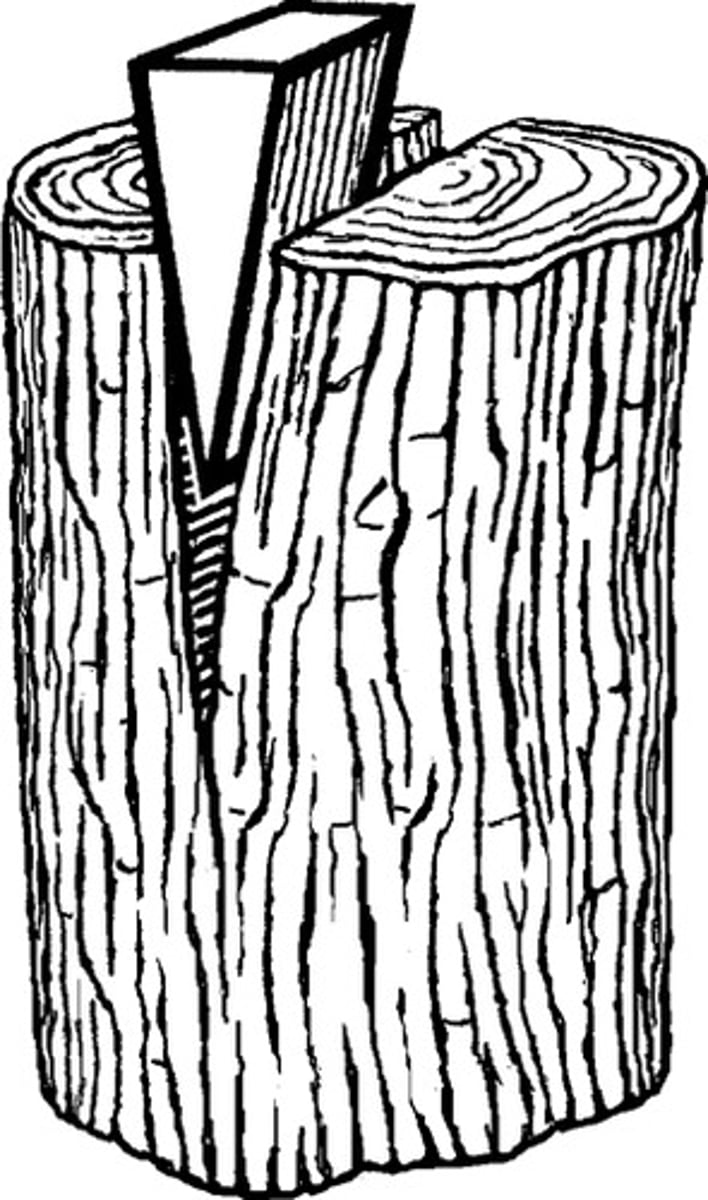

Wedge

A device that is thick at one end and tapers to a thin edge at the other end.

<p>A device that is thick at one end and tapers to a thin edge at the other end.</p>
5
New cards

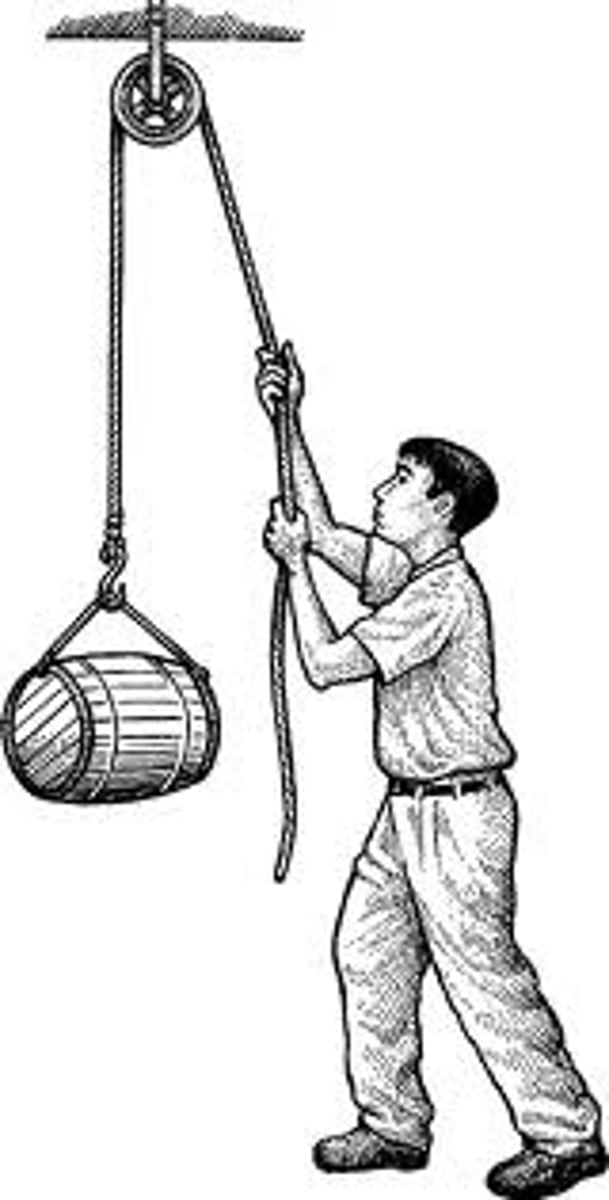

Pulley

A simple machine that consists of a rope that fits into a groove in a wheel

<p>A simple machine that consists of a rope that fits into a groove in a wheel</p>
6
New cards

Screw

A simple machine that consists of an inclined plane wrapped around a cylinder

<p>A simple machine that consists of an inclined plane wrapped around a cylinder</p>
7
New cards

Work

Force exerted on an object that causes it to move

<p>Force exerted on an object that causes it to move</p>
8
New cards

Unit for Work

Joules (J)

9
New cards

Wheel and Axle

A simple machine consisting of two circular objects of different sizes; the wheel is the larger of the two circular objects

10
New cards

Wheel and Axle Examples

Door knob, steering wheel, bike

11
New cards

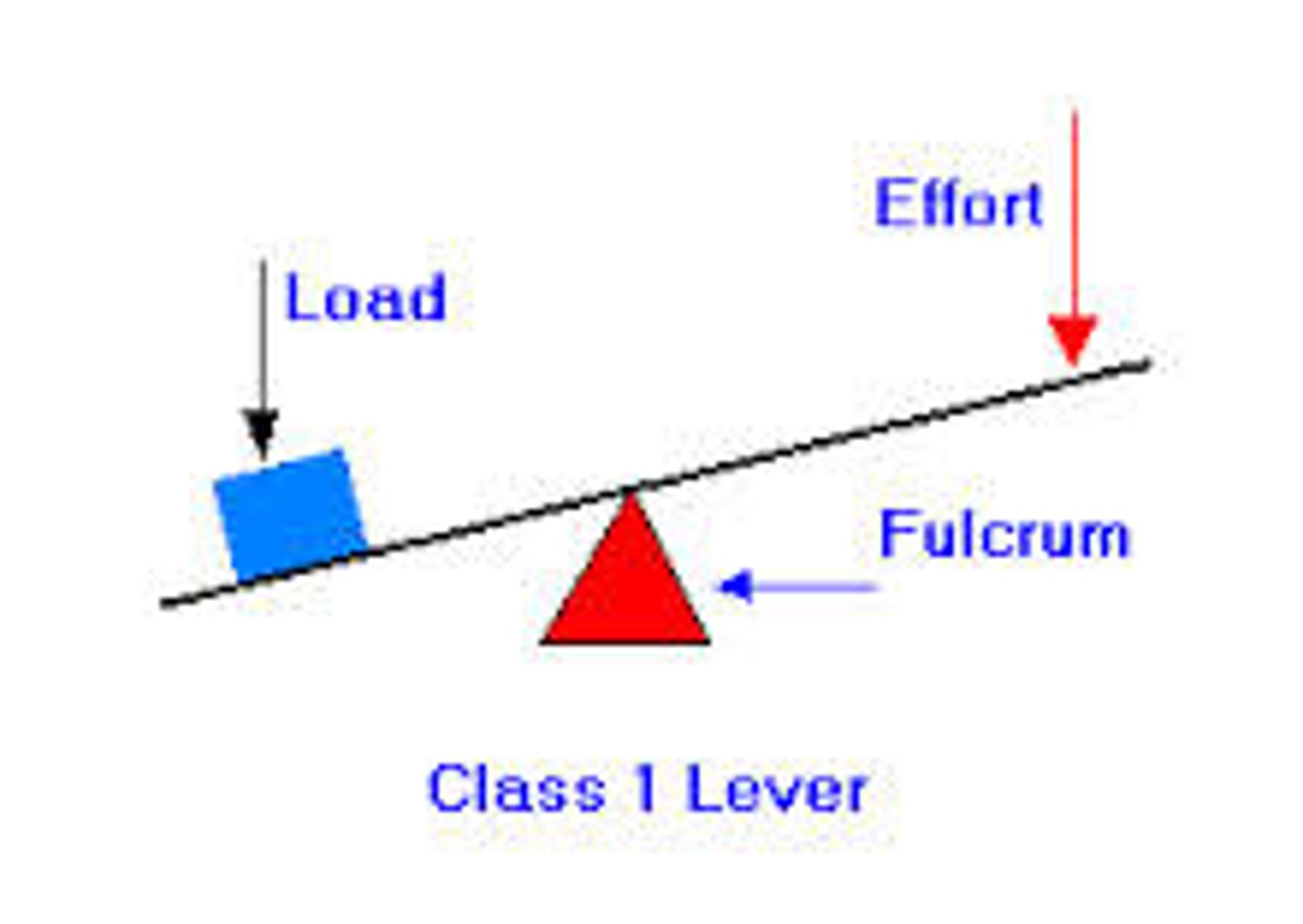

1st Class Lever

The fulcrum is positioned between the effort and resistance

<p>The fulcrum is positioned between the effort and resistance</p>
12
New cards

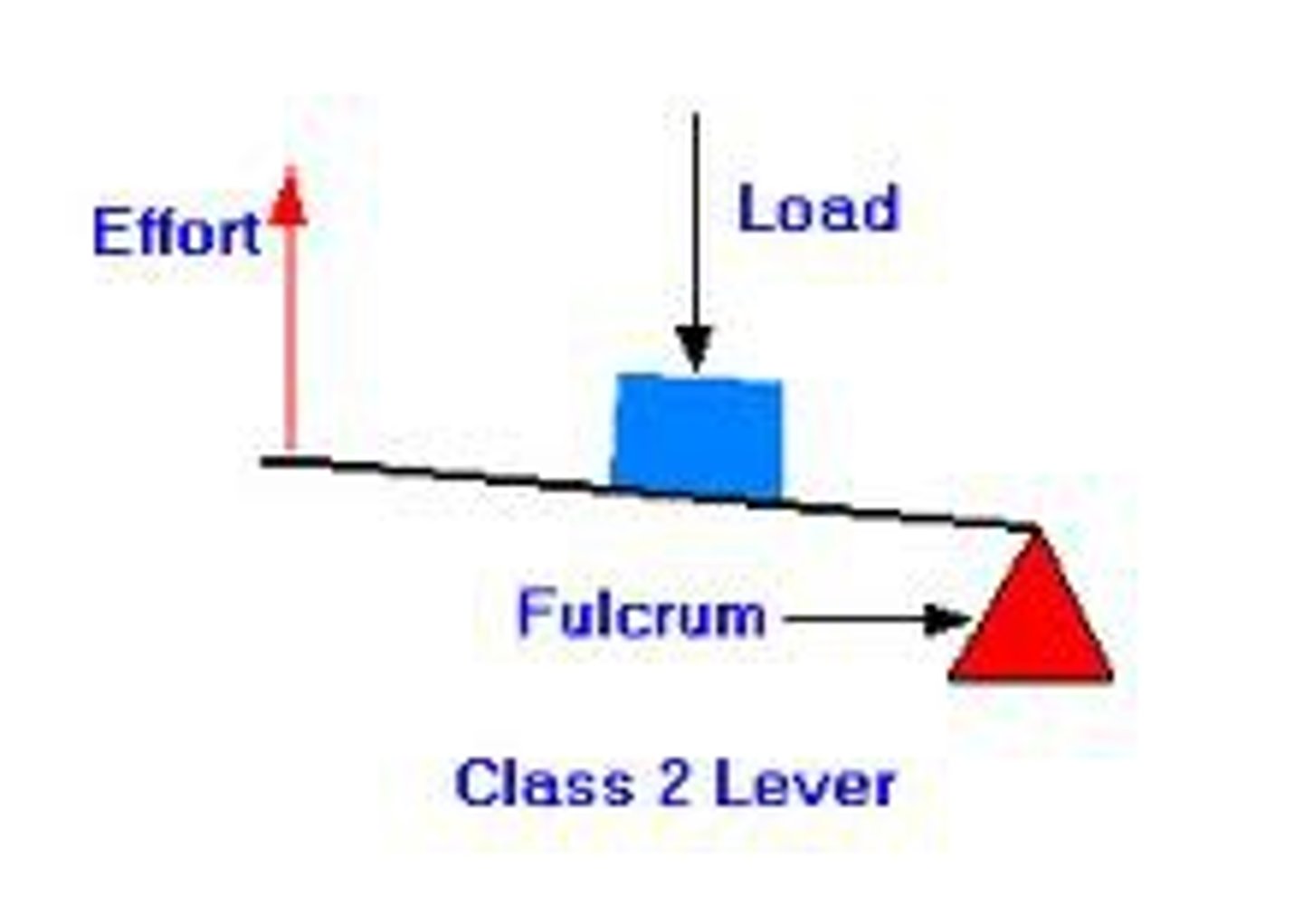

2nd Class Lever

The load is between the fulcrum and the effort

<p>The load is between the fulcrum and the effort</p>
13
New cards

3rd Class Lever

The fulcrum is at one end of the bar and the effort is between the fulcrum and the resistance

<p>The fulcrum is at one end of the bar and the effort is between the fulcrum and the resistance</p>
14
New cards

Inclined Plane Examples

Ramps, Hills, Wedge, Chisels, Hatchets, Door Stop

<p>Ramps, Hills, Wedge, Chisels, Hatchets, Door Stop</p>
15
New cards

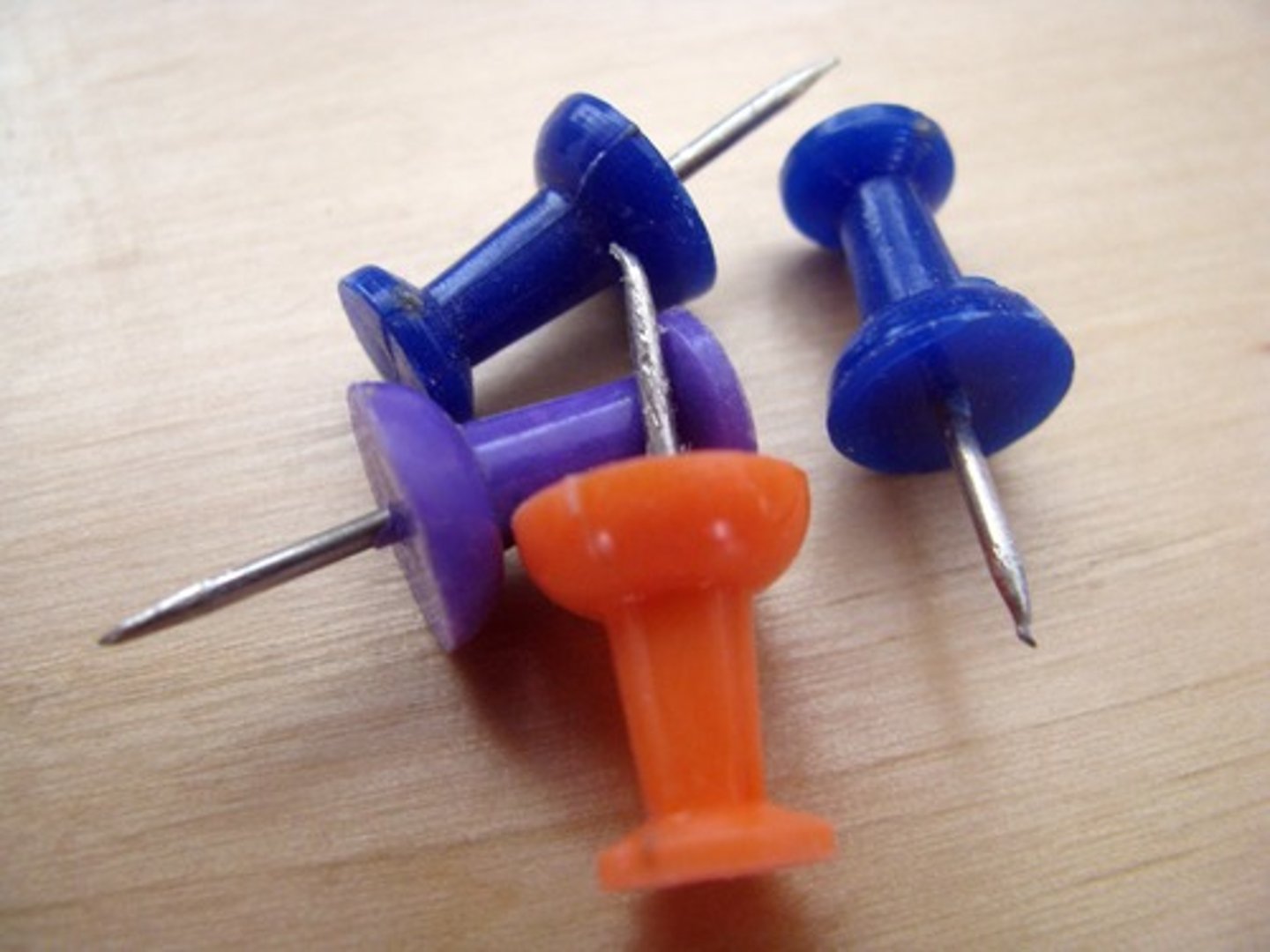

Wedge Examples

Shovel, Knife, Axe, Scissors, Ice Pick, Pins, Needles

<p>Shovel, Knife, Axe, Scissors, Ice Pick, Pins, Needles</p>
16
New cards

Pulley Examples

Elevators, Cargo Lift, Claw Machines, Flag Pole Pulley

<p>Elevators, Cargo Lift, Claw Machines, Flag Pole Pulley</p>
17
New cards

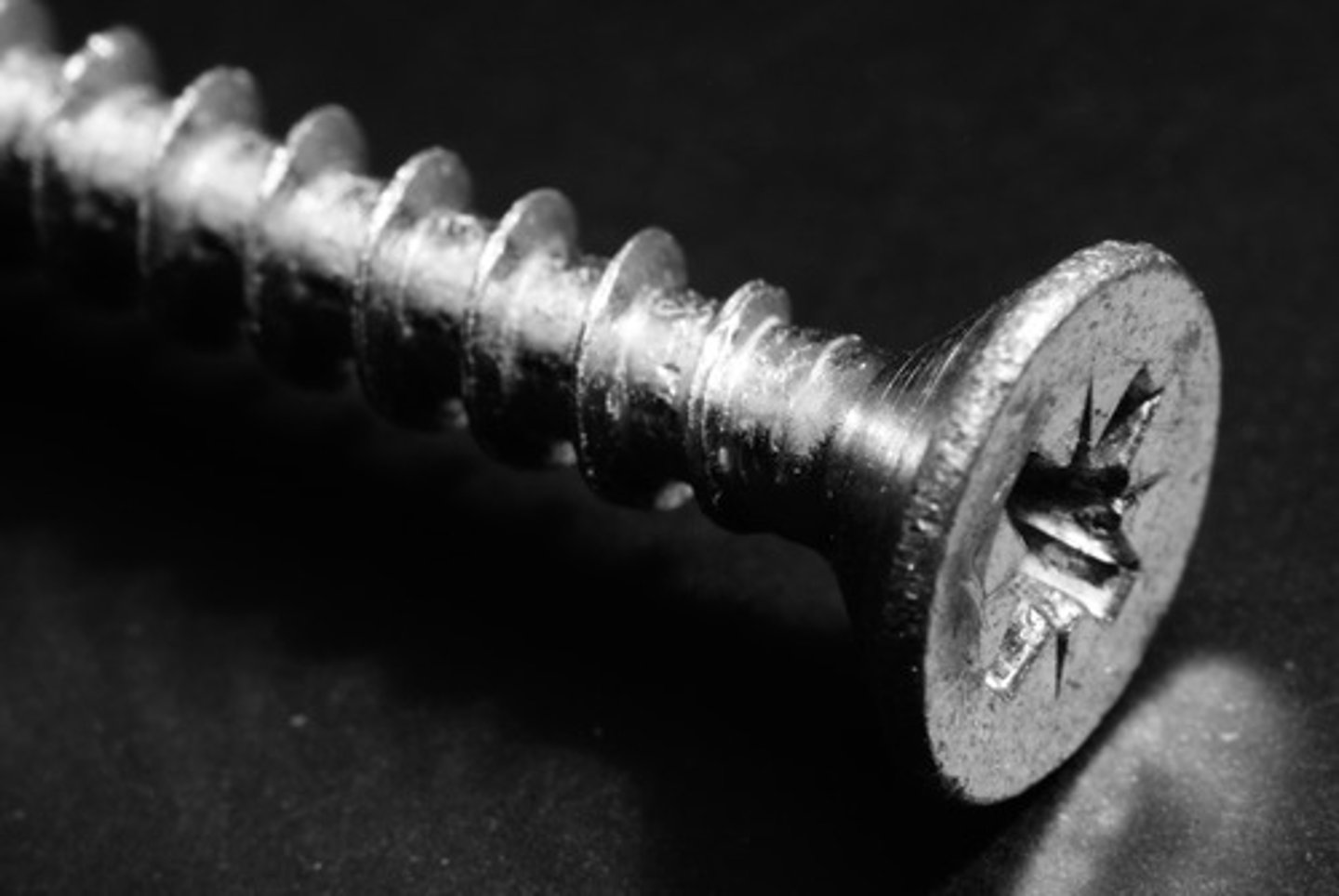

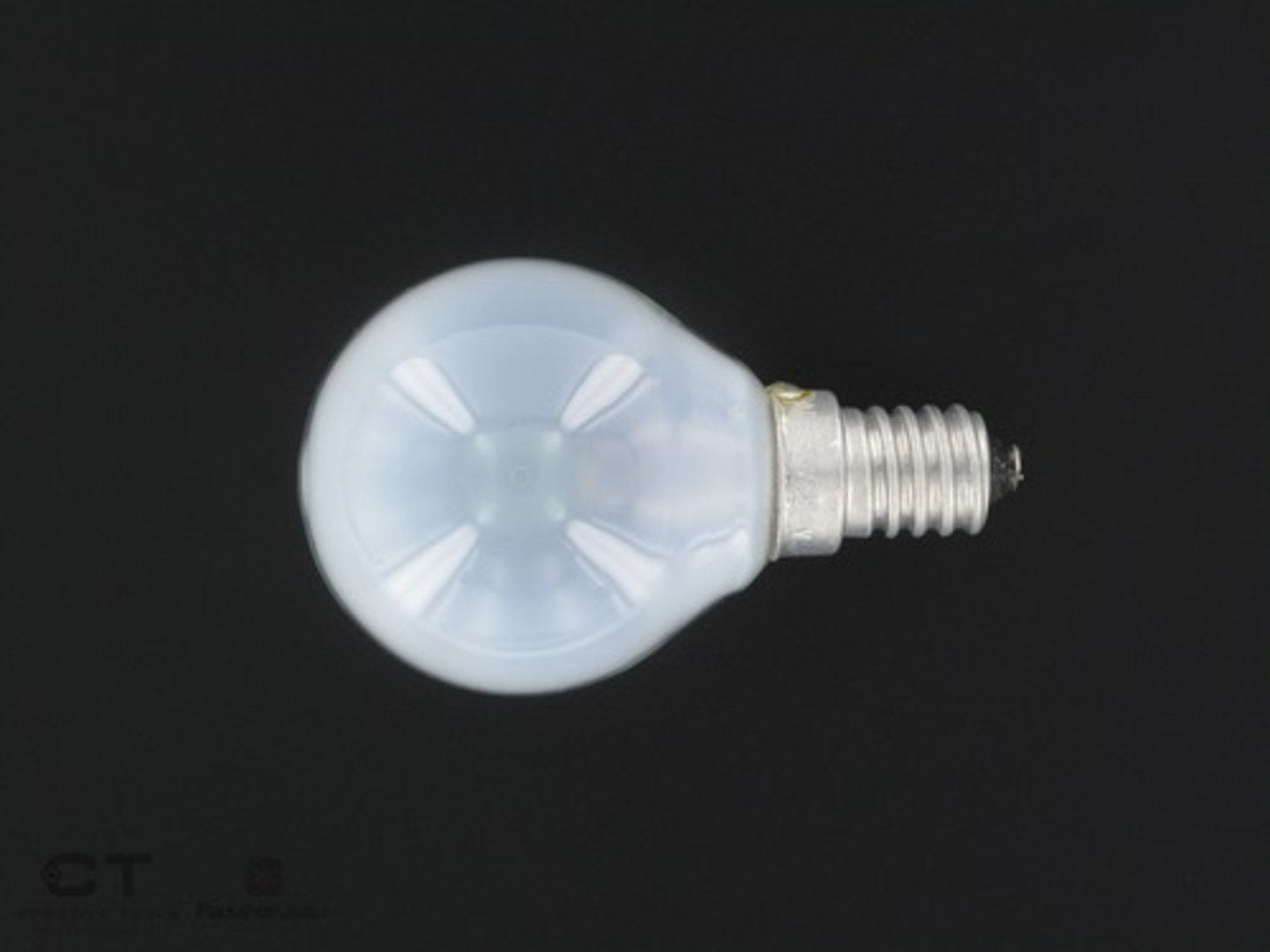

Screw Examples

Jar lid, drill, bolt, faucets, bottle caps, light bulbs

<p>Jar lid, drill, bolt, faucets, bottle caps, light bulbs</p>
18
New cards

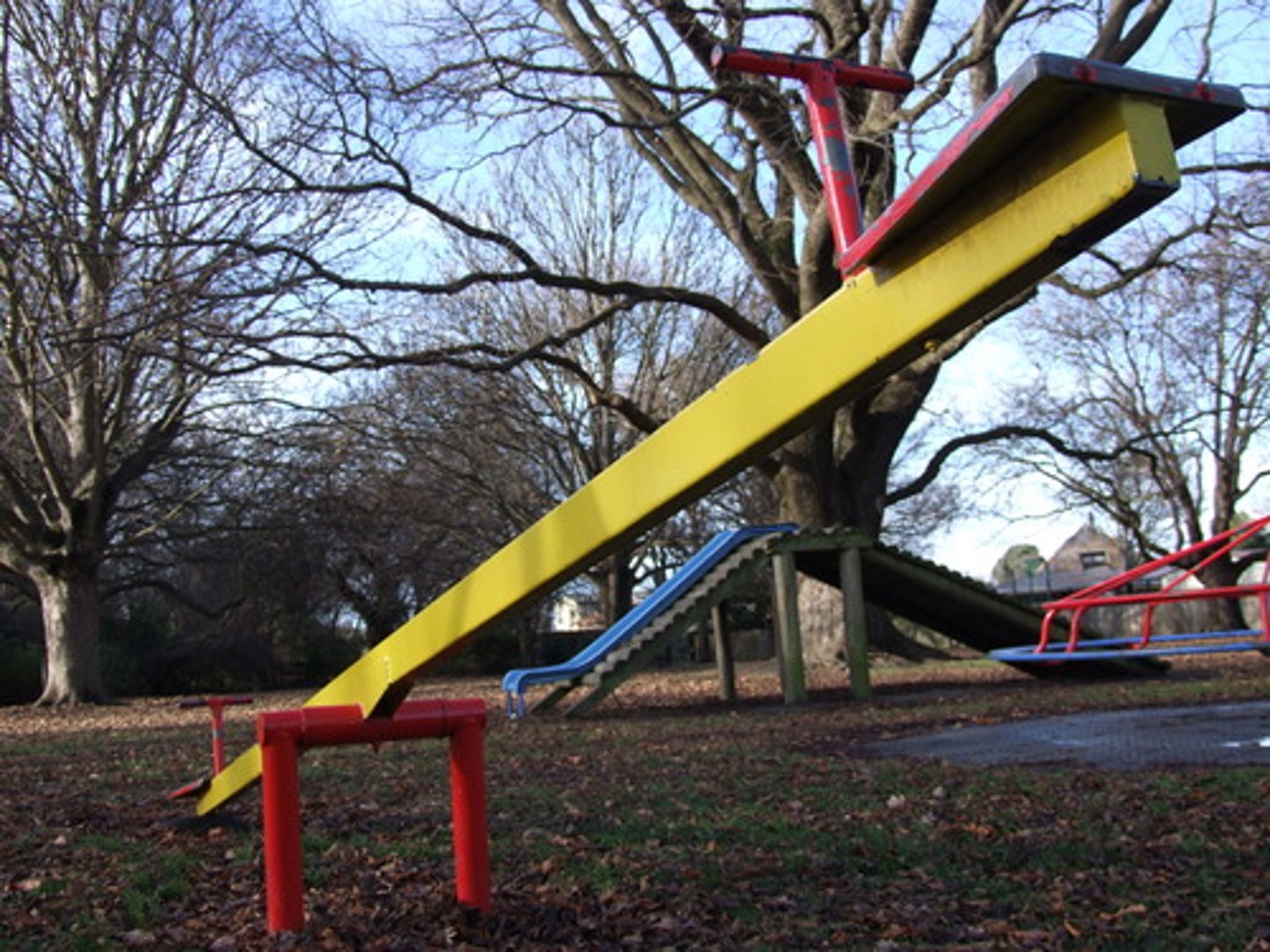

Lever Examples

Crowbar, Hammer, Teeter Totter, Tweezers

<p>Crowbar, Hammer, Teeter Totter, Tweezers</p>
19
New cards

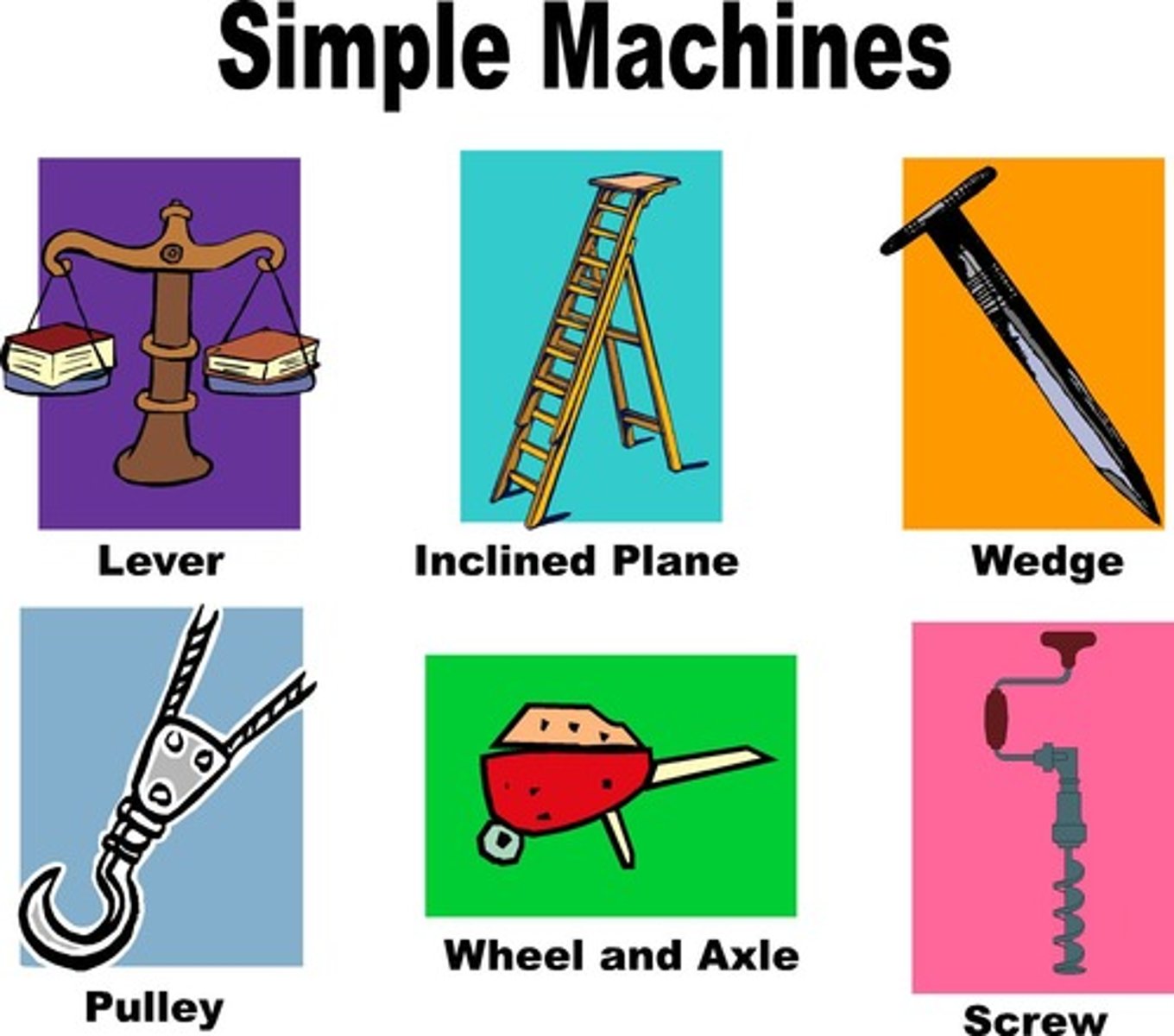

Simple Machine

A machine that does work with only one movement of the machine

<p>A machine that does work with only one movement of the machine</p>
20
New cards

Machine

A device that makes work easier
