12 Terms

1
New cards

Transmittance

dimensionless ratio of transmitted light to the incident light

2
New cards

If the molecule absorbs none of the electromagnetic radiation, the transmittance is

1 or 100%

3
New cards

Absorbance

a measure of the amount of light absorbed by a sample

4
New cards

Wavenumber

inverse of wavelength, therefore, a measurement of frequency. Higher values of wavenumber are equivalent to higher energy

5
New cards

Draw a line at 3000 cm-1

• sp2 C-H directly to the left

• sp3 C-H directly to the right

6
New cards

Intense stretches 3500 cm-1 to 3100 cm-1 can only mean four things

alcohol, primary amine, secondary amine, terminal alkyne, carboxyllic acid

7
New cards
term image

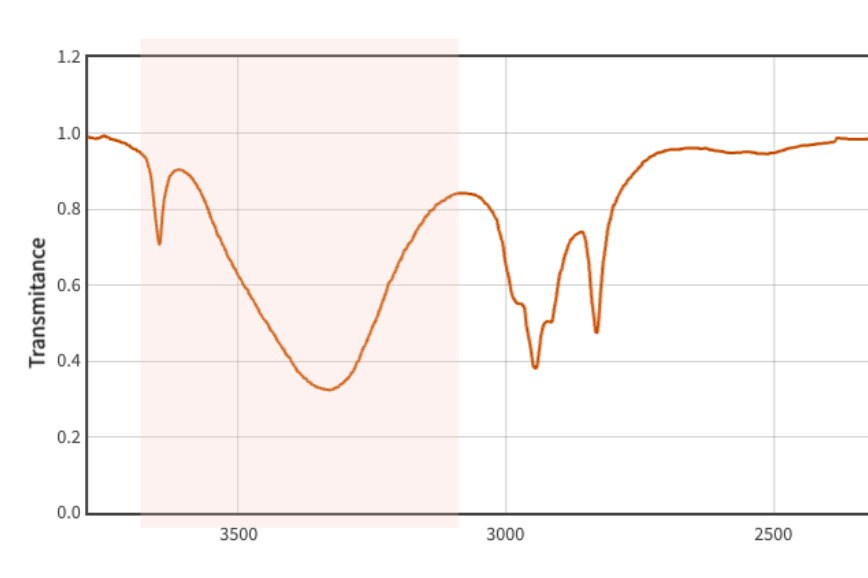

alcohol

8
New cards
term image

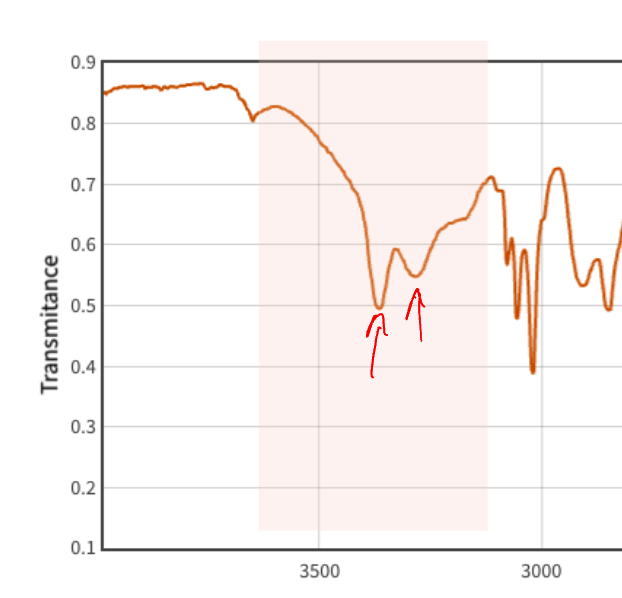

primary amine

9
New cards
term image

secondary amine

10
New cards
term image

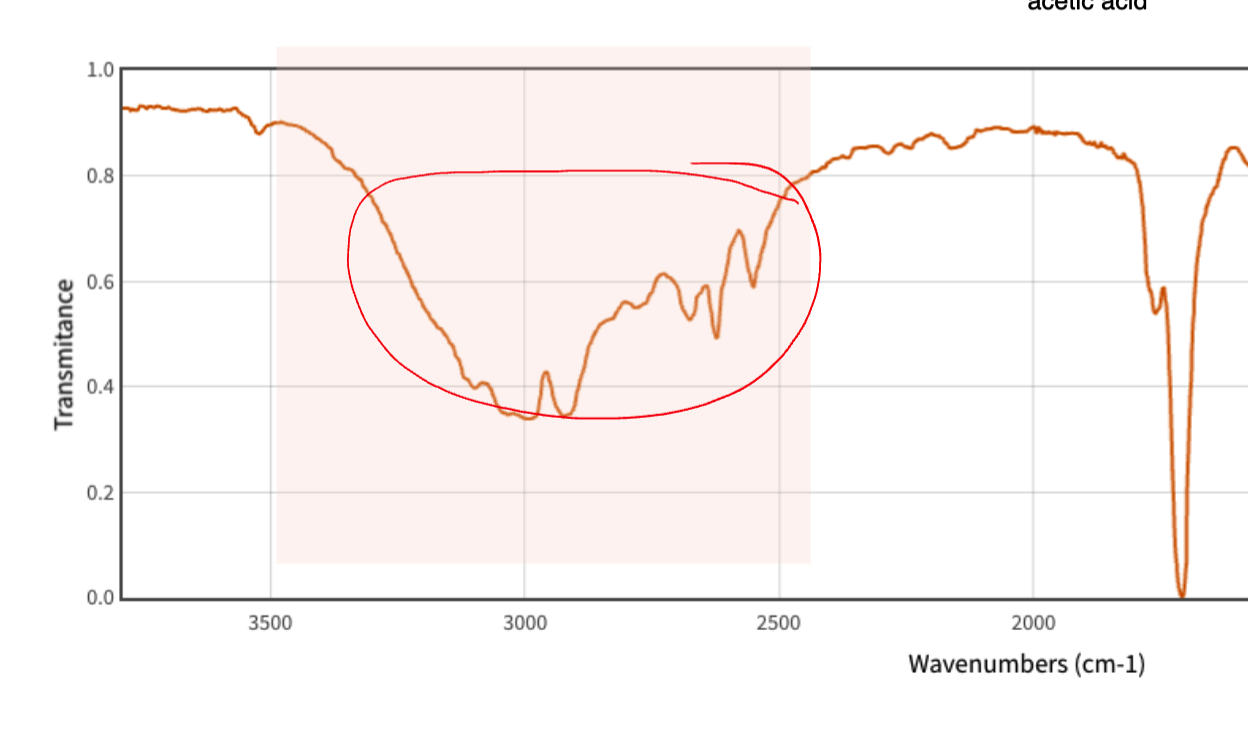

carboxylic acid

11
New cards
term image

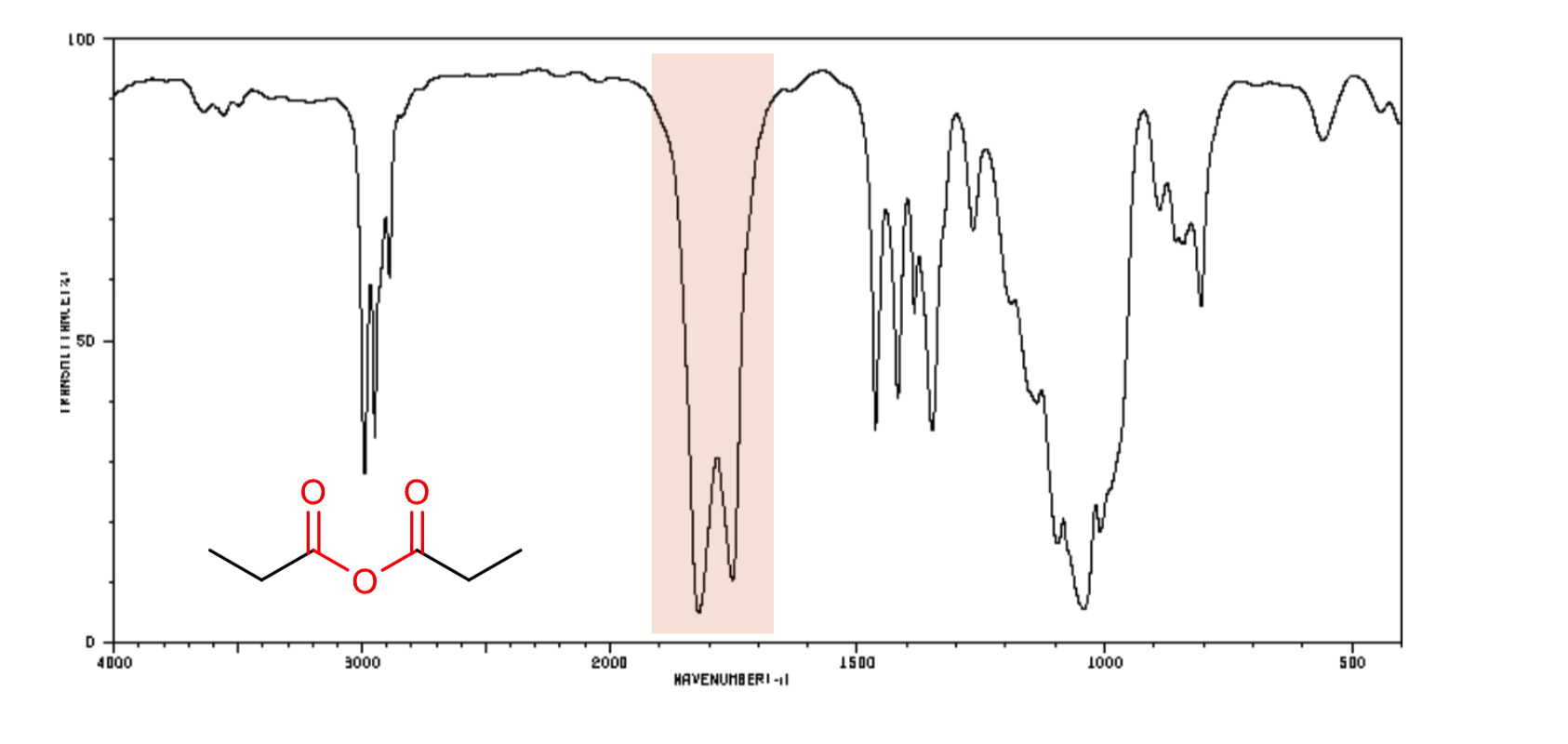

Anhydrides show a C=O doublet due to the out of phase C=O stretch

12
New cards
term image

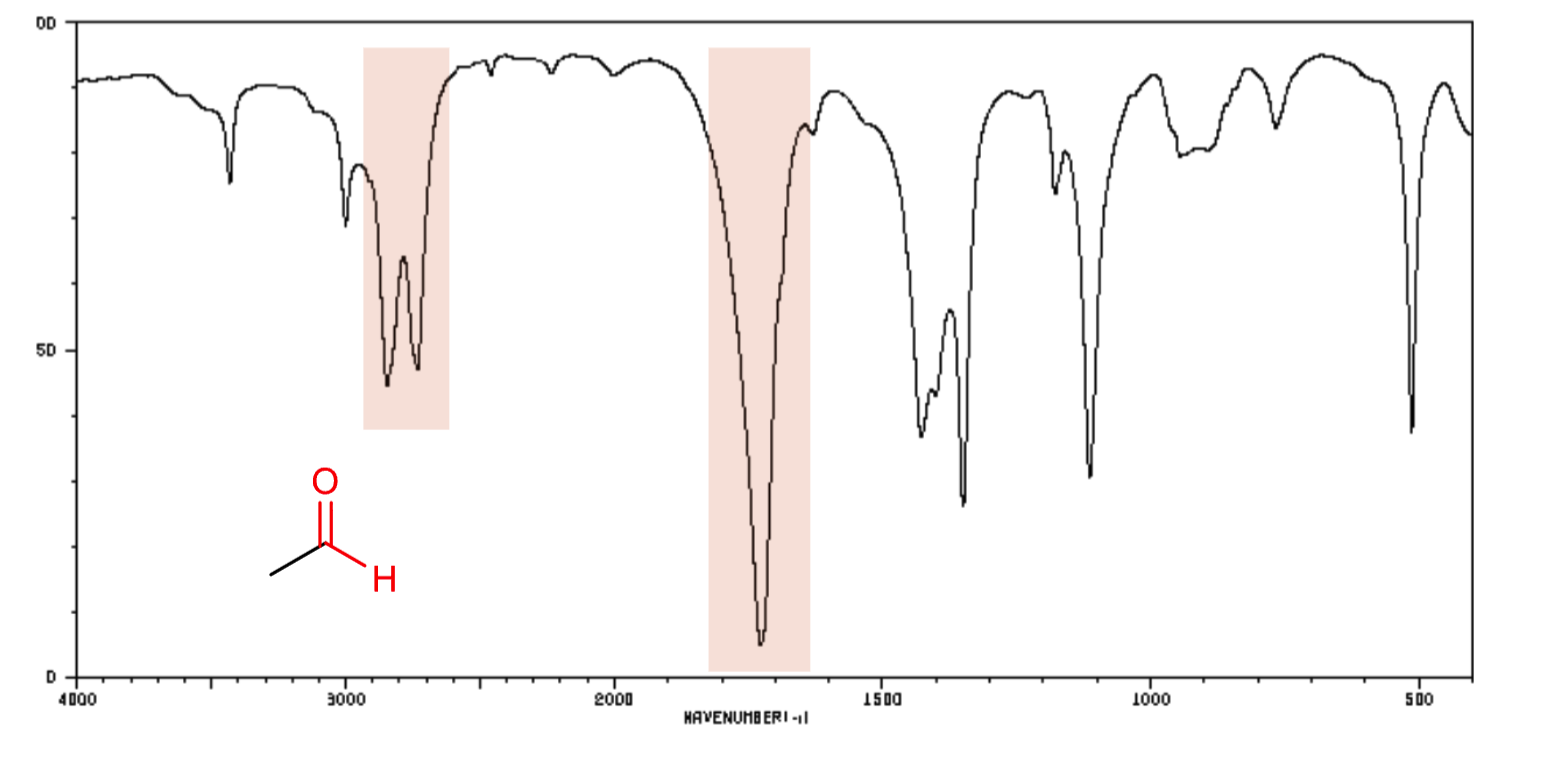

Aldehydes have a characteristic doublet at 2800 cm-1 and 2700 cm-1
