15 Terms

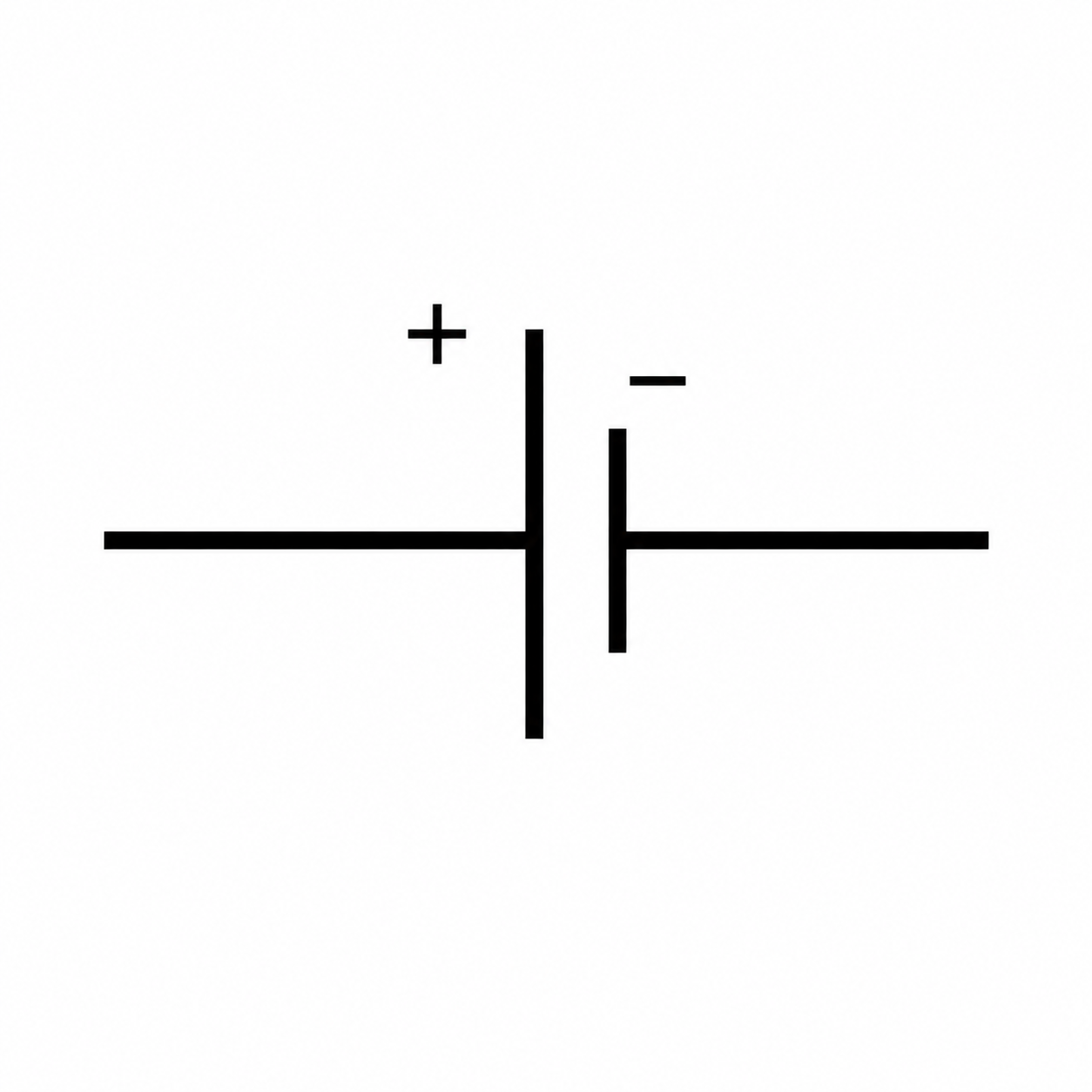

Cell
The cell provides a voltage to the circuit.
Battery
A battery is made up of 2 or more cells and provides the total voltages of all the cells added together

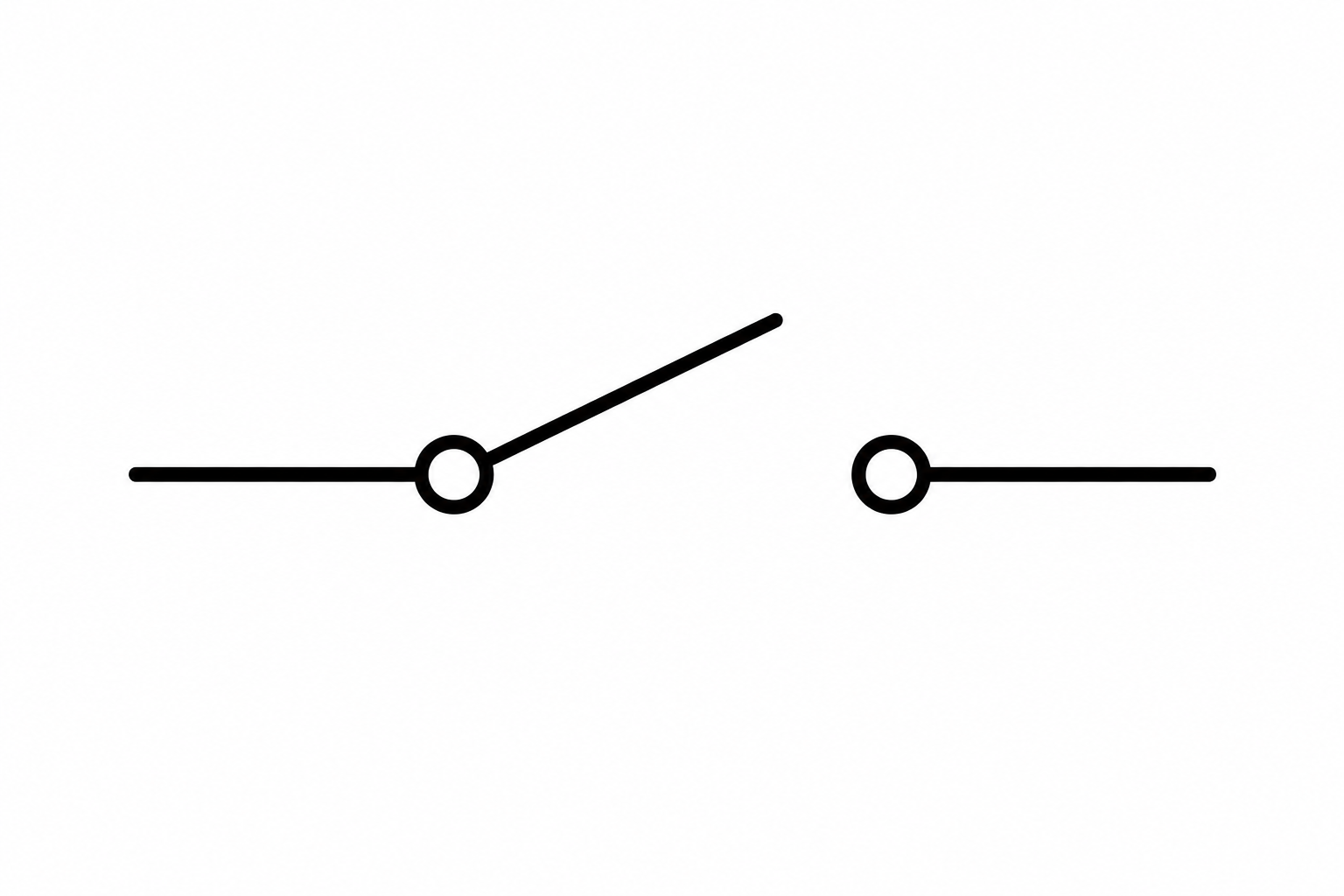

switch (open)
A switch controls the circuit on/off (off position)

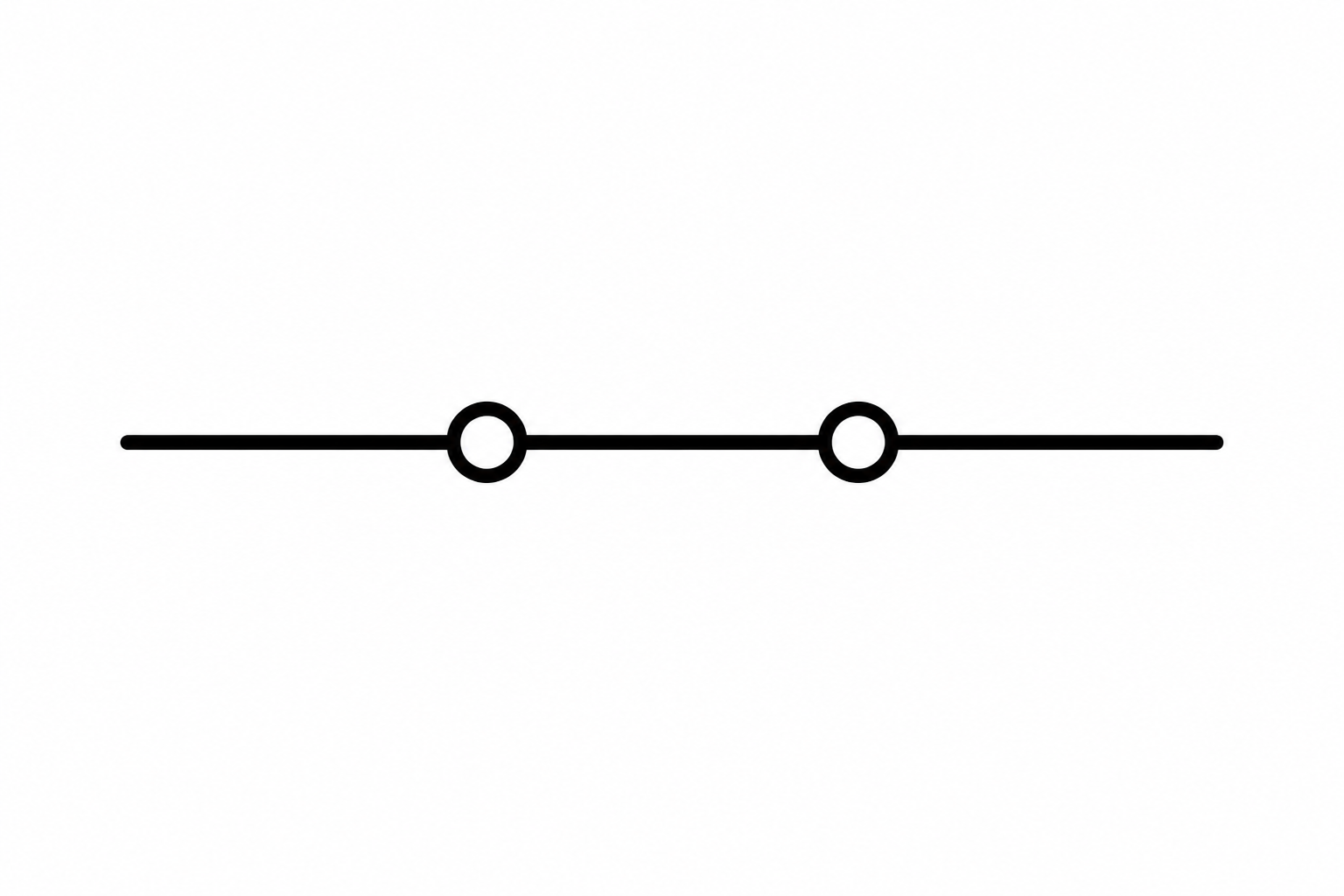

switch (closed)
A switch controls the circuit on/off (on position)
wire
A wire carries the charge around the circuit

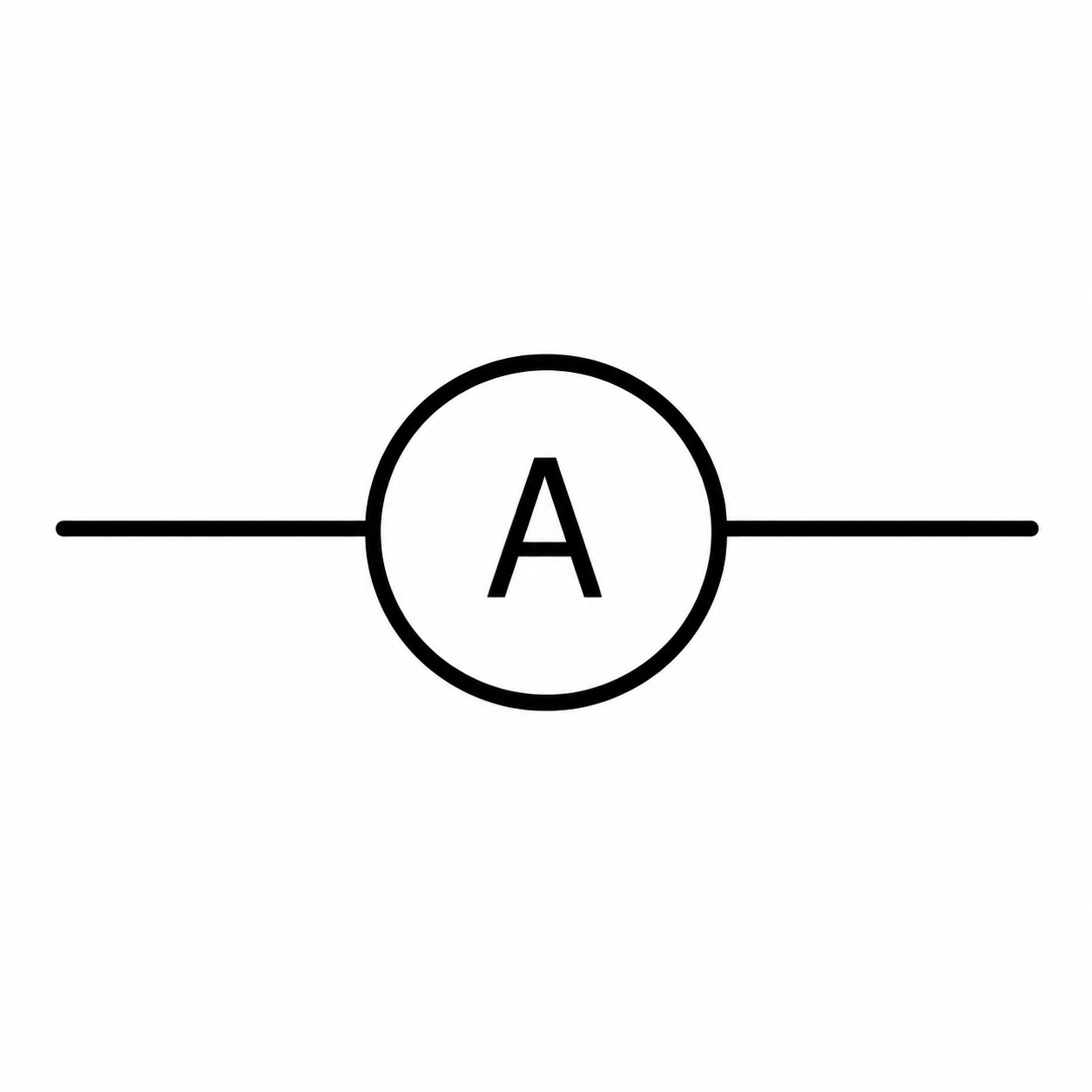

Ammeter
An Ammeter measures the current and connects to circuit in series

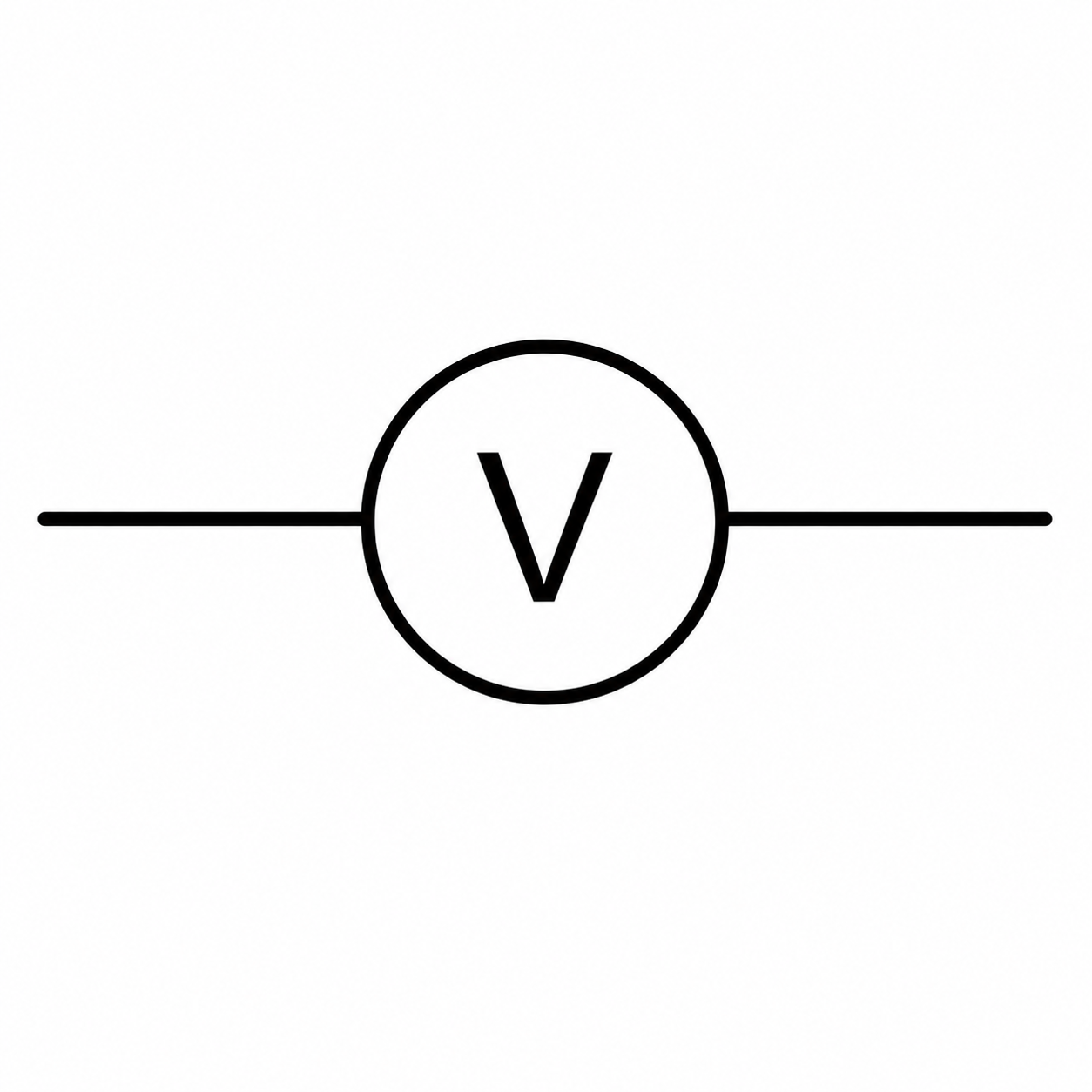

Voltmeter
A voltmeter measures the voltage and connects to a series in parallel (a different loop)
Fixed resistor
A fixed resistor provides a base of resistance onto a circuit

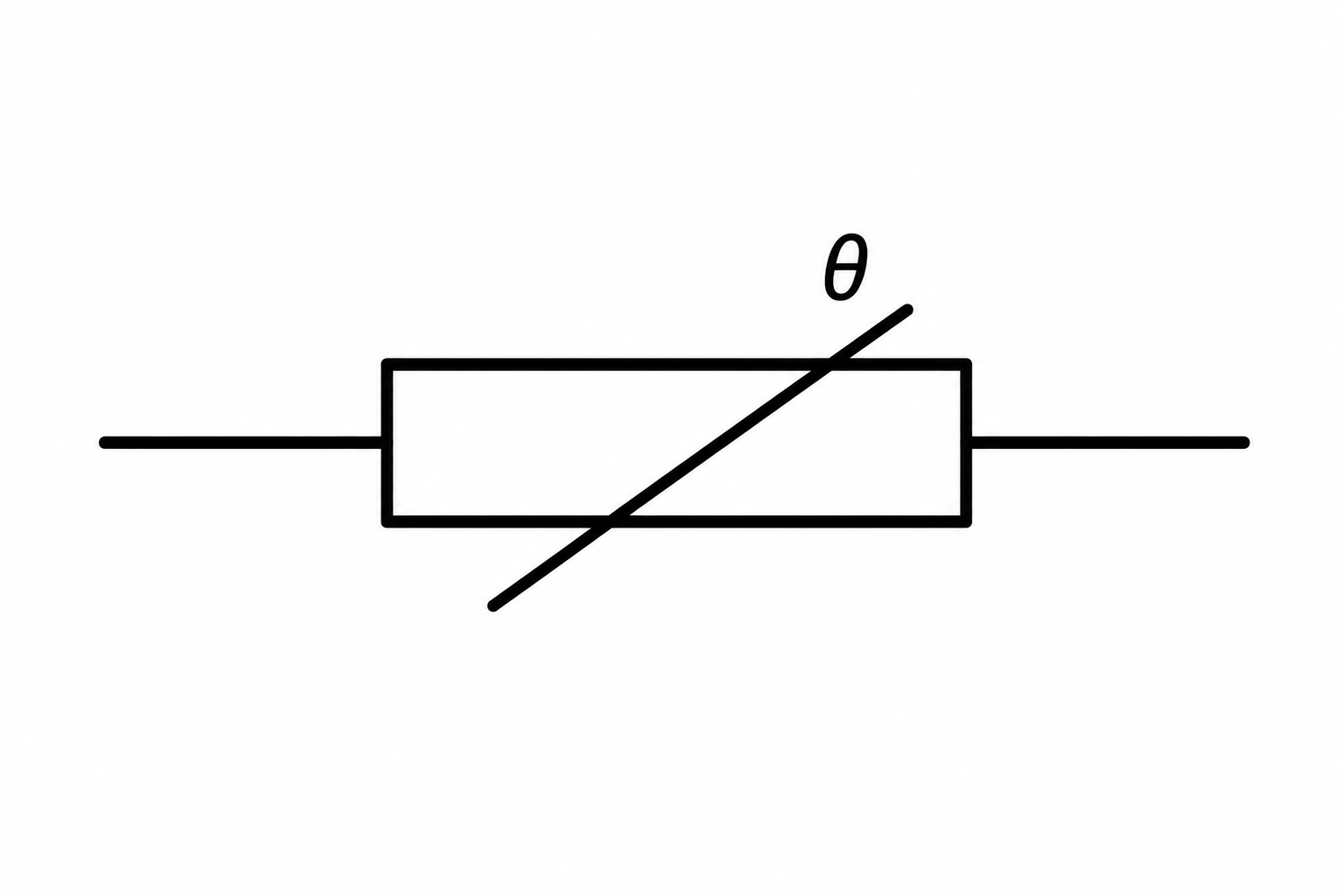

Thermistor
A thermistor provides resistance that can change based on temperature

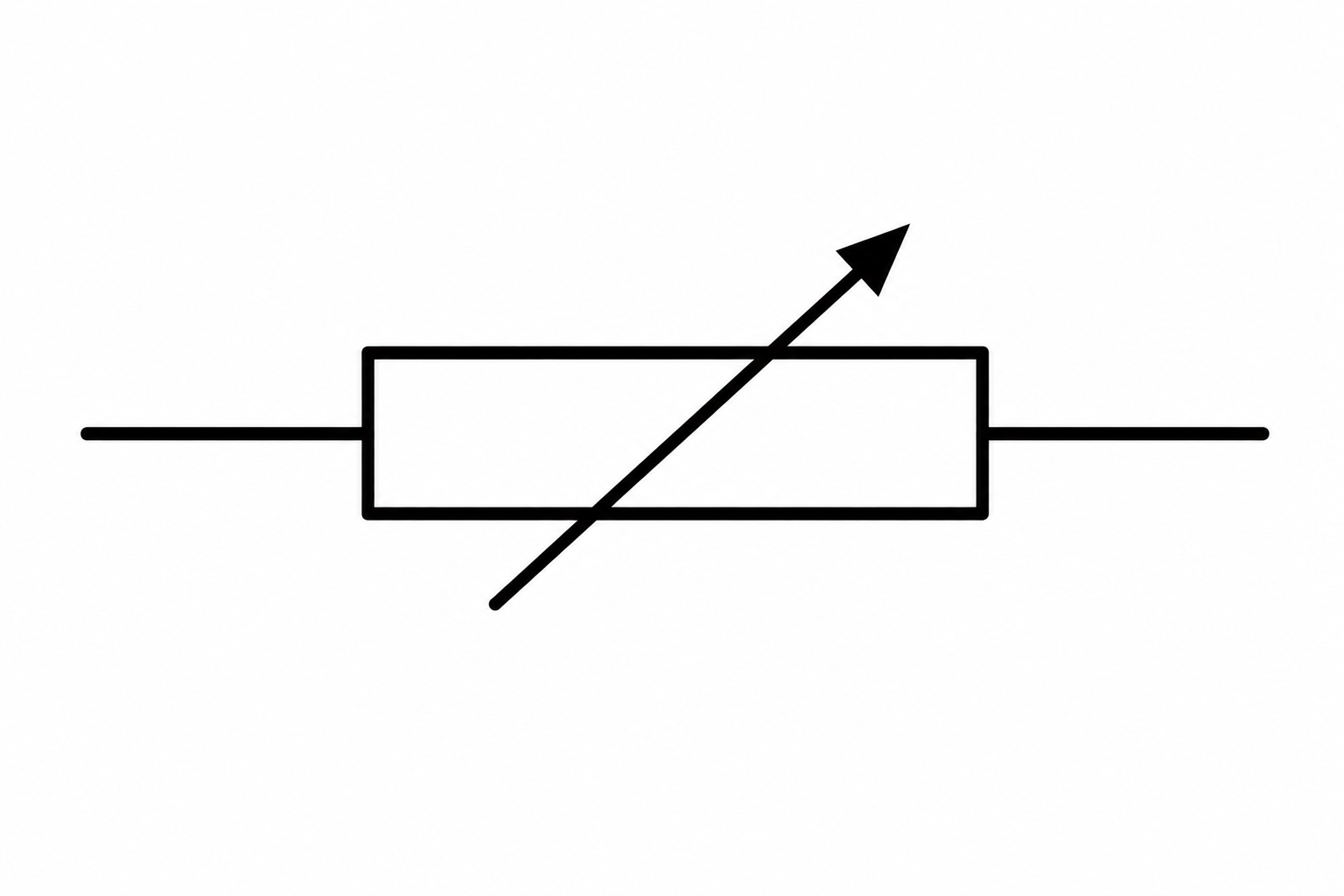

Variable resistor
A variable resistor provides resistance that can be changed with a slider

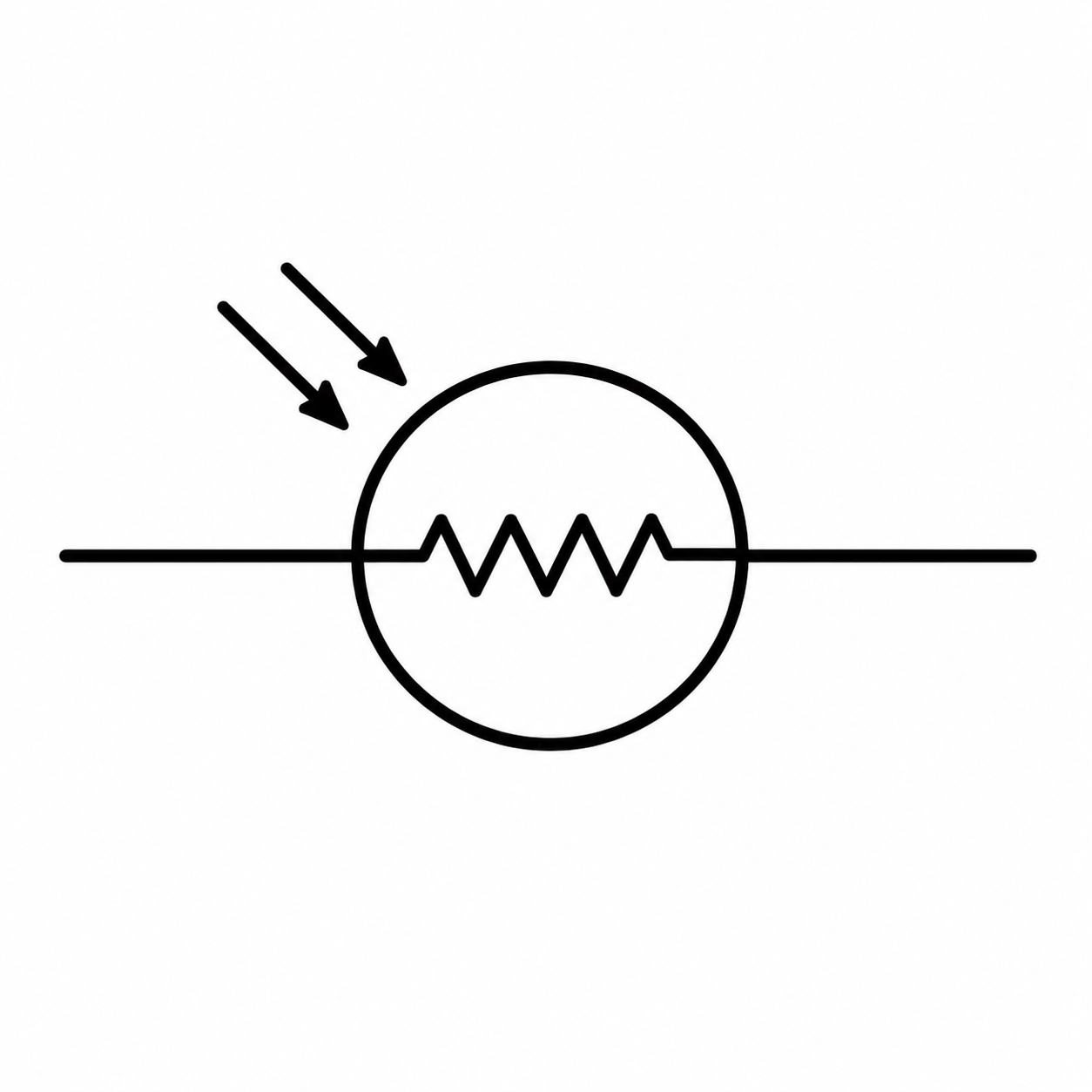

Light dependent resistor (LDR)
A light dependent resistor (LDR) provides resistance that changes based on light

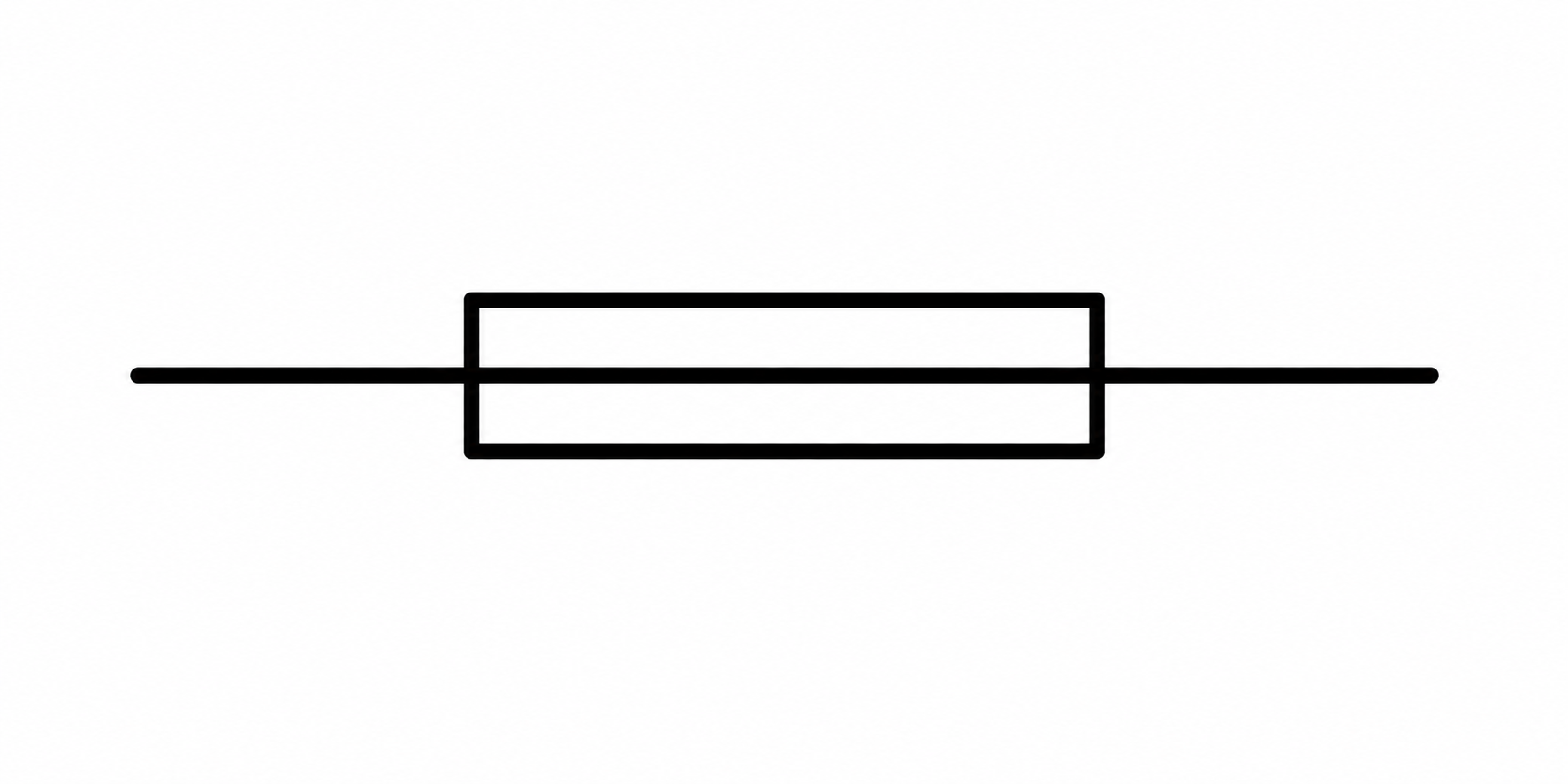

Fuse
A fuse is a safety precaution that has thin wire which melts if current is too high turning off the circuit

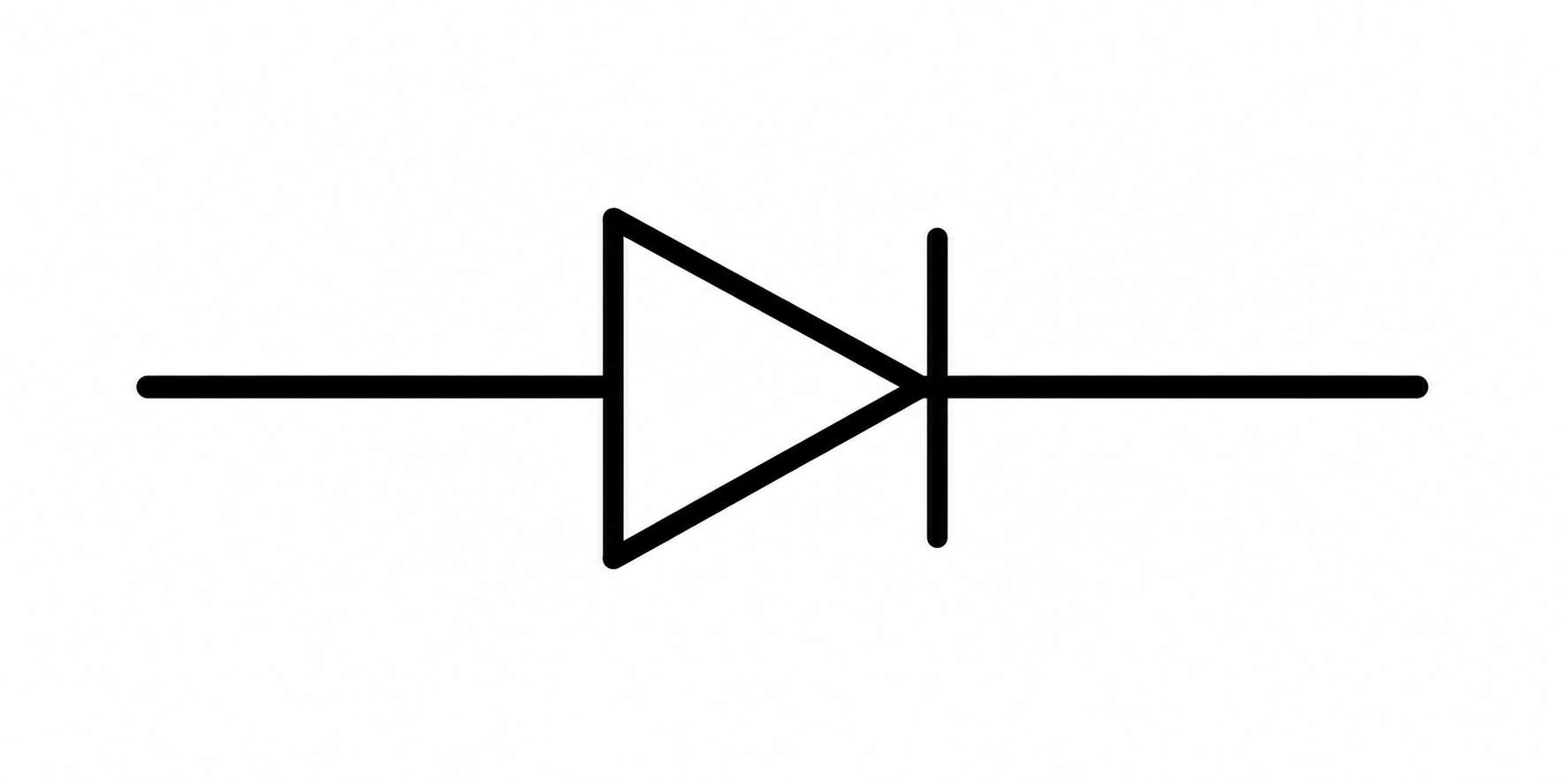

Diode
A diode only allows current to pass through in one direction

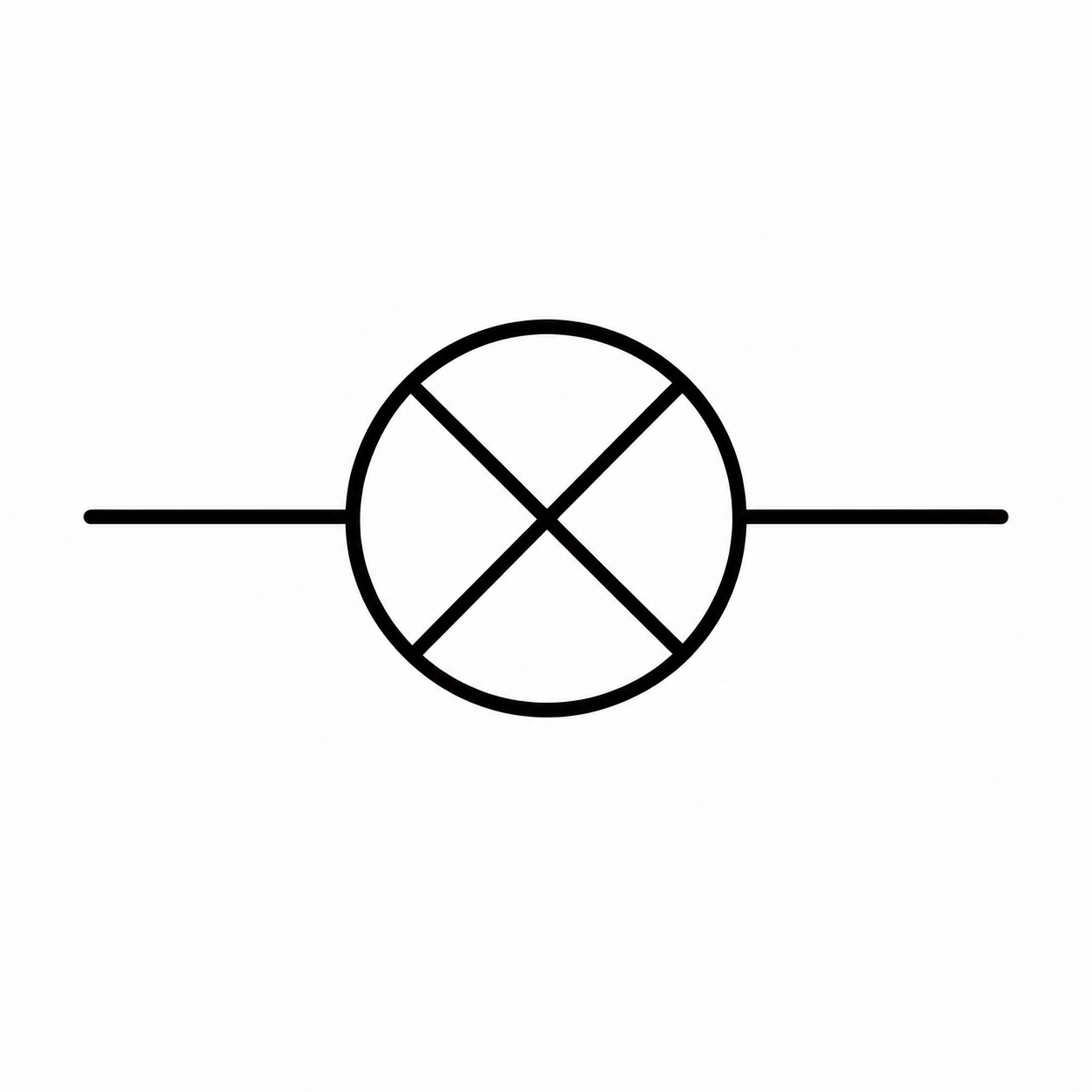

Lamp/bulb
A lamp/bulb lights up using electrical energy

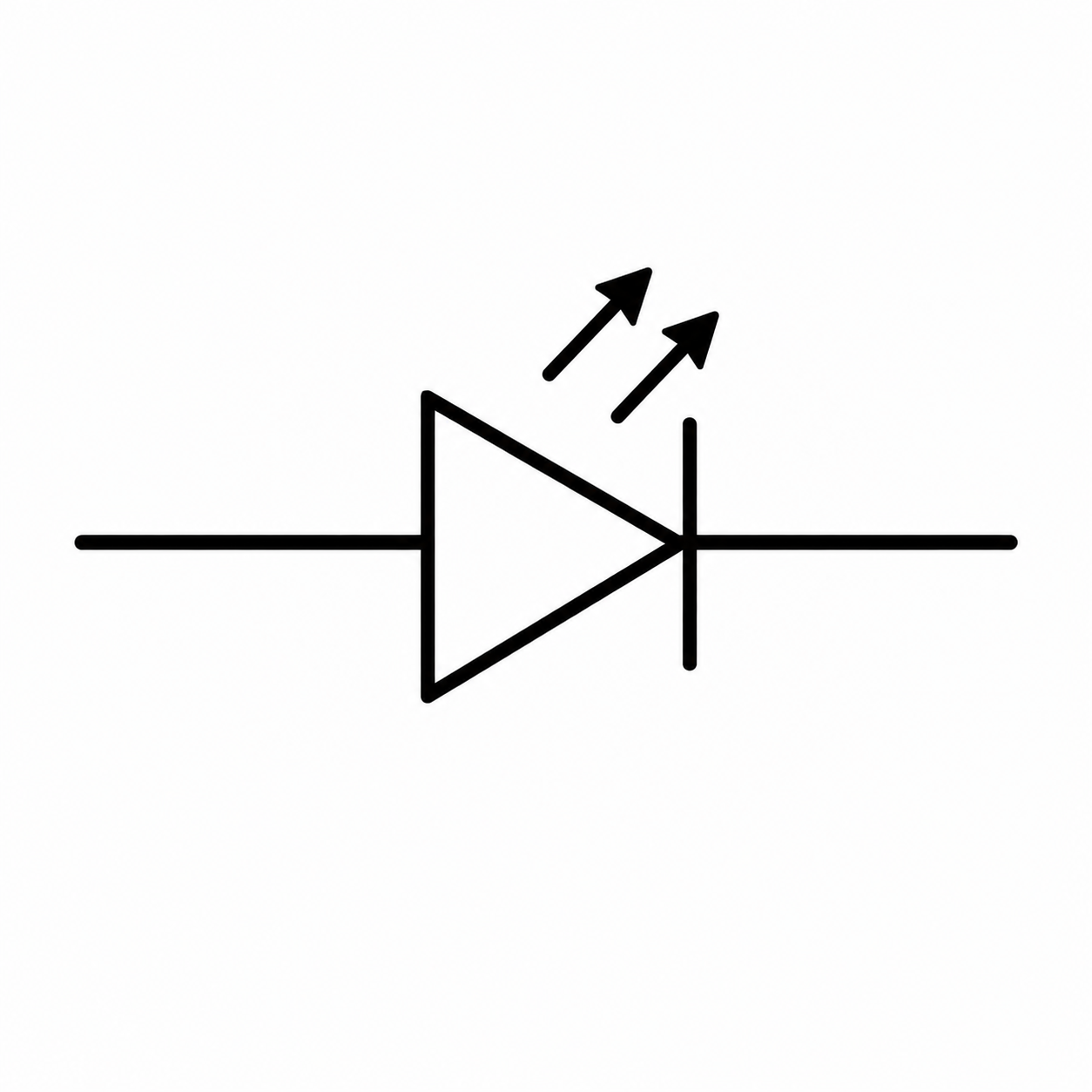

Light emitting diode (LED)
A light emitting diode (LED) lights up using electrical energy but is also a diode (flashcard 13)
