TOOLS 136th

Large Claw Bar

1. Light prying

2. Stripping

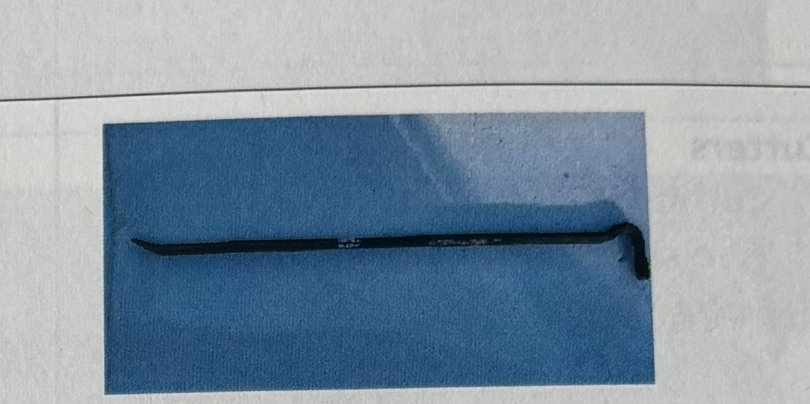

Crow Bar

1. Heavy prying

2. Lifting

Heeler Bar

1. Heavy prying

2. Lifting

Halligan Hook

1. Removing Skylights, security bars, scuttles

2. Sound roofing

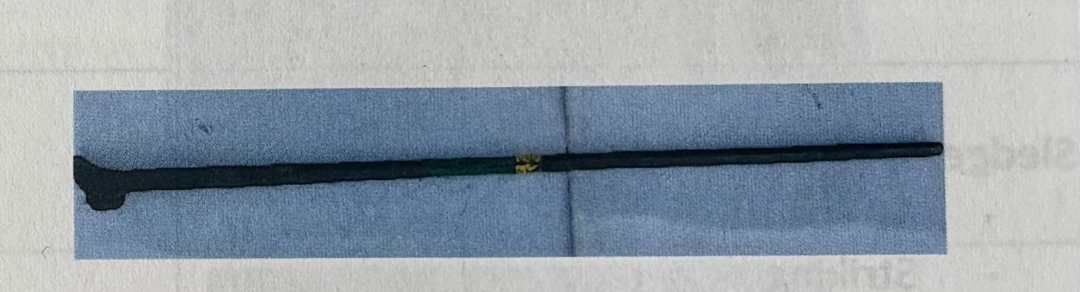

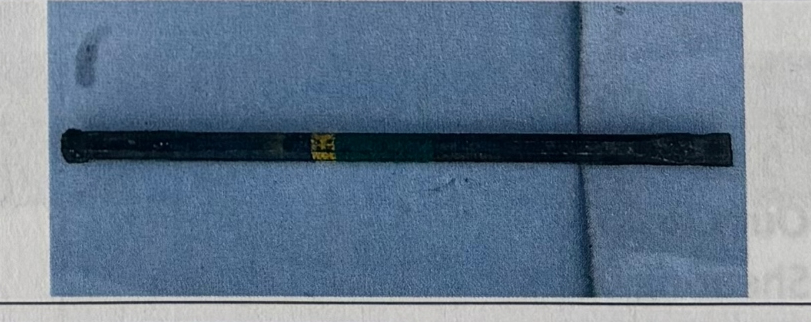

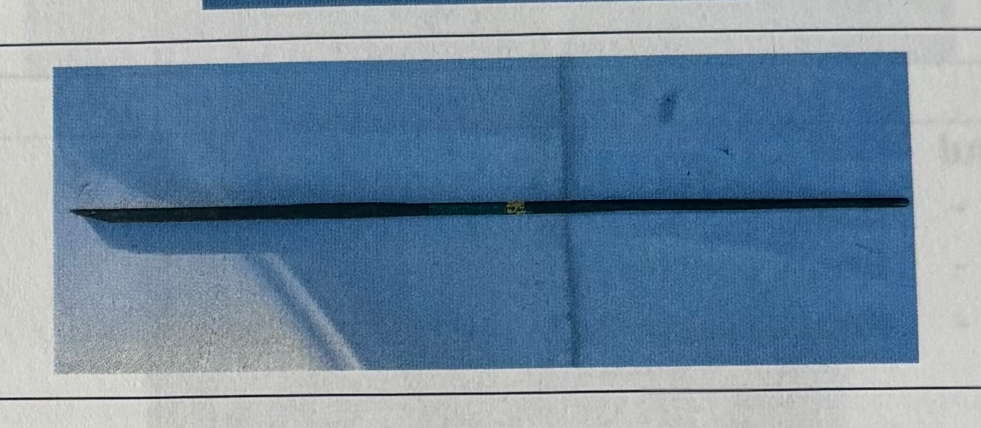

Slice Bar

1. Forcing out rivets/bolts

2. Knocking out deadlights

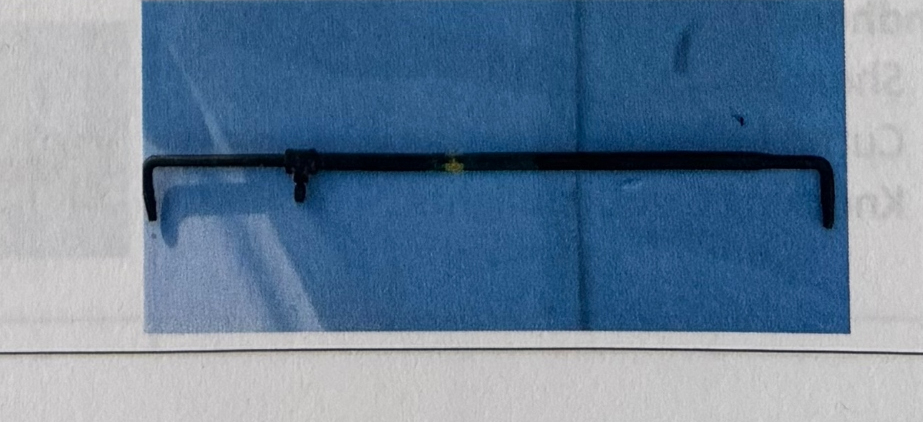

Trapdoor Spreaders

1. Holding open trapdoors

2. Fall protection

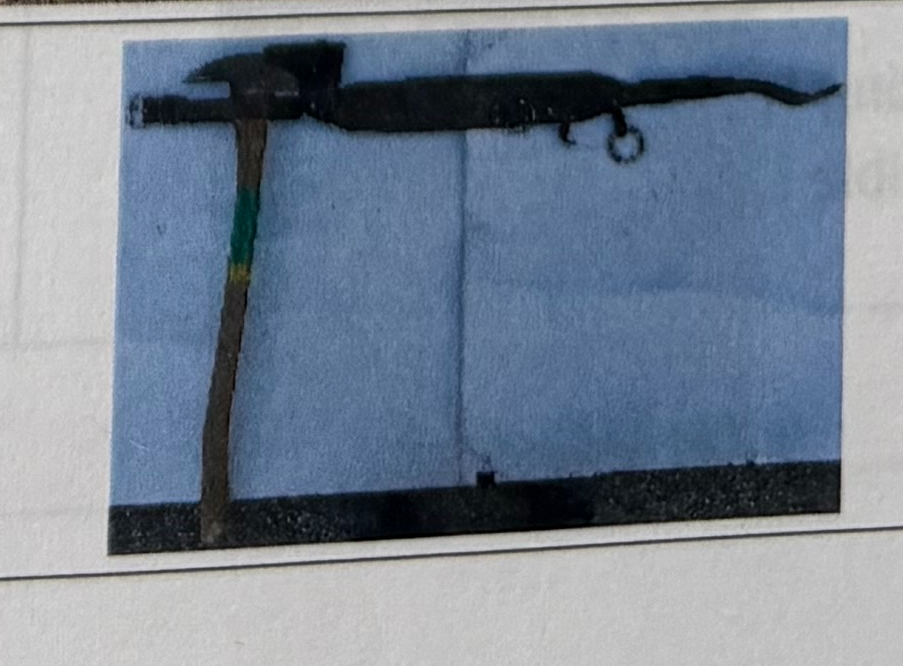

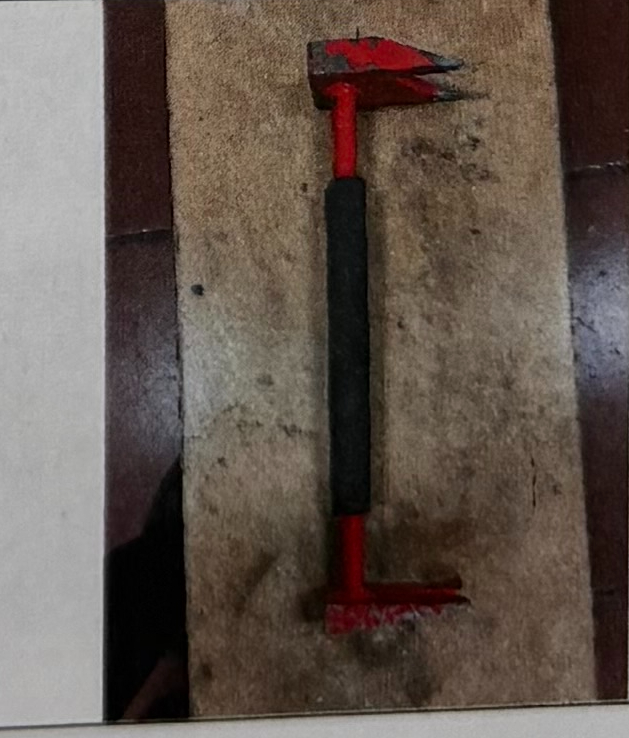

Halligan

1. Forcible entry

2. Forks for sheering locks

3. Parts: pick, fork, adze

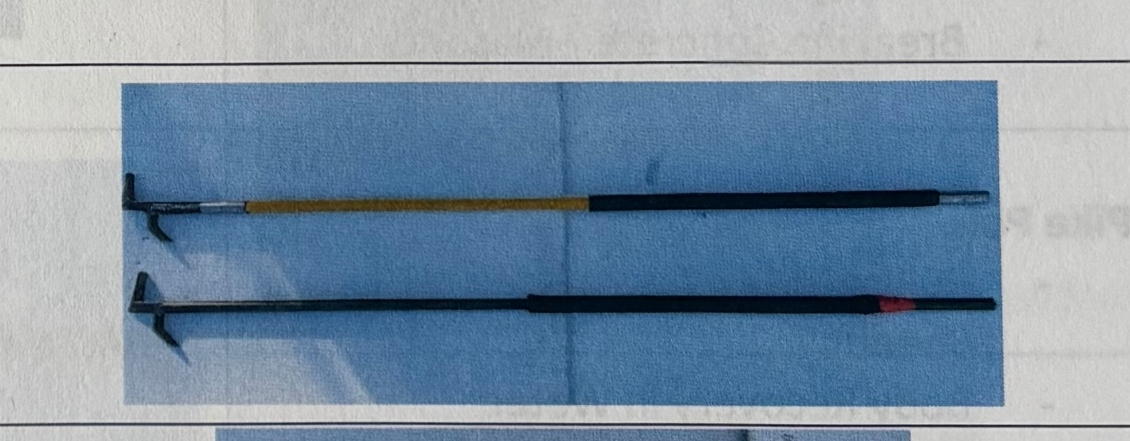

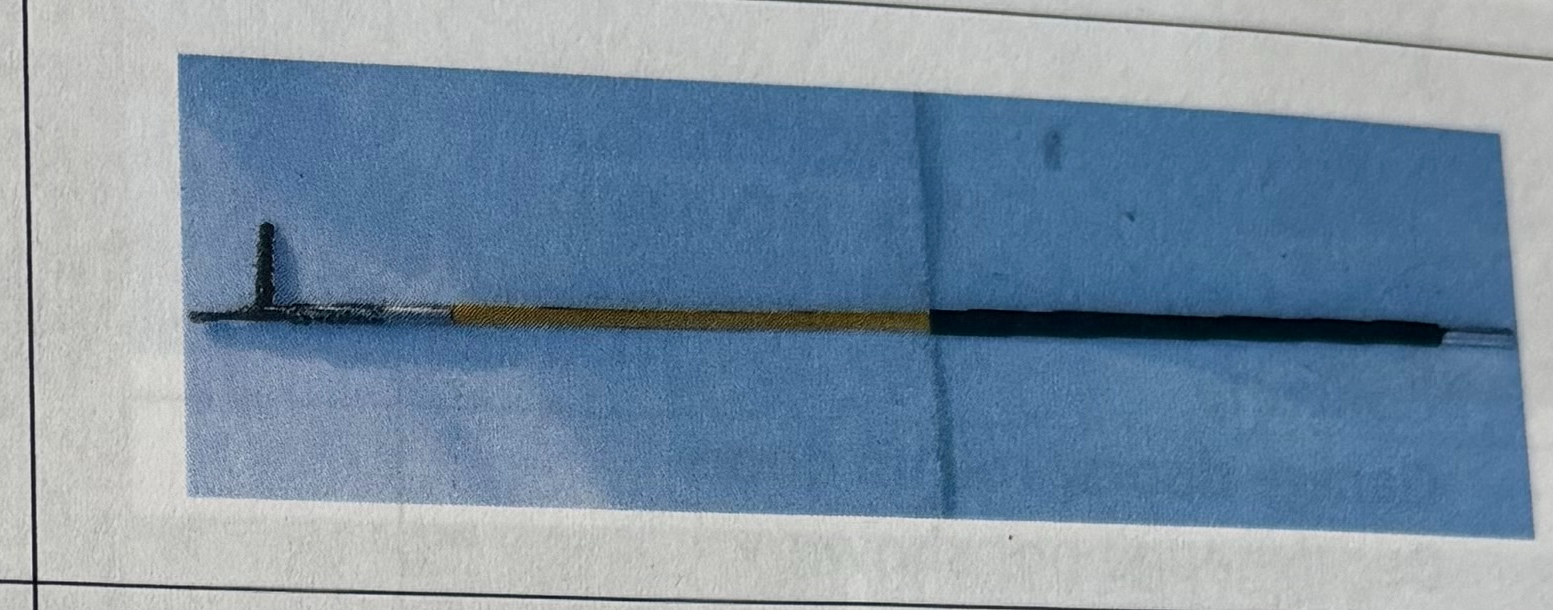

Ceiling Hook SF style

1. Overhaul: Pulling ceiling/ walls

2. Checking for Extension

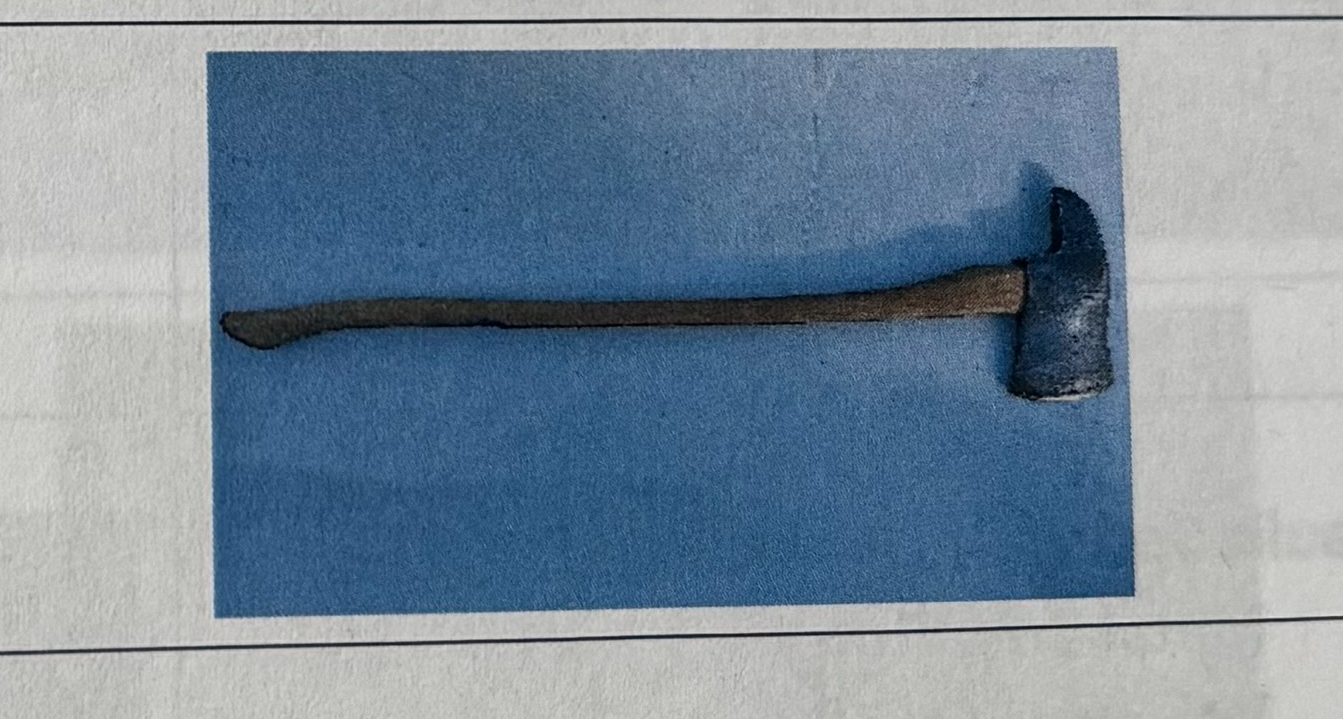

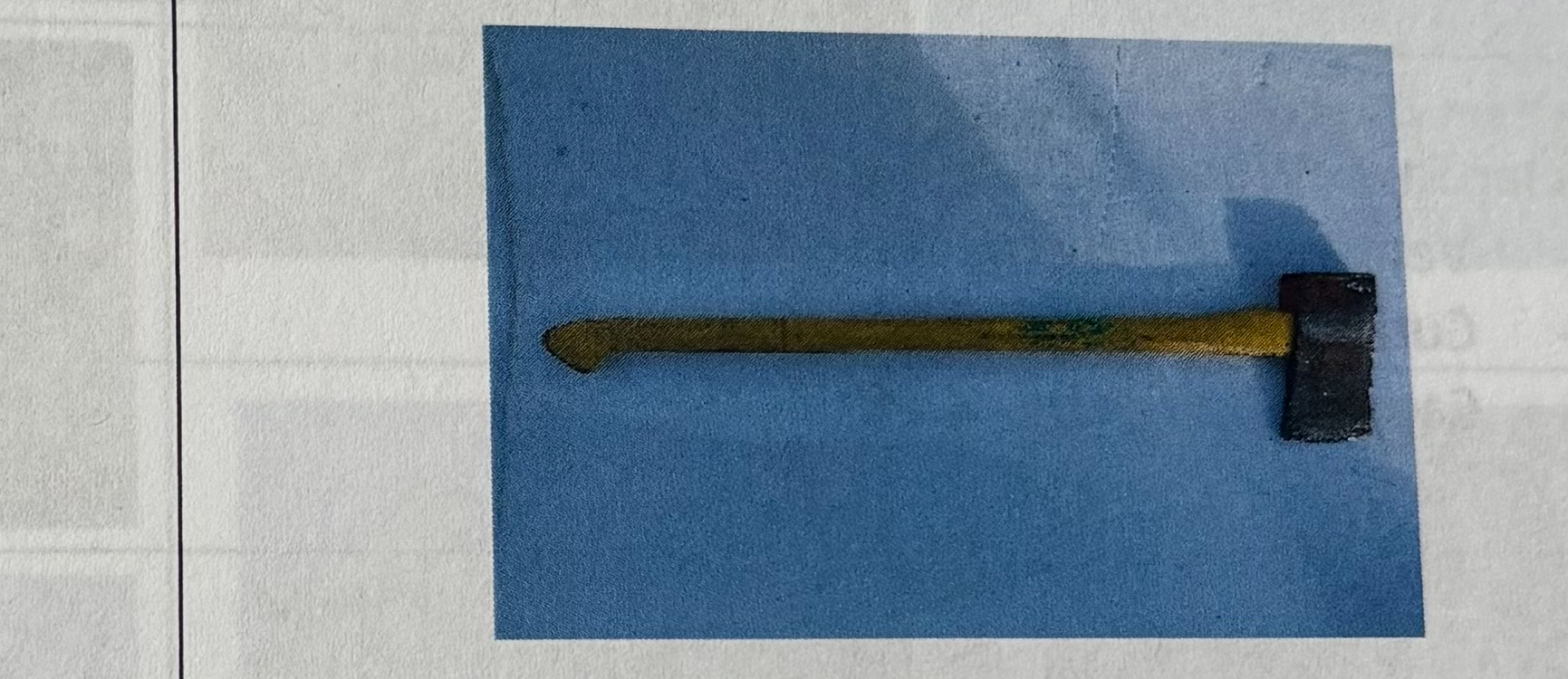

Flat Head Axe, 8lbs

1. Vertical Ventilation

2. Overhaul

3. Poly handle

Pick Head Axe

1. Vertical Ventilation

2. Overhaul

Battering Rams: Standard/ High rise

1. Breaching walls

2. Forcing doors open

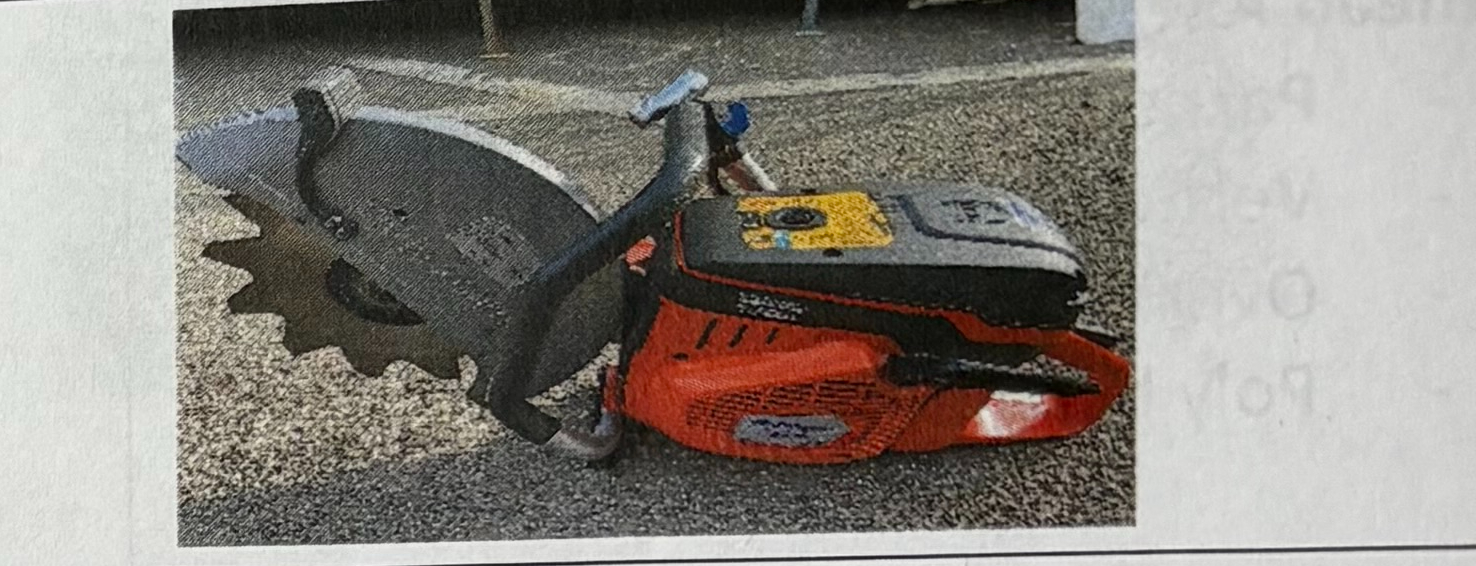

Vent Master 572

1. Ventilation (vertical/horizontal)

2. No trees

3. No sharpening

4. Carbide Teeth

5. Teeth are replaceable

6. Depth gauge is removable

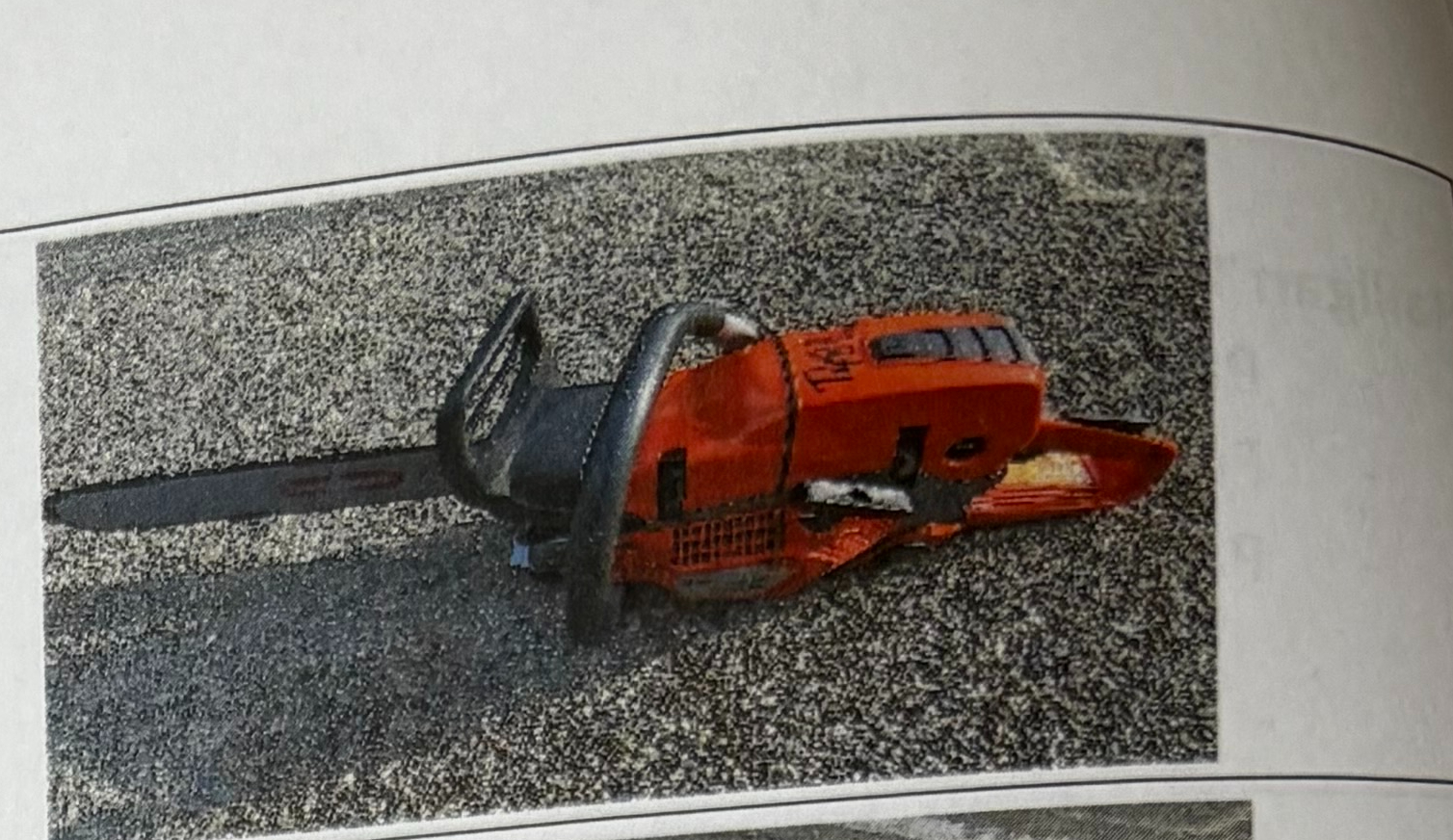

Saw

1. Overhaul

2. Cutting downed trees

3. sharpen

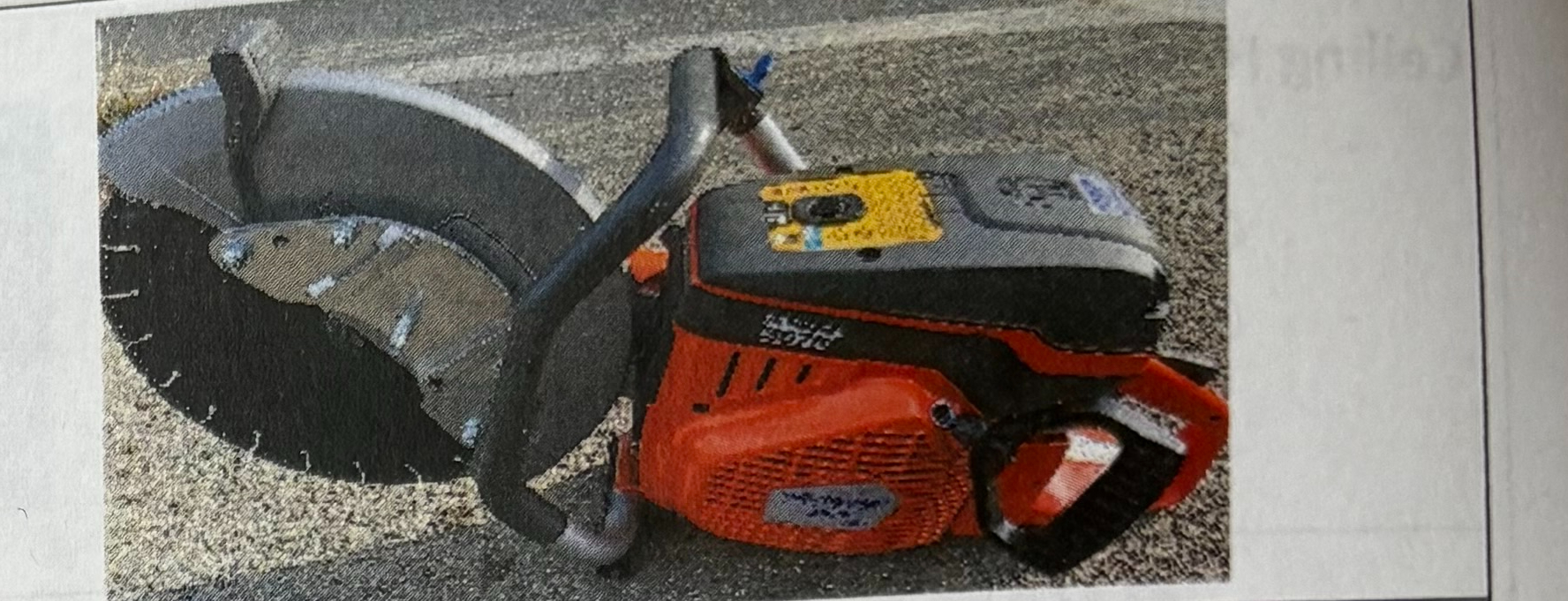

Circular Saw- Desert Diamond Blade

1. Cutting; metal gates, bars, locks, chain link fences

2. concrete

3. garage doors/ roll up doors

Circular Saw- Wood cutting

1. Vertical Ventilation (flat roofs)

2. Cutting wood doors

3. Carbide tip teeth

Rabbet Tool

1. Elevator doors

2. Forcible entry

3. Metal doors

Hydraulic Spreaders

1. Metal door entry

2. vehicle extrication

3. elevator doors

4. M-28 Battery (28volt)

Ram Bar Chisel

1. Removing rivets

2. Breaking concrete

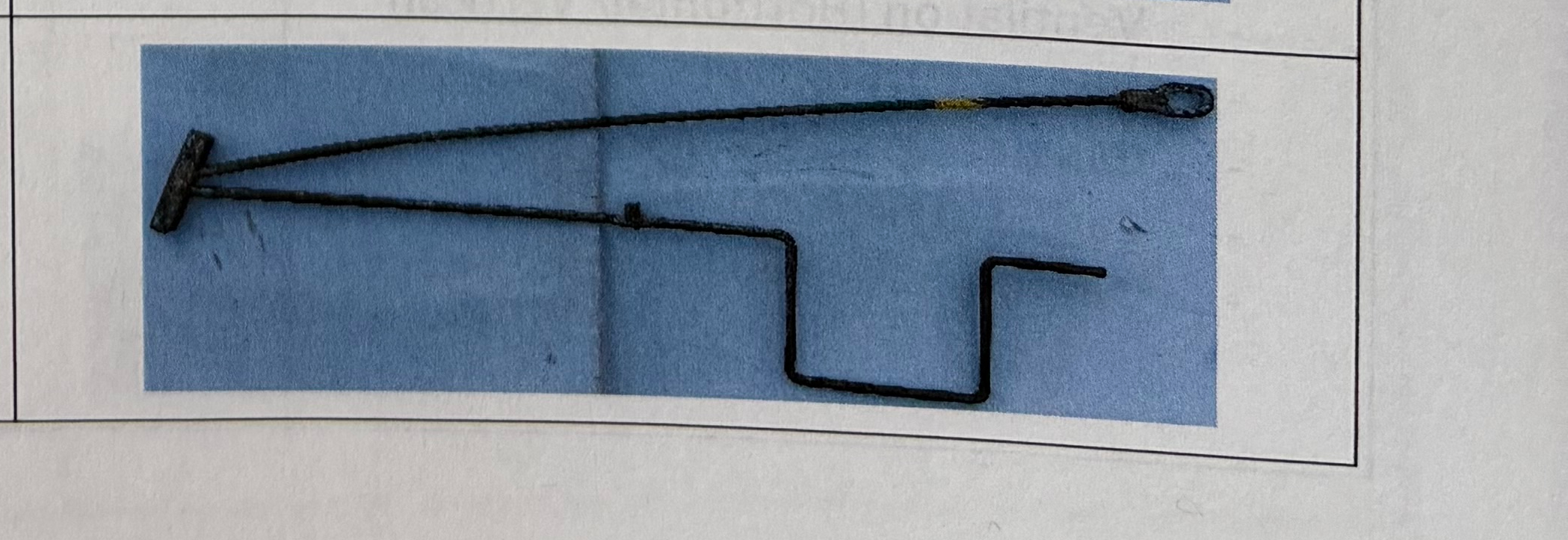

Awning

1. Opening retractable awnings

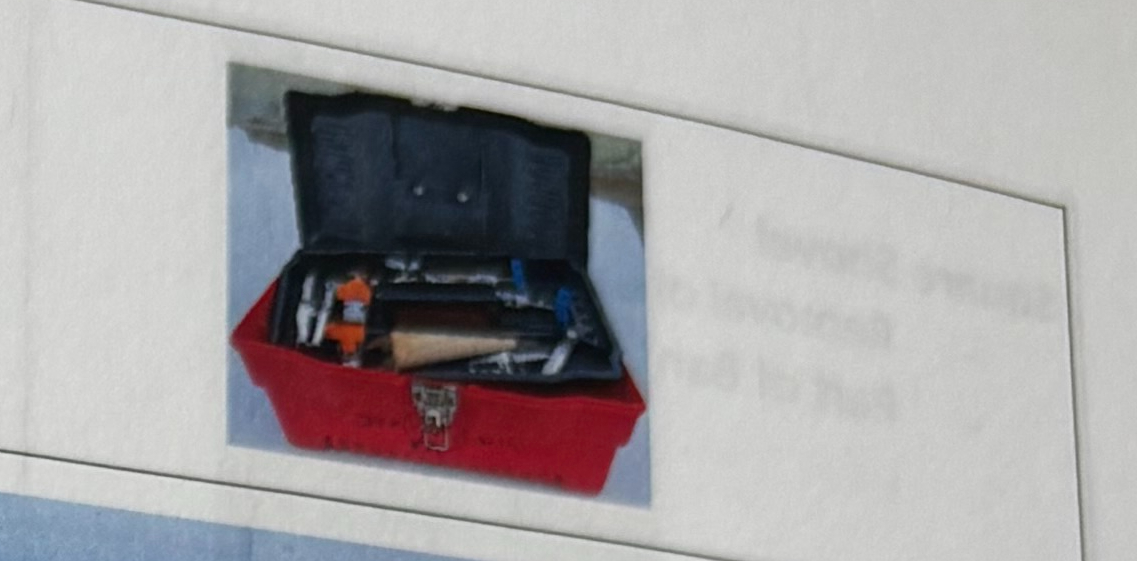

Sprinkler Kit

1. Plug a broken sprinkler head

2. replace sprinkler head

3. Redwood plugs

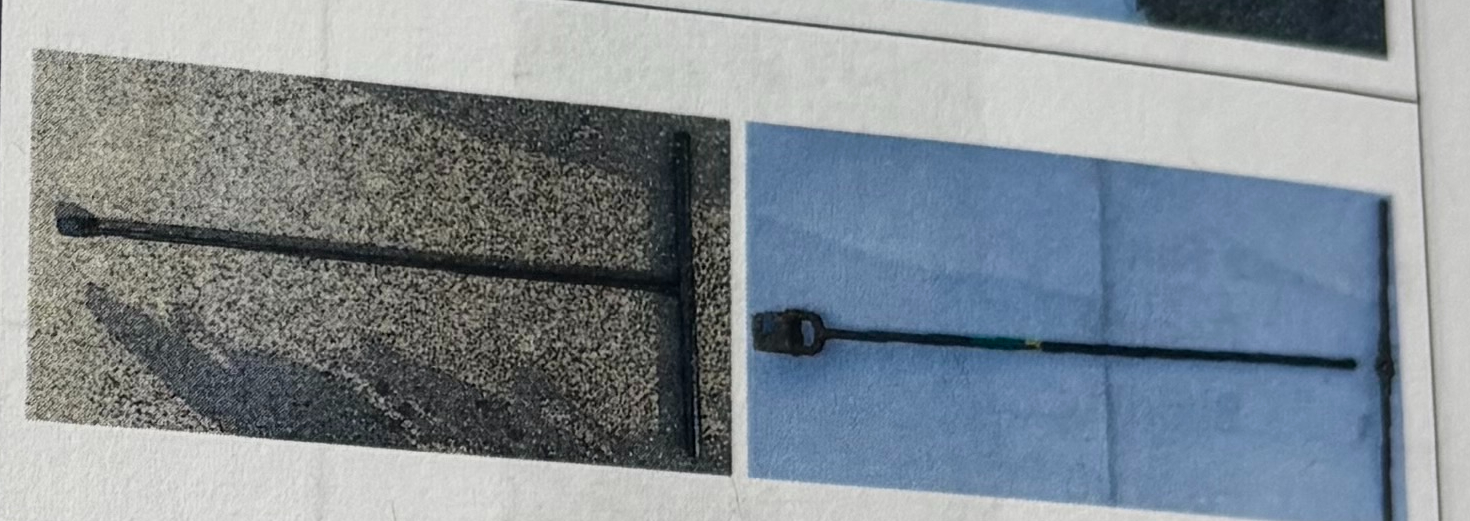

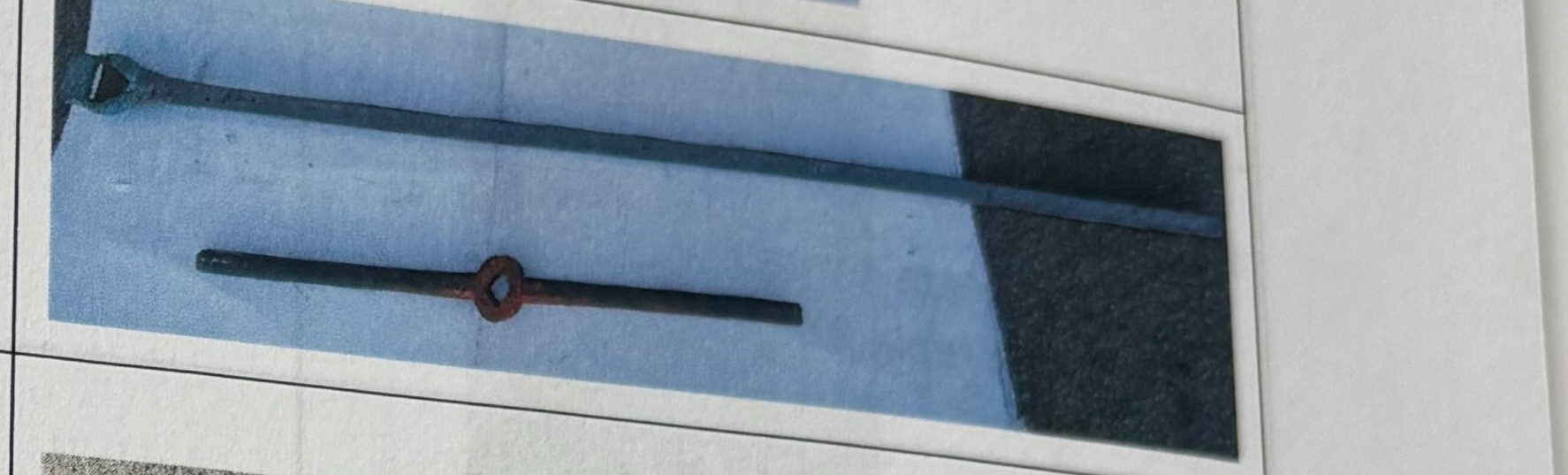

High pressure hydrant Shut OFF

1. Shutting off High pressure hydrant

2. stored on Trucks

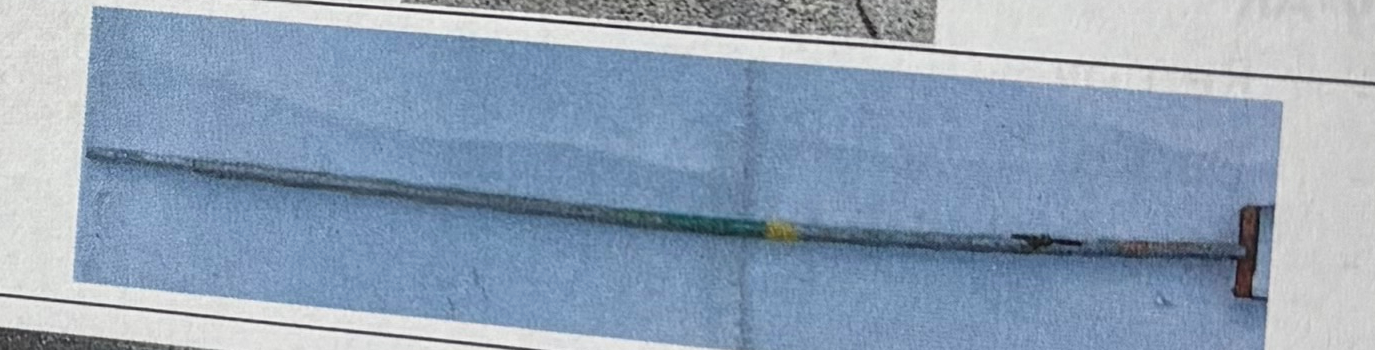

Low pressure Hydrant Shut OFF

1. Shutting OFF low pressure hydrant

2. T-handle extension

Carry All

1. Removal of Overhaul debris/people

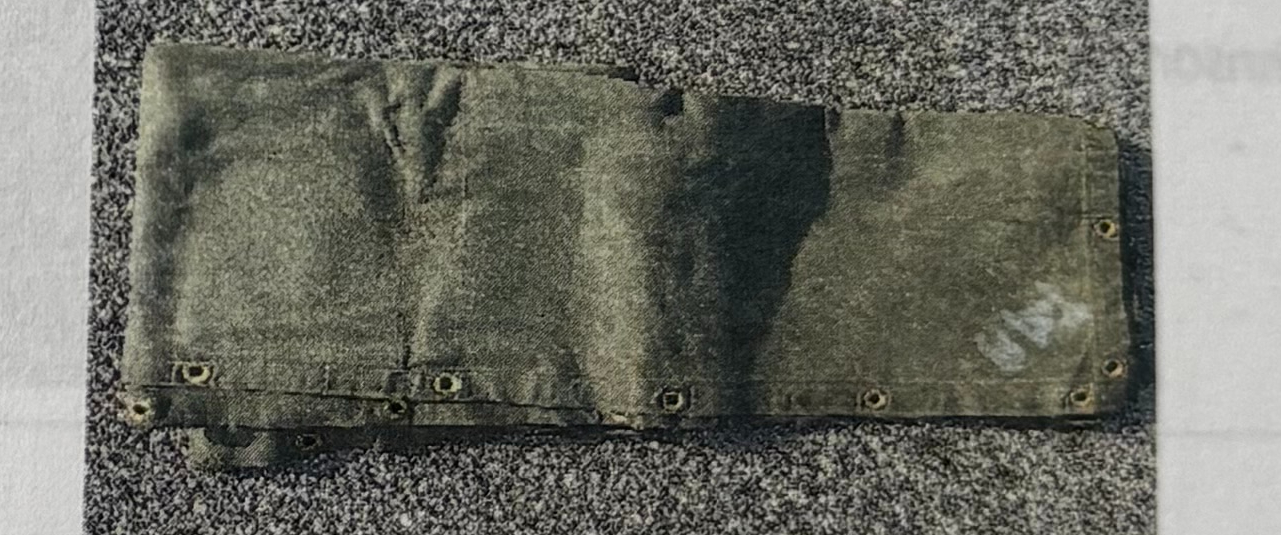

Salvage Cover/ Roof tarp

1. Covering roof openings

2. Cover items from rain

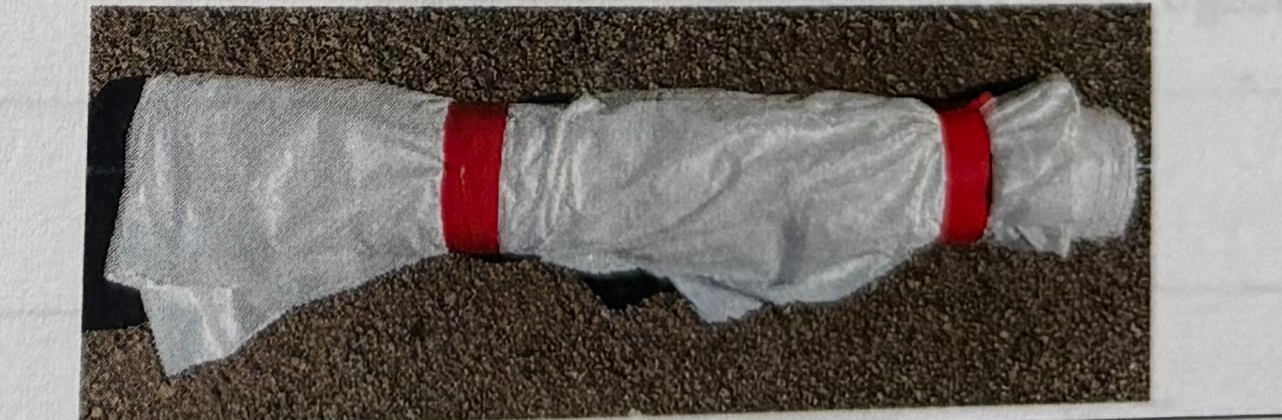

Visqueen sheeting

1. Cover broken glass doors/windows

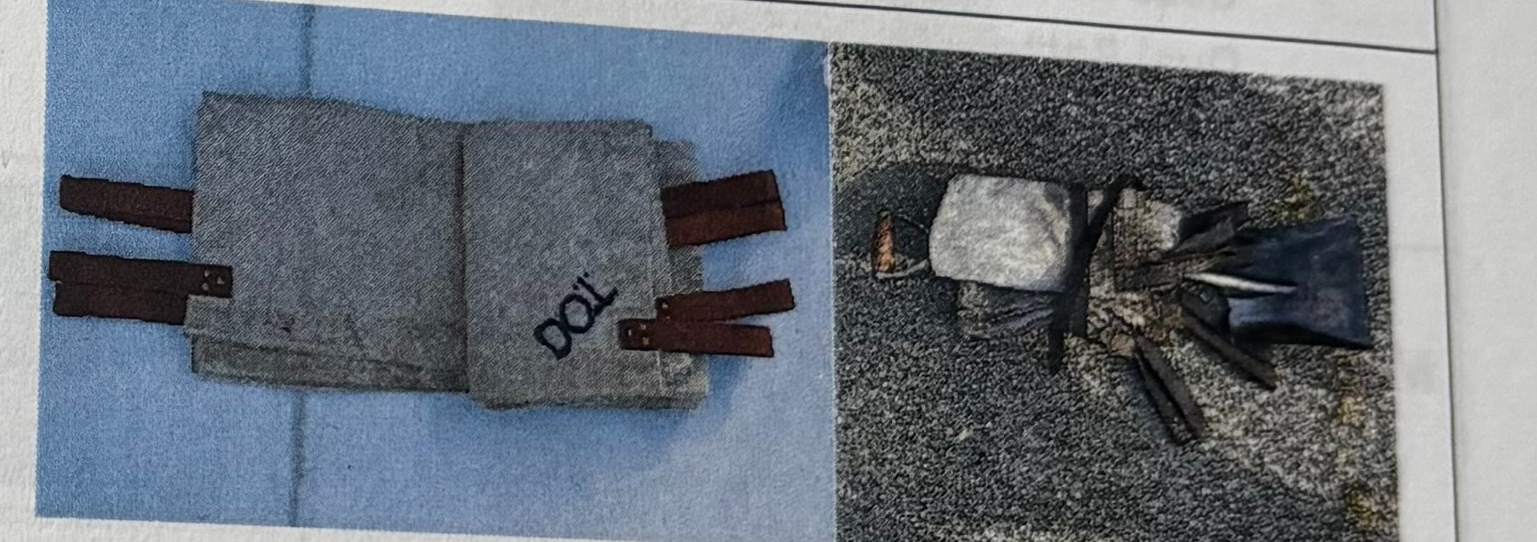

Truck Belt w/ Pick head axe

1. Carry axe/ hose straps/ flashlights/ spanner

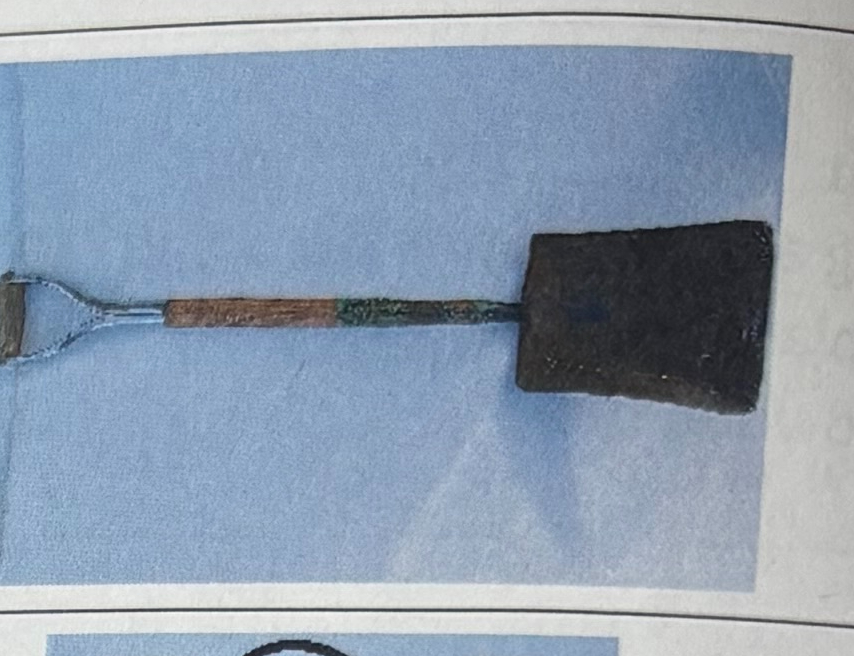

Square shovel

1. Overhaul

2. part of Banjo

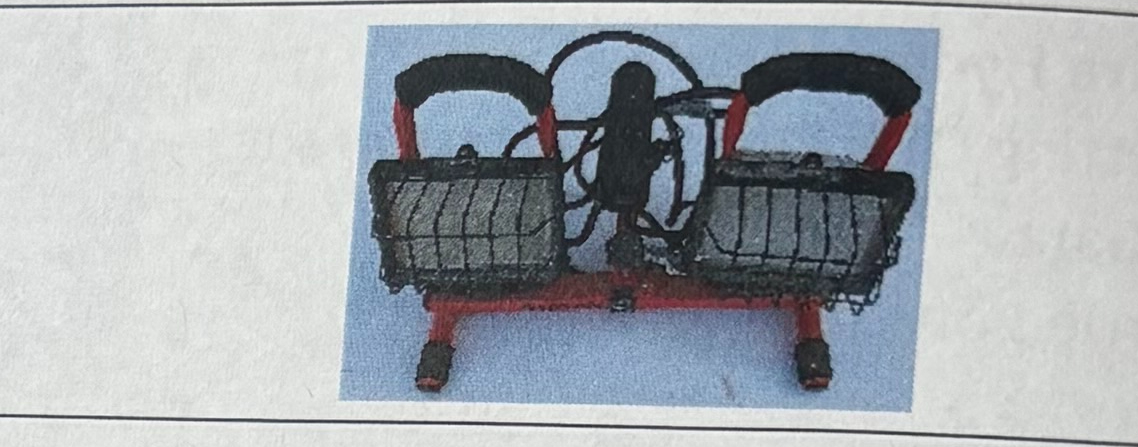

Flood Lamp

1. lights scene

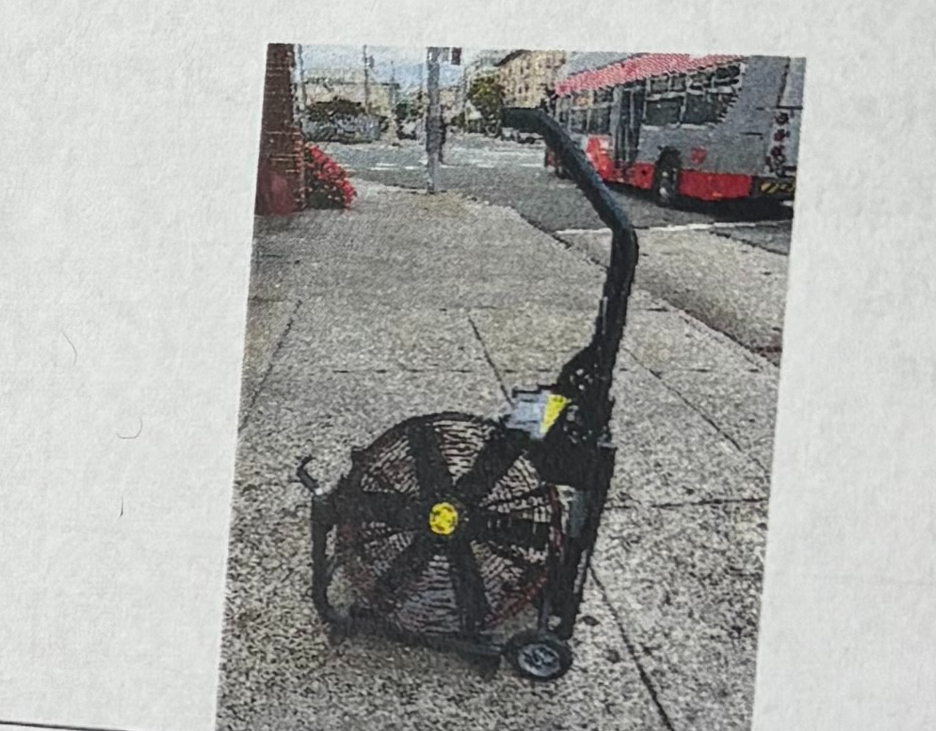

Portable Fan

1. Removes Smoke/ gas from building

2. Positive pressure

3. M18 battery , 18v

4. dual battery w/ shoreline

Mambretti Tool

1. Props garage door open

Johnson Bar

1. Heavy lifting/moving

2. Raising cars

3. Lifting large tree branches

Chicago Door Opener

1. forcible entry

2. striking tool

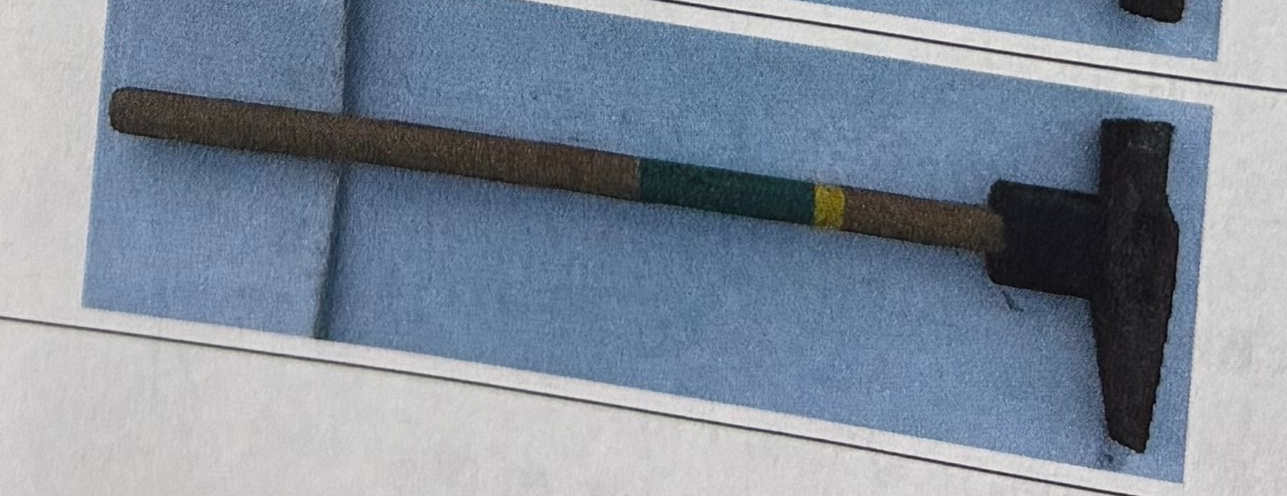

Rosser Tool

1. Striking tool

2. forcible entry

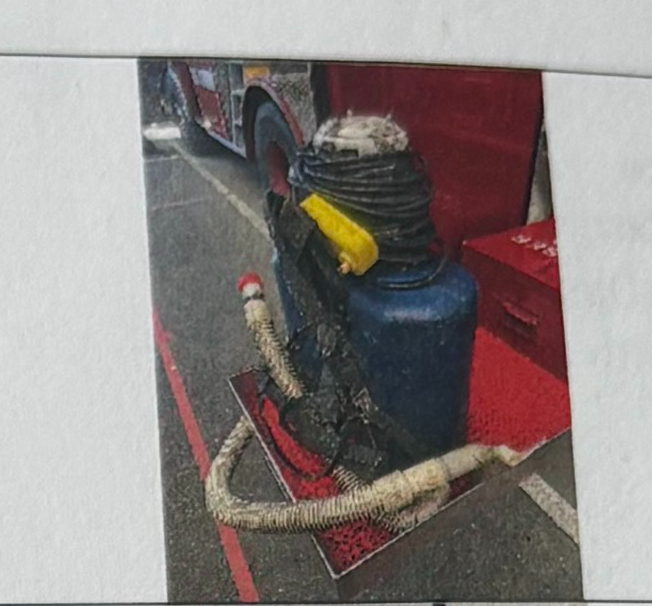

Water vac

1. Sucks up water

2. 5 gallon

3. 120V GFCI

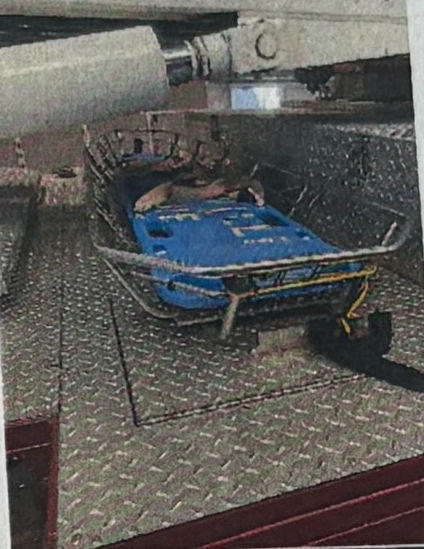

Stokes basket

1. Pt rescue

2. Mounts under aerial

3. Used w/ backboard

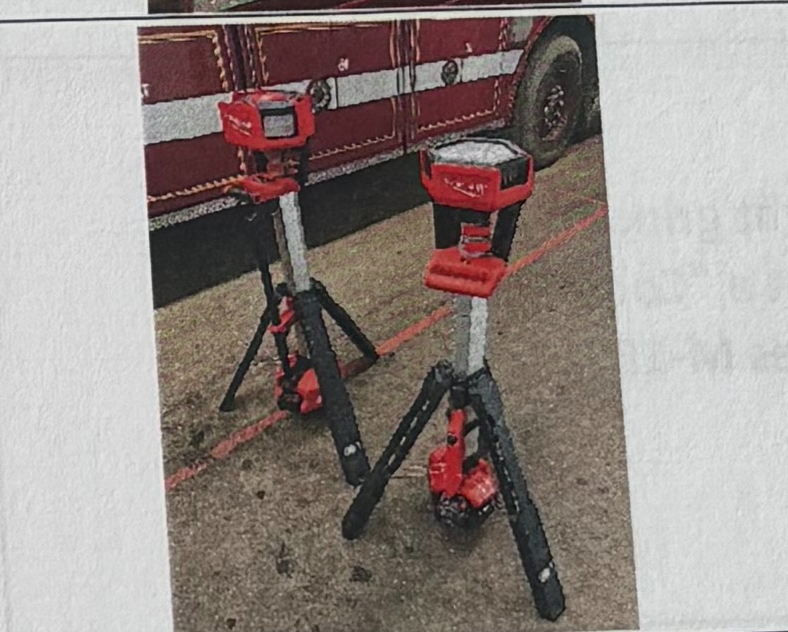

Milwaukee lights

1. scene lighting

2. telescoping

3. M-18 battery, 18V

4. Shoreline, 1 has battery charger

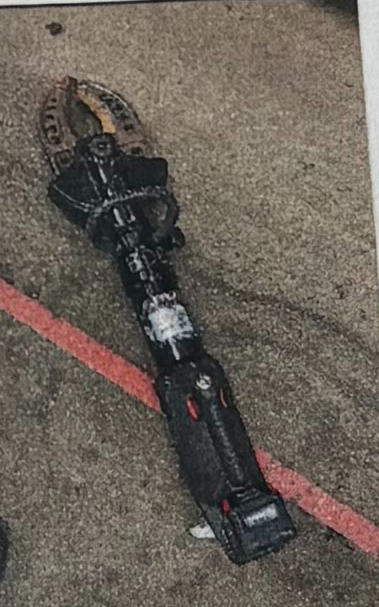

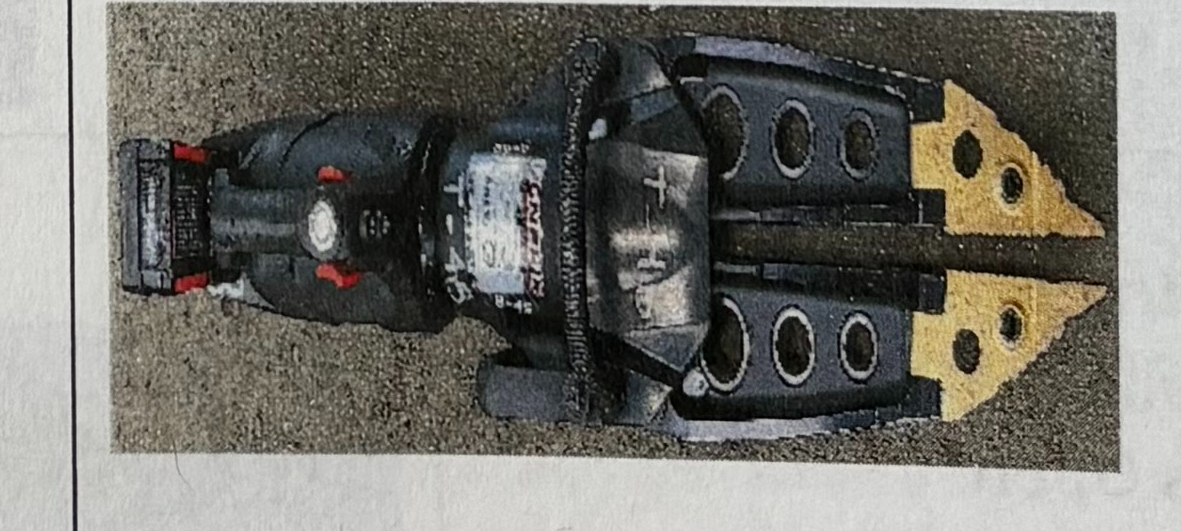

1. Auto extrication

2. forcible entry

3. M28 battery, 28 V

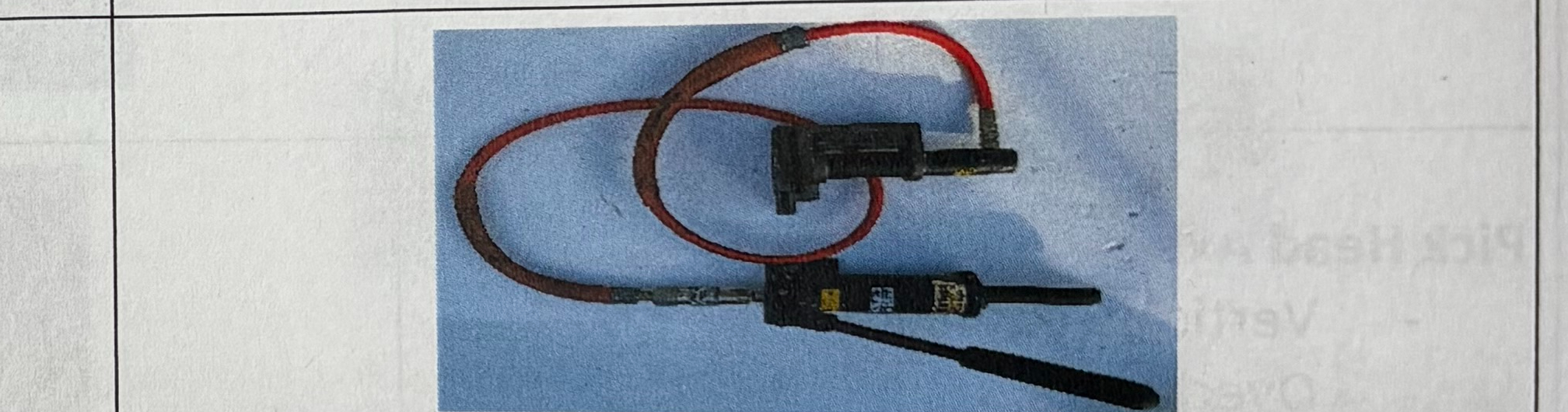

Hydraulic Ram

1. Auto extrication

2. spreading

3. M-28 battery, 28V

O’Connell Plate

1. Auto extrication

2. rolling dashboard

3. used w/ hydraulic ram

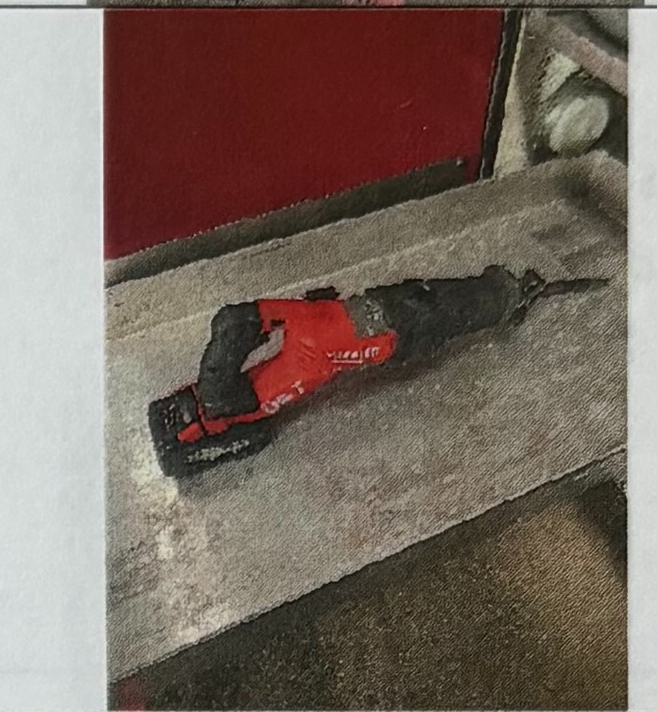

Sawzal

1. Light metal cutting

2. NOT a C3 tool

3. M18 battery, 18V

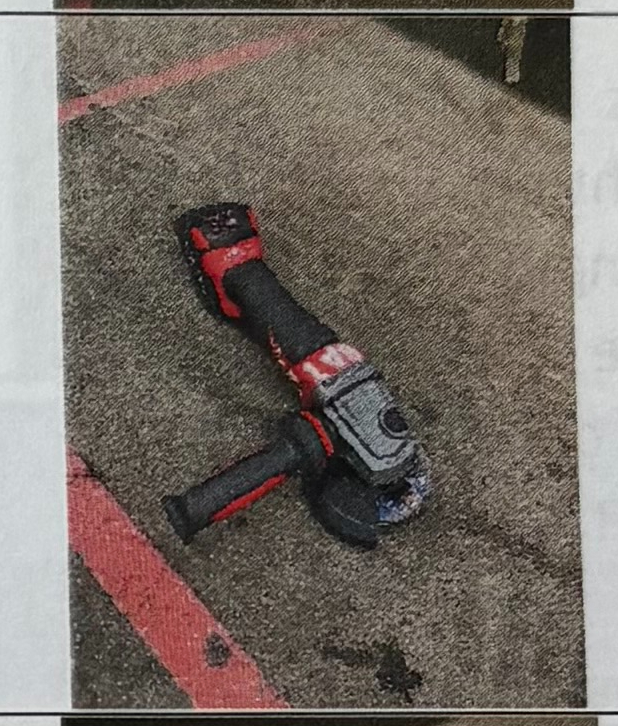

Grinder

1. Light grinding/ cutting

2. NOT C3 tool

3. M18, 18V

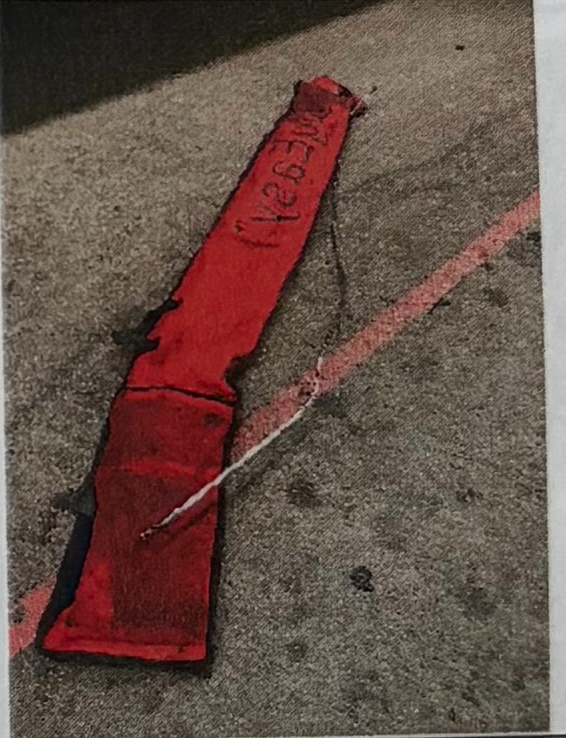

Big Easy

1. Unlocking car doors

2. Used w/ auto kit

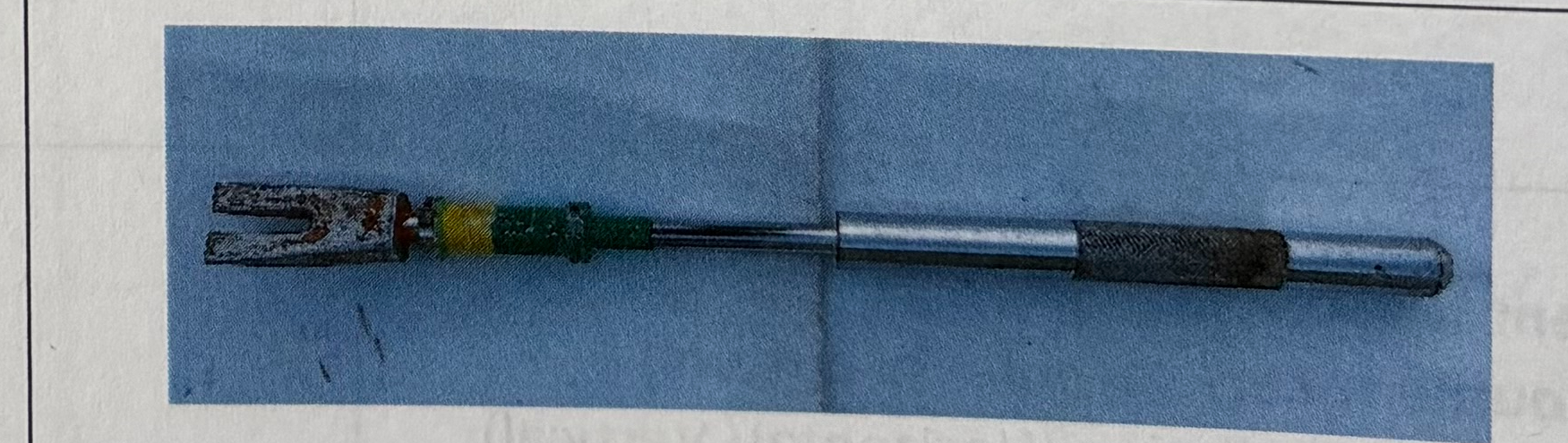

A/K tool

1. Thru lock Forcible entry

2. Used w/ Cam tool

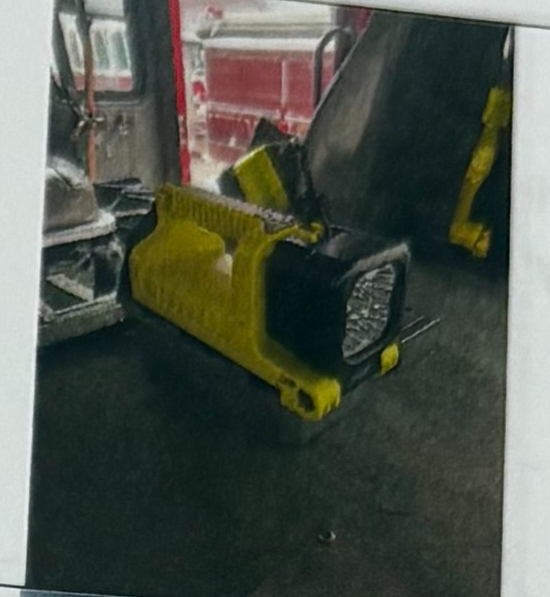

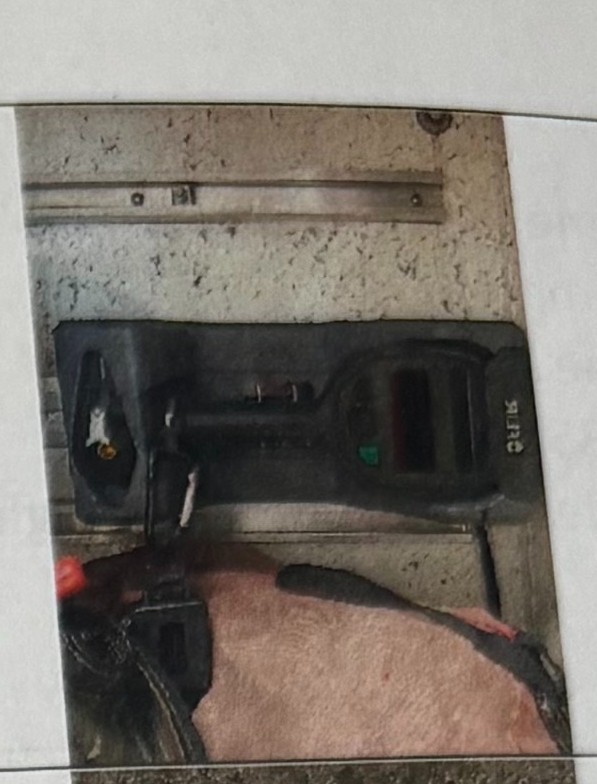

Box Light

1. seeing in the dark

2. search during fire

3. mounts to rig charger

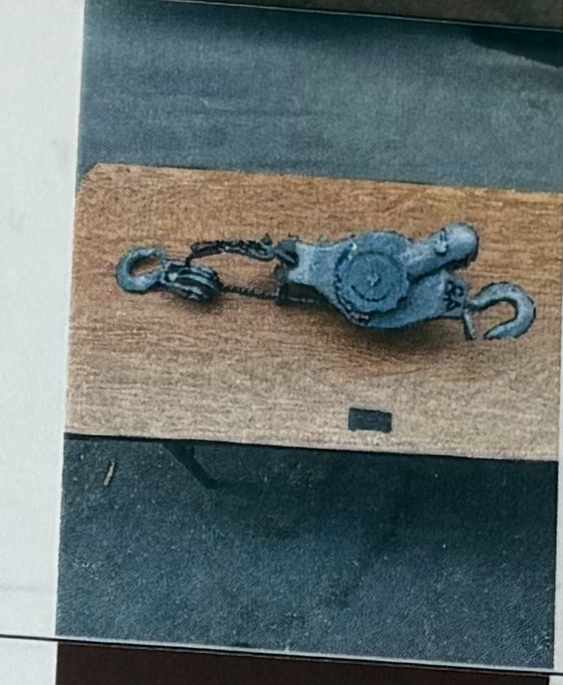

Come-A-Long “cable puller“

1. light pulling/lifting

2. NOT a C3 tool

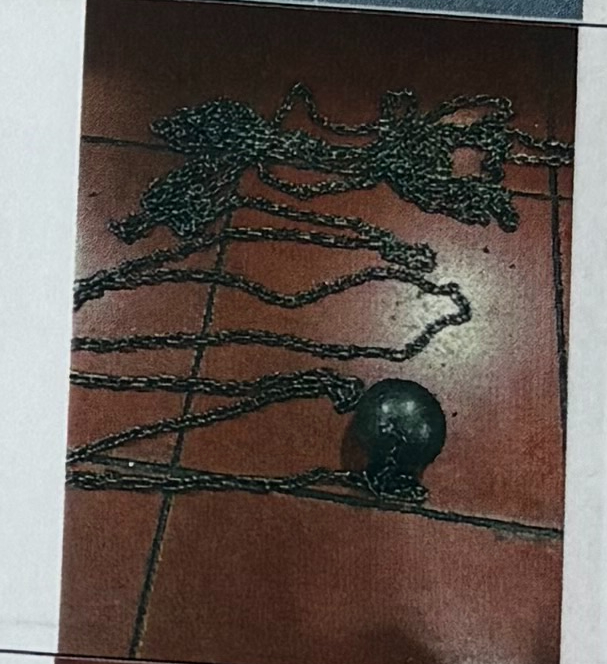

Ball & Chain

1. clearing trash chutes

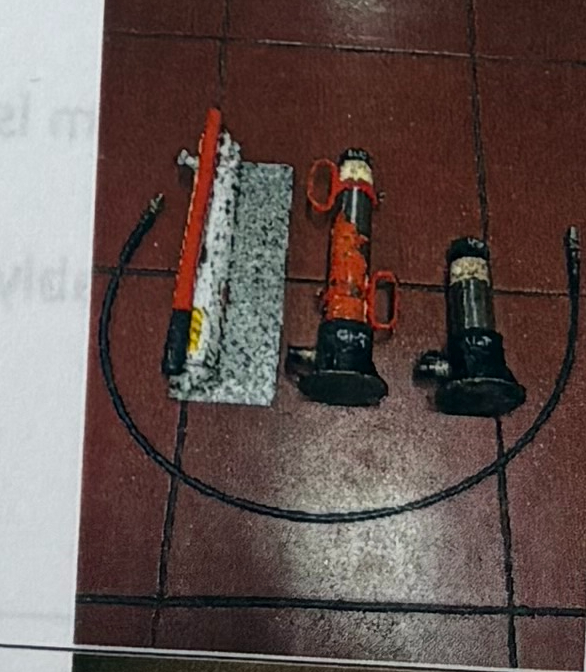

Power Team Jack “Muni Jack“

1. Lifting LRV (train)

2. Used w/ manual pump

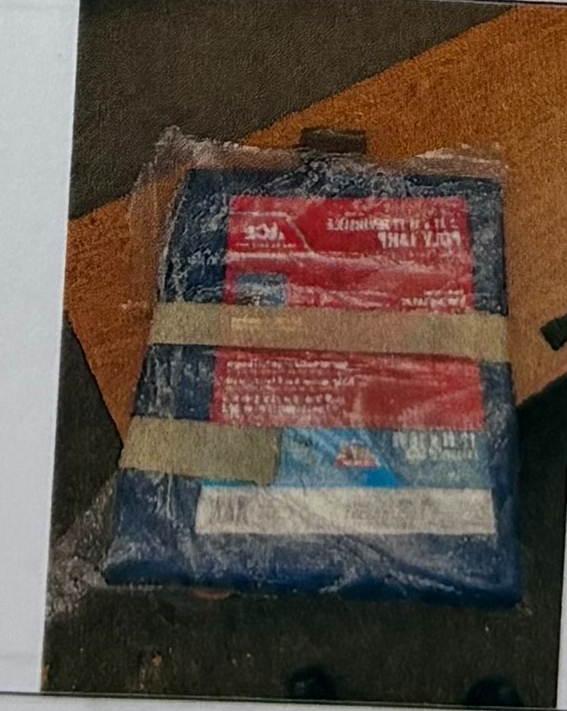

Blue tarp

1. Cover hole in roof

2. salvage

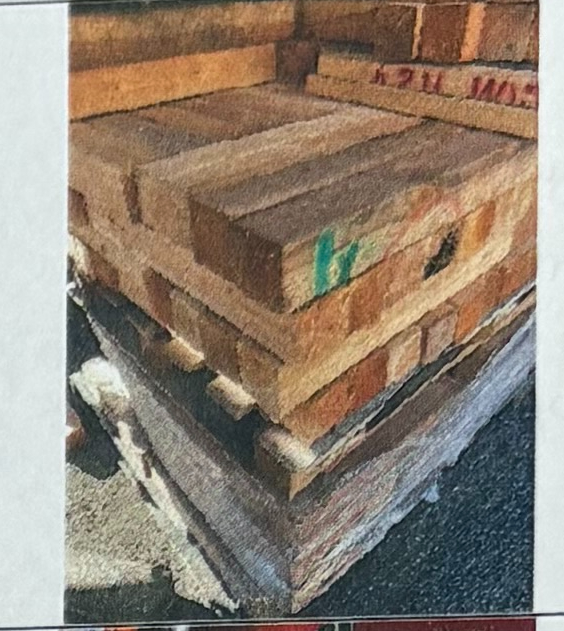

Cribbing

1. Auto extrication

2. Rescue systems

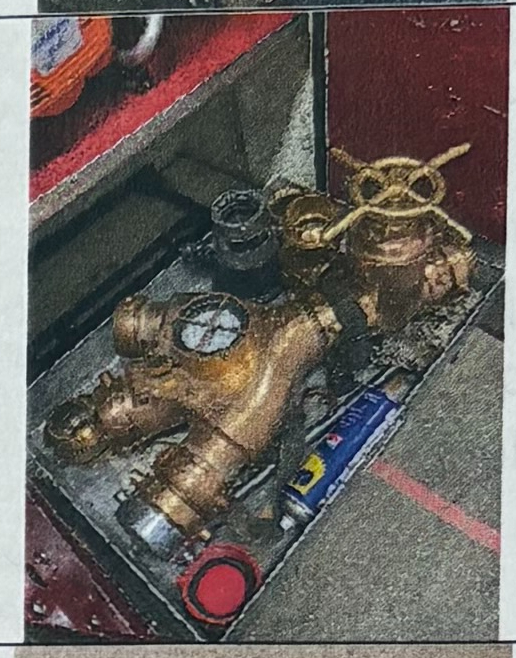

Ladder Pipe Siamese

1. Connects SUPPLY LINES to Ladder Pipe hose

2. Needs 2, 3"inch INPUTS

3. 1, 3inch OUTPUTS

4. Needs 150psi

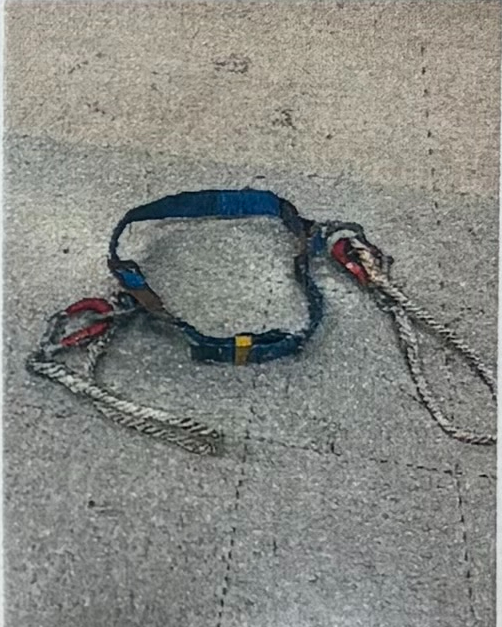

Tiller Belt

1. Secures tiller to aerial ladder

2. Clip to last FLY SECTION ONLY

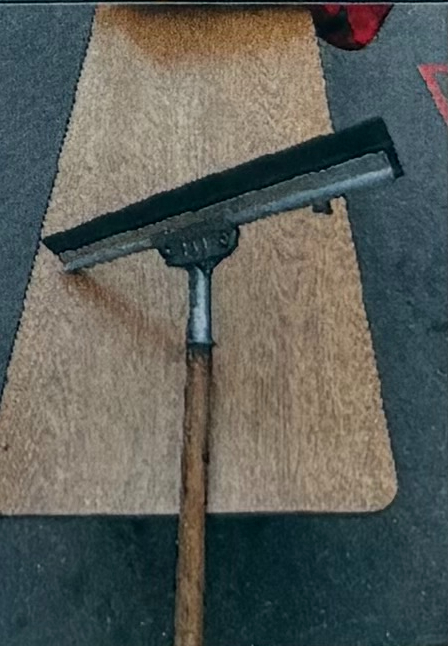

Squegee

1. used w/ water vac

Thermal Imagining Camera (T.I.C.)

1. Searching for fire/victims

2. Carried by Officers/Chiefs

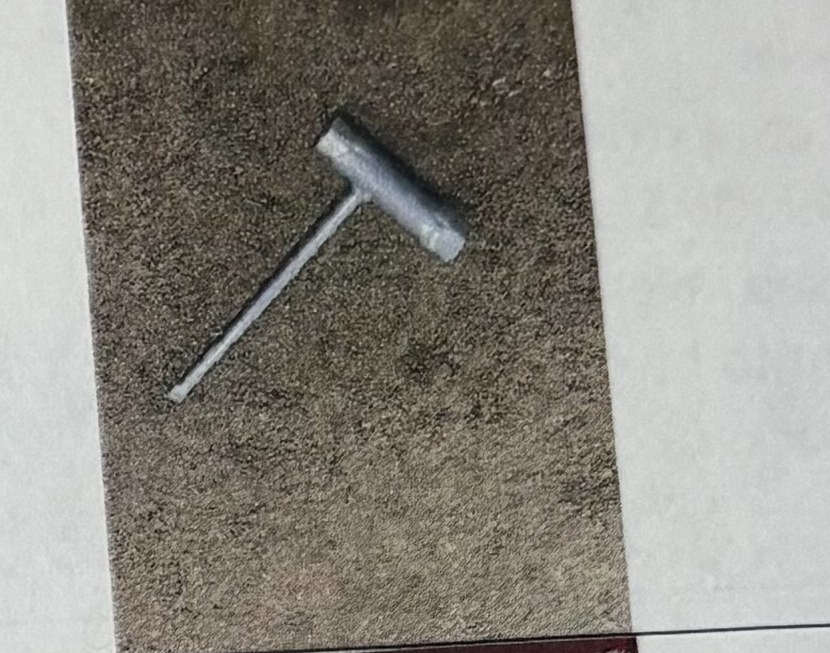

Scrench

1. Removes bar on chainsaw

2. Screwdriver + wrench

3. Mounted to Vent saw

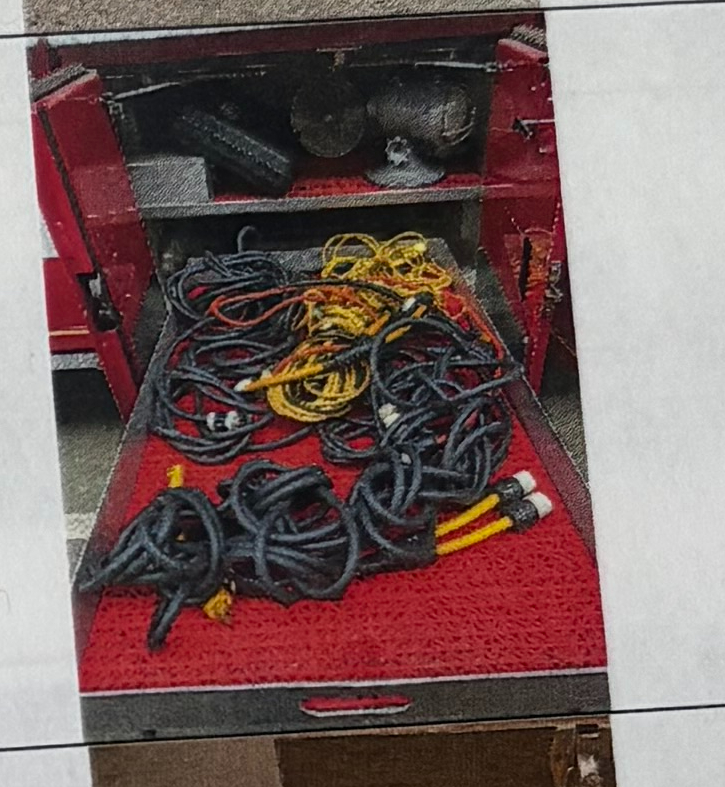

Ext Cord

1. “Daisy Chain“

2. for electric tools

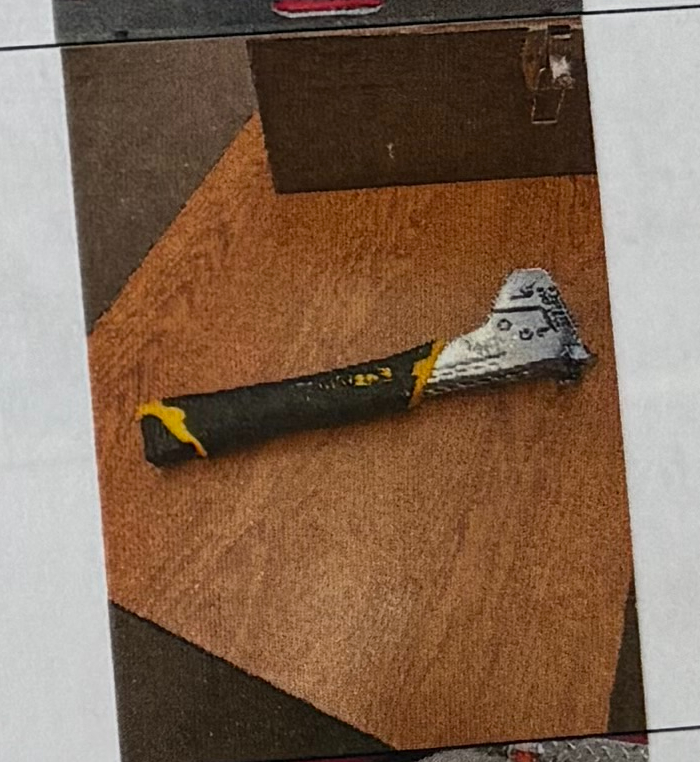

Hammer Stapler

1. Hanging visqueen sheeting

2. used like a hammer

3. T50 staples only

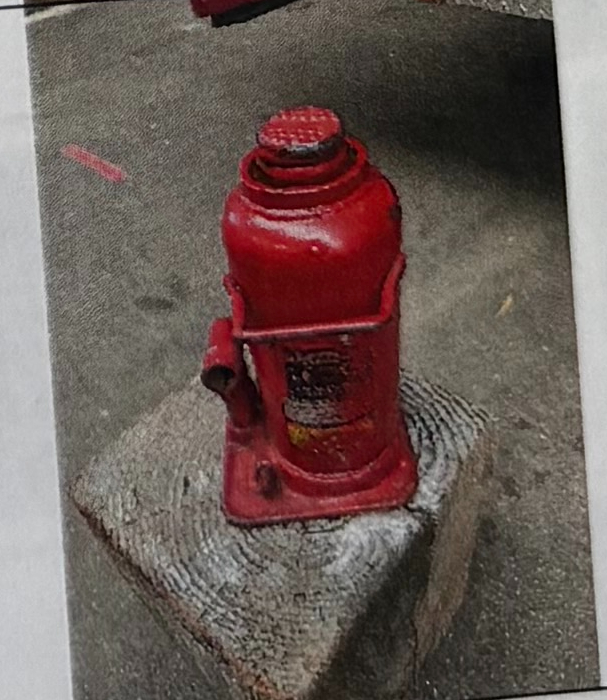

Bottle Jack

1. Moderate lifting

2. hand operated

3. Hydraulic pump jack

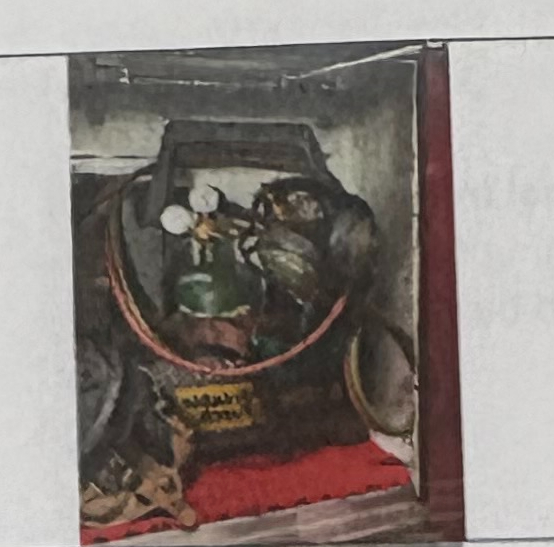

Oxygen Acetylene Torch

1. Cutting metal

2. Acetylene 7psi

3. Oxygen 35psi

4. Includes: striker, gloves, goggles

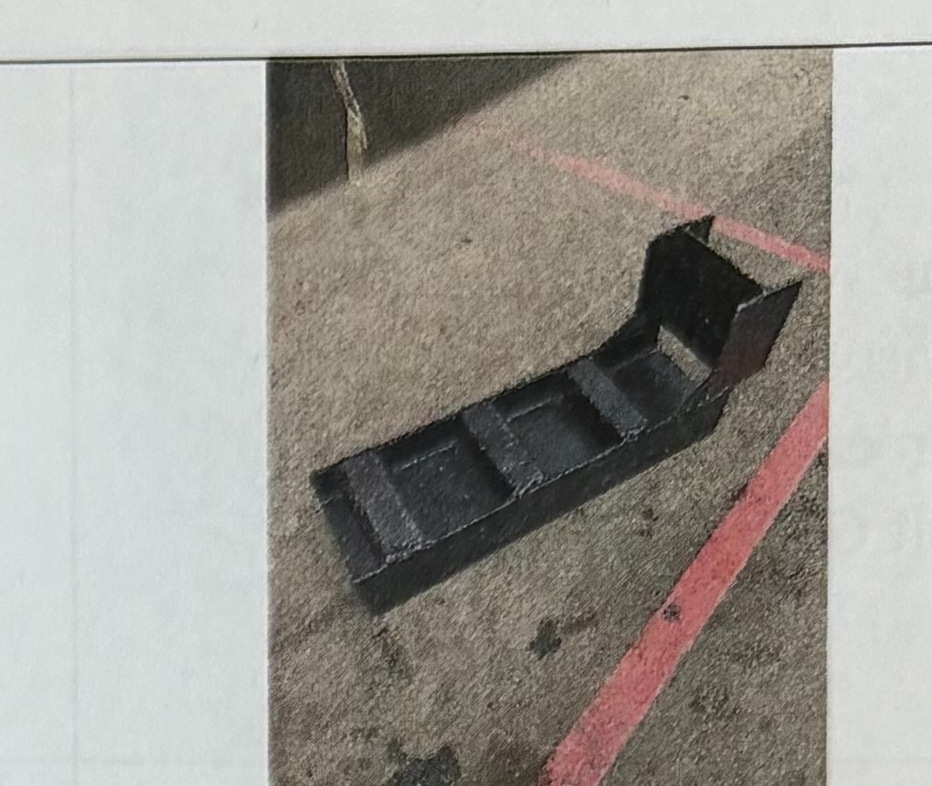

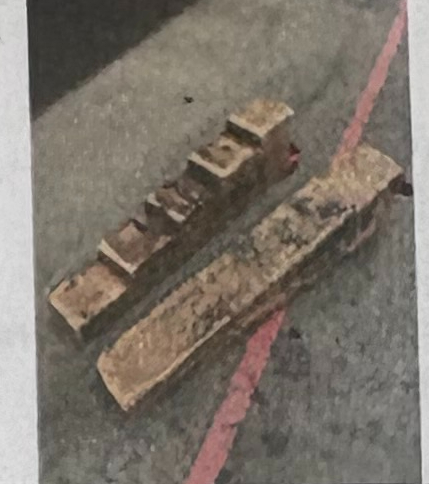

Step Chocks

1. Auto extrication

2. vehicle stabilization

3. used inverted

4. NOT a LADDER CHOCKS
