A7 reproductive organs

what the freak

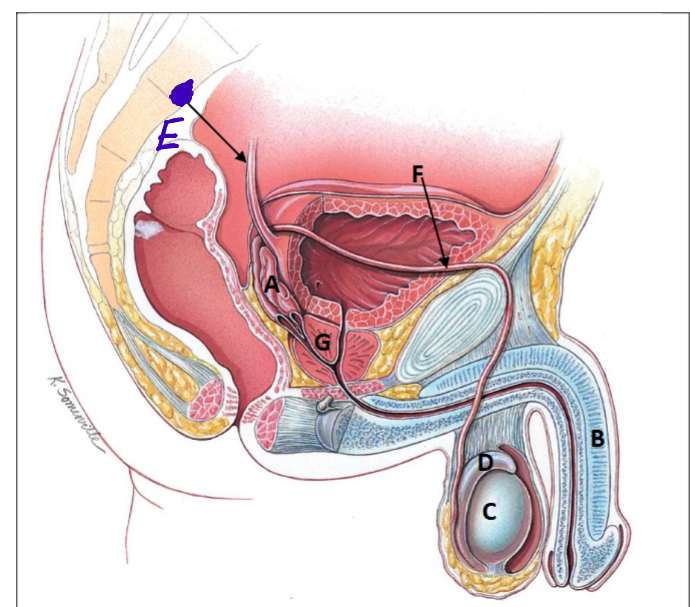

label a-g

A - seminal vesicle

B - penis

C - testes

D - epididymis

E - ureter

F - ductus deferens

G - prostate gland

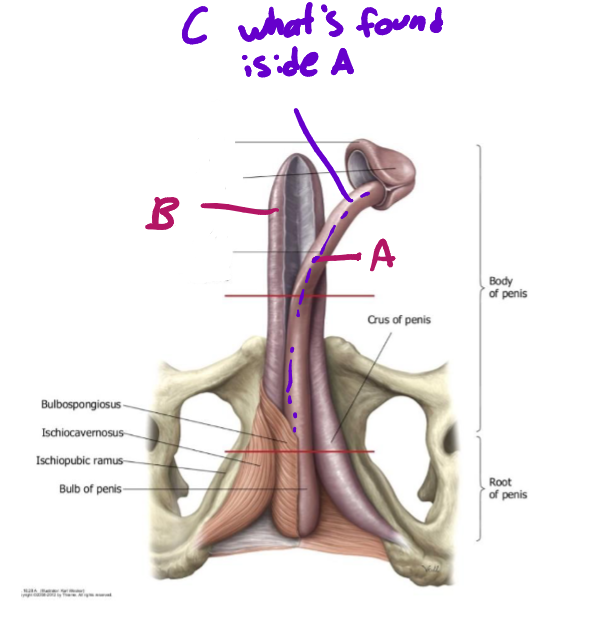

label a-c

a - corpus spongiosum

b - corpora cavernosa

c- spongy urethra

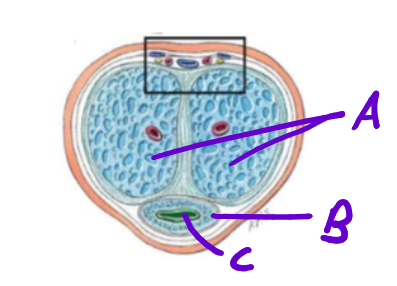

what is this diagram of

cross section of the penis

label a-c

a - corpora cavernosa

b - corpus spongiosum

c - spongy urethra

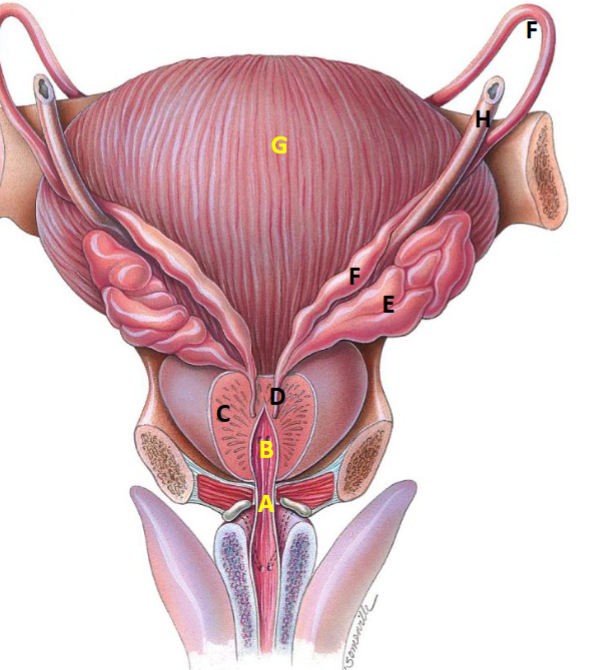

label a-h

a- membranous urethra

b- prostatic urethra

c- prostate gland

d-ejaculatory duct

e-seminal vesicle

f- ductus deferens

g-bladder

h-ureters

What is the flow of semen

produced in seminiferous tubules (in testes) → epididymis → ductus deferens → ampulla → joins seminal vesicle at prostate

what does the seminal vesicle do

produces alkaline secretion which protects sperm against acidic environment of urethra and female reproductive tract

what are the two components of the ejaculatory duct

ductus deferens and seminal vesicle

what does the ejaculatory duct empty into

prostatic urethra

what does the prostatic secretions contribute to

sperm morality and viability

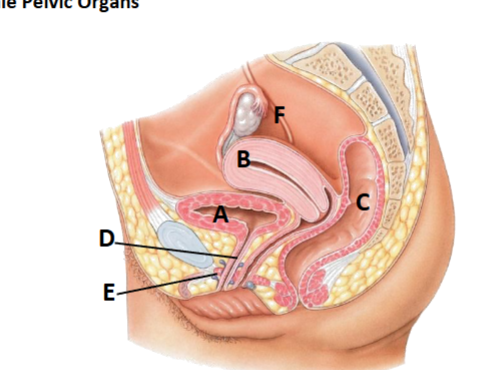

label a-f

a- urinary bladder

b- uterus

c- rectum

d- urethra

e- external urethral sphincter

f- ureter

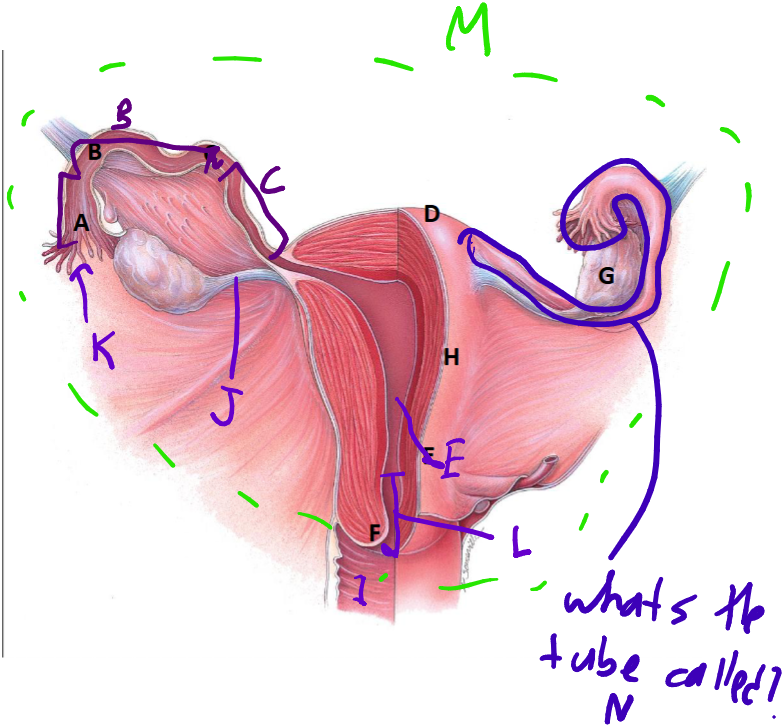

label a-n

a - infundibulum

b- ampulla

c- isthmus

d- fundus

e- uterine cavity

f- cervix

h- body

i-vagina

j- ligament of the ovary

k - fimbrae

l- cervical canal

m- uterus

n- uterine tube

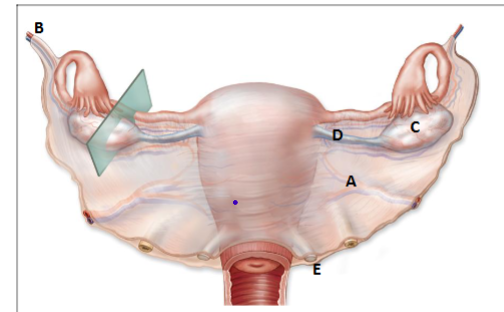

label a-e

a- broad ligament

b- suspensory ligament

c- ovaries

d- ovarian ligament

e- round ligament

what does the suspensory ligament carry through it

ovarian artery, vein, nerve plexus, lymphatic vessels

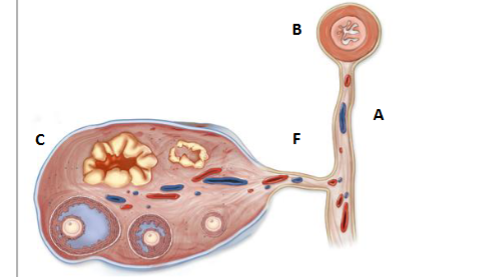

label a,b,c,f

a- broad ligament

b- fallopian tubes

c- ovary

f - mesovarium
