EOP-SDF-0 (1) Shutdown Critical Safety Function Status Trees

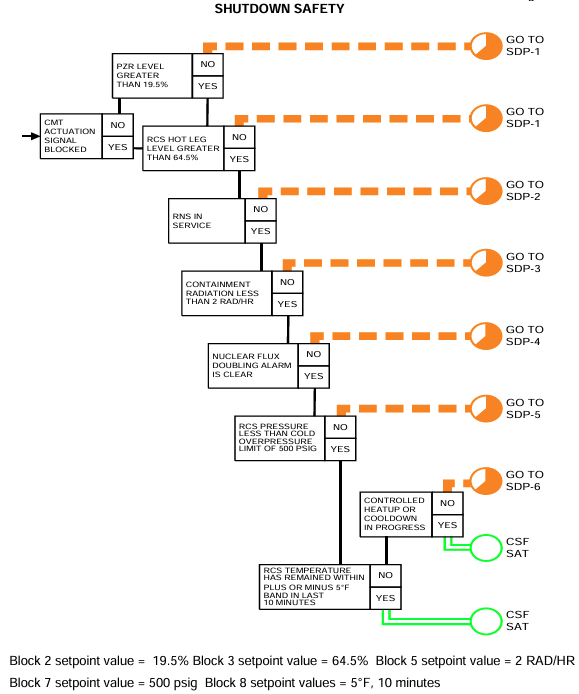

Shutdown Safety Tree

(Attachment 1)

Order of Priority:

Inventory, Heat Sink, Containment, Subcriticality, (P)Integrity, Core Cooling

“I Hope Zack Stops Poking Canines”

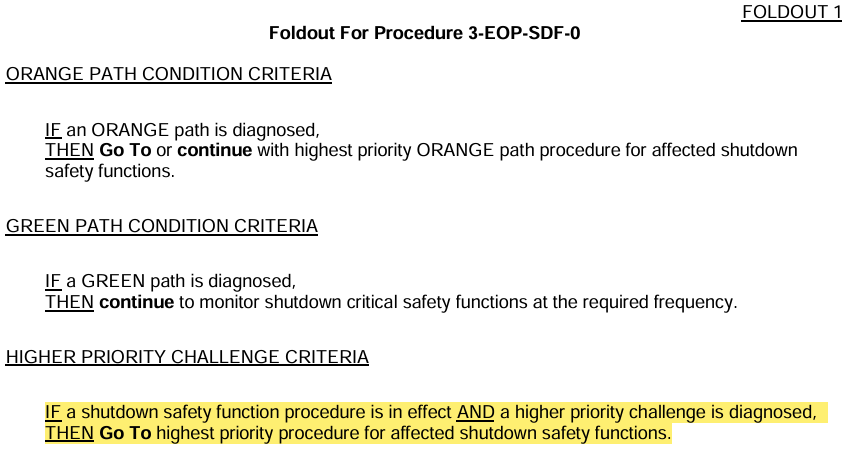

FOP Criteria

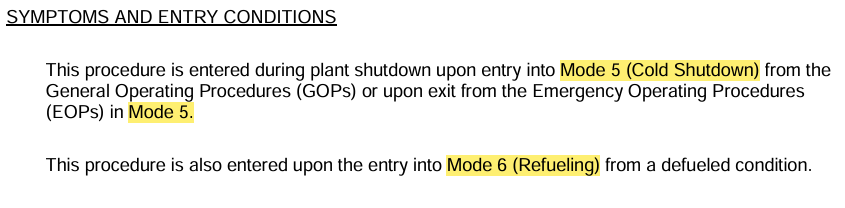

Entry Conditions

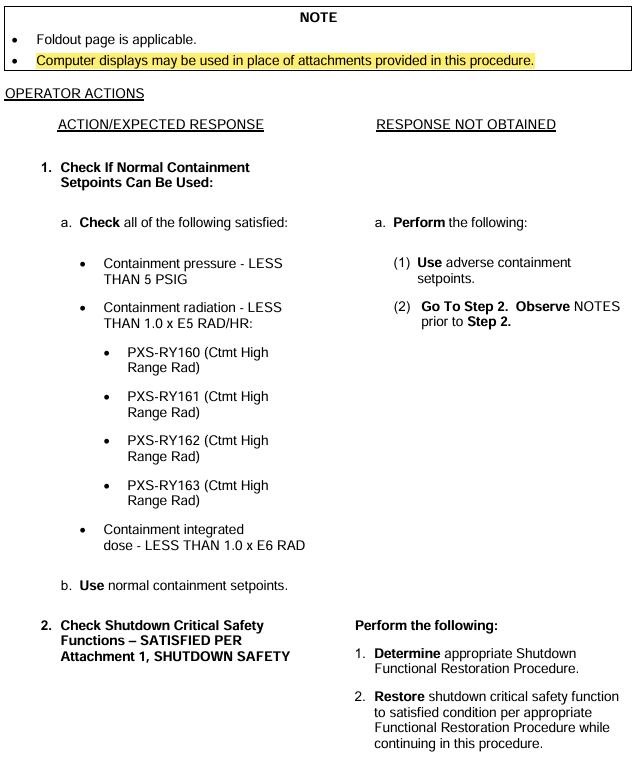

Checking for Adverse Containment and Tree Implementation

(Steps 1 & 2)

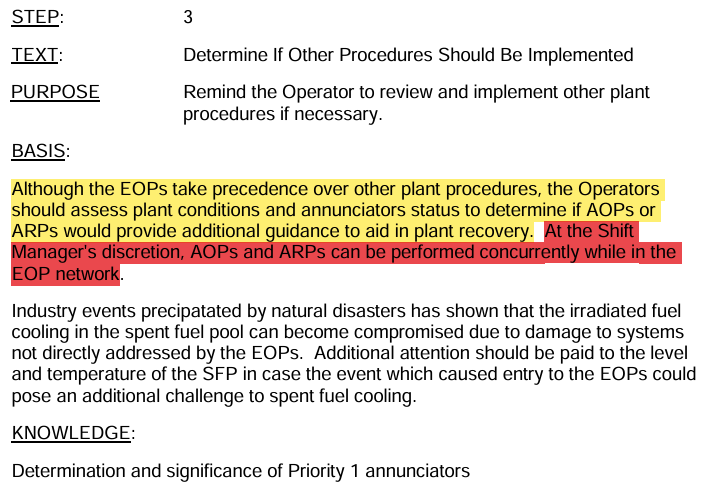

When to apply other procedures/monitoring

How to sequence Attachment 1 subsequent reviews

(Steps 3-5)

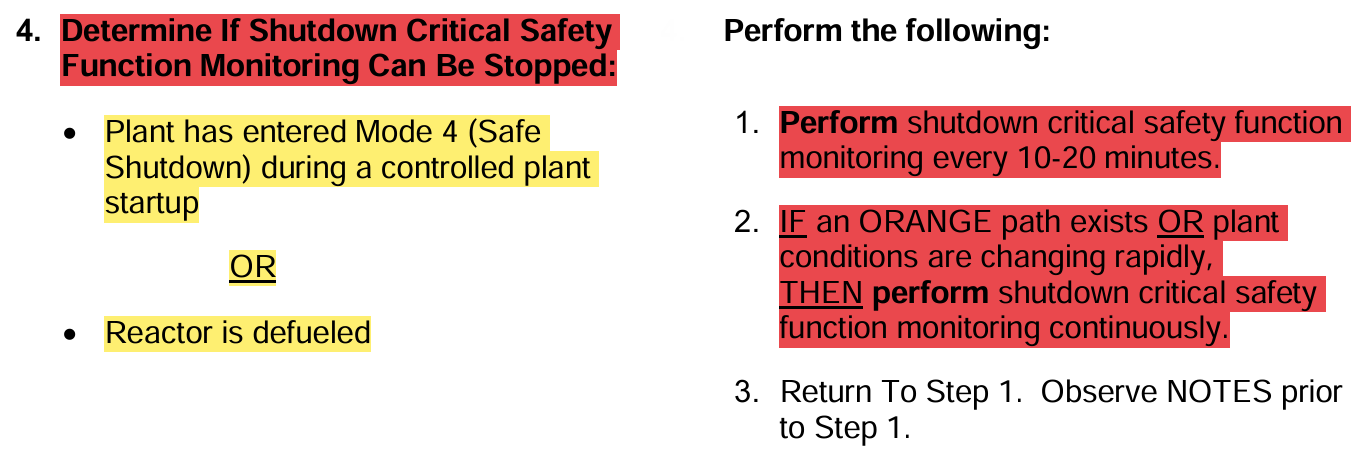

Criteria to Terminate SCSF Monitoring

(Step 4)

Background

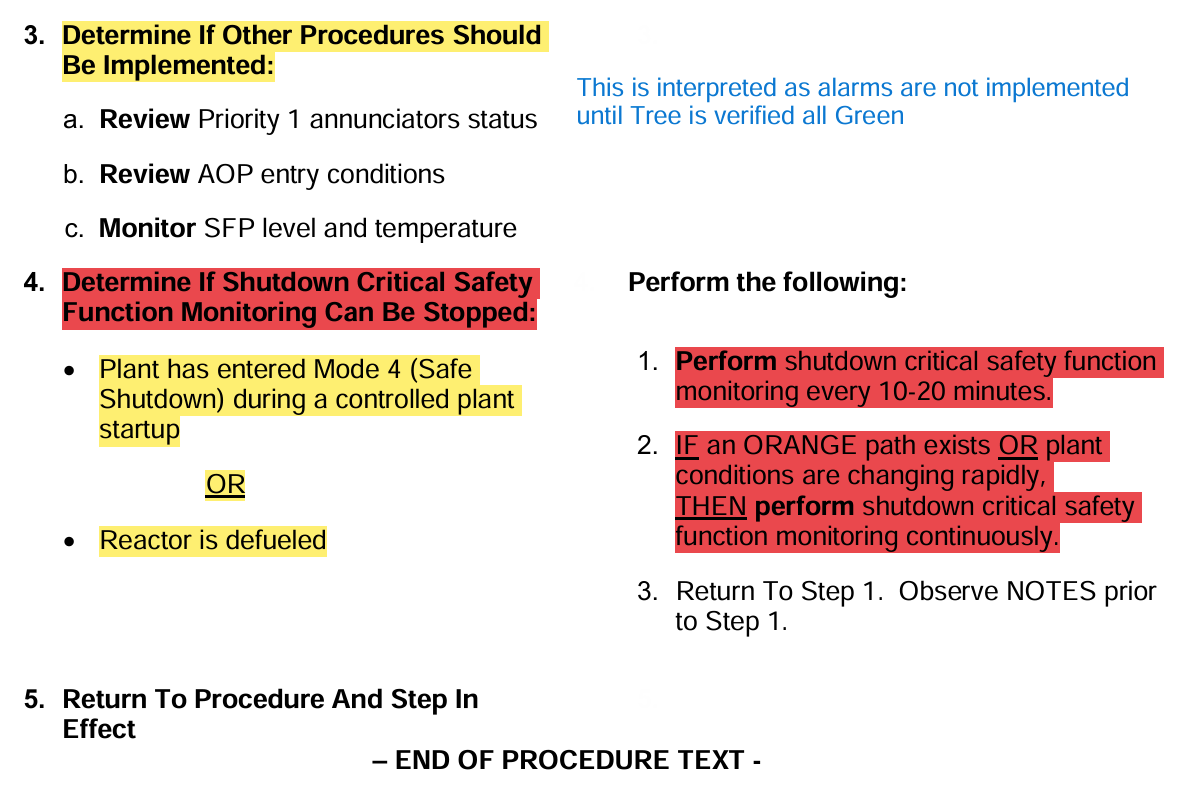

When to implement other procedures

(Step 3)

Background

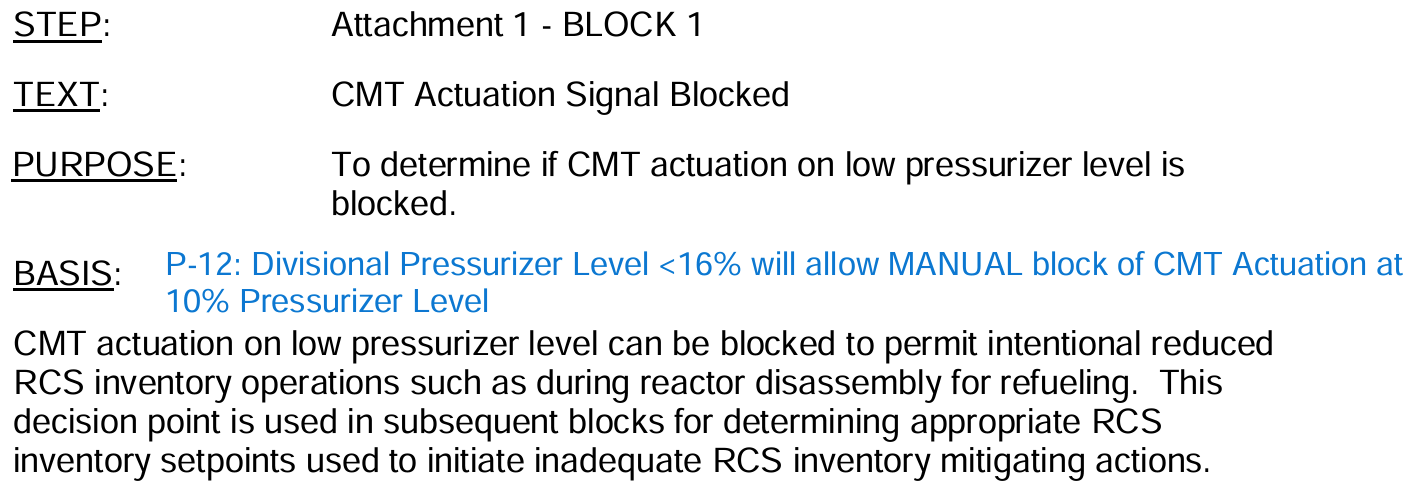

Block 1 CMT Actuation Signal Blocked

Background

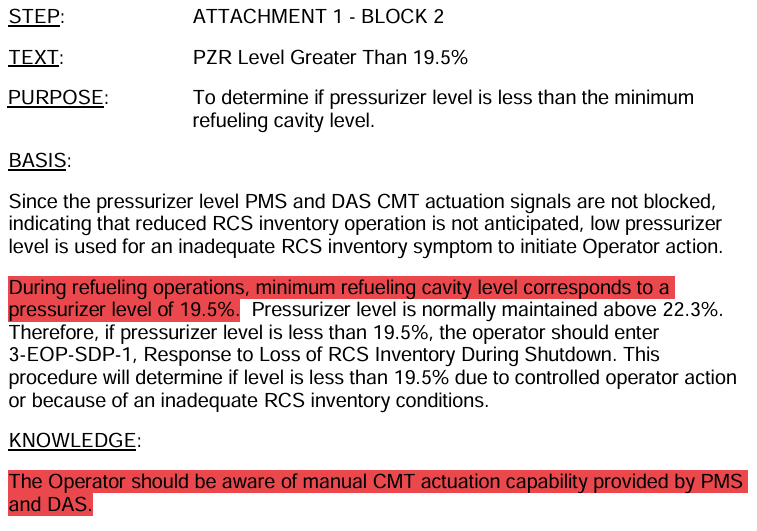

Block 2 PZR Level Greater than 19.5% (NR)

Notice:

Irregardless of block status, MANUAL CMT Actuation is available via PMS/DAS

Background

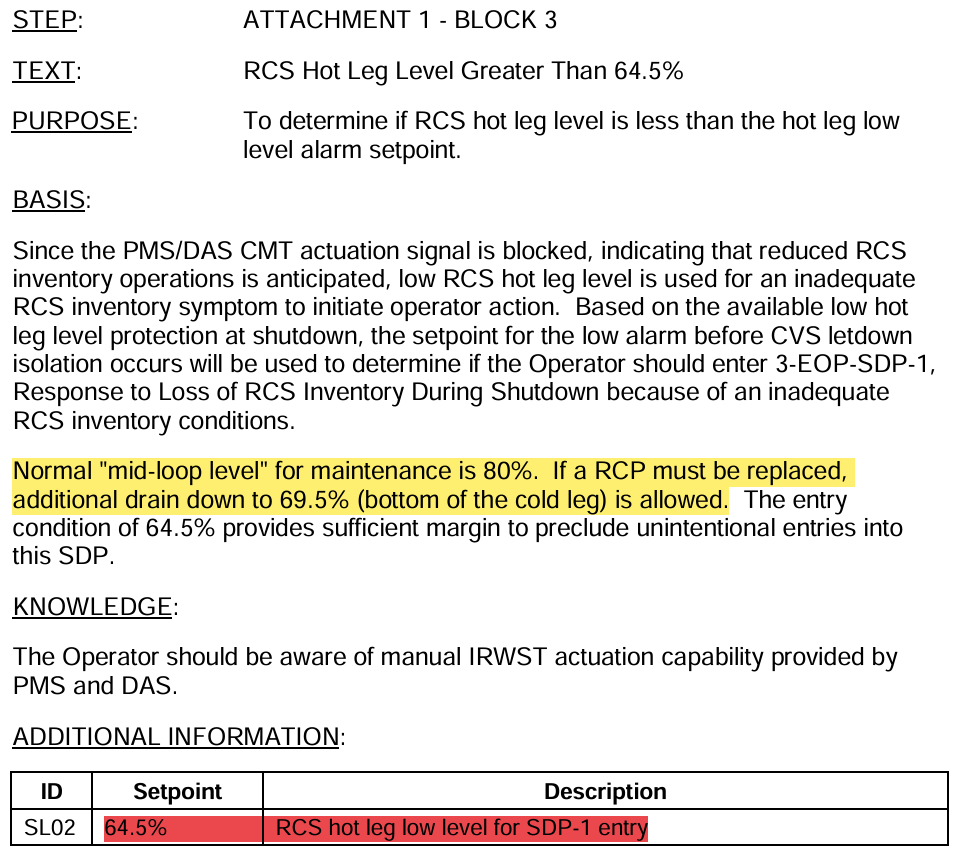

Block 3 RCS Hot Leg Level Greater Than 64.5%

Background

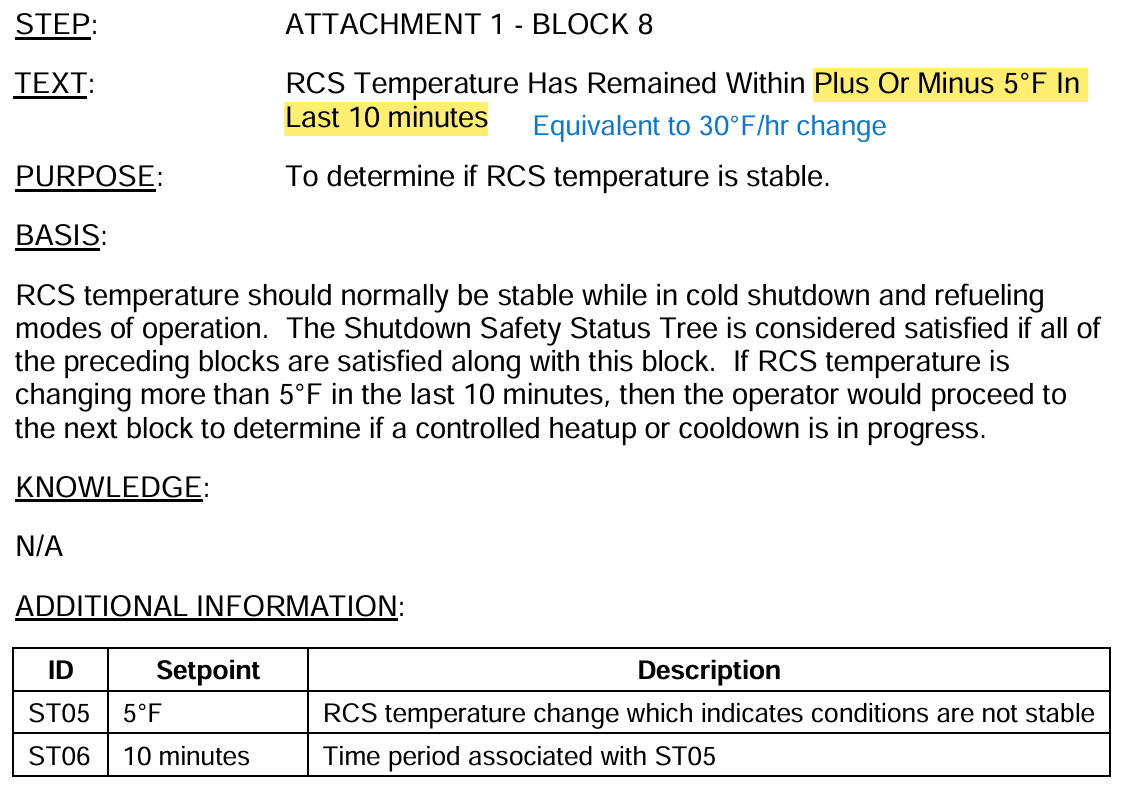

Block 8 RCS Temperature Has Remained Within Plus Or Minus 5°F In Last 10 minutes
