Unit 4 Phys Part B, Diagrams for an Overview of Aerobic Cellular Respiration

0.0(0)
studied byStudied by 0 people
0.0(0)
full-widthCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/19

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

20 Terms

1
New cards

Glycolysis

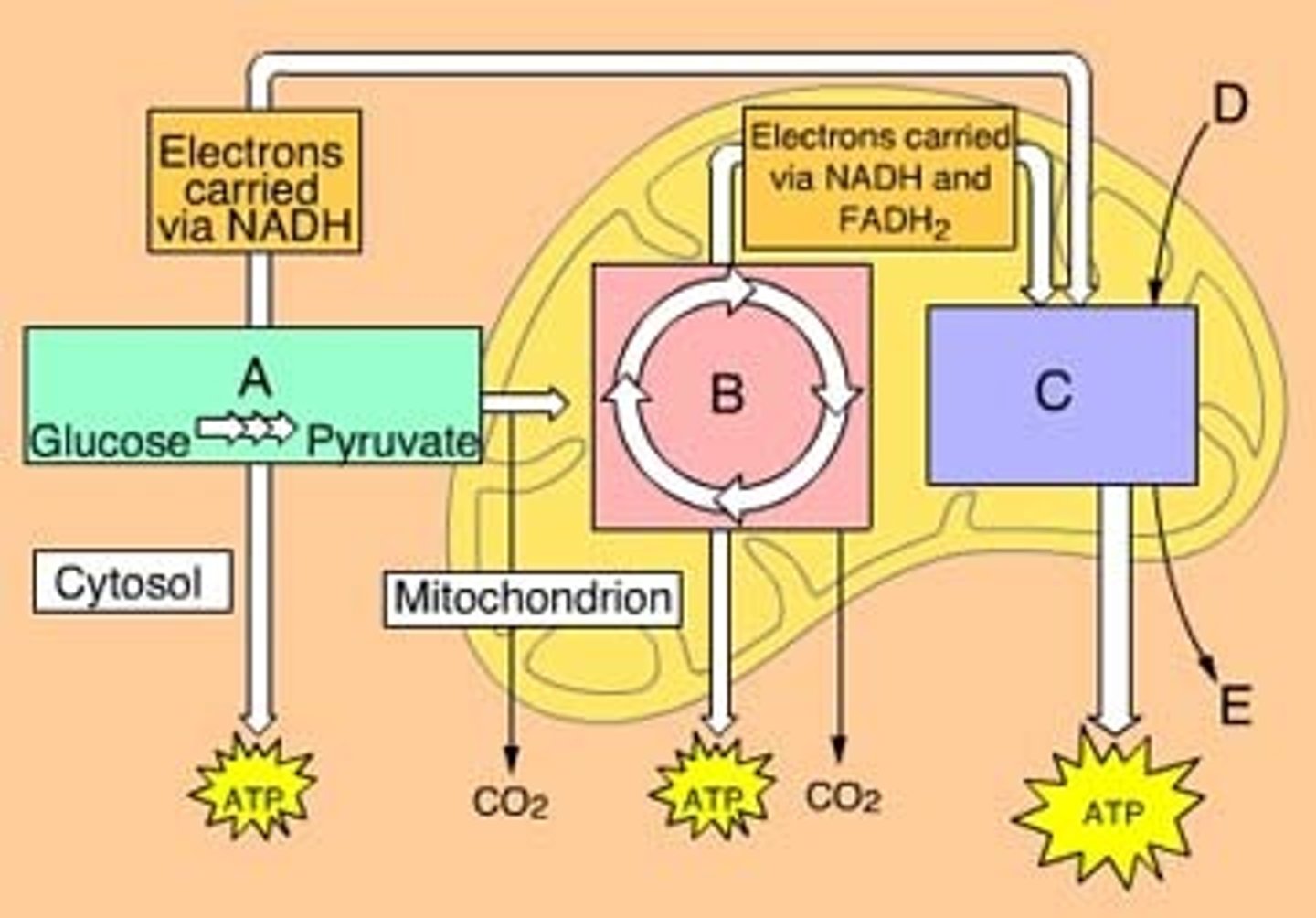

The three main phases of aerobic cellular respiration are ________________, Krebs cycle, and oxidative phosphorylation. Letter A in the diagram

<p>The three main phases of aerobic cellular respiration are ________________, Krebs cycle, and oxidative phosphorylation. Letter A in the diagram</p>
2
New cards

Cytosol

Glycolysis occurs in the cell's cytoplasm or ____________________

<p>Glycolysis occurs in the cell's cytoplasm or ____________________</p>
3
New cards

Krebs cycle

The three main phases of aerobic cellular respiration are glycolysis, __________________, and oxidative phosphorylation. Letter B on the diagram

<p>The three main phases of aerobic cellular respiration are glycolysis, __________________, and oxidative phosphorylation. Letter B on the diagram</p>
4
New cards

Oxidative phosphorylation

The three main phases of aerobic cellular respiration are glycolysis, Krebs cycle, and _______________. Letter C on the diagram

<p>The three main phases of aerobic cellular respiration are glycolysis, Krebs cycle, and _______________. Letter C on the diagram</p>
5
New cards

Mitochondria

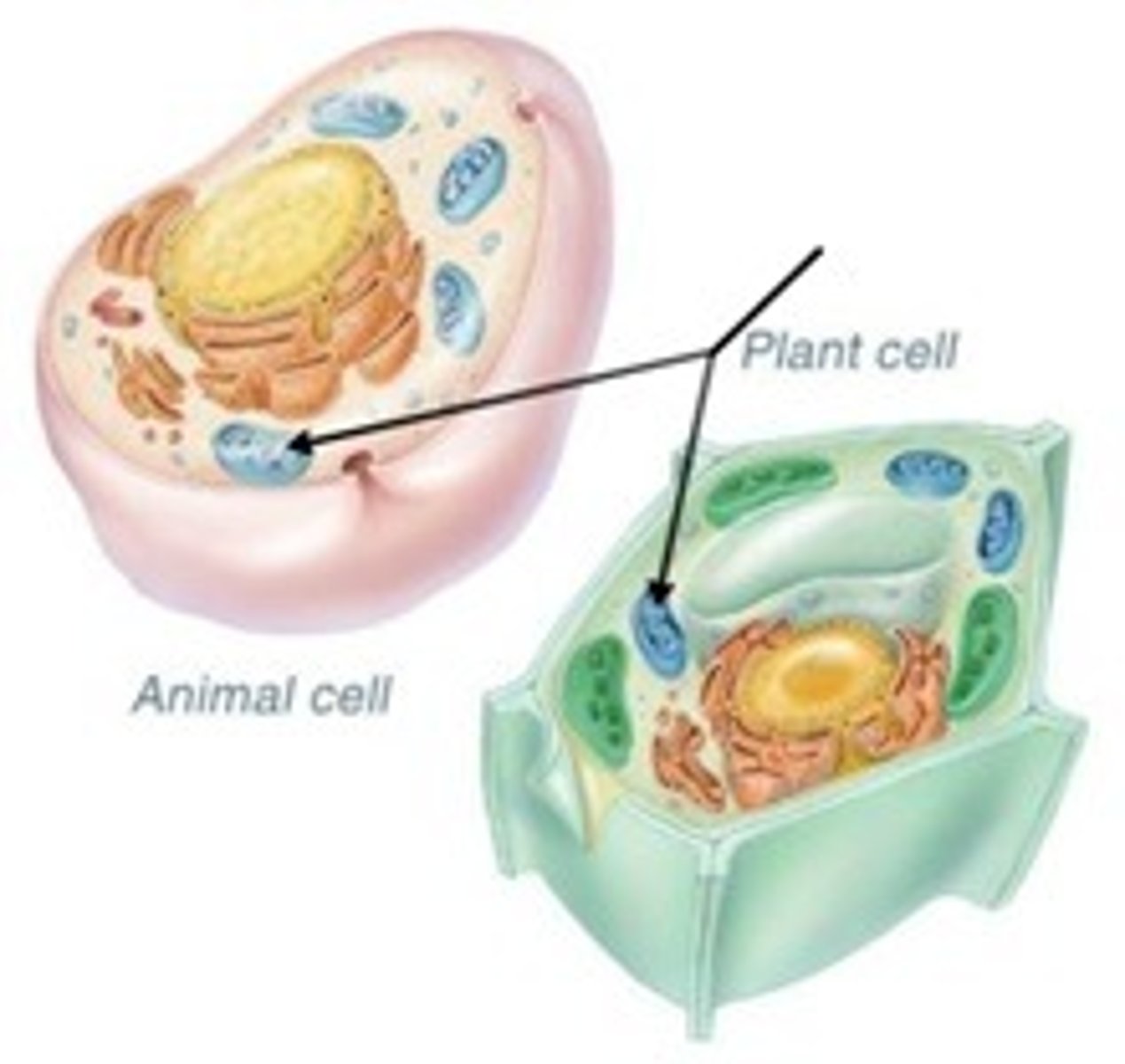

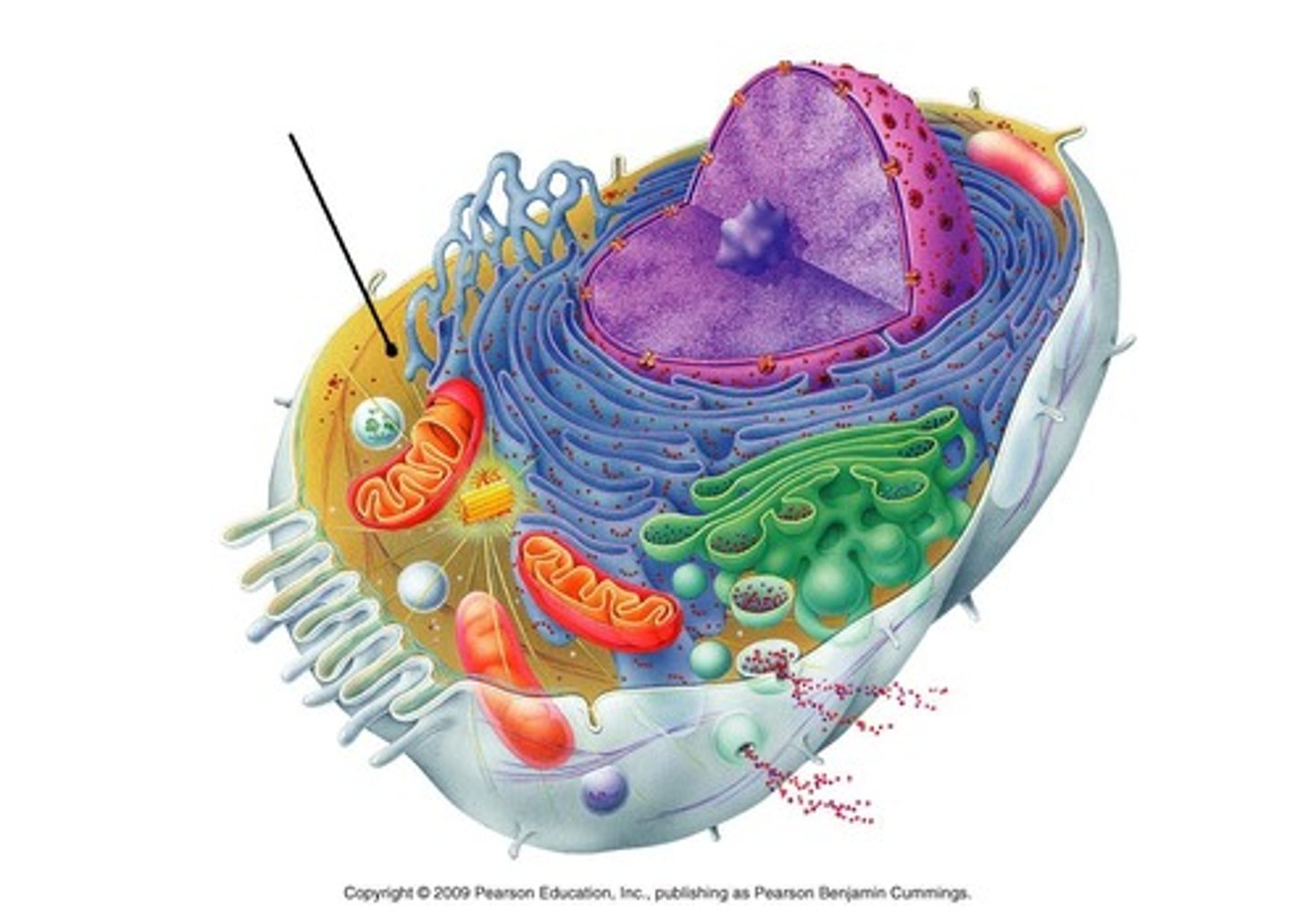

The Krebs cycle and oxidative phosphorylation are located within what organelle of the cell?

<p>The Krebs cycle and oxidative phosphorylation are located within what organelle of the cell?</p>
6
New cards

Chemiosmosis

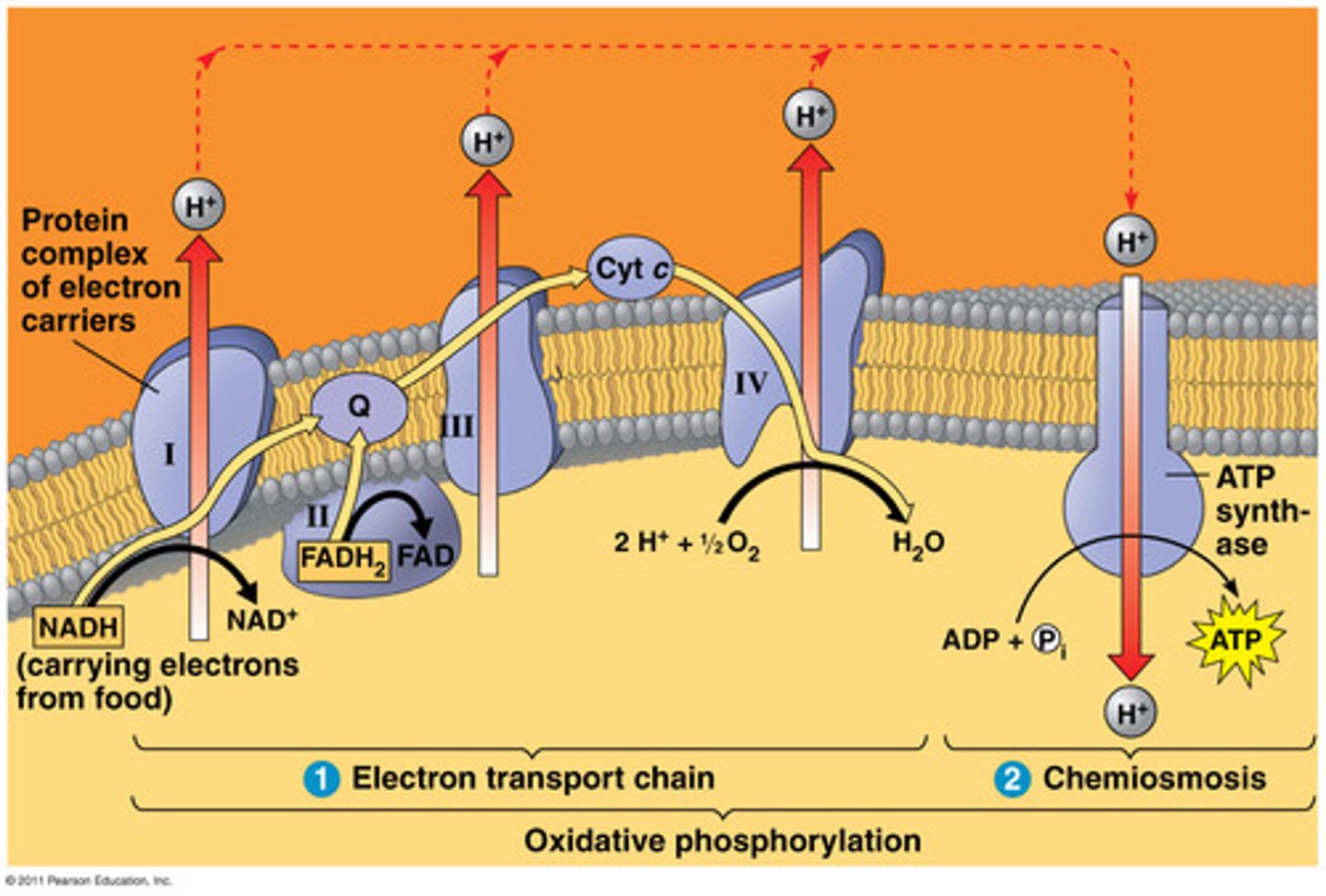

Oxidative Phosphorylation consists of the electron transport chain and ____________________

<p>Oxidative Phosphorylation consists of the electron transport chain and ____________________</p>
7
New cards

Electron transport chain

Oxidative Phosphorylation consists of the ____________________ and chemiosmosis

<p>Oxidative Phosphorylation consists of the ____________________ and chemiosmosis</p>
8
New cards

Glycolysis

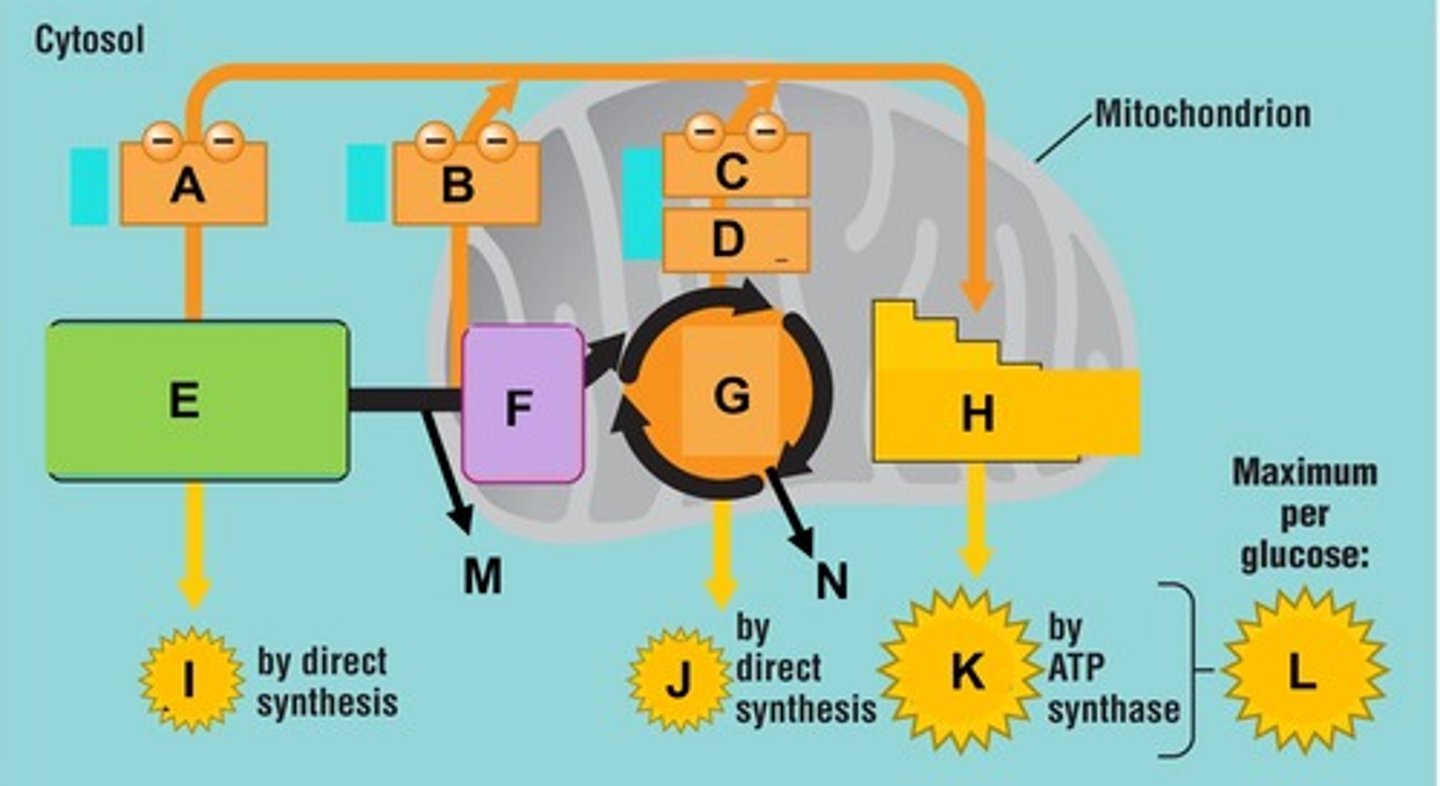

Name the phase of cellular respiration that occurs at letter E

<p>Name the phase of cellular respiration that occurs at letter E</p>
9
New cards

Acetyl CoA

Name the substance formed in the box indicated by letter F.

<p>Name the substance formed in the box indicated by letter F.</p>
10
New cards

Krebs cycle

Name the phase of cellular respiration that occurs at letter G. Answer is based on the researcher that characterized this phase

<p>Name the phase of cellular respiration that occurs at letter G. Answer is based on the researcher that characterized this phase</p>
11
New cards

Oxidative Phosphorylation

Name the phase of cellular respiration that occurs at letter H

<p>Name the phase of cellular respiration that occurs at letter H</p>
12
New cards

2 ATP

How many ATP are produced at letter letter I per glucose molecule?

<p>How many ATP are produced at letter letter I per glucose molecule?</p>
13
New cards

2 ATP

How many ATP are produced at letter letter J per glucose molecule?

<p>How many ATP are produced at letter letter J per glucose molecule?</p>
14
New cards

32 to 34 ATP

How many ATP are produced at letter letter K per glucose molecule?

<p>How many ATP are produced at letter letter K per glucose molecule?</p>
15
New cards

36 to 38 ATP

How many total ATP are produced at letter letter L per glucose molecule?

<p>How many total ATP are produced at letter letter L per glucose molecule?</p>
16
New cards

2 NADH

How many and what is produced at letter B per glucose molecule?

<p>How many and what is produced at letter B per glucose molecule?</p>
17
New cards

6 NADH

If Letter D represents 2 FADH2. How many and what is produced at letter C per glucose molecule?

<p>If Letter D represents 2 FADH2. How many and what is produced at letter C per glucose molecule?</p>
18
New cards

2 FADH2

If Letter C represents 6 NADH. How many and what is produced at letter D per glucose molecule?

<p>If Letter C represents 6 NADH. How many and what is produced at letter D per glucose molecule?</p>
19
New cards

2 CO2

How many and what is produced at letter M per glucose molecule?

<p>How many and what is produced at letter M per glucose molecule?</p>
20
New cards

4 CO2

How many and what is produced at letter N per glucose molecule?

<p>How many and what is produced at letter N per glucose molecule?</p>
