Reproductive Anatomy, Microanatomy, & Physiology

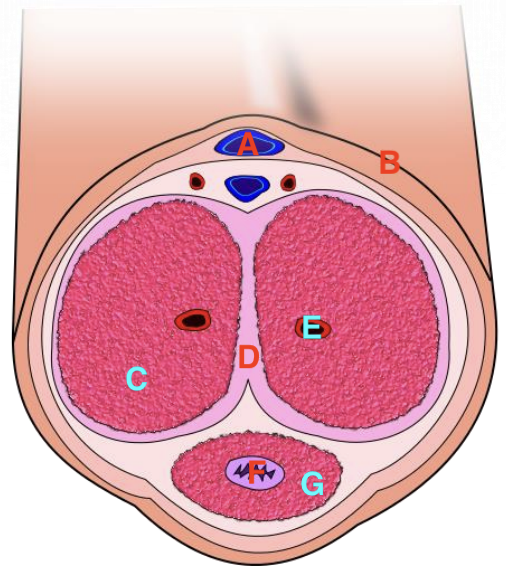

Label the following. [deep artery, dorsal vein, urethra, corpora cavernosa, corpora spongiosa, median septum of the penis, skin]

a = dorsal vein
b = skin
c = corpora cavernosa
d = median septum
e = deep artery
f = urethra
g = corpora spongiosa

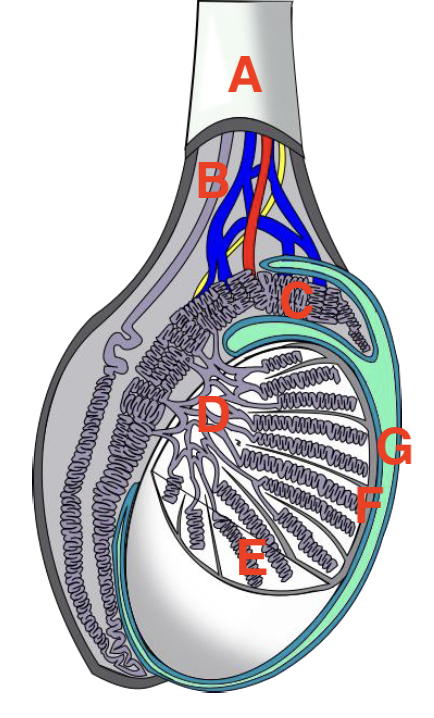

Label the following. [spermatic cord, epididymis, seminiferous tubule, tunica albuginea, tunica vaginalis, rete testis, vas deferens]

a = spermatic cord
b = vas deferens
c = epididymis
d = rete testis
e = seminiferous tubule
f = tunica albuginea
g = tunica vaginalis

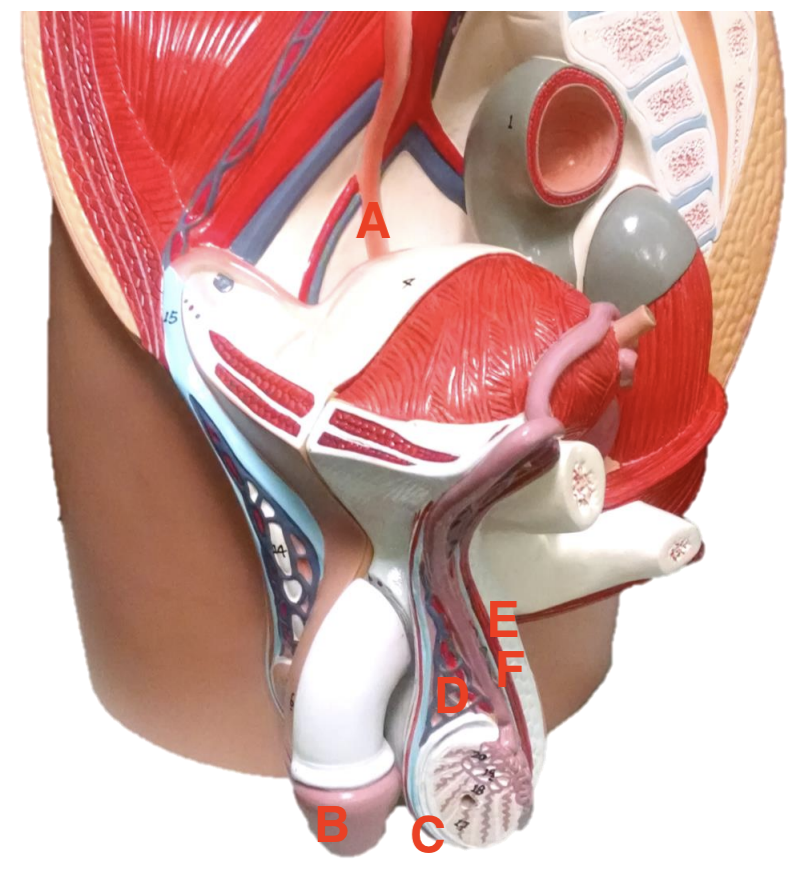

Label the following. [fascia of spermatic cord, glans, cremaster muscle, pampiniform plexus, tunica vaginalis, ureter]

a = ureter
b = glans
c = tunica vaginalis
d = pampiniform plexus
e = fascia of spermatic cord
f = cremaster muscle

Label the following. [testis, epididymis, right vas deferens, left vas deferens, ampulla, seminal vesicle, prostate, urinary bladder]

a = urinary bladder
b = right vas deferens
c = left vas deferens
d = epididymis
e = testis
f = prostate
g = seminal vesicle
h = ampulla

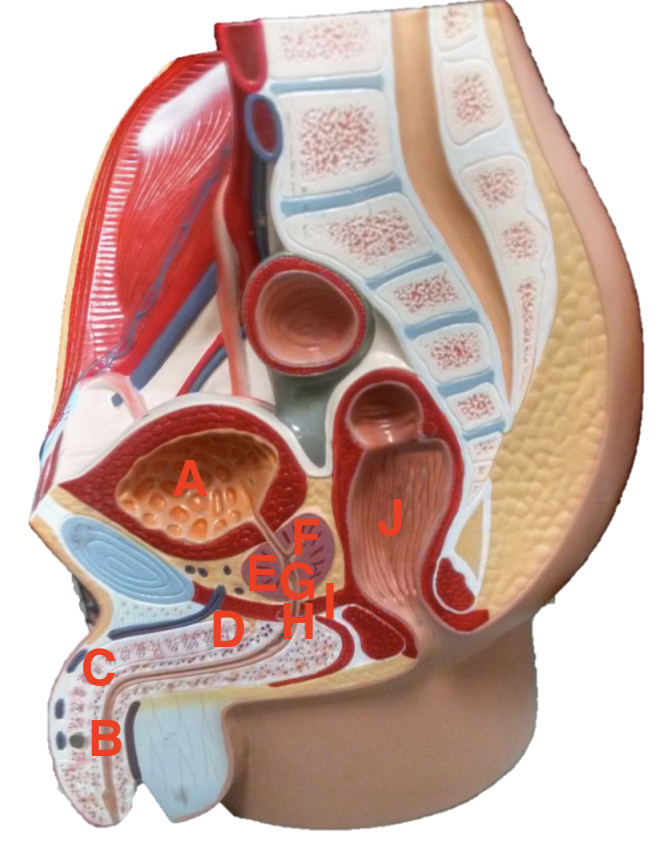

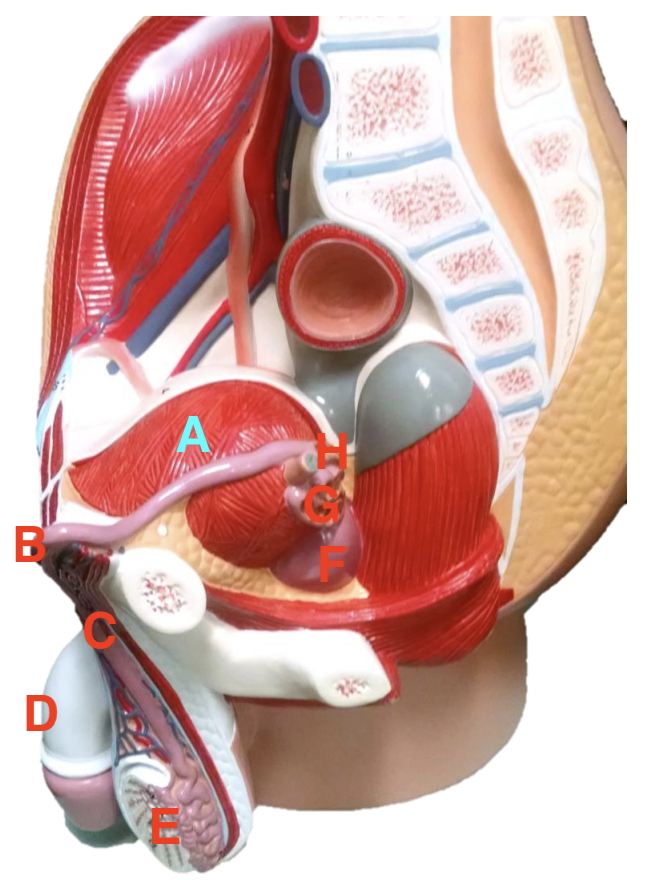

Label the following. [rectum, prostate, ejaculatory duct, prostatic urethra, membranous urethra, spongy urethra, shaft of penis, root of penis, urinary bladder, urogenital diaphragm]

a = urinary bladder
b = spongy urethra
c = shaft
d = root
e = prostate
f = ejaculatory duct
g = prostatic urethra
h = membranous urethra
i = urogenital diaphragm
j = rectum

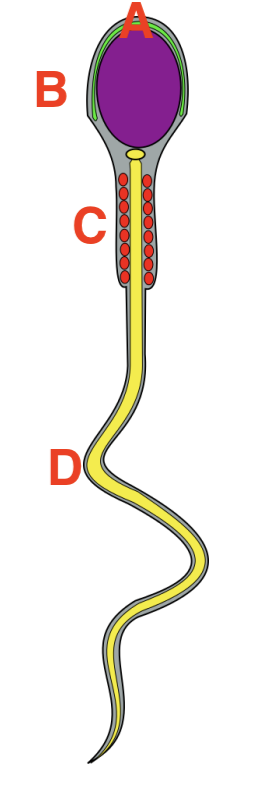

Label the following. [head, acrosome, midpiece, tail]

a = acrosome
b = head
c = midpiece
d = tail

Name and label the organ. [spermatogonia, spermatoza, interstitial cells, nurse cells, lumen]

a = interstitial cells
b = spermatoza
c = nurse cells
d = spermatogonia
e = lumen
f = testes/ seminiferous tubule

Name and label the organ. [lumen, mucosa, submucosa, muscularis externa]

a = muscularis externa
b = lumen
c = mucosa
d = spermatic cord
e = submucosa

Name and label the gland. [concretion, glandular epithelium]

a = glandular epithelium
b = concretion
c = prostate gland

Label the following. [tunica albuginea, cortex, medulla, ovarian ligament, primordial follicles, primary follicle, secondary follicle, vesicular follicle, ovulated oocyte, corpus luteum, corpus albicans]

a = tunica albuginea
b = cortex
c = secondary follicle
d = medulla
e = vesicular follicle
f = corpus albicans
g = primordial follicles
h = primary follicle
i = corpus luteum
j = ovulated oocyte
k = ovarian ligament

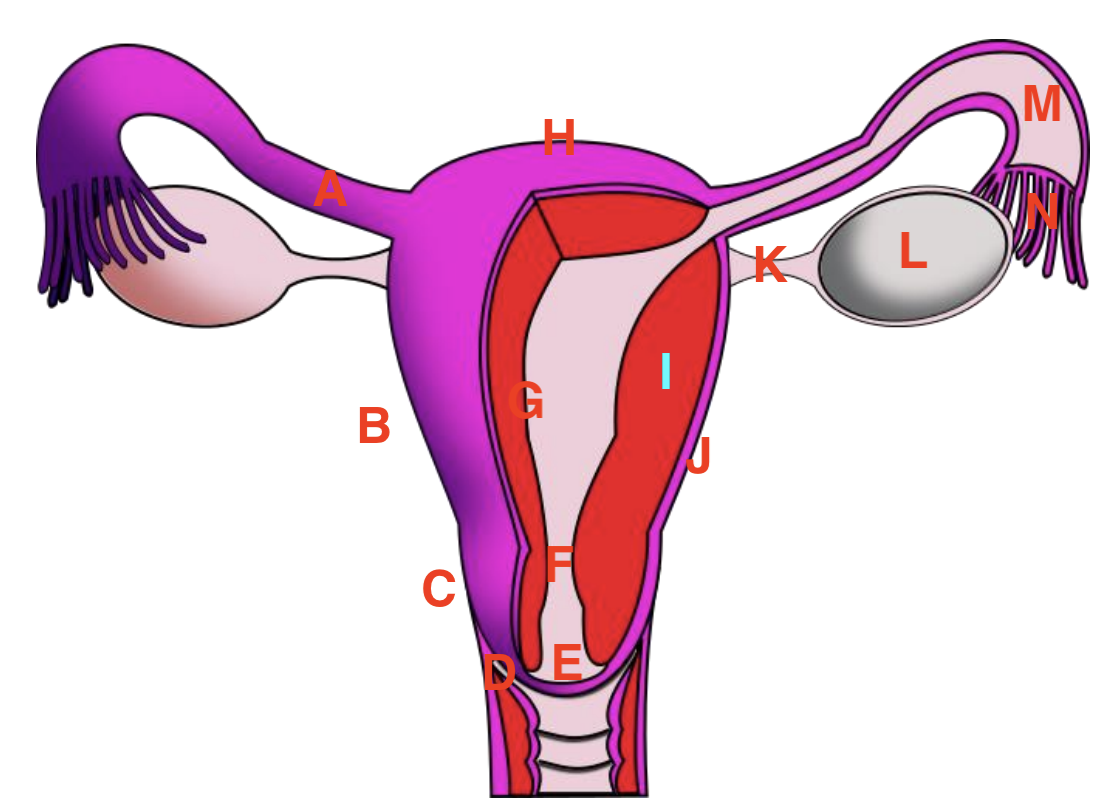

Label the following. [body, fundus, cervix, fornix, fallopian tube, ampulla, fimbriae, ovary, ovarian ligament, endometrium, myometrium, perimetrium, internal os, external os]

a = fallopian tube
b = body
c = cervix
d = fornix
e = external os
f = internal os
g = endometrium
h = fundus
i = myometrium
j = perimetrium
k = ovarian ligament
l = ovary
m = ampulla
n = fimbriae

Label the following. [fallopian tube, ovary, rectouterine pouch, rectum, urinarybladder, urethra, clitoris, labia minora, labia majora, uterus, vagina, pubis symphysis]

a = fallopian tube
b = ovary
c = uterus
d = pubis symphysis
e = clitoris
f = labia minora
g = labia majora
h = urinary bladder
i = urethra
j = vagina
k = rectouterine pouch
l = rectum

Label the following. [urogenital diaphragm, round ligament, infundibulum]

a = infundibulum
b = round ligament
c = urogenital diaphragm

Label the following. [uterus, fallopian tube, round ligament, ureter]

a = ureter
b = uterus
c = fallopian tube
d = round ligament

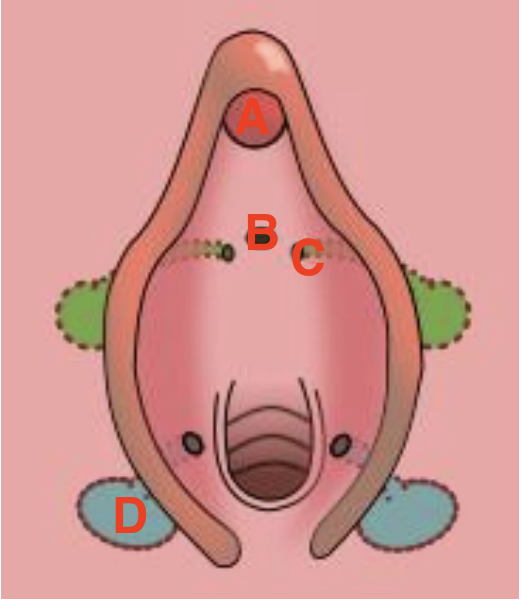

Label the structures. [glans clitoris, greater vestibular gland, skene’s glands, urethral orifice]

a = glans clitoris
b = urethral orifice
c = skene’s gland
d = greater vestibular gland

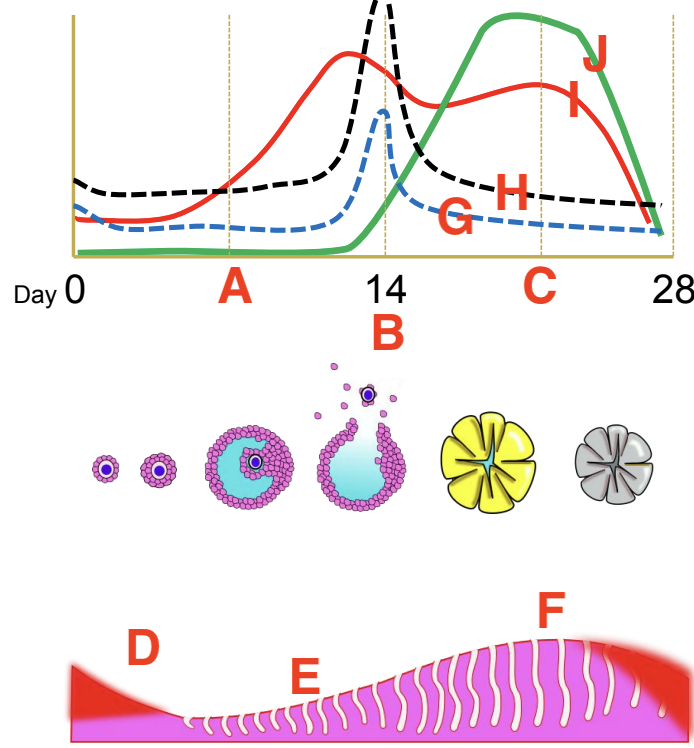

Label the following. [FSH, LH, estrogen, progesterone, follicular phase, luteal phase, menstrual phase, proliferative phase, secretory phase, ovulation]

a = follicular phase
b = ovulation
c = luteal phase
d = menstrual phase
e = proliferative phase
f = secretory phase
g = fsh
h = lh
i = estrogen
j = progesterone

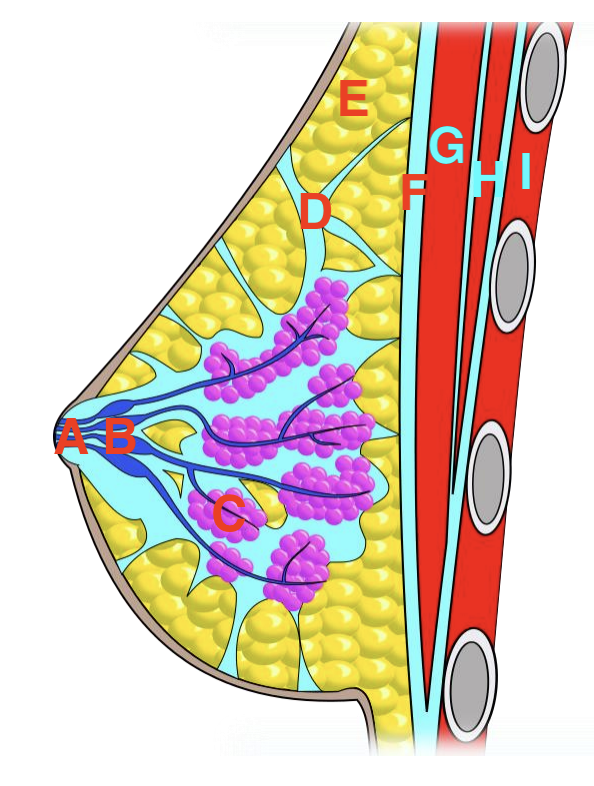

Label the following. [lobe, lactiferous ducts, suspensory ligaments, lactiferous sinus, pectoralis minor, pectoralis major, intercostal muscles, fascia, adipose tissue]

a = lactiferous ducts
b = lactiferous sinus
c = lobe
d = suspensory ligaments
e = adipose tissue
f = fascia
g = pestoralis major
h = pectoralis minor
i = intercostal muscles

a. what organ is this?
b. what is a?
c. what is b?
d. what is c?

a = testes
b = tunica albuginea
c = ductus epididymis
d = seminiferous tubule

a. what organ is this?
b. what is the arrow pointing at?

a = testes
b = lumen

a. what organ is this?

testes

what organ is this?

seminiferous tubules

a. what organ is this?
b. what is the arrow pointing at?
c. what is a?
d. what is b?
e. what is c?
f. what is d?

a = seminiferous tubule
b = spermatogina cell
c = tubule wall
d = primary spermatocytes
e = secondary spermatocytes
f = mature spermatoza

a. what organ is this?
b. what structure is this?

a = seminiferous tubule
b = sertoll cells

a. what organ is this?
b. what structure is this?

a = seminiferous tubule
b = interstitial cell

a. what organ is this?
b. what is a?
c. what is b?
d. what is c?

a = teste
b = spermatoza
c = ciliated columnar epithelium
d = connective tissue

what organ is this?

epididymis

a. what organ is this?
b. what is the arrow pointing to?

a = testes
b = stereocilia

a. what organ is this?
b. what is the arrow pointing to?

a = ductus deferens
b = lumen

what organ is this?

seminal vesicle

what organ is this?

seminal vesicle

what organ is this?

seminal vesicle

what organ is this?

seminal vesicle

what organ is this?

seminal vesicle

a. what organ is this?
b. what is the arrow pointing to?

a = prostate
b = prostatic accretion

what structure is this?

secretory epithelium

a. what organ is this?
b. what is a?
c. what is b?

a = penis
b = urethra
c = corpus spongiosum

a. what organ is this?
b. what is the arrow pointing to?

a = vagina
b = nucleus

what organ is this?

vagina

a. what organ is this?
b. what is the arrow pointing at?

a = uterus
b = secretory gland

a. what organ is this?
b. what is the arrow pointing at?

a = uterus
b = endometrial gland

a. what organ is?
b. what is the arrow pointing to?

a = fallopian tubes
b = uterine

a. what structure is this?
b. what is the arrow pointing to?

a = fallopian tube
b = cilia

a. what structure is this?
b. what is a?
c. what is b?
d. what is c?

a = ovaries
b = corpus luteum
c = developing follicles
d = stromal blood vessels

a. what organ is this?
b. what is the arrow pointing at?

a = ovary
b = ovarian follicles

a. what organ is this?
b. what is the arrow pointing at?
c. what is a?
d. what is b?
e. what is c?

a = ovary

a. what organ is this?
b. what is the arrow pointing to?

a = mammary gland
b = alveolus
