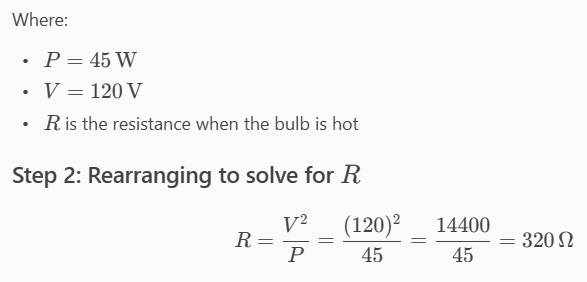

Find the hot resistance of a light bulb rated 45 W, 120 V.
320 ohms
2
New cards

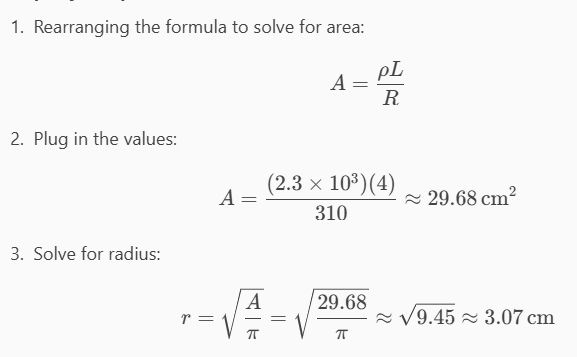

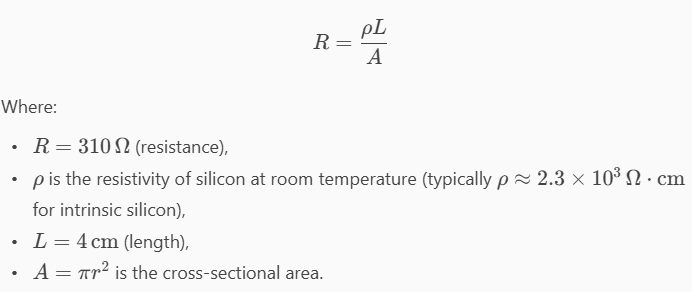

A bar of silicon is 4 cm long with a circular cross section. If the resistance of the bar is 310 Ω at room temperature, what is the cross-sectional radius of the bar?
3.07 cm
3
New cards

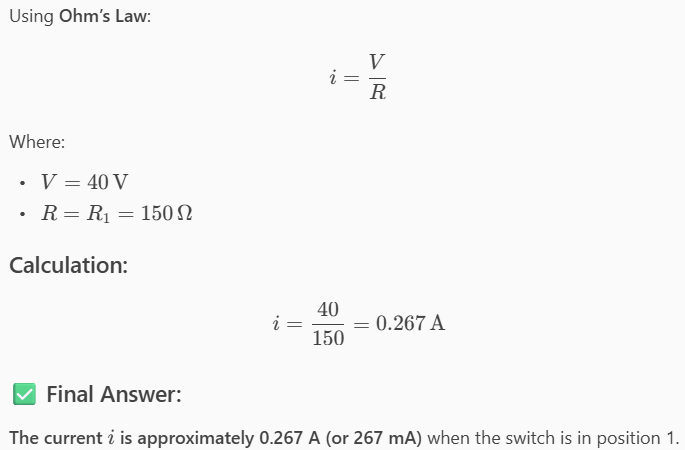

Consider the circuit in the given figure. Assume R1 = 150 and R2 = 260 Ω. Calculate current i in the given figure when the switch is in position 1.
267 mA
4
New cards

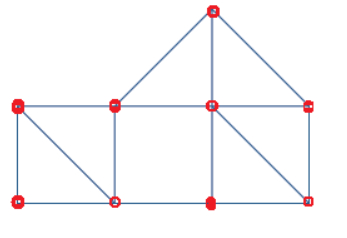

For the network graph shown in the given figure, find the number of nodes, branches, and independent loops.
6 nodes, 9 branches, 4 loops
5
New cards

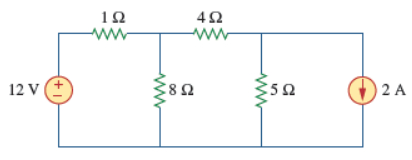

Determine the number of branches and nodes in the given circuit.
6
New cards

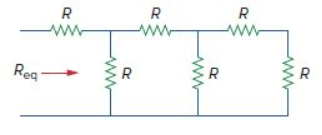

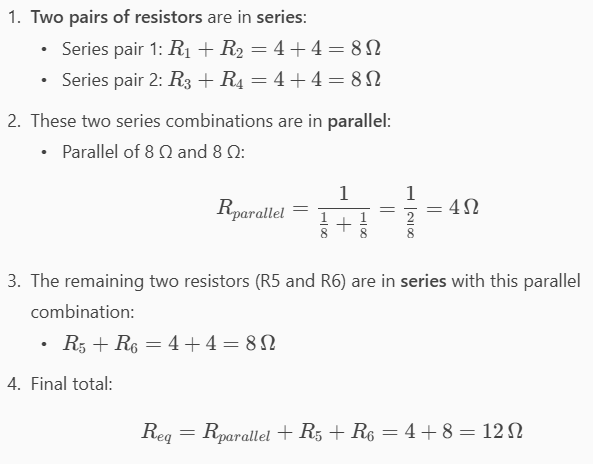

All resistors (R) in the given figure are 4 Ω each. Find Req.
12 ohms
