Hybridisation

Hybridisation for the steric number 2

sp

Hybridisation for the steric number 3

sp2

Hybridisation for the steric number 4

sp3

Hybridisation for the steric number 5

sp3d

Hybridisation for the steric number 6

sp3d2

Hybridisation for the steric number 7

sp3d3

Which orbital takes place in the following hybridisation - sp

S + px/py/pz

Which orbital takes place in the following hybridisation - sp2

S + PxPy/PyPz/PzPx

Which orbital takes place in the following hybridisation - sp3

S + Px + Py + Pz

Which orbital takes place in the following hybridisation - sp3d

S + Px + Py + Pz + Dz²

Which orbital takes place in the following hybridisation - sp3d2

S + Px + Py + Pz + Dz² + Dx²-y²

Which orbital takes place in the following hybridisation - sp3d3

S + Px + Py + Pz + Dz² + Dx²-y² + Dxy

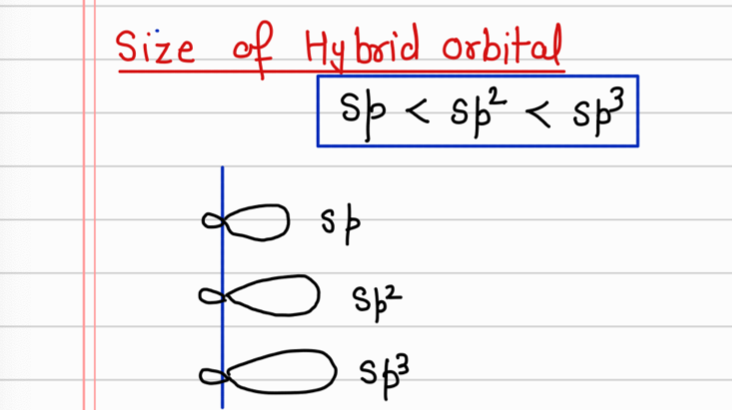

What is the order of size of hybrid orbitals

sp < sp2 < sp3

If %s character increases , then electronegativity _____

increases

If %s character increases , then Size of hybrid orbital ________

decreases

If %s character increases , then energy of hybrid orbital

Decreases

Formula for steric number

Steric No =. No of sigma bonds + no of lone pairs

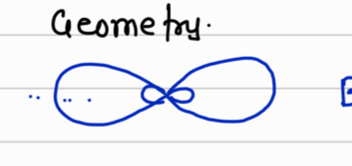

What is the geometry of sp

linear

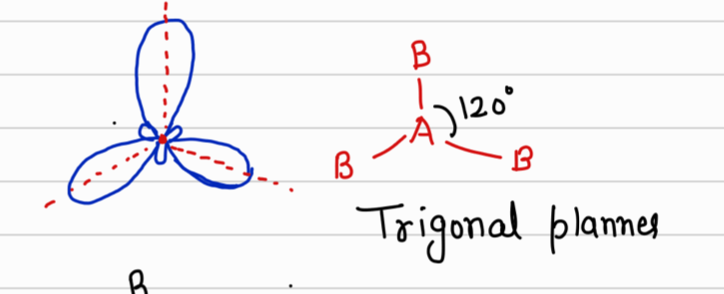

What is the geometry of sp2

Trigonal Planar

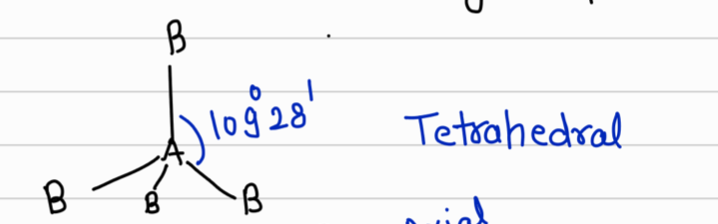

What is the geometry of sp3

Tetrahedral

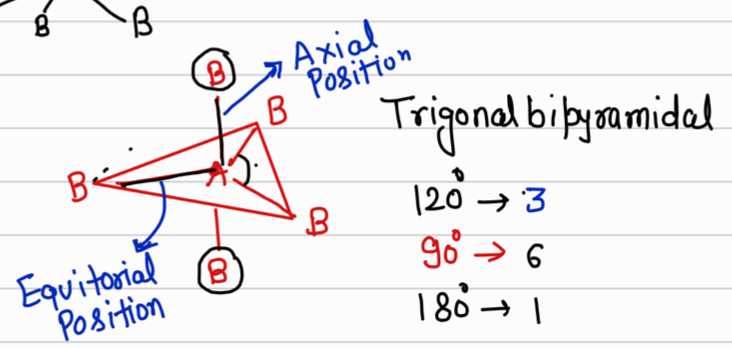

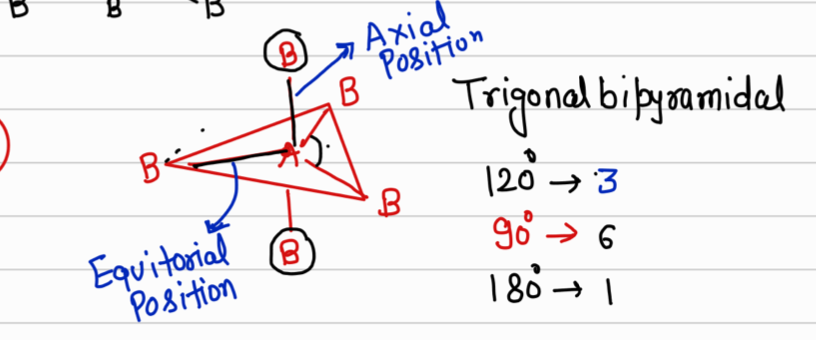

What is the geometry of sp3d

Trigonal Bipyramidal

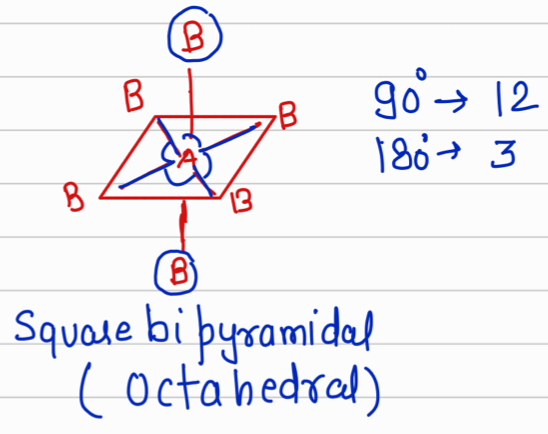

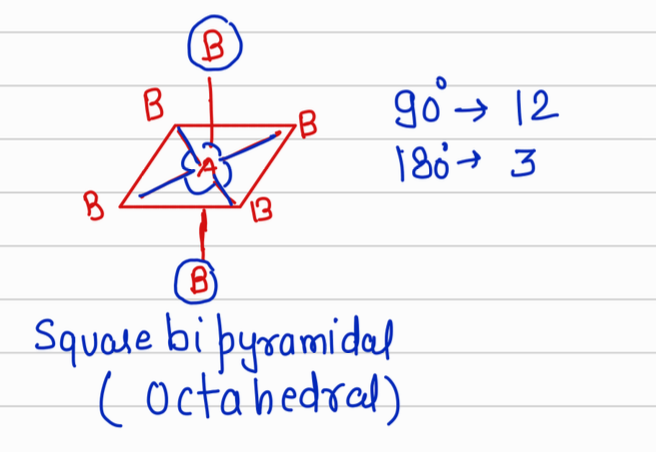

What is the geometry of sp3d2

Octahedral / Square Bi-pyramidal

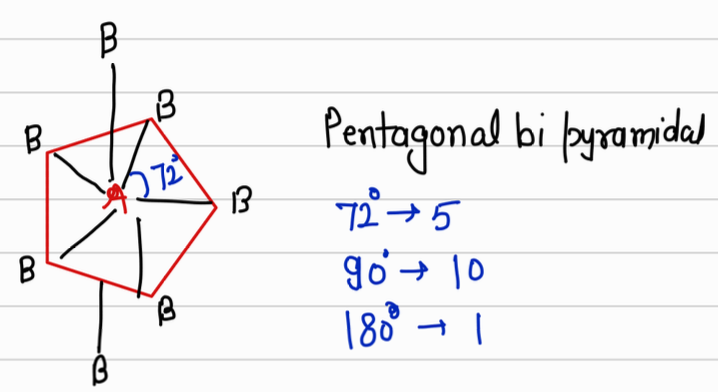

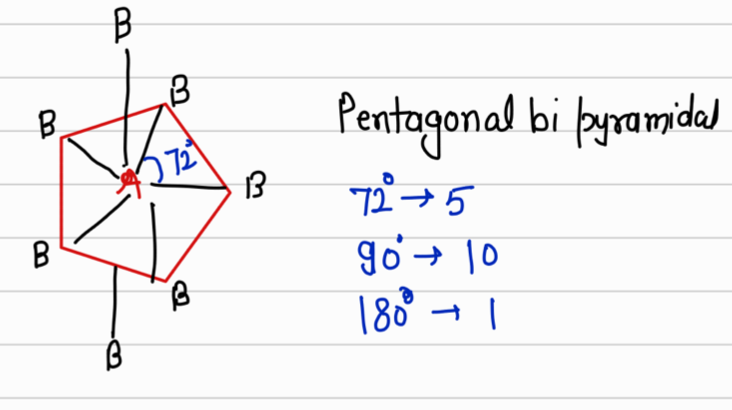

What is the geometry of sp3d3

Pentagonal Bi-pyramidal

Bond angle in sp

180

Bond Angle in sp2

120

Bond angle in sp3

109.28

Varying Bond angles in sp3d

120-3 , 90-6 , 180-1

Varying Bond Angles in sp3d2

90-12 , 180-3

Varying Bond Angles in sp3d3

72-5 , 90-10 , 180-1
