Lighting Design in Architecture: Fundamentals, Measurement, and Effects

What is light defined as in the context of the built environment?

Light is defined as electromagnetic radiation that can be detected by the human eye.

How does light influence our perception of spaces?

Light shapes how we perceive colors, textures, and forms, giving life to spaces and allowing engagement with the environment.

What role does light play in safety within architectural spaces?

Good lighting enhances visibility, helping to identify hazards and preventing accidents, especially in circulation routes.

How can poor lighting affect human activity?

Poor lighting can lead to eye strain, fatigue, headaches, and stress, negatively impacting focus and productivity.

What is the significance of natural light in architecture?

Natural light brings warmth, connects indoors and outdoors, and can reduce the need for artificial lighting, contributing to sustainability.

What are some strategies to maximize natural light in architectural design?

Strategies include using skylights, clerestory windows, atriums, and green roofs.

Why is artificial lighting necessary in architectural spaces?

Artificial lighting meets functionality demands during nighttime or in spaces without direct sunlight.

How can artificial lighting be manipulated in design?

Artificial lighting can be adjusted by position, intensity, and color to create emphasis or ambient effects.

What aesthetic effects can lighting have in a space?

Lighting can highlight design details, reveal textures, and create visual depth through the interplay of light and shadow.

What factors must be considered for effective lighting design?

Lighting must respond to the needs of the space, users, site context, climate, and orientation.

How does light govern mood and perception in architectural spaces?

Light shapes emotional responses and perceptions, influencing whether a space feels expansive, intimate, calm, or energetic.

What psychological effects do different colors of light have?

Warm hues promote relaxation, while cooler tones create clarity and focus.

What is a photon in the context of light?

A photon is a packet of energy that propagates through space as an electromagnetic wave.

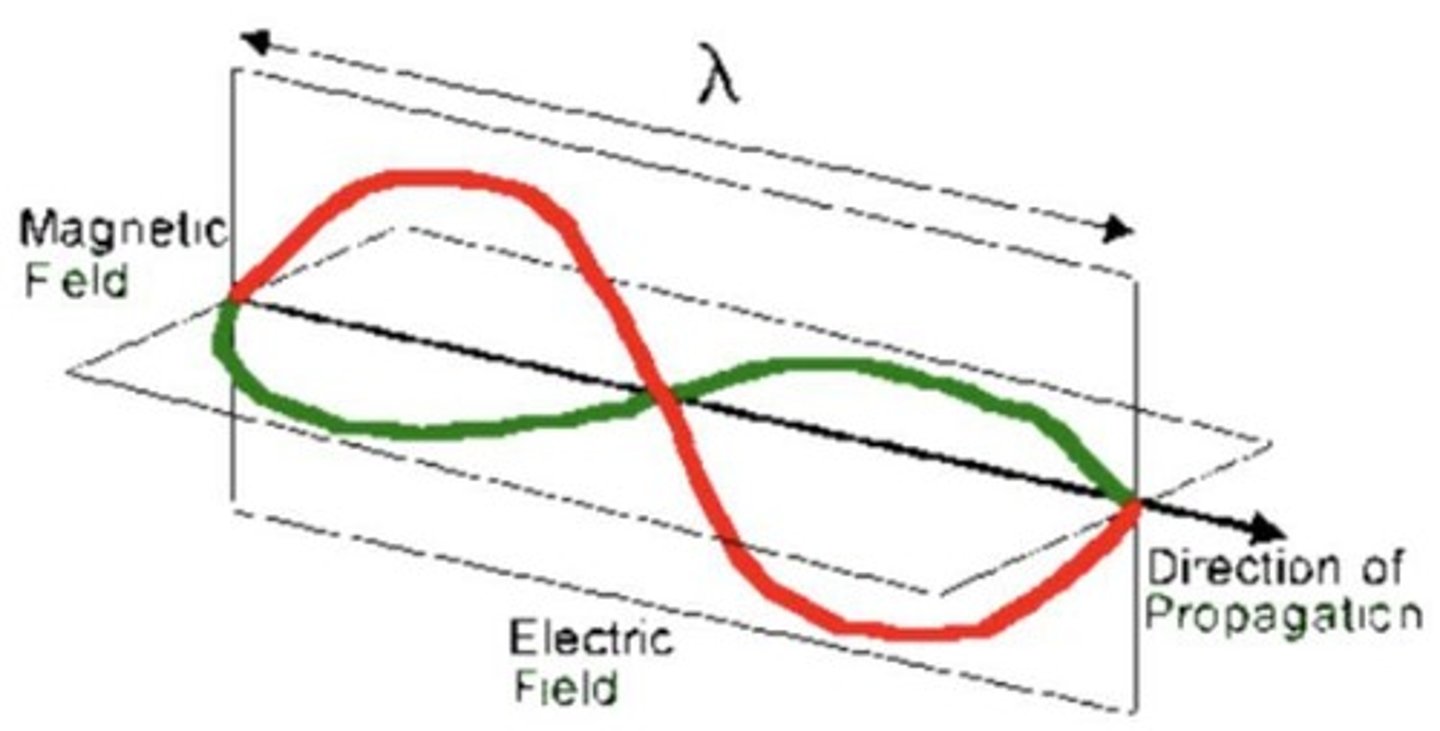

What is the relationship between electromagnetic fields and light?

Electromagnetic waves consist of electric and magnetic fields that oscillate perpendicular to each other and to the direction of wave propagation.

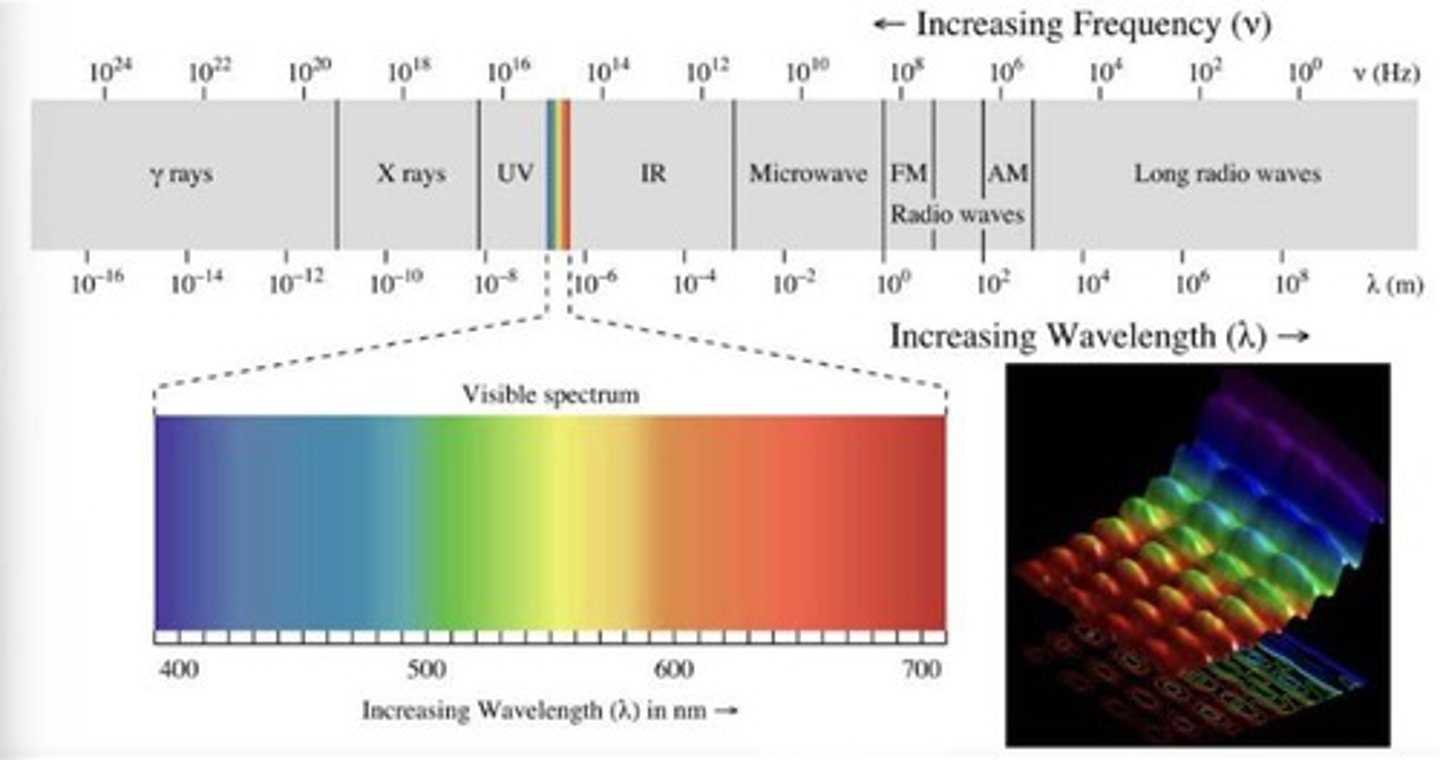

What is the significance of wavelength and frequency in electromagnetic waves?

Wavelength and frequency affect the visibility of electromagnetic waves.

How does light affect the functionality of a space?

Balanced lighting creates a comfortable environment that supports human activity and productivity.

What is the importance of integrating light into the design development process?

Light should be integrated rather than treated as an afterthought to effectively support architectural goals.

What is the impact of lighting on the perception of material weight and scale?

Lighting can alter the visual weight of materials and the scale of a space, affecting how warm, bright, or subdued it appears.

What is the role of light in creating dynamic and responsive environments?

Manipulating light allows for flexible and expressive environments with various lighting types such as ambient, accent, and task lighting.

What is the range of wavelengths for visible light?

Approximately 380 to 750 nanometers.

What is luminosity?

The absolute measure of light, representing the radiant power emitted by a light-emitting object.

How does luminosity differ from apparent brightness?

Luminosity is constant regardless of distance, while apparent brightness varies with distance.

What intrinsic property does luminosity quantify?

The total power an object radiates, including all forms of electromagnetic energy.

What factors determine an object's luminosity?

Size, temperature, and chemical composition.

How is luminosity measured?

Using specialized instruments like a bolometer, and is expressed in lumens.

What is the significance of lumens in measuring brightness?

Lumens indicate the total amount of visible light emitted; higher lumens mean brighter light.

What is the difference between photometry and radiometry?

Radiometry measures all light waves, while photometry specifically measures visible light based on human sensitivity.

What are the four types of measurements in radiometry and photometry?

Radiant and luminous flux, radiant intensity and luminous intensity, irradiance and illuminance, radiance and luminance.

What does brightness refer to in qualitative aspects of light?

The perceived intensity of a light source influenced by contrast and surrounding conditions.

How is color (hue) perceived?

Based on the wavelength of light reflected by an object, influenced by the light source and surrounding colors.

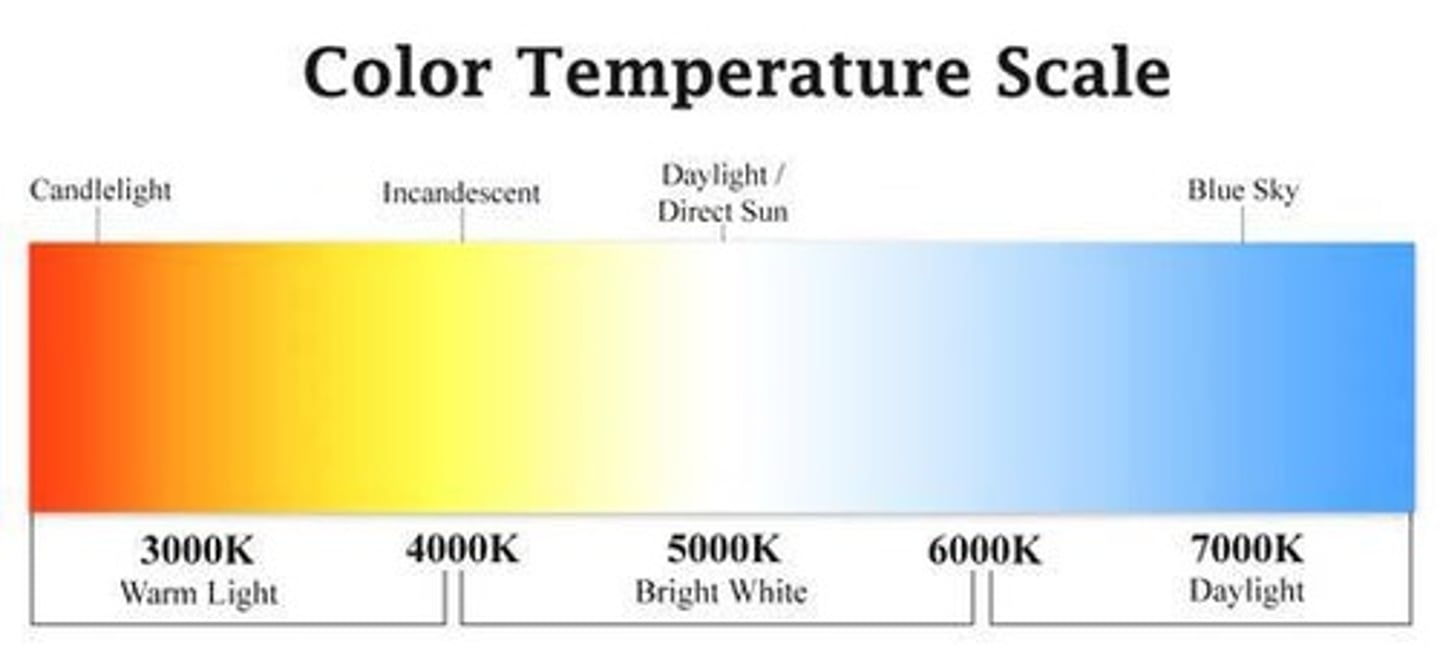

What is color temperature?

A qualitative description of the warmth or coolness of a light source, measured in Kelvin.

What is luminous flux?

The total perceived power of visible light emitted by a source in all directions, measured in lumens.

How does luminous flux differ from radiant flux?

Luminous flux focuses on visible light perceived by the human eye, while radiant flux includes all wavelengths.

What is an example of luminous flux for light bulbs?

A 60W incandescent bulb emits about 800 lumens, similar to a 10W LED.

What is luminous intensity?

The perceived power of light emitted by a source in a specific direction, measured in candelas.

How is luminous intensity measured?

In steradians, representing a three-dimensional portion of space from a point source.

What is the significance of the human eye's sensitivity to different wavelengths?

The eye is most sensitive to green-yellow light at 555 nm, affecting perceived brightness.

What are the architectural implications of luminous intensity?

High intensity spotlights can create specific lighting effects, influencing mood and atmosphere.

How does luminous intensity influence architectural design?

It informs how architects manipulate light to shape functional and aesthetic experiences within a space.

What is the purpose of high-intensity spotlights in museum galleries?

They illuminate artworks with sharp visual focus while minimizing spill to surrounding surfaces.

What is ambient lighting and where is it commonly used?

Ambient lighting is diffused illumination used in lobbies, corridors, or open-plan offices to create uniform light and reduce glare.

How is luminous intensity modulated in sacred architecture?

It accentuates altars and religious iconography while preserving areas of subdued light for contemplative atmospheres.

What is the role of exterior architectural lighting?

It controls intensity to wash broad surfaces with facade floodlights or emphasize texture and pattern with focused projection.

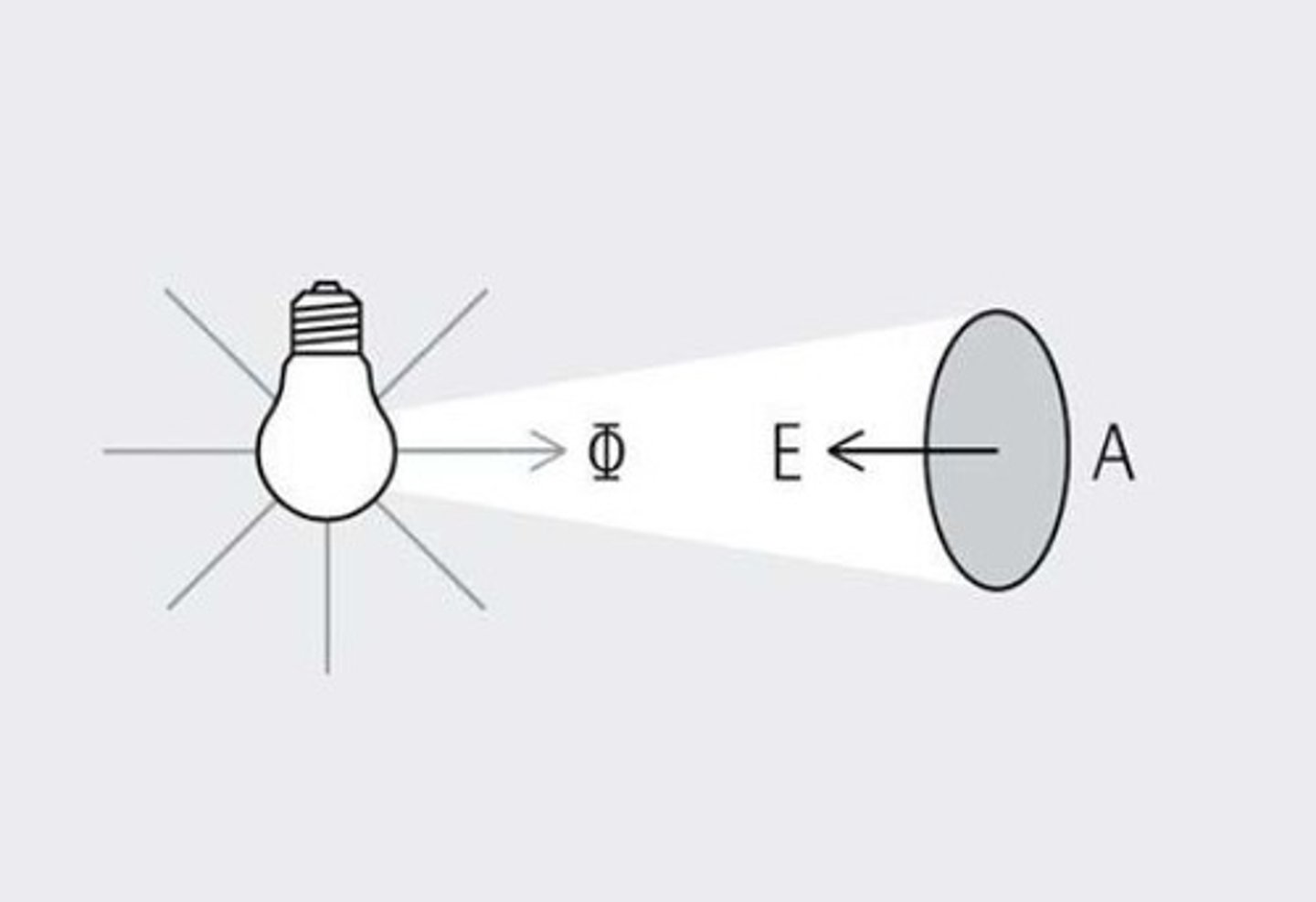

What is illuminance and how is it measured?

Illuminance is the light that strikes a surface, measured in lux (lx), defined as luminous flux per unit area.

How does illuminance relate to the built environment?

It measures the distribution of a light source's output across a surface, linking the light source to occupants' visual experiences.

What is the inverse-square law in relation to illuminance?

Illuminance decreases with the square of the distance from a point light source, affecting how light intensity is perceived.

What does Lambert's Cosine Law explain?

It describes how the angle of incidence affects light dilution over an area, making surfaces facing the light appear brighter.

How does the Inverse Square Law create focal points in lighting design?

It ensures areas closest to a light source are brighter, creating dramatic contrasts and focused atmospheres.

What is grazing light and how does it affect texture perception?

Grazing light strikes textured surfaces at oblique angles, highlighting contrasts and making textures visually apparent.

How can light placement influence the perception of spatial volume?

The orientation of windows and skylights determines which surfaces receive light, defining the spatial volume through brightness gradients.

What is luminous flux and how is it measured?

Luminous flux is the total amount of visible light emitted by a source, measured in lumens (lm).

What is luminous intensity and how is it expressed?

Luminous intensity is the directional distribution of luminous flux, expressed in candelas (cd).

Why is understanding materiality important in lighting design?

Different materials interact with light differently; polished surfaces reflect high-intensity beams, while matte finishes diffuse light.

What happens to illuminance when the distance from a light source increases?

Illuminance decreases according to the inverse-square law as the distance from the source increases.

How does the angle of incidence affect the brightness of surfaces?

Surfaces facing the light source appear brighter, while those turned away fall into shadow due to Lambert's Cosine Law.

What is the significance of the distance between light sources and surfaces in lighting design?

The distance affects the intensity and distribution of light, influencing how spaces are perceived and experienced.
