8 Terms

1
New cards

PUBIC SYMPHYSIS PROJECTION

  1. CHAMBERLAIN METHOD (PA PROJECTION)

2
New cards

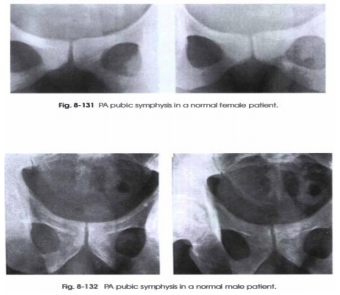

CHAMBERLAIN METHOD (PA PROJECTION)

PP: Upright; standing on two blocks
• First exposure: remove one blocks; one leg hangs with no muscular resistance
• Second exposure: replace support under foot that was hanging; remove the opposite one; second leg hanging free

RP: Pubic symphysis

CR: ┴

SS: Pubic symphysis

<p><span><strong>PP: </strong>Upright; standing on two blocks</span><br><span>• <strong>First exposure: </strong>remove one blocks; one leg hangs with no muscular resistance</span><br><span>• <strong>Second exposure: </strong>replace support under foot that was hanging; remove the opposite one<strong>; </strong>second leg hanging free</span></p><p><span><strong>RP</strong>: Pubic symphysis</span></p><p><span><strong>CR: ┴</strong></span></p><p><span><strong>SS: </strong>Pubic symphysis</span></p>
3
New cards

SACRUM PROJECTIONS

  1. AP AXIAL/PA AXIAL PROJECTION

  2. LATERAL PROJECTION

4
New cards

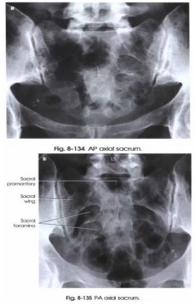

AP/PA AXIAL PROJECTION

PP: Supine or prone (patient w/painful injury/destructive disease)

RP: 2 in. superior to pubic symphysis (supine); visible sacral curve (prone)

CR: 15o cephalad (supine); 15o caudad (prone)

SS: Sacrum free of foreshortening

<p><span><strong>PP: </strong>Supine or prone (patient w/painful injury/destructive disease)</span></p><p><span><strong>RP</strong>: 2 in. superior to pubic symphysis (supine); visible sacral curve (prone)</span></p><p><span><strong>CR: </strong>15o cephalad (supine); 15o caudad (prone)</span></p><p><span><strong>SS: </strong>Sacrum free of foreshortening</span></p>
5
New cards
<p>LATERAL PROJECTION</p>

LATERAL PROJECTION

PP: Lateral recumbent; interiliac plane ┴ to IR; pelvis & shoulder in true lateral position

RP: 3.5 in. posterior to ASIS

CR: ┴

SS: Sacrum

<p><span><strong>PP: </strong>Lateral recumbent; interiliac plane <strong>┴ </strong>to IR; pelvis &amp; shoulder in true lateral position</span></p><p><span><strong>RP</strong>: 3.5 in. posterior to ASIS</span></p><p><span><strong>CR: ┴</strong></span></p><p><span><strong>SS: </strong>Sacrum</span></p>
6
New cards

COCCYX

  1. AP AXIAL/PA AXIAL PROJECTION

  2. LATERAL PROJECTION

7
New cards

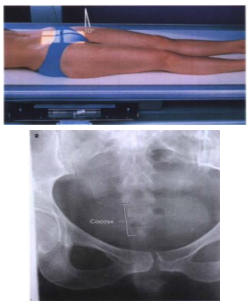

AP/PA AXIAL PROJECTION

PP: Supine or prone (patient w/painful injury/destructive disease)

RP: 2 in. superior to pubic symphysis (supine); Palpable coccyx (prone)

CR: 10o caudad (supine); 10o cephalad (prone)

SS: Coccyx free of superimposition

<p><span><strong>PP: </strong>Supine or prone (patient w/painful injury/destructive disease)</span></p><p><span><strong>RP</strong>: 2 in. superior to pubic symphysis (supine); Palpable coccyx (prone)</span></p><p><span><strong>CR: </strong>10o caudad (supine); 10o cephalad (prone)</span></p><p><span><strong>SS: </strong>Coccyx free of superimposition</span></p>
8
New cards

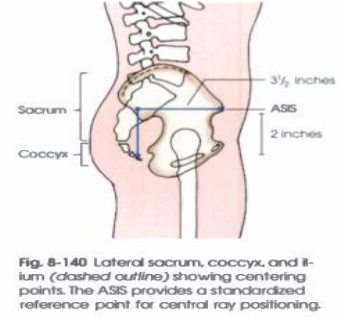

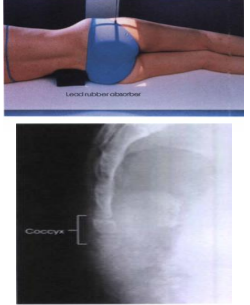

LATERAL PROJECTION

PP: Lateral recumbent; interiliac plane ┴ to IR; pelvis & shoulder in true lateral position

RP: 3.5 in. posterior & 2 in. inferior to ASIS

CR: ┴

SS: Coccyx

<p><span><strong>PP: </strong>Lateral recumbent; interiliac plane <strong>┴ </strong>to IR; pelvis &amp; shoulder in true lateral position</span></p><p><span><strong>RP</strong>: 3.5 in. posterior &amp; 2 in. inferior to ASIS</span></p><p><span><strong>CR: ┴</strong></span></p><p><span><strong>SS: </strong>Coccyx</span></p>
