AP CHEM MOLECULAR GEOMETRY

0.0(0)Studied by 1 person
Build your Mastery score
multiple choiceMultiple Choice & FRQ
call kaiCall Kai
Card Sorting

1/11

flashcard set

Earn XP

Description and Tags

Chemistry

Molecular & Ionic Compounds

AP Chemistry

Unit 2: Molecular and Ionic Compound Structure and Properties

Lewis Structures and Molecular Geometry

HIGH_SCHOOL

Last updated 5:38 AM on 9/15/26
Name
Mastery
Learn
Test
Matching
Spaced
Call with Kai
Chat

No analytics yet

Send a link to your students to track their progress

12 Terms

1
New cards

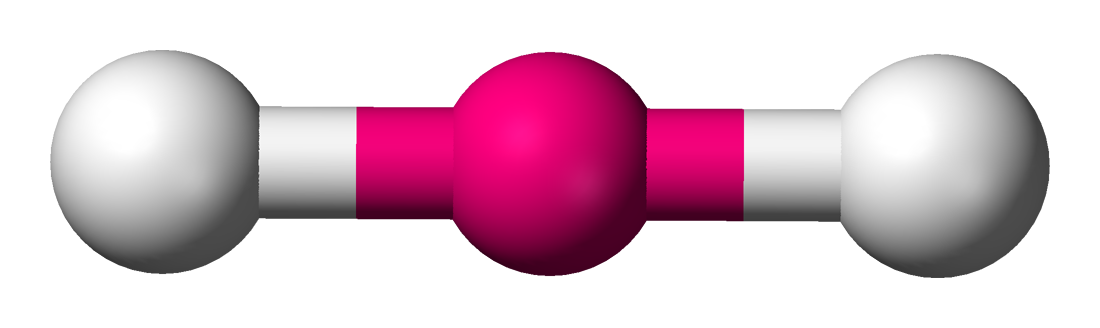

AX2

Linear, linear, 180

<p>Linear, linear, 180</p>
2
New cards

AX3

Trigonal Planar, trigonal planar, 120

<p>Trigonal Planar, trigonal planar, 120</p>
3
New cards

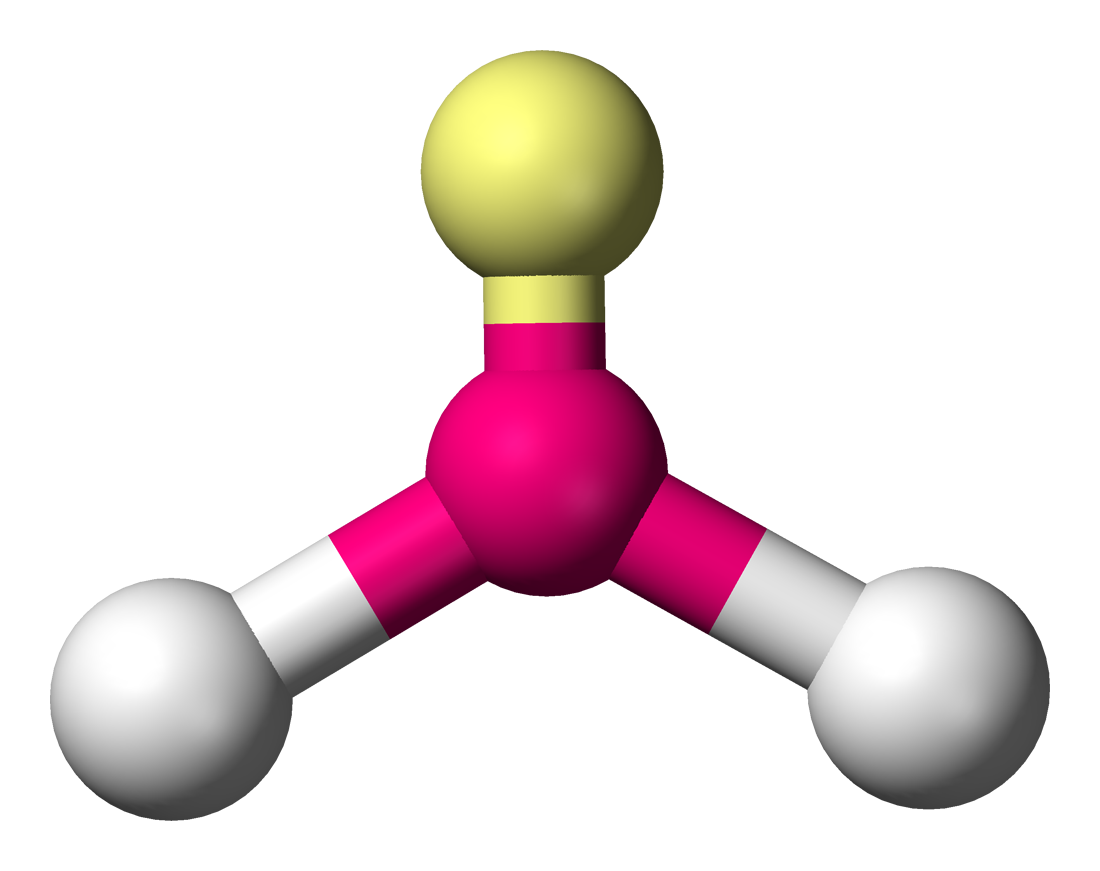

AX2E

Trigonal planar, bent, <120

<p>Trigonal planar, bent, &lt;120</p>
4
New cards

AX4

Tetrahedral, tetrahedral, 109

<p>Tetrahedral, tetrahedral, 109</p>
5
New cards

AX3E

Tetrahedral, trigonal pyramidal, 107

<p>Tetrahedral, trigonal pyramidal, 107</p>
6
New cards

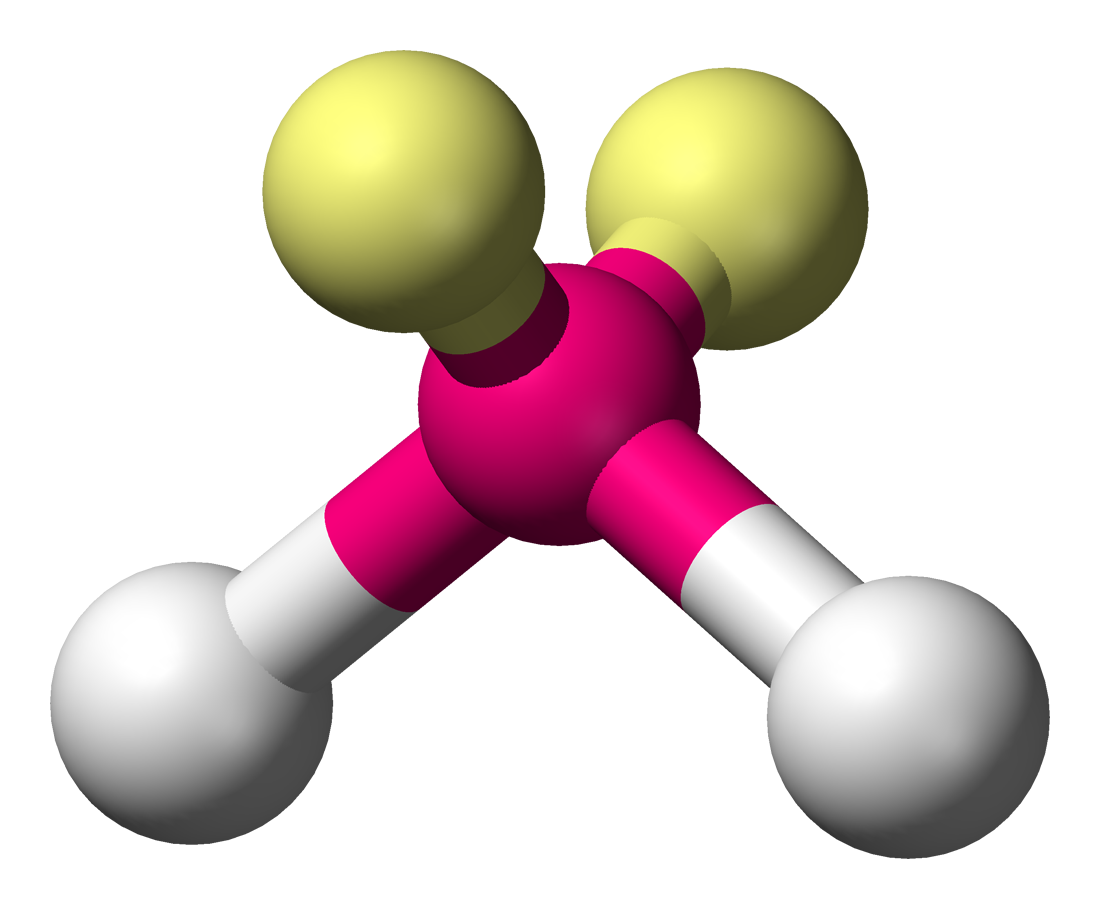

AX2E2

Tetrahedral, bent, 105

<p>Tetrahedral, bent, 105</p>
7
New cards

AX5

Trigonal bipyramidal, trigonal bipyramidal, 90/120

<p>Trigonal bipyramidal, trigonal bipyramidal, 90/120</p>
8
New cards

AX4E

Trigonal bipyramidal, seesaw, 90 -1 domain/120

<p>Trigonal bipyramidal, seesaw, 90 -1 domain/120</p>
9
New cards

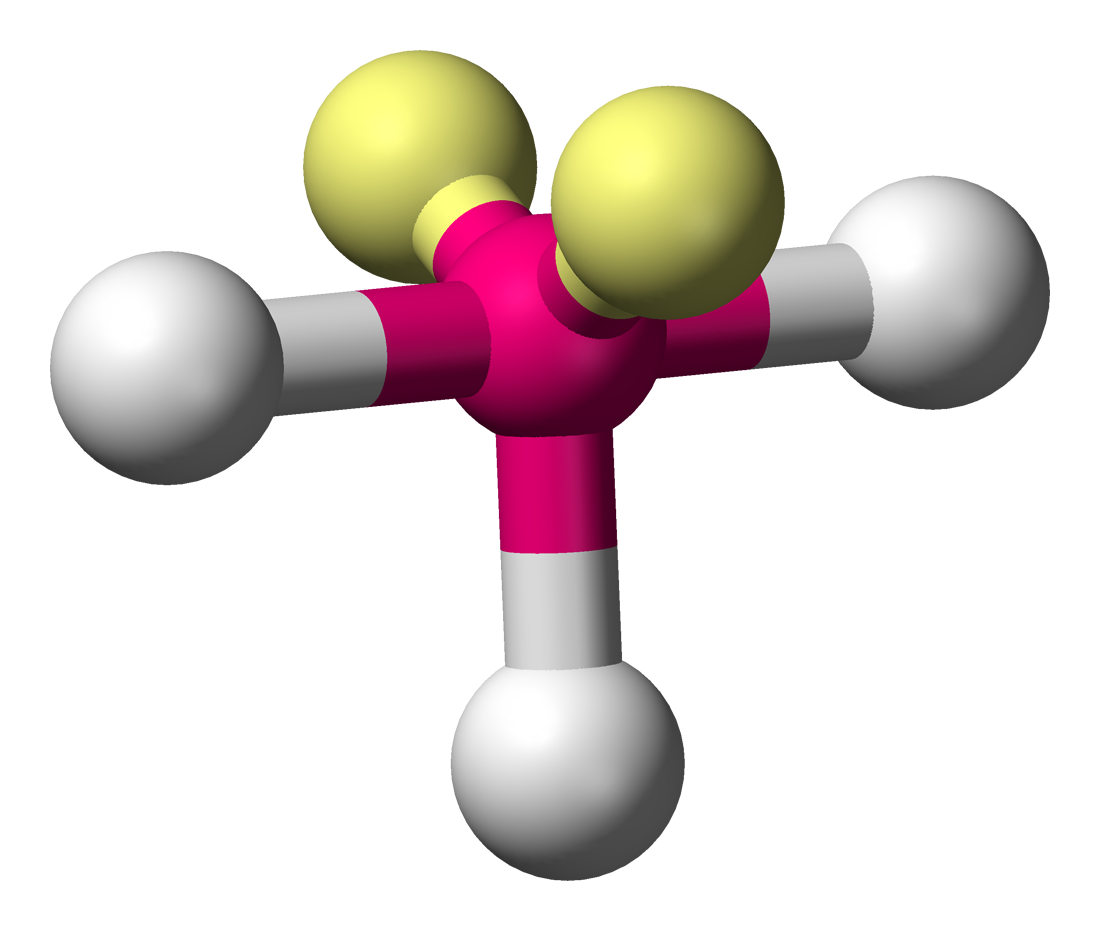

AX3E2

Trigonal bipyramidal, T-shaped, 90

<p>Trigonal bipyramidal, T-shaped, 90</p>
10
New cards

AX6

Octahedral, octahedral, 90

<p>Octahedral, octahedral, 90</p>
11
New cards

AX5E

Octahedral, square pyramidal, 90

<p>Octahedral, square pyramidal, 90</p>
12
New cards

AX4E2

Octahedral, square planar, 90

<p>Octahedral, square planar, 90</p>
