extraoral radiography

lecture given 3/12/2026

what does a lateral cephalometric projection display?

lateral profile and skull

what are some indications for a lateral cephalometric projection?

ortho, orthognathic surgery, oral surgery

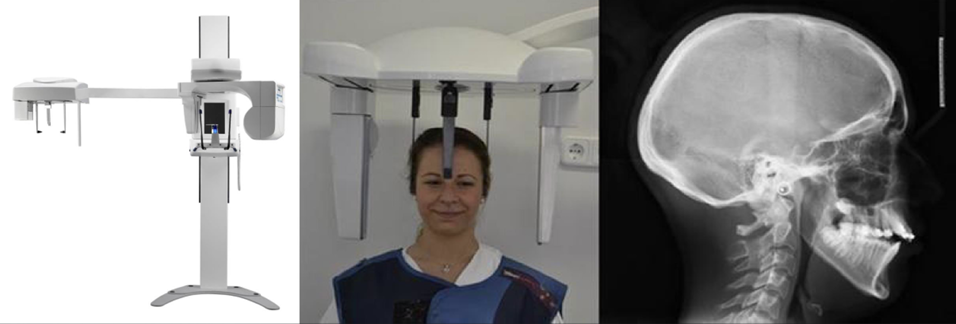

what is this?

lateral cephalometric projection

a? (orange-ish outline)

epiglottis

b?

c1 atlas

c?

c2 axis

what structure is outlined in yellow? (not full circle, only half circle)

sella turcica

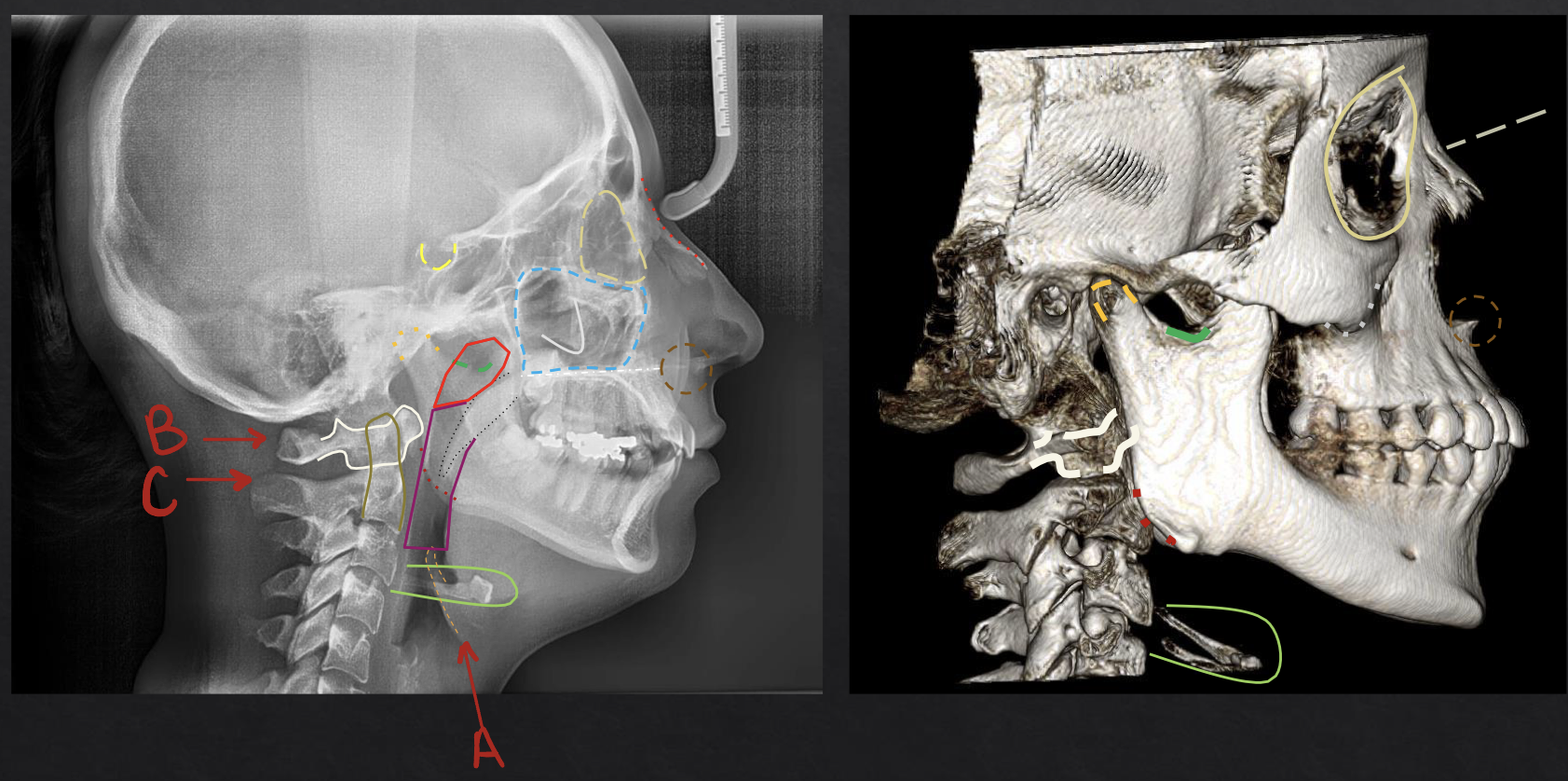

what structure is outlined in purple?

oropharynx

what structure is circled in green?

hyoid bone

what structure is circled in blue?

maxillary sinus

what structure is circled in brown?

anterior nasal spine

what structure is lined in red? (in the front of the face)

nasal bone

what structure is circled in yellow? (full circle)

orbit

what sits in the sella turcica?

pituitary gland

what are the indications for posteroanterior (PA) cephalometric

ortho, oral surgery, trauma, facial asymmetry malocclusion

what is this?

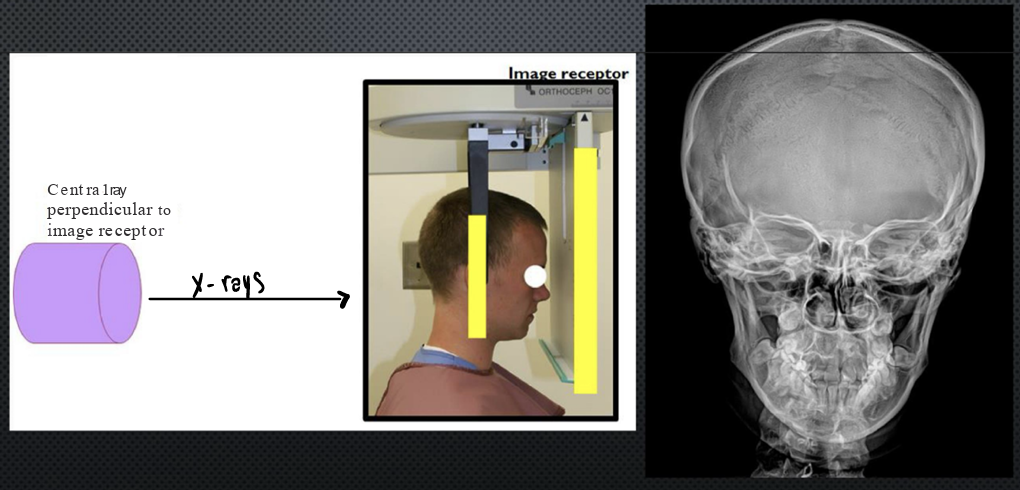

posteroanterior (PA) cephalometric

a?

frontal sinus

b?

orbit

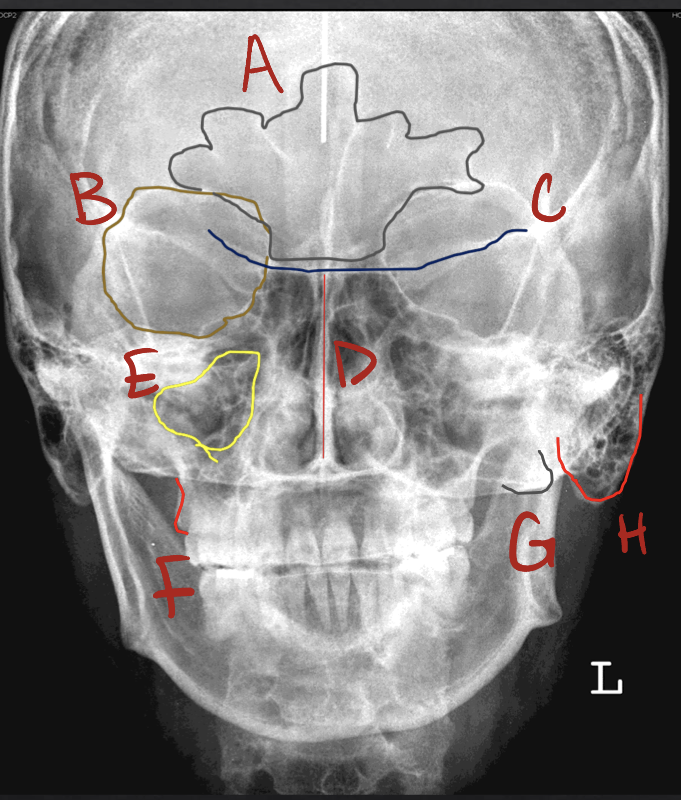

c?

lesser wing of the sphenoid

d?

nasal septum

e?

maxillary sinus

f?

posterior border / tuberosity of the maxilla

g?

zygomatic process of the maxilla

h?

mastoid process

waters projection

lifted at an angle

what are the indications for waters projection?

image sinuses after trauma (can visualize fluid accumulation)

what is this?

waters projection

what structure is circled in orange?

frontal sinus

what structure is circled in yellow (big one, not 2 little ones)?

orbit

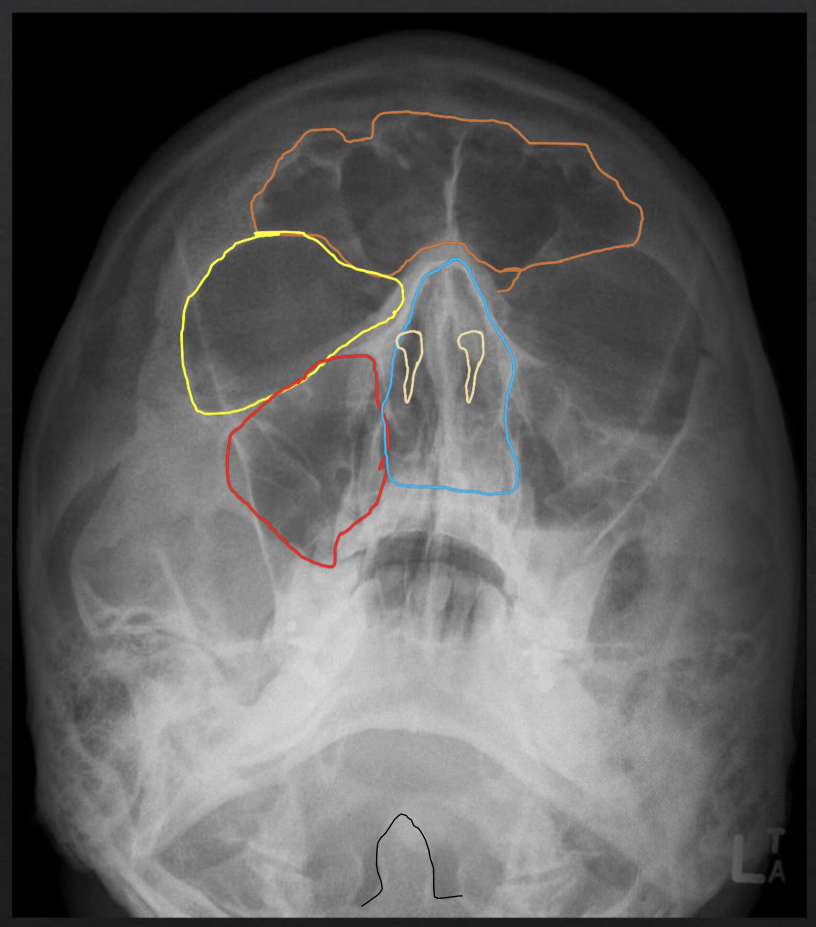

what structure is circled in red?

maxillary sinus

what structure is circled in two lil yellow tear drops?

nasal aperature

what structure is circled in blue?

nasal cavity

what structure is outlined in black?

odontoid process of C2

t/f in a panoramic image, the x-ray source and receptor are moving

true!

what is this?

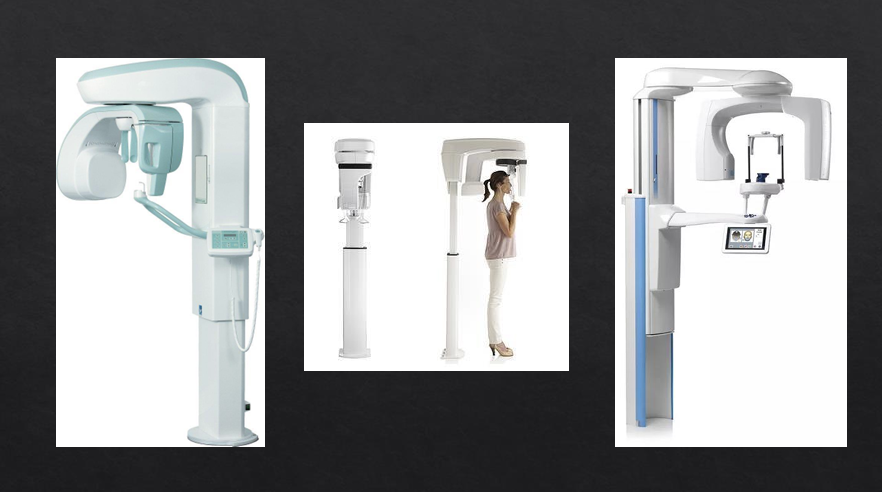

panoramic

*what are the indications for pano?

overall evaluation of dentition, examine for intraosseous pathology like cysts / tumor / infections, gross evaluation of TMJ, evaluation of position of impacted teeth, evaluation of eruption of permanent dentition, denomaxillofacial trauma, developmental disturbances of maxillofacial skeleton

what should you tell your pt to do when taking a pano?

put the tip of your tongue on your hard palate- this closes palatoglossal space (which will be superimposed on maxillary teeth)

*what are the advantages of a pano compared with a full-mouth examination?

board coverage of facial bones and teeth, low radiation dose, easy of panoramic radiographic technique, can be used in pts with trismus or in pts who cannot tolerate intraoral radiography, quick and convenient radiographic technique, useful visual aid in pt education and case presentation

*what are the disadvantages of pano?

lower resolution images that do not provide the fine details provided by intraoral radiograph, magnification across image is unequal making linear measurements unreliable, image is superimposition of real/double/ghost images and requires careful visualization to decipher anatomic and pathologic details, requires accurate pts positioning to avoid positioning errors and artifacts, difficult to image both jaws when pt has severe maxillomandibular discrepancy

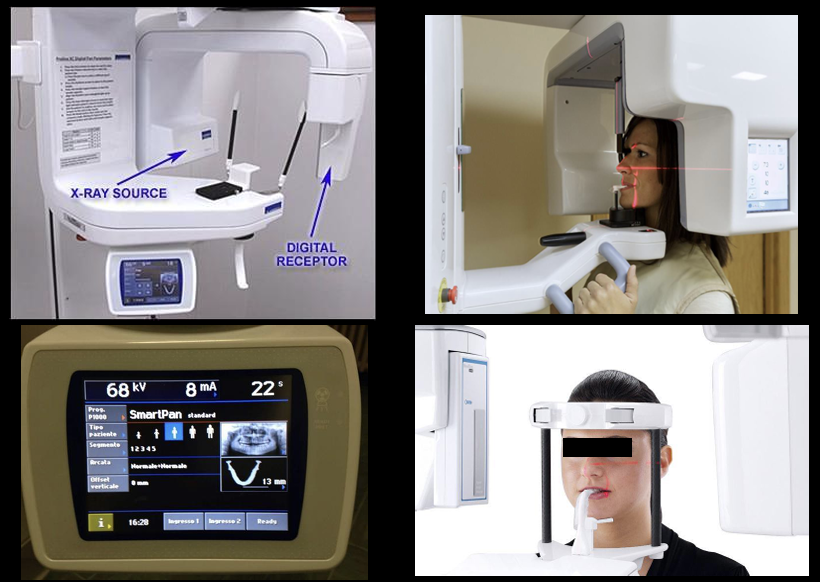

what is this?

angulation of pano

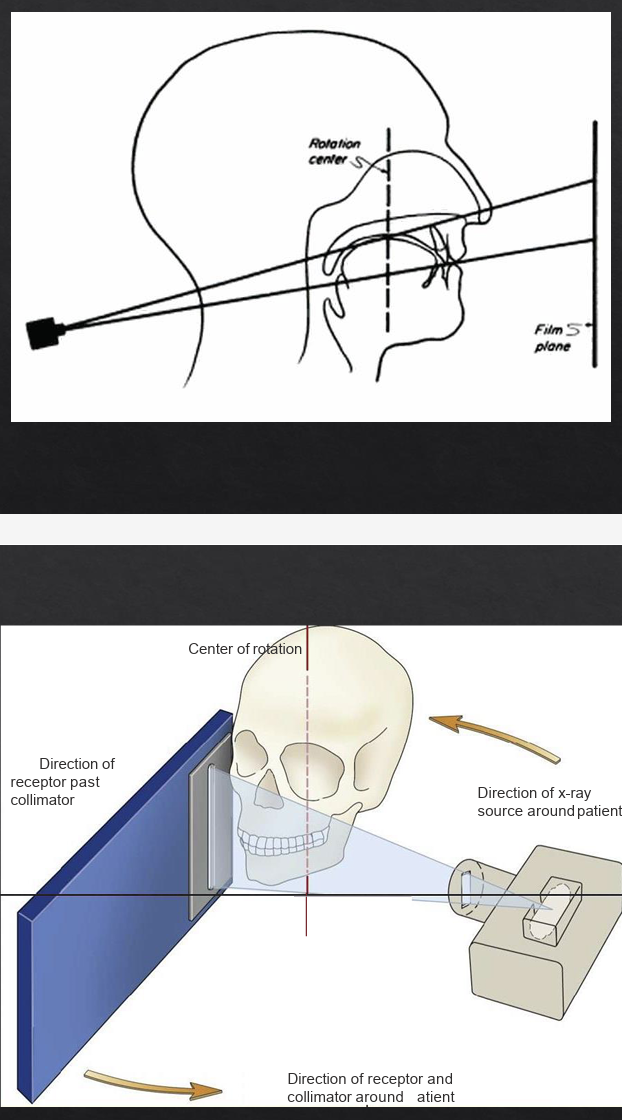

focal trough

a zone of sharpness generated by a moving source and receptor

the closer an anatomic structure is positioned to the center of the trough…

the more clearly it is imaged on the resulting radiograph

*purple

real images- structures between the moving center of rotation and the receptor form real images

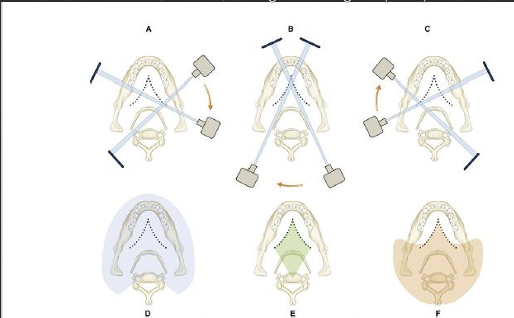

*green

double- structures lying between the moving centers of rotation and the receptor that are imaged twice

*orange

ghost- structures located between the x-ray source and moving center of rotation cast ghost images

where do ghost images appear?

on the opposite side of, and superior to the original image

also more blurry

what does the first row show?

pt is biting correctly

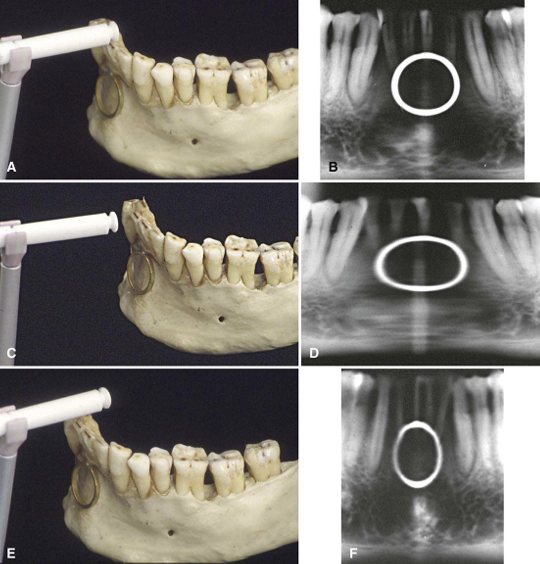

what does the second row show?

the bite plate is too anterior / the patient is too posterior

the mandible is posterior to the focal trough and images will be magnified

what does the third row show?

bite plate is too posterior / pt is too anterior

the mandible is anterior to the focal trough and images will be minified
