9 Terms
Describe what is meant by the ideal diode
forward bias is a short circuit
reverse bias is an open circuit

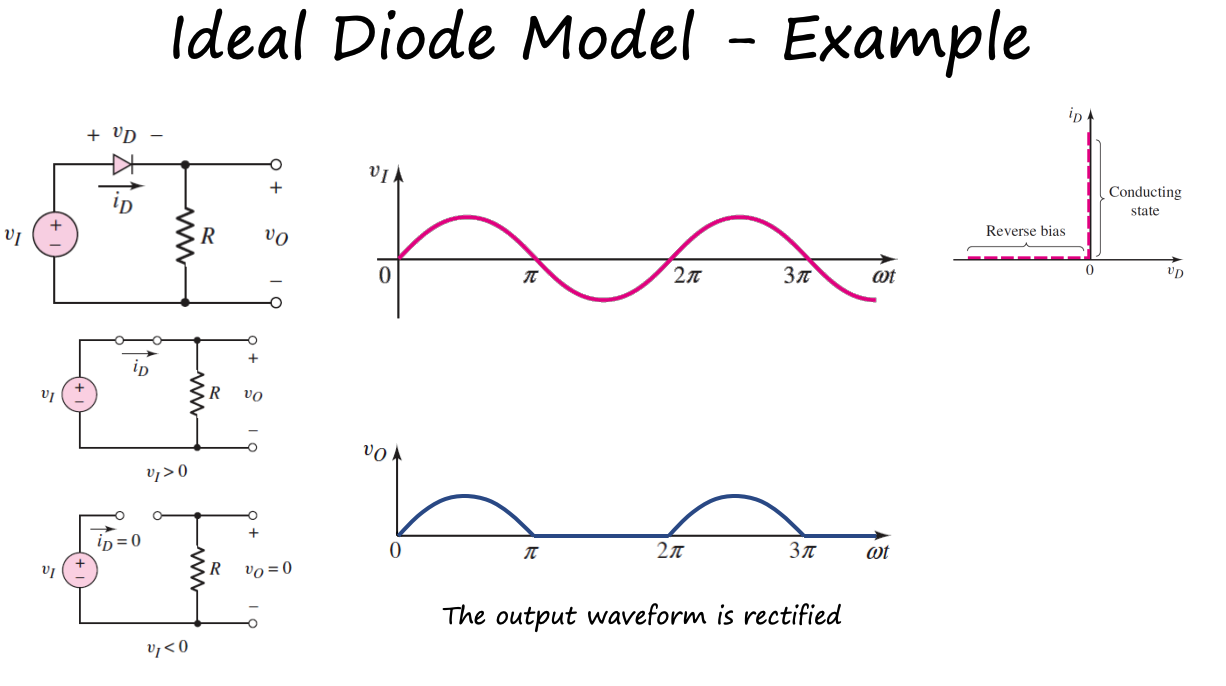

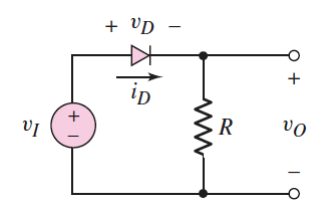

For the circuit shown in the image:
Draw variations of the circuit in reverse and forward bias
Draw a graph of v1 over time
Draw a graph of the voltage across the resistor over time
State the techniques used for the DC analysis of a diode circuit
Piecewise linear modelling
Iteration
Graphical techniques
Computer analysis
PIGC
State what techniques of DC diode circuit analysis comprises of graphical techniques
Load lines
Piecewise linear model load line
Describe the iteration technique of DC analysis for a diode

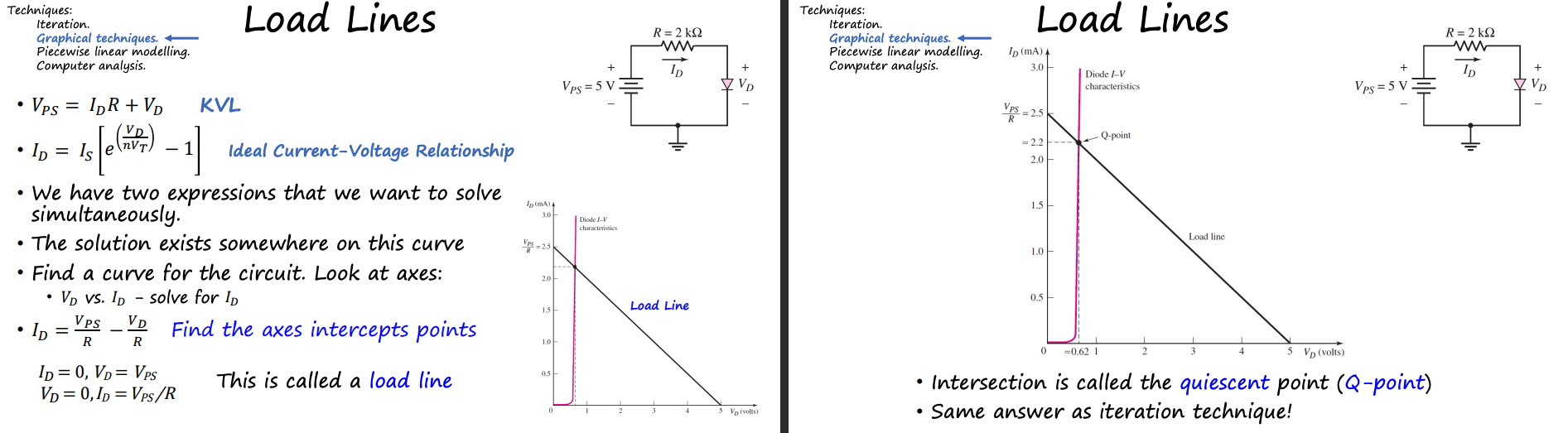

Describe the Graphical (load lines) technique of DC analysis for a diode

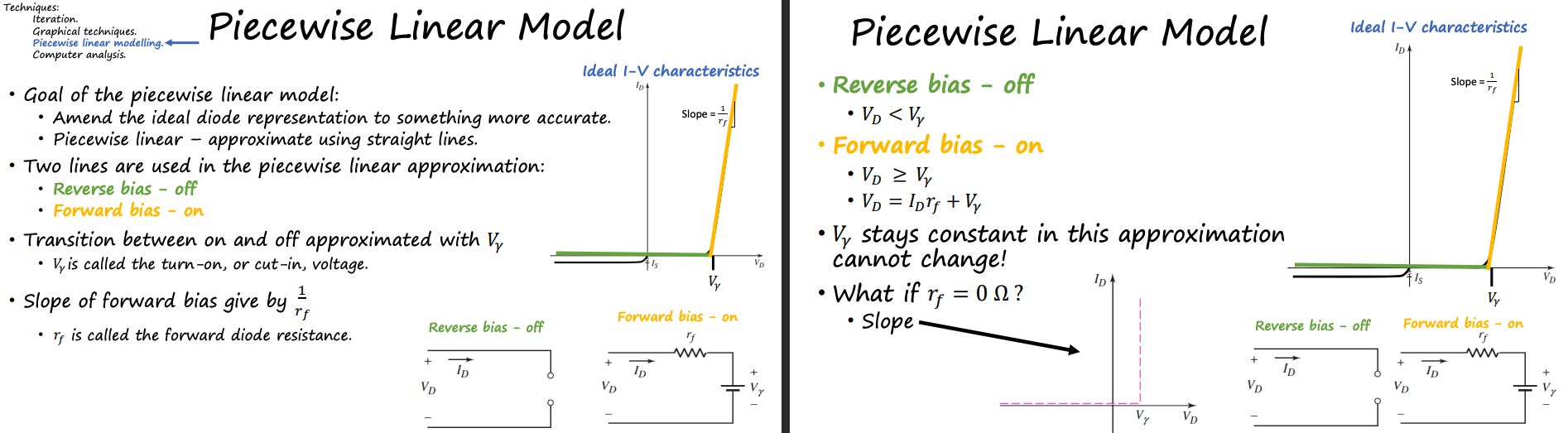

Describe the piecewise linear modeling technique of DC analysis for a diode

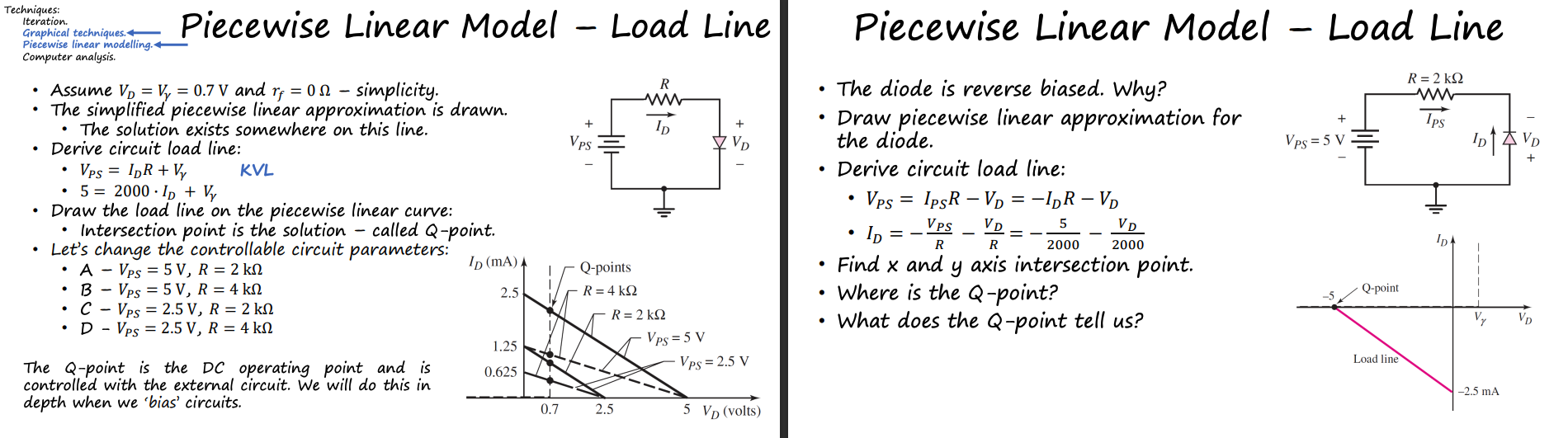

Describe the Piecewise linear modeling (load line variation) technique of DC Diode analysis
Describe the Computer Analysis technique of DC Diode analysis
