Topic 10- Electricity- CIRCUIT COMPONENTS

0.0(0)
Studied by 14 people
call kaiCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/11

flashcard set

Earn XP

Description and Tags

Physics

Circuits

GCSE Physics

Edexcel

Last updated 9:50 PM on 5/1/24
Name
Mastery
Learn
Test
Matching
Spaced
Call with Kai

No analytics yet

Send a link to your students to track their progress

12 Terms

1
New cards

Cell/battery

provides the circuit with a source of potential difference (energy per unit charge)

<p>provides the circuit with a source of potential difference (energy per unit charge)</p>
2
New cards

switch

turns the circuit on (closed) or off (open)

<p>turns the circuit on (closed) or off (open)</p>
3
New cards

fixed resistor

a resistor that limits the flow of current. cannot change.

<p>a resistor that limits the flow of current. cannot change.</p>
4
New cards

variable resistor

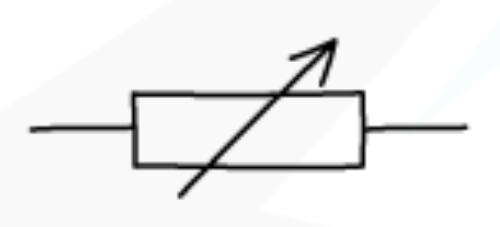

a resistor with a slider that can be used to change its resistance.

<p>a resistor with a slider that can be used to change its resistance.</p>
5
New cards

thermistor

the resistance depends on its temp. As temp increases, resistance decreases (voltage increases)

<p>the resistance depends on its temp. As temp increases, resistance decreases (voltage increases)</p>
6
New cards

LDR (Light- dependent resistor)

resistance depends on light intensity. As the light intensity increases, its resistance decreases (voltage increases)

<p>resistance depends on light intensity. As the light intensity increases, its resistance decreases (voltage increases)</p>
7
New cards

motor

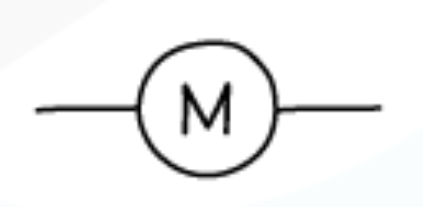

converts electrical energy into kinetic energy

<p>converts electrical energy into kinetic energy</p>
8
New cards

diode

allows current to only flow in one direction. Converts AC to DC current

<p>allows current to only flow in one direction. Converts AC to DC current</p>
9
New cards

LED (light-emitting diode)

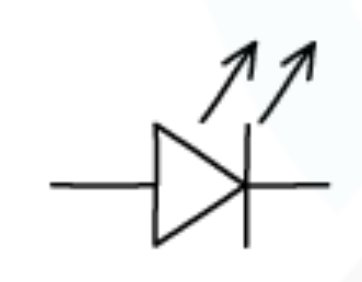

equivalent to a diode emits light when a current passes through

<p>equivalent to a diode emits light when a current passes through</p>
10
New cards

ammeter

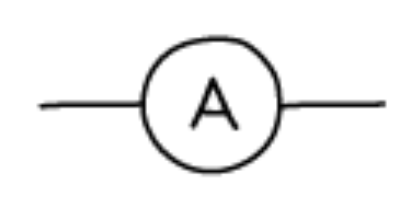

measures CURRENT in a circuit. Connected in SERIES.

<p>measures CURRENT in a circuit. Connected in SERIES.</p>
11
New cards

voltmeter

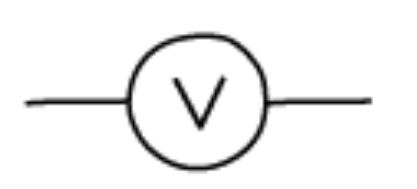

measures POTENTIAL DIFFERENCE (voltage) of an electrical component. Connected in PARALLEL with the component

<p>measures POTENTIAL DIFFERENCE (voltage) of an electrical component. Connected in PARALLEL with the component</p>
12
New cards

Lamp

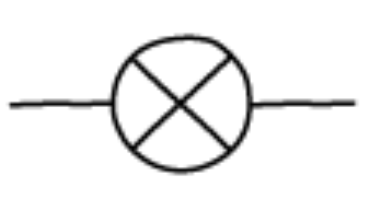

converts electrical energy into visible light radiation

<p>converts electrical energy into visible light radiation</p>
