21 Terms
Name the Main Parts of Architectural Drawings
Plot Plan
Foundation Plan
Floor Plan
Elevations
Sections
Detail Drawings
What is the scale used for Detail Plans
1:20, 1:10
1/2” = 1’0”
What is the scale used for Residential Floor Plans
1:50
1/4” = 1’0”
What is the scale used for Residential Cross Sections
1:50
1/4” = 1’0”
What symbol are Architectural drawing indicated with?
A followed by the drawing page number
What is shown in the Sections part?
A section is a view sliced through an object (cutting plane)
*think cross section
What should always be identified in construction drawings
Most up-to-date version
How are Revisions symbolized in drawings
Often a revision cloud is drawn around the portion of the building that was changed.
Describe As-Built Drawing
Drawings to show where electrical and mechanical systems were installed as well as any changes that were made during construction.

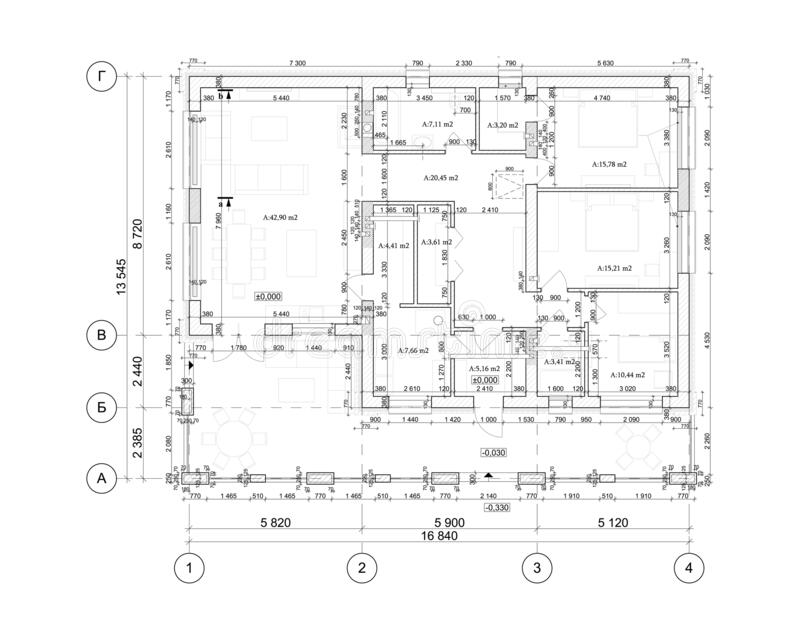

What are Grid Lines used for
How are they viewed
Lettered in one direction and Numbered in another.
Used for layout purposed.

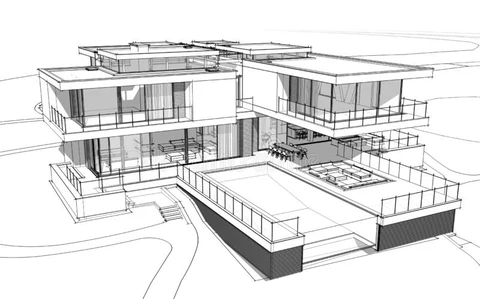

What is the purpose of an Orthographic View
To represent 3D Details.

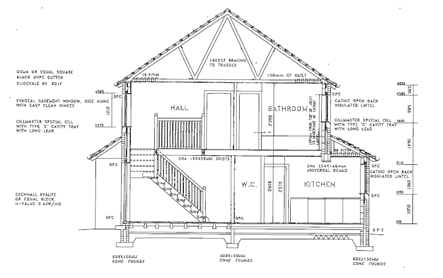

What kind of information can you find in the section view
Floor Elevations, Ceiling height, material specifications, and construction details

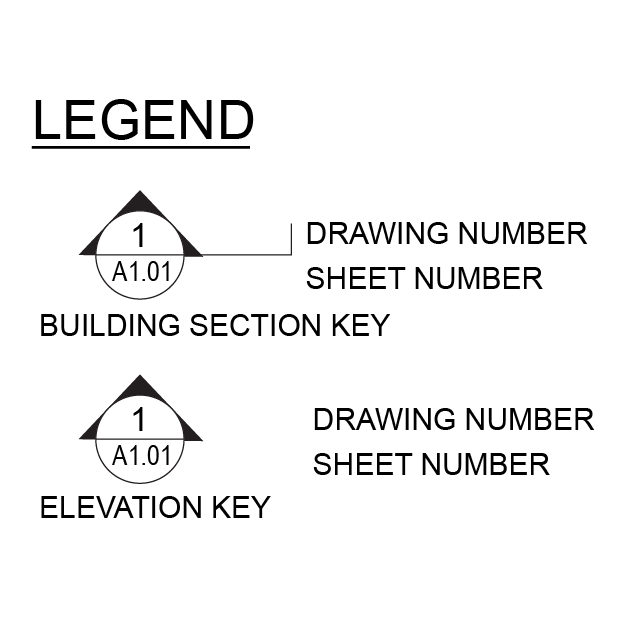

How is a section or a detail notion symbolized?
The top number is the cross section or detail number. The bottom number is the drawing page number.

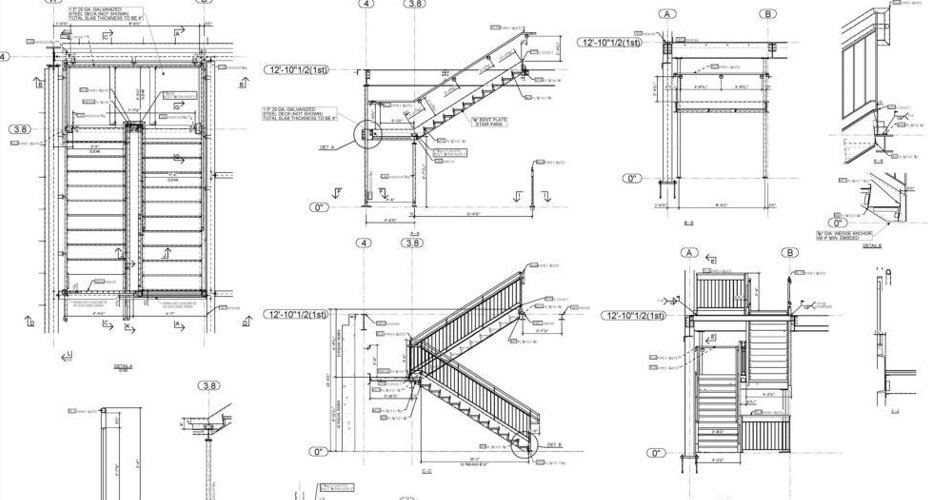

What are Shop drawings used for
Confirm the final dimensions and details.
Approved by Engineer and Drawn by Manufacturer
What are Door Schedules used for
Provide door sizes, materials, styles, hardware requirements and other special notes.
What is the format for Door Schedules Sizes
SIZE: Width x Height x Thickness
What are Window Schedules used for?
Used to show the shape and dimensions of the window as well as the opening of the sash
What type of information is in Specification part
This section with give manufacturer and product names for most components used for the project’s construction and finishing
How does the Ceiling Plan display it’s own details
Ground plane reflecting like a mirror of Ceiling plane
