EOP-ECA-1.1 LOCA Outside Containment

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/7

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

8 Terms

1
New cards

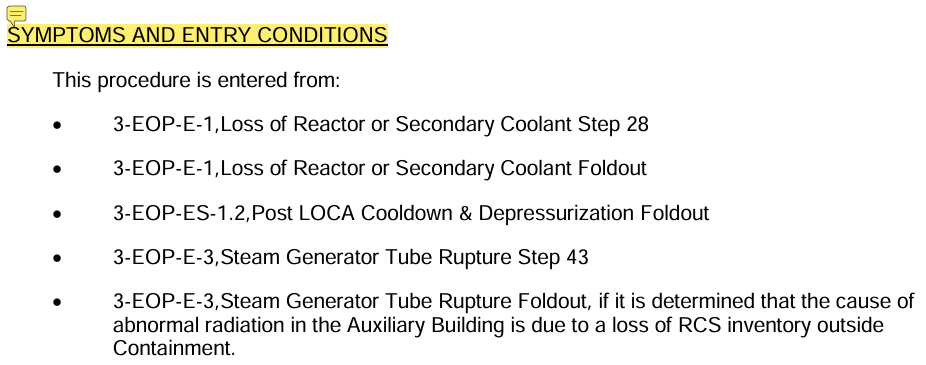

Entry Methods (Paths)

Essentially:

LOCA Procedures

and

Tube Rupture Procedure

<p>Essentially:</p><p>LOCA Procedures</p><p>and</p><p>Tube Rupture Procedure</p>
2
New cards

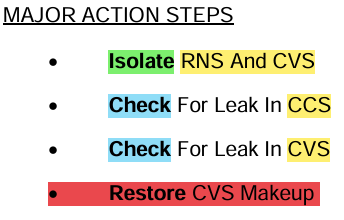

Major Actions

What systems are isolated?

What systems are checked?

Status of CVS if procedure COMPLETED?

Additionally, PRHR is IN SERVICE

<p>Additionally, PRHR is IN SERVICE</p>
3
New cards

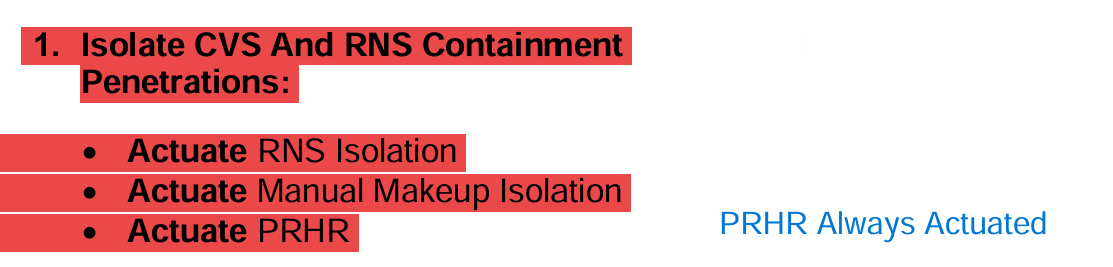

“Immediate” Actions

(First Step)

What is Isolated/Actuated?

Isolate:

RNS

CVS Makeup

*Separate, but CNS Sump ensured Stopped/Closed (Step 4)

Actuate:

PRHR

<p>Isolate:</p><p>RNS</p><p>CVS Makeup</p><p>*Separate, but CNS Sump ensured Stopped/Closed (Step 4)</p><p></p><p>Actuate:</p><p>PRHR</p>
4
New cards

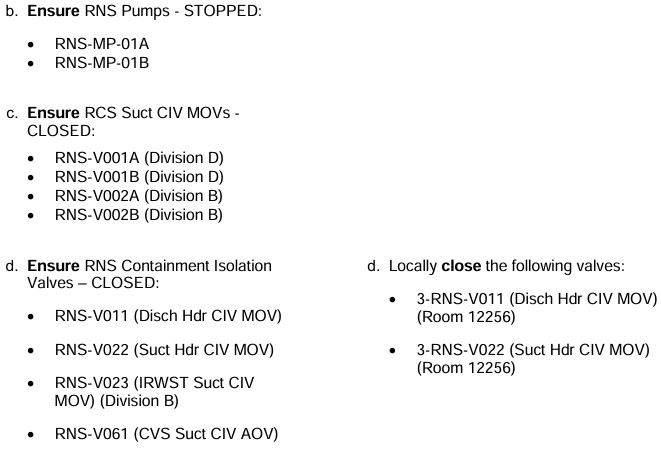

RNS Isolation Refresher

11

22

23

61 (also “T”)

<p>11</p><p>22</p><p>23</p><p>61 (also “T”)</p>
5
New cards

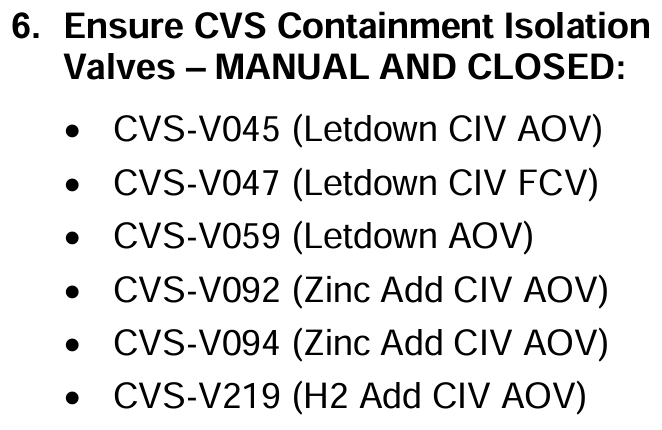

CVS MU Manual Isolation Refresher

Makeup CIVs CVS-V090&091

Purification Stops CVS-001&002&003

Aux Spray CVS-V084

Other CVS CIVs

<p>Makeup CIVs CVS-V090&amp;091</p><p>Purification Stops CVS-001&amp;002&amp;003</p><p>Aux Spray CVS-V084</p><p></p><p>Other CVS CIVs</p>
6
New cards

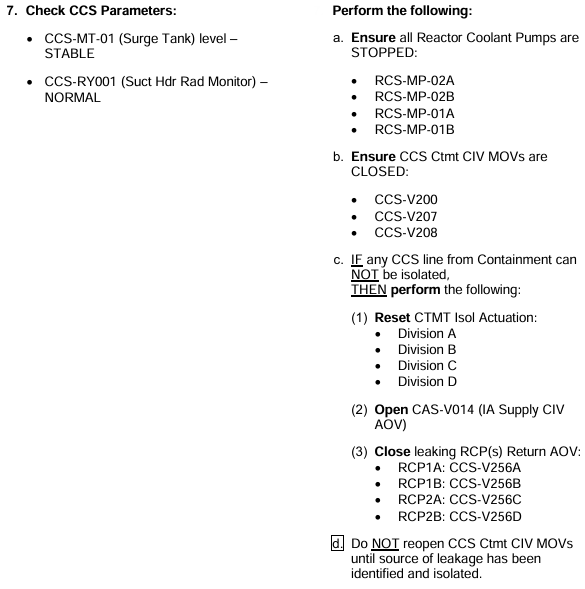

How to Check CCS

(Step 7)

knowt flashcard image
7
New cards

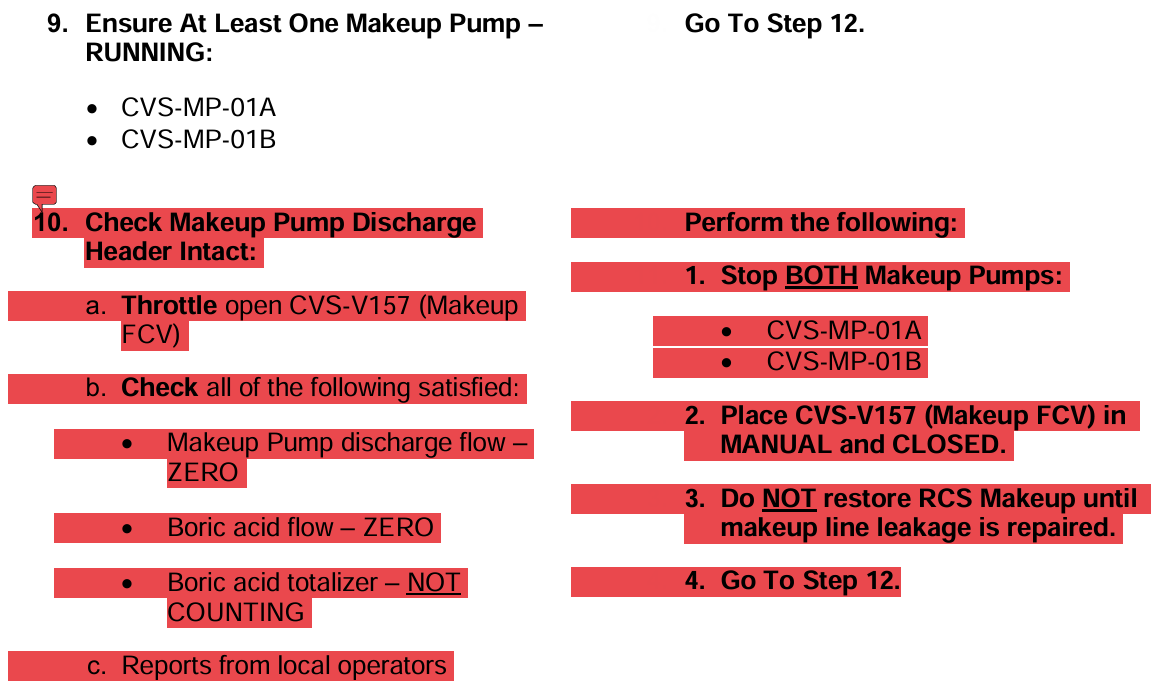

How to Check CVS

(Step 9 & 10)

Makeup is restored per step 11 if there is no identified leakage with CVS

So if ECA-1.1 is COMPLETED FULLY, MU is restored to normal conditions

<p>Makeup is restored per step 11 if there is no identified leakage with CVS</p><p>So if ECA-1.1 is COMPLETED FULLY, MU is restored to normal conditions</p>
8
New cards

Conclusion of Attachment 1 CVS MU Status

(Step 11)

Maximum MU: BOTH Pumps and 175gpm setting
