Implant Quiz- Pics from Implant I

Implant Impression Post

What are these?

Implant

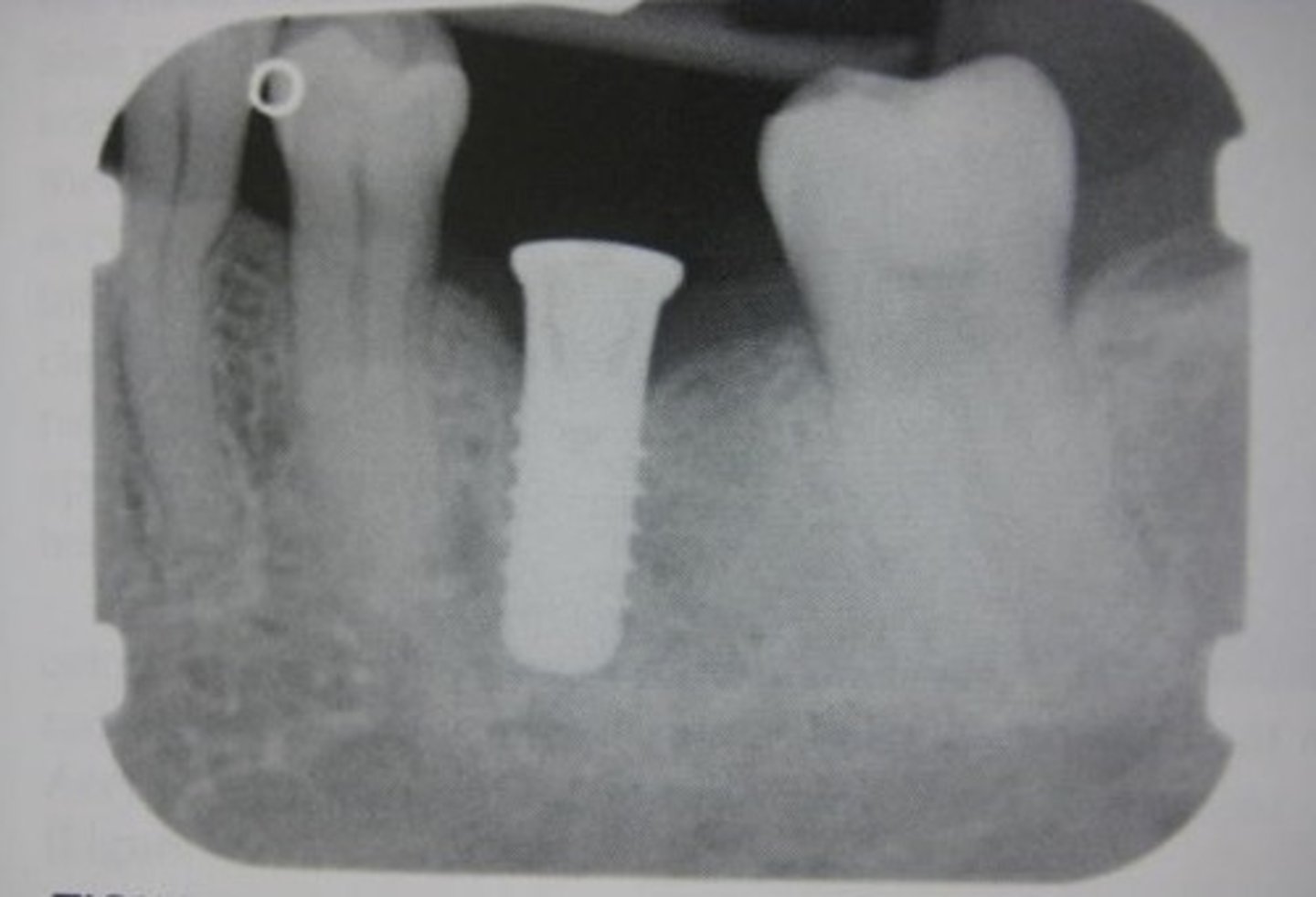

What is this?

Abutment

What is this?

Implant

Abutment

What's most superior?

What's Inside of it?

Abutment

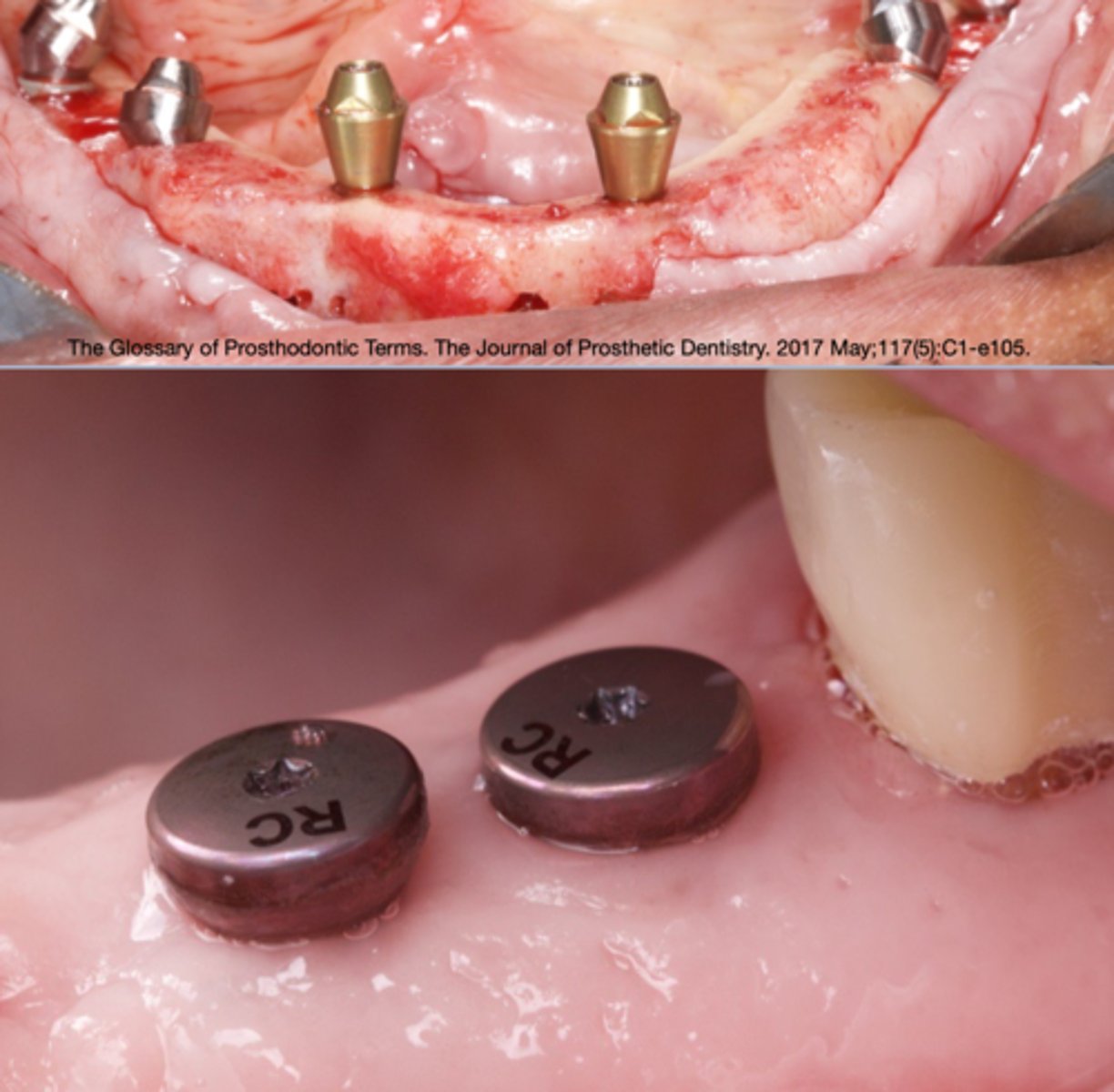

What is this? (Top Picture)

The Implant

What is 1?

Not Platforming Switching

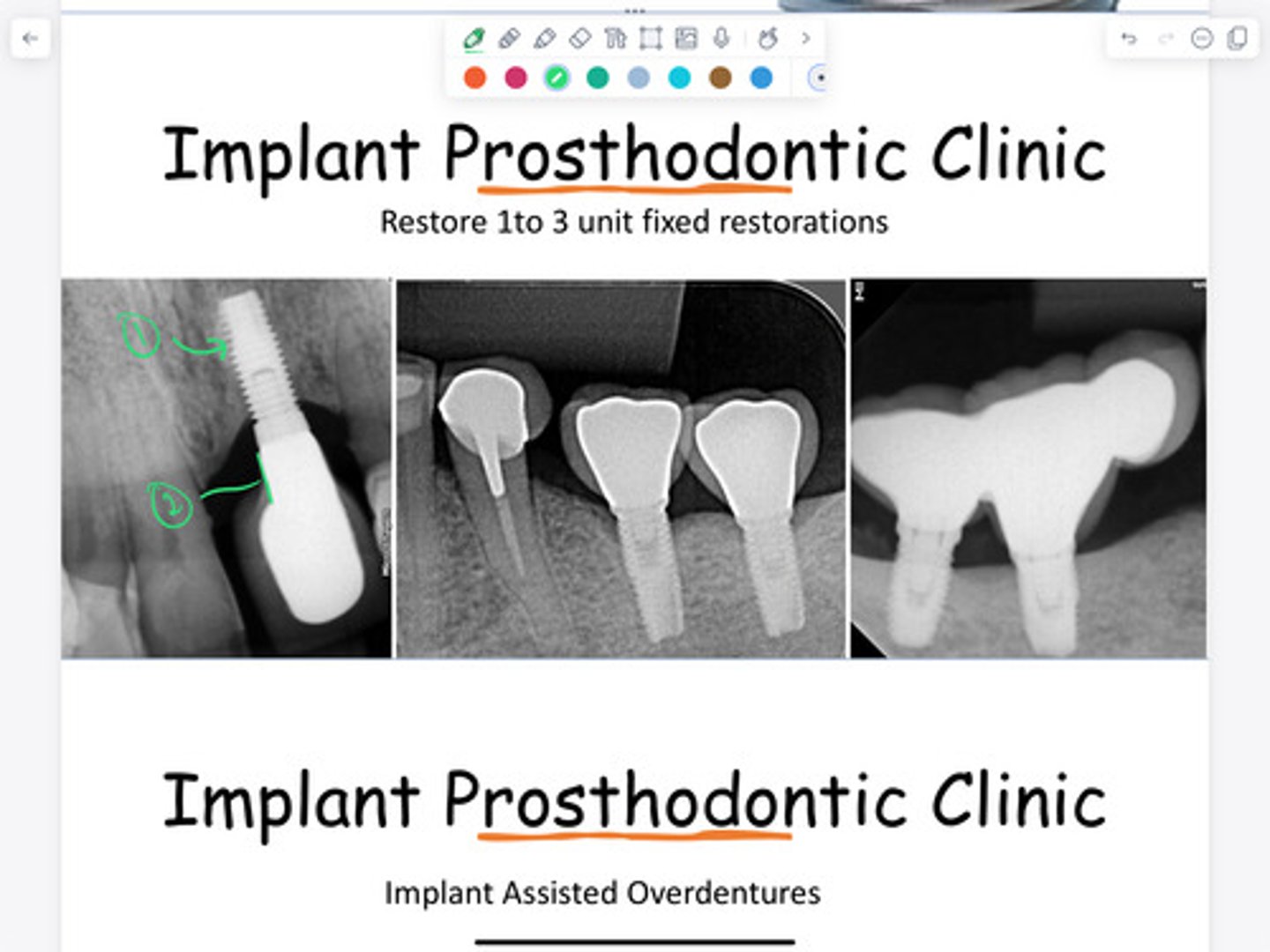

Platforming Switching on 2?

Yes, Platform Switching

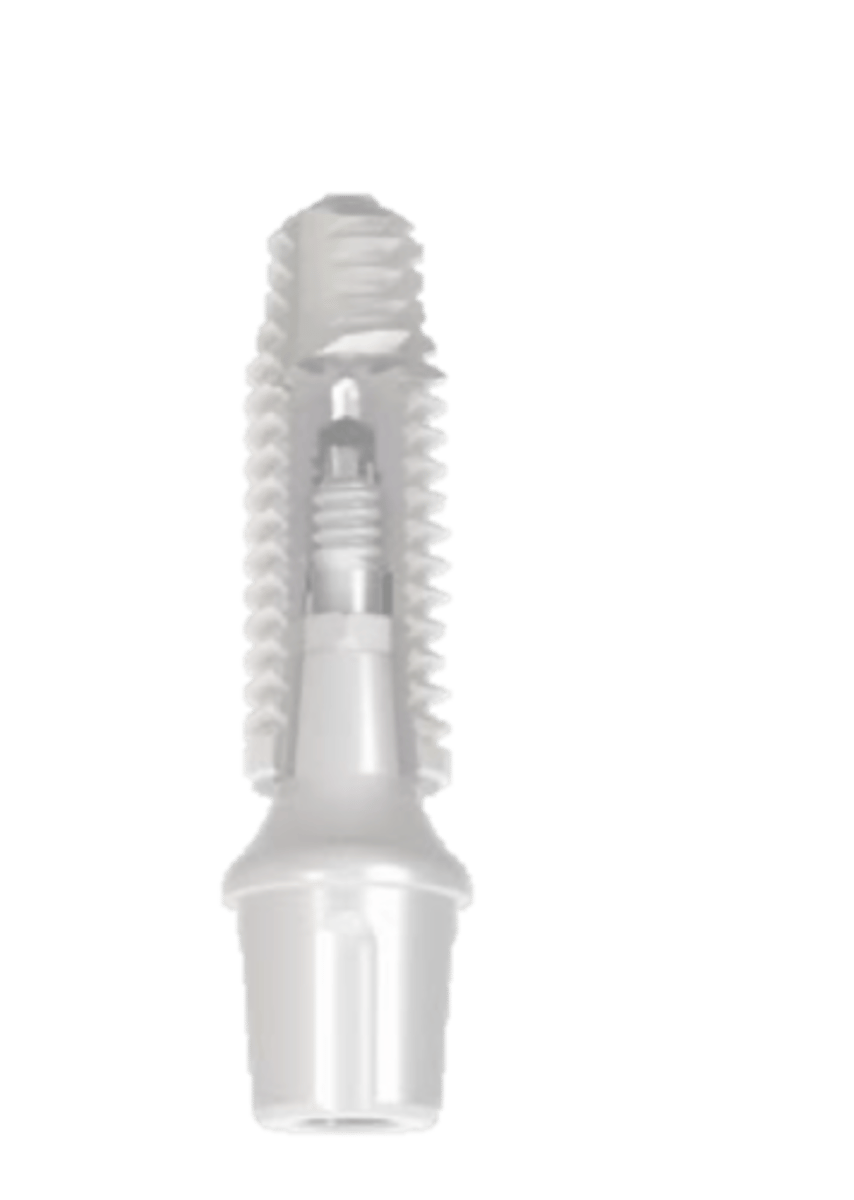

Is this abutment showing platform switching?

Engaging of the Abutment

What is 1 showing?

Emergence Profile

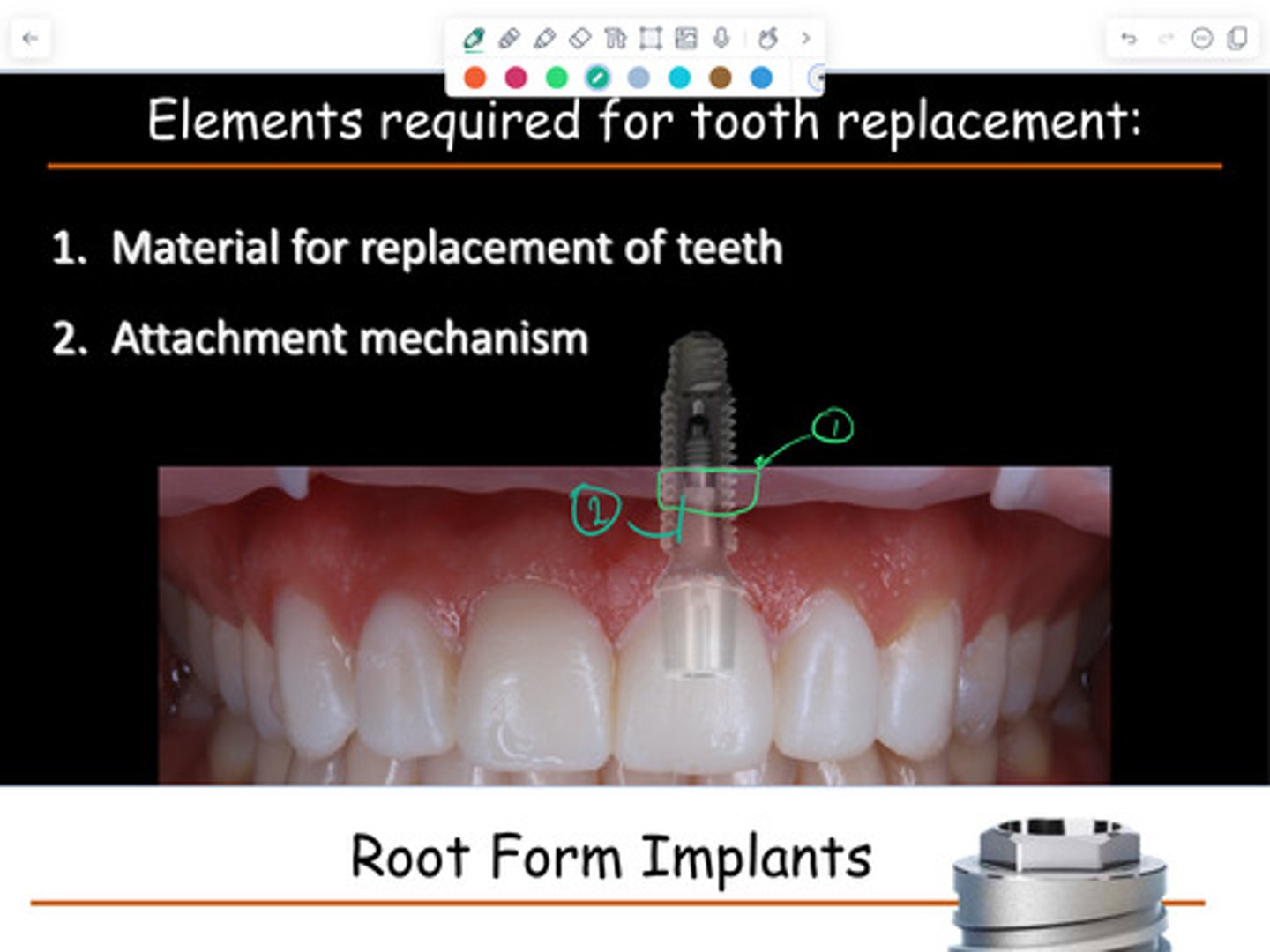

What is 2 showing?

Internal Connection Abutment

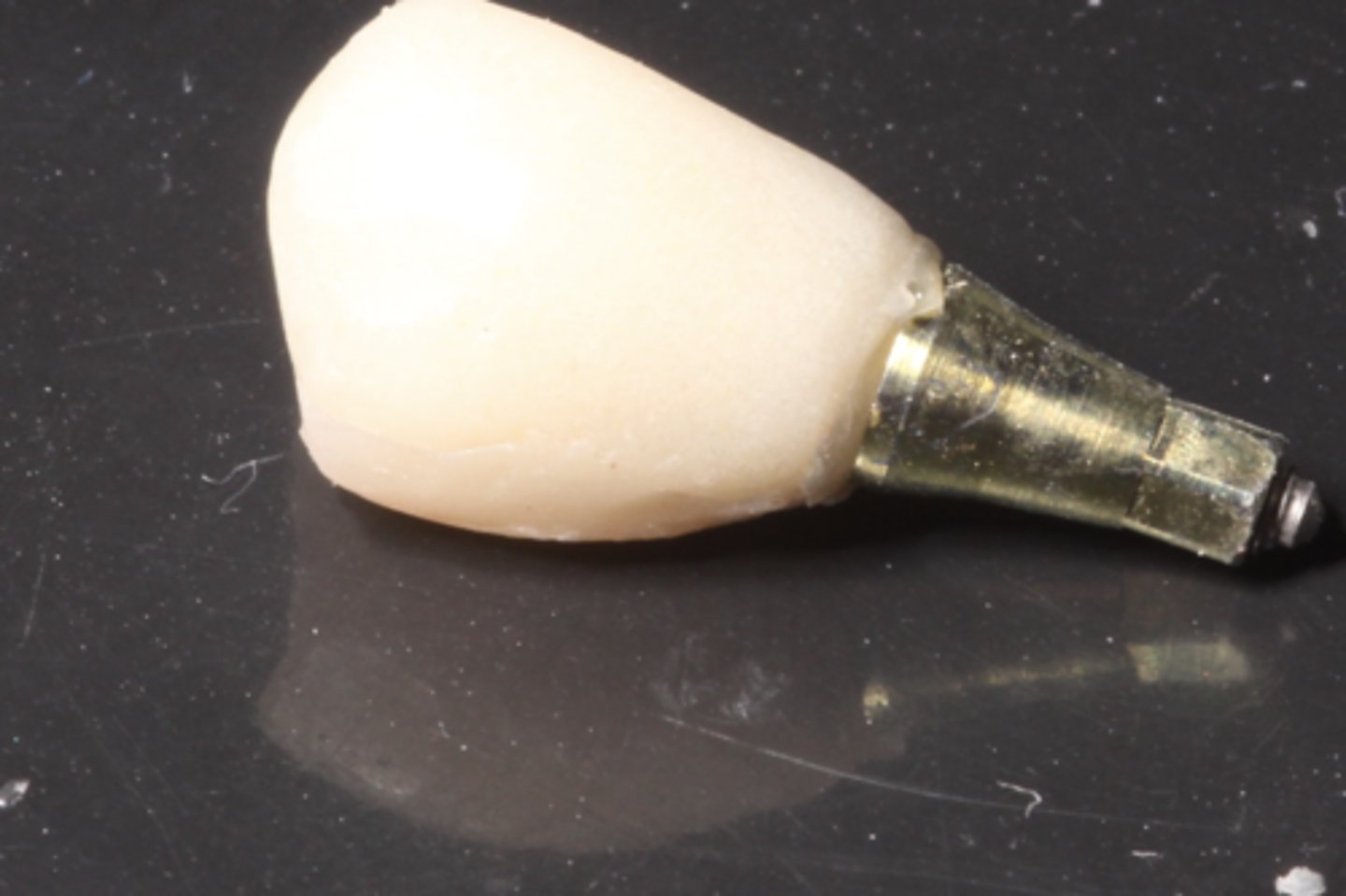

Describe this abutment.

Conical

What is the Root Form Implant Design of the Left

Cylinder

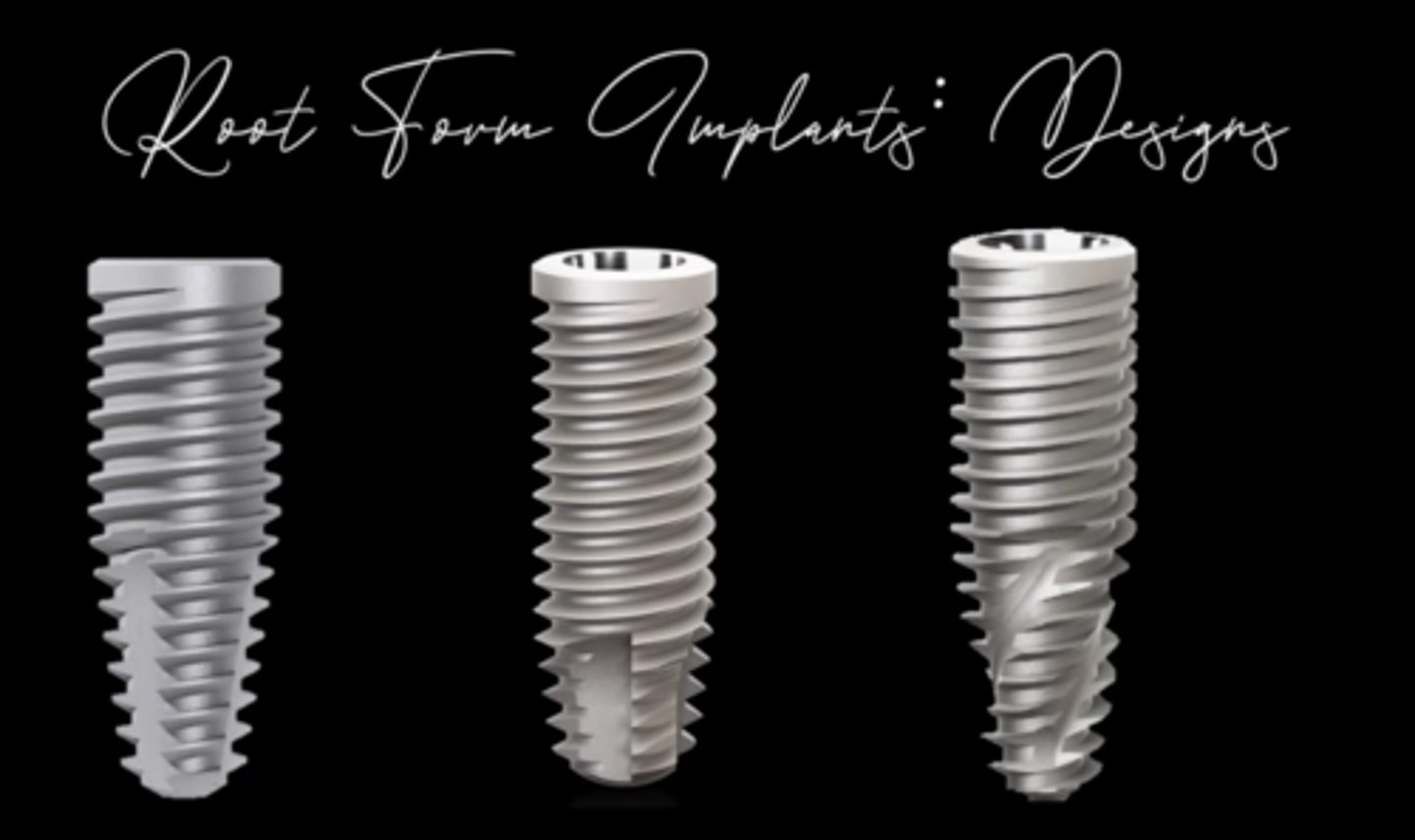

What is the Root Form Implant Design of the Middle

Hybrid: Cylinder + Conical

What is the Root Form Implant Design of the Right

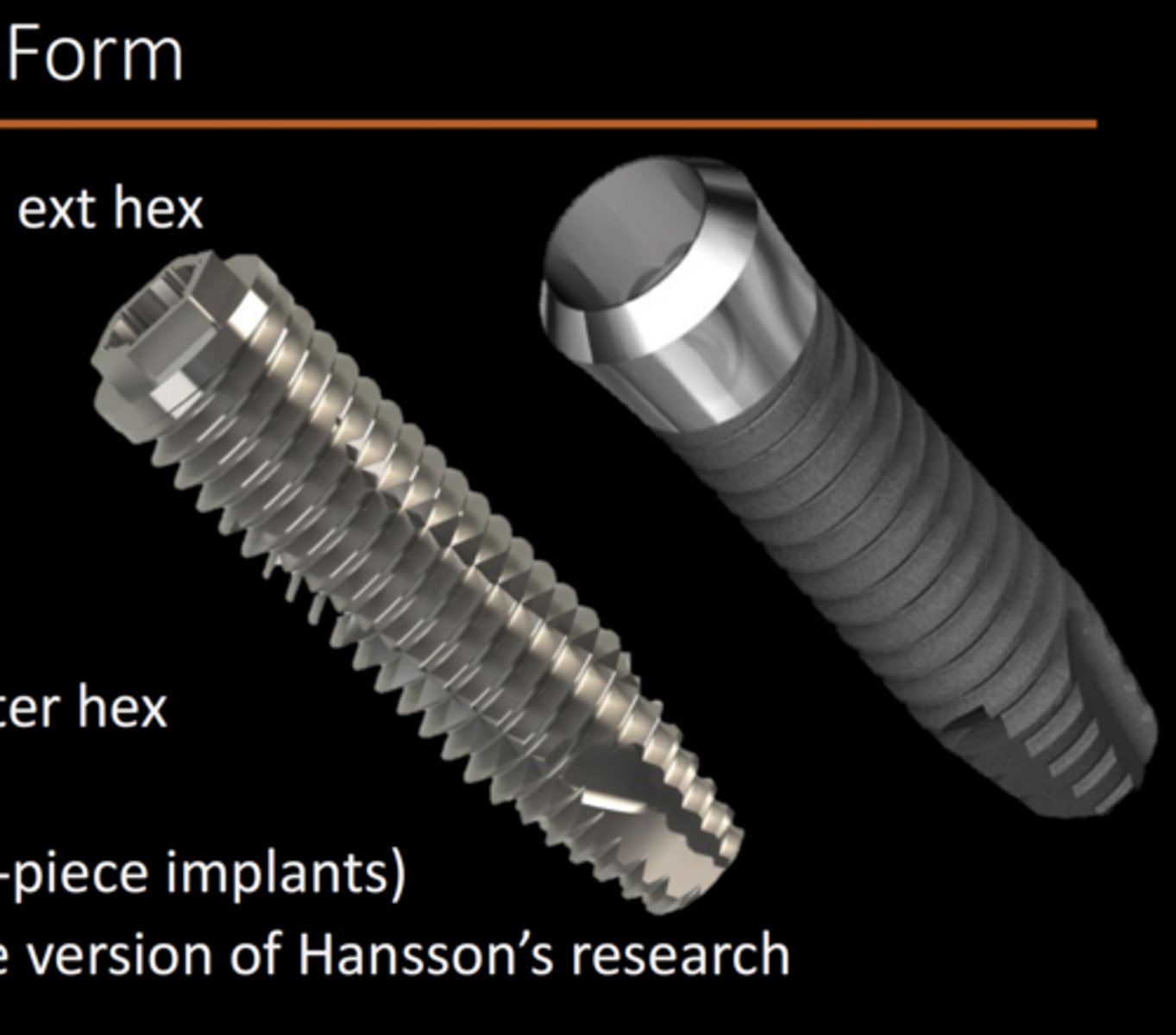

The Right shows a rougher surface while the left is polished and smooth

The rougher implant on the right will show better success due to the increased SA this is due to a special hydroxyapatite coating that increases hydrophilicity

What is the difference between the implant on the left and the right? What is the significance?

3mm

The implant platform should be how mm below the gingival margin?

8mm Premolar

10-12 mm Moloar

Distance between an implant and a tooth (horizontal space)?

2mm total or 1mm each side

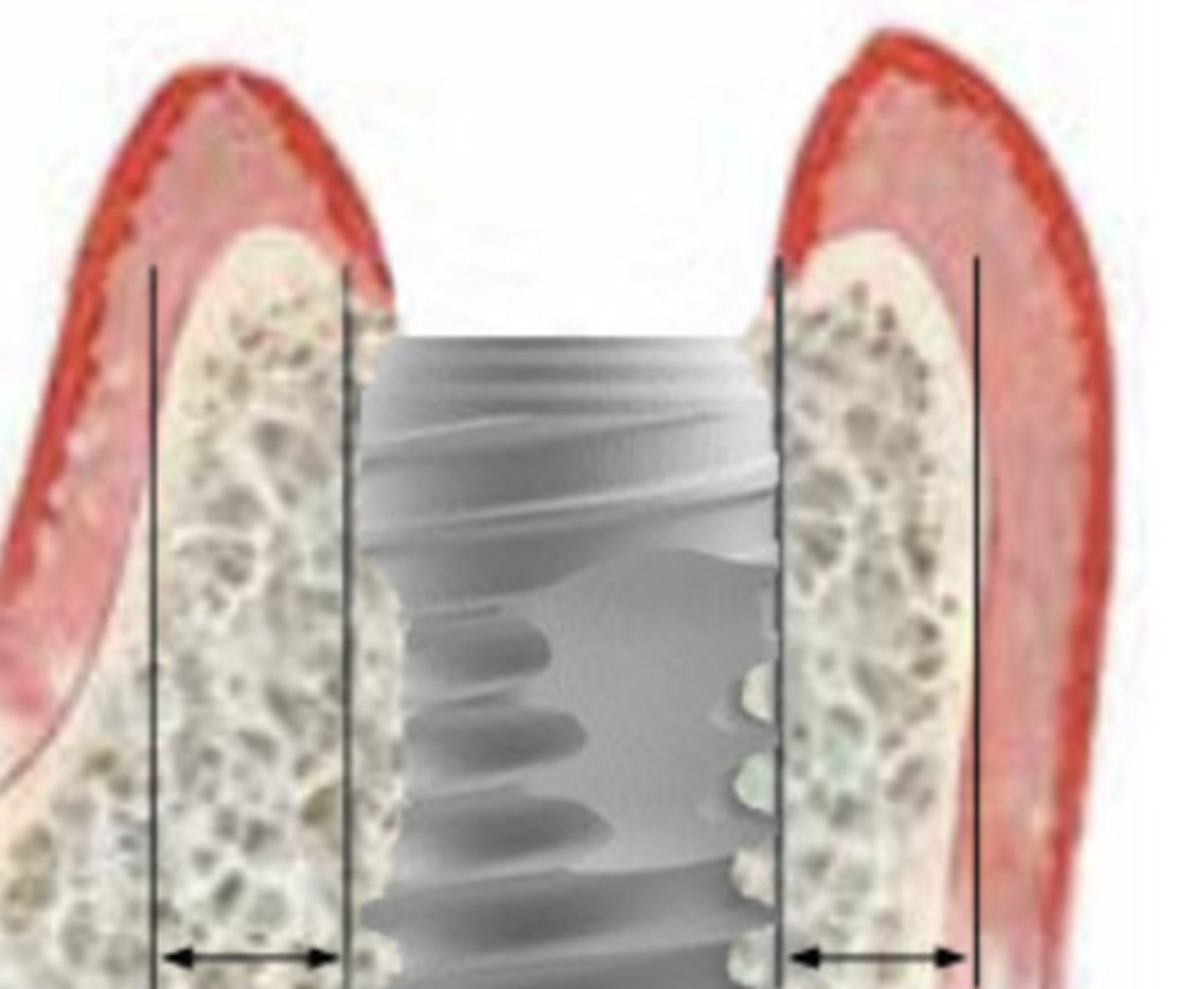

Distance Between implant and gingival (bone between the 2)?

Ideally, you need 2 (one for each), but could potentially do just one with a lever

If someone is missing tooth number 7 and 8 how many implants are needed?

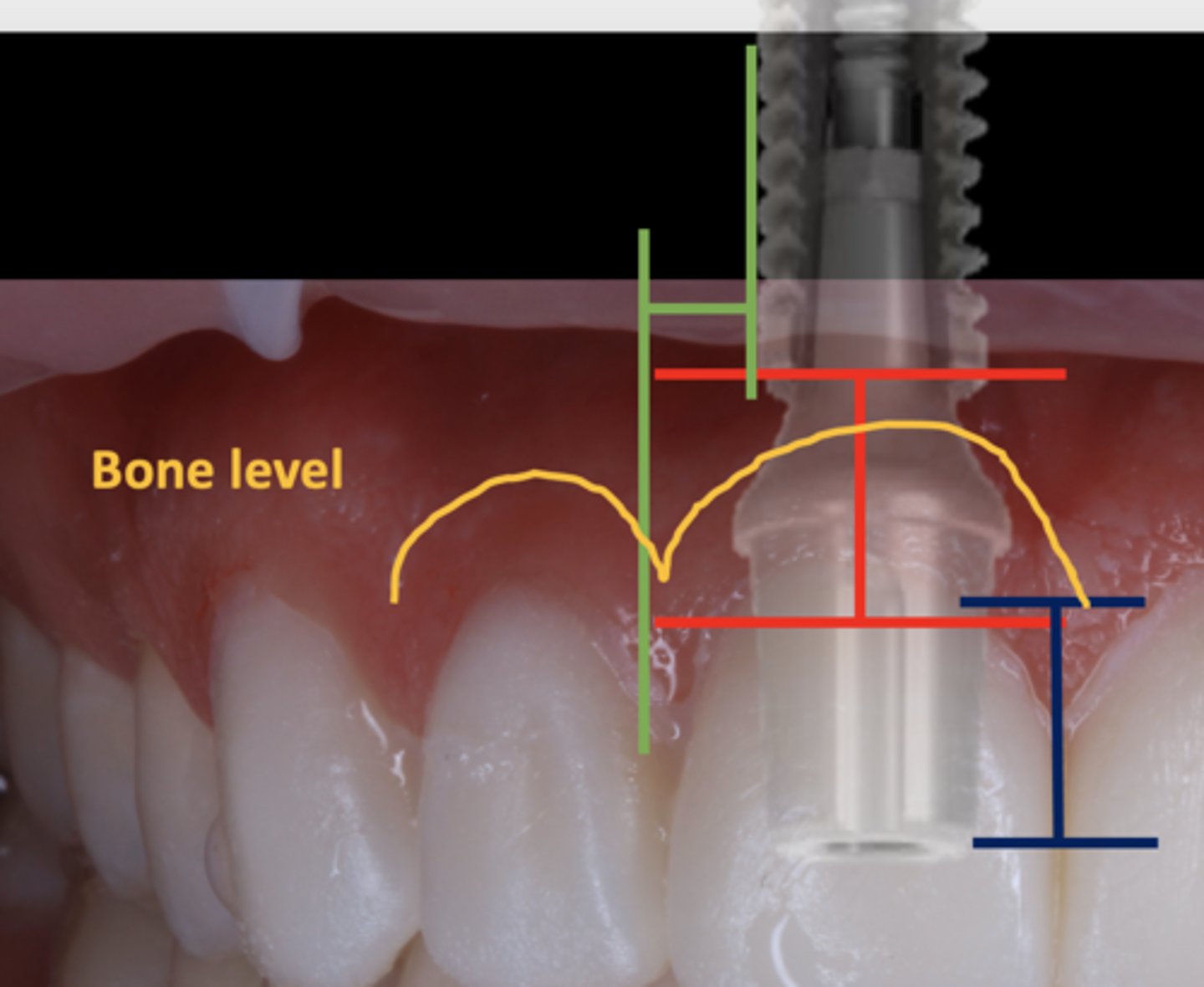

3-5mm Bone to Contact

What does this blue line represent and what is it's range?

1.5-2.0mm Outer rim of implant to adjacent tooth

What does the green line represent and what is its ideal range?

Implant Platform 3 mm below Final Free Gingival Margin (FGM)

What is the red line and what is its ideal value?

If the molar is ideal it may only need one implant but if it's larger it may require that the implant is replaced by 2 Premolar Implants if the Molar space covers around 14mm

What is the concern with replacing a molar? (Regarding it's size)

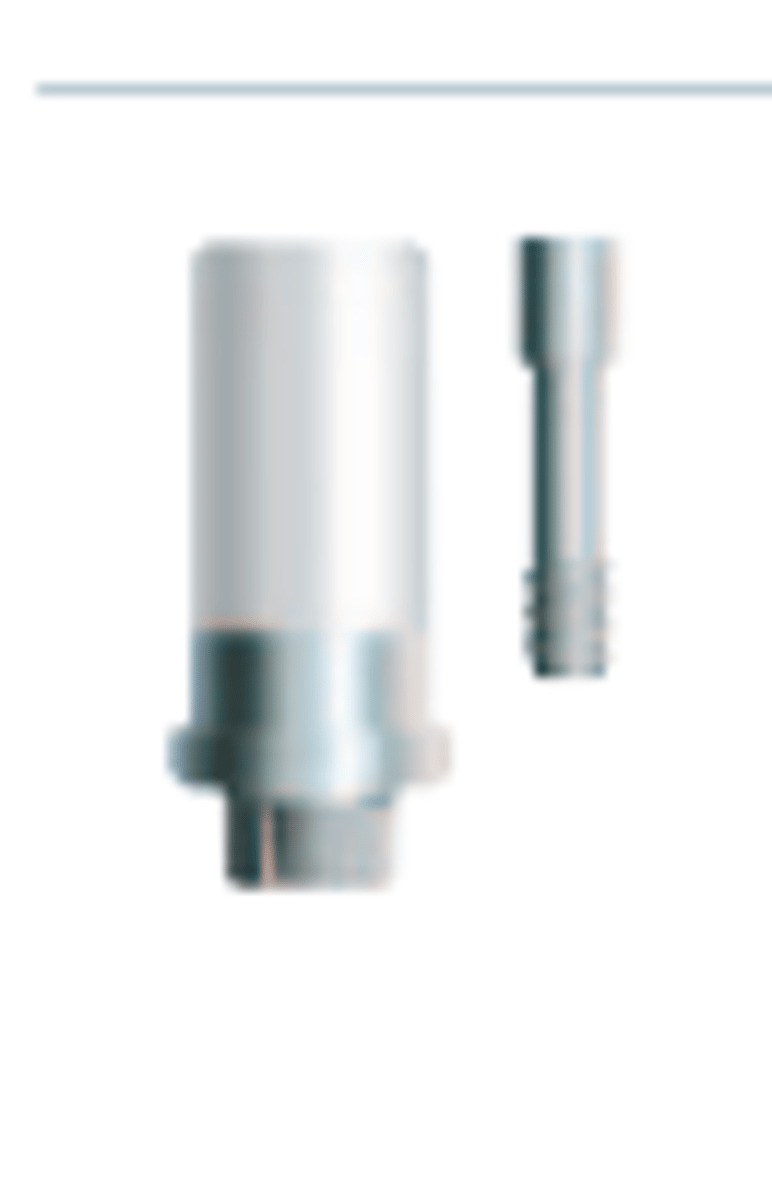

Engaging Abutment

What kind of abutment is usually used for a single unit

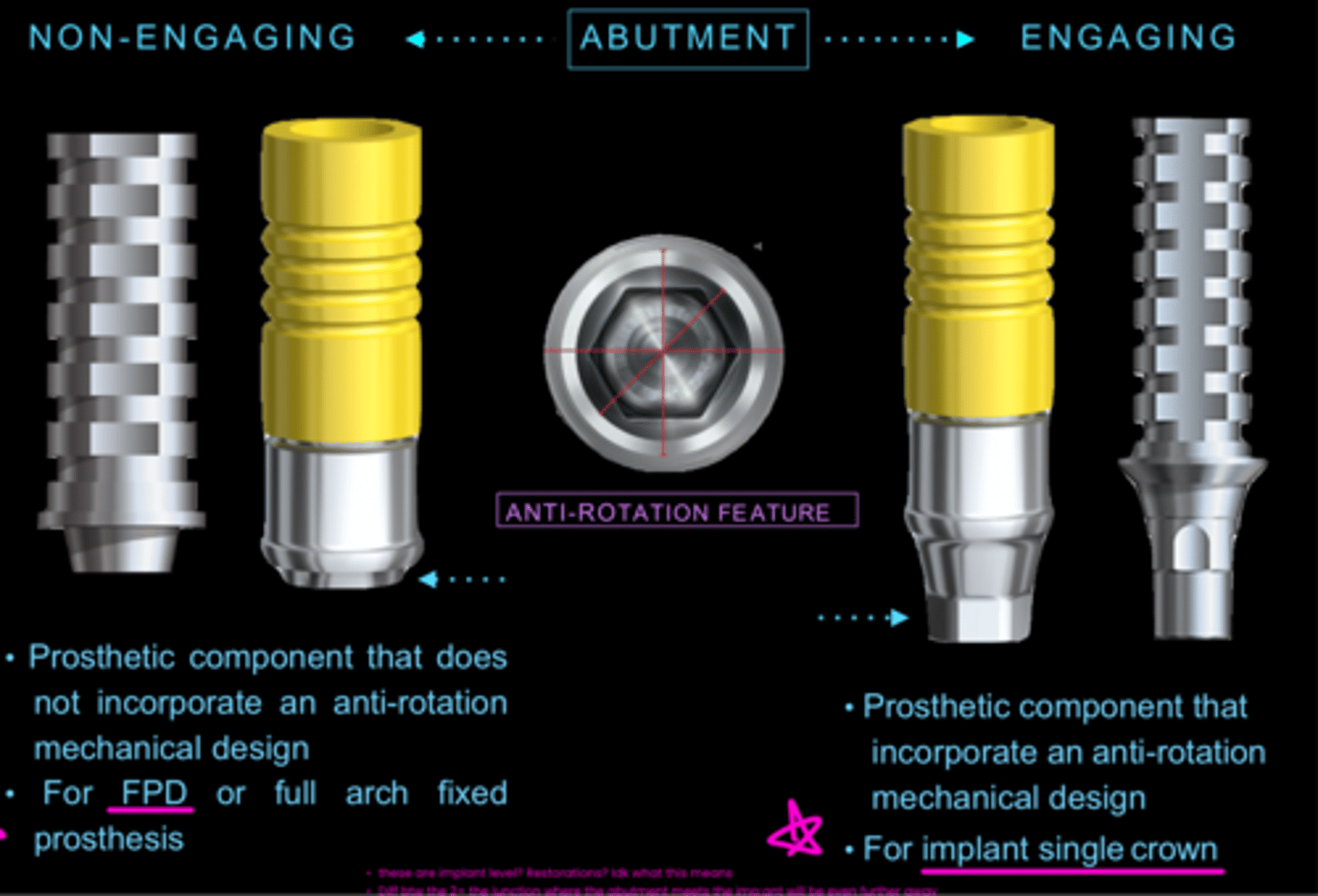

Non Engaging Abutment

What kind of abutment is usually used for multi-unit

6mm

- 4mm for abutment

-2mm for ceramic crown

What is the Vertical Minimal Space for clearance (prosthetic space)?

Green Arrow

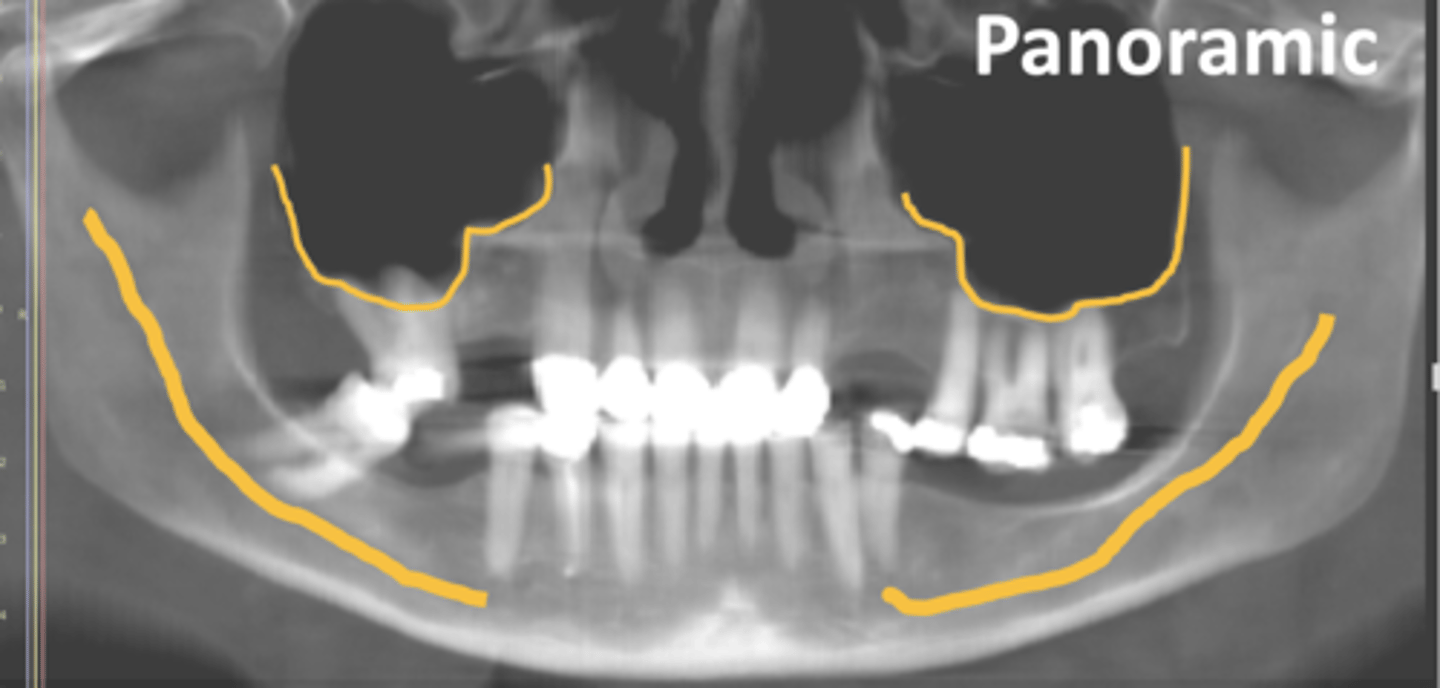

When drilling we must be concerned with the space that we have so that we do not drill into the Maxillary Sinus

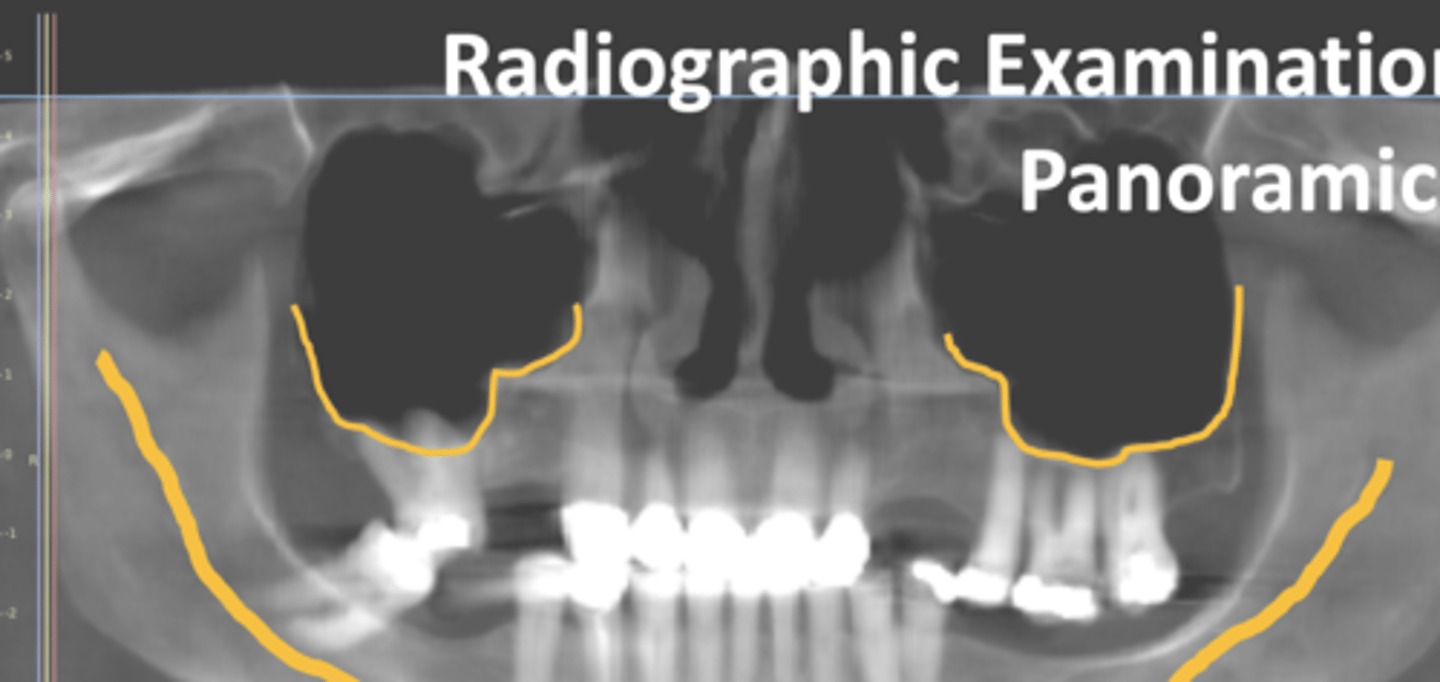

What are the upper yellow lines indicating?

When drilling in the mandible we must be concerned with how deep we are going so that we do not drill into the Inferior Alveolar Nerve/Artery

What is the lower yellow line indicating?

Screw retained implant

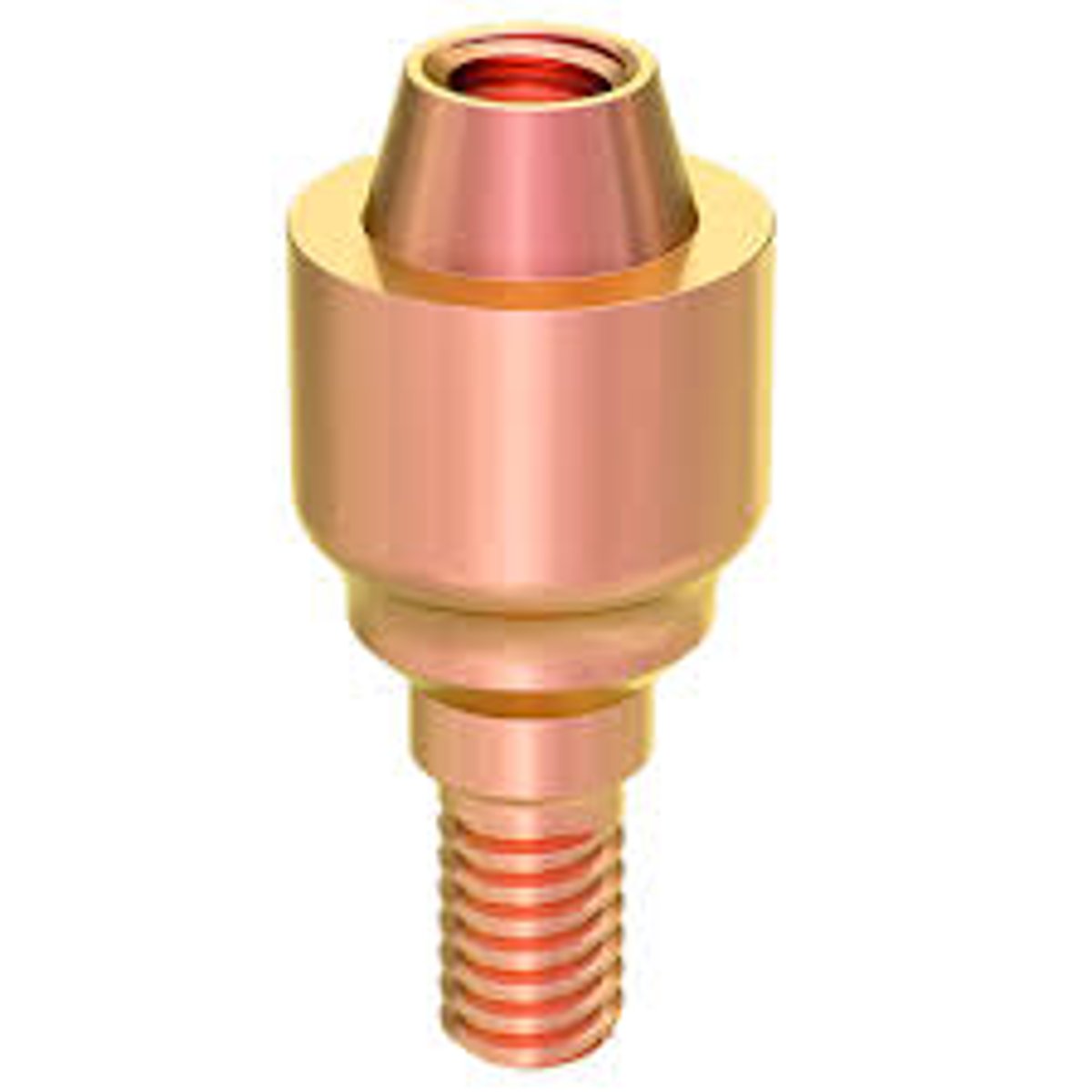

Screw or Cement Retained?

Drill and make it

What do you do when the patient does not have appropraited Vertical Minimal Space?

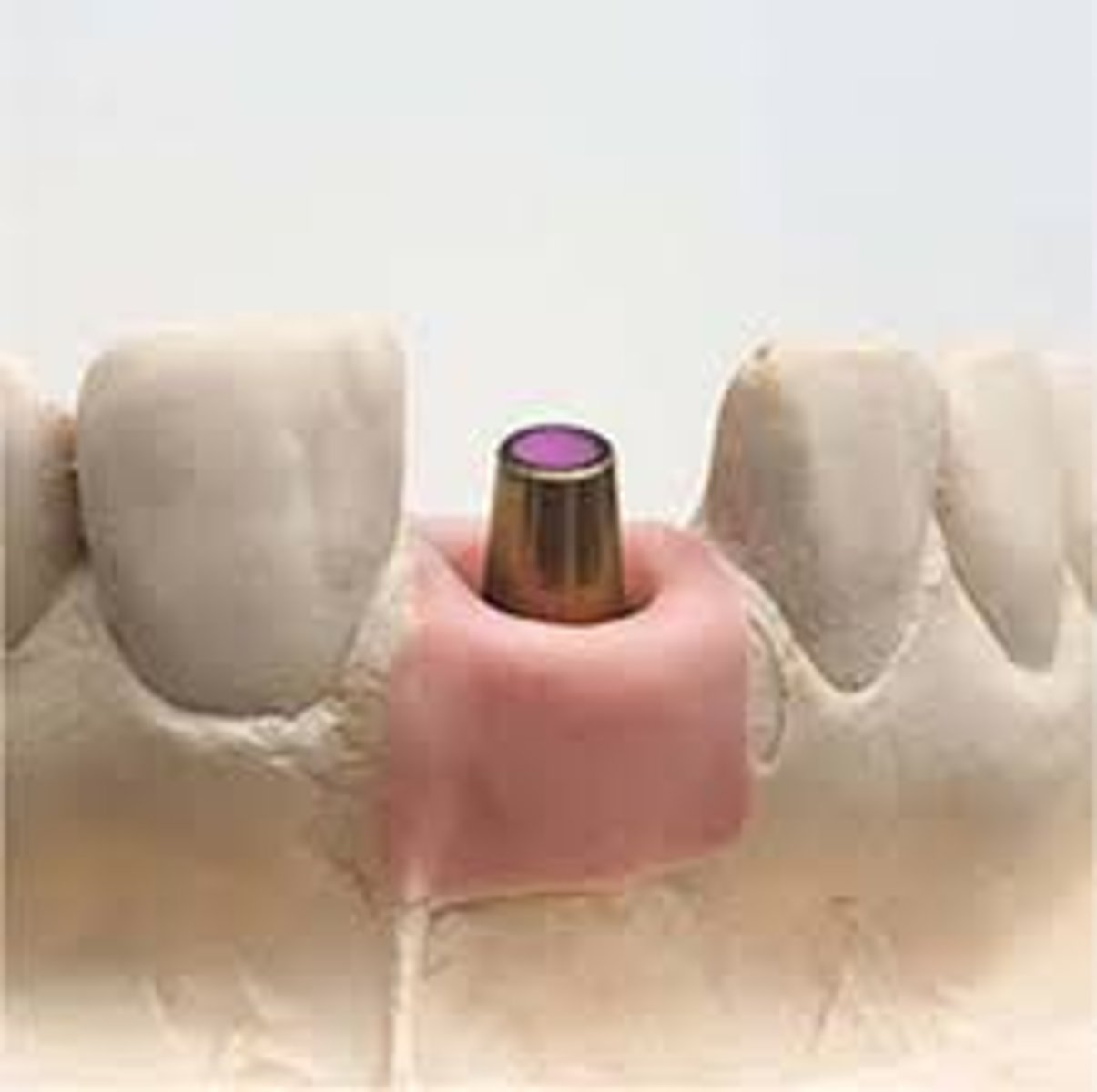

Cement Retained

Screwed or Cement Retained?

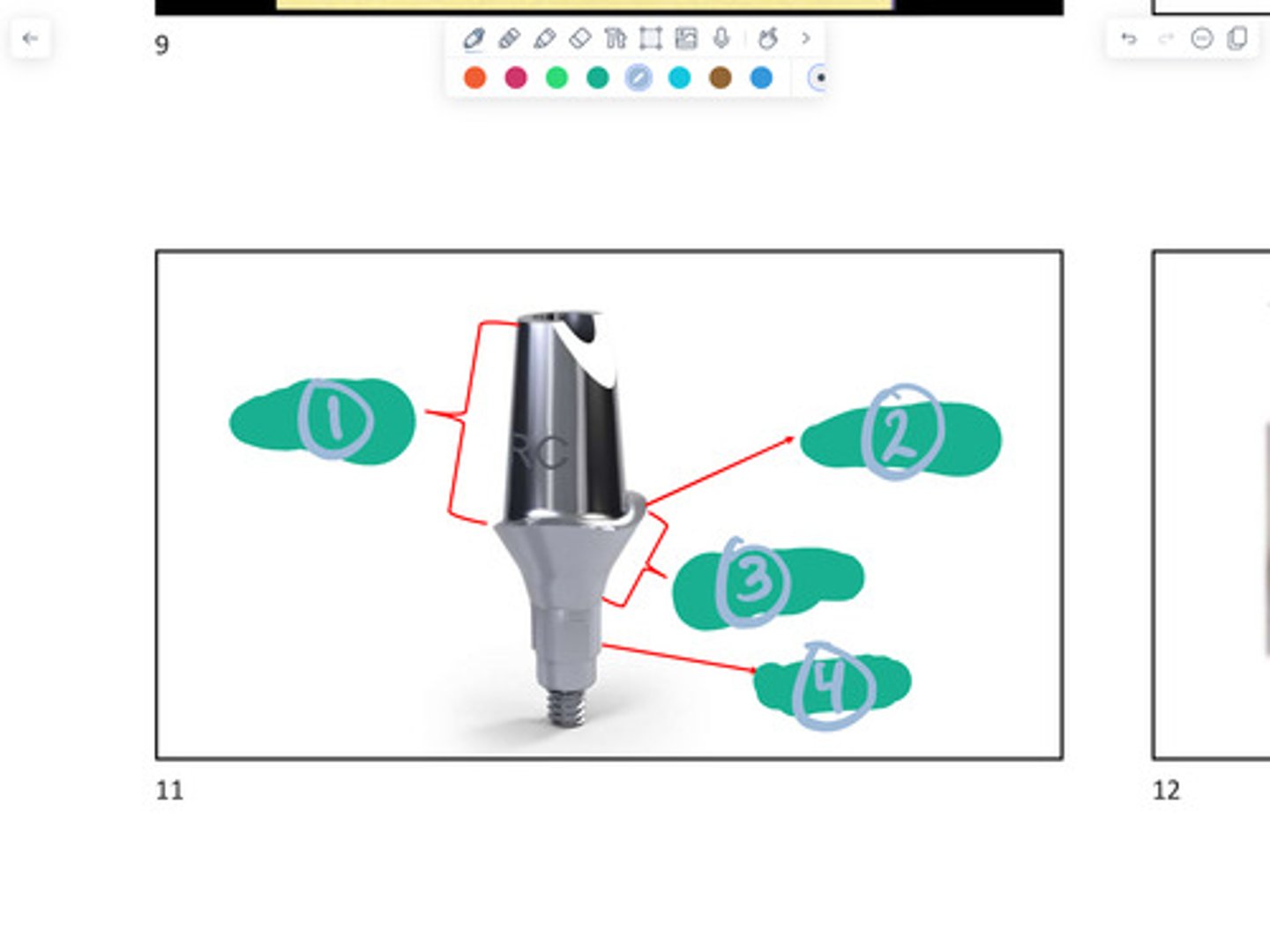

Abutment Height

What is 1?

Abutment Interface

What is 2?

Emergence Profile Height

What is 3?

Implant Platform Connection

What is 4?

1mm

The Abutment should be how high above the bone

1mm

The abutment should be how far below the gingival margin

a 5mm abutment should be placed

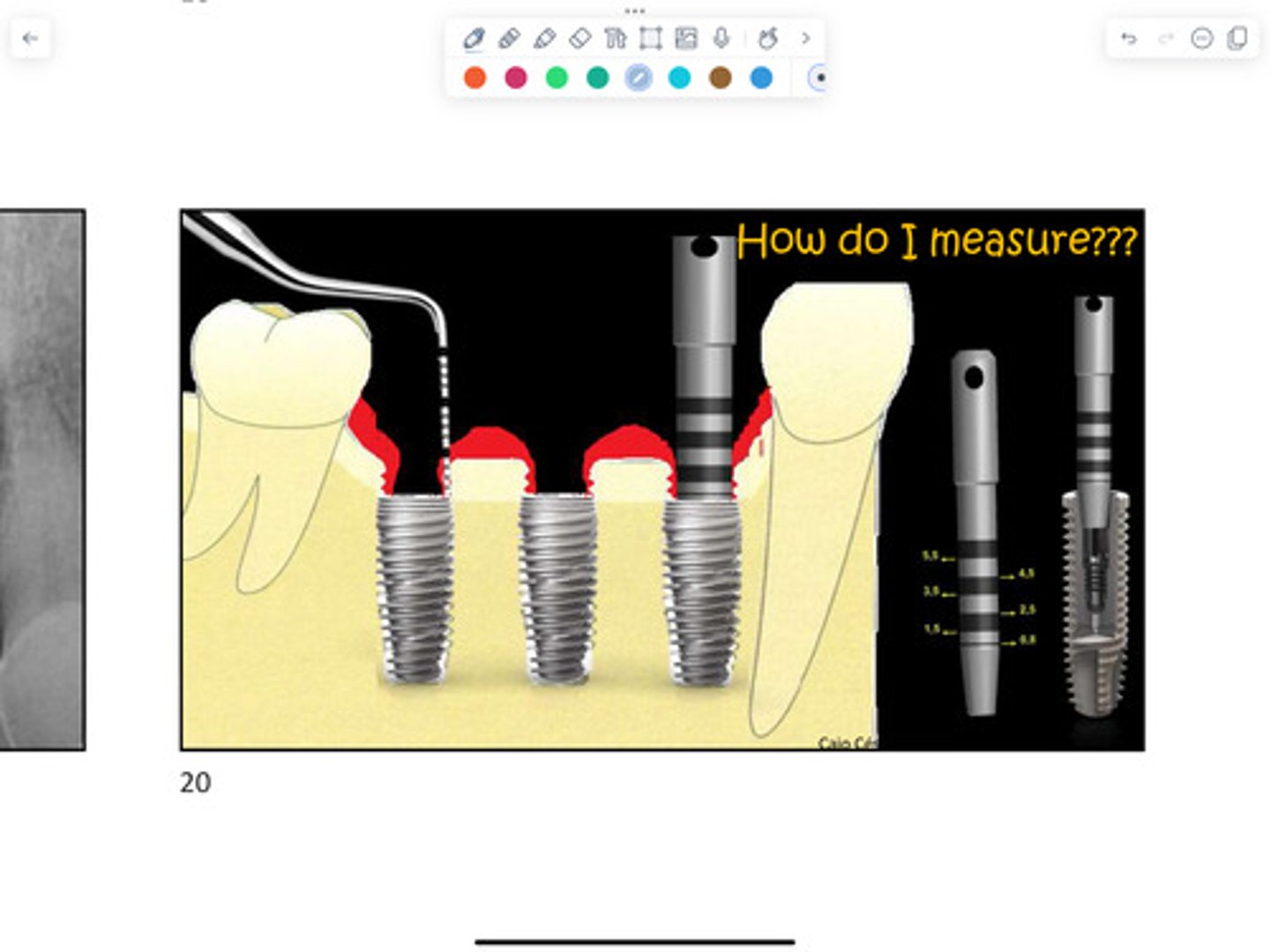

What size abutment should be selected for from this picture?

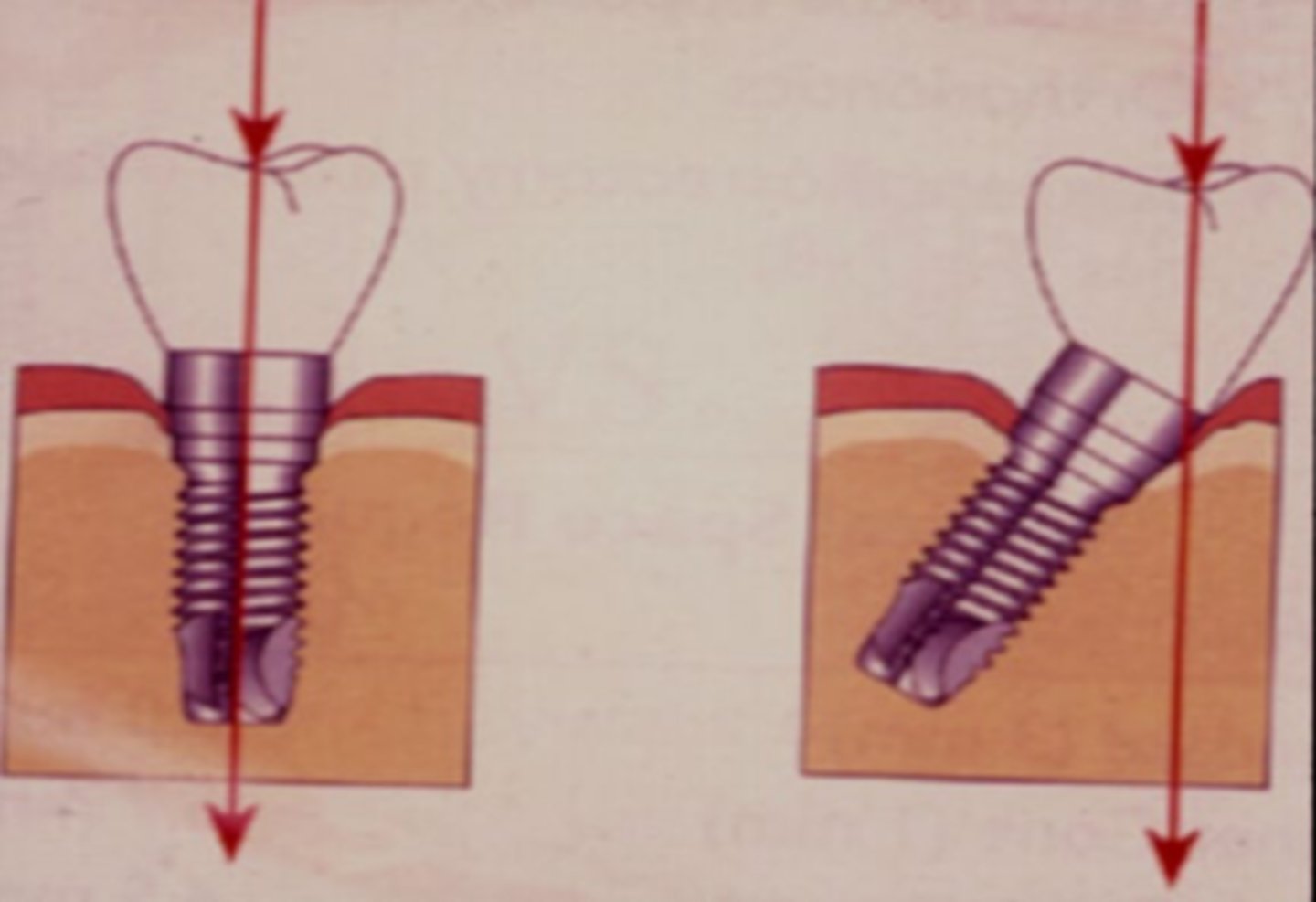

Straight Implant

Straight or Angled?

Angled Implant

What is the difference for the one on the right?

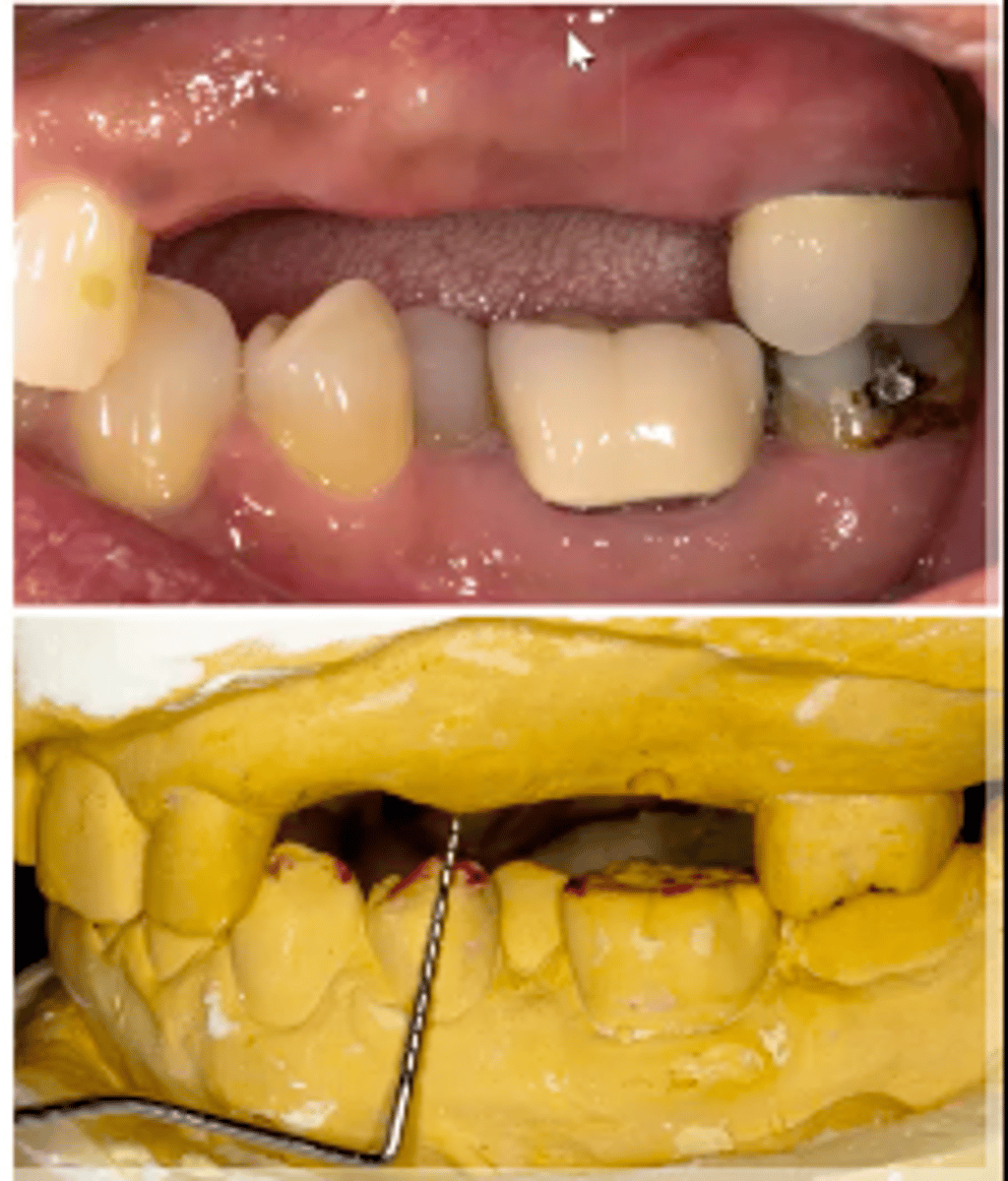

Prosthetic Space

Measurement from the gingiva to the opposing tooth

The bone would undergo resorption and would cause the implant to become loose

What would happen if the Abutment touches/budges into the bone

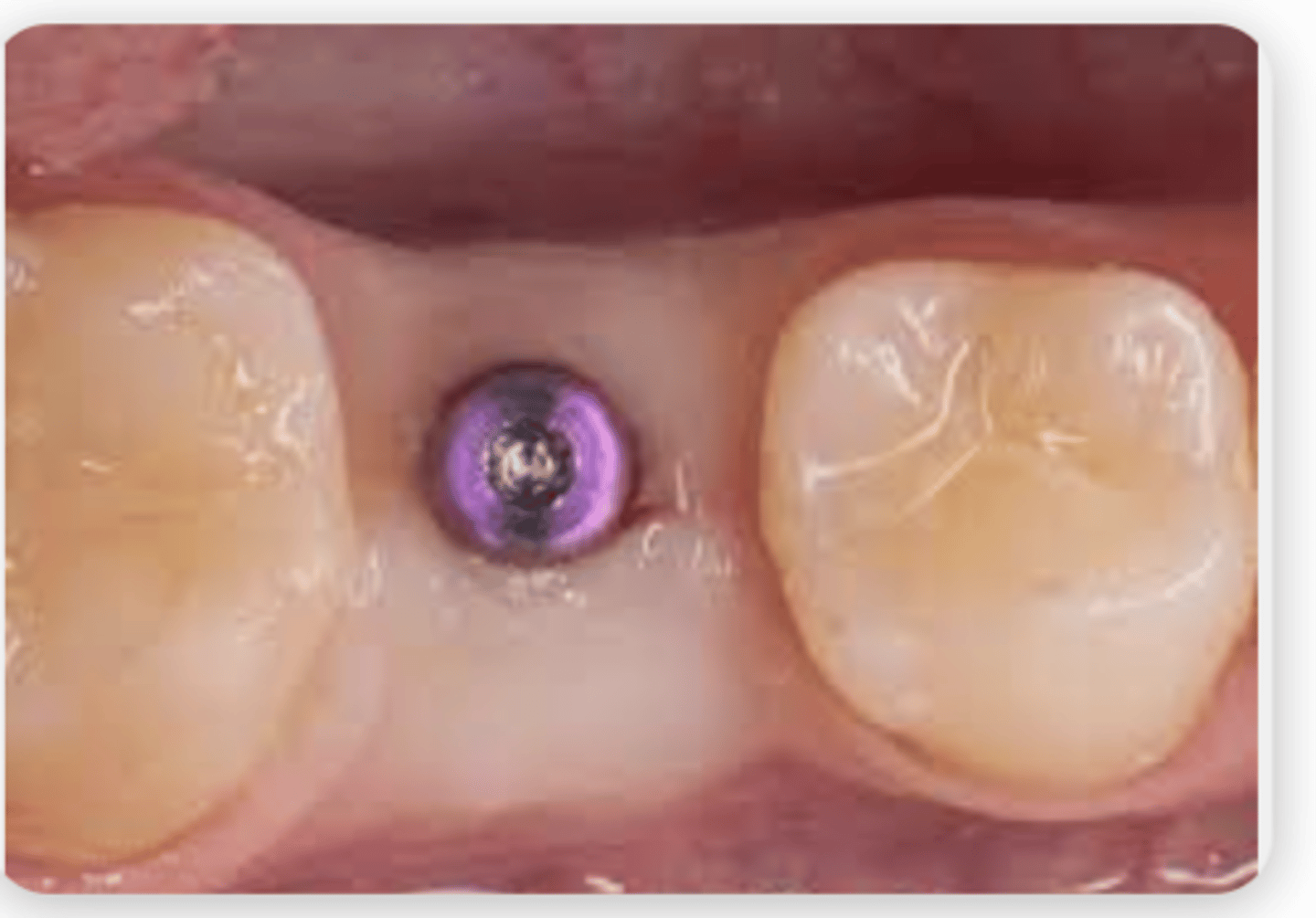

Healing Cuff/Colar/Cap

What is this?

To provide torque to drill or screw

Why do we need a wrench

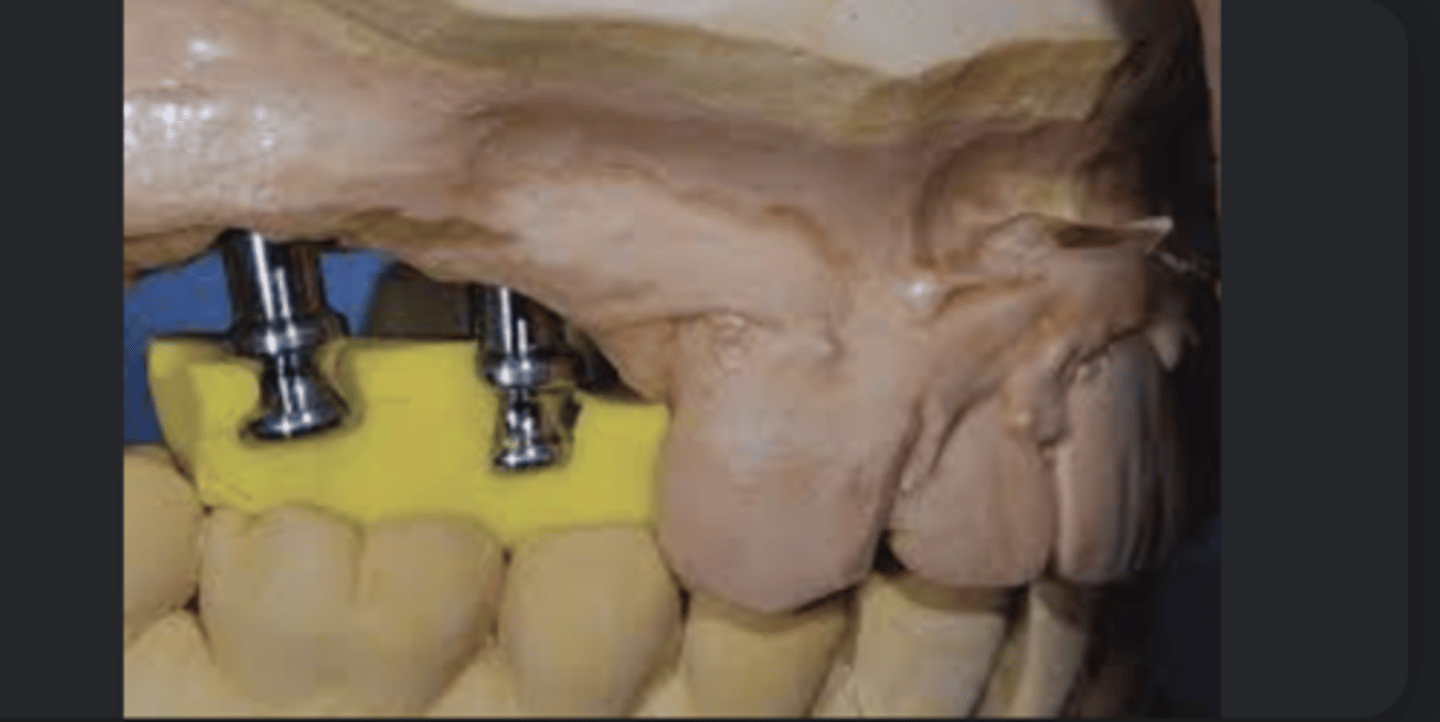

Implant Replica

analog

A drill which uses a handpiece

What is used to place an implant

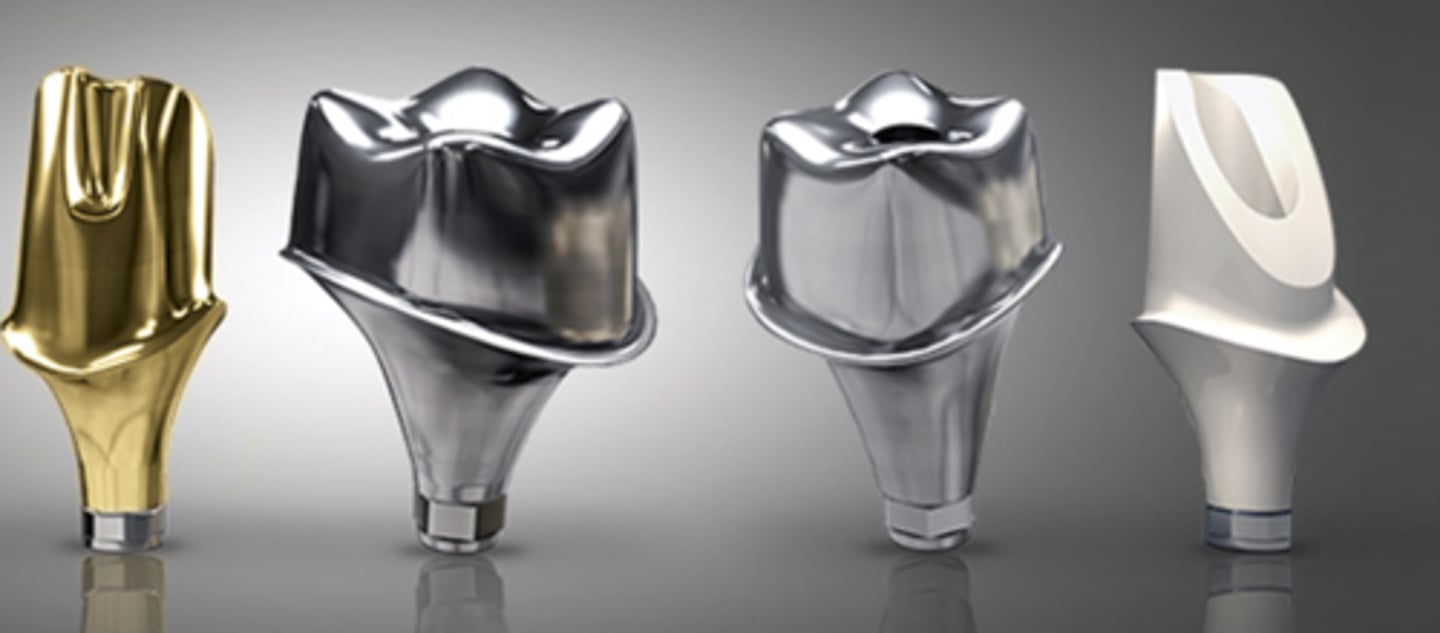

Custom Abutment

What are these?

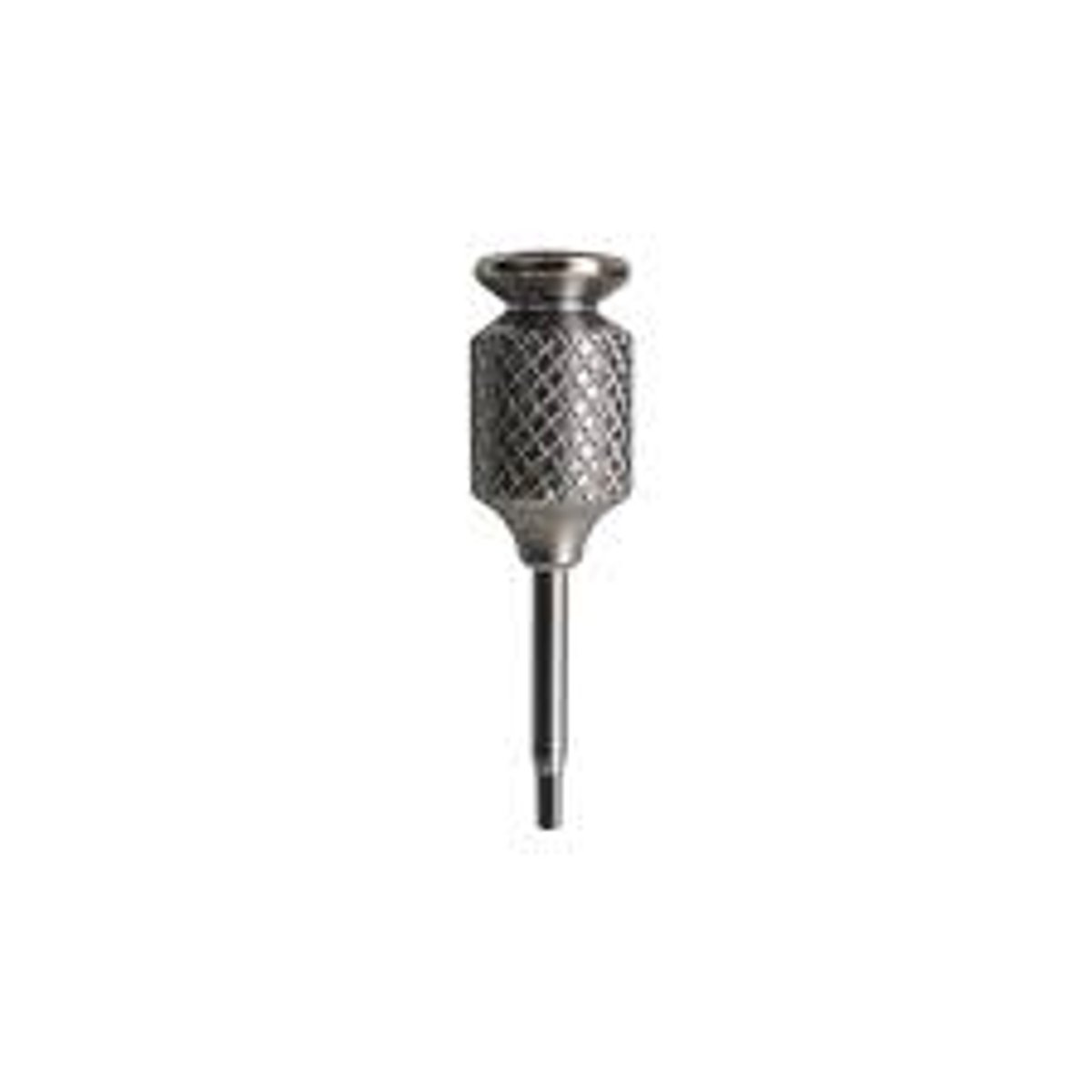

Driver

Screws in and out

Ask their doctor

If a patient has osteoporosis what do you do?

No, patient will bleed a lot and is also at risk of a heart attack

If a patient has High blood pressure (180/120) can you do surgery?

Outside

Is an abutment inside or outside of gingiva

Screw Retained on top of an implant

What type of prosthesis is the all the way on the right?

Screw Retained on Top of an Abutment

What type of bridge is on the left?

Cement Retained

What type of bridge is in the middle?

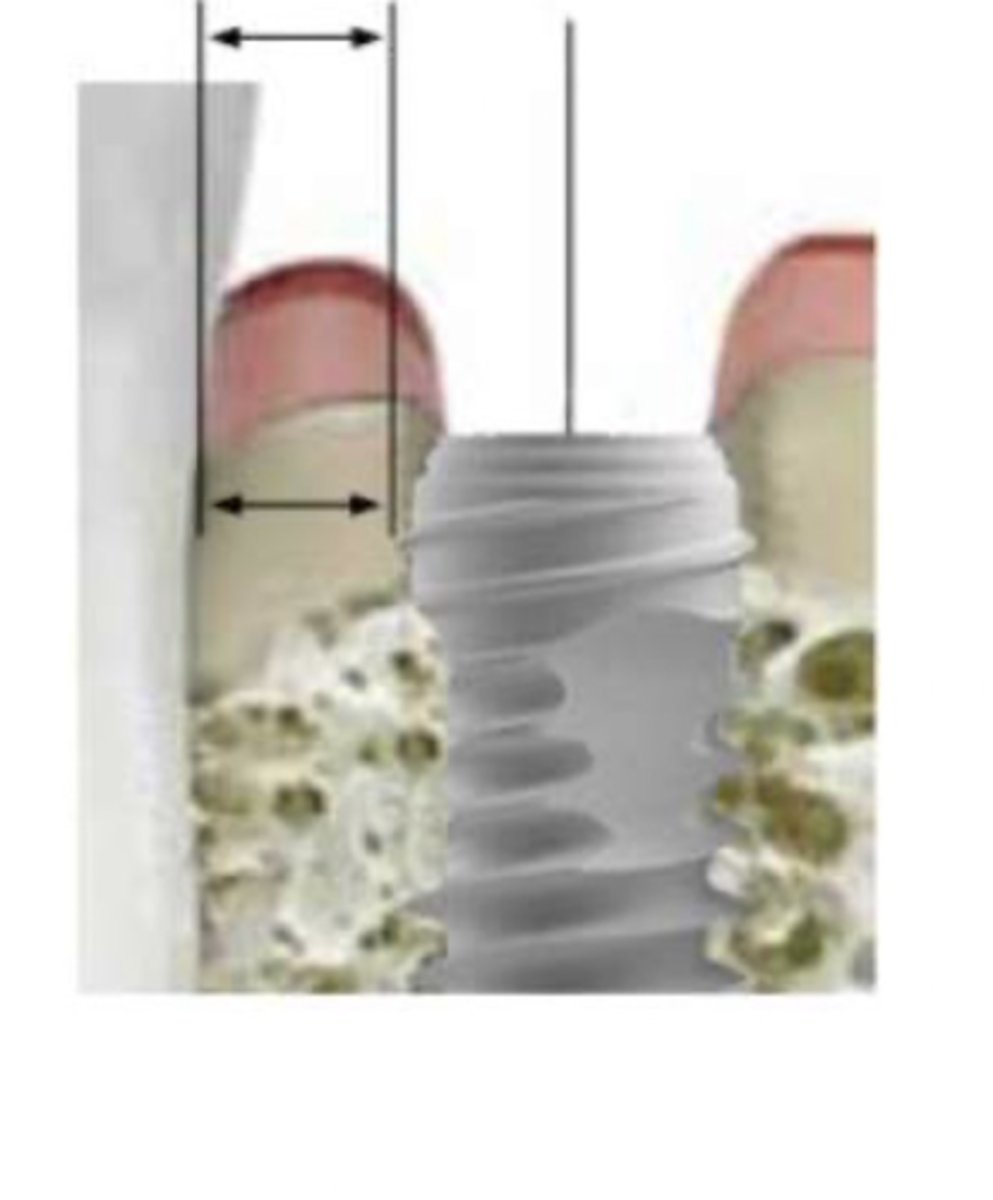

1.5 mm

How much space do we want between an implant and a neighboring tooth?

3mm

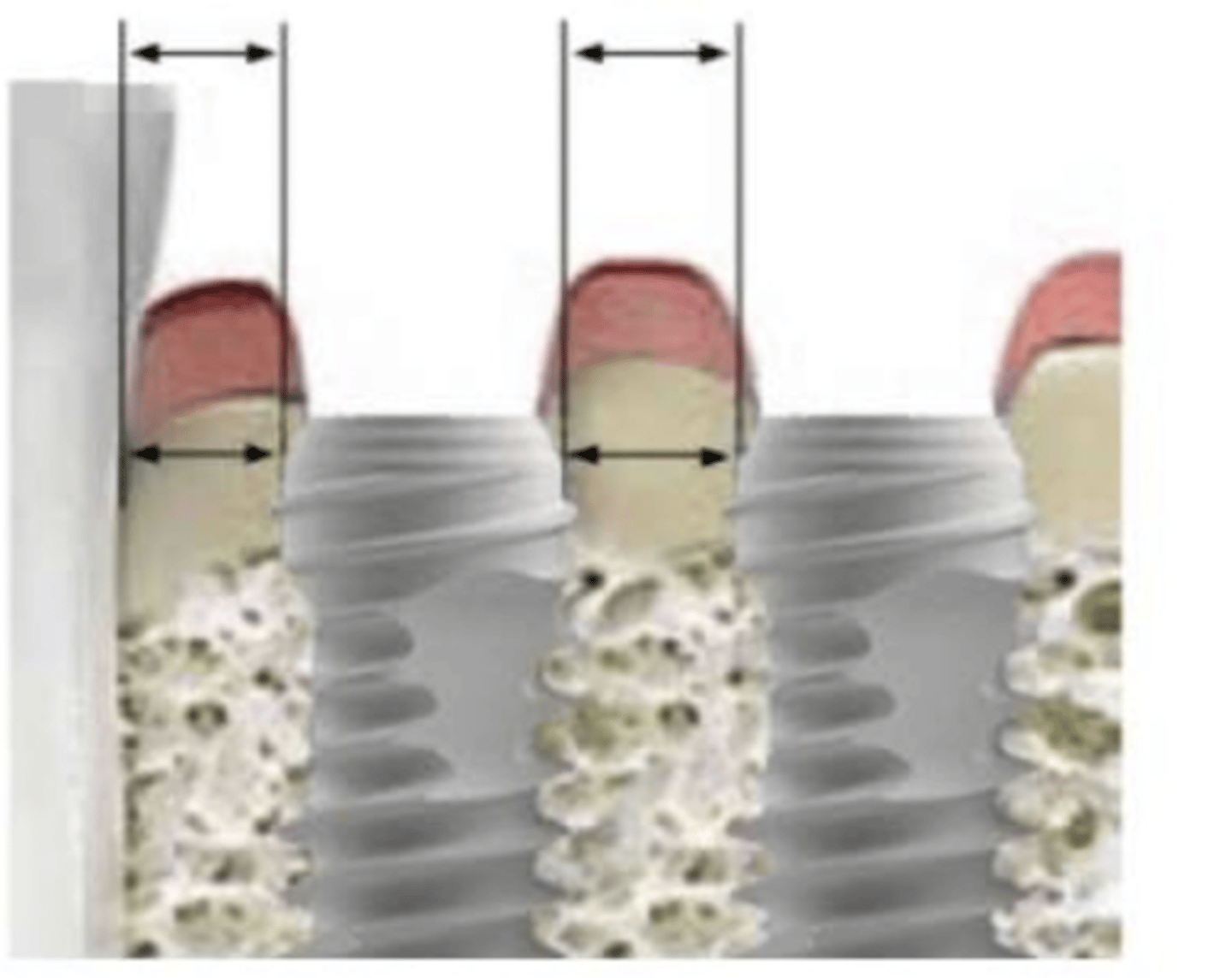

How much space do we want between 2 implants?

Implant with a cantilever

What is this a good example of?
