EOP-ES-0.1 (1) Reactor Trip Response

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/10

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

11 Terms

1
New cards

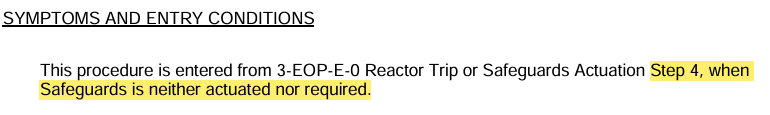

Entry Path

No “S”

<p>No “S”</p>
2
New cards

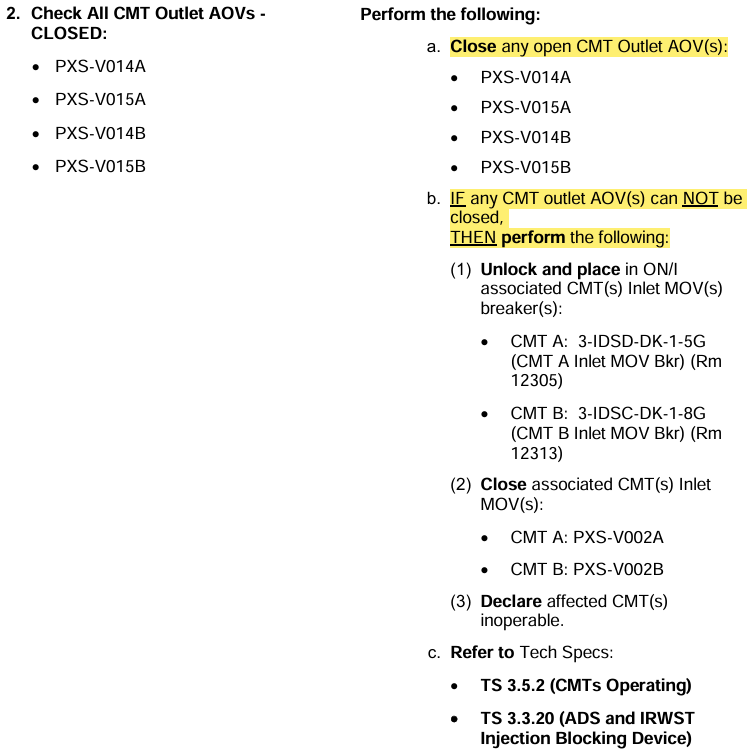

What if inadvertent CMT operation?

(Step 2 RNO)

knowt flashcard image
3
New cards

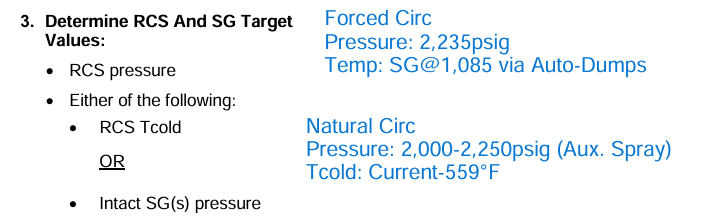

Transient Guide Target Values

Forced Circulation vs. Natural Circulation?

knowt flashcard image
4
New cards

SFW flow and SGNR relationship with PRHR

*The actual flow setpoint document value (200gpm) is a really great DISTRACTOR

<p>*The actual flow setpoint document value (200gpm) is a really great DISTRACTOR</p>
5
New cards

Uncontrolled RCS Depressurization due to over-spraying mitigation?

(Step 7 RNO)

knowt flashcard image
6
New cards

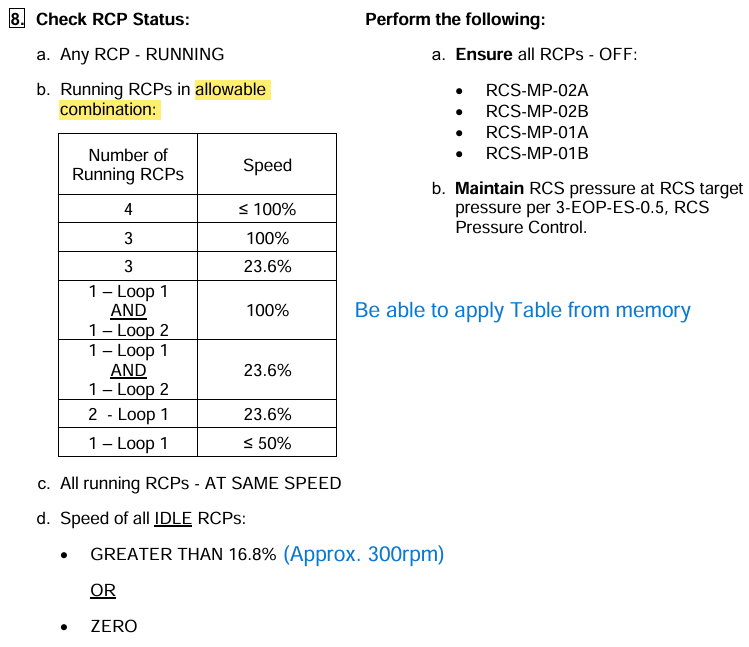

Acceptable RCP Configuration

(Step 8)

knowt flashcard image
7
New cards

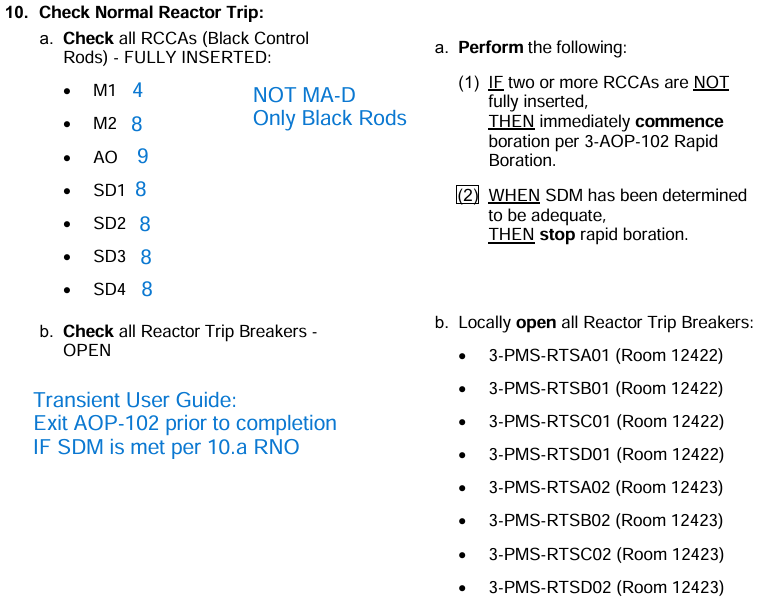

Not all Rods inserted assessment and actions

(Step 10 and RNO)

knowt flashcard image
8
New cards

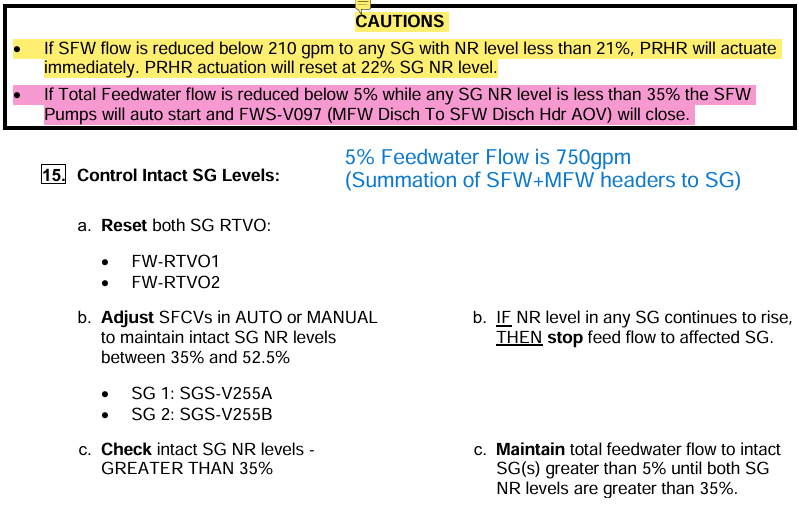

Controlling SG Levels and important Cautions

(Step 15)

165secTD is on Level ONLY

Low flowrate is instantaneous

<p>165secTD is on Level ONLY</p><p>Low flowrate is instantaneous</p>
9
New cards

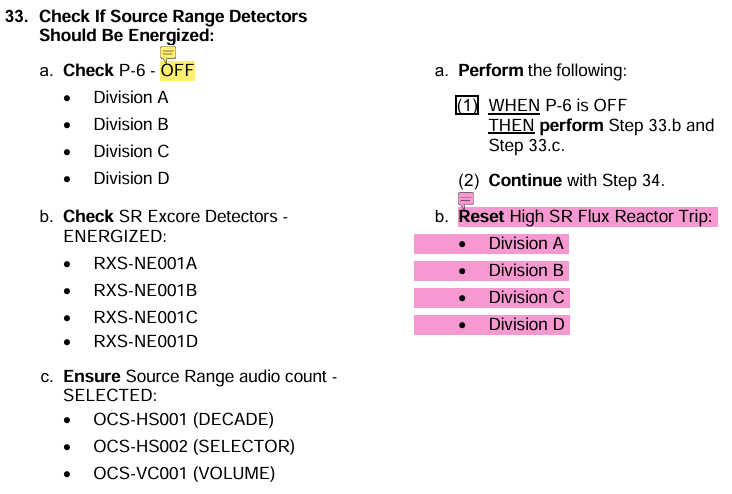

Energizing SRNIs

(Step 33)

*This has been heavily tested, including being able to recognize current power and interpreting status of P-6

Auto-OFF

Below P-6 Power Value

1E-5% RTP on IRNIs

<p>*This has been heavily tested, including being able to recognize current power and interpreting status of P-6</p><p></p><p>Auto-OFF</p><p>Below P-6 Power Value</p><p>1E-5% RTP on IRNIs</p>
10
New cards

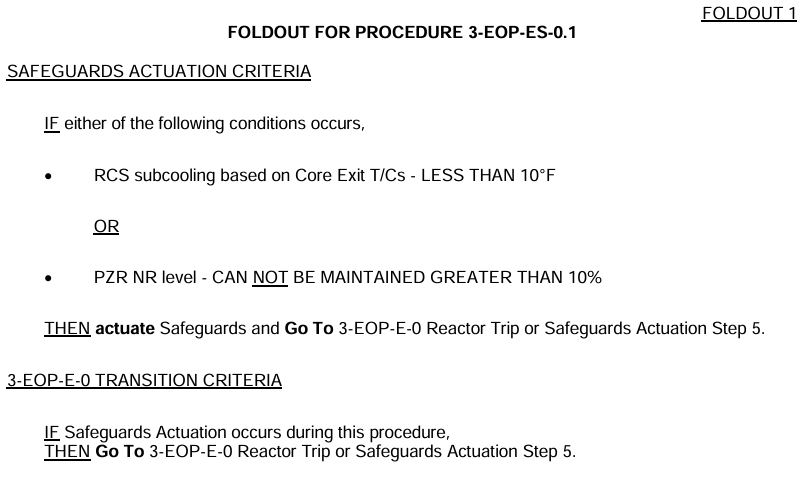

ES-0.1

FOP

“S” and E-0 Transition

knowt flashcard image
11
New cards

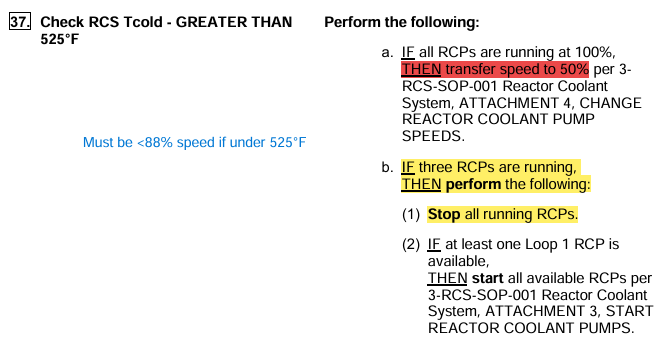

Tcold 525°F and RCPs

(Step 37)

knowt flashcard image
