Private Pilot Book Exam 3 - Enroute Flight and Navigation

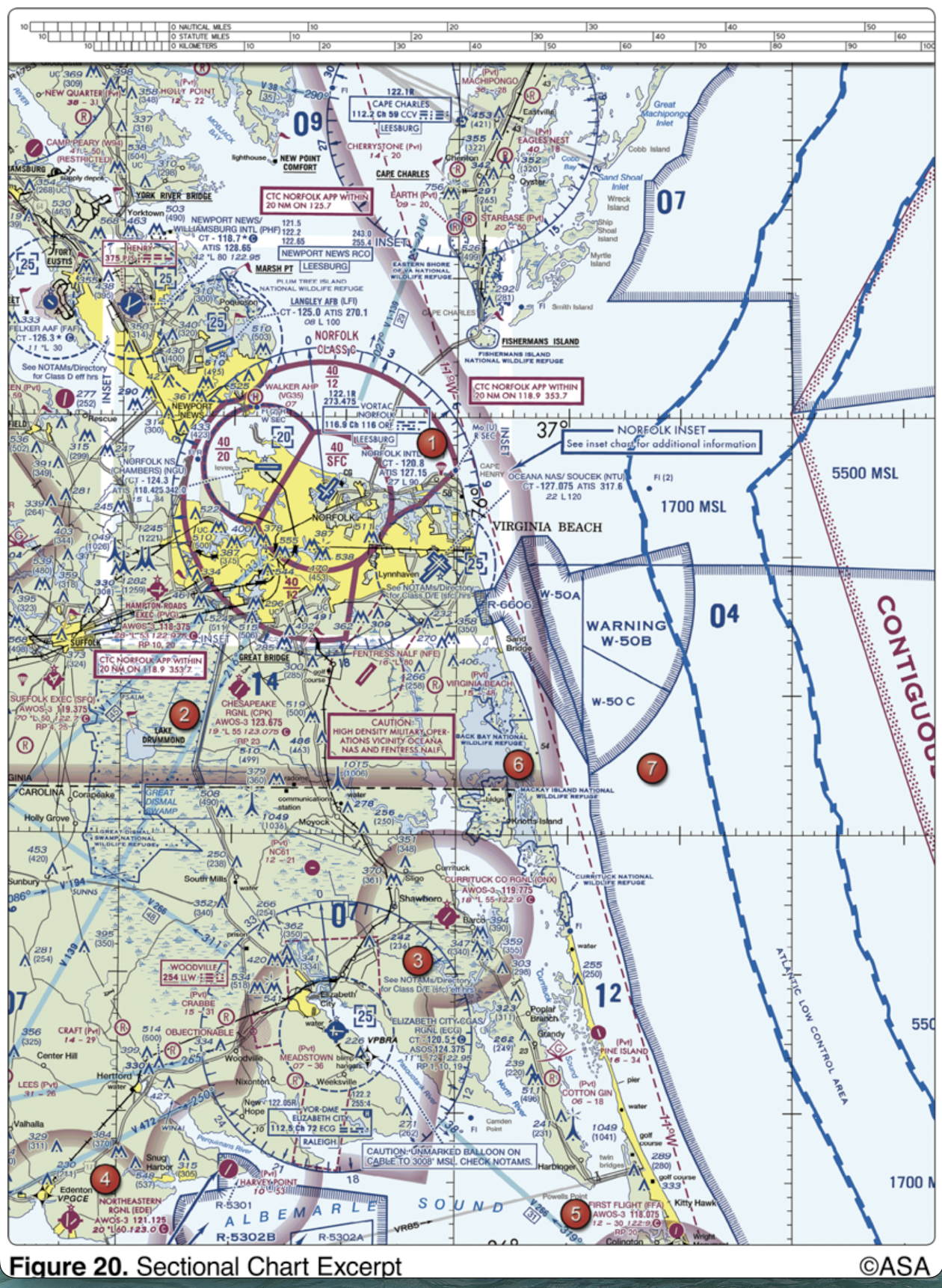

(Refer to Figure 20.) Determine the magnetic course from First Flight Airport (area 5) to Hampton Roads Airport (area 2).

332°

VFR cruising altitude

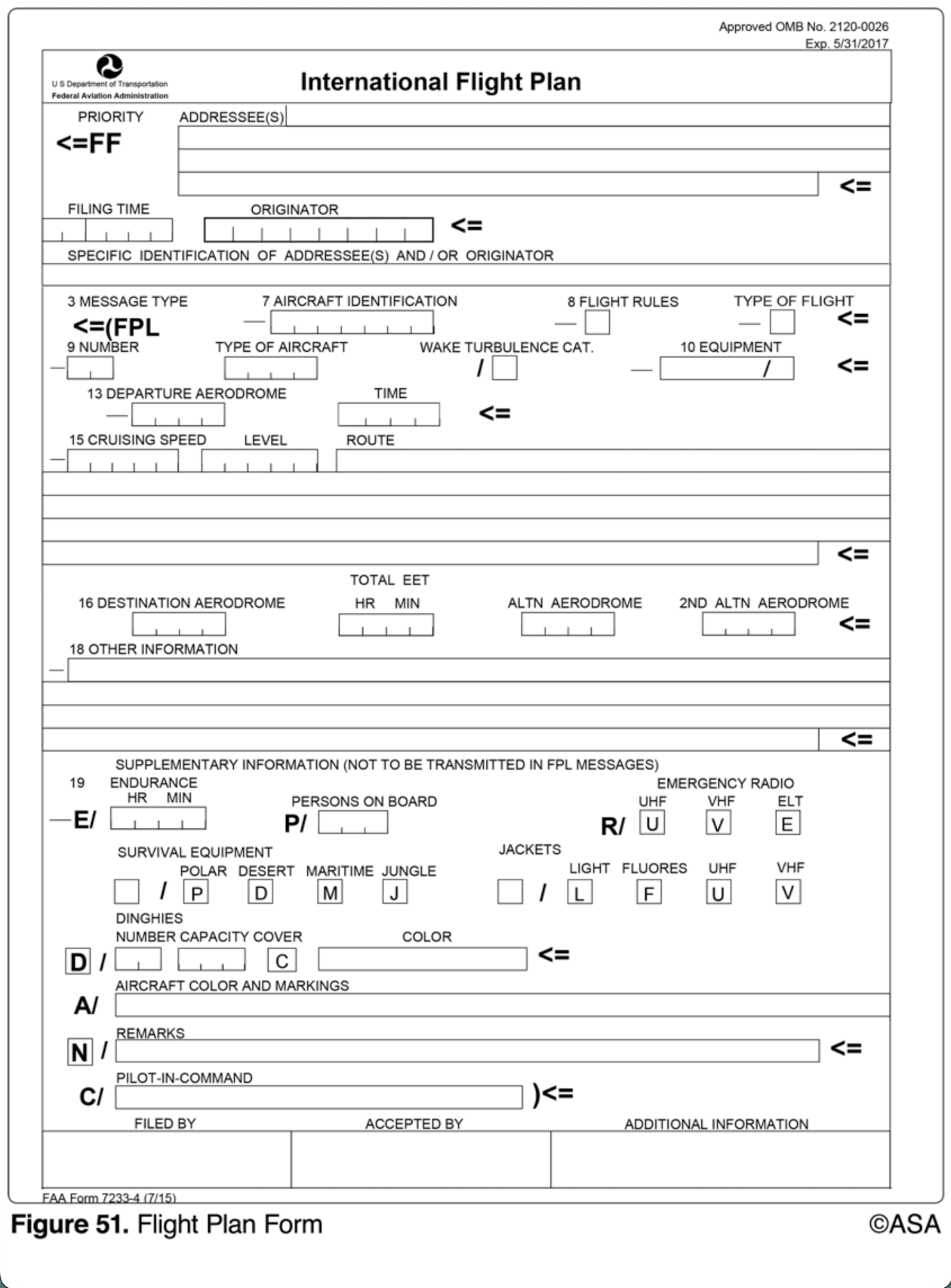

(Refer to Figure 51.) What information should be entered for Item 15, level, on the flight plan form?

Minot Intl. (area 1).

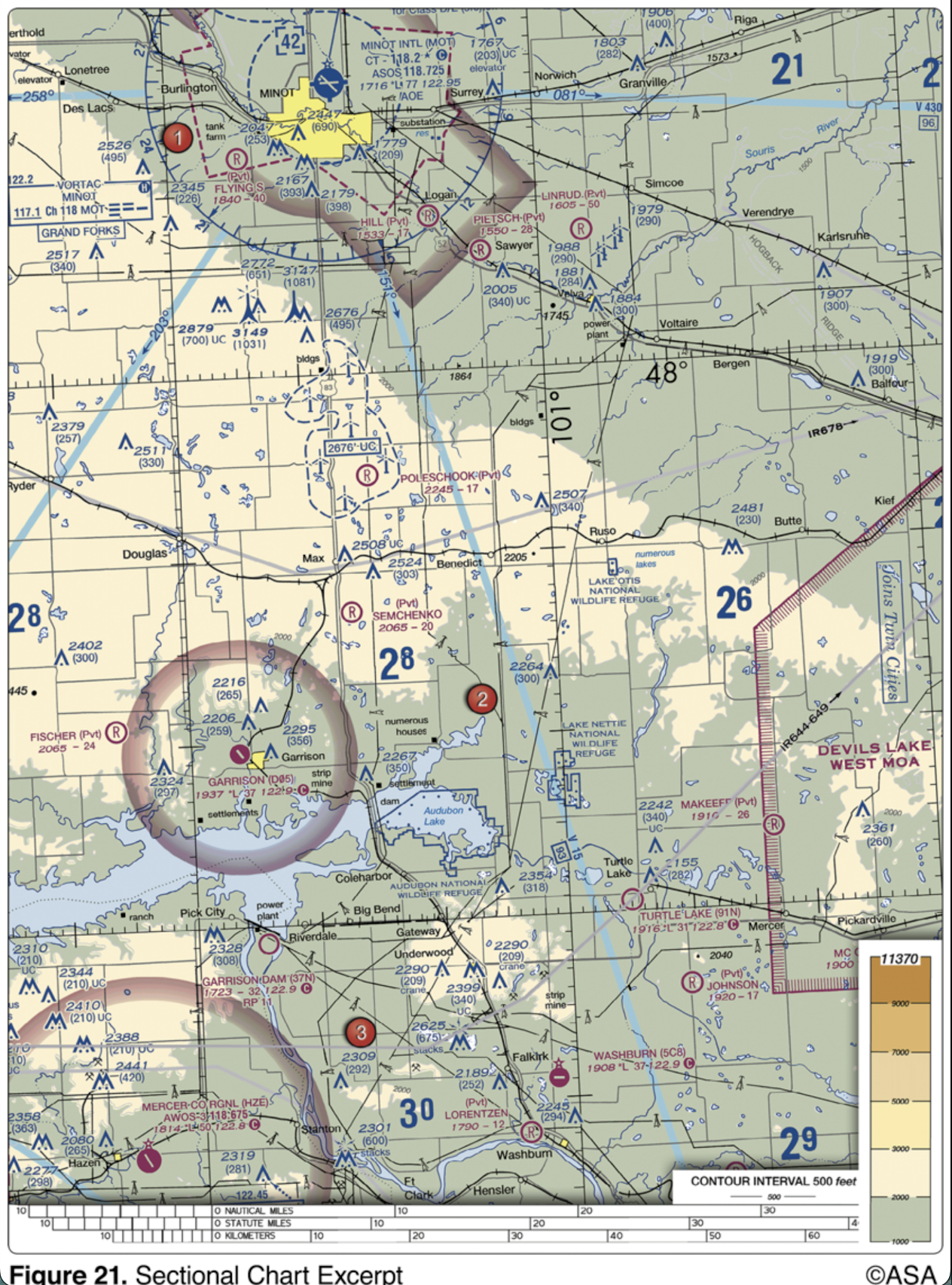

(Refer to Figure 21.) Which public use airports depicted are indicated as having fuel?

wind direction and velocity

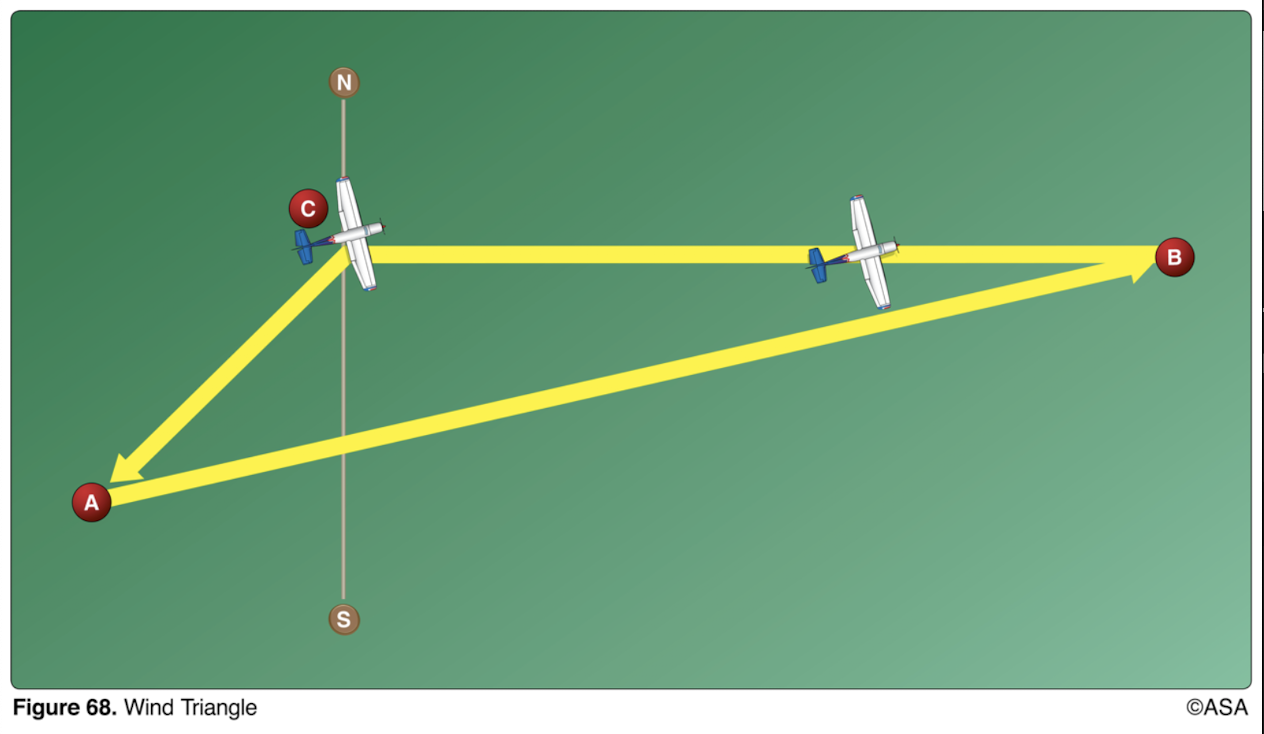

(Refer to Figure 68.) The line from point C to point A of the wind triangle represents

4

How many Global Positioning System (GPS) satellites are required to yield a three dimensional position (latitude, longitude, and altitude) and time solution?

075°

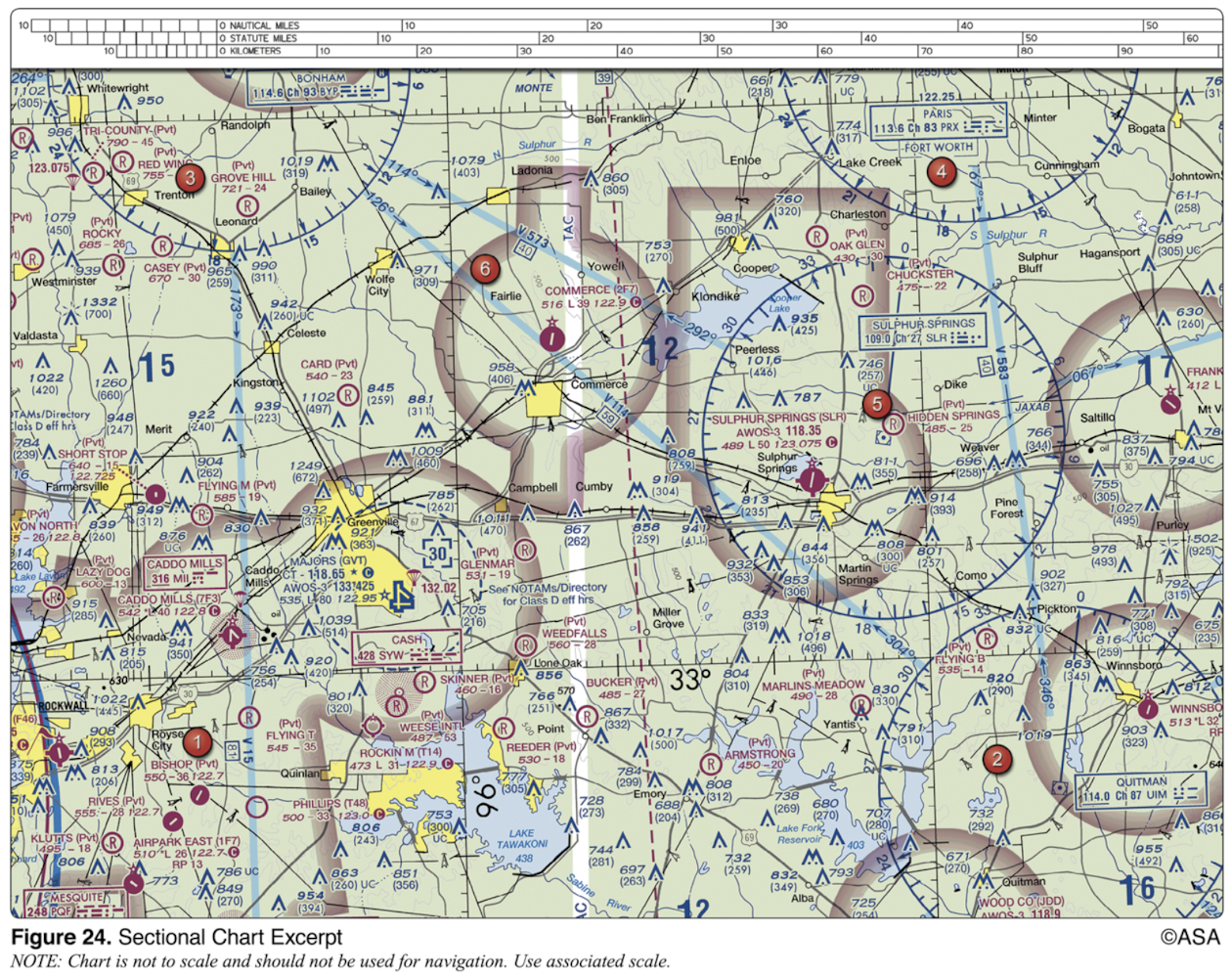

(Refer to Figure 24.) Determine the magnetic course from Airpark East Airport (area 1) to Winnsboro Airport (area 2). Magnetic variation is 6°30'E.

2,000 feet to 2,500 feet MSL

(Refer to Figure 21.) The terrain elevation of the light tan area between Minot (area 1) and Audubon Lake (area 2) varies from

To provide search and rescue in the event of an emergency

Why should you file a VFR flight plan with the FAA?

1545Z.

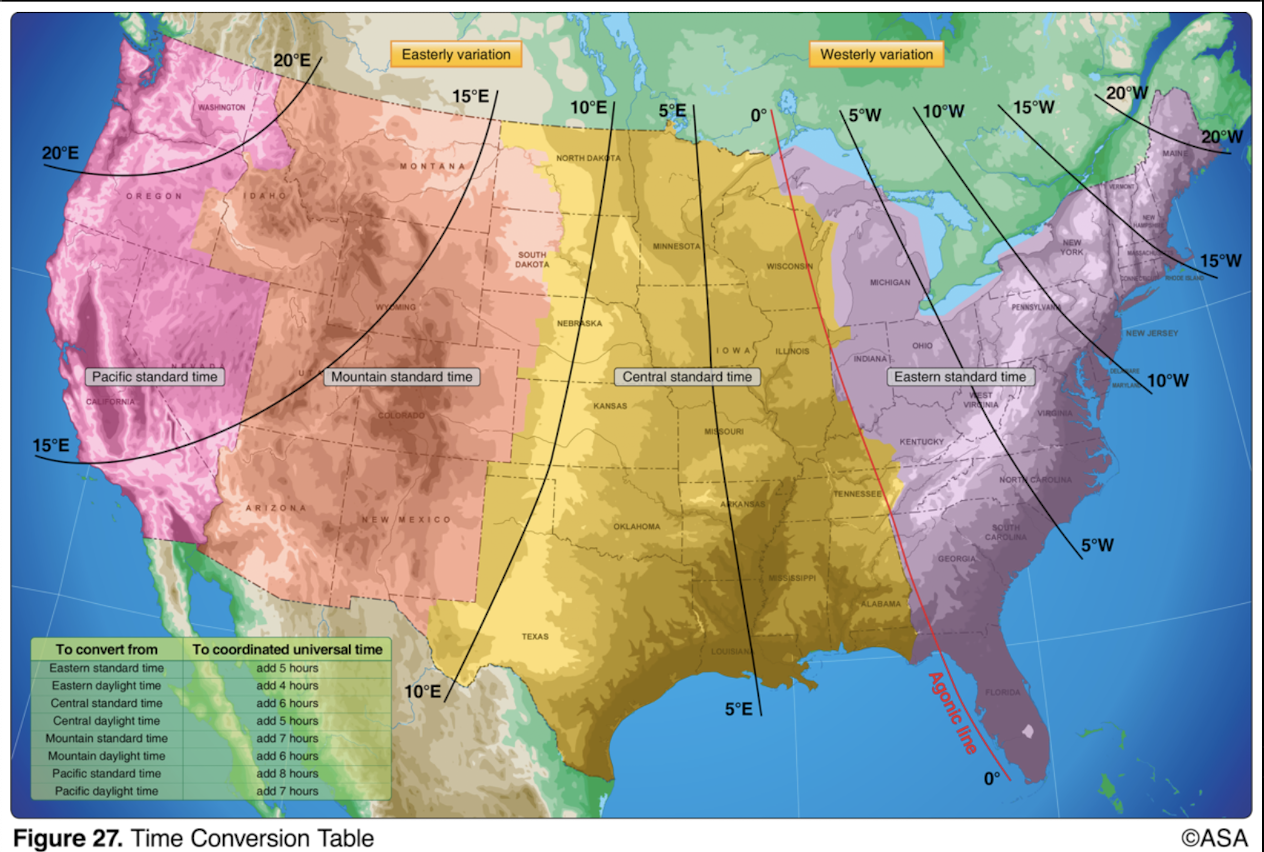

(Refer to Figure 27.) An aircraft departs an airport in the eastern daylight time zone at 0945 EDT for a 2-hour flight to an airport located in the central daylight time zone. The landing should be at what coordinated universal time?

042°

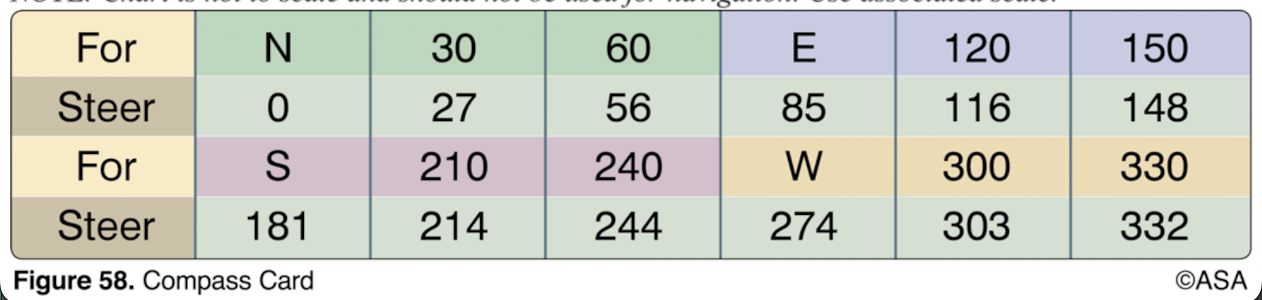

(Refer to Figures 23 and 58.) Determine the compass heading for a flight from Claxton-Evans County Airport (area 2) to Hampton Varnville Airport (area 1). The wind is from 280° at 08 knots, the true airspeed is 85 knots, and the magnetic variation is 5 degrees West.

14.25 NM

How far will an aircraft travel in 7.5 minutes with a ground speed of 114 knots?

004°

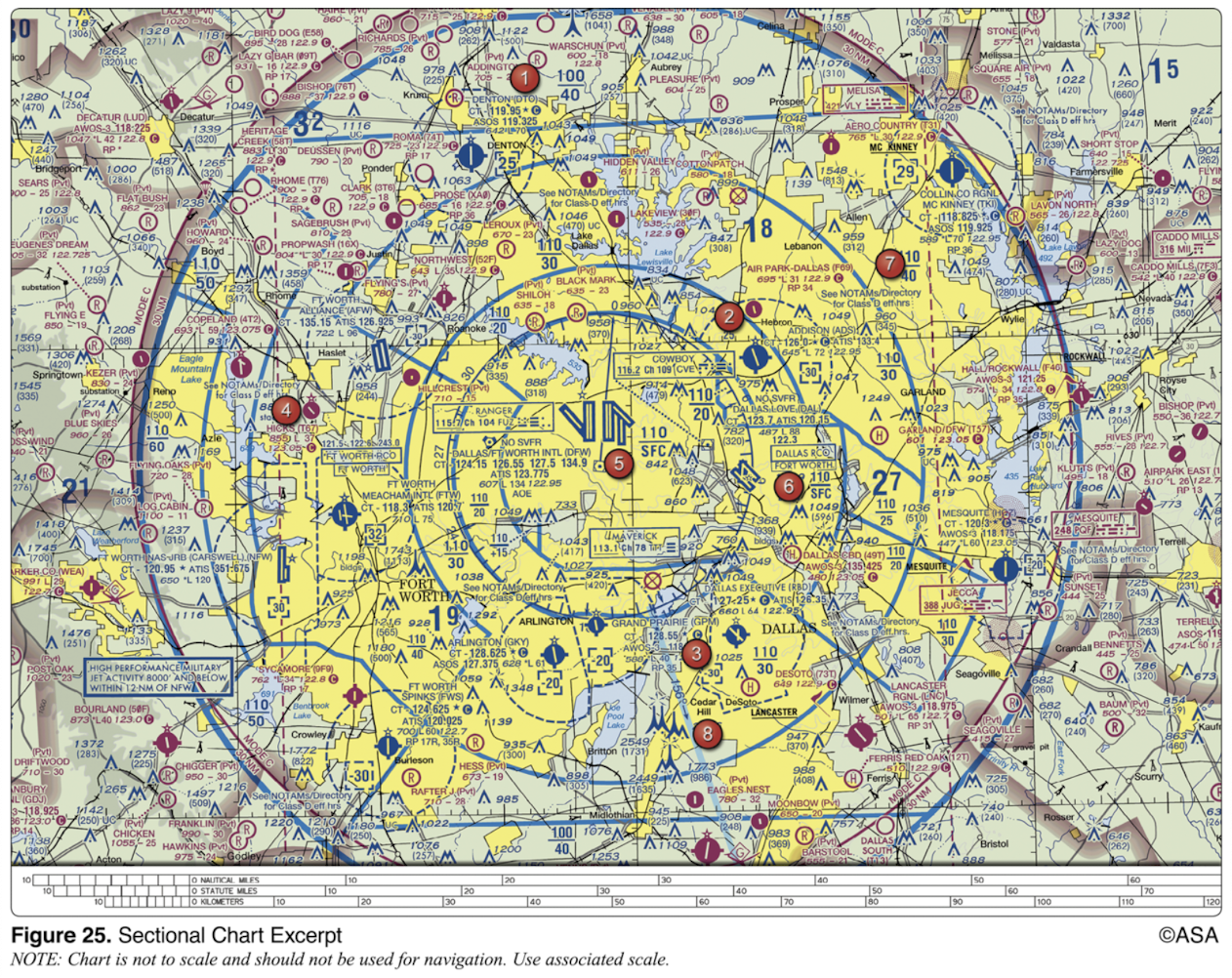

(Refer to Figure 25.) Determine the magnetic heading for a flight from Fort Worth Meacham (area 4) to Denton Muni (area 1). The wind is from 330° at 25 knots, the true airspeed is 110 knots, and the magnetic variation is 7° east.

47 minutes

(Refer to Figure 21.) What is the estimated time en route from Mercer County Regional Airport (area 3) to Minot International (area 1)? The wind is from 330° at 25 knots and the true airspeed is 100 knots. Add 3-1/2 minutes for departure and climb-out.

101°

(Refer to Figure 24.) On what course should the VOR receiver (OBS) be set in order to navigate direct from Majors Airport (area 1) to Quitman VOR/DME (area 2)?

Execute gentle banks, left and right for continuous visual scanning of the airspace

What procedure is recommended when climbing or descending VFR on an airway?

1,273 feet MSL

(Refer to Figure 24, area 1.) What minimum altitude is necessary to vertically clear the obstacle on the northeast side of Airpark East Airport by 500 feet?

Unmarked balloon on cable to 3,008 feet MSL

(Refer to Figure 20, area 5.) The CAUTION box denotes what hazard to aircraft?

2230Z.

(Refer to Figure 27.) An aircraft departs an airport in the Pacific standard time zone at 1030 PST for a 4-hour flight to an airport located in the central standard time zone. The landing should be at what coordinated universal time?

East-northeast

(Refer to Figure 25, area 5.) The VOR is tuned to the VOR-DME at the Dallas-Fort Worth airport. The omnibearing selector (OBS) is set on 253°, with a TO indication, and a right course deviation indicator (CDI) deflection. What is the aircraft's position from the VOR-DME?

137 knots

On a cross-country flight, point A is crossed at 1500 hours and the plan is to reach point B at 1530 hours. Use the following information to determine the indicated airspeed required to reach point B on schedule.

Distance between A and B 70 NM

Forecast wind 310° at 15 kts

Pressure altitude 8,000 ft

Ambient temperature -10 °C

True course 270°

The required indicated airspeed would be approximately

19 feet

(Refer to Figure 20, area 2.) The elevation of the Chesapeake Regional Airport is

246° and 13 knots

If a true heading of 135° results in a ground track of 130° and a true airspeed of 135 knots results in a groundspeed of 140 knots, the wind would be from

352°

(Refer to Figure 21.) Determine the magnetic heading for a flight from Mercer County Regional Airport (area 3) to Minot International (area 1). The wind is from 330° at 25 knots, the true airspeed is 100 knots, and the magnetic variation is 10° east.

Approximately 13 minutes

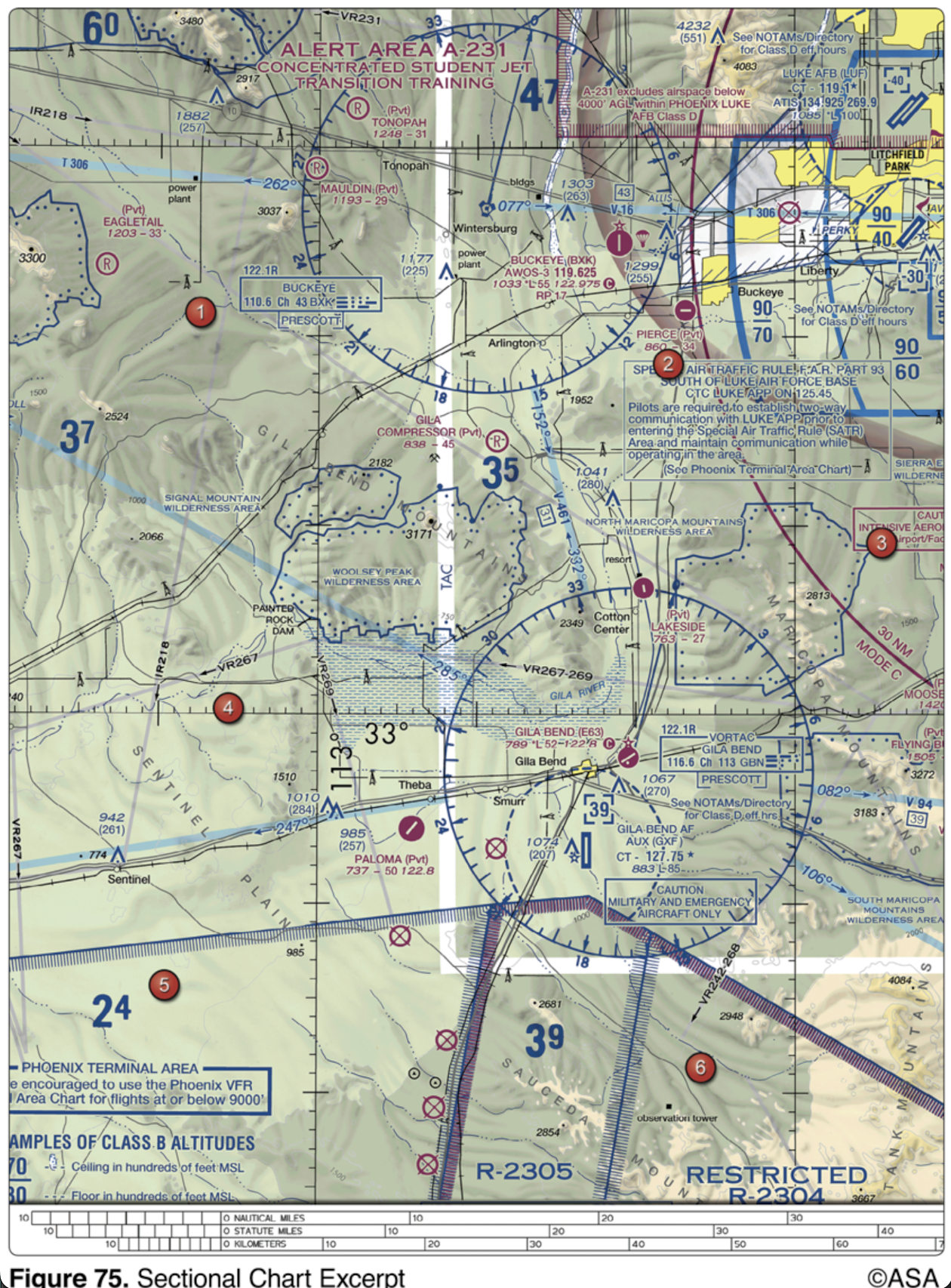

(Refer to Figure 75.) What is the time en route from the Gila Bend VORTAC to Buckeye VOR along V461 at a TAS of 125 knots and forecasted winds from 180 at 17 knots?

36°24’N - 76°01’W

(Refer to Figure 20, area 3.) Determine the approximate latitude and longitude of Currituck County Airport.

The pilot must close the flight plan with the FAA upon landing

How should a VFR flight plan be closed at the completion of the flight at a controlled airport?

153°

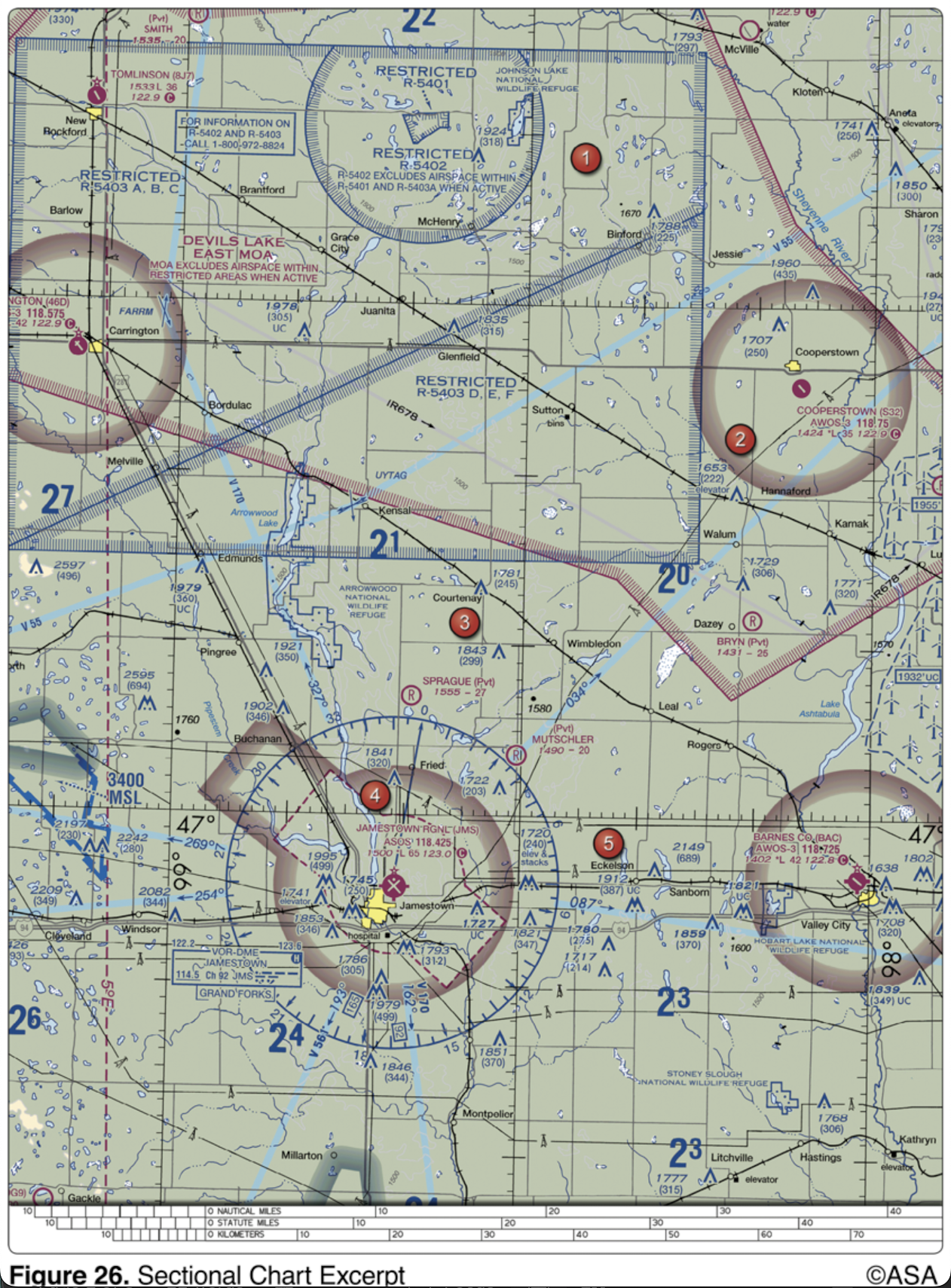

(Refer to Figure 26.) Determine the magnetic course from Tomlinson Airport (area 1) to Jamestown Airport (area 4).

true heading and airspeed

(Refer to Figure 68.) The line from point A to point B of the wind triangle represents

visual checkpoints to identify position for initial callup prior to entering Savannah Class C airspace

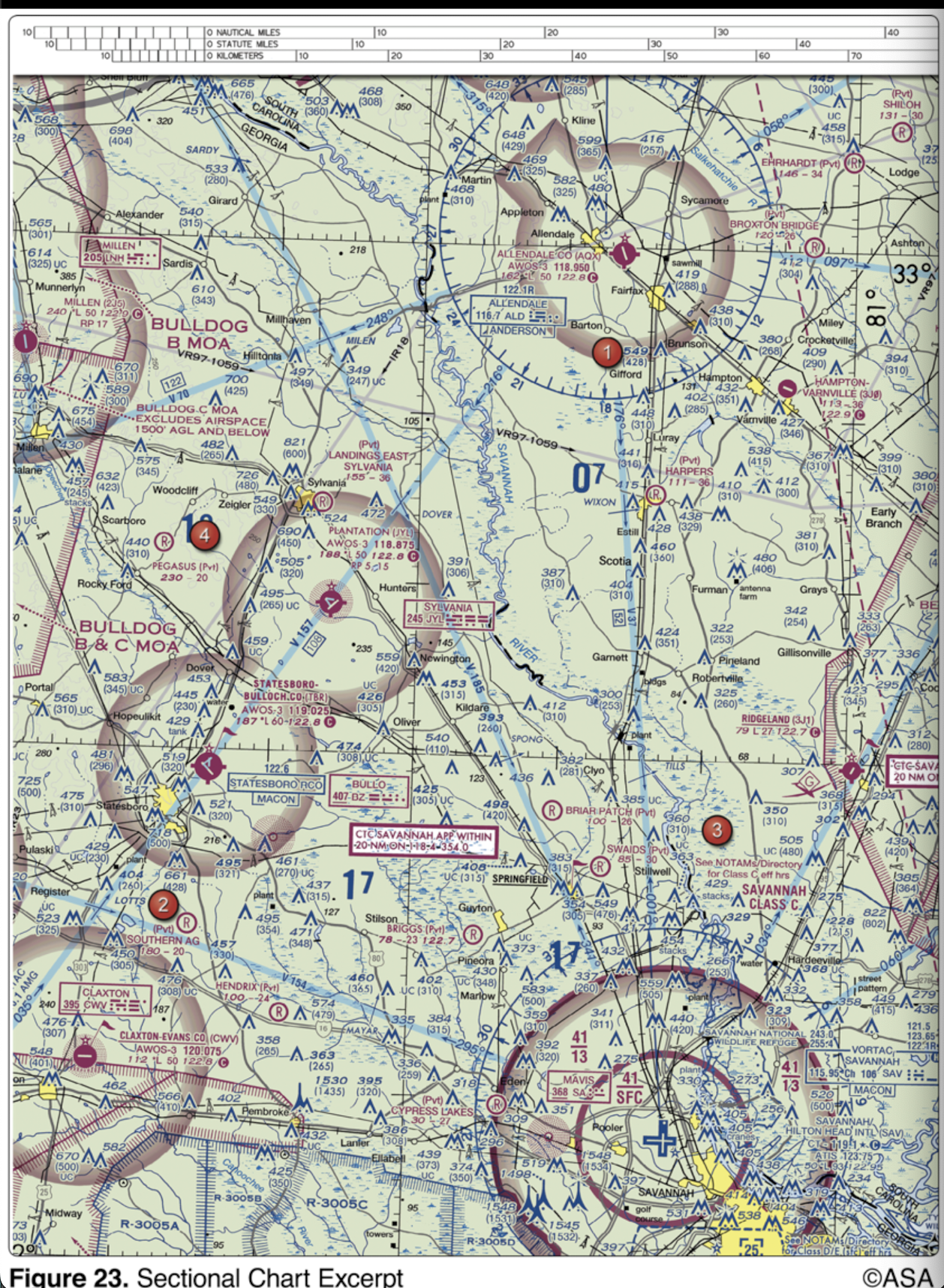

(Refer to Figure 23.) The flag symbols at Statesboro Bullock County Airport, Claxton-Evans County Airport, and Ridgeland Airport are

47°33’N - 116°11’W.

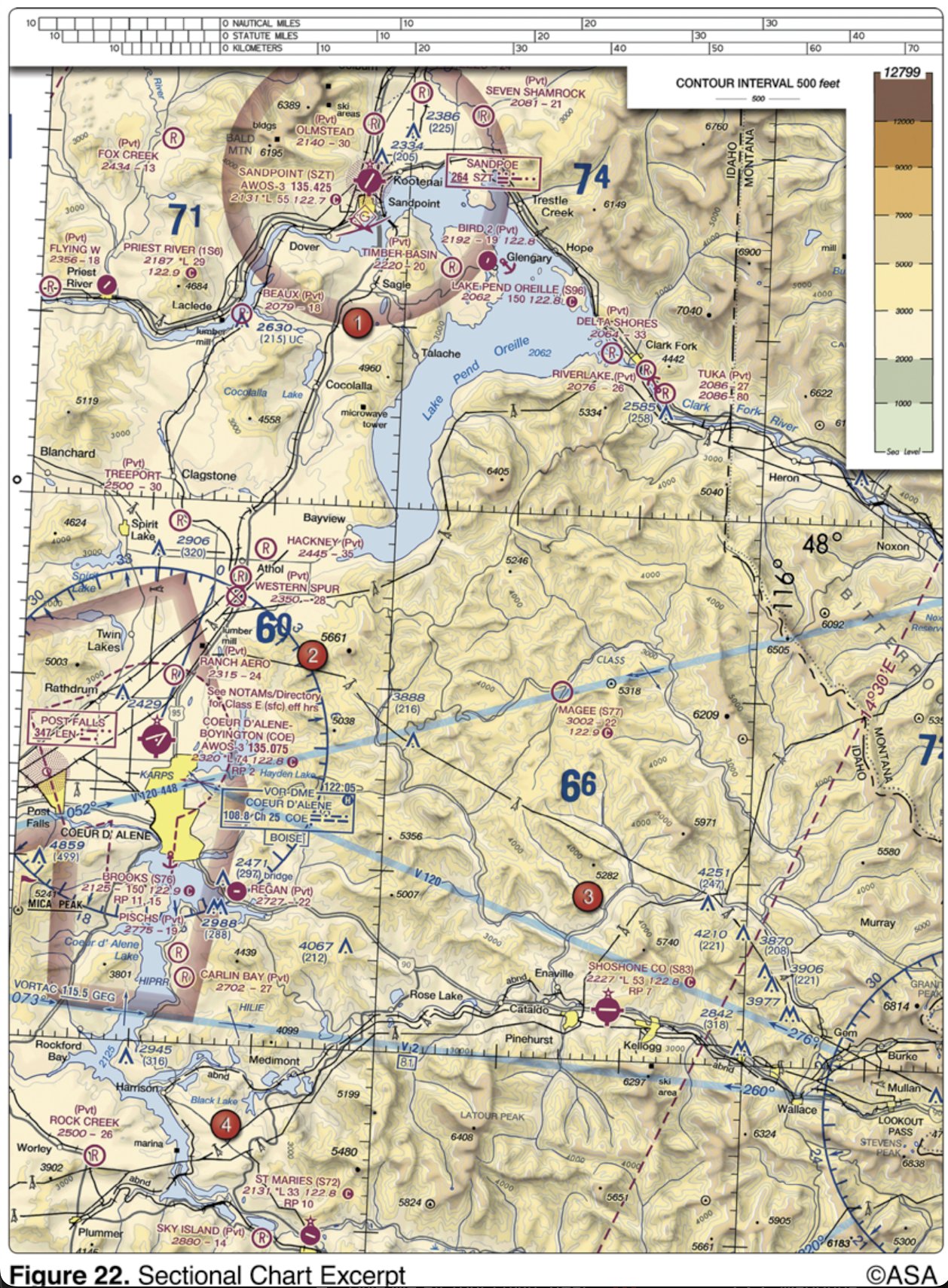

(Refer to Figure 22, area 3.) Determine the approximate latitude and longitude of Shoshone County Airport.

VOR/DME

(Refer to Figure 25, area 5.) The navigation facility at Dallas-Ft. Worth International (DFW) is a

1,548 feet MSL

(Refer to Figure 23, area 3.) What is the height of the lighted obstacle approximately 6 nautical miles southwest of Savannah International?

329°

(Refer to figure 22.) Determine the magnetic heading for a flight from St. Maries Airport (area 4) to Priest River Airport (area 1). The wind is from 340° at 10 knots, and the true airspeed is 90 knots.

5

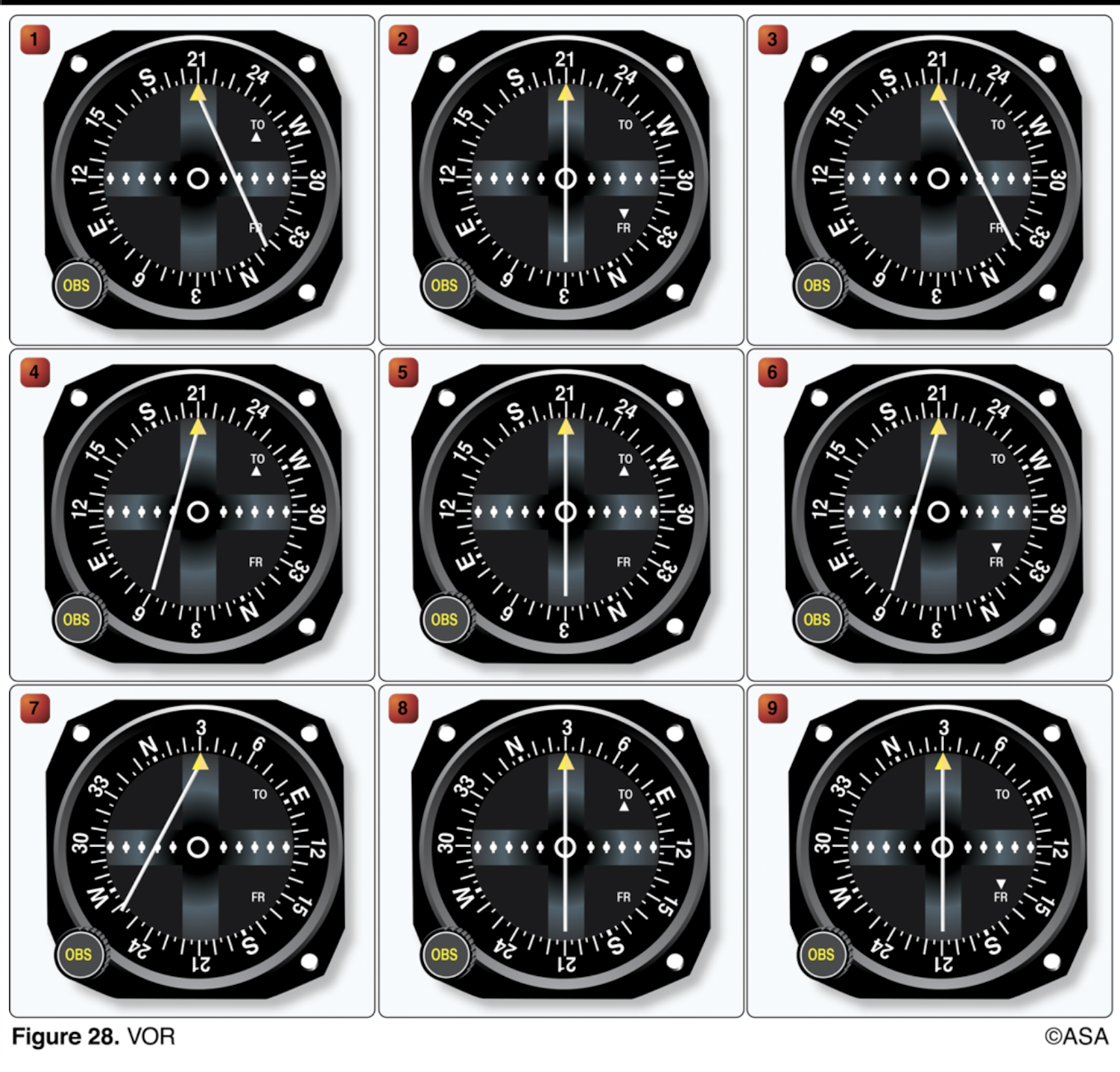

(Refer to Figure 20, area 3; and Figure 28.) The VOR is tuned to Elizabeth City VOR/DME, and the aircraft is positioned over Shawboro, a small town 3 NM west of Currituck County Regional (ONX). Which VOR indication is correct?

MAKEEFF

(Refer to Figure 21, area 2.) Which airport is located at approximately 47°35'30"N latitude and 100°43'00"W longitude?

0° FROM or 180° TO, regardless of the pilot’s position from the VOT

When the course deviation indicator (CDI) needle is centered during an omnireceiver check using a VOR test signal (VOT), the omnibearing selector (OBS) and the TO/FROM indicator should read

1645 PST

(Refer to Figure 27.) An aircraft departs an airport in the mountain standard time zone at 1515 MST for a 2-hour 30-minute flight to an airport located in the Pacific standard time zone. What is the estimated time of arrival at the destination airport?

the pilot has no assurance of the accuracy of the GPS position

If receiver autonomous integrity monitoring (RAIM) capability is lost in flight,

030°

(Refer to Figure 28, illustration 5.) The VOR receiver has the indications shown. What radial is the aircraft crossing?

Lines of longitude cross the equator at right angles

Which statement about longitude and latitude is true?

4.08 NM

How far will an aircraft travel in 2-1/2 minutes with a groundspeed of 98 knots?

1730 PST

(Refer to Figure 27.) An aircraft departs an airport in the mountain standard time zone at 1615 MST for a 2-hour 15-minute flight to an airport located in the Pacific standard time zone. The estimated time of arrival at the destination airport should be

7

(Refer to Figure 24, and Figure 28.) The VOR is tuned to Bonham VORTAC (area 3), and the aircraft is positioned over the town of Sulphur Springs (area 5). Which VOR indication is correct?

3,549 feet MSL

(Refer to Figure 25, area 8.) What minimum altitude is required to fly over the Cedar Hill TV towers in the congested area south of Dallas Executive (RBD)?

286°

(Refer to Figure 25.) Determine the magnetic heading for a flight from Dallas Executive (area 3) to Fort Worth Meacham (area 4). The wind is from 030° at 10 knots, the true airspeed is 135 knots, and the magnetic variation is 7° east.

add westerly variation and subtract left wind correction angle

When converting from true course to magnetic heading, a pilot should

visual checkpoint used to identify position for initial callup to Norfolk Approach Control

(Refer to Figure 20, area 2.) The flag symbol at Lake Drummond represents a

Airports with control towers underlying Class B, C, D, and E airspace are shown in blue

Which is true concerning the blue and magenta colors used to depict airports on Sectional Aeronautical Charts?

Glenmar Airport

(Refer to Figure 24.) What is the approximate position of the aircraft if the VOR receivers indicate the 245? radial of Sulphur Springs VOR/DME (area 5) and the 140? radial of Bonham VORTAC (area 3)?

47°25’N - 98°06’W.

(Refer to Figure 26, area 2.) What is the approximate latitude and longitude of Cooperstown Airport?

5

(Refer to Figure 26, areas 4 and 2; and Figure 28.) The VOR is tuned to Jamestown VOR, and the aircraft is positioned over Cooperstown Airport. Which VOR indication is correct?

1645Z

(Refer to Figure 27.) An aircraft departs an airport in the central standard time zone at 0845 CST for a 2-hour flight to an airport located in the mountain standard time zone. The landing should be at what coordinated universal time?

Washburn

(Refer to Figure 21, area 3.) Which airport is located at approximately 47°21'N latitude and 101°01'W longitude?

121°

(Refer to Figure 22.) What is the magnetic heading for a flight from Priest River Airport (area 1) to Shoshone County Airport (area 3)?

The wind is from 030° at 12 knots and the true airspeed is 95 knots.

Southeast of Guyton

(Refer to Figure 23.) What is the approximate position of the aircraft if the VOR receivers indicate the 320° radial of Savannah VORTAC (area 3) and the 184° radial of Allendale VOR (area 1)?

195°

(Refer to Figure 23.) On what course should the VOR receiver (OBS) be set to navigate direct from Hampton Varnville Airport (area 1) to Savannah VORTAC (area 3)?

454 feet MSL

(Refer to Figure 23, area 3.) The top of the group obstruction approximately 11 nautical miles from the Savannah VORTAC on the 009° radial is

1,403 feet MSL

(Refer to Figure 24, area 2.) What minimum altitude is necessary to vertically clear the obstacle on the southeast side of Winnsboro Airport by 500 feet?

Southeast

(Refer to Figure 28, illustration 7.) The VOR receiver has the indications shown. What is the aircraft's position relative to the station?

172°

(Refer to Figure 22.) Determine the magnetic heading for a flight from Sandpoint Airport (area 1) to St. Maries Airport (area 4). The wind is from 215° at 25 knots and the true airspeed is 125 knots.

North

(Refer to Figure 28, illustration 4.) The VOR receiver has the indications shown. What is the aircraft's position relative to the station?

1030 MST

(Refer to Figure 27.) An aircraft departs an airport in the central standard time zone at 0930 CST for a 2-hour flight to an airport located in the mountain standard time zone. The landing should be at what time?

groundspeed and true course

(Refer to Figure 68.) The line from point C to point B of the wind triangle represents

359°

(Refer to Figure 21.) What course should be selected on the omnibearing selector (OBS) to make a direct flight from Mercer County Regional Airport (area 3) to the Minot VORTAC (area 1) with a TO indication?

209°

(Refer to Figure 23.) Determine the magnetic heading for a flight from Allendale County Airport (area 1) to Claxton-Evans County Airport (area 2). The wind is from 090° at 16 knots, the true airspeed is 90 knots, and the magnetic variation is 6 degrees West.
