16 Terms

1
New cards
<p>Rotating nosepiece </p>

Rotating nosepiece

Holds and rotates the objective lenses

2
New cards
<p>Body tube</p>

Body tube

Connects eyepiece and objective

3
New cards

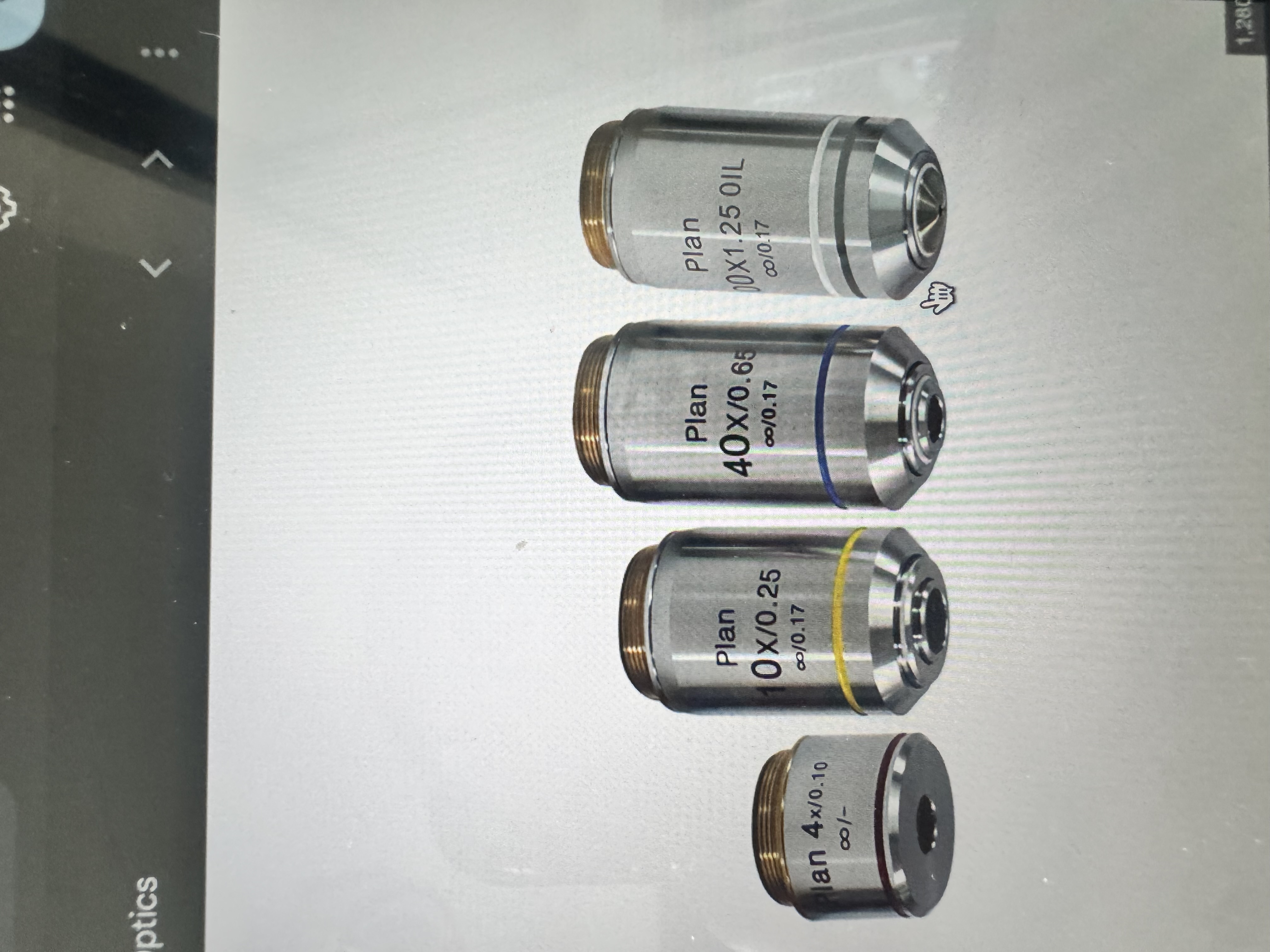

<p>100 X Objective lens</p>

100 X Objective lens

Oil immersion (Oi)

4
New cards
<p>40-45X Objective lens</p>

40-45X Objective lens

High Power (HP)

5
New cards
<p>10 X Objective lens</p>

10 X Objective lens

Lower power (LP)

6
New cards
<p>4X Objective lens</p>

4X Objective lens

Scanning power (SP)

7
New cards
<p>Objective lenses</p>

Objective lenses

Makes the first enlarged Image of the sample

8
New cards
<p>Ocular lens (10x)</p>

Ocular lens (10x)

magnifies the image for the eye

9
New cards
<p>find focus knob</p>

find focus knob

Sharpens the image

10
New cards
<p>Course focus knob</p>

Course focus knob

Move the stage up and down to focus the image quickly

11
New cards
<p>Base</p>

Base

Supports the microscope

12
New cards
<p>Stage clips in manipulator</p>

Stage clips in manipulator

Moves the slide around and holds it

13
New cards
<p>illuminator </p>

illuminator

Light source of the microscope

14
New cards
<p>Iris diaphragm</p>

Iris diaphragm

Adjust light amount

15
New cards
<p>Stage</p>

Stage

Holds the slides in place for viewing

16
New cards
<p>Arm</p>

Arm

Support and used to carry the microscope
