PSS(L3) - Primary Sampling

0.0(0)
studied byStudied by 0 people
0.0(0)
full-widthCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/4

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

5 Terms

1
New cards

Simplified Diagram

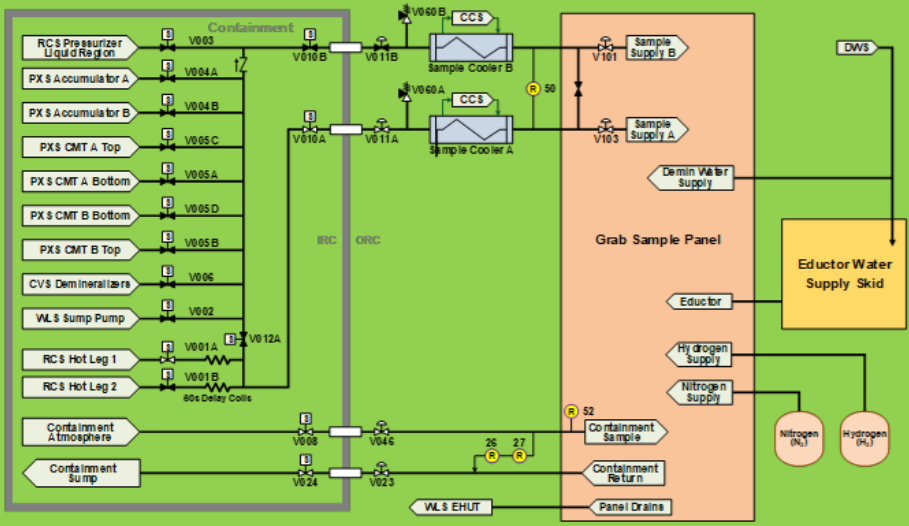

Notice V012A capability to separate Hot Leg sample lines

<p>Notice V012A capability to separate Hot Leg sample lines</p>
2
New cards

Control of PSS CIVs

All PSS CIVs can be manually controlled at:

Local Sample station or PLS

3
New cards

PSS Valve Responses

10s

11s

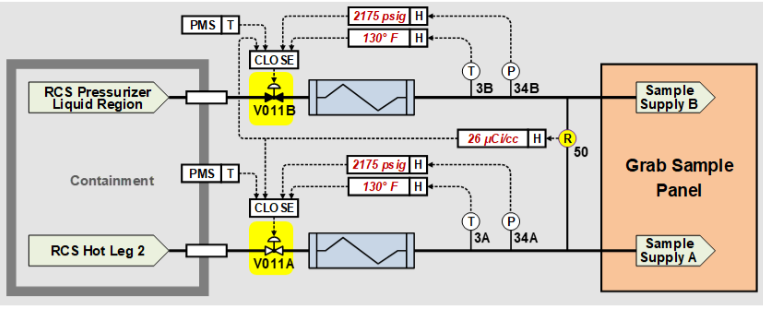

V010A/B: (Inside Containment)

Containment Isolation “T” ONLY

V011A/B: (Outer)

“T”

2,175psig to Sample Panel

130°F to Sample Panel

26 MCi/cc (RY050) to Sample Panel

*Temperature and Pressure are Train specific, Radiation will isolate BOTH trains

<p>V010A/B: (Inside Containment)</p><p>Containment Isolation “T” <strong>ONLY</strong></p><p>V011A/B: (Outer)</p><p>“T”</p><p>2,175psig to Sample Panel</p><p>130°F to Sample Panel</p><p>26 MCi/cc (RY050) to Sample Panel</p><p>*Temperature and Pressure are Train specific, Radiation will isolate BOTH trains</p>
4
New cards

PSS Valve Responses (Atmosphere and Sump)

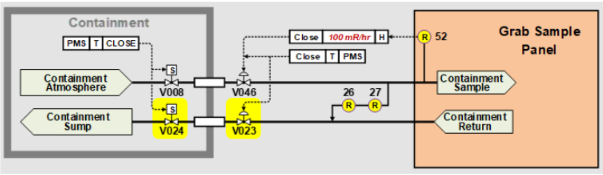

Inside CIVs (V008 & V024)

Outside CIVs (C046 &V V023)

All valves close on “T”

The OUTER valves also close on 100mR/hr (RY052 rad detector near sample panel)

<p>All valves close on “T”</p><p>The OUTER valves also close on 100mR/hr (RY052 rad detector near sample panel)</p>
5
New cards

F-18 Containment Rad Monitor

Capable of 0.5gpm detection

Part of 3.4.9 TS SSCs
