Bones of the Upper Limb

Unit 3

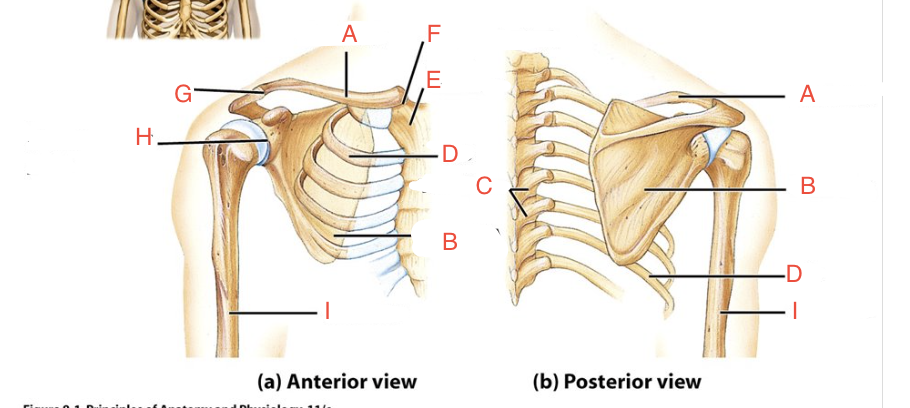

the pectoral girdle consists of

• clavicle

• scapula

A

clavicle

B

scapula

C

vertebrae

D

rib

E

sternum

F

sternoclavicular joint

G

acromioclavicular joint

H

glenohumoral joint

I

humerus

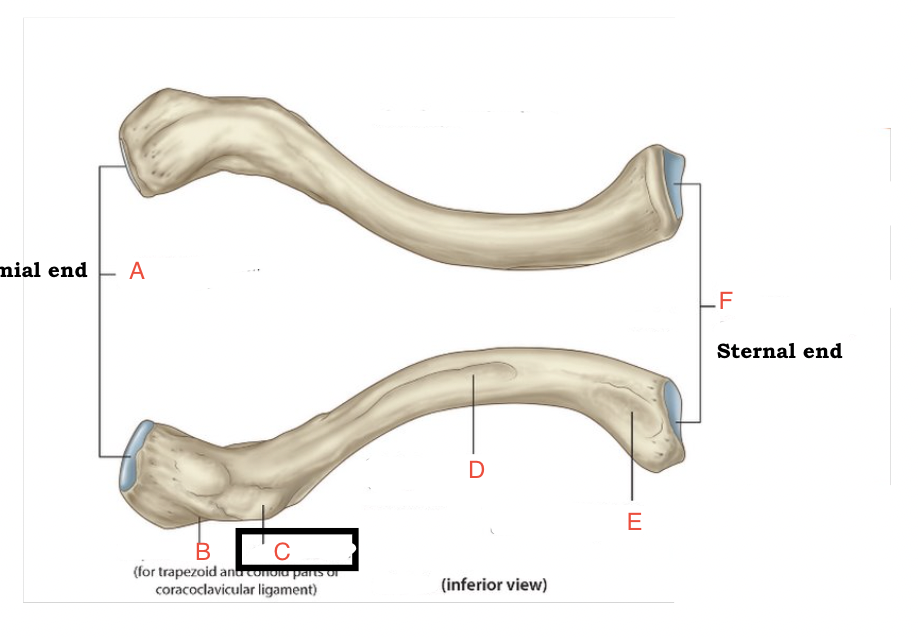

What bone is this?

clavicle

A

surface for articulation with acromion

B

trapezoid line

C

conoid tubercle

D

subclavian groove

E

impression for costoclavicular ligament

F

surface of articulation w/ manubrium of sternum

the sternal end of the ____ is _____

clavicle, medial

the acromial end of the clavicle is ____ than the sternal side and ____

bigger, lateral

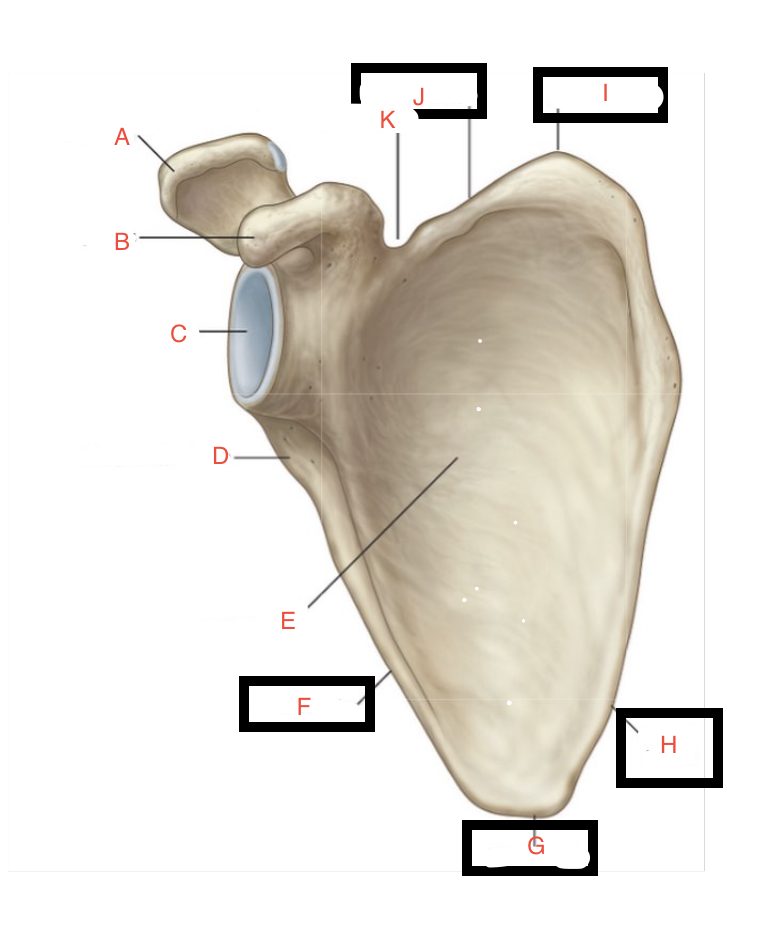

A

acromion

B

coracoid process

C

glenoid cavity

D

infraglenoid tubercle

E

subscapular fossa

Which side of the scapula is this?

anterior

what bone is this?

scapula

F

lateral border

G

inferior angle

H

medial border

I

superior angle

J

superior border

K

suprascapular notch

side this bone

right

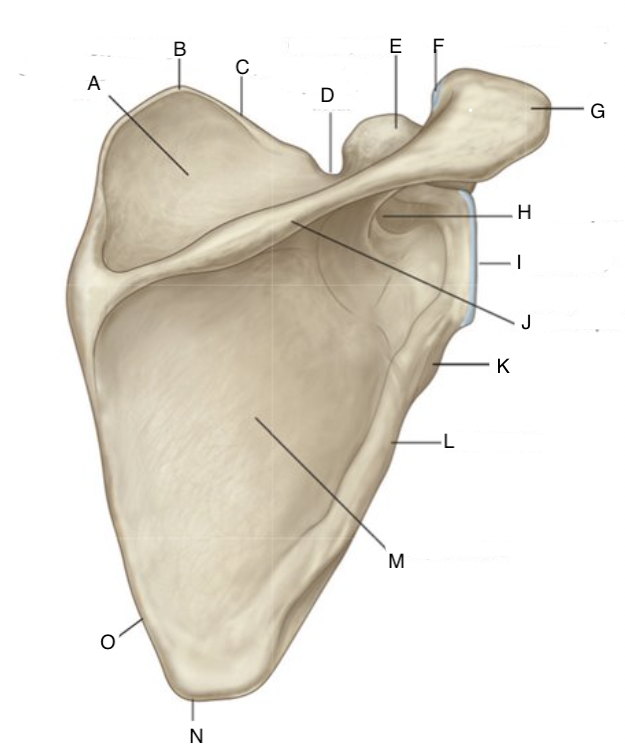

what side of the scapula is this?

posterior

A

supraspinous fossa

B

superior angle

C

superior border

D

suprascapular notch

E

coracoid process

F

articular surface for clavicle

G

acromion

H

greater scapular notch/spinoglenoid notch

I

glenoid cavity

J

spine of scapula

K

infraglenoid tubercle

M

infraspinous fossa

L

lateral border

N

inferior angle

O

medial border

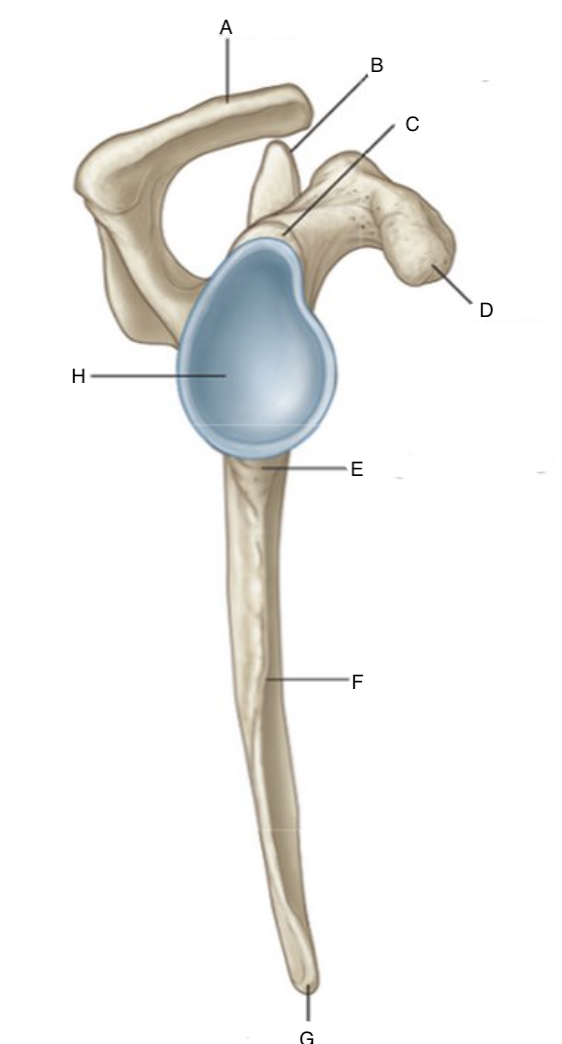

A

acromion

B

superior angle

C

supraglenoid tubercle

D

coracoid process

E

infraglenoid tubercle

F

lateral border

G

inferior angle

H

glenoid cavity

the wrist is made up of

• radius

• scaphoid

• lunate

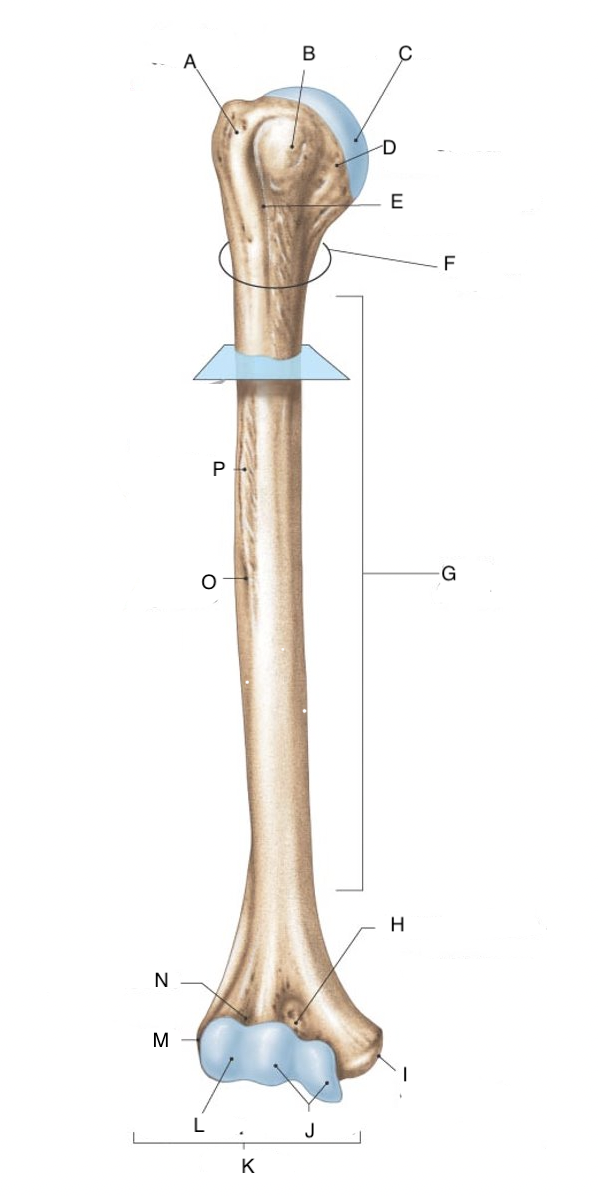

A

greater tubercle

B

lesser tubercle

C

head

D

anatomical neck

E

intertubercular suculus

what bone is this?

humerus

A or P?

anterior

F

surgical neck

G

shaft (body)

H

coronoid fossa

I

medial condyle

J

trochlea

K

condyle

L

capitulum

M

lateral epicondyle

N

radial fossa

O

radial groove

P

deltoid tuberosity

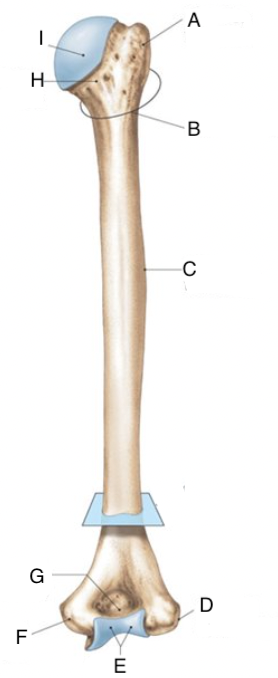

A

greater tubercle

B

surgical neck

C

deltoid tuberosity

D

lateral epicondyle

E

trochlea

F

medial epicondyle

G

olecranon fossa

H

anatomical neck

I

head

what is highlighted in green?

glenohumoral joint

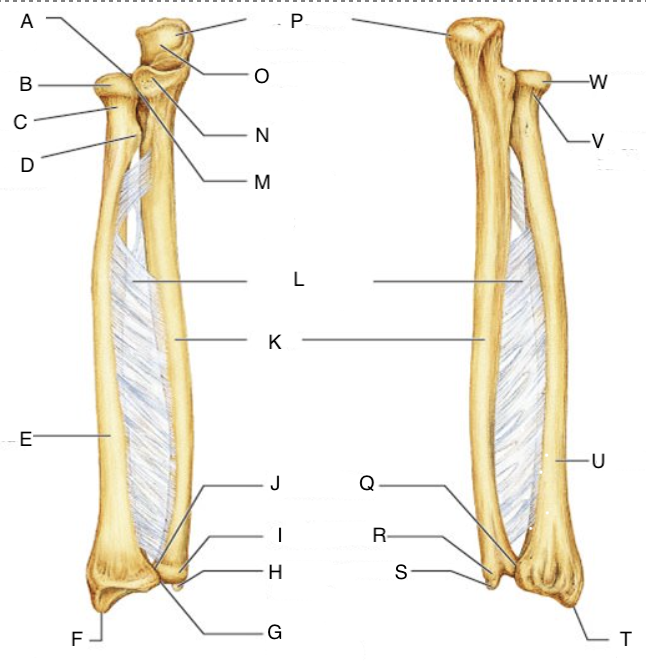

A

radial notch

B&W

head of radius

C&V

neck of radius

D

radial tuberosity

E&U

radius

F&T

styloid process of radius

G

distal radioulnar joint

H&S

styloid process of ulna

I&R

head of ulna

J&Q

ulnar notch

K

ulna

L

interosseous membrane

M

proximal radioulnar joint

N

trochlear notch
