Unit 5 - Electrical Stimulation for muscle contraction, functional activity, and biofeedback

Neuro Muscular Electrical Stimulation (NMES)

Induce contraction of skeletal muscles

Neuro Muscular Electrical Stimulation (NMES)

purpose

• Muscle strengthening

• Disuse atrophy

• Spasm or spasticity reduction

• Edema reduction

• Improve range of movement

Voluntary contraction

• Progressive recruitment of muscle
  fibers

• Slow, typically small, motor units
  followed by fast, typically large, motor
  units.

• Asynchronous motor unit recruitment
  patterns

NMES contraction

• Recruitment is in a nonselective
  manner, both small and large motor
  units are recruited regardless of the
  physiological principles.

• The recruitment of the motor units
  occurs in a spatially fixed and
  temporally synchronous pattern

TETANY

the point where further increases in frequency do not produce increases in force production

Types of Current

• Russian Current

• Low Voltage Pulsed Current

Muscle strengthening

• Muscle mass takes several weeks

• Non-muscle mass effects include:

  • Increase of number of motor units recruited

  • Increase in the frequency of motor units recruited

  • Increase the motor recruitment in a more synchronized manner

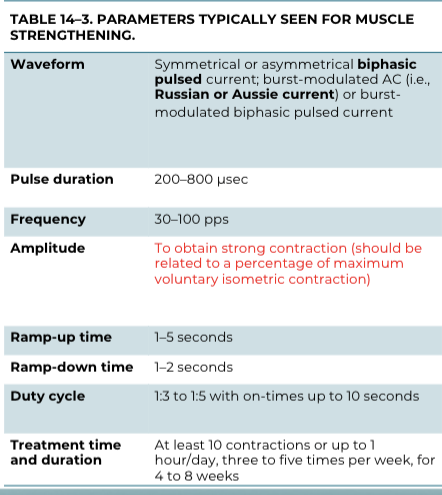

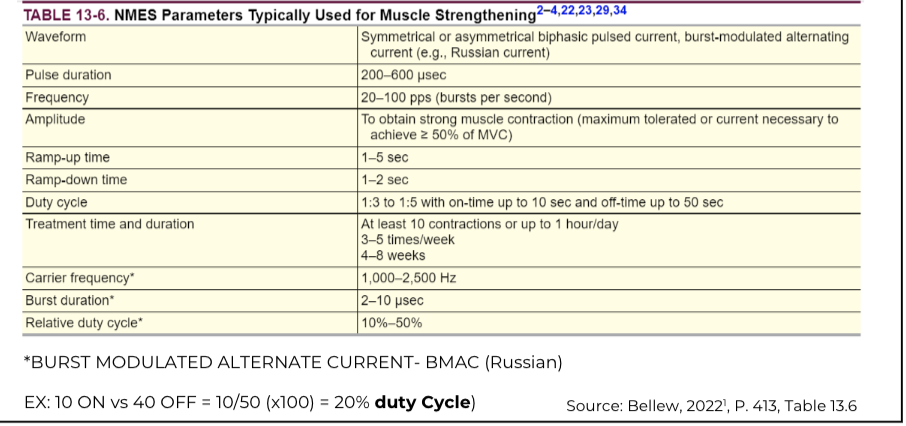

NMES parameters for muscle strengthening

STIMULATION Parameters Considerations

• Muscle strength: the highest pulse duration and amplitude tolerated by the patient should be used.

• The frequency should be adjusted to achieve a smooth, forceful contraction above 30 pulses per second (pps or Hz).

• Higher stimulation frequencies (pps or Hz) such as 100 Hz or above, may generate greater muscle fatigue

STIMULATION Parameters Considerations

• Avoiding fatigue:

  • reducing the frequency,

  • increasing the rest time between
    contractions.

• Ramp time:

  • Shorter times are recommended.

  • 1 or 2 seconds are ideal.

• Intensity:

  • contractions near maximal tolerance

  • 50 to 70% of the MVC of the opposite limb are common in studies reporting increased strength following NMES

Motor Recruitment and Intensity

NMES recruits muscle fibers located deep within the muscle

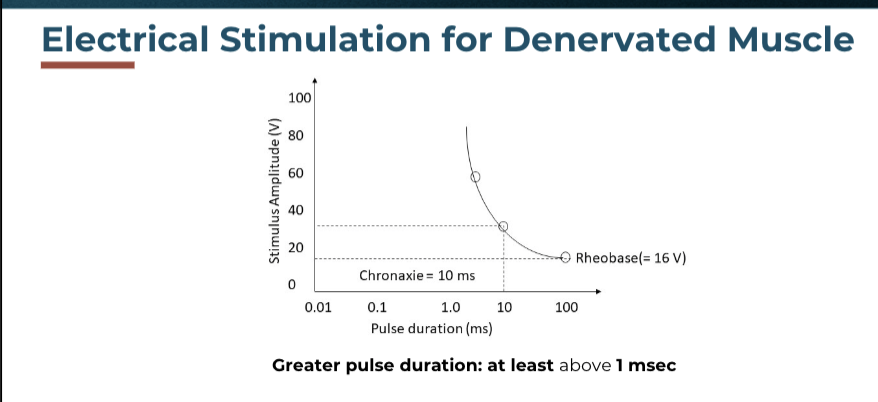

Electrical Muscle Stimulation Applied to Denervated Muscle

Electrical stimulation (ES) activates muscle fibers by depolarizing the sarcolemma
and not via peripheral motor nerves. NMES is for innervated muscle.

NMES on denervated muscle parameters:

• Long pulse duration

• Greater amplitude of stimulation,

• Different waveform (direct current, greater risk of skin burns)

nmes contraindication

• Electrodes should not be placed over:

• The trunk or heart region in patients with demand-type pacemakers or implantable cardioverter defibrillators (ICDs)

• The pelvic, abdominal, lumbar, or hip region in pregnant women

• Carotid bodies

• Phrenic nerve or urinary bladder stimulators

• Areas of known peripheral vascular disease, including arterial or venous thrombosis or thrombophlebitis

• The phrenic nerve, eyes, or gonads

• Areas of active osteomyelitis

• Areas of hemorrhage

nmes precautions

• Without intact sensation. An exception to this is when using a low amplitude current for wound healing.

• Who are unable to communicate, as they may be incapable of accurately providing feedback regarding the stimulation.

• With compromised mental ability or lack of cognition, as they may be unable to understand directions.

• With cardiac dysfunction, including uncontrolled hypertension, hypotension, or irregular heart rate or rhythm.

• With epilepsy or other seizure disorders

• Electrotherapy should be used with caution over neoplasms (active or previous).

• Electrodes should not be placed over:

• Compromised skin (except if treating for wound/tissue repair).

• Tissues vulnerable to hemorrhage or hematoma.

• Cervical (i.e., neck) or craniofacial regions in patients with a history of cerebrovascular accidents or seizures.

• Do not use ES devices within approximately 5 yards of diathermy units or other sources of electromagnetic radiation

NMES and FES in patients with Neurological conditions

• Neuromuscular electrical stimulation (NMES)

  • Electrical stimulation used to activate intended
    muscles via intact motor neurons.

• Functional Electrical Stimulation (FES) is the use of
  NMES to promote functional activities

NMES in Patients with Neurological Conditions

indications:

• Muscle Strengthening

• Increase range of motion

• Decrease spasticity

• Decrease Urinary incontinence

Special considerations and rationale for using E. Stim in neurological patients.

• Muscle innervation – Nerves should be intact

• Strength – MMT to determine the muscle to treat and reassess

• Range of motion – Limited ROM limit functional outcomes, E. Stim. may be used first to gain ROM.

• Sensation – Decreased sensation requires frequent monitoring.

• Pain – Determine if the E. Stim. will be beneficial in presence of pain

• Spasticity – It could be impacted by E. Stim.

• Function – Treat and assess using functional activities.

• Cognitive status – Precaution/Safety to use E. Stim.

• Caregiver assistance – Assistance for E. Stim. at home.

• Other treatments – It may impact the patient outcome assessment

NMES for Muscle Strengthening

scientific evidence:

• Stroke

• Cerebral Palsy

• Spinal cord injury

• Multiple sclerosis

e-stim for increasing ROM

• Stimulation of the antagonist’s muscle to
  stretch the agonist-tight muscle

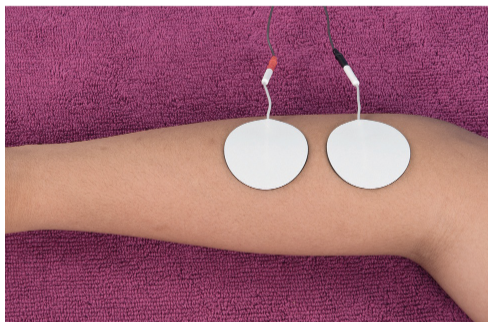

NMES and FES for Wrist Extension

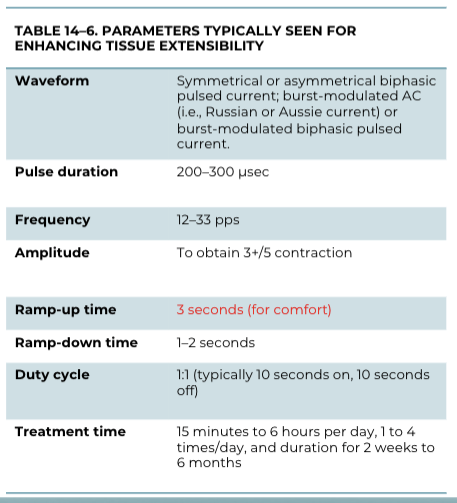

Considerations for Using NMES to Increase ROM

• Parameters should be set to follow the stretching principles: low load and prolonged application.

• Parameters should be set to minimize fatigue due to longer application goal: low frequency and amplitude

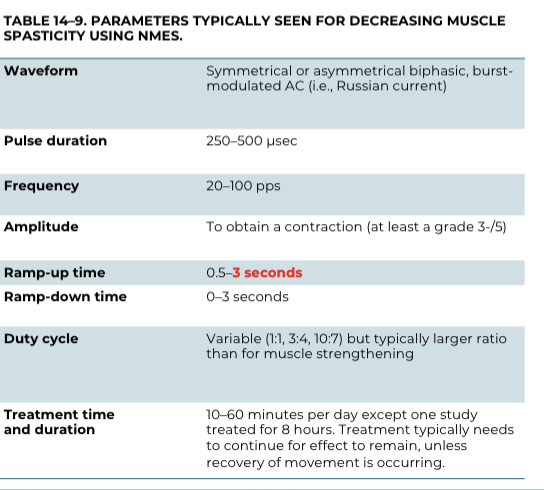

nmes - Decrease spasticity

• Applied in the antagonist of the agonist spastic muscle – reciprocal inhibition.
  OR

• Applied directly to the spastic muscle by fatiguing the muscle or by providing recurrent inhibition by Renshaw cells

Functional Electrical Stimulation (FES)

Most common Indications

• Shoulder subluxation

• Upper-extremity function

• Foot drop

• Gait

• UE and LE Cycling

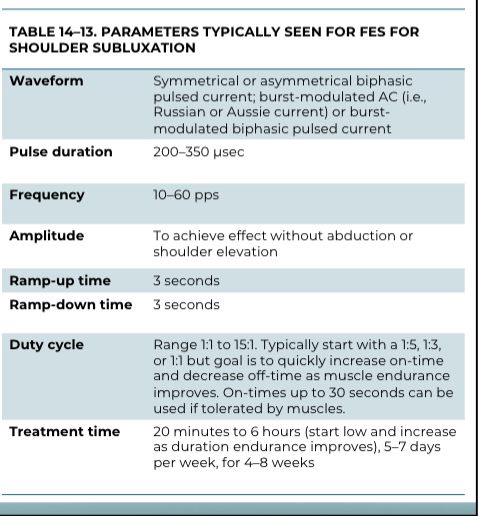

fes for shoulder subluxation

FES: Upper-extremity function

patients

Patients: stroke, traumatic brain injury (TBI), CP, and SCI.

FES: Upper-extremity function

indications:

Indications: spasticity, ROM, motor function, and functional abilities

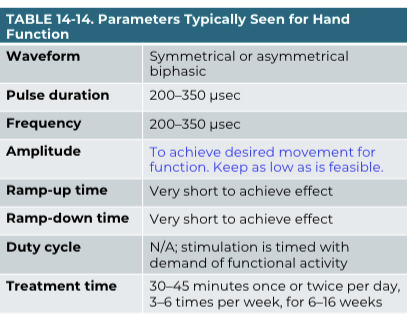

FES: Upper-extremity function

parameters:

FES for Foot Drop and Gait

• Researchers in the Clinical Center's Rehabilitation Medicine Department (RMD) are studying an electrical stimulation device designed for children with cerebral palsy who suffer from foot drop and tripping when walking.

• The WalkAide device stimulates the muscle that lifts up the ankle and the foot on the lower leg.

• In addition to its success in gait improvement, the RMD team found that electrical stimulation reversed some of the leg muscle wasting caused by the disorder and, in several patients, preserve and increased muscle strength

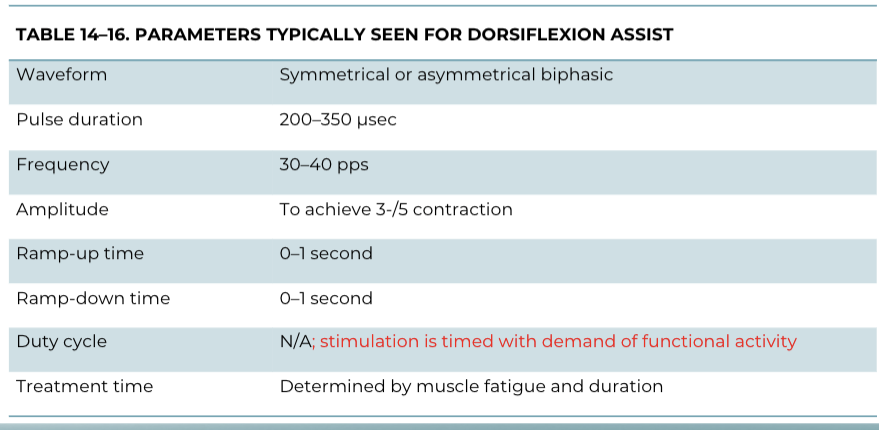

FES for Foot Drop and Gait

parameters:

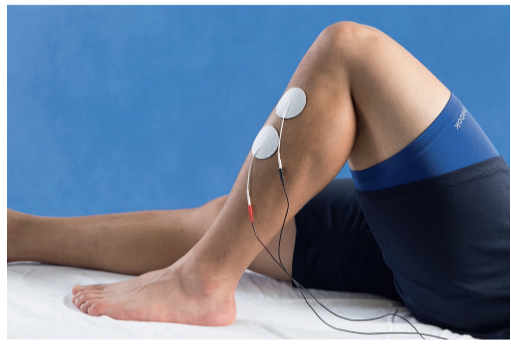

Assist Dorsiflexion Electrodes Placement

General Application and Monitoring Information for NMES and FES

• Instruct the patient:

  • Purpose and procedure.

  • explain the anticipated sensation and effect of the stimulation.

  • explain that you need a strong muscle

  • Make a familiarization session to familiarize the patient with the electrical stimulation sensation.

  • E. Stim in Kids - you must distract them with a game, video, or other activity

• Pre-inspection:

  • Intact skin and sensation

• Treatment monitoring:

  • Monitor the patient’s response to treatment

  • Adjust the amplitude if needed

  • Obtain patient feedback regarding the sensation and strengthening of muscle contractions.

  • Patients with cognitive deficits need additional supervision, removing and adding the electrodes once or twice during treatment to check the skin may be required.

• Post-inspection:

  • Inspect the skin after removing the electrodes

  • Make sure there is no skin irritation ormadverse effects.

  • Slight redness is normal and may disappear in 24 hours.


Biofeedback

EMG:

1. EMG biofeedback provides information about the muscle activity that the patient
and clinician can use to increase or decrease the future activity of a treated muscle.
2. EMG feedback does not deliver any electrical current to the patient as in other forms of electrotherapy; instead, it detects the electrical activity generated by muscles that are used for therapeutic purposes

Most biofeedback equipment devices provide

visual and auditory feedback

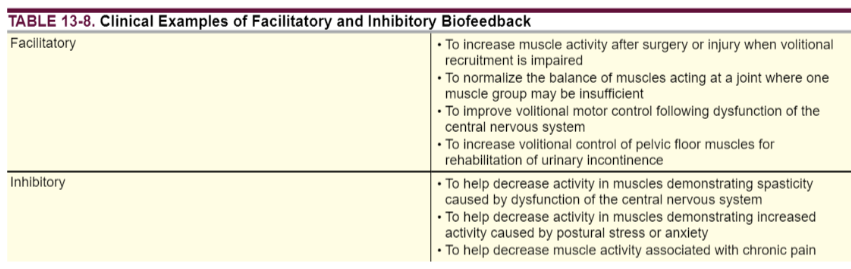

Biofeedback indications

EMG biofeedback can be used to facilitate or Inhibit muscle contraction

Electrode Type and Electrode Placement Considerations for EMG Biofeedback

• Electrode used for biofeedback are like those used for electrical stimulation, such as disposable adhesive electrodes.

• The muscle fibers that will be detected are those close to the electrodes.

• The wider the electrode placement, the larger the volume of muscle is detected.

• Electrodes close to each other are used to inhibit the muscles that are “very active.” For activating muscles in which their volitional activity is decreased, wider electrode placement is recommended.

• The muscles should be partially innervated there are no contraindications to using EMG biofeedback since no electrical stimulation is not delivered

Sensitivity

the ability to detect the electrical activity associated with muscle contraction

Typical devices used for EMG biofeedback offer

sensitivity settings (sometimes called gain) of 1, 10, 100, or 1,000 microvolts (μV).

Sensitivity and gain are

inversely related, such that the gain setting is the lowest at the highest sensitivity

Recording and Displaying the EMG Signal

example:

• Example, at the lowest gain setting of 1 μV, the sensitivity is greatest, capable of detecting as little as 1 μV of change in muscle activity. In contrast, a high gain setting of 1,000 μV is much less sensitive and can only detect changes of 1,000 μV.

• The sensitivity of a biofeedback device is set depending on the need for amplification and the clinical goals. Less sensitivity is needed when muscle activity is very high. More sensitivity is needed when volitional muscle activity is low

Example: Quadriceps facilitation biofeedback
Post-surgery of ACL reconstruction

• First days after surgery: HIGH sensitivity (gain of 1 μV): the machine will detect minimum muscle contractions.

• Few weeks after surgery: LOW sensitivity (gain of 500 μV): the patient must produce stronger contractions to be sensed by the device
