9 Terms

1
New cards

⭑.ᐟ Interpupillary adjustment wheel

Adjusts the distance between the eyepieces to match the user’s eyes.

<p>Adjusts the distance between the eyepieces to match the user’s eyes.</p>
2
New cards

⭑.ᐟ Revolving/Rotating nosepiece

Holds the objective lenses and allows switching between magnifications.

<p>Holds the objective lenses and allows switching between magnifications.</p>
3
New cards

⭑.ᐟ Diopter setting adjustment ring

Adjusts focus for differences between the viewer’s eyes.

<p>Adjusts focus for differences between the viewer’s eyes.</p>
4
New cards

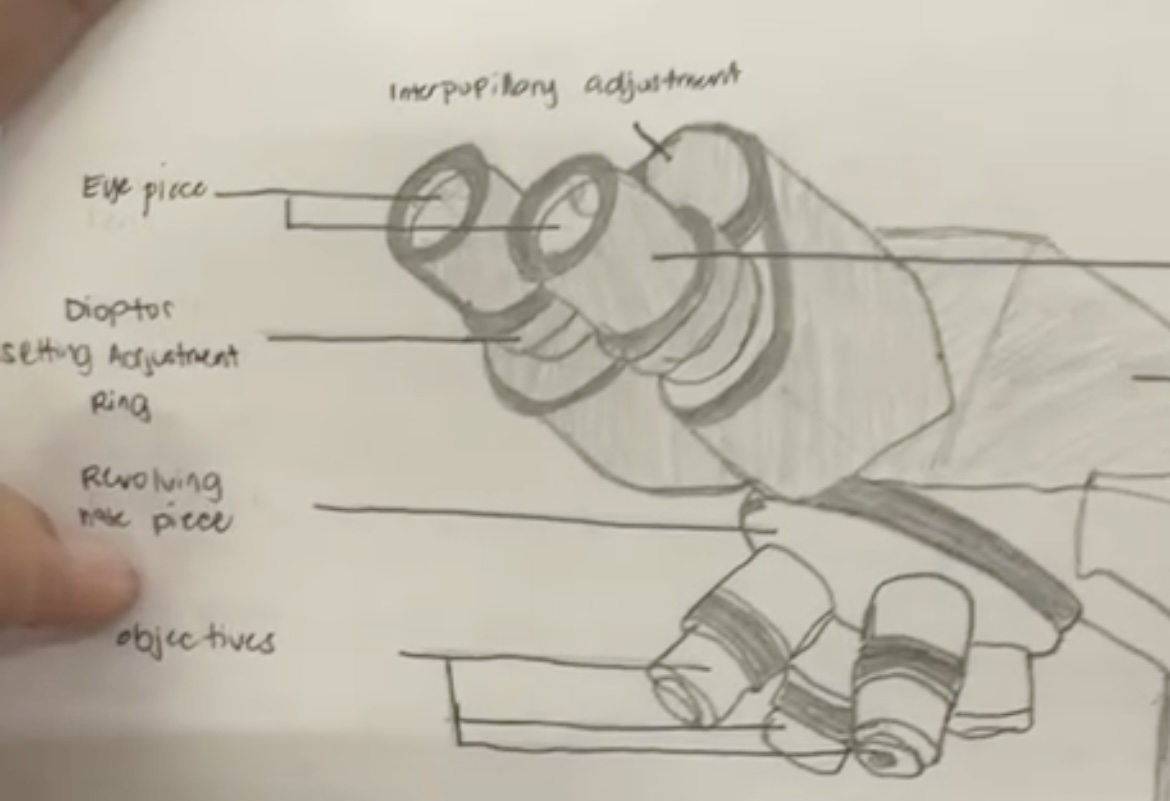

⭑.ᐟ Objectives

Provide primary magnification and form the initial enlarged image of the specimen.

<p>Provide primary magnification and form the initial enlarged image of the specimen.</p>
5
New cards

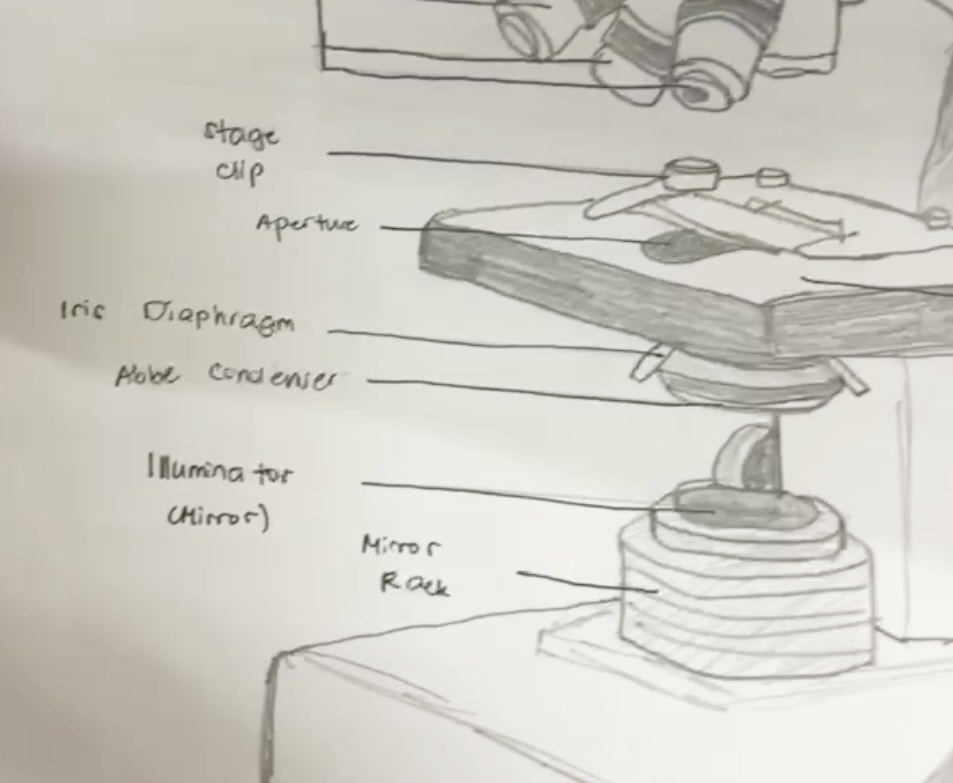

⭑.ᐟ Stage clip

Secures the microscope slide in place on the stage.

<p>Secures the microscope slide in place on the stage.</p>
6
New cards

⭑.ᐟ Aperture

The opening in the stage that lets light pass through the specimen.

<p>The opening in the stage that lets light pass through the specimen.</p>
7
New cards

⭑.ᐟ Iris diaphragm

Controls the amount of light passing through the specimen.

<p>Controls the amount of light passing through the specimen.</p>
8
New cards

⭑.ᐟ Abbe condenser

Focuses and concentrates light onto the specimen for clearer viewing.

<p>Focuses and concentrates light onto the specimen for clearer viewing.</p>
9
New cards

⭑.ᐟ Mirror

Reflects light upward into the condenser, with concave giving focused light and plane giving even light.

<p>Reflects light upward into the condenser, with concave giving focused light and plane giving even light.</p>
