Chemistry VESPR Geometry (Linear, Trigonal planar, Tetrahedral)

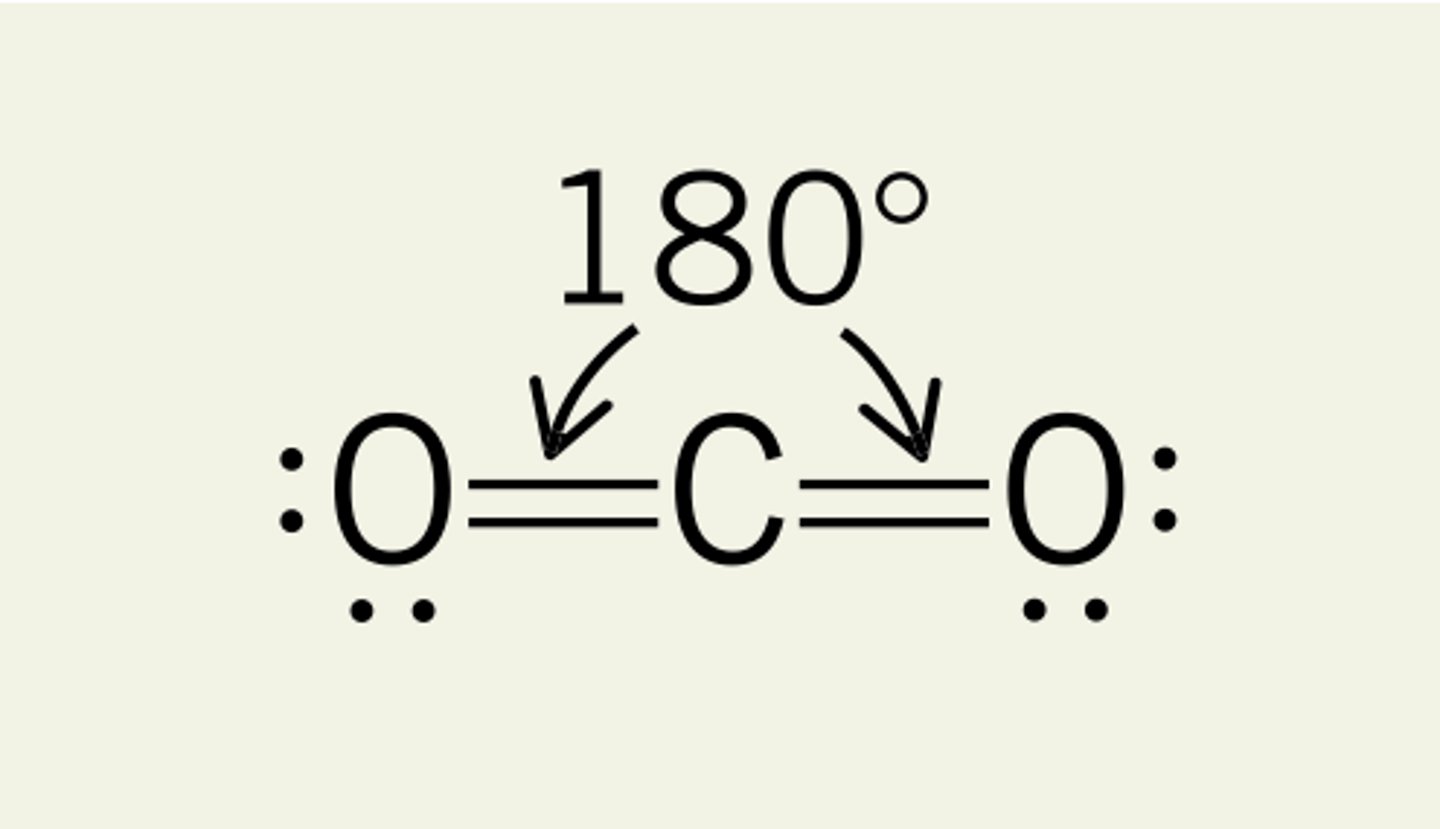

Linear

# of Bonding Groups = 2

# of lone pairs = 0

Approximate Bond Angle = 180

Example = CO2

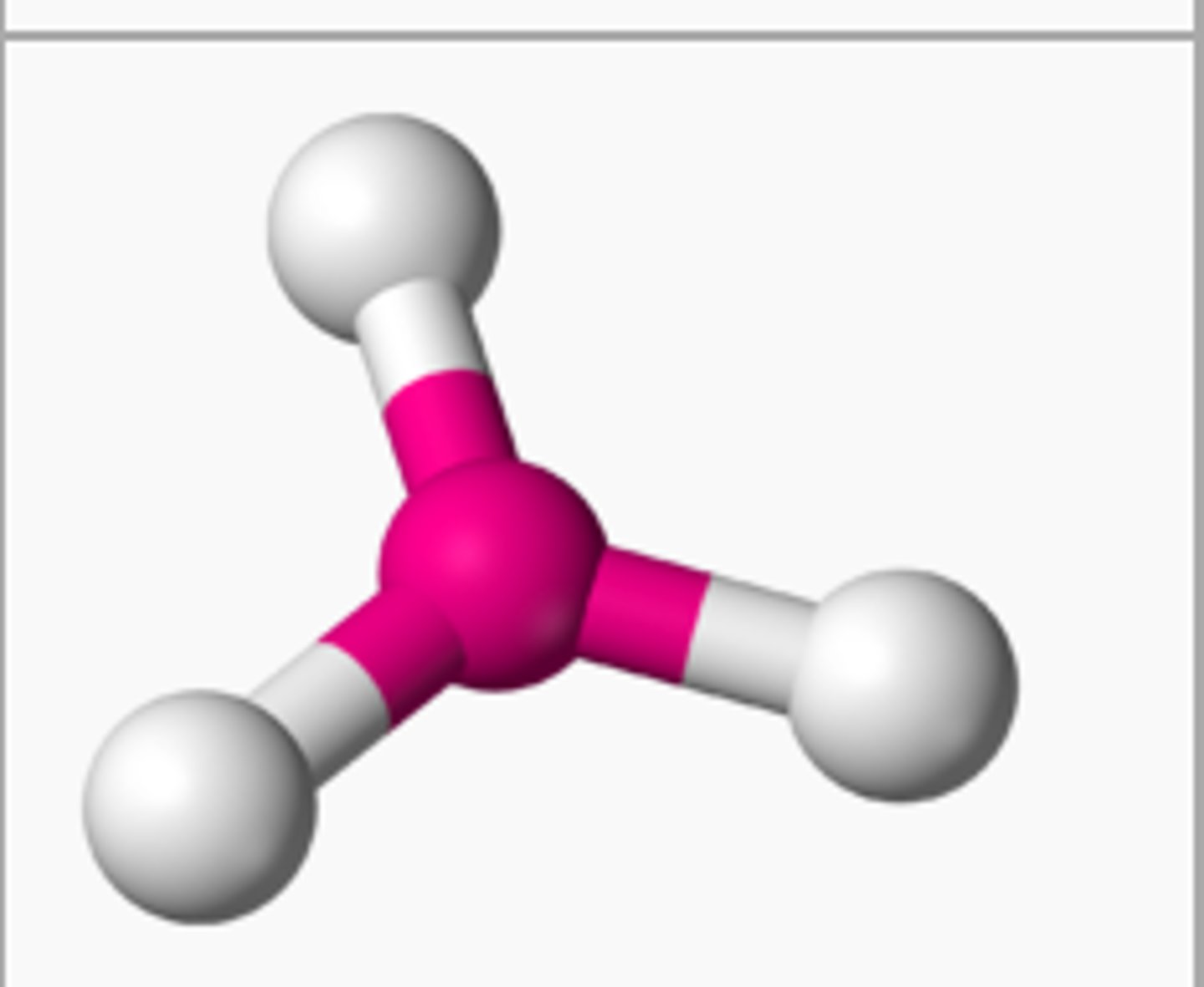

Trigonal Planar

# of Bonding Groups = 3

# of lone pairs = 0

Approximate Bond Angle = 120

Example = BH3

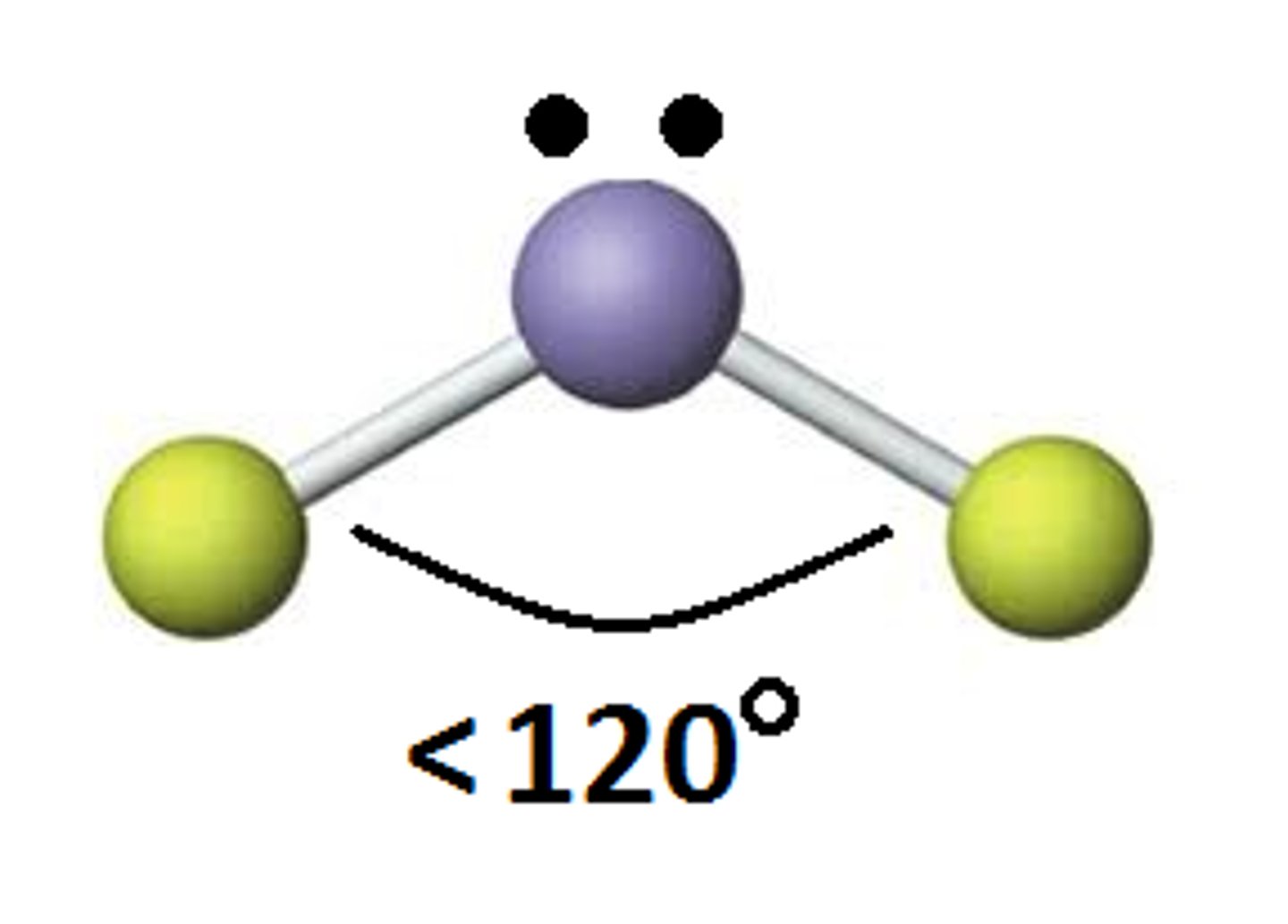

Bent (Trigonal Planar)

# of Bonding Groups = 2

# of lone pairs = 1

Approximate Bond Angle = <120

Example = NO2-

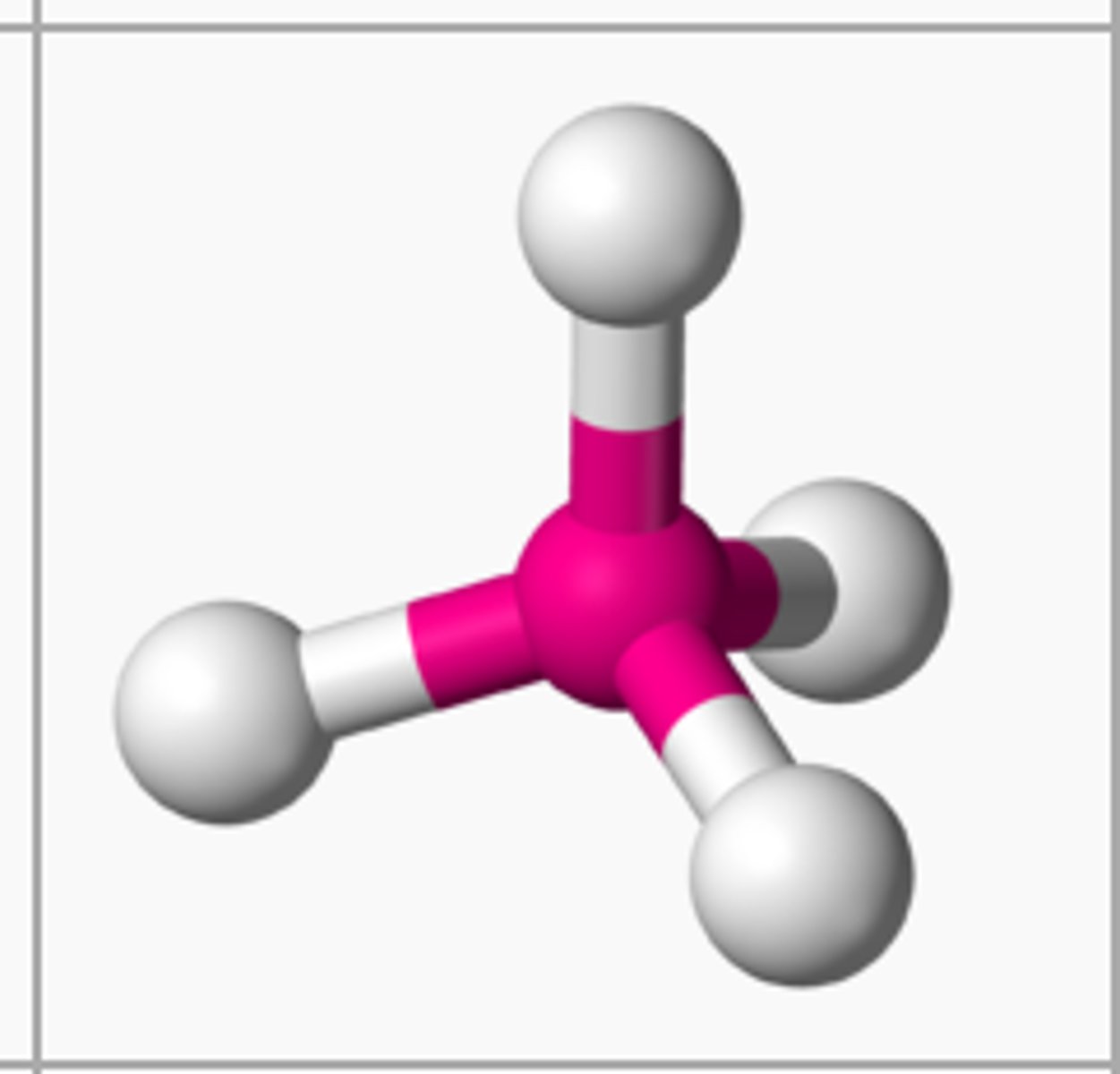

Tetrahedral

# of Bonding Groups = 4

# of lone pairs = 0

Approximate Bond Angle = 109.5

Example = CH4

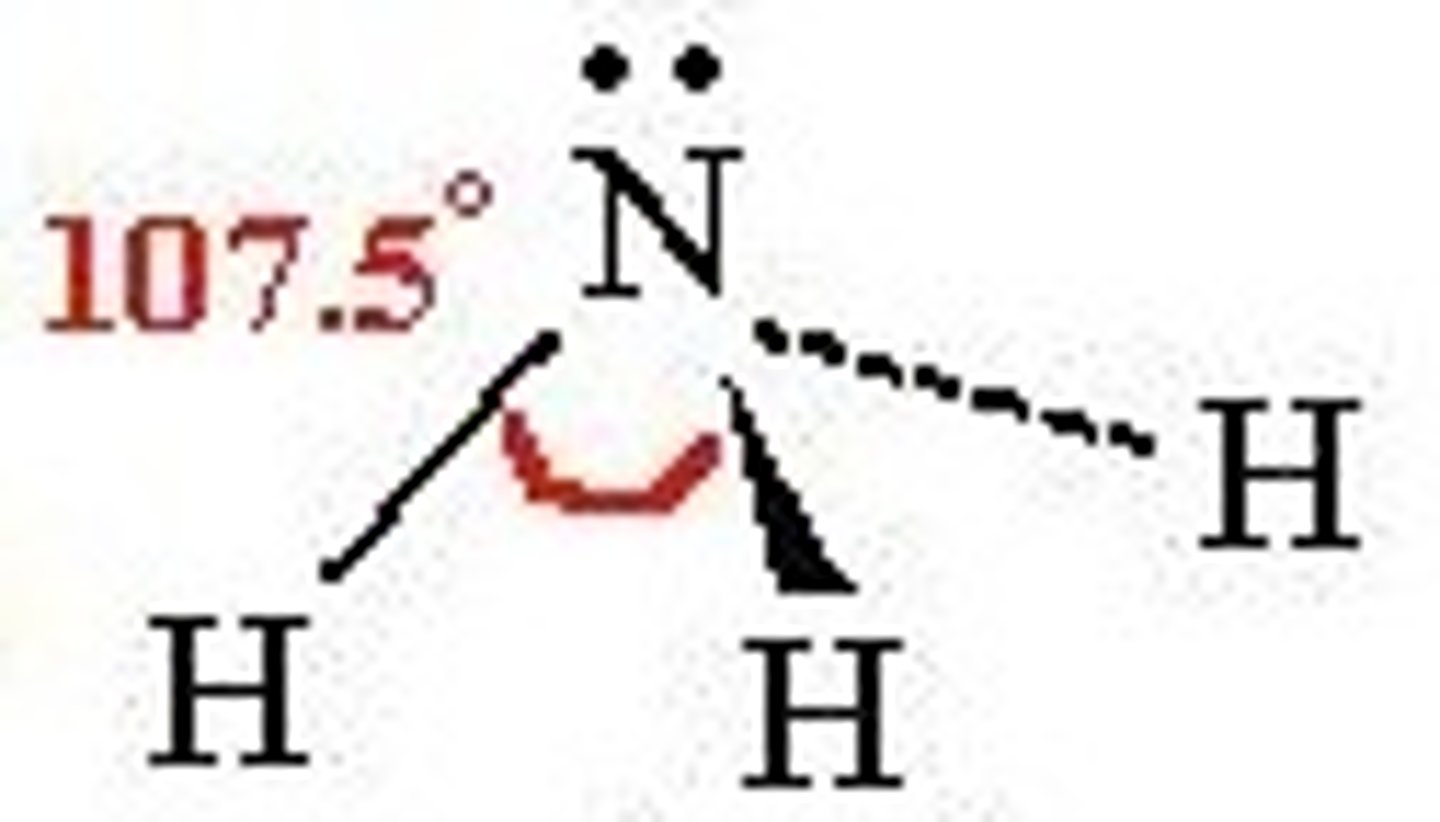

Trigonal Pyramidal

# of Bonding Groups = 4

# of lone pairs = 0

Approximate Bond Angle = <109.5

Example = NH3

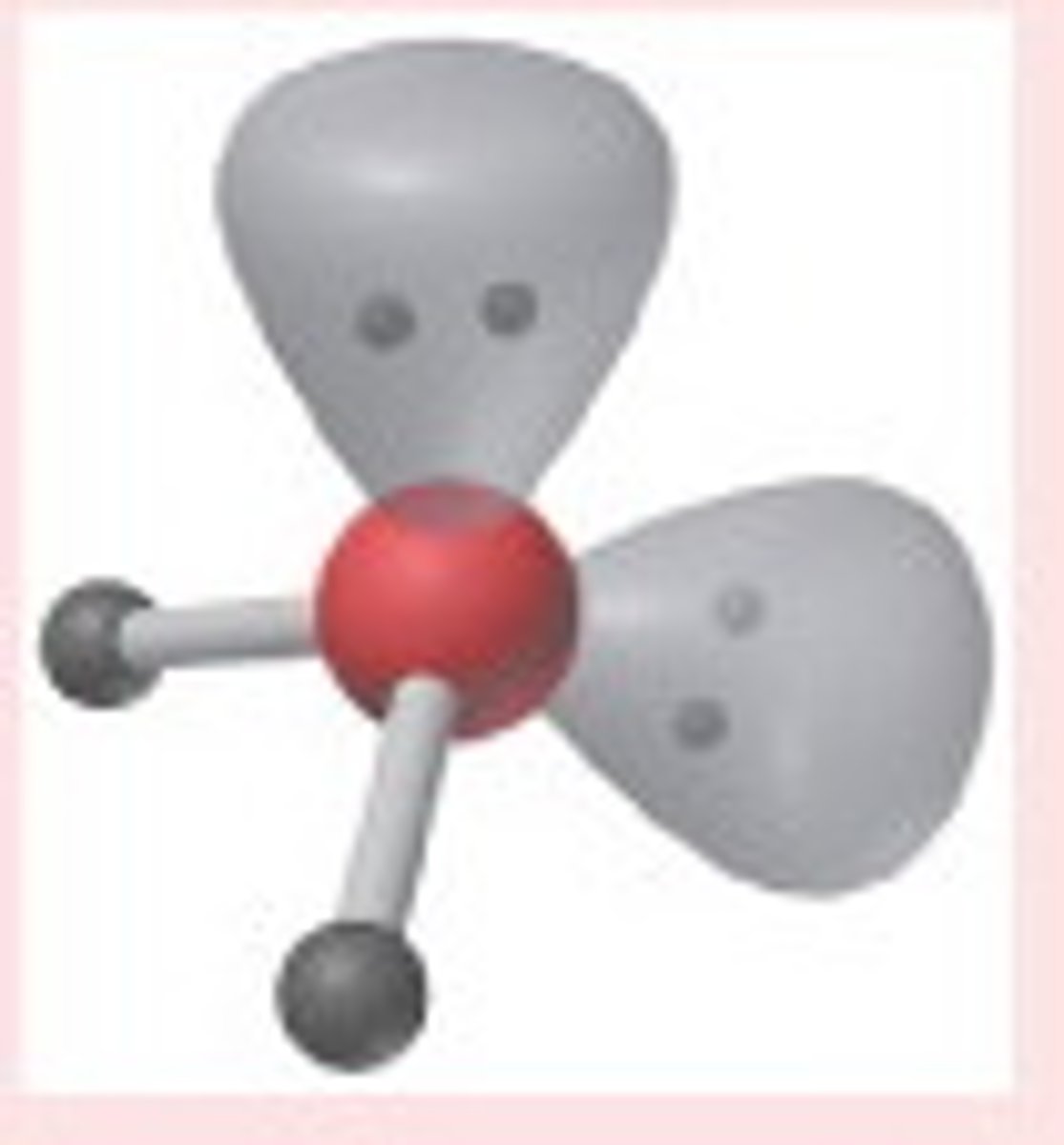

Bent (Tetrahedral)

# of Bonding Groups = 2

# of lone pairs = 2

Approximate Bond Angle = <109.5

Example = H2O
