airport signs & runway markings

What purpose does a taxiway location sign serve

Identifies the taxiway upon which an aircraft is located

Difference between A & E areas

A = taxi & takeoff

E= only used as an overrun

What is the purpose of the runway/ runway hold position sign

Denotes intersecting runways

From the cockpit, this marking confirms the aircraft to be

G

on a runway, about to clear

Which marking indicates a vehicle lane?

C

The yellow “demarcation bar” marking indicates

a runway with a displaces threshold that preceded the runway

when turning onto a taxiway from another taxiway, what is the purpose of the taxiway directional sign.

indicates designation and direction of a taxiway leading out of an intersection

Which sign identifies your position on a runway

L

This sign is a visual clue that

E= confirms the aircraft’s location on taxiway B

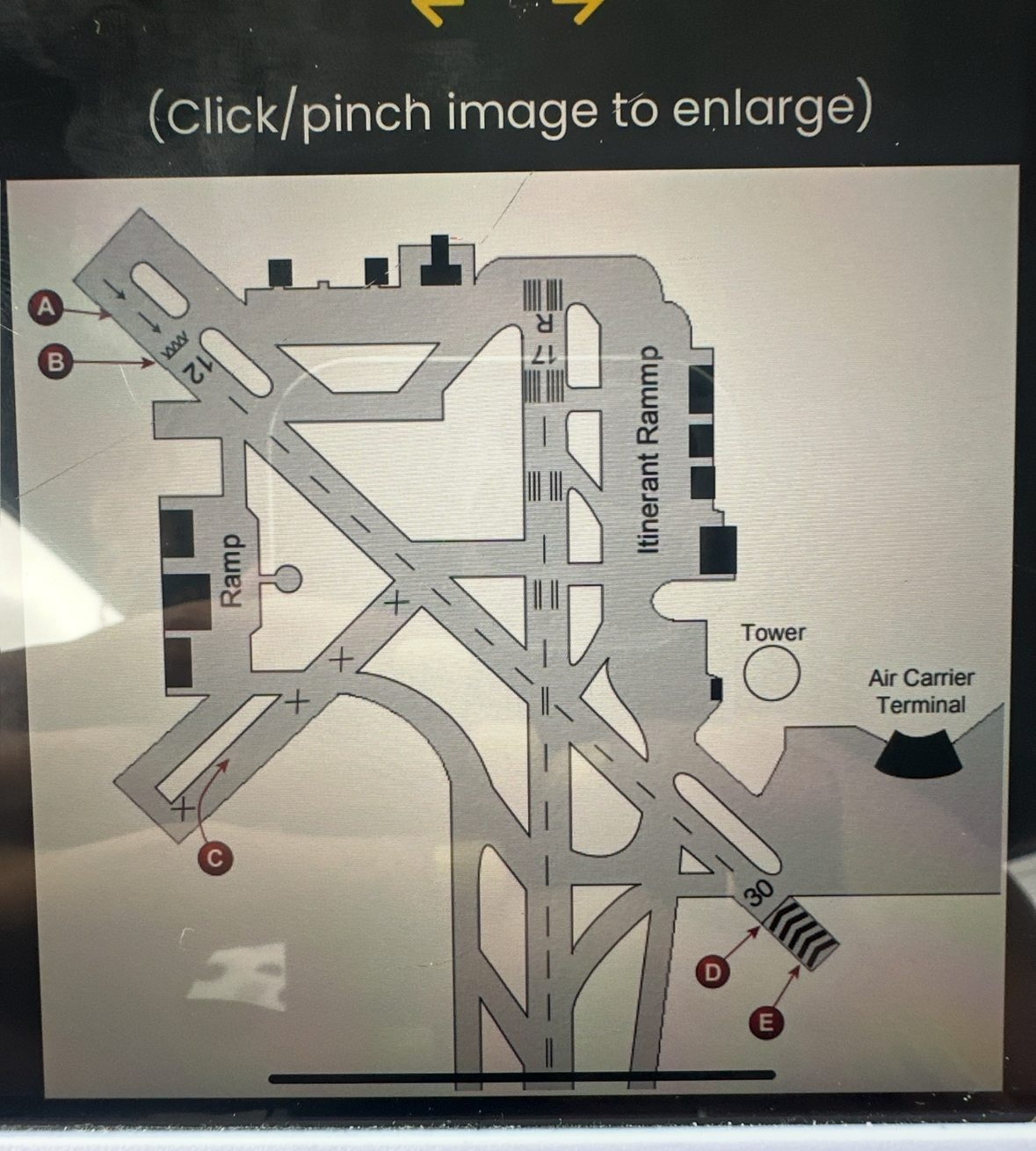

The arrows that appear on the end of the north/ south runway indicates that the area

Cannot be used for landing, but may be used for taxing and takeoff

You are holding short of the runway at a towered airport on a midfield taxiway. To your left you see the red sign shown in the figure and labeled A.

The tower controller clears you for an intersection takeoff on Runway 22. Which direction must you turn for the takeoff?

left

The line showed at position D is a

Demarcation bar

this sign confirms your position on

runway 22

Área E on the airport shown is classified as

blast pad or emergency overrun

what does the outbound destination sign identify

identifies direction to take-off runways

designation, and direction of an exit taxi away from a runway

K

aircraft prohibited from entering

what does a runway exit sign indicate?

D= directions to a taxi way.

take off is allowed where

A
