CMPT 371 - Application Layer

App design: client-server model

Server:

• always-on host, with permanent IP address

• often in data centers, for scaling

Clients:

• contact, communicate with server; may be intermittently connected

• may have dynamic IP addresses

• do not communicate directly with each other

• ex. HTTP, IMAP, FTP

App design: peer-to-peer model

• no always-on server; end systems directly communicate

• peers request service from other peers, provide service in return to other peers

• peers are intermittently connected and change IP addresses

  • complex managmenet

ex. P2P file sharing (BitTorrent)

TCP (Transmission Control Protocol)

Reliable transport protocol between sending and receiving (guarantees delivery)

• flow control: sender won’t overwhelm receiver

• congestion control: throttle sender when network overloaded

• connection-oriented: setup required between client & server processes

• DOES NOT PROVIDE: timing, minimum throughput guarantee, security

UDP (User Datagram Protocol)

Simple transport protocol that doesn’t not guarantee delivery

• unreliable data transfer: between sending and receiving process

• DOES NOT PROVIDE: reliability, flow control, congestion control, timing, throughput guarantee, security, or connection setup

• however, is much speedier than TCP

process

program running on a host

• within same host, two processes communicate using inter-process communication (defined by OS)

• across different hosts, processes communicate by exchanging messages

client process / server process

client process: process that initiates communication

server process: process that waits to be contacted

socket

process sends/receives messages to/from its socket

socket is analogous to a door:

• sending process shoves message out door

• sending process relies on transport infrastructure on other side of door to deliver message to socket at receiving process

• two sockets involved: one on each side

identifier (process)

to receive messages, a process must have an identifier

• we use port numbers and IP addresses to identify processes

• IP address alone is insufficient to identify as many processes run on the same host

• example port numbers: HTTP server: 80, Mail server: 25

HTTP: Hypertext Transfer Protocol

The Web’s application layer protocol

• eg. client sends HTTP server a request “Get me this image”

  • server sends HTTP response with the image

How does HTTP use TCP (what is the process)?

• client initiates TCP connection (socket) to server, on port 80 (standard port)

• server accepts TCP connection from client

• HTTP messages exchanged between browser (HTTP client) and Web server (HTTP server)

• After they are done, the connection is then closed

HTTP is stateless; what does this mean?

The server maintains no information about past client requests

• aside: protocols that maintain “state” are very complex!

  • past history must be maintained, client/server can have inconsistent views of “states”

HTTP connection: Non-persistent HTTP (old)

1. TCP connection opened

2. at most one object sent over TCP connection

3. TCP connection closed

• downloading multiple objects required multiple connections

HTTP connection: Persistent HTTP 1.1

1. TCP connection opened

2. Multiple objects can be sent over a single TCP connection between client, and that server

3. TCP connection closed

HTTP request message: structure

• ASCII (human-readable format)

• (blocked portion): carriage return, line feed at start of line indicates end of header lines

HTTP request message: general format

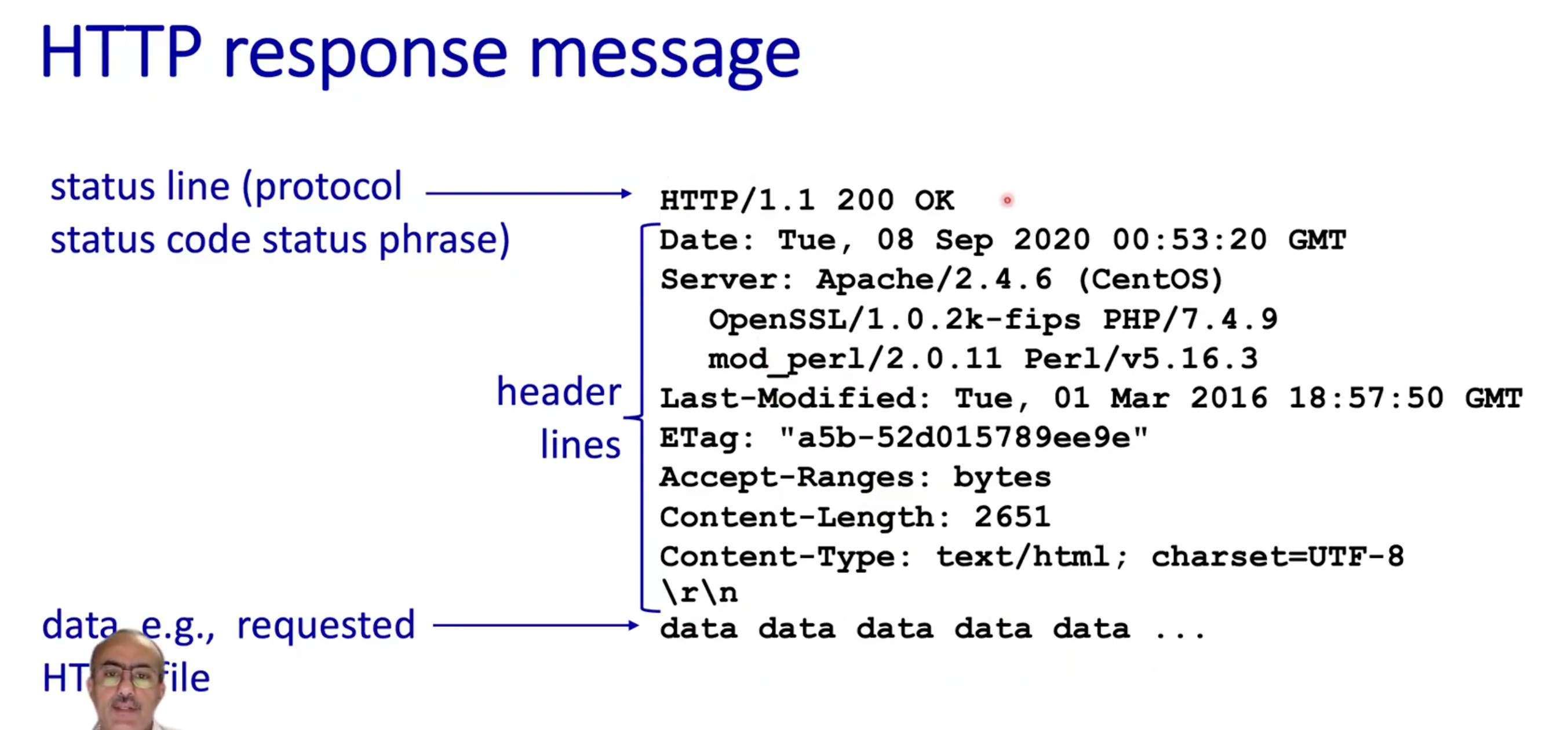

HTTP response message: structure

HTTP response status codes

• status code appears in 1st line in server-to-client response message

Cookies (maintaining user/server state)

cookies are a way for the server to remember state

Web caches

Goal: satisy client requests without involving origin server

• user configures browser to point to a (local) Web cache

• browser sends all HTTP requests to cache:

  • if object in cache: cache returns object toclient

  • else cache requests object from origin server, caches receives object, then returns object to client

Why should we use a web cache (aka proxy server)?

• reduce response time for client request

  • cache is closer to client

• reduce traffic on an institution’s access link

• Internet is dense with caches

  • enables “poor” content providers to more effectively deliver content

• also: server explicitly tells cache whether to store the object in cache or not through the header lines (see photo)

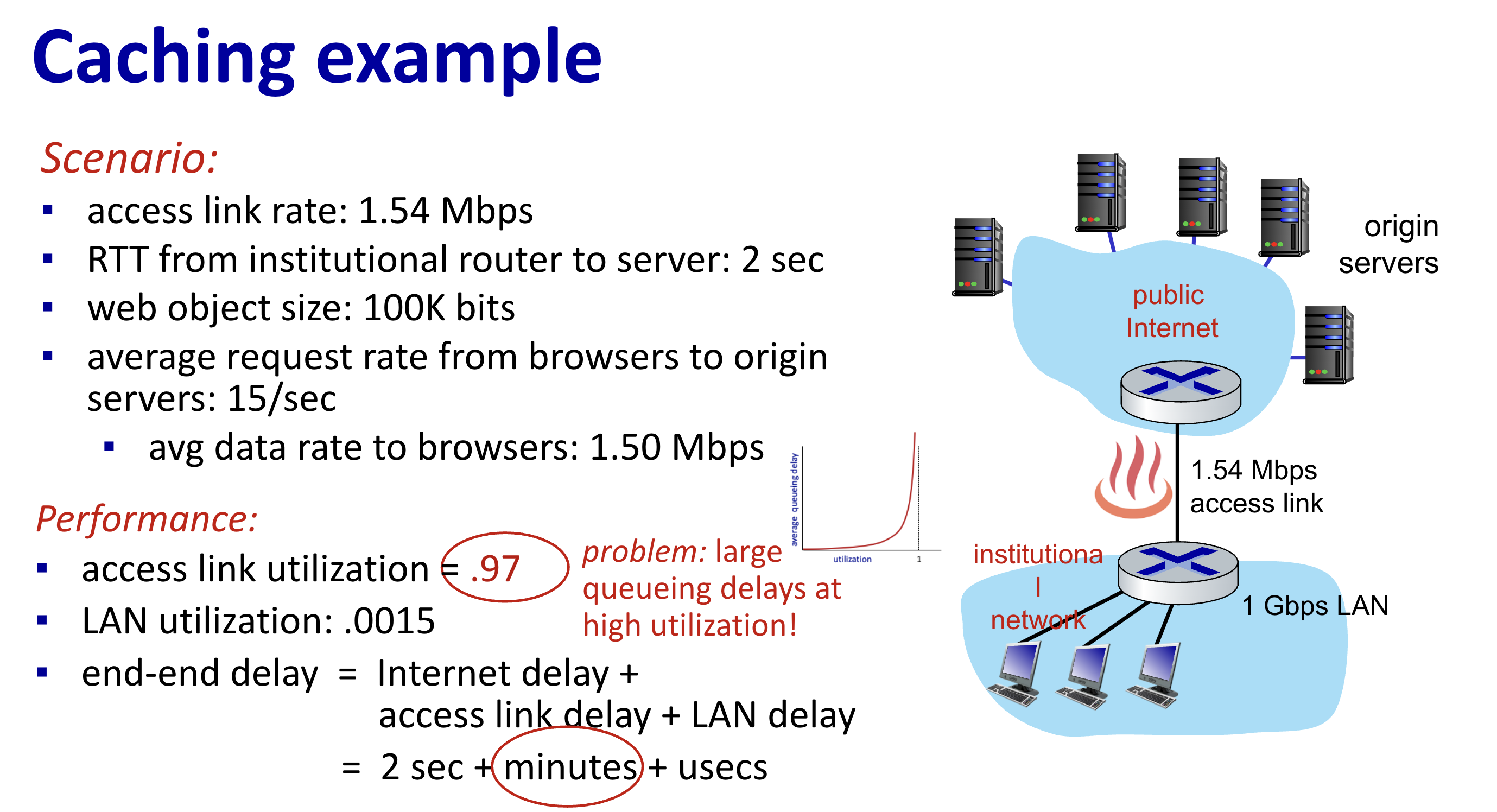

Caching example

• 2 options to resolve this issue:

  • 1. buy a faster access link (expensive!)

  • 2. install a web cache (cheap!)

Caching example: option 2 (how to calculate access link utilization, end-end delay with cache)
