Acoustic Window

the transducer’s position on the thoracic surface enabling imaging of the heart without interference from the lungs and ribs

2

New cards

What are the 5 main windows?

Left parasternal
right parasternal
Apical
Subcostal
Suprasternal notch

3

New cards

windows are

where you put the transducer on the body

4

New cards

Views are

the different images you can obtain at that window by adjusting the probe

5

New cards

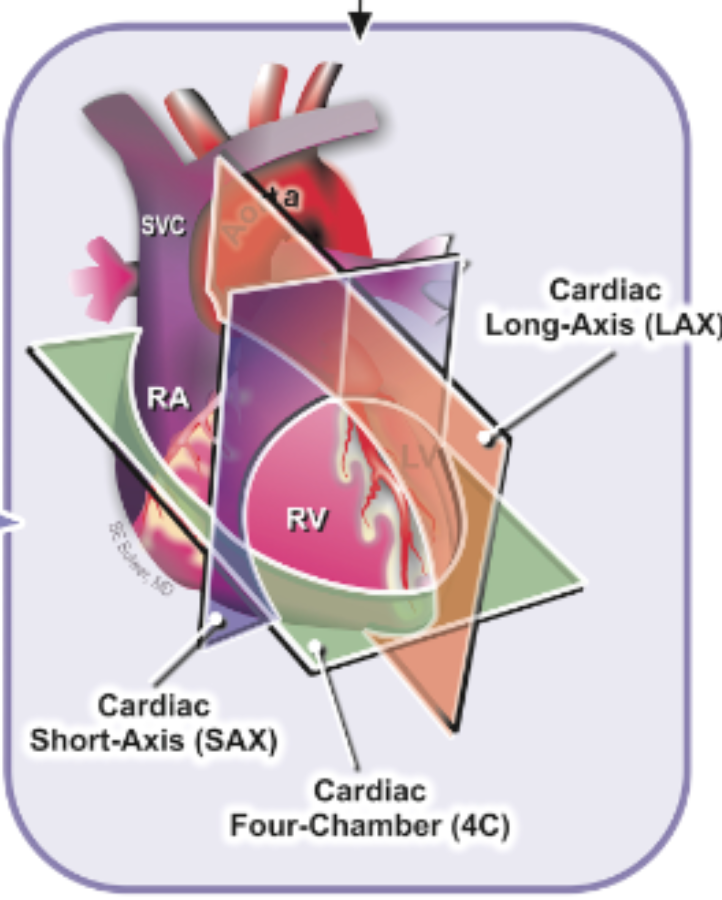

Imaging planes in TEE

Long axis
Short axis
4 Chamber

6

New cards

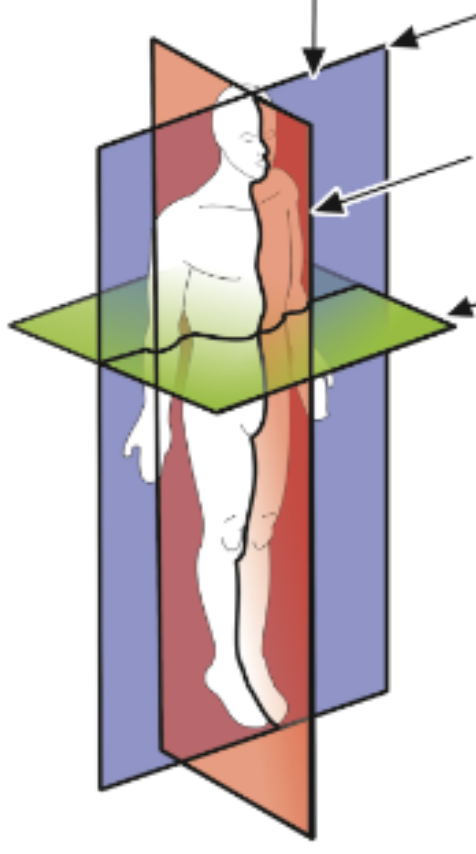

Sagittal View =

LAX

7

New cards

Frontal View =

SAX

8

New cards

Transverse view =

4C

9

New cards

Parasternal Views (P)

PLAX
RVIT
RVOT
PSAX @ Ao
PSAX @ MV
PSAX @ PM
PSAX @ apex

10

New cards

Apical Views (A)

4 Ch
5 Ch
2 Ch
3 Ch / LAX

11

New cards

Subcostal views (SC)

4 Ch
SAX
LAX @ IVC
LAX @ Hep Vn

12

New cards

Suprasternal views (SSN)

LAX @ aortic arch
SAX @ Ao

13

New cards

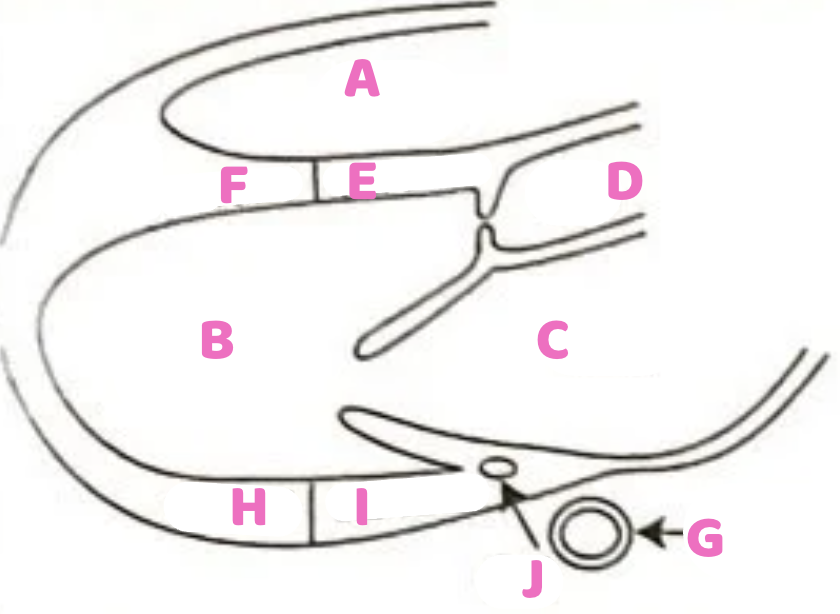

<p>What <span style="color: rgb(255, 102, 196);"><strong>view</strong></span> is this?</p>

What view is this?

PLAX

14

New cards

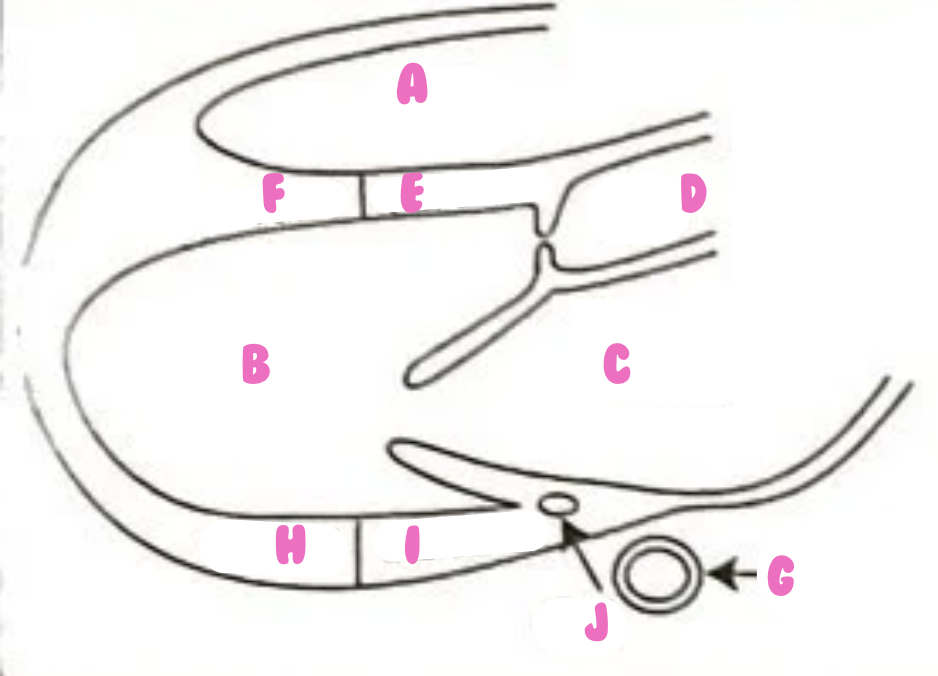

<p><span style="color: rgb(255, 102, 196);"><strong>A</strong></span></p>

A

Right Ventricle

15

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>B</strong></span></p>

B

Left Ventricle

16

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>C</strong></span></p>

C

Left Atrium

17

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>D</strong></span></p>

D

Aorta

18

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>E</strong></span></p>

E

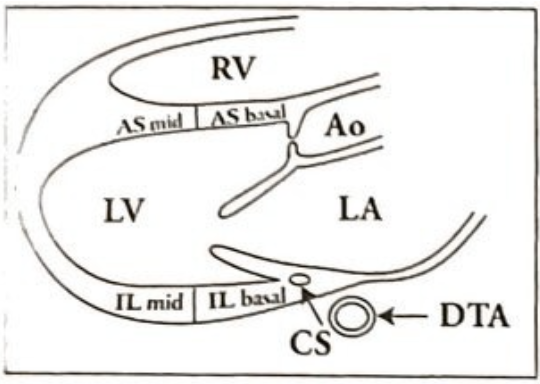

AnteroSeptal (AS) basal

19

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>F</strong></span></p>

F

AnteroSeptal (AS) mid

20

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>G</strong></span></p>

G

descending aorta

21

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>H</strong></span></p>

H

Inferolateral mid

22

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>I</strong></span></p>

I

Inferolateral basal

23

New cards

<p><span style="color: rgb(255, 102, 196);"><strong>J</strong></span></p>

J

Coronary Sinus (CS)

24

New cards

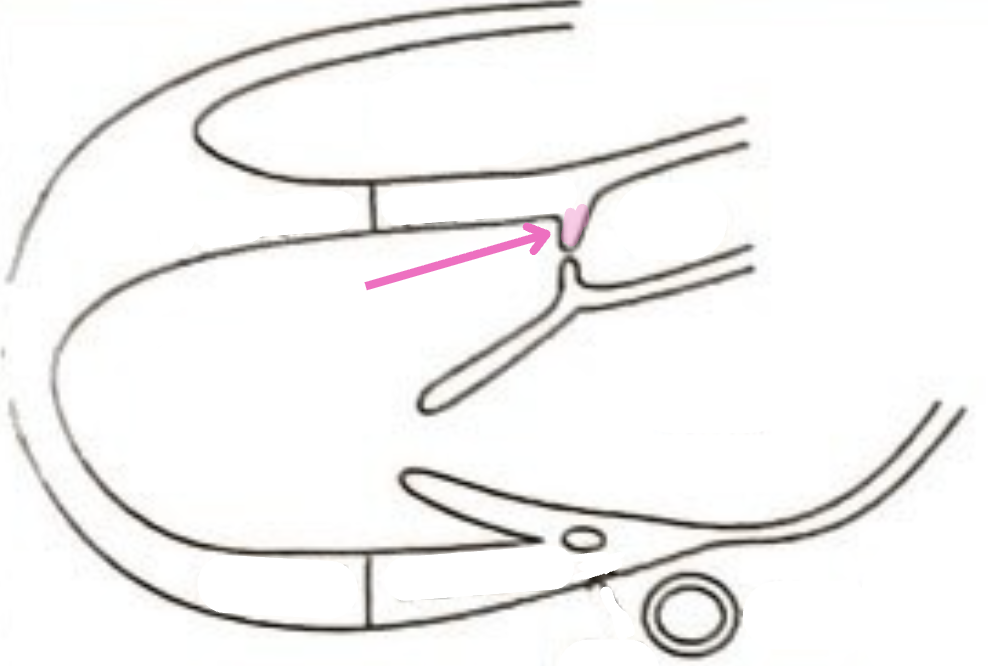

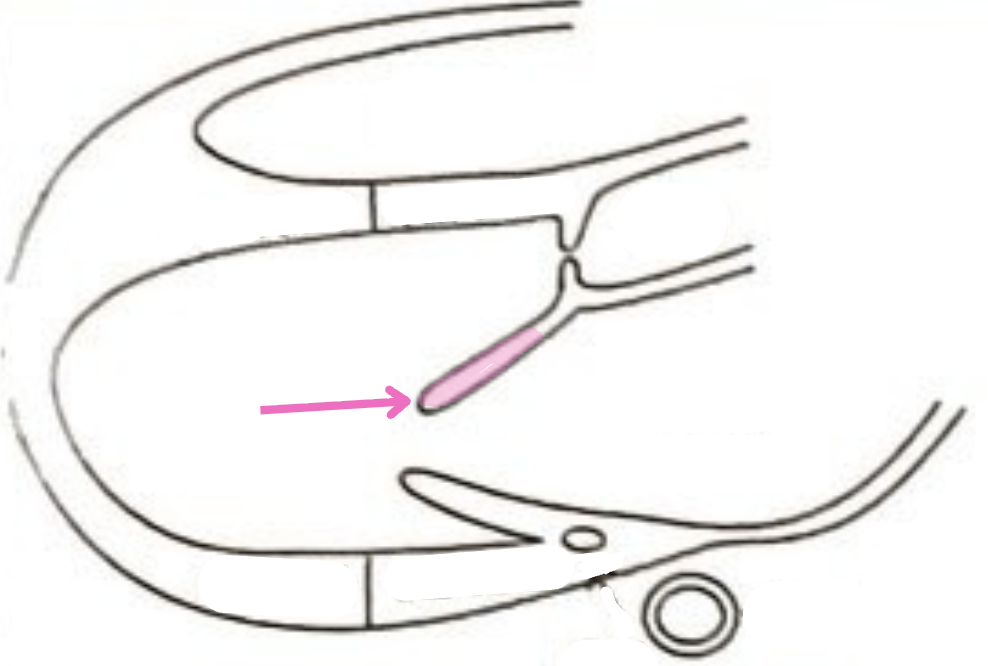

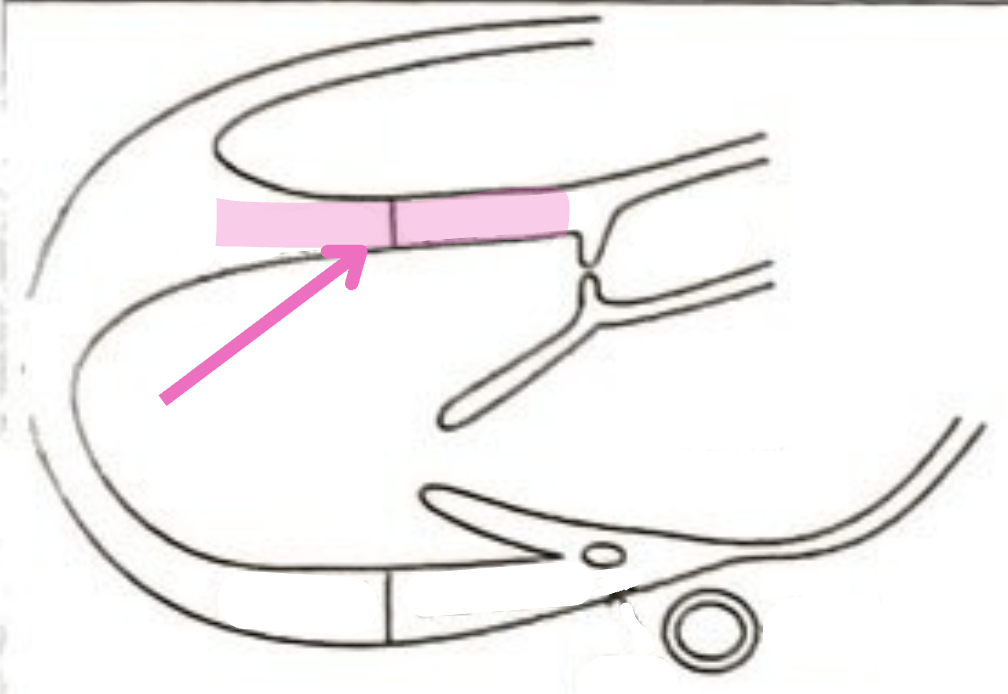

What is this structure?

right coronary cusp (RCC)

25

New cards

What is this structure?

non coronary cusp (NCC)

26

New cards

What is this structure?

anterior mitral valve leaflet (AMVL)

27

New cards

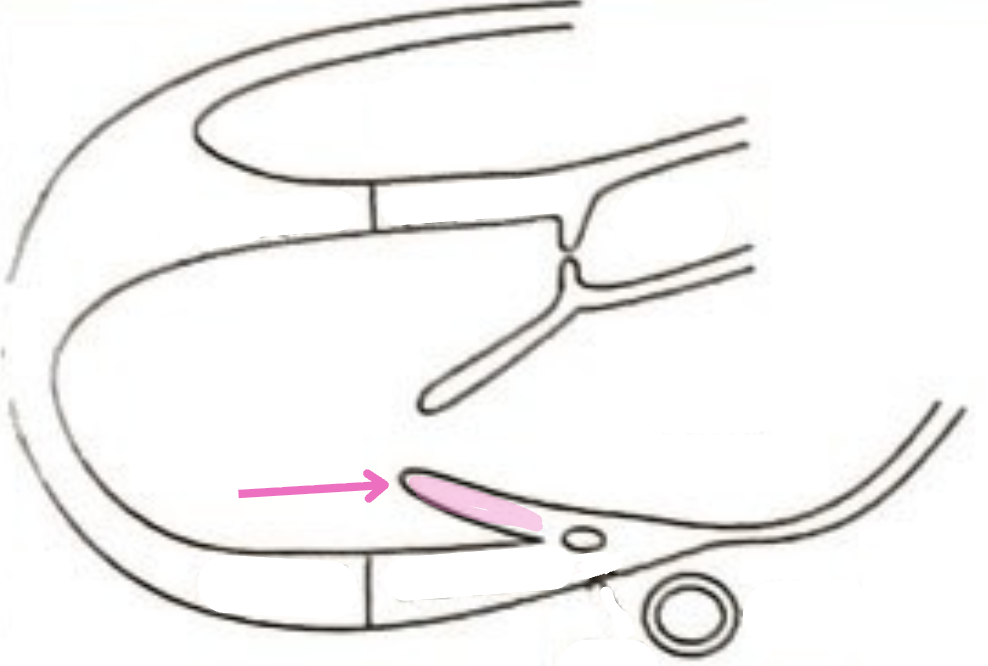

What is this structure?

posterior mitral valve leaflet (PMVL)

28

New cards

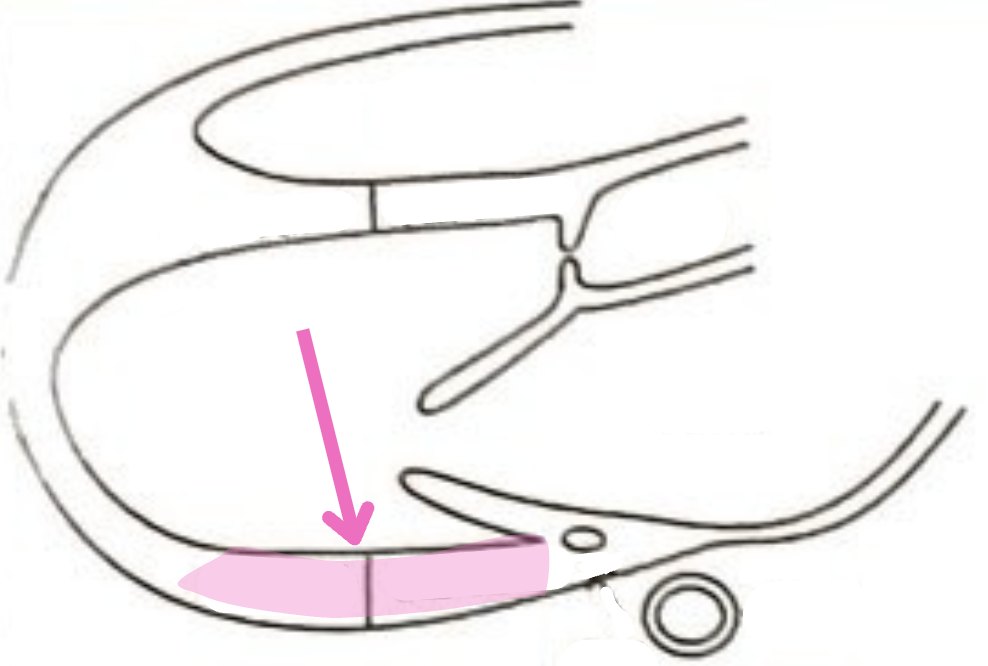

What is this structure?

Posterior / Inferolateral wall

29

New cards

What is this structure?

IVS

30

New cards

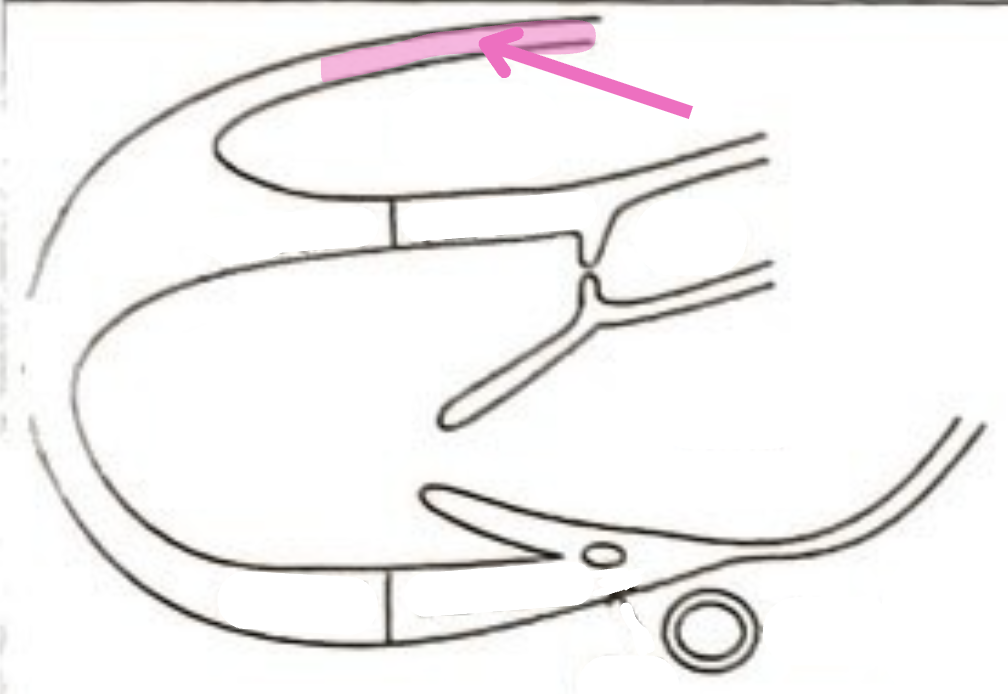

What is this structure?

Right Ventricular Free Wall (RVFW)

31

New cards

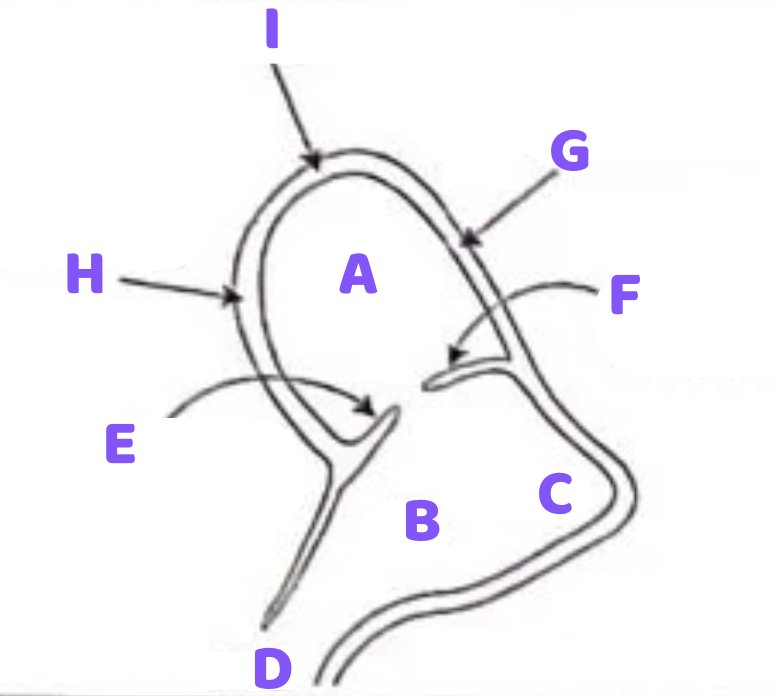

<p>What is this <span style="color: rgb(140, 82, 255);"><strong>view</strong></span>?</p>

What is this view?

Parasternal RVIT

32

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>A</strong></span></p>

A

RV

33

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>B</strong></span></p>

B

RA

34

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>C</strong></span></p>

C

RAA

35

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>D</strong></span></p>

D

IVC

36

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>E</strong></span></p>

E

Posterior TV leaflets

37

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>F</strong></span></p>

F

Anterior TV leaflets

38

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>G</strong></span></p>

G

Anterior wall RV

39

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>H</strong></span></p>

H

RV inferior wall

40

New cards

<p><span style="color: rgb(140, 82, 255);"><strong>I</strong></span></p>

I

RV apex

41

New cards

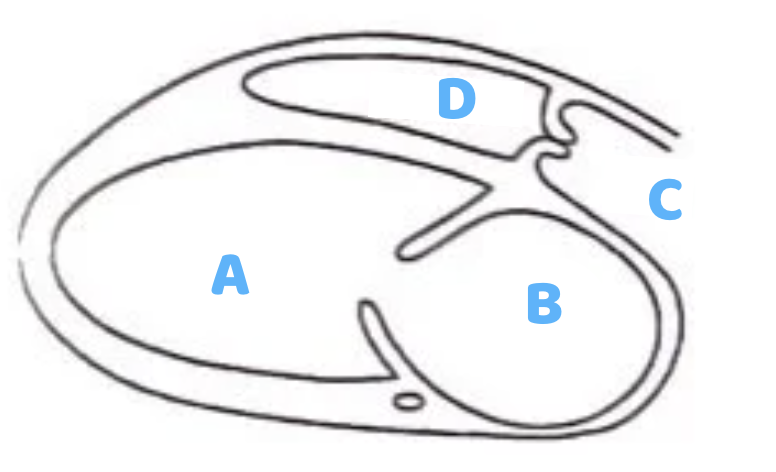

<p>What is <span style="color: rgb(56, 182, 255);"><strong>view</strong></span> is this?</p>

What is view is this?

Parasternal RVOT

42

New cards

<p><span style="color: rgb(56, 182, 255);"><strong>A</strong></span></p>

A

LV

43

New cards

<p><span style="color: rgb(56, 182, 255);"><strong>B</strong></span></p>

B

LA

44

New cards

<p><span style="color: rgb(56, 182, 255);"><strong>C</strong></span></p>

C

Pulmonary Artery (PA)

45

New cards

<p><span style="color: rgb(56, 182, 255);"><strong>D</strong></span></p>

D

RVOT

46

New cards

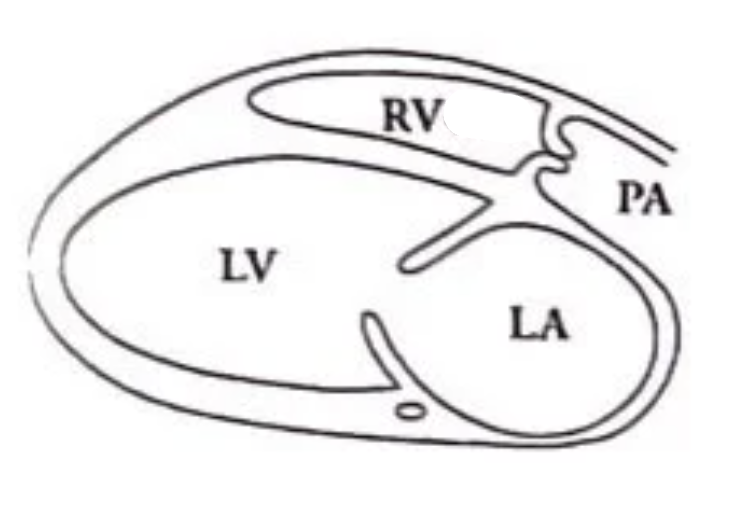

What is this structure?

Pulmonic Valve (PV)

47

New cards

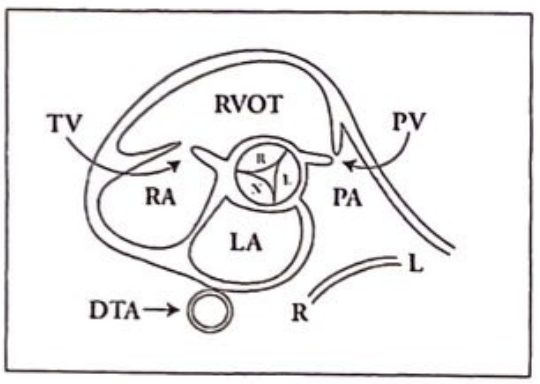

<p>What <span style="color: rgb(85, 191, 105);"><strong>view</strong></span> is this?</p>

What view is this?

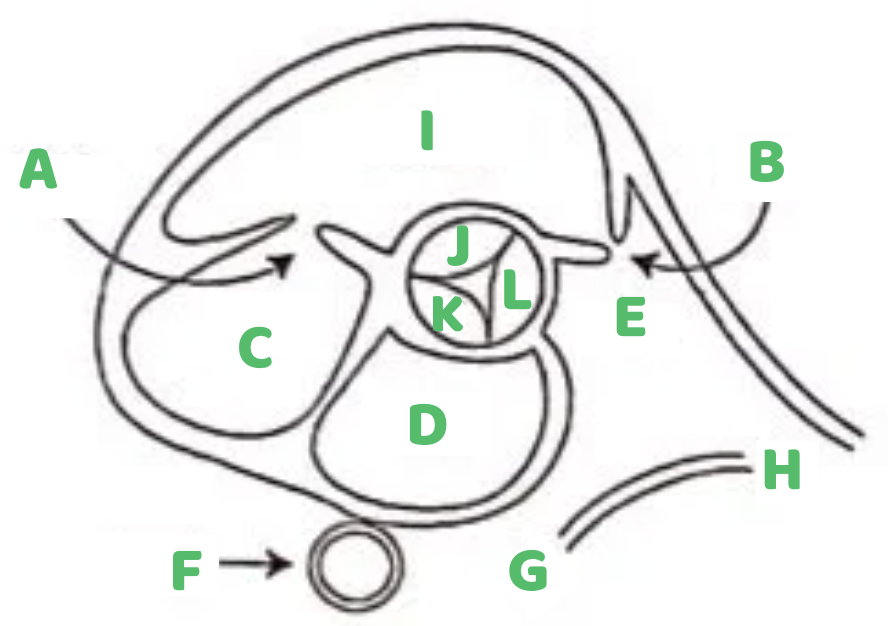

PSAX @ Aorta

48

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>A</strong></span></p>

A

TV

49

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>B</strong></span></p>

B

PV

50

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>C</strong></span></p>

C

RA

51

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>D</strong></span></p>

D

LA

52

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>E</strong></span></p>

E

Pulmonary Artery (PA)

53

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>F</strong></span></p>

F

descending aorta

54

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>G</strong></span></p>

G

right PA

55

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>H</strong></span></p>

H

left PA

56

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>I</strong></span></p>

I

RVOT

57

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>J</strong></span></p>

J

RCC (right coronary cusp)

58

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>K</strong></span></p>

K

NCC (non coronary cusp)

59

New cards

<p><span style="color: rgb(0, 191, 99);"><strong>L</strong></span></p>

L

LCC (left coronary cusp)

60

New cards

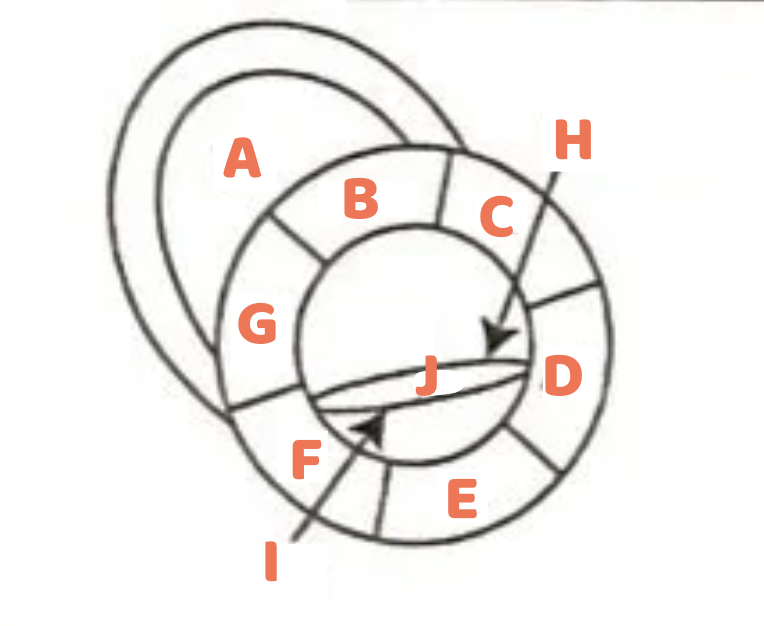

<p>What <span style="color: rgb(255, 109, 77);"><strong>view</strong></span> is this?</p>

What view is this?

PSAX @ MV

61

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>A</strong></span></p>

A

RV

62

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>B</strong></span></p>

B

AS - Anteroseptal

63

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>C</strong></span></p>

C

A - anterior

64

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>D</strong></span></p>

D

AL - Anterolateral

65

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>E</strong></span></p>

E

IL - inferolateral

66

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>F</strong></span></p>

F

I - inferior

67

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>G</strong></span></p>

G

IS - inferoseptal

68

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>H</strong></span></p>

H

Anterior MV leaflet

69

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>I</strong></span></p>

I

Posterior MV leaflet

70

New cards

<p><span style="color: rgb(255, 109, 77);"><strong>J</strong></span></p>

J

MV

71

New cards

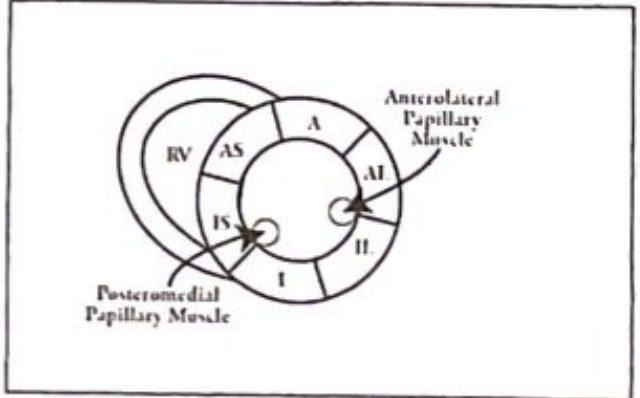

<p>What <span style="color: rgb(0, 151, 178);"><strong>view</strong></span> is this?</p>

What view is this?

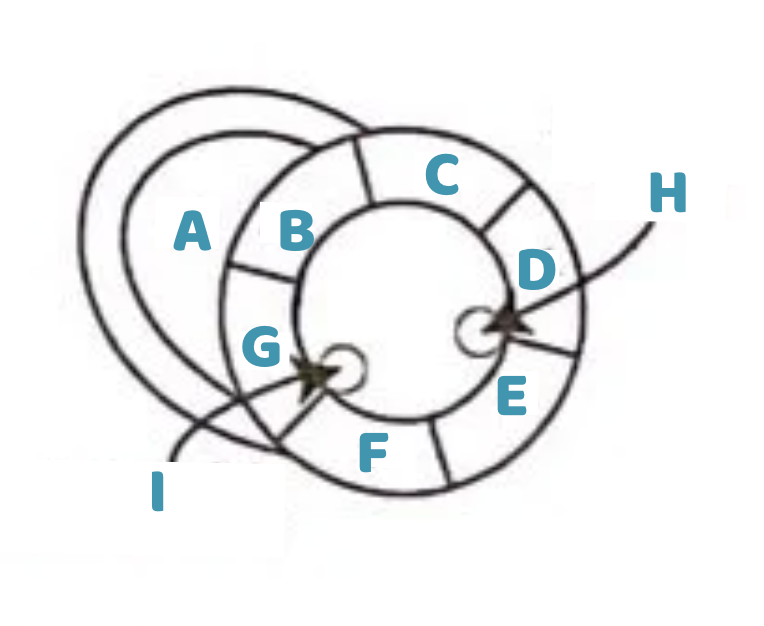

PSAX @ Papillary Muscles

72

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>A</strong></span></p>

A

RV

73

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>B</strong></span></p>

B

AS - anteroseptal

74

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>C</strong></span></p>

C

A - Anterior

75

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>D</strong></span></p>

D

AL - anterolateral

76

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>E</strong></span></p>

E

IL - inferolateral

77

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>F</strong></span></p>

F

I - Inferior

78

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>G</strong></span></p>

G

IS - Inferoseptal

79

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>H</strong></span></p>

H

Anterolateral Papillary Muscle

80

New cards

<p><span style="color: rgb(0, 151, 178);"><strong>I</strong></span></p>

I

Posteromedial Papillary Muscle

81

New cards

<p>What <span style="color: rgb(193, 255, 114);"><strong>view</strong></span> is this?</p>

What view is this?

PSAX @ apex

82

New cards

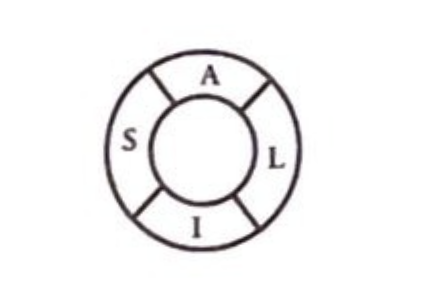

<p><span style="color: rgb(193, 255, 114);"><strong>A</strong></span></p>

A

A - Anterior

83

New cards

<p><span style="color: rgb(193, 255, 114);"><strong>B</strong></span></p>

B

S - septum

84

New cards

<p><span style="color: rgb(193, 255, 114);"><strong>C</strong></span></p>

C

L - lateral

85

New cards

<p><span style="color: rgb(193, 255, 114);"><strong>D</strong></span></p>

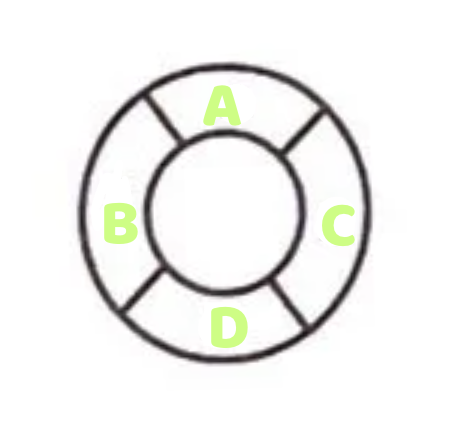

D

I - inferior

86

New cards

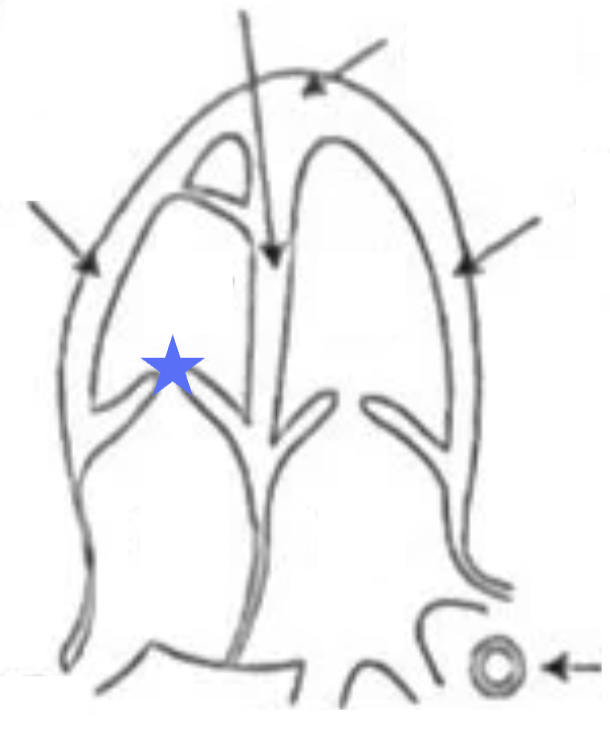

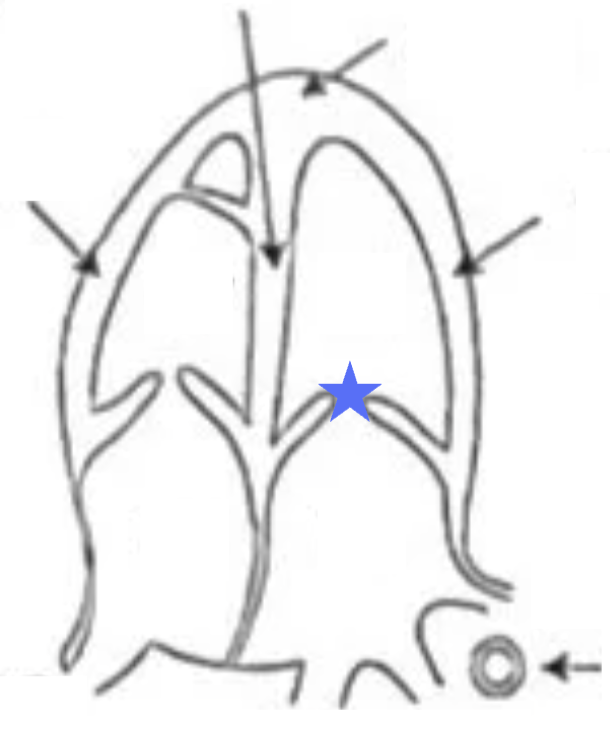

<p>What <span style="color: rgb(81, 112, 255);"><strong>view</strong></span> is this?</p>

What view is this?

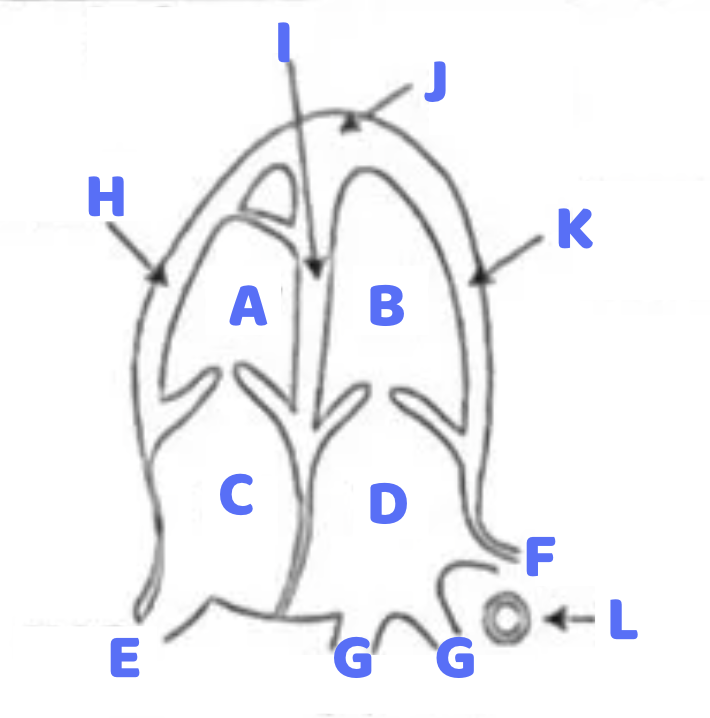

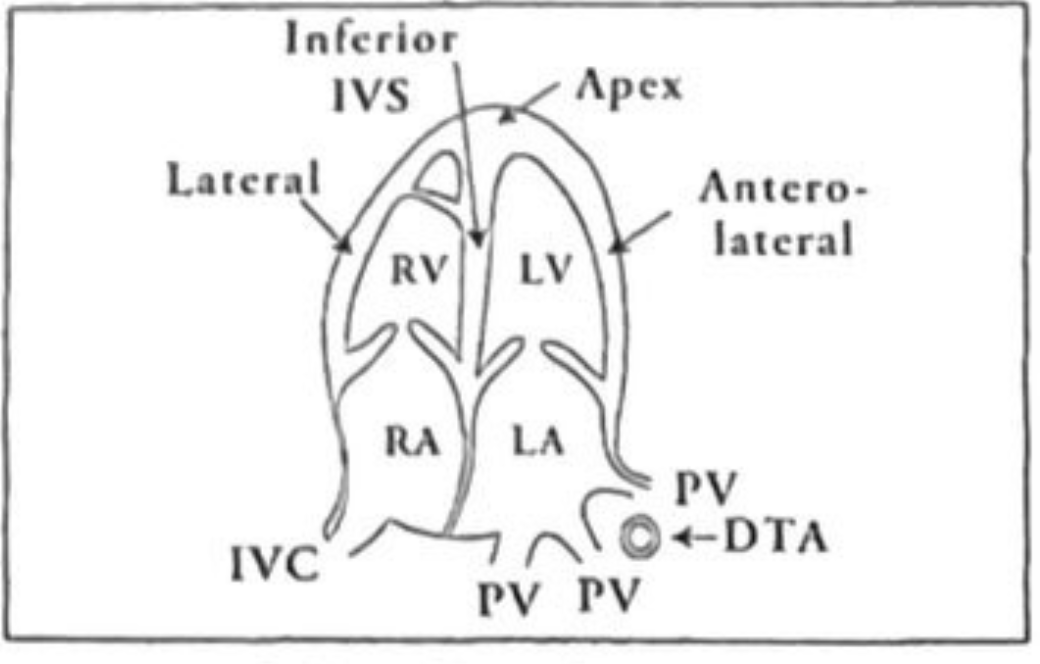

Apical 4 Chamber

87

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>A</strong></span></p>

A

RV

88

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>B</strong></span></p>

B

LV

89

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>C</strong></span></p>

C

RA

90

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>D</strong></span></p>

D

LA

91

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>E</strong></span></p>

E

IVC

92

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>F</strong></span></p>

F

Pv (pulmonary vein)

93

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>G</strong></span></p>

G

Pv

94

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>H</strong></span></p>

H

Lateral wall

95

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>I</strong></span></p>

I

Inferior IVS

96

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>J</strong></span></p>

J

Apex

97

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>K</strong></span></p>

K

Anterolateral

98

New cards

<p><span style="color: rgb(81, 112, 255);"><strong>L</strong></span></p>

L

DTA - descending aorta

99

New cards

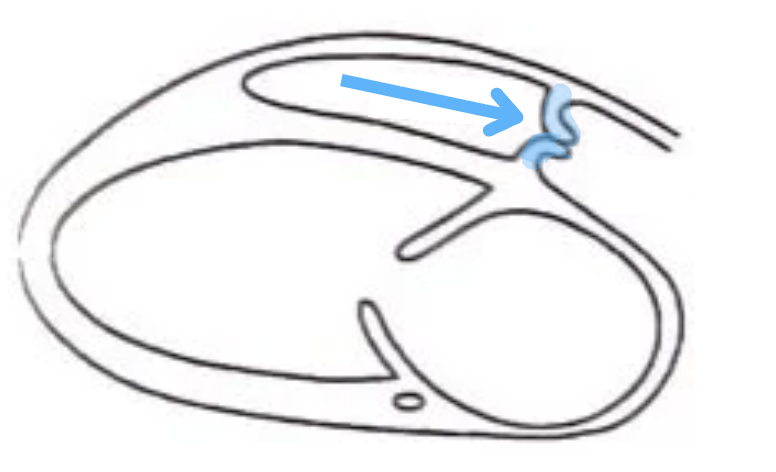

What structure is this?

TV

100

New cards

What structure is this?

MV
