Logic gates
Call Kai
Learn
Practice Test
Spaced Repetition
Match
Flashcards
Knowt Play1/23
There's no tags or description
Looks like no tags are added yet.
Name | Mastery | Learn | Test | Matching | Spaced | Call with Kai |
|---|
No analytics yet
Send a link to your students to track their progress
24 Terms

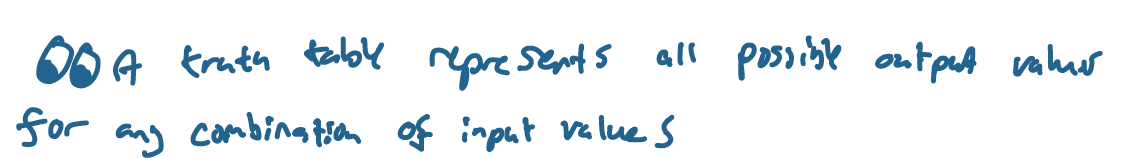

What is a truth table?

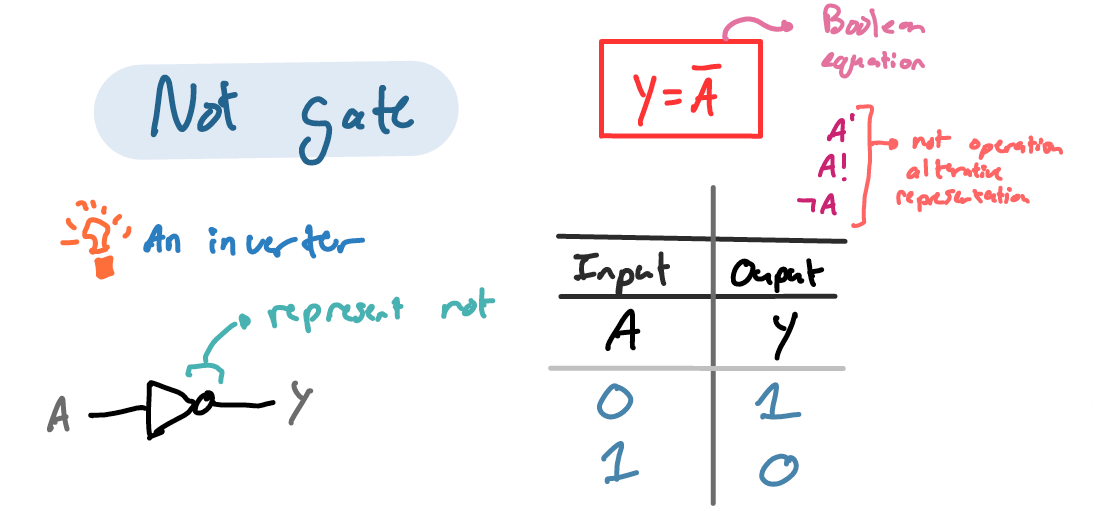

NOT gate

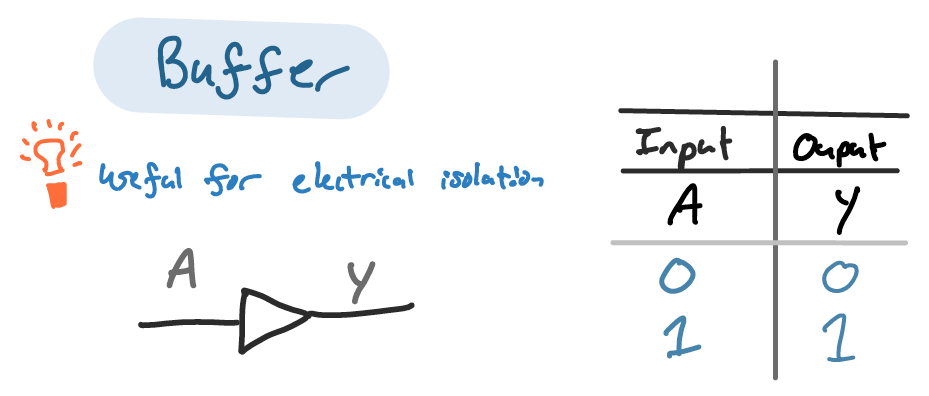

Buffer

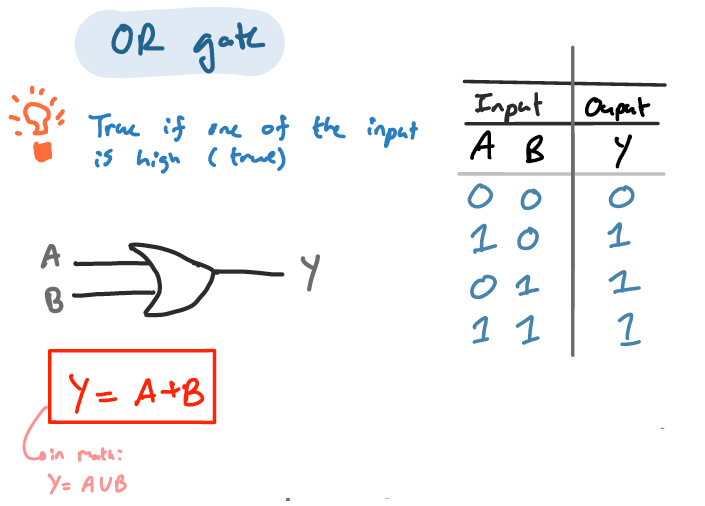

OR gate

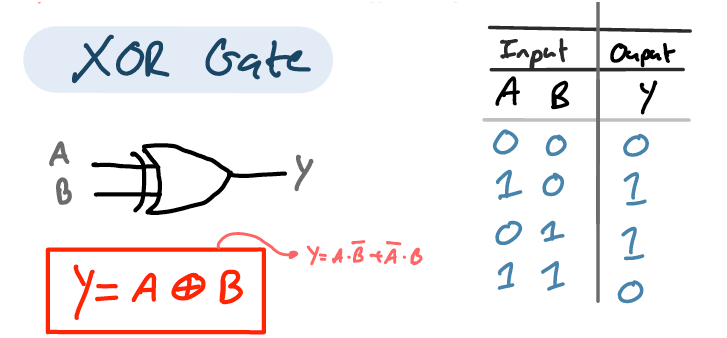

XOR gate
What is XOR gate made up of?

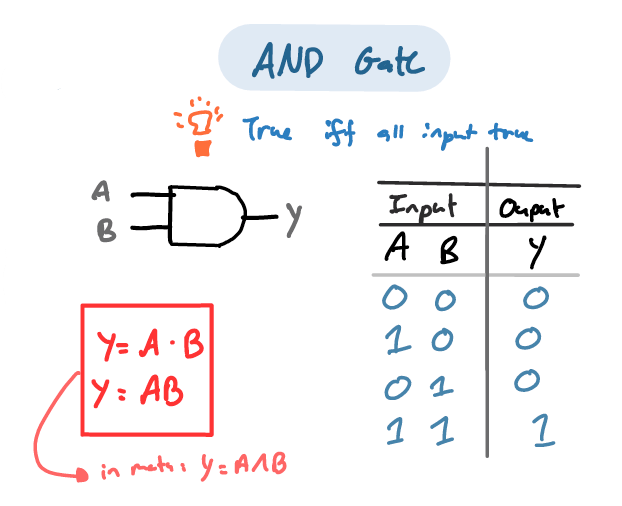

AND Gate

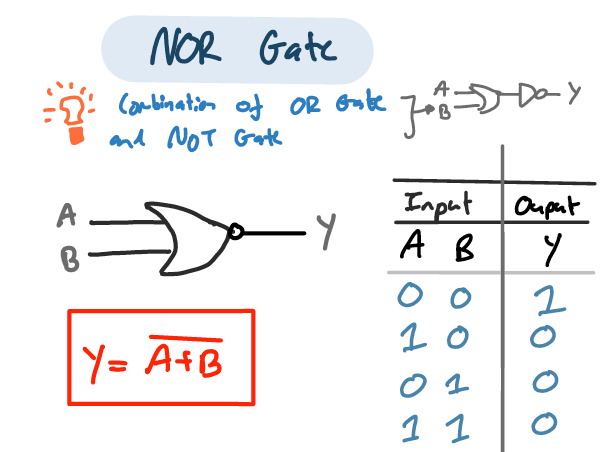

NOR Gate
What is NOR gate made up of?

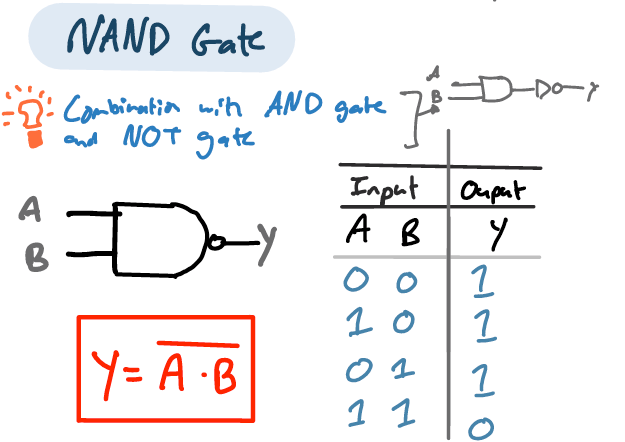

NAND Gate
What is a NAND gate made up of?
What is a timing diagram

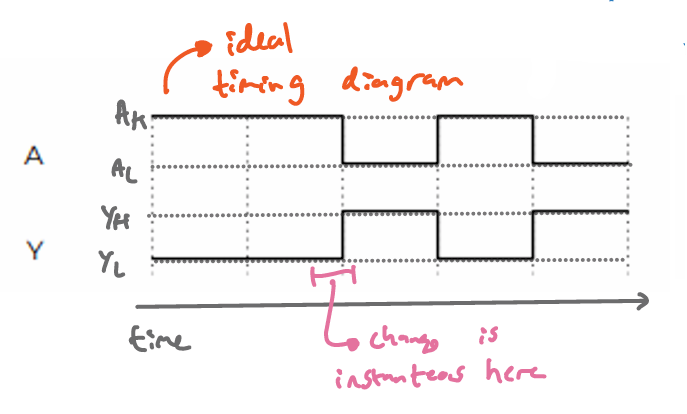

Draw an ideal timing diagram for a NOT gate

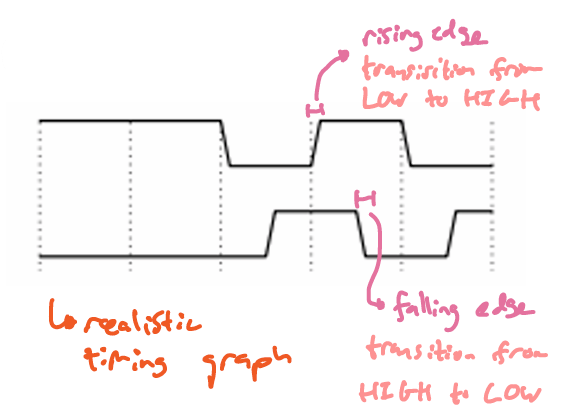

Draw an realistic timing diagram for a NOT gate
What is propagation delay?
Give possible reasons for propagation delay

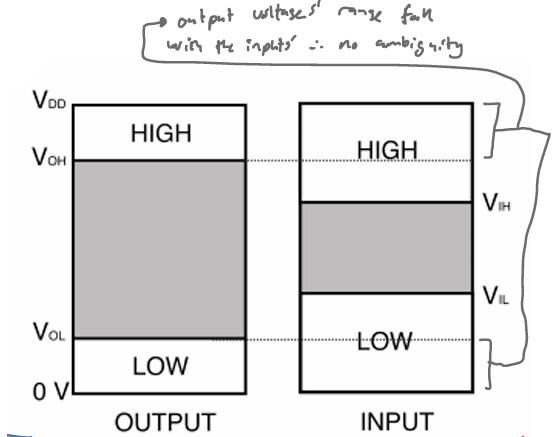

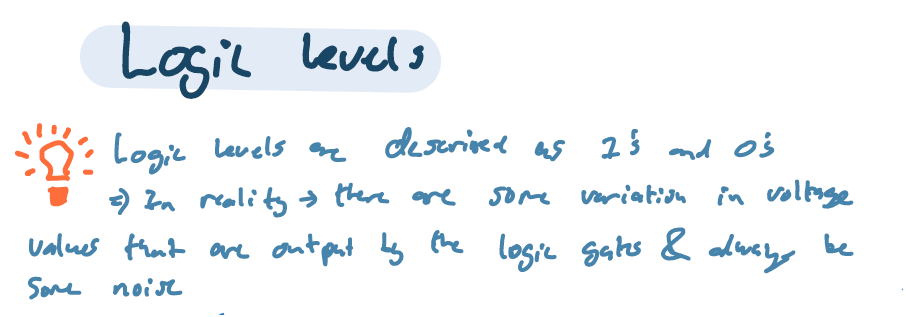

Where is there a range of values for logic level?
Why is logic level range for input larger than output?
What are two ways to reduce power consumption?
What is an illegal value on the truth table?

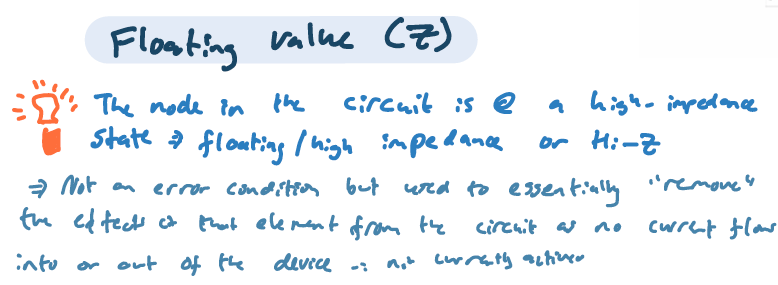

What is an floating value on the truth table?

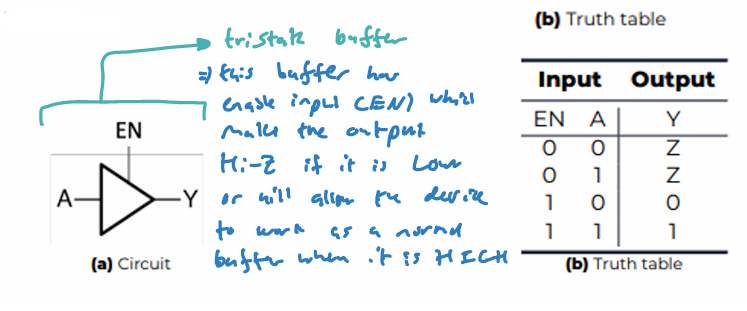

What is a tristate buffer and make truth table for it

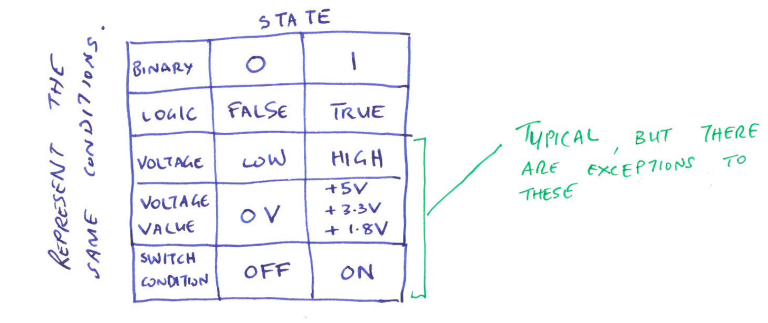

What are the different representation for Boolean logic?

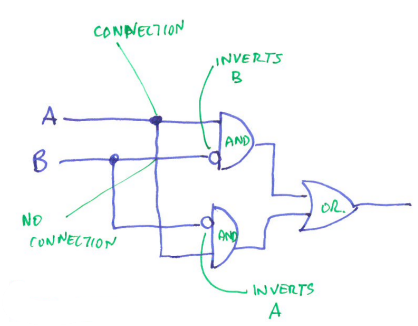

Sake for completeness
