ABD - Unit VII (Spleen)

The spleen is located within the ___ cavity in the ___ ___ quadrant near the ___ of the pancreas and ___ to the left kidney.

peritoneal, left upper, tail, superior

The spleen is the largest mass of ___ tissue in the body.

lymphoid

The spleen is a lymphoid organ that destroys damaged or worn out ___ cells, ___ & ___ materials.

It also acts as a reservoir for ___ & ___.

It is rarely the site of ___ disease; often affected by ___ disease such as infections or autoimmune disease.

blood, pathogens, foreign, blood, platelets, primary, systemic

What is the normal (superior → inferior) measurement for the spleen? When is it termed to be splenomegaly?

8-13 cm; > 12 cm

The best window to visualize the spleen is with the patient in the ___ ___ ___ (___) position.

right lateral decubitus (RLD)

What artery supplies the spleen with blood?

Splenic artery

What is the left branch of the celiac axis?

Splenic artery

What is the most common congenital variant of the spleen?

Accessory spleen

Accessory spleen affects about ___% of the population.

10

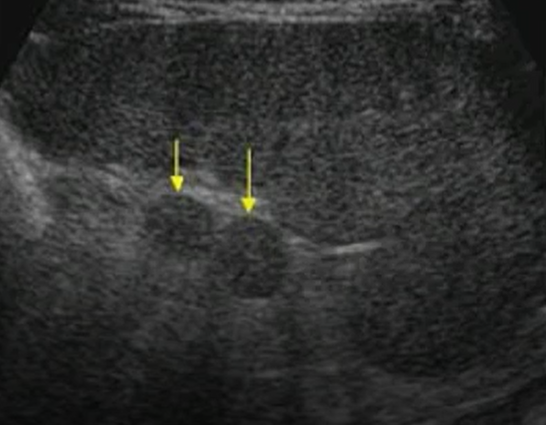

Describe an accessory spleen.

Small round/ovoid structure of same echogenicity/texture as spleen tissue

Where is an accessory spleen most often found?

Splenic hilum

What is an accessory spleen often confused with?

Lymphadenopathy

How is accessory spleen verified?

By demonstrating vascular connection to the spleen

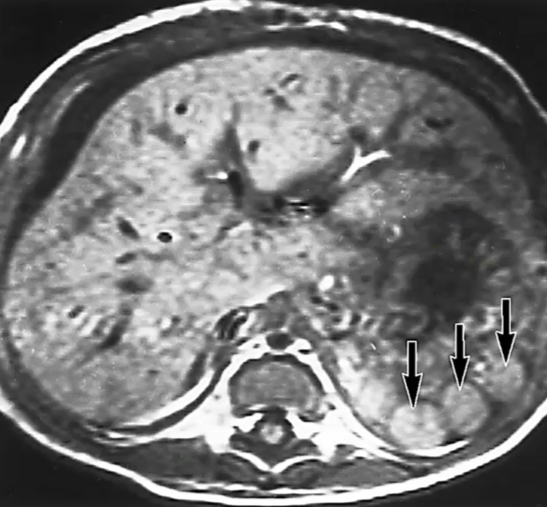

What congenital spleen variant is associated with left sided laterality sequence (patient is more left sided than right sided)?

Polysplenia

What spleen congenital variant is associated with heart defects and other congenital abnormalities?

Polysplenia

Congenital agenesis of the spleen

Asplenia

What spleen congenital abnormality is associated with right sided laterality (patient is more right sided than left sided)? What is this congenital anomaly associated with?

Asplenia; Heart defects

What is the most common pathology of the spleen?

Splenomegaly

What is the most common cause of splenomegaly?

Portal hypertension

What are some causes of splenomegaly?

• Portal Hypertension (blood backs up into spleen because it can't get into the liver)

• Lymphoma (spleen is lymphatic tissue so is commonly involved in lymphoma)

• AIDS (spleen enlarges as it tries to boost the compromised immune system)

• Infection (bacterial or viral)

• Bleeding disorders

• Immunologic disorders

• Cancer

• Metabolic storage diseases

What symptom is associated with splenomegaly?

LUQ pain

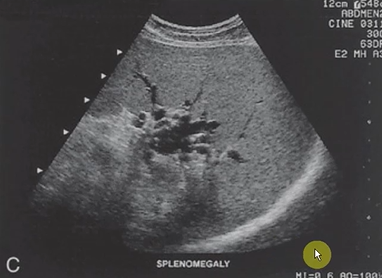

What are the sonographic findings with splenomegaly?

• Superior to Inferior measurement > 13 cm

• The inferior pole of the spleen covers the superior pole of the left kidney

What is the name of the disease that is a rare inherited fat metabolism disorder, and what does it cause?

Gaucher's disease; severe splenomegaly

With Gaucher's disease, ___% of patients are under the age of ___. ___% are under the age of ___. But, it may affect anyone of any ___.

50, 8, 17, 1, age

Gaucher's disease is characterized by enormous ___ of the spleen, ___ of the skin, and ___ ___.

enlargement, pigmentation, bone lesions

Gaucher's disease is a rare hereditary disorder of ___ metabolism that is caused by an ___ deficiency of glucocerebrosidase.

lipid, enzyme

This disease is a rare hereditary disorder of lipid metabolism that is caused by an enzyme deficiency of glucocerebrosidase.

Gaucher's disease

What splenic disease is marked by the presence of large amounts of glucocerebroside in cells of the reticuloendothelial system?

Gaucher's disease

What does Gaucher's disease look like on ultrasound?

• Extremely enlarged spleen with heterogeneous texture

• Multiple focal hypoechoic nodules

What disease of the spleen occurs primarily among Jews from central and eastern Europe and their descendants?

Niemann-Pick disease

Niemann-Pick disease affects ___ ___.

female infants

This storage disease is characterized by accumulation of phospholipids in macrophages of liver, spleen, lymph glands, and bone marrow.

It leads to gastrointestinal problems, malnutrition, enlargment of the spleen, liver and lymph nodes, and abnormalities of blood-forming organs.

Niemann-Pick disease

What disease of the spleen is a rare error in lipid metabolism that is inherited as an autosomal recessive trait?

Niemann-Pick disease

Niemann-Pick disease usually results in ___ in early childhood.

death

Group of conditions that cause overproduction of blood cells in the bone marrow

Have increased numbers of RBCs, WBCs, and/or platelets

Diseases include:

• Polycythemia Vera

• Acute Myelogenous Leukemia

• Chronic Myelogenous Leukemia

• Myelofibrosis

• Megakaryocytic Leukemia

• Erythroleukemia

Myeloproliferative disorders

What is the cause of polycythemia vera (a myeloproliferative disorder)?

Unknown

If someone has polycythemia vera, they have an increased number of ___ and ___.

RBCs, hemoglobin

Polycythemia vera is characterized by bone marrow ___, ___, ___ of skin, ___, facial ___, and ___ pain.

hyperplasia, splenomegaly, redness, bruising, flushing, extremity

What is the ultrasound appearance of polycythemia vera?

• Splenomegaly

• Infarcts (localized areas of tissue death) and thrombi are common

Letterer-Siwe disease is a type of histiocytosis (excessive production/action of tissue macrophages) and so it is associated with ___.

Usually seen in children under age 2

Prognosis is poor with about 50% of treated patients dying within 5 years

Lesions of the skull are common

splenomegaly

Cysts usually have a ___ ___ wall, ___ lumen, and posterior ___.

thin echogenic, anechoic, enhancement

What is the sonographic appearance of an infarct?

• Wedge/triangle shaped hypoechoic lesion

• May become more echogenic with age

• Sometimes difficult to differentiate from other possible masses such as hematoma

What are causes of infarct in the spleen?

• Embolism

• Torsion

• Blood disorder (sickle cell)

• Vascular disease

• Pancreatic disease

• Cancer

What is the most common benign tumor of the spleen?

Hemangioma

What syndrome are hemangiomas of the spleen associated with?

Klippel-Trenaunay-Weber Syndrome

The spleen is/is not a site of primary cancer.

is not

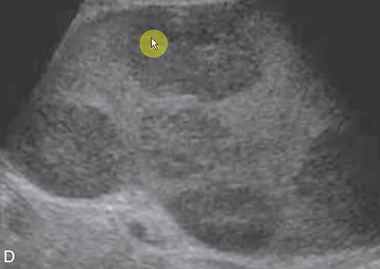

What is the most common malignancy involving the spleen?

Lymphoma

The spleen is susceptible to ______ (lacerations, rupture, hematoma).

injury

___ of the spleen is common.

Enlargement (splenomegaly)

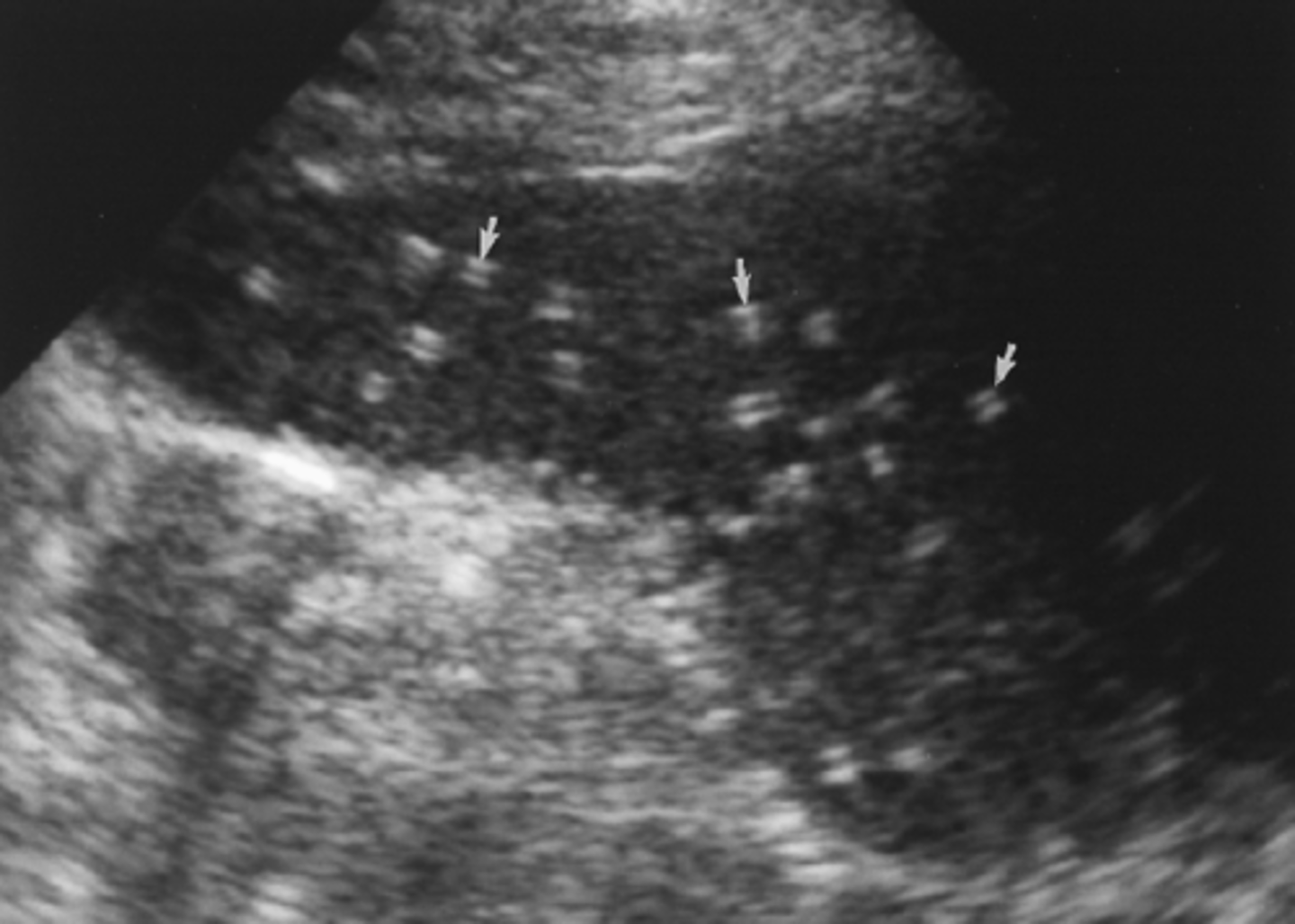

It is fairly common to see small ___ dots in the spleen. This is usually referred to as ___. They may or may not be noted on the report.

hyperechoic, granulomas

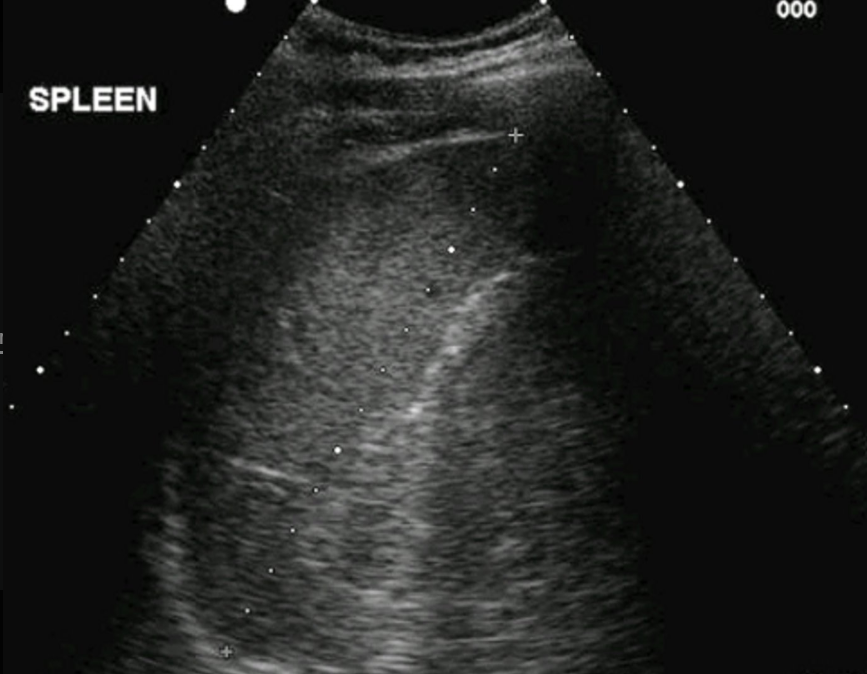

Transverse or long view?

Transverse

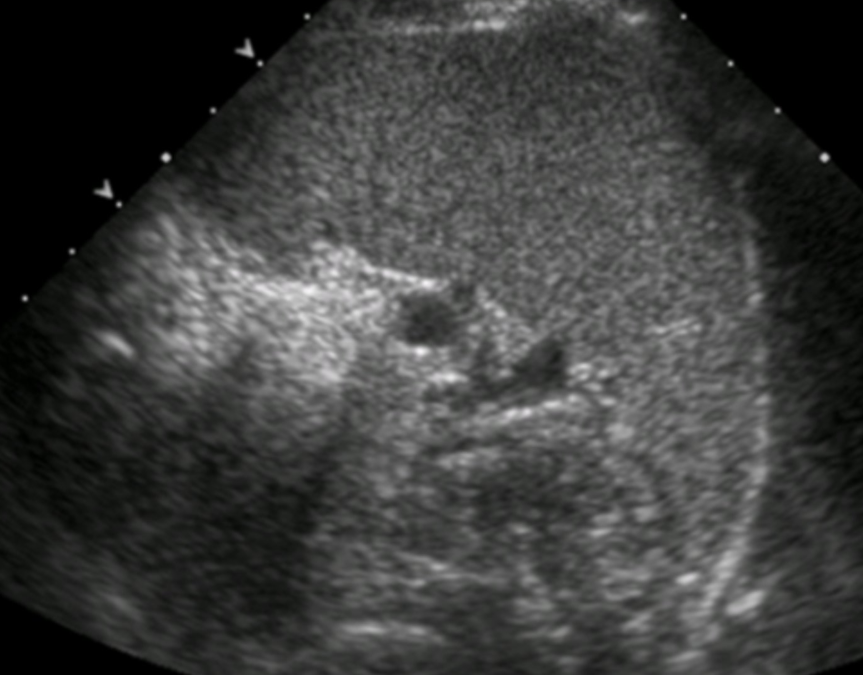

Transverse or long view?

Long

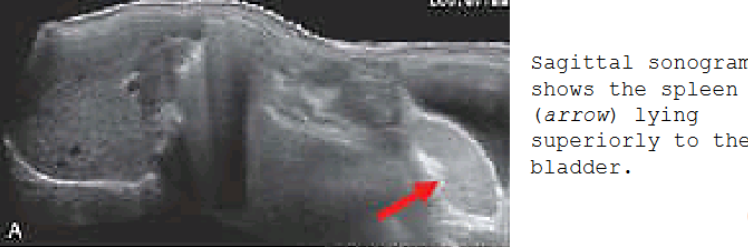

AKA wandering spleen; spleen position is varaible in abdomen/pelvis due to laxity of splenic suspensory ligaments

More prone to torsion → acute pain and infarction of spleen

Ectopic spleen
