BSC2011

Ostia

minute, pore-like openings on the surface of sponges (phylum Porifera) that allow water to flow into their bodies for feeding, respiration, and excretion

Osculum

a large, specialized opening in a sponge (phylum Porifera) through which water is expelled after filtration.

Class Demospongiae

Typically have spicules made of spongin,

Spongin

a modified type of collagen protein that forms fibers that hold spicules together.

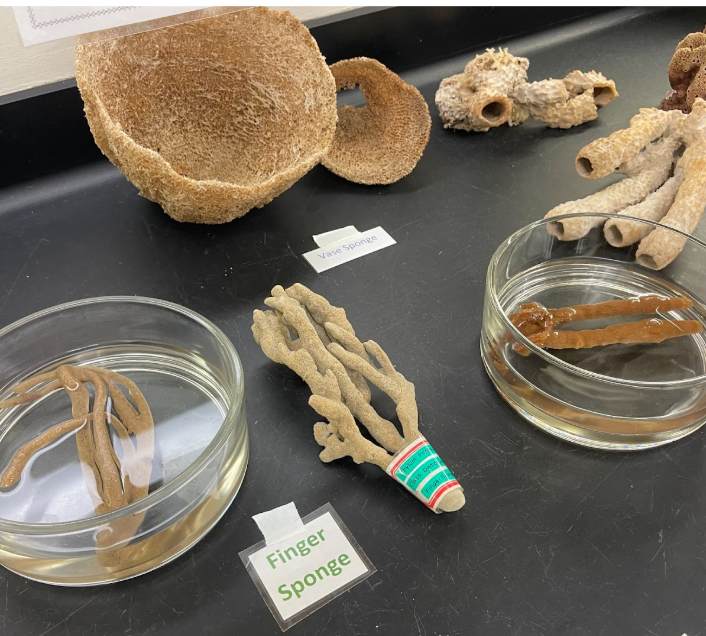

What class are these sponges in? (Loggerhead, Vase Sponge, Bath sponge, Spongilla, etc.)

Class Demospongiae ; Phylum Porifera

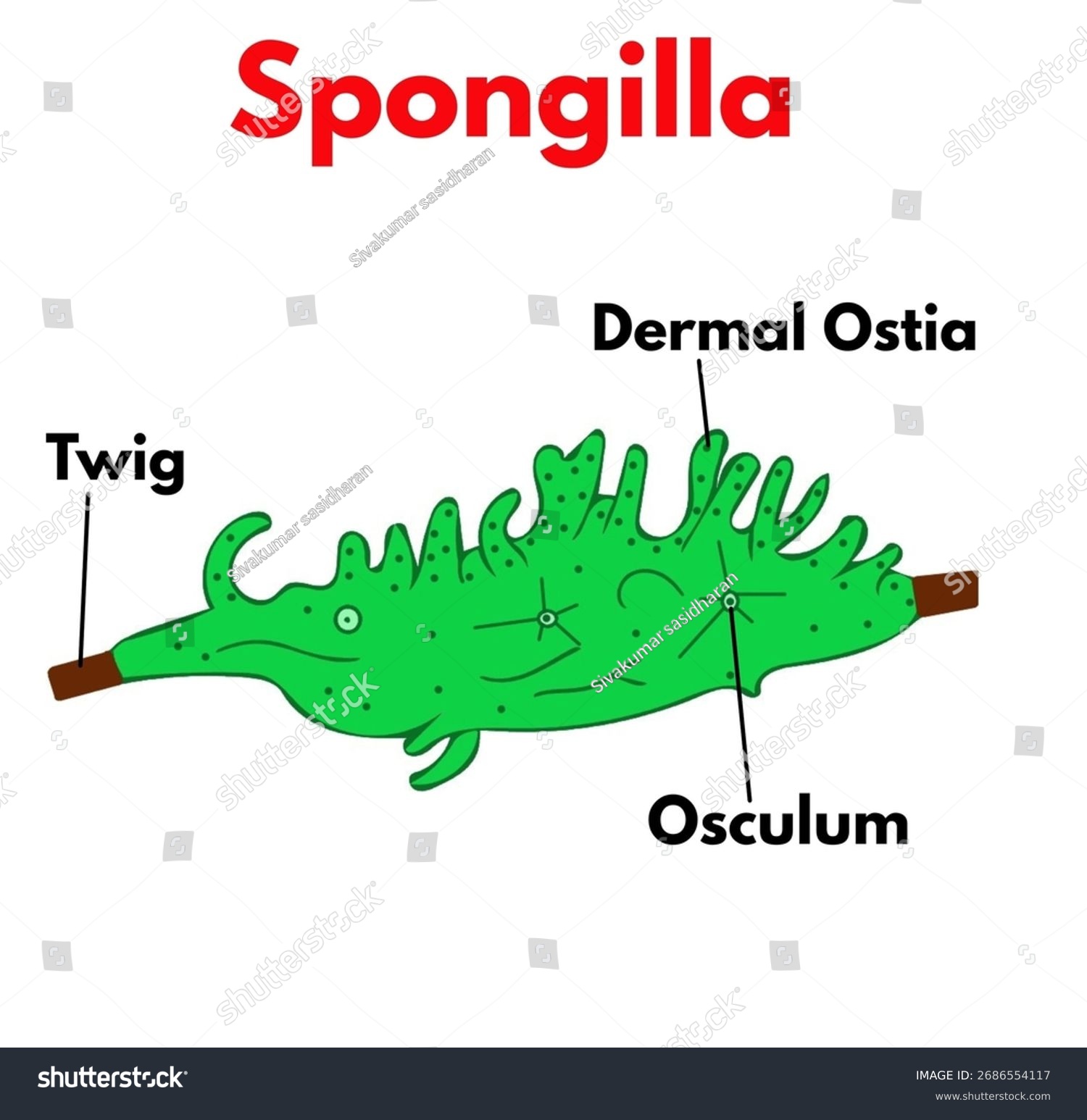

Spongilla

a genus of freshwater sponges (Phylum Porifera) found worldwide in clean lakes, ponds, and slow streams, often attached to submerged rocks or wood. They are sessile filter feeders, appearing green due to symbiotic zoochlorellae algae. Spongilla reproduces sexually via larvae and asexually through dormant, overwintering gemmules.

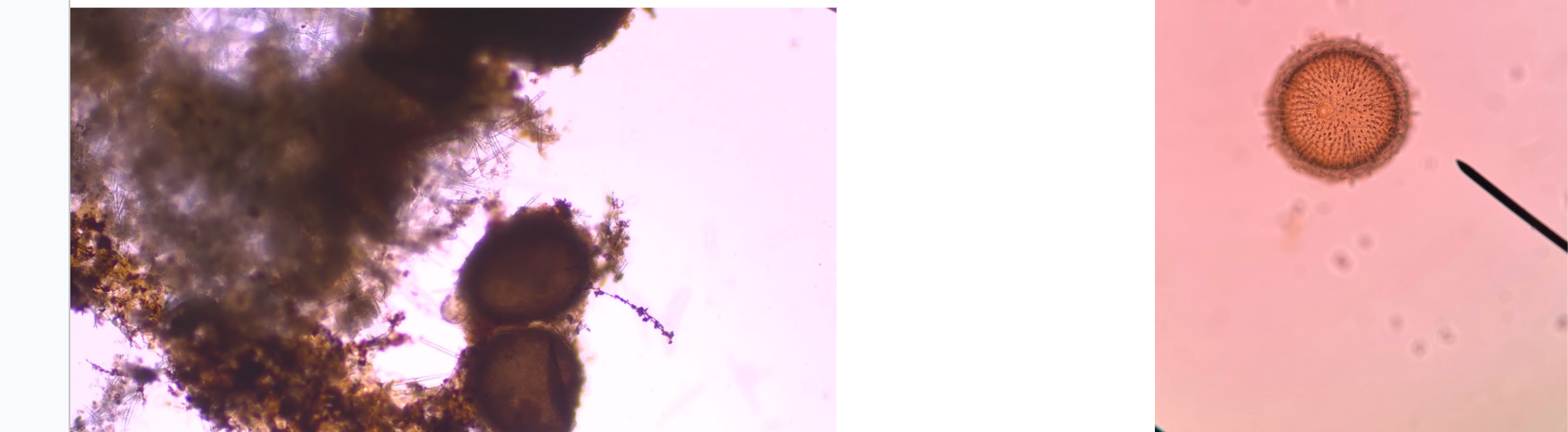

Identify these structures and list which Phylum and Class its in.

Spongilla Gemmules. Porifera and Demospongaie

Class Hexactinella

Known as the glass sponges; Glass sponges are characterized by six-pointed hexagonal spicules made of silica.

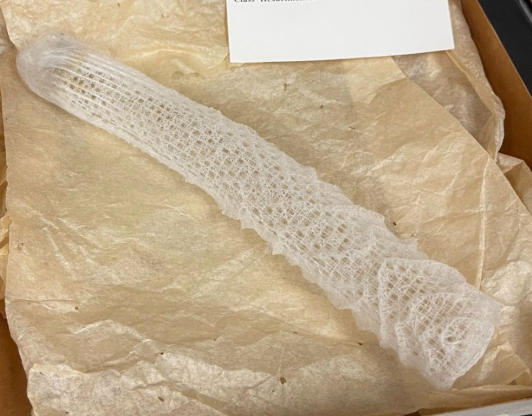

What is this? What Class and phylum is it part of?

Glass sponge. Hexactinella and Porifera

What is this? What class and phylum is it part of?

Leucosolenia. Calcarea and Porifera

What are these?

Grantia Spicules

polyp vs medusa

Polyp’s oral surface is on the top and it as a basal disc. Medusa’s aboral surface is on the top and it’s oral surface is on the bottom

Where is the velum in Gonionemus?

at the edge of the subumbrella (the underside) and is a defining characteristic of hydromedusae

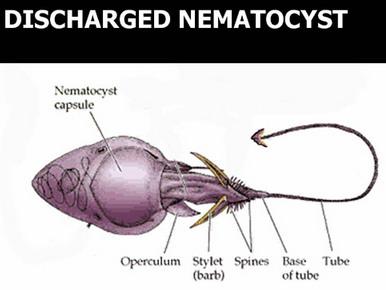

Nematocyst

harpoon-like filaments that are ejected through cindocytes and use stinging to immoblize small prey

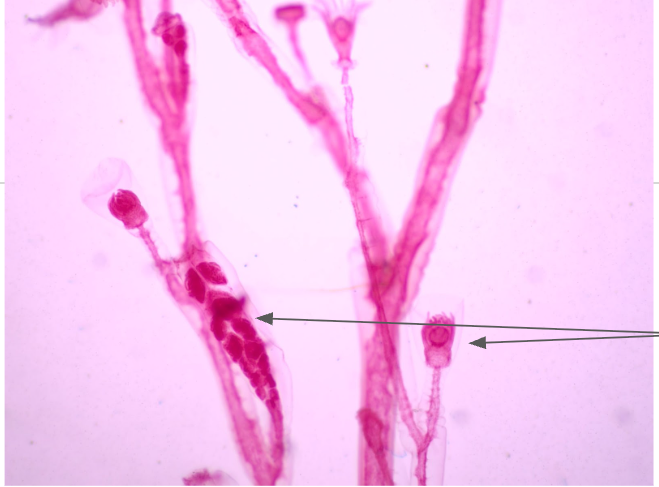

What is this organism? What are the arrows pointing towards? What class and phylum is this part of?

Obelia. Reproductive polyps (no tentacles). Hydrozoa and Cnidaria

What is this pointing towards?

Feeding polyps

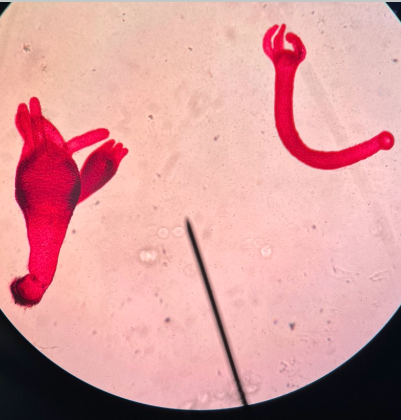

What is this? Class and Phylum?

Hydra Budding. Hydrozoa and Cnidaria

What is this?

Hydra ovary

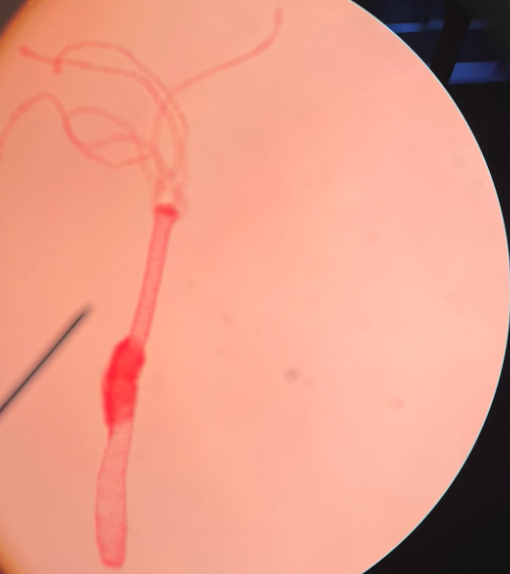

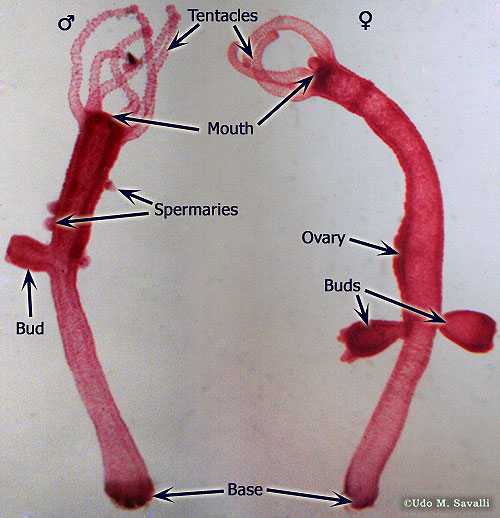

What is this?

Hydra Spermary

What is this? What class and phylum?

Physalia. Hydrozoa and Cnidaria

Pneumatophere

a large, gas-filled, blue-purple, sail-like float on the surface that provides buoyancy and wind-driven mobility for the colony

What is this? What class and phylum?

Vellela. hydrozoa and cnidaria

Life cycle of a medusa

Medusa → Gametes → Planula → Polyp → Strobilation → Ephyra → Medusa

What is this? Class and Phylum?

Aurelia Strobila. Scyphozoa and Cnidaria

What is this? Class and Phylum?

Aurelia Ephyra. Scyphozoa and Cnidaria

What is this? Class and Phylum?

True Jellyfish. Scyphozoa and Cnidaria

What is this? Class and Phylum?

Upside Down Jellyfish. Scyphozoa and Cnidaria

What is this? Class and Phylum?

Coral. Anthozoa and Cnidaria

What is this? Class and Phylum?

Sea whips and Sea fans. Anthozoa and Cnidaria

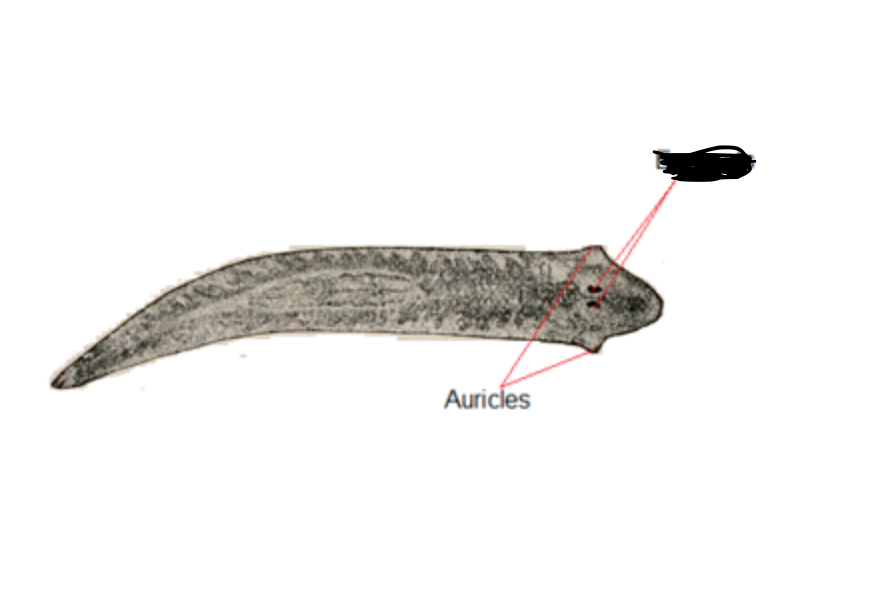

What is the black labeled spot? What phylum and class?

Eyespots; Platyhelminthes and Turbellaria

What is this?

Gastrovascular cavity of Planaria cross section in the pharynx region

What is this the blank portion?

Pharynx of Planaria cross section in the pharynx region

What is part of class Turbellaria? What phylum is this class part of?

Planaria and marine flatworms; PLATYHELMITHES

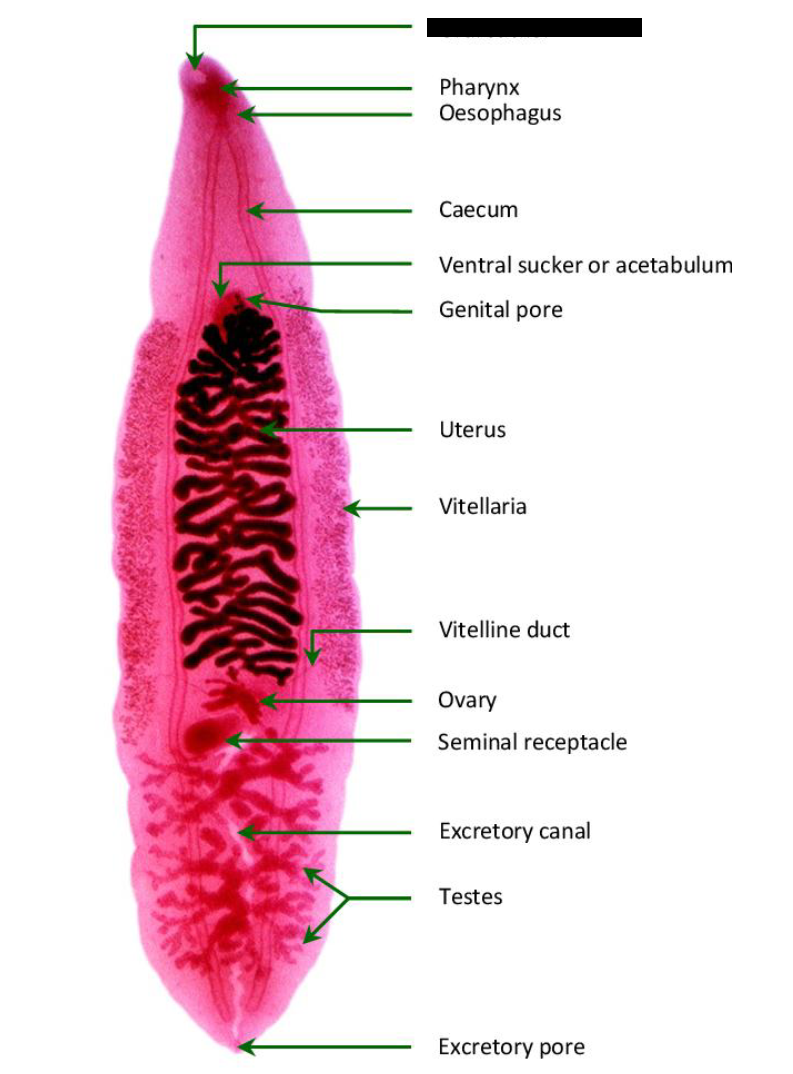

What is this? What Class and Phylum? Label the blacked out portion

human Liver fluke. Trematoda, PLATYHELMITHES. Oral sucker

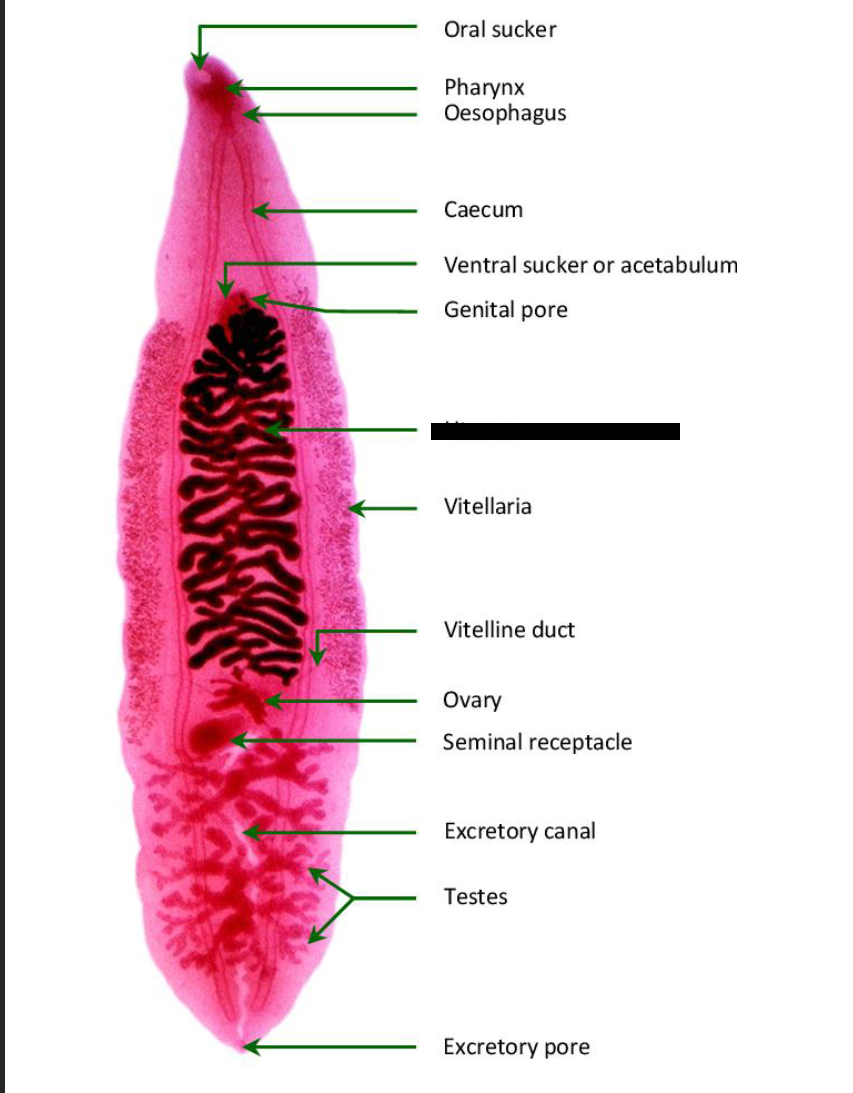

Label missing part

Uterus

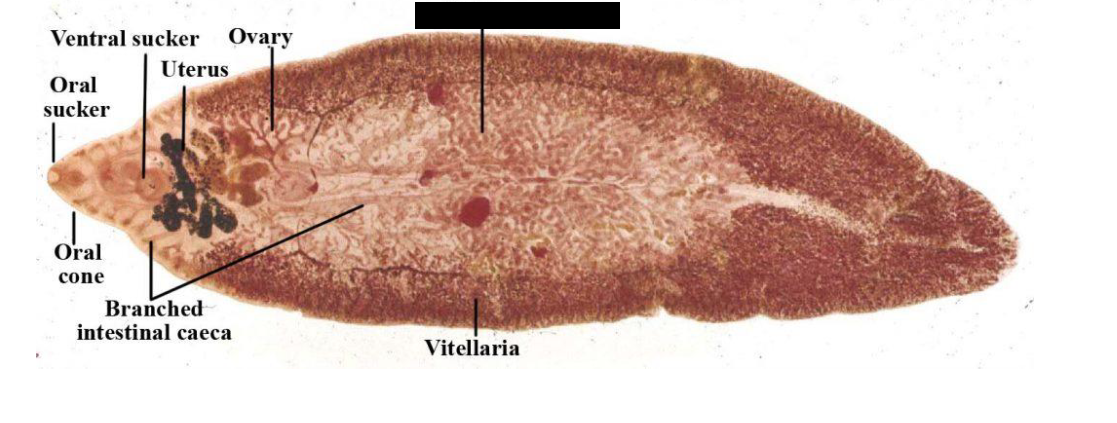

What is this? What is labeled?

Sheep Liver Fluke part of Trematoda class in Platyhelminthes Phylum. Testes

What is this? Class and Phylum?

marine flatworm. Class turbellaria and platyhelminthes phylum

What is this? Class and Phylum?

Sheep Fluke. Trematoda and platyhelminthes phylum

What is this? Class and Phylum?

Schistosoma Japonica Female. Trematoda and platyhelminthes phylum

What is this? Class and Phylum?

Schistosoma Japonica male. Trematoda and platyhelminthes phylum

What is this? Class and Phylum?

Scolex of Tapeworm. Cestoda and Platyhelminthes

individual, self-contained reproductive segments that make up the body (strobila) of an adult tapeworm

Proglottid

What is this? Class and Phylum. Upper arrow? Bottom Arrow?

Mature Proglottids. Cestoda and Platyhelminthes, Uterus. Ovary

What is this?

Ovarian capsules in Taenia pisiformis (tapeworm).

What is this? what is arrow pointing towards?

Gravid Proglottid. Uterus

What is this? What phylum?

Rotifers. Rotifera

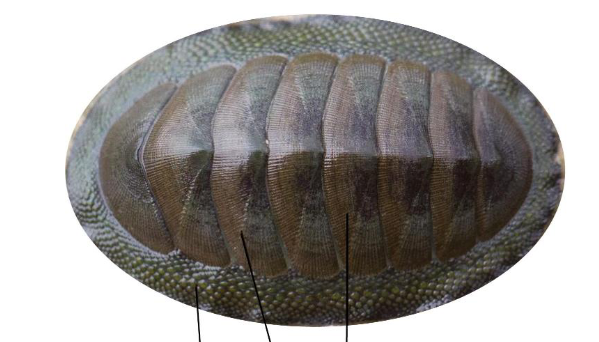

What is this? What phylum and class?

Chiton. Mollusca and Polyplacophora

What is this? Class?

Gastropods. Gastropoda

What is this? Class?

Oyster, Mussel, Lamp Shell. Bivalvia

What is this?

Class Cephalopoda

What is this? Phylum, Class, Subclass?

Clamworm. Annelida, Polychaeta, Errantia

What is this? Phylum, Class, Subclass?

Tube worm. Annelida, Polychaeta, Sedentaria

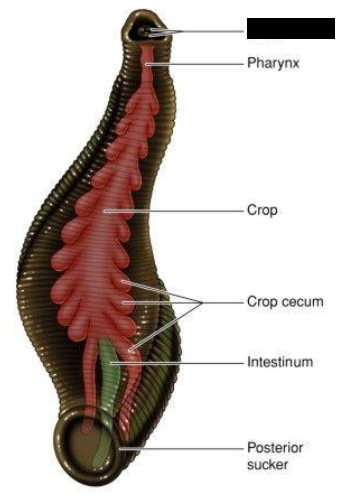

What is this? What is black highlighted portion? Class, Subclass?

Leech, Oral sucker. Clitellata and Hirudinea

What is the name of the bottom sucker of the leech?

caudal sucker

What is in class clitellata and subclass oligochaeta?

Earthworm

What is this? What phylum? What is the hook at the bottom?

Ascaris male. Nematoda. Copulatory spicule

What is this? What phylum?

Ascaris female. Nematoda

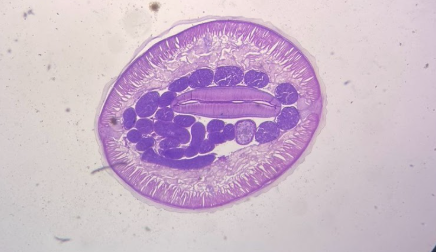

What is this? What are the two balls?

Ascaris female cross section. Uterus

What is this?

Ascaris male cross section

What is this?

vinegar eels

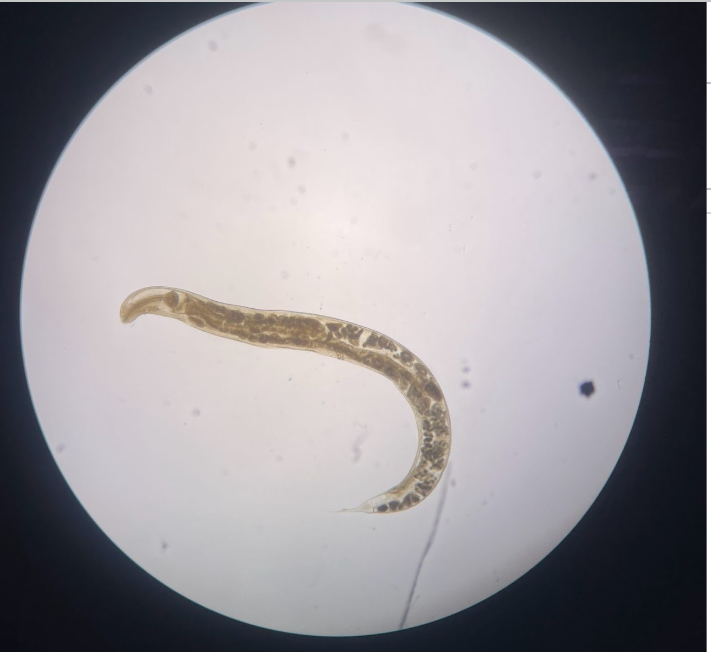

What is this? What phylum?

Nector Americanus. Nematoda

What is this? What phylum?

Enterobius vermicularis pin-worm

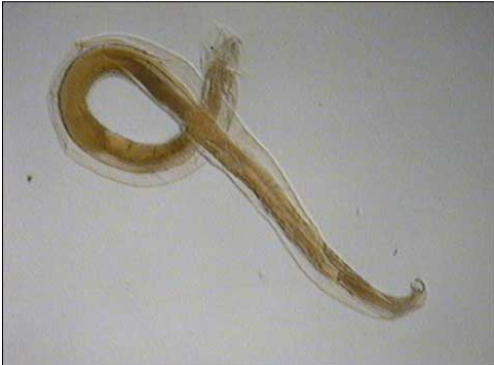

What is this?

Ancylostoma Duodenale. Female is thicker and no end with bristles

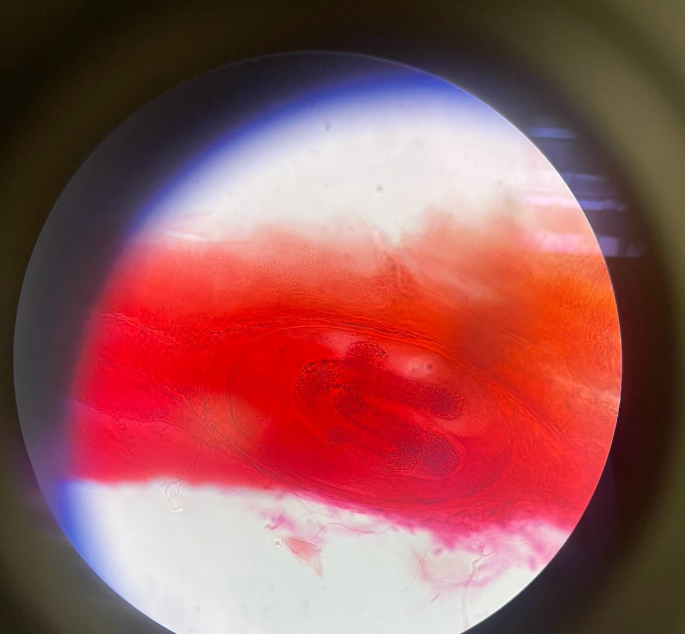

What is this?

Trichenella Spiralis Encysted in muslce

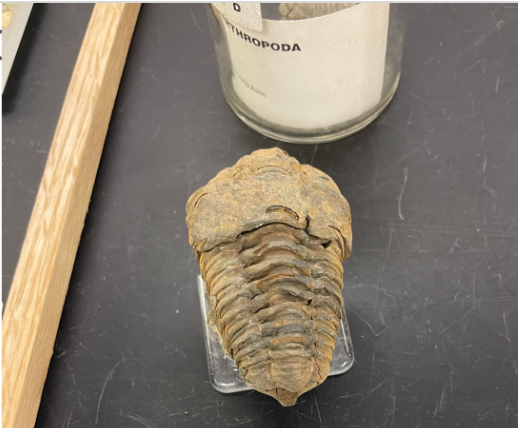

What is this? Phylum and class?

Trilobite. Arthropoda and Trilobita

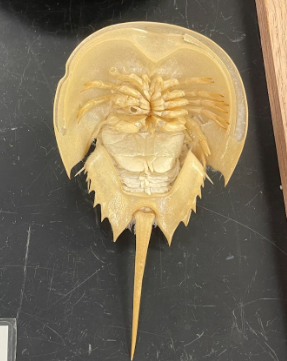

What is this? Phylum, Subphylum, Class?

Horseshoe Crab. Arthropoda, Chelicerata, Merostomata

What is this? Phylum, Subphylum, Class?

Tick. ARTHROPODA, CHELICERATA, ARACHNIDA

What is Phylum, subphylum, class of spiders and scorpions?

ARTHROPODA, CHELICERATA, ARACHNIDA

What phylum and subphylum is mantis shrimp, stone crab, crayfish, and brine shrimp?

Arthropoda and Crustacea

What phylum and subphylum is centipede and millipede?

Arthropoda, Myriapoda

What phylum, subphylum, and class is grasshopper, dragonfly, and honey bee part of?

Arthropoda, hexapoda, insecta

What phylum and class is a sea lily part of?

Echindodermata, Crinoidea

What phylum and class is the Sea Star (Starfish) in?

Echinodermata; Asteroidea

Madreporite in sea star

• A small, round, sieve-like (porous) plate on the aboral surface (top side) of the sea star

• Usually looks lighter in color and slightly off-center from the middle

• tiny, pale, dimpled circle that looks like a little sand dollar texture

Tube Feet in Sea Star

Look along the underside of each arm—you’ll see rows of tiny, squishy tubes sticking out of grooves.

Ambulacral Groove in Sea Star

On the underside of each arm, find the line running down the center—that trench is the groove, and the tube feet sit inside it.

Phylum Nematoda

roundworms

Phylum Arthropoda

Class Trilobita, Subphylum Chelicerata, (Merostomata class (horseshoe crab), Class Arachnida), Subphylum Crustacea, Subphylum Myriapoda (centi/millipedes), Subphylum Hexopoda (class Insecta)

What phylum and class are sand dollars, sea biscuits, and sea urchins part of?

Phylum Echindodermata, Class Echinoidea

What is this? Phylum and class?

Sea Cucumber. Echinodermata, Holothuroidea

What is this? What Class and Phylum?

Brittle Star and Sea Star. Ophiuroidea and Echinodermata

Two Subphylums in Chordata

Cephalochordata and Urochordata

What is 2?

Pharyngeal slits

What is 5?

notochord

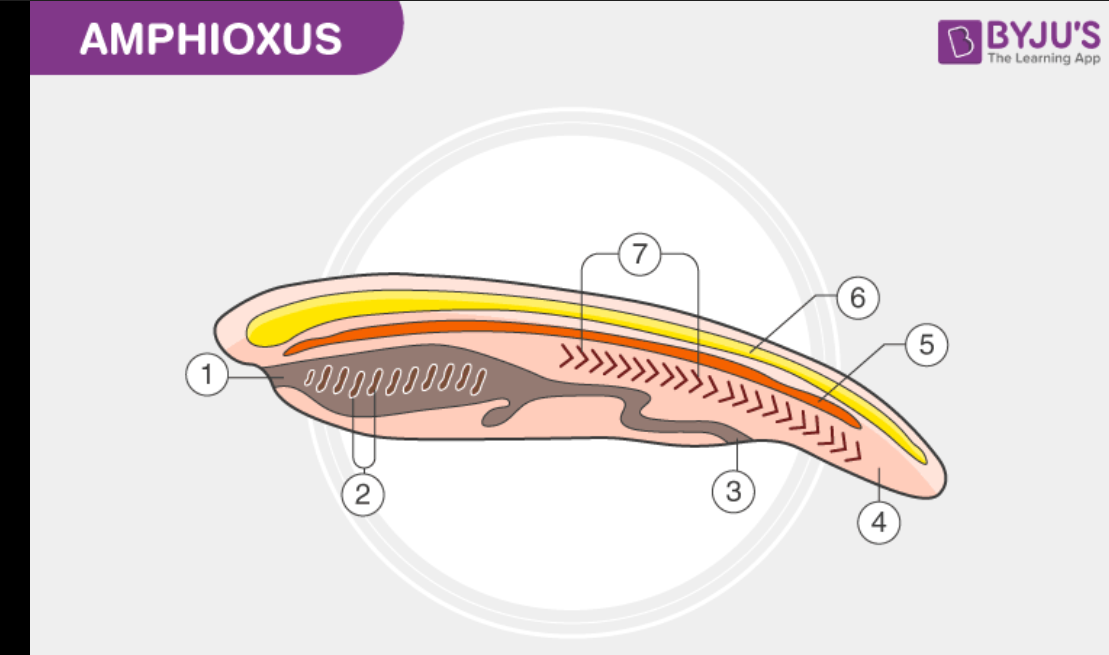

What is 6?

dorsal nerve cord

What Subphylum, Phylum is this part of? What is it?

Urochordata, Chordata. Acidian tadpole

What is this? Subphylum, Phylum?

Ectinascidia middle part. Urochordata, Chordata

What else is in Urochordata subphylum?

Sea Squirts

What class is sea squirts?

Ascidiacians

What Phylum, Subphylum, Superclass, and class are hagfish part of?

Chordata, Vertebrata, Cyclostomata, Myxini

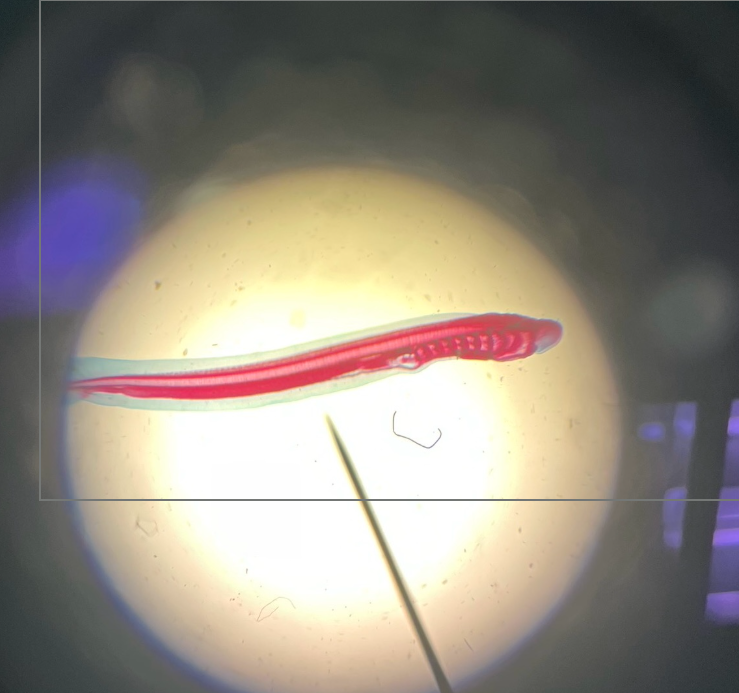

What is this?

Lamprey larva

What Phylum, Subphylum, Superclass, and Class is lamprey part of?

Chordata, Vertebrata, Cyclostomata, Petromyzontida

What phylum, subphylum, and class is dogfish part of?

Chordata, Vertebrata, Chondrichthyes

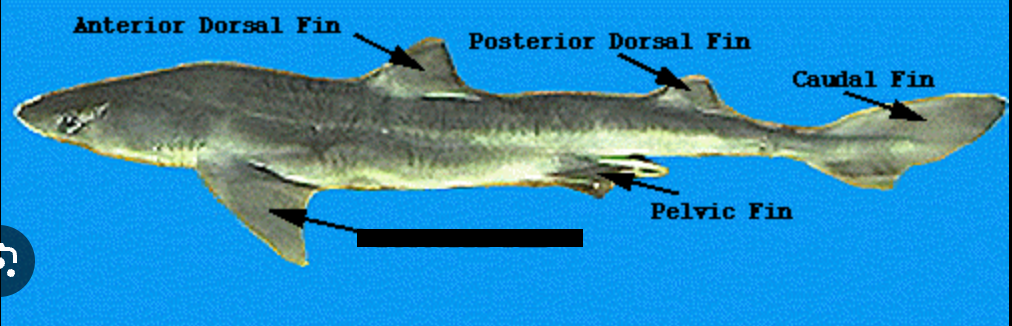

Label the blank

Pectoral Fin

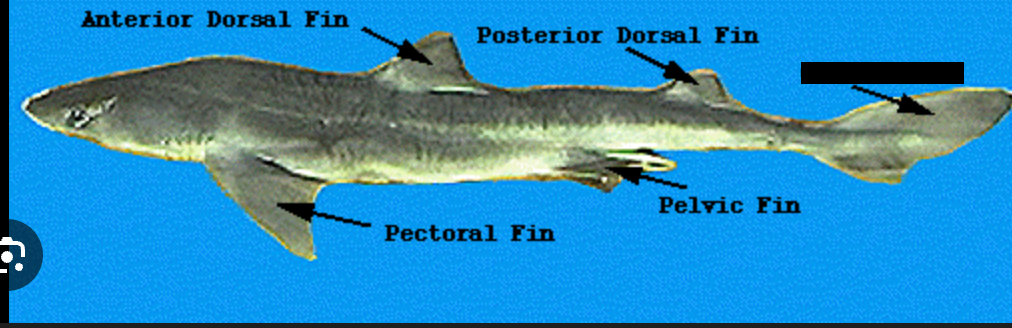

Label

Caudal Fin

What Phylum, Subphylum, Superclass, and Class are coelacanths?

Chordata, Vertebrata, Osteicthyes, Actinistia

What Phylum, Subphylum, Superclass, and Class are lungfish?

Chordata, Vertebrata, Osteicthyes, Dipnoi

What Phylum, Subphylum, Superclass, Class are Bony Fish?

Chordata, Vertebrata, Osteicthyes, Actinopterygii

What Phylum, Subphylum, Class are frogs and salamander?

Chordata, Vertebrata, Amphibia
